HYDRAULIC LINE
PS-41
C
D
E
F
H
I
J
K
L
MA
B
PS
REMOVAL AND INSTALLATION

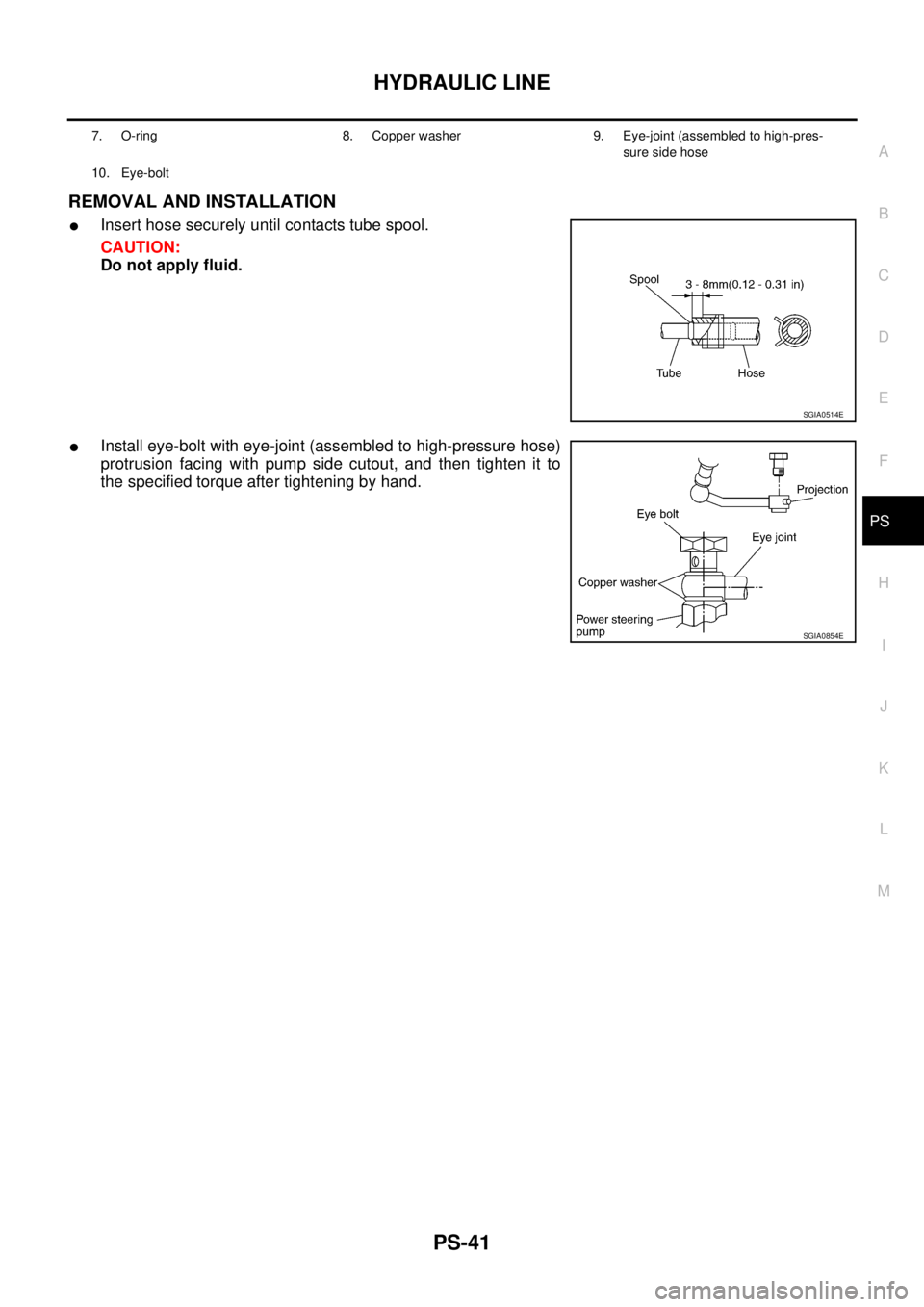

Insert hose securely until contacts tube spool.
CAUTION:
Do not apply fluid.
Install eye-bolt with eye-joint (assembled to high-pressure hose)
protrusion facing with pump side cutout, and then tighten it to
the specified torque after tightening by hand.
7. O-ring 8. Copper washer 9. Eye-joint (assembled to high-pres-
sure side hose
10. Eye-bolt
SGIA0514E
SGIA0854E
Page 2978 of 4179

PS-42
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
WheelEGS0004P
Steering AngleEGS0004Q
Steering ColumnEGS0004R
Steering LinkageEGS0004S
Steering wheel axial endplay: 0 mm (0 in)
Steering wheel free play 0 - 35 mm (0 - 1.38 in)
Inner wheel Minimum 36°
Nominal 39°
Maximum 40°
Outer wheel31°
Steering column length L 543 mm (21.38 in)
STC1136D
Steering gear type PR24AD
Tie rod ball joint outer
socketSwing torque 0.30 - 2.94 N·m (0.03 - 0.30 kg-m, 3 - 26 in-lb)
Measurement on spring balance
(Measuring point: stud bolt hole)4.84 - 47.4 N (0.49 - 4.84 kg, 1.08 - 10.7 lb)
Rotating torque 0.30 - 2.94 N·m (0.03 - 0.30 kg-m, 3 - 26 in-lb)
Axial endplay 0.5 mm (0.02 in) or less
Tie rod ball joint inner
socketSwing torque 1.0 - 7.8 N·m (0.1 - 0.8 kg-m, 9 - 69 in-lb)
Measured value of spring scale (measuring
point: mark)5.2 - 41 N (0.53 - 4.1 kg, 1.17 - 9.07 lb)
Axial endplay 0.2 mm (0.008 in) or less
Tie rod length “L”169.67 mm (6.68 in)
SGIA0462E
Page 2979 of 4179

SERVICE DATA AND SPECIFICATIONS (SDS)
PS-43
C
D
E
F
H
I
J
K
L
MA
B
PS
Steering GearEGS0004T
Oil PumpEGS0004U
Steering FluidEGS0004V
Steering gear model PR24AD
Rack neutral position,
dimension (L)66.5 mm (2.618 in)
Retainer adjustmentAdjusting screw lock nut tightening torque 39 - 59 N·m (4.0 - 6.0 kg-m, 29 - 43 ft-lb)
Primary Adjusting screw tightening torque 4.9 - 5.9 N·m (0.5 - 0.6 kg-m, 44 - 52 in-lb)
Re-tightening torque after tightened 4.9 - 5.9 N·m (0.5 - 0.6 kg-m, 44 - 52 in-lb)
Loosen the adjusting screws. 60 - 80°
Rack sliding torque:Range within ±11.5 mm from
neutral position
(Power ON)Area average value1.67 - 2.25 N·m (0.17 - 0.22 kg-m, 1.3 - 1.6
ft-lb)
Allowable variation 0.98 N·m (0.10 kg-m, 1 ft-lb) or less
Whole area (at power OFF)Peak value 2.94 N· m (0.30 kg-m, 2 ft-lb) or less
Allowable variation 1.47 N ·m (0.15 kg-m, 1 ft-lb) or less
SGIA0463E
Oil pump relief hydraulic pressure
8,000 - 8,800 (81.4 - 87.3 bar, 83 - 89 kg/cm2 , 1,180 - 1,266 psi)
Fluid capacity
Approx. 1.0 (7/8 lmp qt)
Page 2980 of 4179
PS-44
SERVICE DATA AND SPECIFICATIONS (SDS)
Page 2981 of 4179

SB-1
SEAT BELTS
H RESTRAINTS
CONTENTS
C
D
E
F
G
I
J
K
L
M
SECTION
A
B
SB
SEAT BELTS
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precaution for Seat Belt Service .............................. 2
AFTER A COLLISION ........................................... 2
SEAT BELTS .............................................................. 3
Removal and Installation of Front Seat Belt ............. 3
REMOVAL ............................................................. 3
INSTALLATION ..................................................... 3
Removal and Installation of Rear Seat Belt ............. 4
REMOVAL/WITH 2-POINT TYPE REAR CEN-
TER SEAT BELT ................................................... 4
INSTALLATION/WITH 2-POINT TYPE REAR
CENTER SEAT BELT ........................................... 4
REMOVAL/WITH 3-POINT TYPE REAR CEN-
TER SEAT BELT ................................................... 4
INSTALLATION /WITH 3-POINT TYPE REAR
CENTER SEAT BELT ........................................... 5
SEAT BELT WARNING SYSTEM ............................... 6
Component Parts and Harness Connector Location ..... 6System Description ................................................... 6
SEAT BELT OPERATION ...................................... 6
SEAT BELT WARNING CHIME AND SEAT BELT
WARNING LAMP .................................................. 7
Time Chart for Seat Belt Warning Lamp and Chime ..... 7
Schematic ................................................................. 8
Wiring Diagram —S/WARN—/For LHD models ....... 9
Wiring Diagram —S/WARN—/For RHD models ..... 12
Terminal and Reference Value for Time Control Unit ... 15
Work Flow ............................................................... 16
Trouble Diagnosis Chart by Symptom .................... 16
Time Control Unit Power Supply and Ground Circuit
Check ..................................................................... 16
Seat Belt Warning Lamp Power Supply Check ...... 17
Seat Belt Warning Lamp Check (Driver side) ......... 17
Seat belt Warning Lamp Check (Passenger Side) ... 19
Seat Belt Buckle Switch Check .............................. 20
Seat Belt Buckle Switch and Seat Pressure Switch
Check ..................................................................... 22
Vehicle Speed Signal Inspection ............................ 24
Page 2982 of 4179

SB-2
PRECAUTIONS
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EHS000MW
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precaution for Seat Belt ServiceEHS000BE
CAUTION:
Before removing the seat belt pre-tensioner assembly, turn the ignition switch off, disconnect
both battery cables and wait at least 3 minutes.
Do not use electrical test equipment for seat belt pre-tensioner connector.
After replacing or reinstalling seat belt pre-tensioner assembly, or reconnecting seat belt pre-ten-
sioner connector, check the system function. Refer to SRS-17, "
SRS Operation Check" .
Do not use disassemble buckle or seat belt assembly.
Replace anchor bolts if they are deformed or worn out.
Never oil tongue and buckle.
If any component of seat belt assembly is questionable, do not repair. Replace the whole seat belt
assembly.
If webbing is cut, frayed, or damaged, replace seat belt assembly.
When replacing seat belt assembly, use a genuine seat belt assembly.
AFTER A COLLISION
WARNING:
Inspect all seat belt assemblies including retractors and attaching hardware after any collision.
NISSAN recommends that all seat belt assemblies in use during a collision be replaced unless the col-
lision was minor and the belts show no damage and continue to operate properly. Failure to do so
could result in serious personal injury in an accident. Seat belt assemblies not in use during a colli-
sion should also be replaced if either damage or improper operation is noted. Seat belt pre-tensioner
should be replaced even if the seat belts are not in use during a frontal collision in which the air bags
are deployed.
Replace any seat belt assembly (including anchor bolts) if:
The seat belt was in use at the time of a collision (except for minor collisions and the belts, retractors and
buckles show no damage and continue to operate properly).
The seat belt was damaged in an accident. (i.e. torn webbing, bent retractor or guide, etc.)
The seat belt attaching point was damaged in an accident. Inspect the seat belt attaching area for damage
or distortion and repair as necessary before installing a new seat belt assembly.
Anchor bolts are deformed or worn out.
The seat belt pre-tensioner should be replaced even if the seat belts are not in use during the collision in
which the air bags are deployed.
Page 2983 of 4179
SEAT BELTS
SB-3
C
D
E
F
G
I
J
K
L
MA
B
SB
SEAT BELTSPFP:86884
Removal and Installation of Front Seat BeltEHS0005W
CAUTION:
Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3
minutes.
REMOVAL

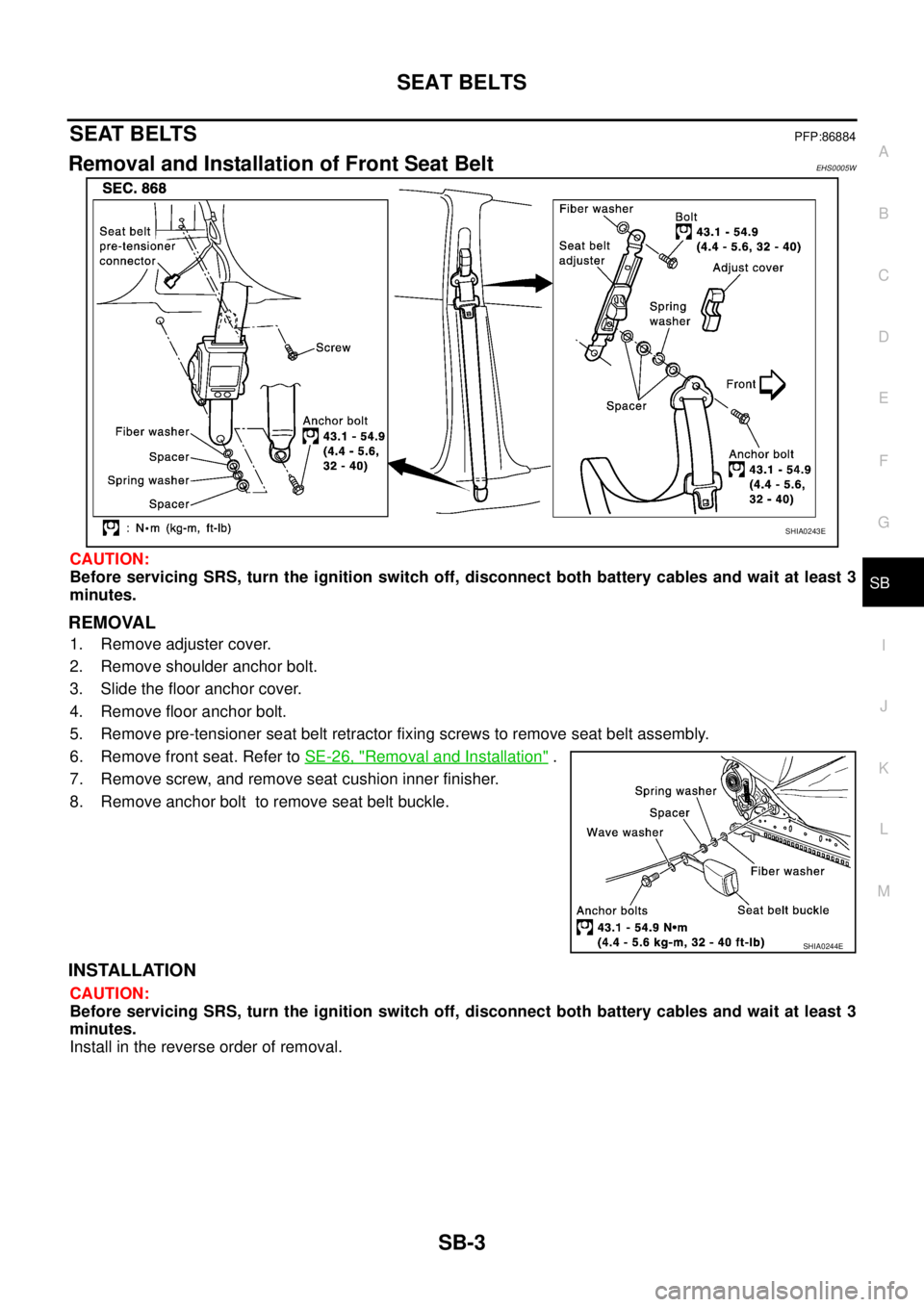

1. Remove adjuster cover.
2. Remove shoulder anchor bolt.
3. Slide the floor anchor cover.
4. Remove floor anchor bolt.
5. Remove pre-tensioner seat belt retractor fixing screws to remove seat belt assembly.
6. Remove front seat. Refer to SE-26, "
Removal and Installation" .
7. Remove screw, and remove seat cushion inner finisher.
8. Remove anchor bolt to remove seat belt buckle.
INSTALLATION
CAUTION:
Before servicing SRS, turn the ignition switch off, disconnect both battery cables and wait at least 3
minutes.
Install in the reverse order of removal.
SHIA0243E
SHIA0244E
Page 2984 of 4179
SB-4
SEAT BELTS
Removal and Installation of Rear Seat BeltEHS0005X
REMOVAL/WITH 2-POINT TYPE REAR CENTER SEAT BELT
1. Fold rear seat cushion up.
2. Remove luggage side lower finisher. Refer to EI-35, "
Removal and Installation" .
3. Remove outer anchor and floor anchor bolts.
4. Remove anchor bolts securing seat belt retractor. Remove seat belt assembly.
INSTALLATION/WITH 2-POINT TYPE REAR CENTER SEAT BELT
Install in the reverse order of removal.

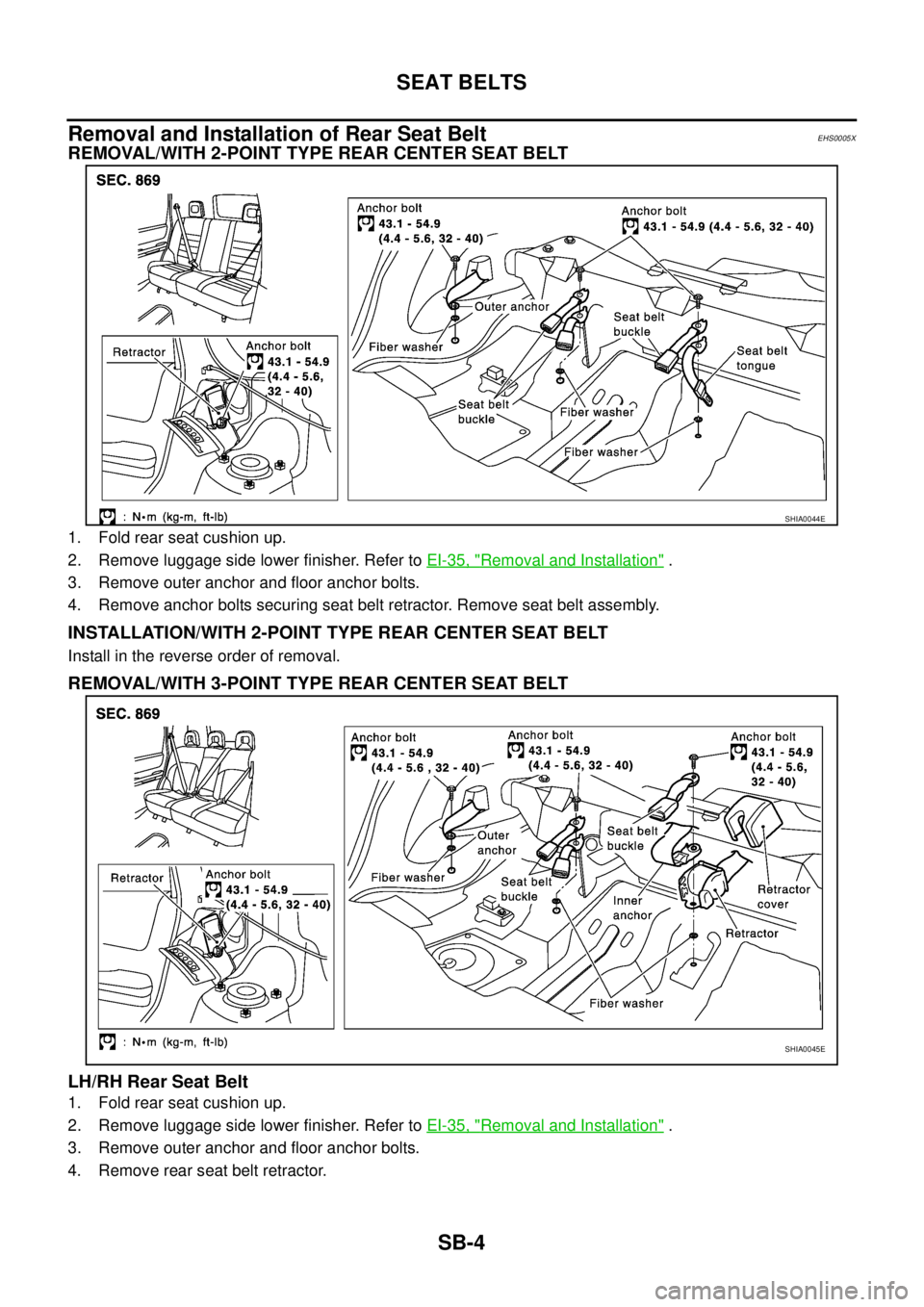

REMOVAL/WITH 3-POINT TYPE REAR CENTER SEAT BELT
LH/RH Rear Seat Belt
1. Fold rear seat cushion up.
2. Remove luggage side lower finisher. Refer to EI-35, "
Removal and Installation" .
3. Remove outer anchor and floor anchor bolts.
4. Remove rear seat belt retractor.
SHIA0044E
SHIA0045E
