PREPARATION
MT-5
D
E
F
G
H
I
J
K
L
MA
B
MT
ST33052000
Drift
a: 22 mm (0.87 in) dia.
b: 28 mm (1.10 in) dia.Welch plug installation
Input shaft rear bearing removal
Input shaft bearing spacer and 5th stopper
removal (RS5F51A)
5th input gear bushing, thrust washer, 4th
input gear, 4th gear bushing, 3rd-4th
synchronizer hub assembly and 3rd input
gear removal
Input shaft front bearing installation
6th input gear and 6th input gear bushing
removal (RS6F51A)
Mainshaft rear bearing removal
4th main gear and 5th main gear removal
6th main gear removal (RS6F51A)
KV40105020
Drift
a: 39.7 mm (1.563 in) dia.
b: 35 mm (1.38 in) dia.
c: 15 mm (0.59 in)
5th input gear and 5th synchronizer hub
assembly removal
3rd main gear, 2nd main gear, 2nd main
gear bushing, 1st-2nd synchronizer hub
assembly, 1st main gear, reverse main gear
and 1st main gear bushing removal
KV40105710
Press stand
a: 46 mm (1.81 in) dia.
b: 41 mm (1.61 in)
3rd-4th synchronizer hub assembly
installation
4th input gear bushing installation
5th input gear bushing installation
5th synchronizer hub assembly installation
(RS5F51A)
5th-6th synchronizer hub assembly
installation (RS6F51A)
2nd main gear bushing installation
3rd main gear installation
ST38220000
Press stand
a: 63 mm (2.48 in) dia.
b: 65 mm (2.56 in)
Reverse main gear installation
1st main gear bushing installation
1st-2nd synchronizer hub assembly
installation
ST30032000
Drift
a: 80 mm (3.15 in) dia.
b: 38 mm (1.50 in) dia.
c: 31 mm (1.22 in) dia.
5th stopper and input shaft bearing spacer
installation (RS5F51A)
Input shaft front bearing installation
ST30901000
Drift
a: 79 mm (3.11 in) dia.
b: 45 mm (1.77 in) dia.
c: 35.2 mm (1.386 in) dia.
Input shaft rear bearing installation
4th main gear installation
5th main gear installation
6th main gear installation (RS6F51A)
Mainshaft rear bearing installation Tool number
Tool nameDescription
ZZA1023D
ZZA1133D
ZZA1058D
ZZA1058D
ZZA0978D
ZZA0978D
Page 1938 of 4179
MT-6
PREPARATION
Commercial Service ToolsECS008BO
ST30031000
PullerMeasuring wear of inner baulk ring
KV40101630
Drift
a: 68 mm (2.68 in) dia.
b: 60 mm (2.36 in) dia.Reverse main gear installation
KV38102510
Drift
a: 71 mm (2.80 in) dia.
b: 65 mm (2.56 in) dia.
1st main gear bushing installation
1st-2nd synchronizer hub assembly
installation
Differential side bearing (transaxle case
side) installation
KV40104830
Drift
a: 70 mm (2.76 in) dia.
b: 63.5 mm (2.500 in) dia.Differential side bearing (clutch housing side)
installation
ST15243000
Drift
a: φ 30mmMeasuring end play of side gear Tool number
Tool nameDescription
ZZA0537D
ZZA1003D
ZZA0838D
ZZA0936D
SCIA1088J
Tool nameDescription
PullerEach bearing, gear and bushing removal
ZZA0537D
Page 1939 of 4179
PREPARATION
MT-7
D
E
F
G
H
I
J
K
L
MA
B
MT
PullerEach bearing, gear and bushing removal
Pin punch
Tip diameter: 4.5 mm (0.177 in) dia.Each retaining pin removal and installation Tool nameDescription
NT077
ZZA0815D
Page 1940 of 4179

MT-8
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGPFP:00003
NVH Troubleshooting ChartECS008BP
Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec-
tion. If necessary, repair or replace these parts.
MANUAL TRANSAXLE
Reference pageMA-37
MT-19
(RS5F51A), MT-24
(RS6F51A)
MT-19
(RS5F51A), MT-24
(RS6F51A)
MT-19
(RS5F51A), MT-24
(RS6F51A)
MT-14
MT-22
(RS5F51A), MT-27
(RS6F51A)
MT-22
(RS5F51A), MT-27
(RS6F51A)
MT-20
(RS5F51A), MT-25
(RS6F51A)
MT-20
(RS5F51A), MT-25
(RS6F51A)
MT-20
(RS5F51A), MT-25
(RS6F51A)
MT-20
(RS5F51A), MT-25
(RS6F51A)
SUSPECTED PARTS
(Possible cause)
OIL (Oil level is low.)
OIL (Wrong oil.)
OIL (Oil level is high.)
GASKET (Damaged)
OIL SEAL (Worn or damaged)
O-RING (Worn or damaged)
SHIFT CONTROL LINKAGE (Worn)
CHECK PLUG RETURN SPRING AND CHECK BALL (Worn or damaged)
SHIFT FORK (Worn)
GEAR (Worn or damaged)
BEARING (Worn or damaged)
BAULK RING (Worn or damaged)
INSERT SPRING (Damaged)
SymptomsNoise 1 2 3 3
Oil leakage 31222
Hard to shift or will not shift 1 1 2 3 3
Jumps out of gear 1 2 3 3
Page 1941 of 4179

DESCRIPTION
MT-9
D
E
F
G
H
I
J
K
L
MA
B
MT
DESCRIPTIONPFP:00000

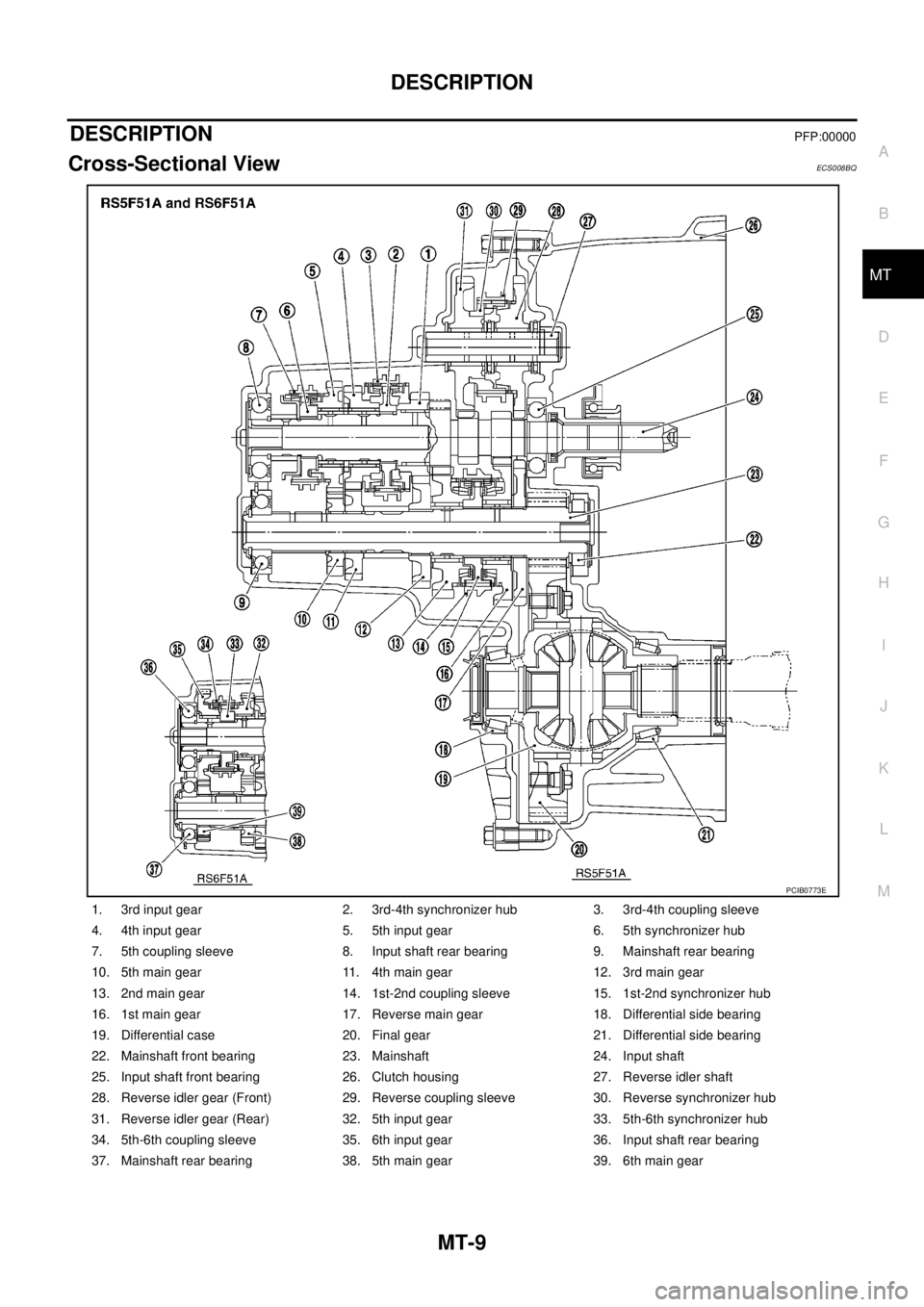

Cross-Sectional ViewECS008BQ
1. 3rd input gear 2. 3rd-4th synchronizer hub 3. 3rd-4th coupling sleeve
4. 4th input gear 5. 5th input gear 6. 5th synchronizer hub
7. 5th coupling sleeve 8. Input shaft rear bearing 9. Mainshaft rear bearing
10. 5th main gear 11. 4th main gear 12. 3rd main gear
13. 2nd main gear 14. 1st-2nd coupling sleeve 15. 1st-2nd synchronizer hub
16. 1st main gear 17. Reverse main gear 18. Differential side bearing
19. Differential case 20. Final gear 21. Differential side bearing
22. Mainshaft front bearing 23. Mainshaft 24. Input shaft
25. Input shaft front bearing 26. Clutch housing 27. Reverse idler shaft
28. Reverse idler gear (Front) 29. Reverse coupling sleeve 30. Reverse synchronizer hub
31. Reverse idler gear (Rear) 32. 5th input gear 33. 5th-6th synchronizer hub
34. 5th-6th coupling sleeve 35. 6th input gear 36. Input shaft rear bearing
37. Mainshaft rear bearing 38. 5th main gear 39. 6th main gear
PCIB0773E
Page 1942 of 4179
MT-10
DESCRIPTION

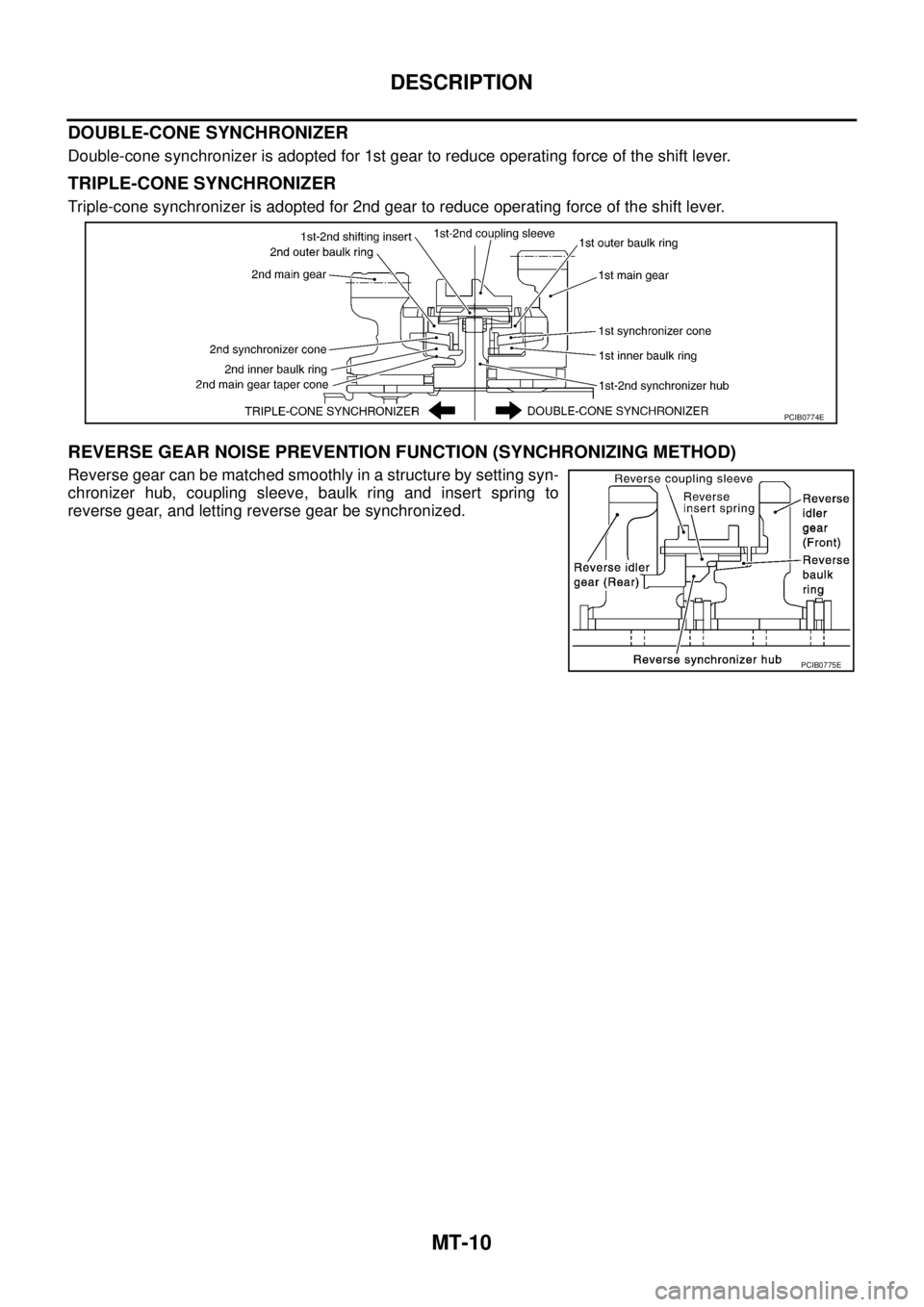

DOUBLE-CONE SYNCHRONIZER
