The Fuel Gauge Pointer Fluctuates, Indicator Wrong Value or VariesEKS00EHG
1. CHECK FUEL GAUGE FLUCTUATION
Test drive vehicle to see if gauge fluctuates only during driving and just before or soon after stopping.
Does the indication value vary only during driving and just before or soon after stopping?
YES >> The pointer fluctuation may be caused by fuel level change in the fuel tank. Condition is normal.
NO >> Ask the customer about the situation when the symptom occurs in detail, and perform the trouble
diagnosis.
The Fuel Gauge Does Not Move to FULL positionEKS00EHH
1. QUESTION 1
Does it take a long time for the pointer to move to FULL position?
YES or NO
YES >> GO TO 2.
NO >> GO TO 3.
2. QUESTION 2
Was the vehicle fueled with the ignition switch ON?
YES or NO
YES >> Be sure to fuel the vehicle with the ignition switch OFF. Otherwise, it will take a long time to move
to FULL position because of the characteristic of the fuel gauge.
NO >> GO TO 3.
3. QUESTION 3
Is the vehicle parked on an incline?
YES or NO
YES >> Check the fuel level indication with vehicle on a level surface.
NO >> GO TO 4.
4. QUESTION 4
During driving, does the fuel gauge pointer move gradually toward EMPTY position?
YES or NO
YES >> Check fuel level sensor unit. Refer to DI-30, "FUEL LEVEL SENSOR UNIT CHECK/GASOLINE
ENGINE MODELS" or DI-30, "FUEL LEVEL SENSOR UNIT CHECK/DIESEL ENGINE MOD-
ELS" .
NO >> The float arm may interfere or bind with any of the components in the fuel tank.
Page 3706 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DI-28
COMBINATION METERS
Ambient Temperature Inspection [Without Auto A/C] EKS00EJ6
1. CHECK VOLTAGE BETWEEN AMBIENT SENSOR HARNESS CONNECTOR AND GROUND
1. Turn the ignition switch OFF.
2. Disconnec NISSAN X-TRAIL 2003 Service Repair Manual DI-28
COMBINATION METERS
Ambient Temperature Inspection [Without Auto A/C] EKS00EJ6
1. CHECK VOLTAGE BETWEEN AMBIENT SENSOR HARNESS CONNECTOR AND GROUND
1. Turn the ignition switch OFF.
2. Disconnec](/manual-img/5/57404/w960_57404-3705.png)
DI-28
COMBINATION METERS
Ambient Temperature Inspection [Without Auto A/C] EKS00EJ6
1. CHECK VOLTAGE BETWEEN AMBIENT SENSOR HARNESS CONNECTOR AND GROUND
1. Turn the ignition switch OFF.
2. Disconnect ambient sensor harness connector.
3. Turn the ignition switch ON.
4. Check voltage between ambient sensor harness connector E38
terminal 1 (R/B) and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 4.
2. CHECK AMBIENT SENSOR CIRCUIT BETWEEN AMBIENT SENSOR AND COMBINATION METER
1. Turn the ignition switch OFF.
2. Disconnect combination meter connector.
3. Check continuity between combination meter harness connector
M44 terminal 28 (B/Y) and ambient sensor harness connector
E38 terminal 2 (B/Y).
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK AMBIENT SENSOR
Check ambient sensor. Refer to DI-31, "
AMBIENT SENSOR CHECK" .
OK or NG
OK >> Replace combination meter.
NG >> Replace ambient sensor.
4. CHECK AMBIENT SENSOR CIRCUIT BETWEEN AMBIENT SENSOR AND COMBINATION METER
1. Turn the ignition switch OFF.
2. Disconnect combination meter connector.
3. Check continuity between combination meter harness connector
M44 terminal 27 (R/B) and ambient sensor connector E38 termi-
nal 1 (R/B).
4. Check continuity between combination meter harness connector
M44 terminal 27 (R/B) and ground.
OK or NG
OK >> Replace combination.
NG >> Repair harness or connector.Approx. 5 V
SKIA9198E
Continuity should exist.
SKIA9134E
Continuity should exist.
Continuity should not exist.
SKIA9135E
Page 3707 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual COMBINATION METERS
DI-29
C
D
E
F
G
H
I
J
L
MA
B
DI
Ambient Temperature Inspection [With Auto A/C]EKS00EJ7
1. CHECK VAC INPUT
1. Turn the ignition switch OFF.
2. Disconnect combination meter connecto NISSAN X-TRAIL 2003 Service Repair Manual COMBINATION METERS
DI-29
C
D
E
F
G
H
I
J
L
MA
B
DI
Ambient Temperature Inspection [With Auto A/C]EKS00EJ7
1. CHECK VAC INPUT
1. Turn the ignition switch OFF.
2. Disconnect combination meter connecto](/manual-img/5/57404/w960_57404-3706.png)
COMBINATION METERS
DI-29
C
D
E
F
G
H
I
J
L
MA
B
DI
Ambient Temperature Inspection [With Auto A/C]EKS00EJ7
1. CHECK VAC INPUT
1. Turn the ignition switch OFF.
2. Disconnect combination meter connector.
3. Turn the ignition switch ON.
4. Check voltage between combination meter harness connector
M44 terminal 29 (Y) and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. CHECK VAC CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect auto amp connector.
3. Check continuity between combination meter harness connector
M44 terminal 29 (Y) and auto amp. harness connector M53 ter-
minal 28(Y).
4. Check continuity between connector M44 terminal 29 (Y) and
ground.
OK or NG
OK >> Replace auto amp.
NG >> Repair harness or connector.
3. CHECK AMBIENT SENSOR BETWEEN AMBIENT SENSOR AND COMBINATION METER CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect ambient sensor connector.
3. Check continuity between combination meter harness connector
M44 terminal 27 (R/B) and ambient sensor connector E38 termi-
nal 1 (R/B).
4. Check continuity between combination meter harness connector
M44 terminal 27 (R/B) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK AUTO AMP CIRCUIT
Check auto amp circuit. Refer to ATC-109, "
Ambient Sensor Circuit" .
OK or NG
OK >> Replace combination meter.
NG >> Repair applicable parts.Approx. 5 V
SKIA9136E
Continuity should exist.
Continuity should not exist.
SKIA9137E
Continuity should exist.
Continuity should not exist.
SKIA9135E
Page 3708 of 4179

DI-30
COMBINATION METERS
Electrical Components InspectionEKS00INH
FUEL LEVEL SENSOR UNIT CHECK/GASOLINE ENGINE MODELS
For removal, refer to FL-4, "FUEL LEVEL SENSOR UNIT, FUEL FILTER AND FUEL PUMP ASSEMBLY" for
Gasoline engine models.
Fuel level sensor unit
Check the resistance between terminals 1 and 4.
*1 and *2: When float rod is in contact with stopper.
Sub fuel level sensor unit
Check the resistance between terminals 1 and 3.
*1 and *2: When float rod is in contact with stopper.
FUEL LEVEL SENSOR UNIT CHECK/DIESEL ENGINE MODELS
For removal, refer to FL-19, "FUEL LEVEL SENSOR UNIT" for Diesel engine models.
Fuel level sensor unit
Check the resistance between terminals 1 and 4.
*1 and *2: When float rod is in contact with stopper.
Sub fuel level sensor unit
Check the resistance between terminals 1 and 3.
*1 and *2: When float rod is in contact with stopper.Ohmmeter
Float position mm (in) Resistance valueΩ
(+) (−)
41*1 Full 24 (2.36) Approx. 5
*2 Empty 167 (6.57) Approx. 80
SKIA0904E
Ohmmeter
Float position mm (in) Resistance valueΩ
(+) (−)
13*1 Full 35 (1.50) Approx. 1
*2 Empty 186 (6.38) Approx. 40
SKIA1032E
Ohmmeter
Float position mm (in) Resistance valueΩ
(+) (−)
14*1 Full 24 (0.94) Approx. 5
*2 Empty 170 (6.69) Approx. 80
SKIA0909E
Ohmmeter
Float position mm (in) Resistance valueΩ
(+) (−)
13*1 Full 34 (1.34) Approx. 1
*2 Empty 186 (7.32) Approx. 40
SKIA0910E
Page 3709 of 4179
COMBINATION METERS
DI-31
C
D
E
F
G
H
I
J
L
MA
B
DI
AMBIENT SENSOR CHECK
Ambient Sensor
After disconnecting ambient sensor harness connector, measure
resistance between terminals 2 and 1 at sensor harness side, using
the table below.
If NG, replace ambient sensor.
Removal and Installation for Combination MeterEKS00EHJ
REMOVAL
1. Remove the cluster lid A. Refer to IP-10, "INSTRUMENT
PANEL ASSEMBLY" .
2. Remove the screws (4), and pull out combination meter.
3. Disconnect connectors and remove combination meter.
INSTALLATION
Installation is the reverse order of removal.
Temperature °C (°F) Resistance kΩ
-15 (5) 12.73
-10 (14) 9.92
-5 (23) 7.80
0 (32) 6.19
5 (41) 4.95
10 (50) 3.99
15 (59) 3.24
20 (68) 2.65
25 (77) 2.19
30 (86) 1.81
35 (95) 1.51
40 (104) 1.27
45 (113) 1.07
RJIA0684E
SKIA8927E
Page 3710 of 4179
DI-32
COMBINATION METERS
Disassembly and Assembly for Combination MeterEKS00EHK
DISASSEMBLY
1. Disengaged the tabs (8) to separate front cover.
2. Disengaged the tabs (8) to separate upper housing.
3. Disengaged the tabs (8) to separate meter cover.
ASSEMBLY
Assembly is the reverse order of disassembly.
1. Front cover 2. Upper housing 3. Unified meter control unit assembly
4. Meter cover
SKIA7344J
Page 3711 of 4179
WARNING LAMPS
DI-33
C
D
E
F
G
H
I
J
L
MA
B
DI
WARNING LAMPSPFP:24814

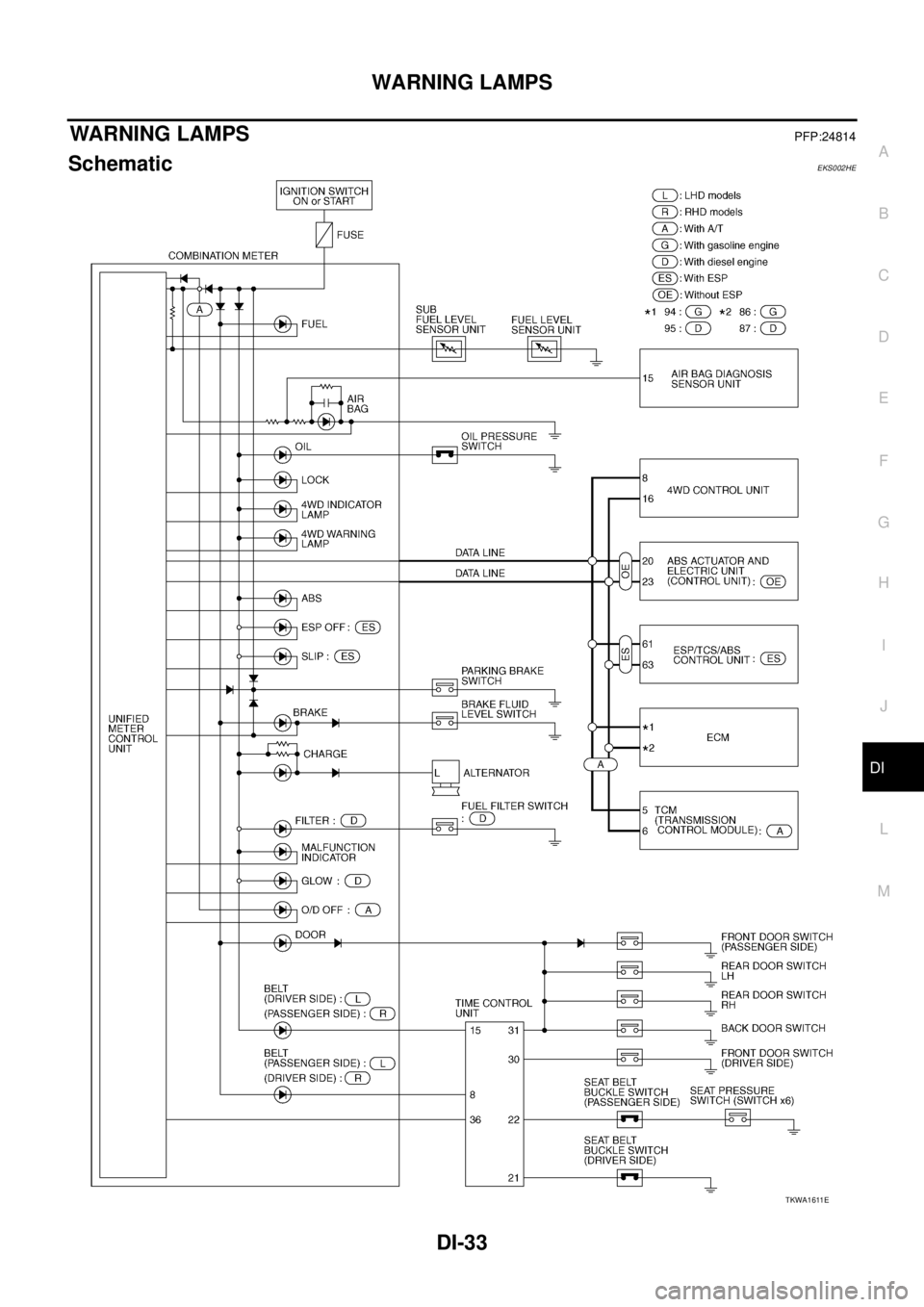

SchematicEKS002HE
TKWA1611E
Page 3712 of 4179
DI-34
WARNING LAMPS

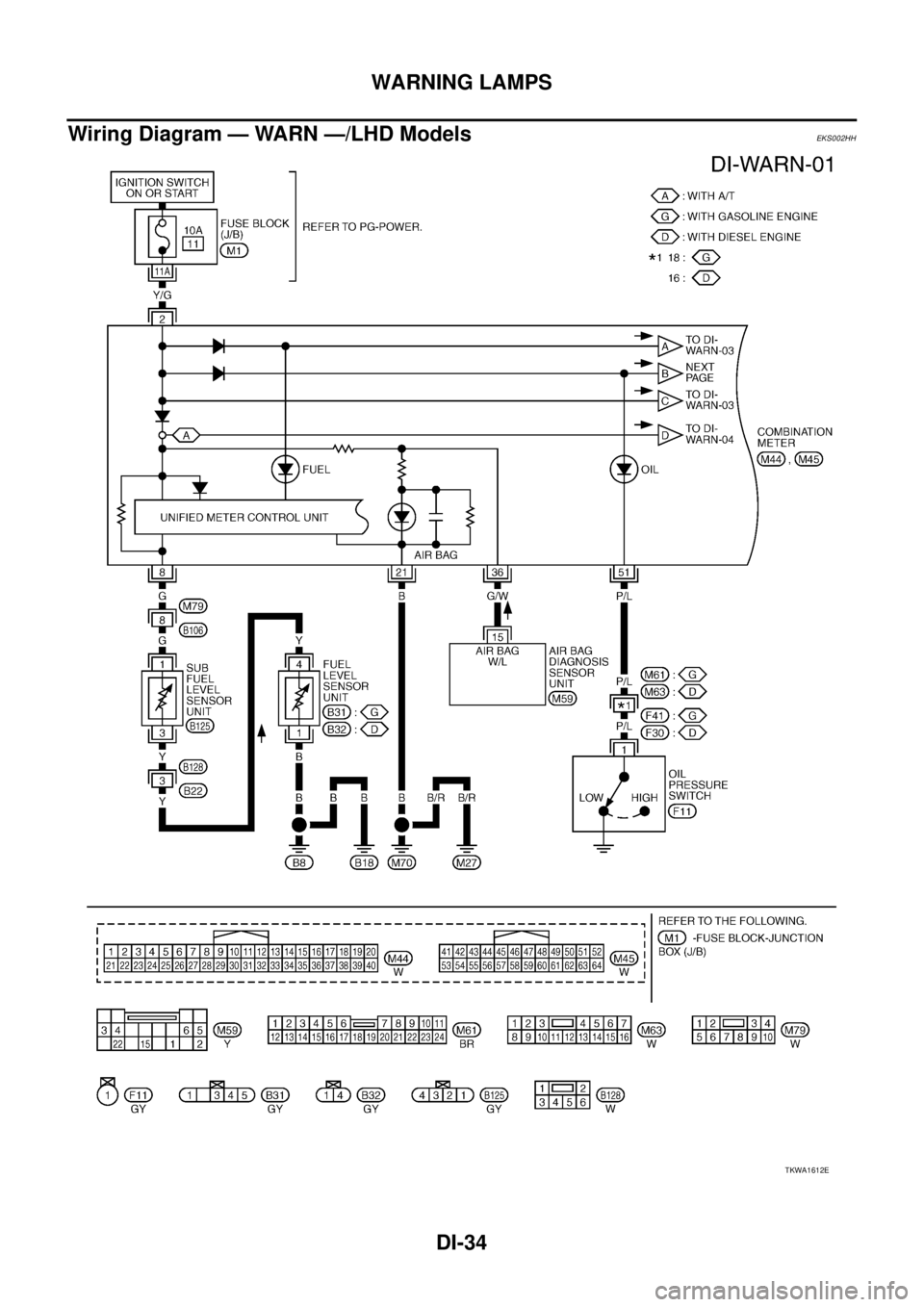

Wiring Diagram — WARN —/LHD ModelsEKS002HH
