Page 1161 of 4179
IAT SENSOR
EC-783
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

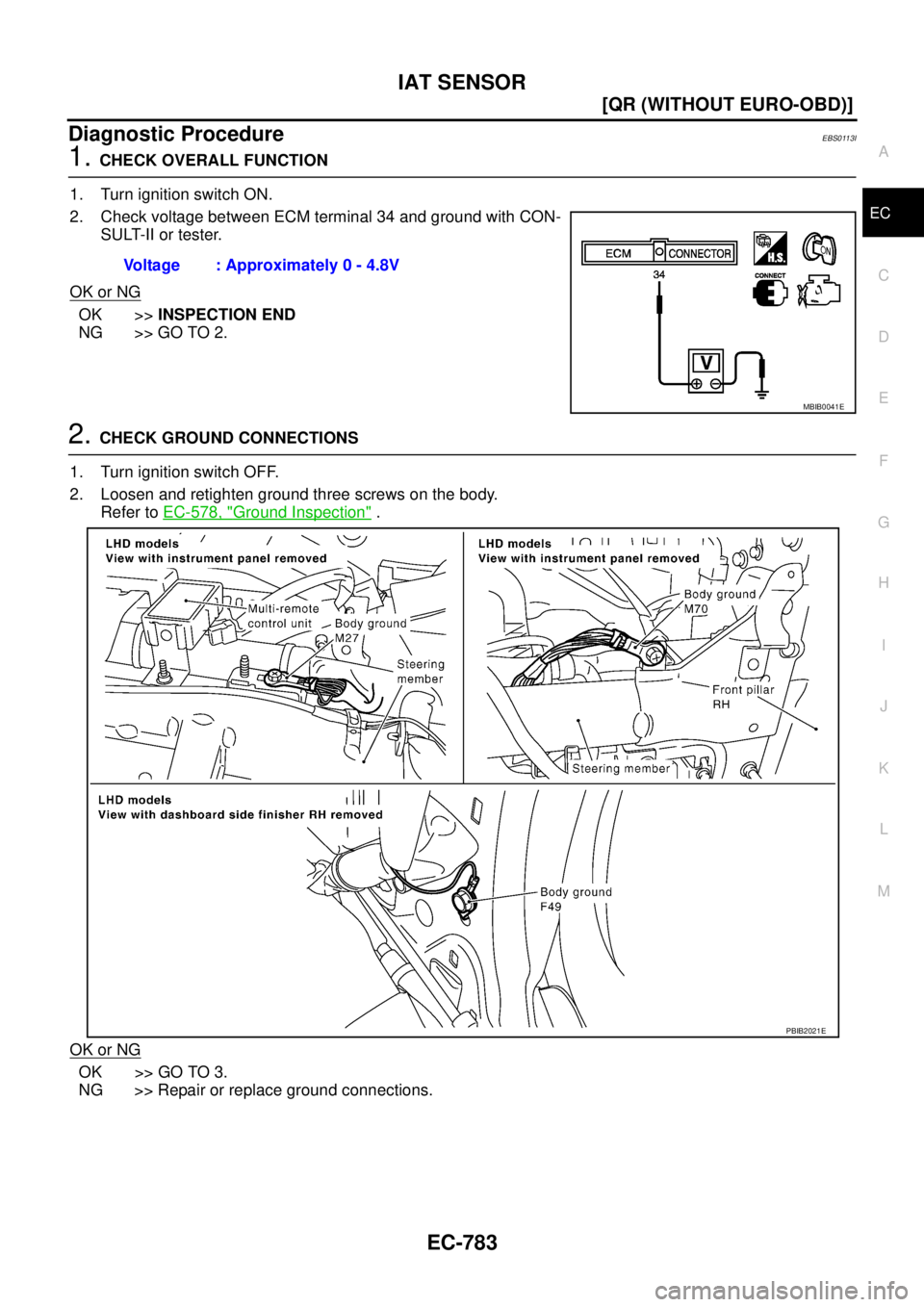

Diagnostic ProcedureEBS0113I
1. CHECK OVERALL FUNCTION
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 34 and ground with CON-
SULT-II or tester.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body.
Refer to EC-578, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace ground connections.Voltage : Approximately 0 - 4.8V
MBIB0041E
PBIB2021E
Page 1162 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-784
[QR (WITHOUT EURO-OBD)]
IAT SENSOR
3. CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect mass air flow sensor (intake air temperature sensor
is built-into) harness connect NISSAN X-TRAIL 2003 Service Repair Manual EC-784
[QR (WITHOUT EURO-OBD)]
IAT SENSOR
3. CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect mass air flow sensor (intake air temperature sensor
is built-into) harness connect](/manual-img/5/57404/w960_57404-1161.png)

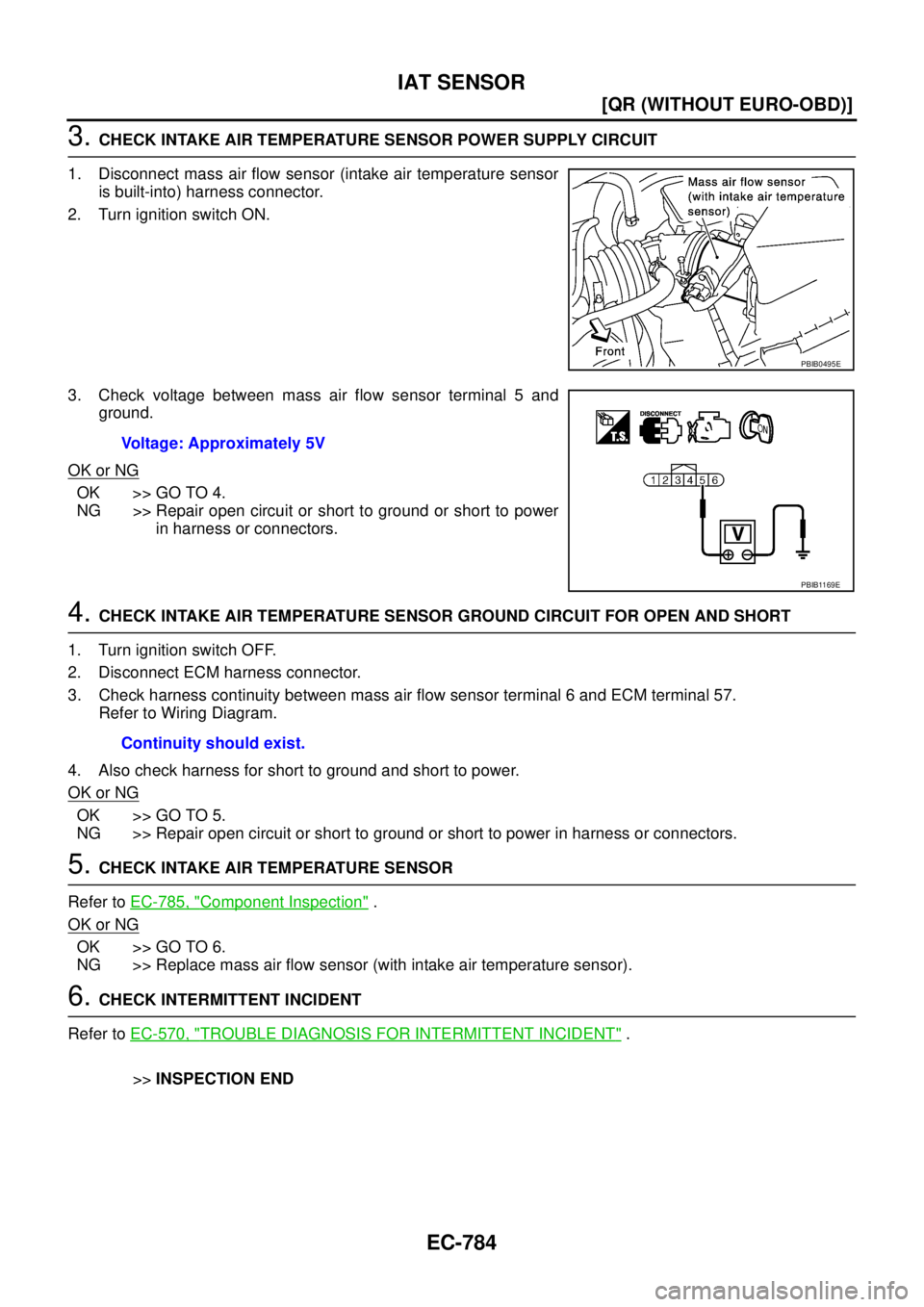

EC-784
[QR (WITHOUT EURO-OBD)]
IAT SENSOR
3. CHECK INTAKE AIR TEMPERATURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect mass air flow sensor (intake air temperature sensor
is built-into) harness connector.
2. Turn ignition switch ON.
3. Check voltage between mass air flow sensor terminal 5 and
ground.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors.
4. CHECK INTAKE AIR TEMPERATURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between mass air flow sensor terminal 6 and ECM terminal 57.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK INTAKE AIR TEMPERATURE SENSOR
Refer to EC-785, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace mass air flow sensor (with intake air temperature sensor).
6. CHECK INTERMITTENT INCIDENT
Refer to EC-570, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
PBIB0495E
Voltage: Approximately 5V
PBIB1169E
Continuity should exist.
Page 1163 of 4179
IAT SENSOR
EC-785
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

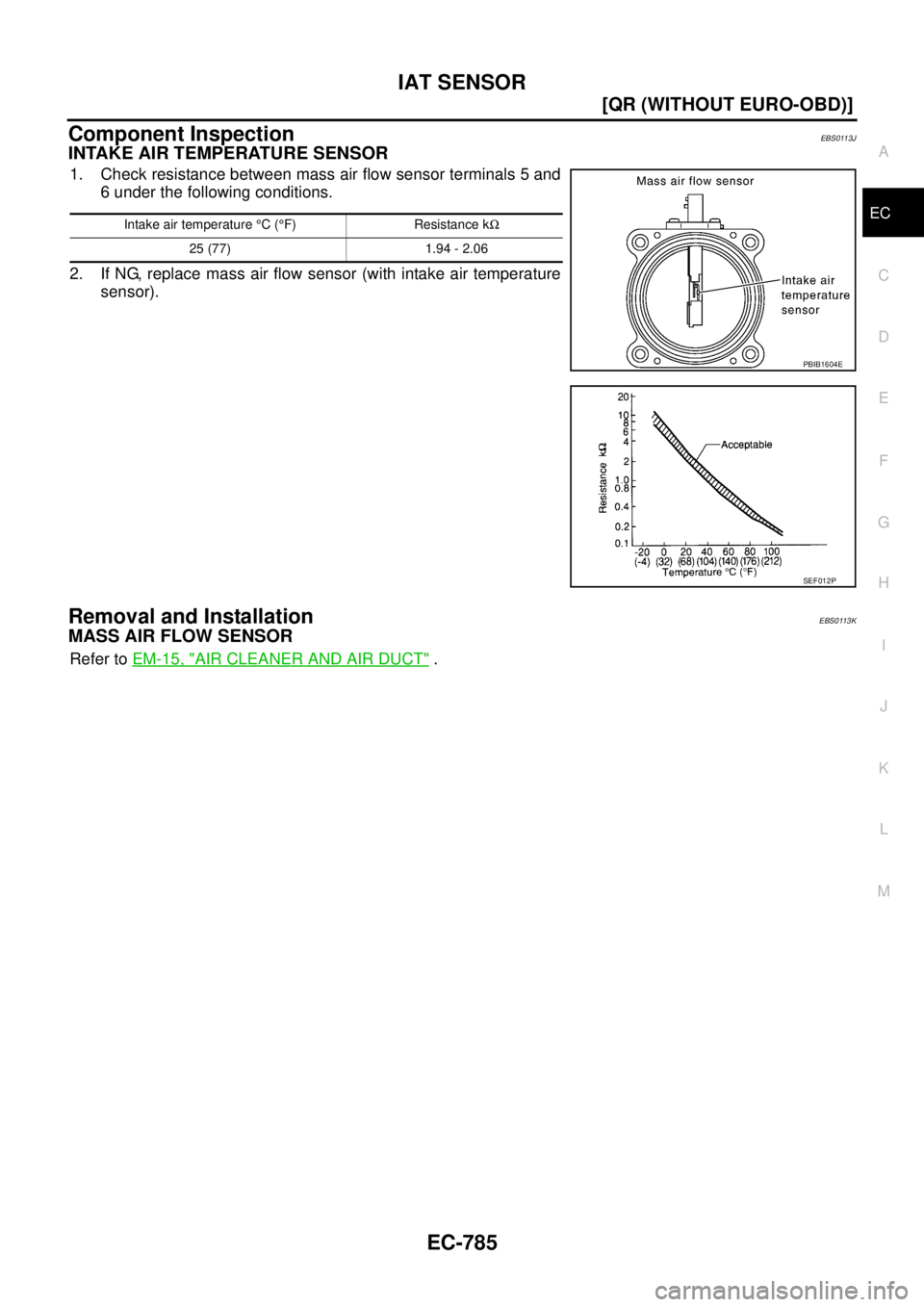

Component InspectionEBS0113J
INTAKE AIR TEMPERATURE SENSOR
1. Check resistance between mass air flow sensor terminals 5 and
6 under the following conditions.
2. If NG, replace mass air flow sensor (with intake air temperature
sensor).
Removal and InstallationEBS0113K
MASS AIR FLOW SENSOR
Refer to EM-15, "AIR CLEANER AND AIR DUCT" .
Intake air temperature °C (°F) Resistance kΩ
25 (77) 1.94 - 2.06
PBIB1604E
SEF012P
Page 1164 of 4179
EC-786
[QR (WITHOUT EURO-OBD)]
HO2S1
HO2S1PFP:22690

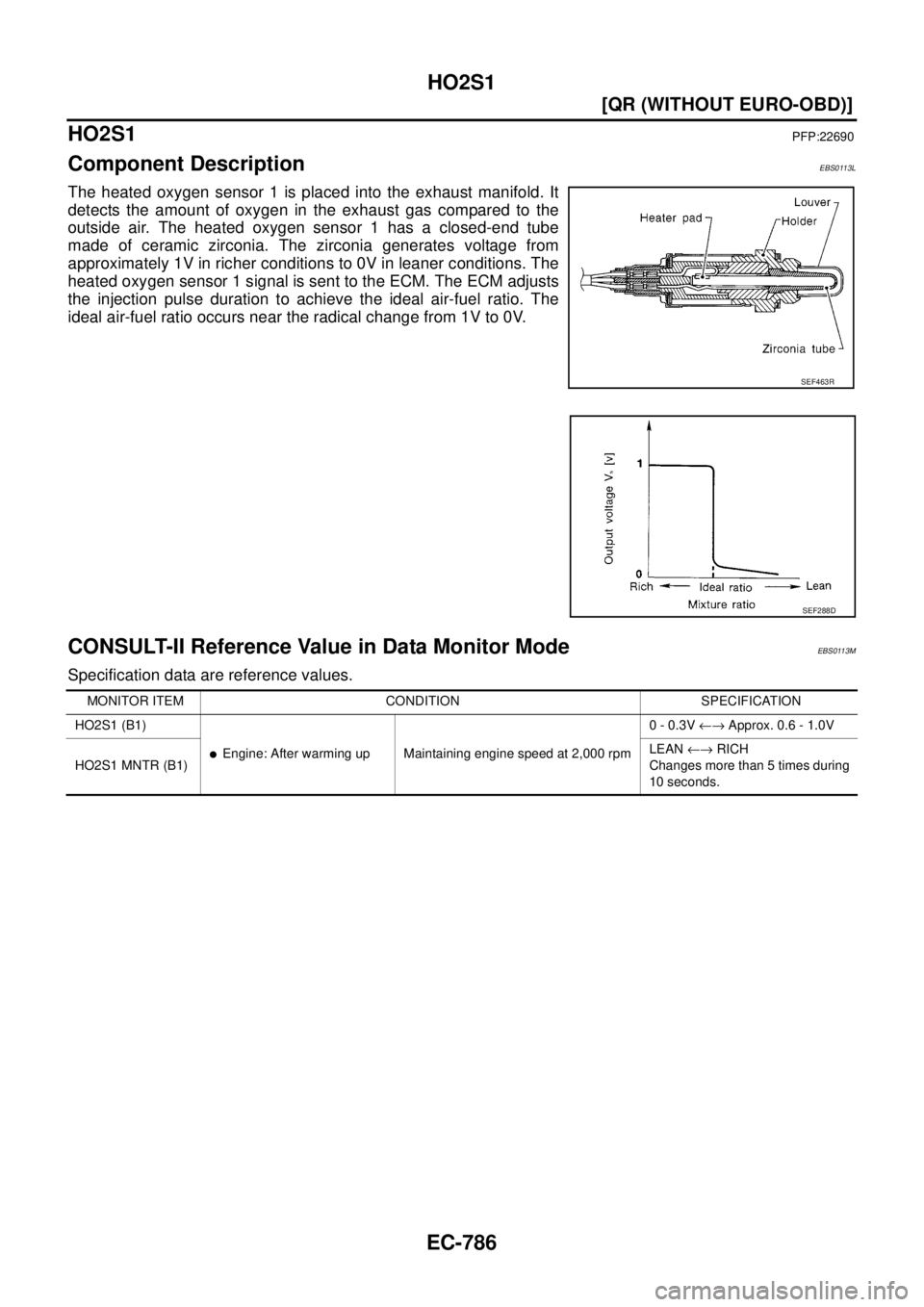

Component DescriptionEBS0113L
The heated oxygen sensor 1 is placed into the exhaust manifold. It
detects the amount of oxygen in the exhaust gas compared to the
outside air. The heated oxygen sensor 1 has a closed-end tube
made of ceramic zirconia. The zirconia generates voltage from
approximately 1V in richer conditions to 0V in leaner conditions. The
heated oxygen sensor 1 signal is sent to the ECM. The ECM adjusts
the injection pulse duration to achieve the ideal air-fuel ratio. The
ideal air-fuel ratio occurs near the radical change from 1V to 0V.
CONSULT-II Reference Value in Data Monitor ModeEBS0113M
Specification data are reference values.
SEF463R
SEF288D
MONITOR ITEM CONDITION SPECIFICATION
HO2S1 (B1)
Engine: After warming up Maintaining engine speed at 2,000 rpm0 - 0.3V ←→ Approx. 0.6 - 1.0V
HO2S1 MNTR (B1)LEAN ←→ RICH
Changes more than 5 times during
10 seconds.
Page 1165 of 4179
HO2S1
EC-787
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS0113N
TBWA0646E
Page 1166 of 4179
EC-788
[QR (WITHOUT EURO-OBD)]
HO2S1

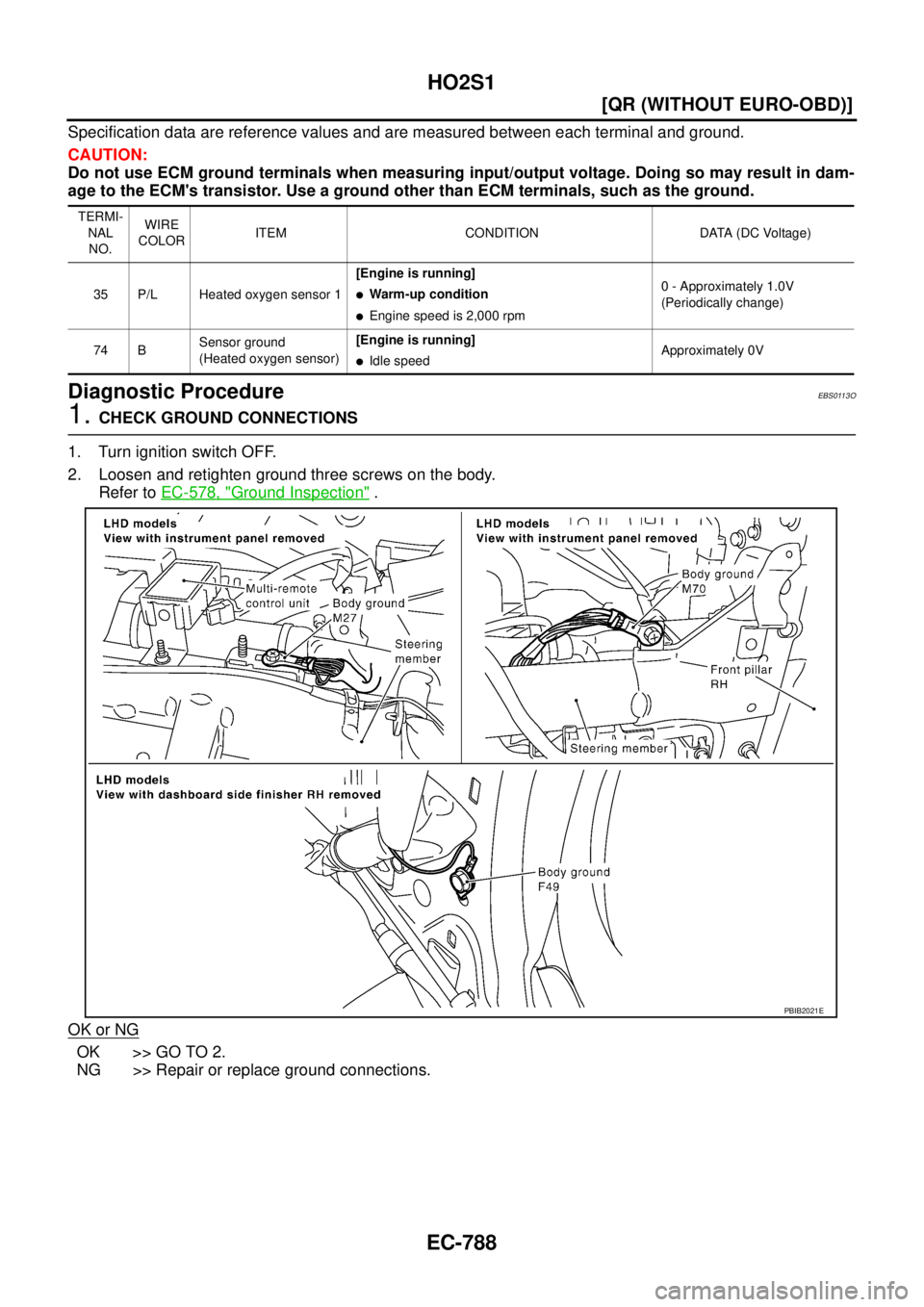

Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS0113O
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body.
Refer to EC-578, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
35 P/L Heated oxygen sensor 1[Engine is running]
Warm-up condition
Engine speed is 2,000 rpm0 - Approximately 1.0V
(Periodically change)
74 BSensor ground
(Heated oxygen sensor)[Engine is running]
Idle speedApproximately 0V
PBIB2021E
Page 1167 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual HO2S1
EC-789
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “HO2S1 MNTR (B1) NISSAN X-TRAIL 2003 Service Repair Manual HO2S1
EC-789
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “HO2S1 MNTR (B1)](/manual-img/5/57404/w960_57404-1166.png)
HO2S1
EC-789
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

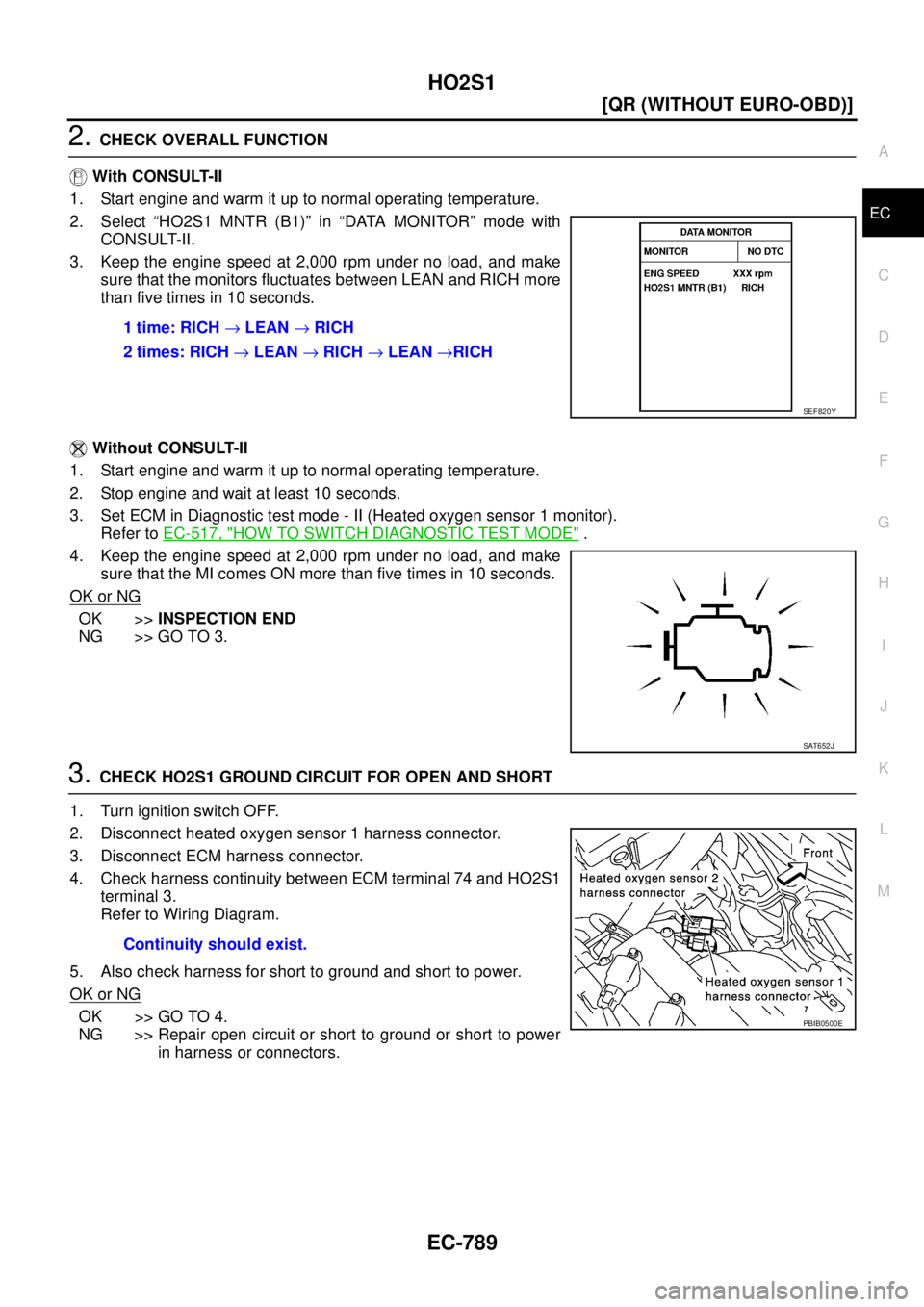

2. CHECK OVERALL FUNCTION
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “HO2S1 MNTR (B1)” in “DATA MONITOR” mode with
CONSULT-II.
3. Keep the engine speed at 2,000 rpm under no load, and make
sure that the monitors fluctuates between LEAN and RICH more
than five times in 10 seconds.
Without CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Stop engine and wait at least 10 seconds.
3. Set ECM in Diagnostic test mode - II (Heated oxygen sensor 1 monitor).
Refer to EC-517, "
HOW TO SWITCH DIAGNOSTIC TEST MODE" .
4. Keep the engine speed at 2,000 rpm under no load, and make
sure that the MI comes ON more than five times in 10 seconds.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK HO2S1 GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect heated oxygen sensor 1 harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between ECM terminal 74 and HO2S1
terminal 3.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power
in harness or connectors. 1 time: RICH → LEAN → RICH
2 times: RICH → LEAN → RICH → LEAN →RICH
SEF820Y
SAT652J
Continuity should exist.
PBIB0500E
Page 1168 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-790
[QR (WITHOUT EURO-OBD)]
HO2S1
4. CHECK HO2S1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 35 and HO2S1 terminal 2.
Refer to Wiring Diagram.
2. Chec NISSAN X-TRAIL 2003 Service Repair Manual EC-790
[QR (WITHOUT EURO-OBD)]
HO2S1
4. CHECK HO2S1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 35 and HO2S1 terminal 2.
Refer to Wiring Diagram.
2. Chec](/manual-img/5/57404/w960_57404-1167.png)

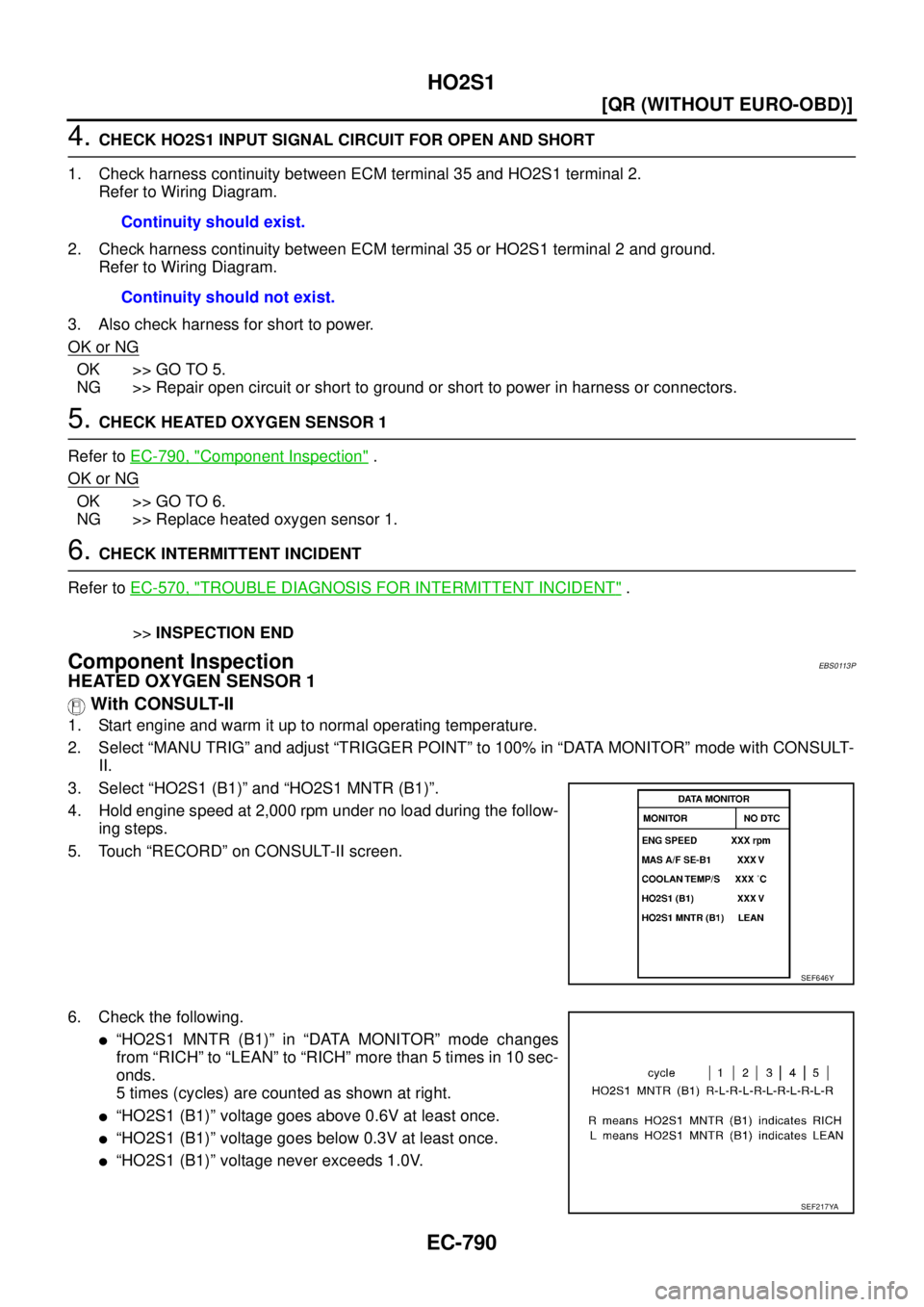

EC-790
[QR (WITHOUT EURO-OBD)]
HO2S1
4. CHECK HO2S1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 35 and HO2S1 terminal 2.
Refer to Wiring Diagram.
2. Check harness continuity between ECM terminal 35 or HO2S1 terminal 2 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK HEATED OXYGEN SENSOR 1
Refer to EC-790, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace heated oxygen sensor 1.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-570, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS0113P
HEATED OXYGEN SENSOR 1
With CONSULT-II
1. Start engine and warm it up to normal operating temperature.
2. Select “MANU TRIG” and adjust “TRIGGER POINT” to 100% in “DATA MONITOR” mode with CONSULT-
II.
3. Select “HO2S1 (B1)” and “HO2S1 MNTR (B1)”.
4. Hold engine speed at 2,000 rpm under no load during the follow-
ing steps.
5. Touch “RECORD” on CONSULT-II screen.
6. Check the following.
“HO2S1 MNTR (B1)” in “DATA MONITOR” mode changes
from “RICH” to “LEAN” to “RICH” more than 5 times in 10 sec-
onds.
5 times (cycles) are counted as shown at right.
“HO2S1 (B1)” voltage goes above 0.6V at least once.
“HO2S1 (B1)” voltage goes below 0.3V at least once.
“HO2S1 (B1)” voltage never exceeds 1.0V.Continuity should exist.
Continuity should not exist.
SEF646Y
SEF217YA
