DI-50
WARNING LAMPS
Electrical Components InspectionEKS002HK
OIL PRESSURE SWITCH CHECK
Check the continuity between the terminals of oil pressure switch
and ground.
DIODE CHECK
Check continuity using an ohmmeter.
Diode is functioning properly if test results are as shown in the
figure at left.
Check diodes at the combination meter harness connector

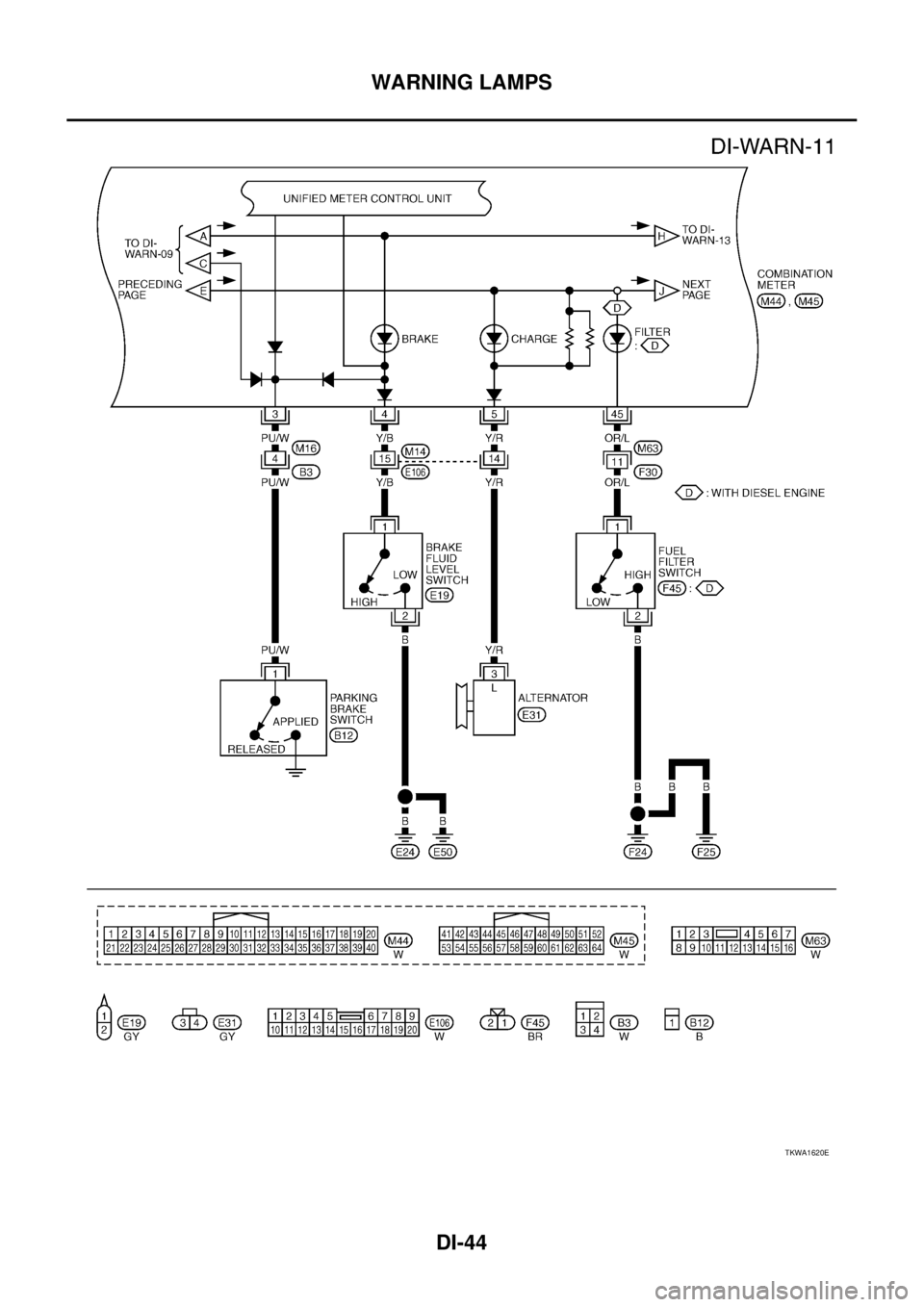

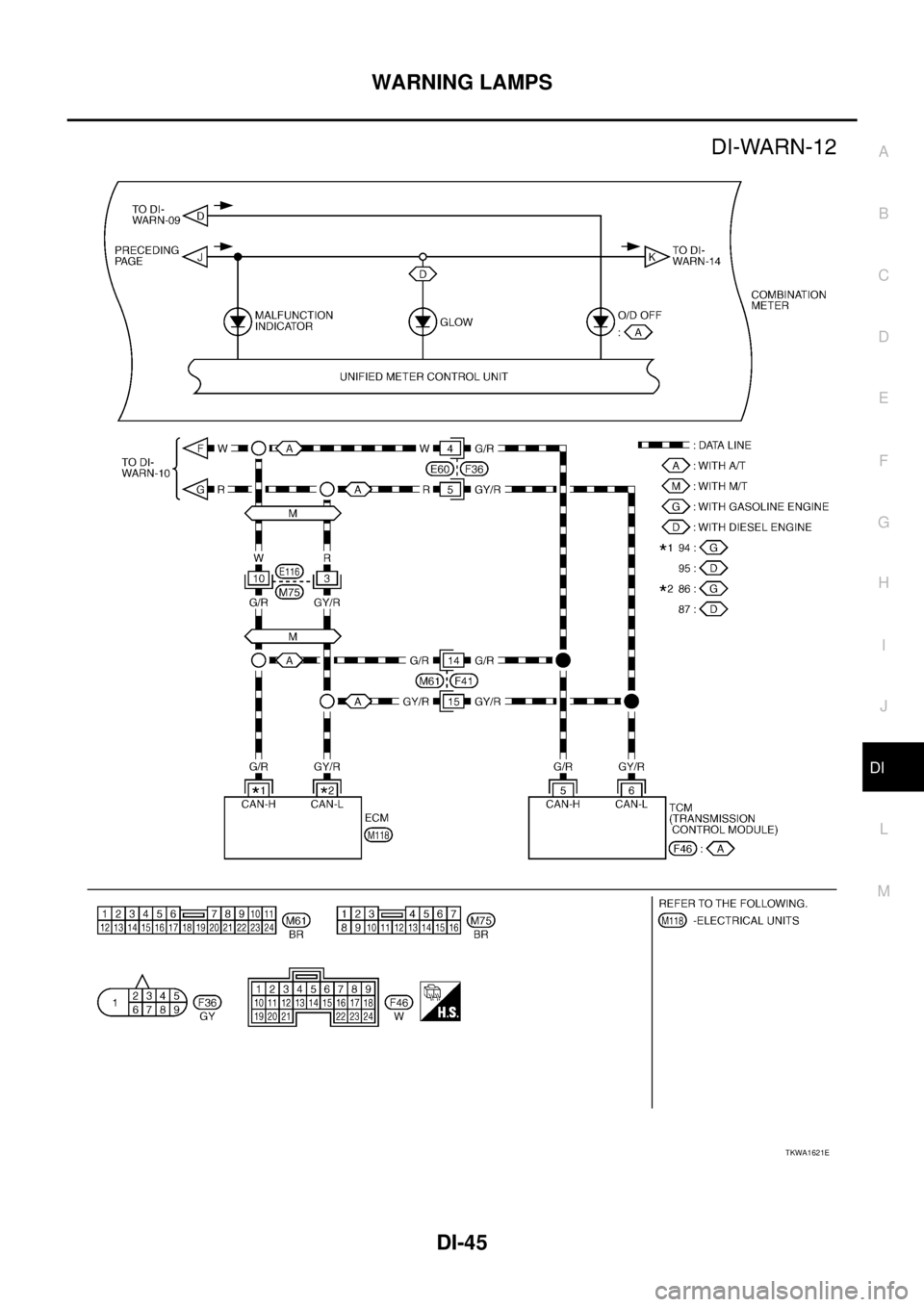

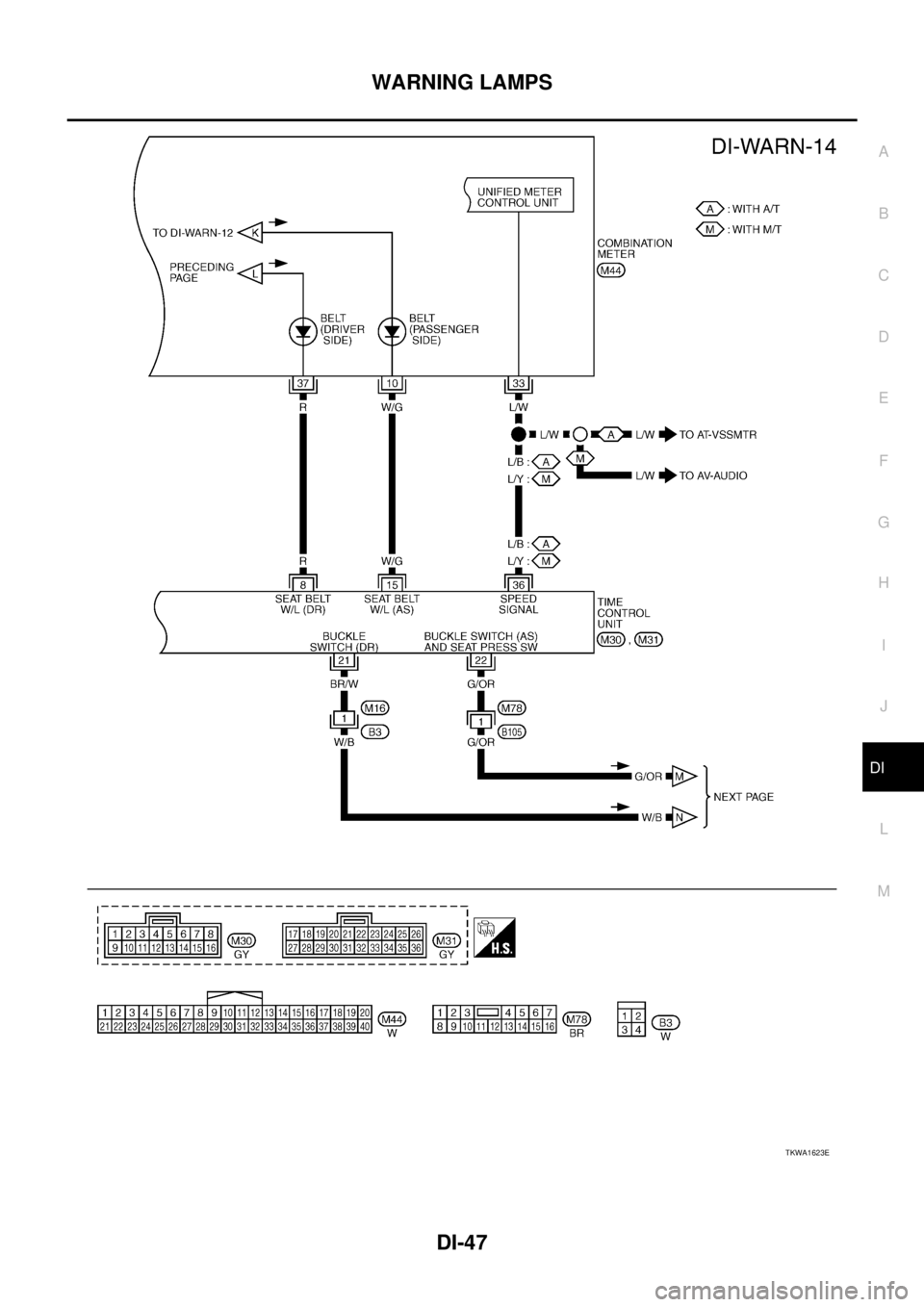

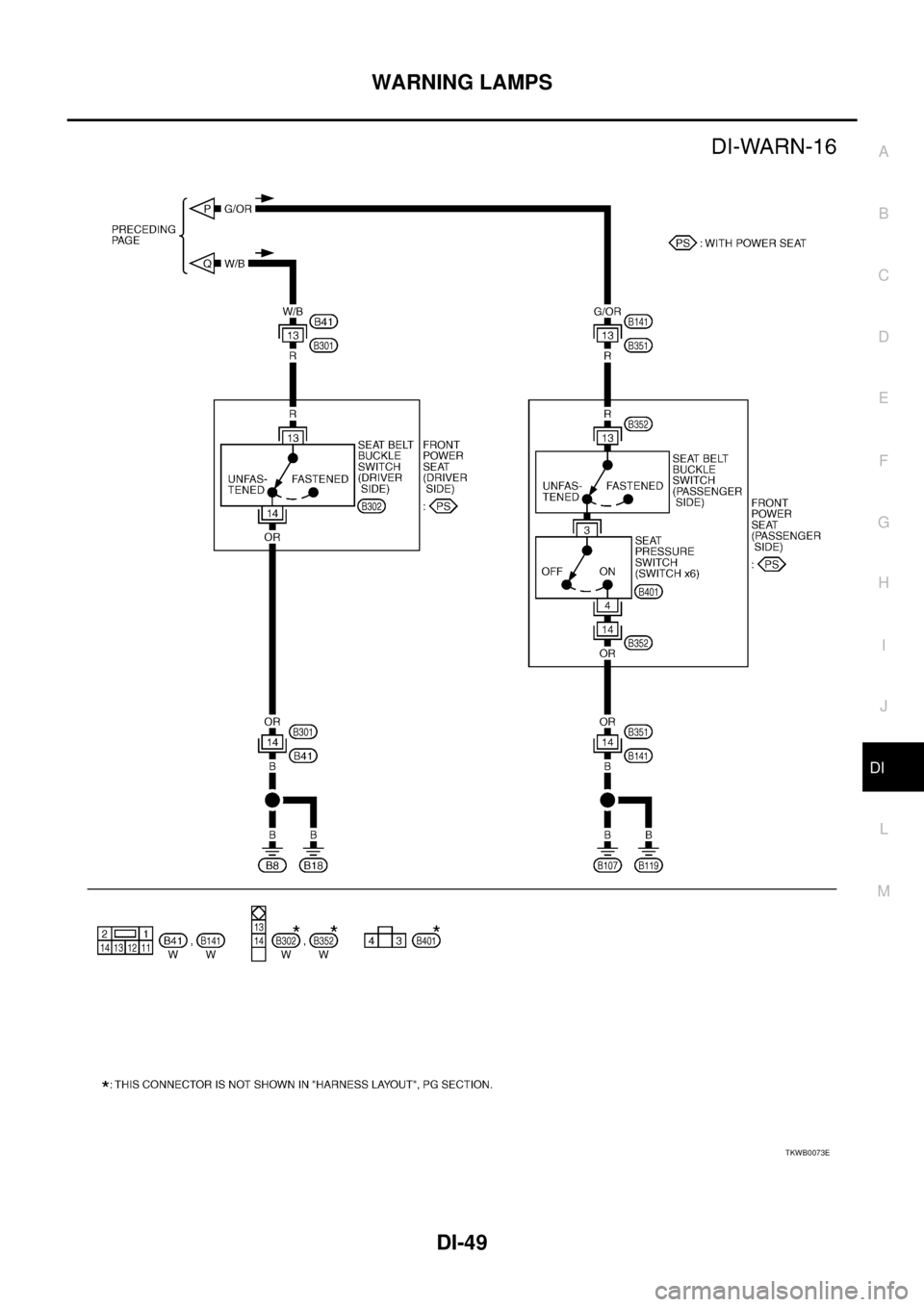

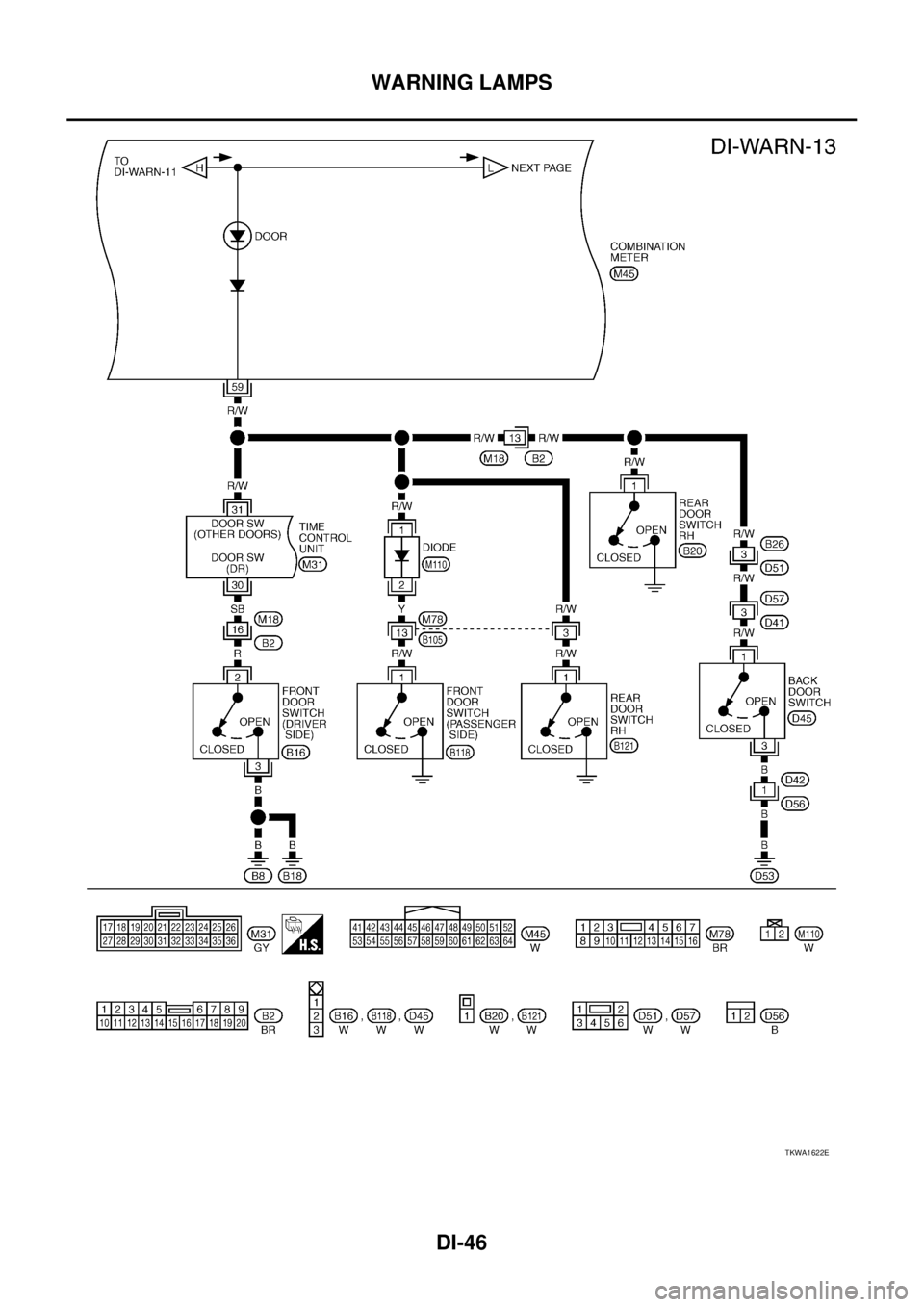

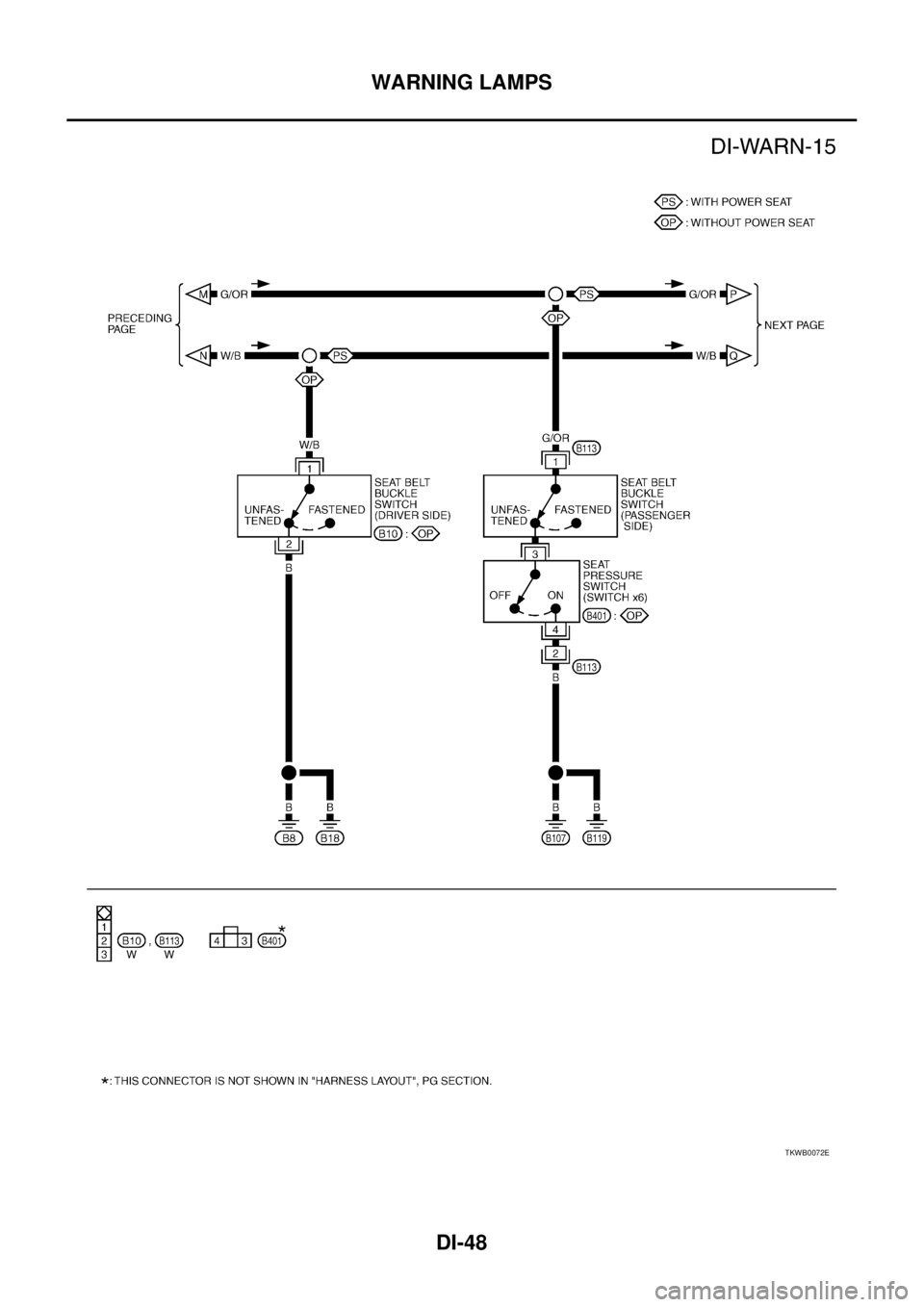

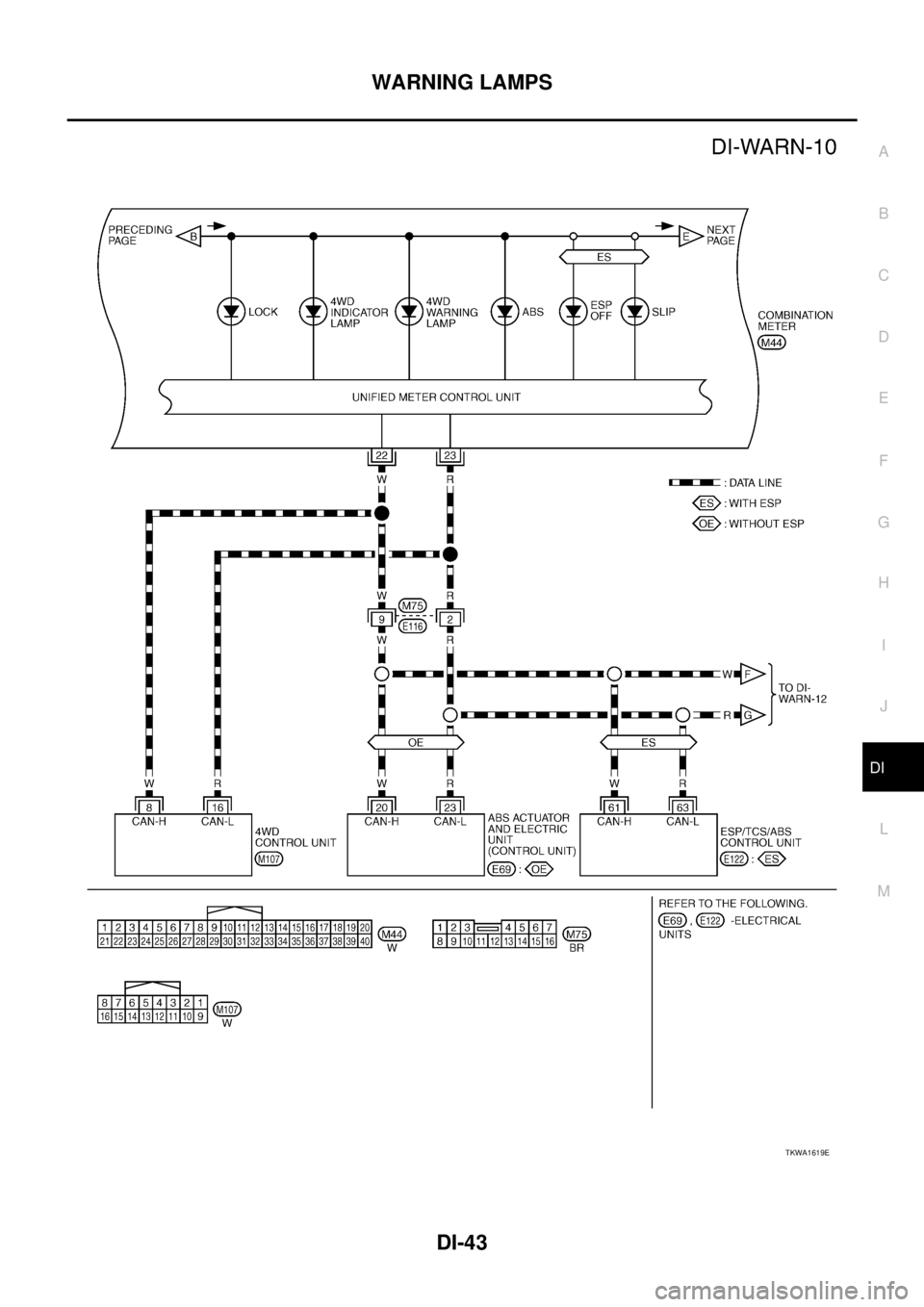

instead of on the combination meter assembly. Refer toDI-34,
"Wiring Diagram — WARN —/LHD Models" or DI-42, "Wiring
Diagram — WARN —/RHD Models" .
NOTE:
Specification may vary depending on the type of tester. Before
performing this inspection, be sure to refer to the instruction
manual for the tester to be used.
Oil pressure kPa (bar, kg/cm2 , psi)Continuity
Engine running More than 29 (0.30, 0.3, 4) No
Engine stopped Less than 29 (0.30, 0.3, 4) Yes
MEL425F
SEL901F
