NISSAN X-TRAIL 2003 Service Repair Manual TIMING CHAIN
EM-45
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Hood assembly; Refer to BL-12, "HOOD" .
RH and LH undercovers
PCV hose; Refer to EM-17, "INTAKE MANIFOLD" .
Ignition coil; Refer to EM-29, "IGN

TIMING CHAIN
EM-45
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

Hood assembly; Refer to BL-12, "HOOD" .
RH and LH undercovers
PCV hose; Refer to EM-17, "INTAKE MANIFOLD" .
Ignition coil; Refer to EM-29, "IGNITION COIL" .
Rocker cover; Refer to EM-42, "ROCKER COVER" .
Engine coolant reservoir tank; Refer to CO-12, "RADIATOR" .
Drive belt; Refer to EM-13, "REMOVAL" .
Alternator; Refer to SC-12, "CHARGING SYSTEM" .
Drive belt auto-tensioner; Refer to EM-14, "REMOVAL" .
Exhaust front tube; Refer to EX-2, "EXHAUST SYSTEM" .
2. Remove A/C compressor from engine. Temporarily secure A/C compressor to vehicle side with a rope to
avoid putting a load on them.
3. Remove bracket mounting bolts for fixing A/C piping on right strut housing and exhaust manifold cover.
Doing so simplifies moving.
4. Remove power steering oil pump with piping connected, and secure it to vehicle side temporarily. Refer to
PS-34, "
HYDRAULIC LINE" .
5. Remove power steering reservoir tank from bracket to move power steering piping. Refer to PS-34,
"HYDRAULIC LINE" .
CAUTION:
To avoid power steering fluid leakage, temporarily fix power steering reservoir tank vertically.

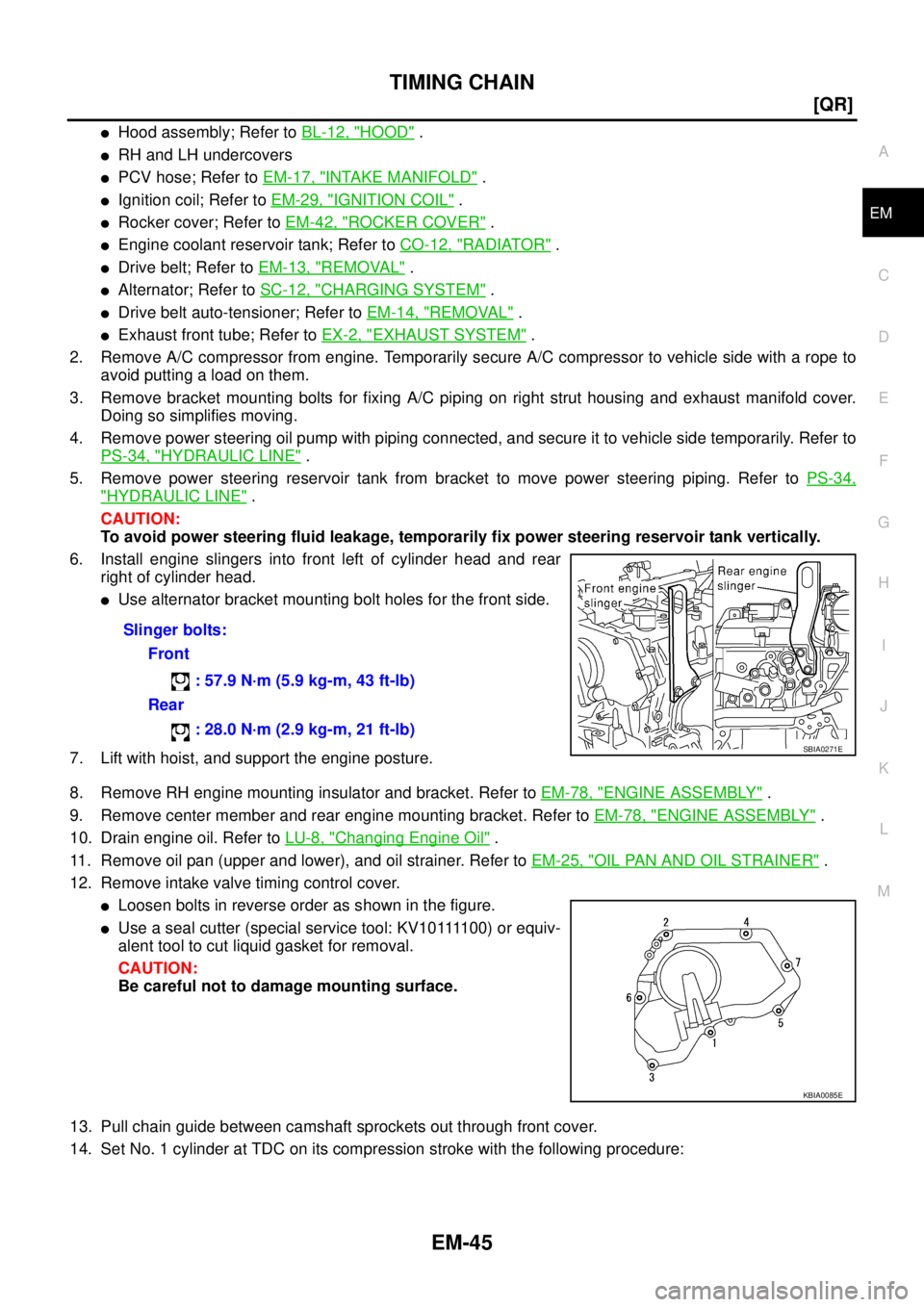

6. Install engine slingers into front left of cylinder head and rear
right of cylinder head.
Use alternator bracket mounting bolt holes for the front side.
7. Lift with hoist, and support the engine posture.
8. Remove RH engine mounting insulator and bracket. Refer to EM-78, "
ENGINE ASSEMBLY" .
9. Remove center member and rear engine mounting bracket. Refer to EM-78, "
ENGINE ASSEMBLY" .
10. Drain engine oil. Refer to LU-8, "
Changing Engine Oil" .
11. Remove oil pan (upper and lower), and oil strainer. Refer to EM-25, "
OIL PAN AND OIL STRAINER" .
12. Remove intake valve timing control cover.
Loosen bolts in reverse order as shown in the figure.
U s e a s e a l c u t t e r ( s p e c i a l s e r v i c e t o o l : K V 1 0 1111 0 0 ) o r e q u i v -
alent tool to cut liquid gasket for removal.
CAUTION:
Be careful not to damage mounting surface.
13. Pull chain guide between camshaft sprockets out through front cover.
14. Set No. 1 cylinder at TDC on its compression stroke with the following procedure:Slinger bolts:
Front
: 57.9 N·m (5.9 kg-m, 43 ft-lb)
Rear
: 28.0 N·m (2.9 kg-m, 21 ft-lb)
SBIA0271E
KBIA0085E

Page 98 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EM-46
[QR]
TIMING CHAIN

a. Rotate crankshaft pulley clockwise and align TDC mark to timing
indicator on front cover.
b. At the same time, make sure that the mating marks on camshaft
sprockets are l

Page 99 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TIMING CHAIN
EM-47
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

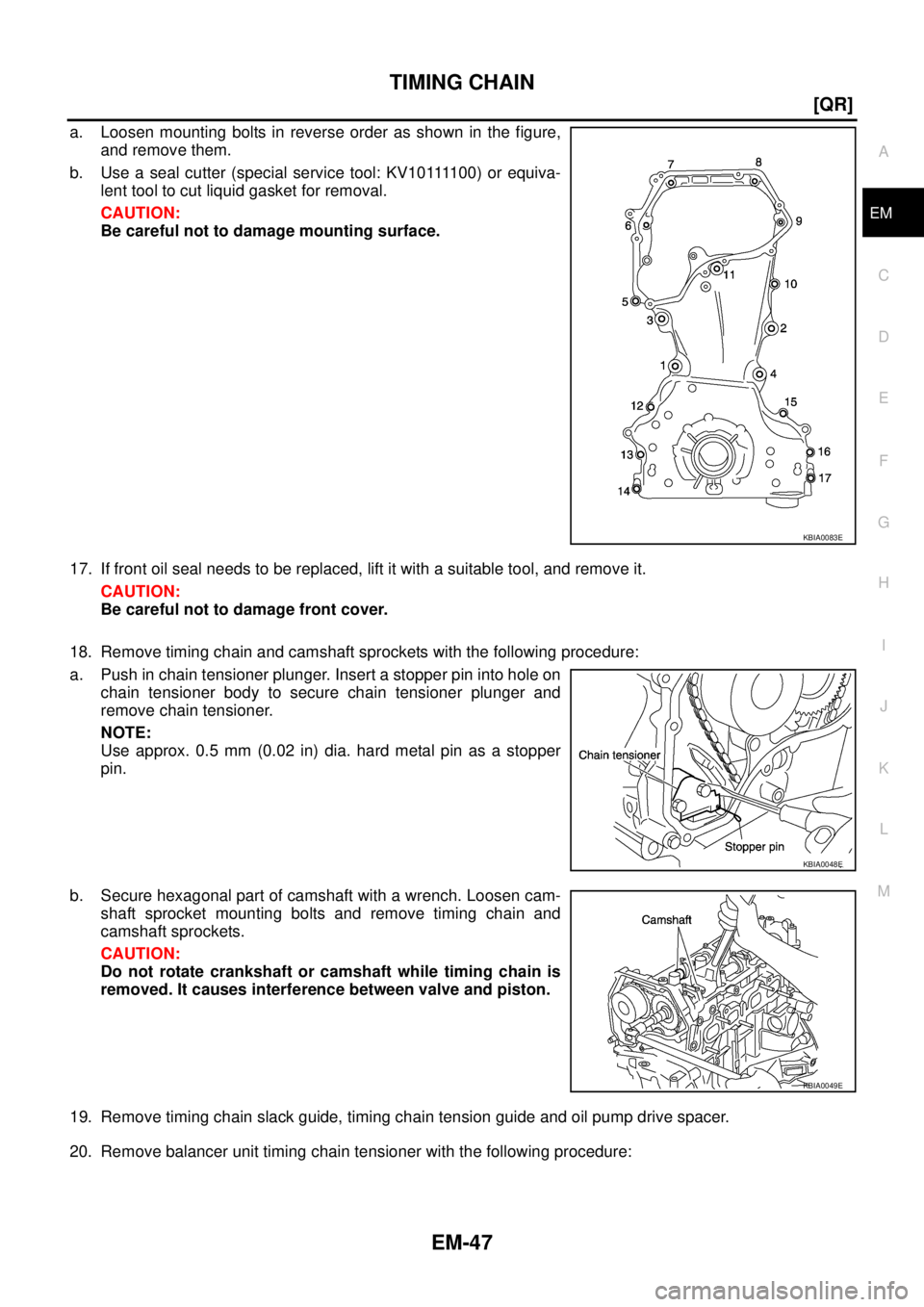

a. Loosen mounting bolts in reverse order as shown in the figure,
and remove them.
b . U s e a s e a l c u t t e r ( s p e c i a l s e r v i c

Page 100 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EM-48
[QR]
TIMING CHAIN

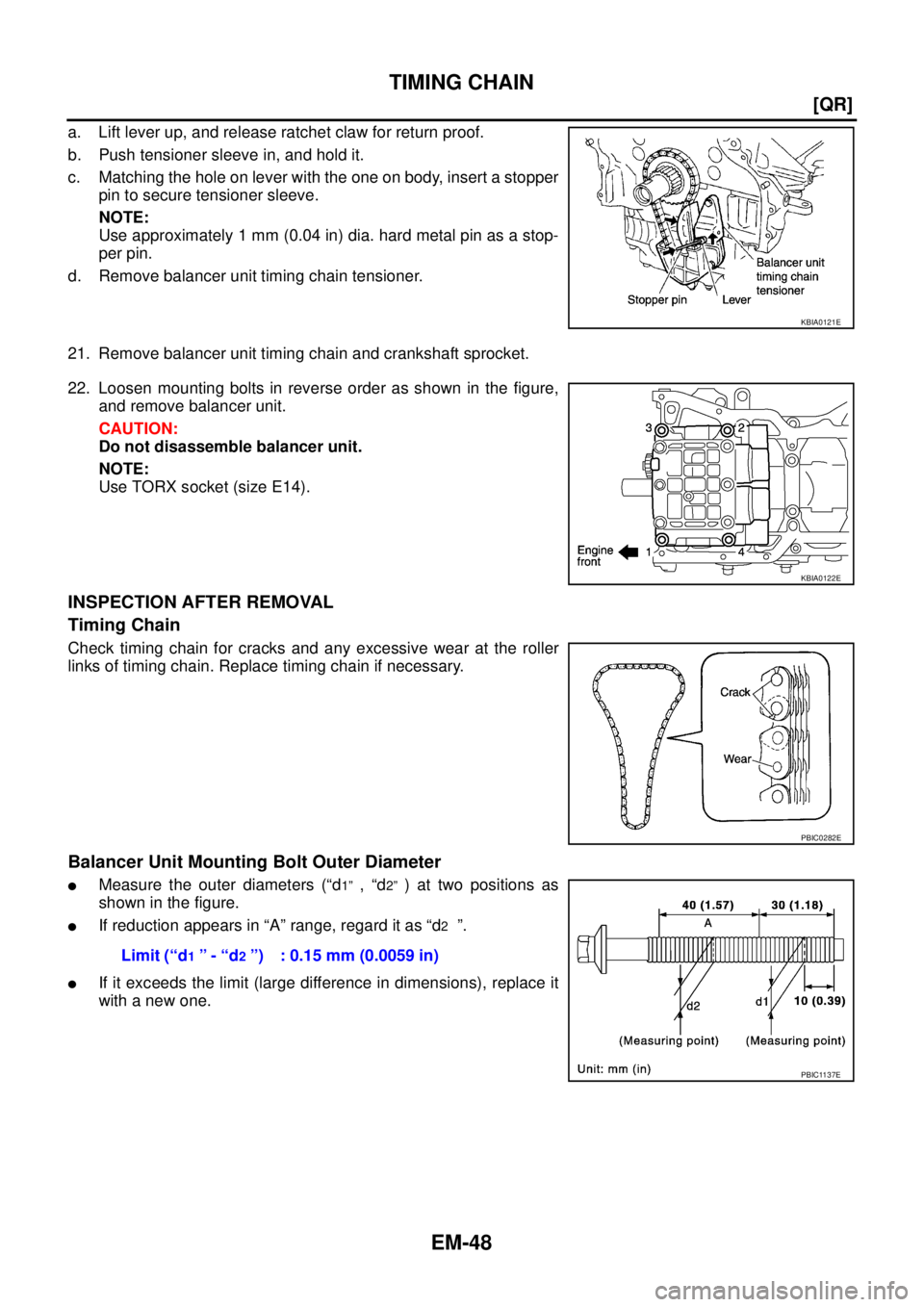

a. Lift lever up, and release ratchet claw for return proof.
b. Push tensioner sleeve in, and hold it.
c. Matching the hole on lever with the one on body, insert a stopper
pi

Page 101 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TIMING CHAIN
EM-49
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

INSTALLATION

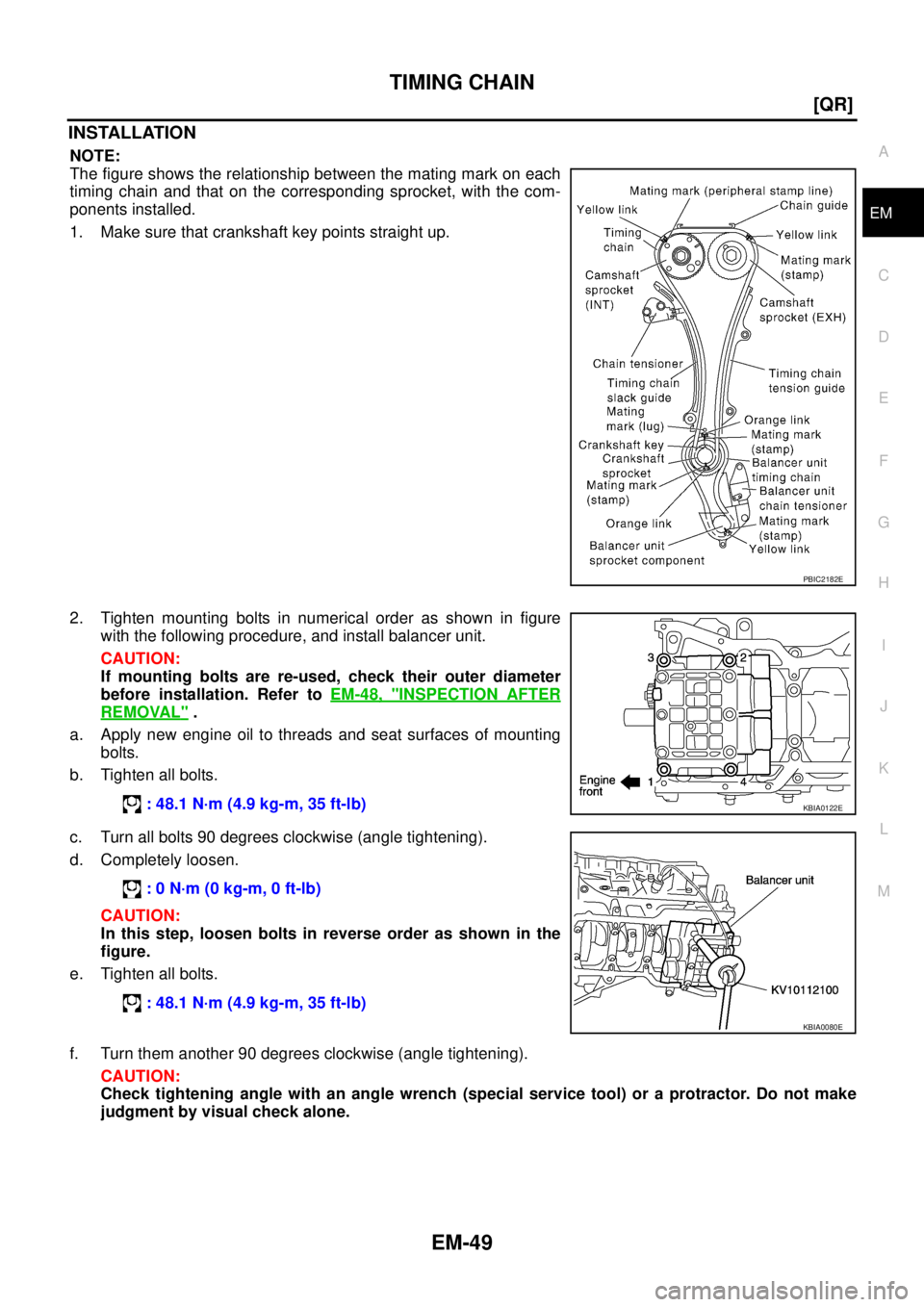

NOTE:
The figure shows the relationship between the mating mark on each
timing chain and that on the corresponding sprocket, with the c

Page 102 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EM-50
[QR]
TIMING CHAIN

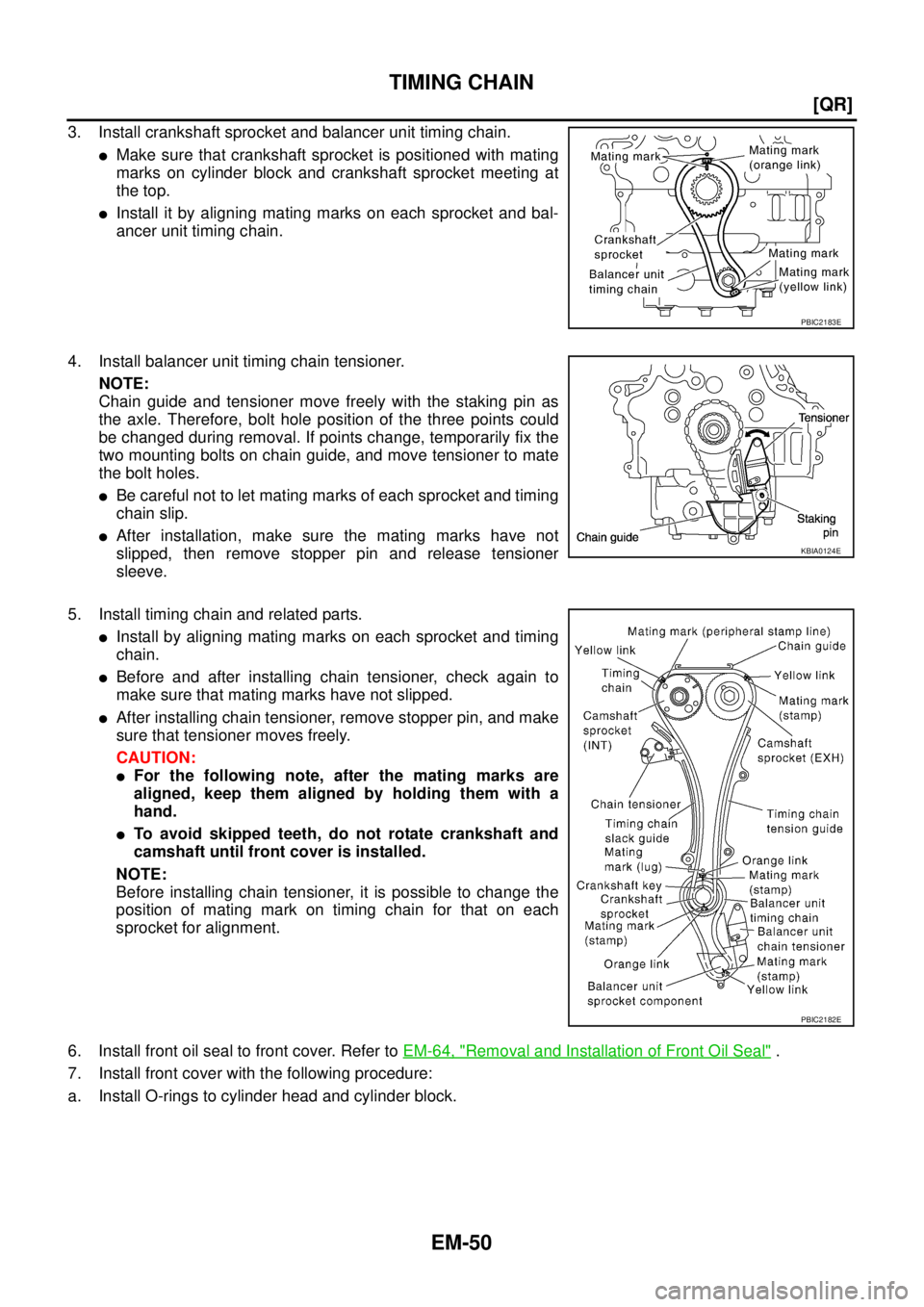

3. Install crankshaft sprocket and balancer unit timing chain.
Make sure that crankshaft sprocket is positioned with mating
marks on cylinder block and crankshaft sprocket m

Page 103 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TIMING CHAIN
EM-51
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

b. Apply a continuous bead of liquid gasket with a tube presser
(special service tool: WS39930000) to front cover as shown in
the figure.
Use Genui

Page 104 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EM-52
[QR]
TIMING CHAIN

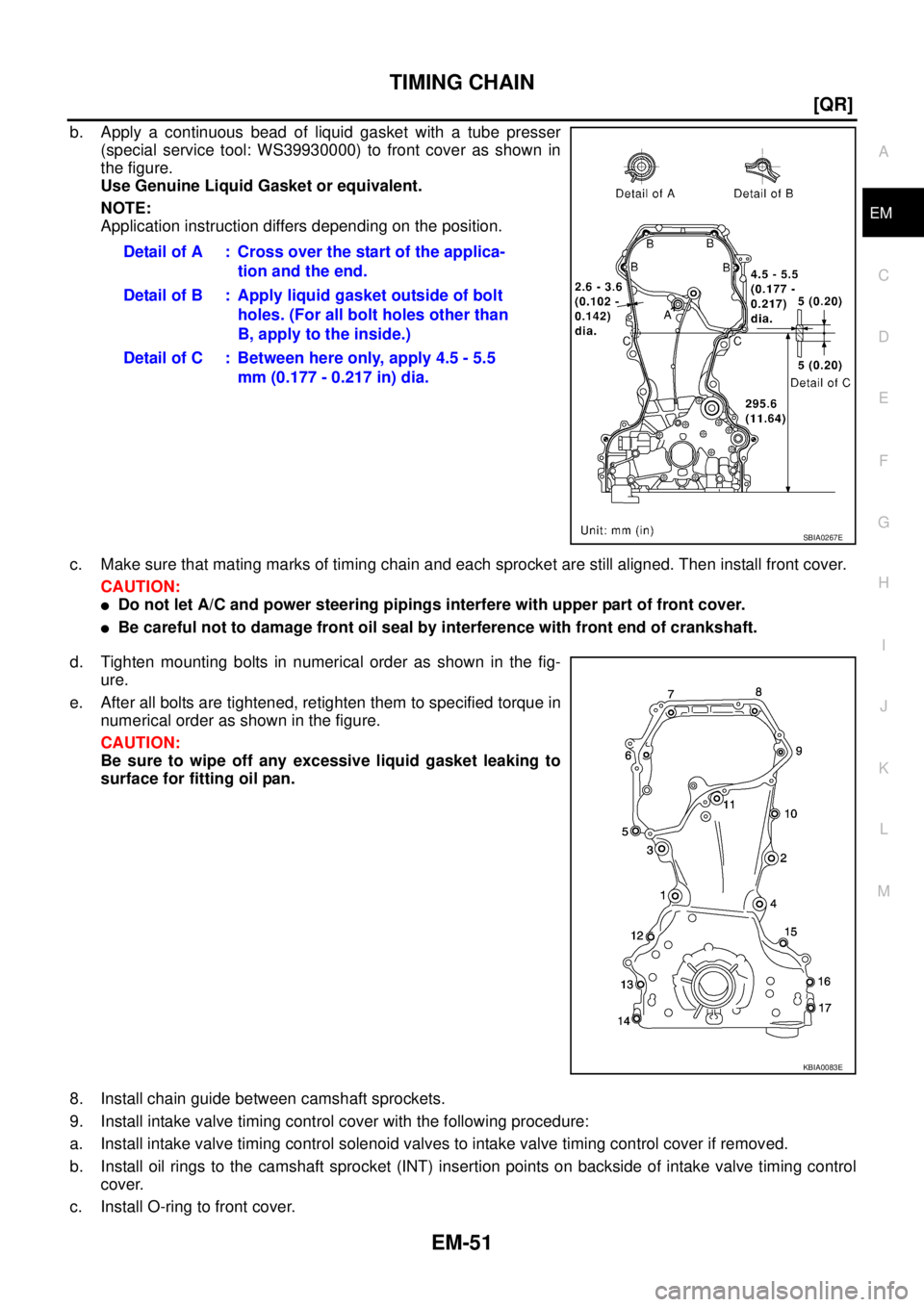

d. Apply a continuous bead of liquid gasket with a tube presser
(special service tool: WS39930000) to intake valve timing con-
trol cover as shown in the figure.
Use Genuine
