Page 1425 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0335 CKP SENSOR EC-1047 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC Diagnostic ProcedureEBS011B0 1. CHECK GROUND CONNECTIONS 1. Turn ignition switch OFF. 2. Loosen and retighten engine groun

Page 1426 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1048 [YD (WITH EURO-OBD)] DTC P0335 CKP SENSOR 2. CHECK CKP SENSOR POWER SUPPLY CIRCUIT 1. Disconnect crankshaft position sensor harness connector. 2. Turn ignition switch ON. 3. Check voltage be

Page 1427 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0335 CKP SENSOR EC-1049 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC 6. CHECK INTERMITTENT INCIDENT Refer to EC-936, " TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" . >>INSPECTION END Componen

Page 1428 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1050 [YD (WITH EURO-OBD)] DTC P0336 CKP SENSOR DTC P0336 CKP SENSORPFP:23731 DescriptionEBS011B3 The crankshaft position sensor monitors engine speed by means of signals from the sensing plate (w

Page 1429 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0336 CKP SENSOR EC-1051 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC On Board Diagnosis LogicEBS011B6 DTC Confirmation ProcedureEBS011B7 NOTE: If DTC Confirmation Procedure has been previousl

Page 1430 of 4179

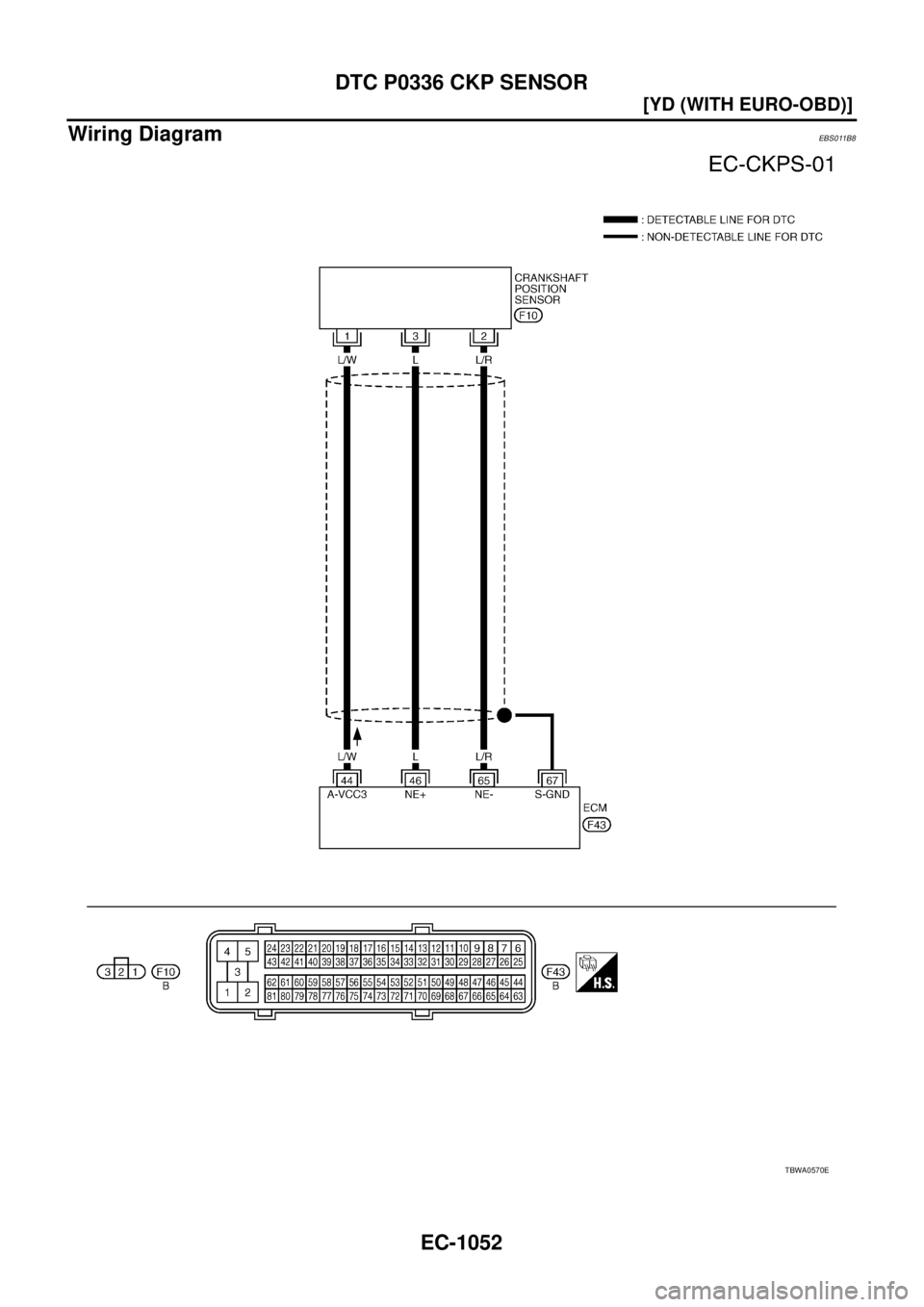

NISSAN X-TRAIL 2003 Service Repair Manual EC-1052 [YD (WITH EURO-OBD)] DTC P0336 CKP SENSOR Wiring DiagramEBS011B8 TBWA0570E

Page 1431 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0336 CKP SENSOR EC-1053 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC Diagnostic ProcedureEBS011B9 1. CHECK GROUND CONNECTIONS 1. Turn ignition switch OFF. 2. Loosen and retighten engine groun

Page 1432 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1054 [YD (WITH EURO-OBD)] DTC P0336 CKP SENSOR 2. CHECK CKP SENSOR POWER SUPPLY CIRCUIT 1. Disconnect crankshaft position sensor harness connector. 2. Turn ignition switch ON. 3. Check voltage be
