Page 3201 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual BACK DOOR WINDOW GLASS
GW-15
C
D
E
F
G
H
J
K
L
MA
B
GW

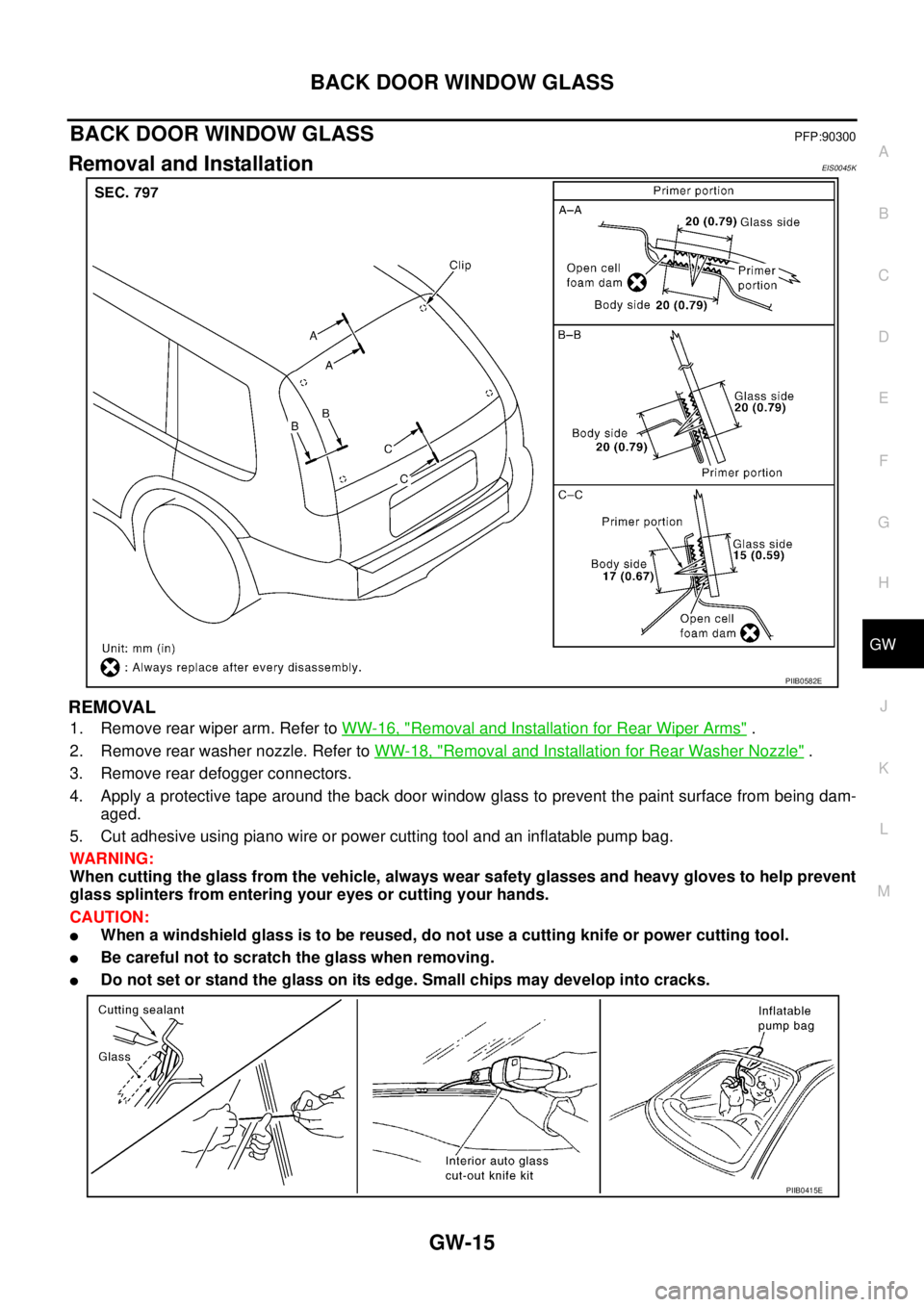

BACK DOOR WINDOW GLASSPFP:90300
Removal and InstallationEIS0045K
REMOVAL
1. Remove rear wiper arm. Refer to WW-16, "Removal and Installation fo

Page 3202 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual GW-16
BACK DOOR WINDOW GLASS

INSTALLATION
With a knife, scrape off remaining adhesive left around on the
side of vehicle body to as thin and flat as 2 mm (0.08 in).
Use a genuine Insane Urethane A

Page 3203 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual REAR WINDOW DEFOGGER
GW-17
C
D
E
F
G
H
J
K
L
MA
B
GW

REAR WINDOW DEFOGGERPFP:25350

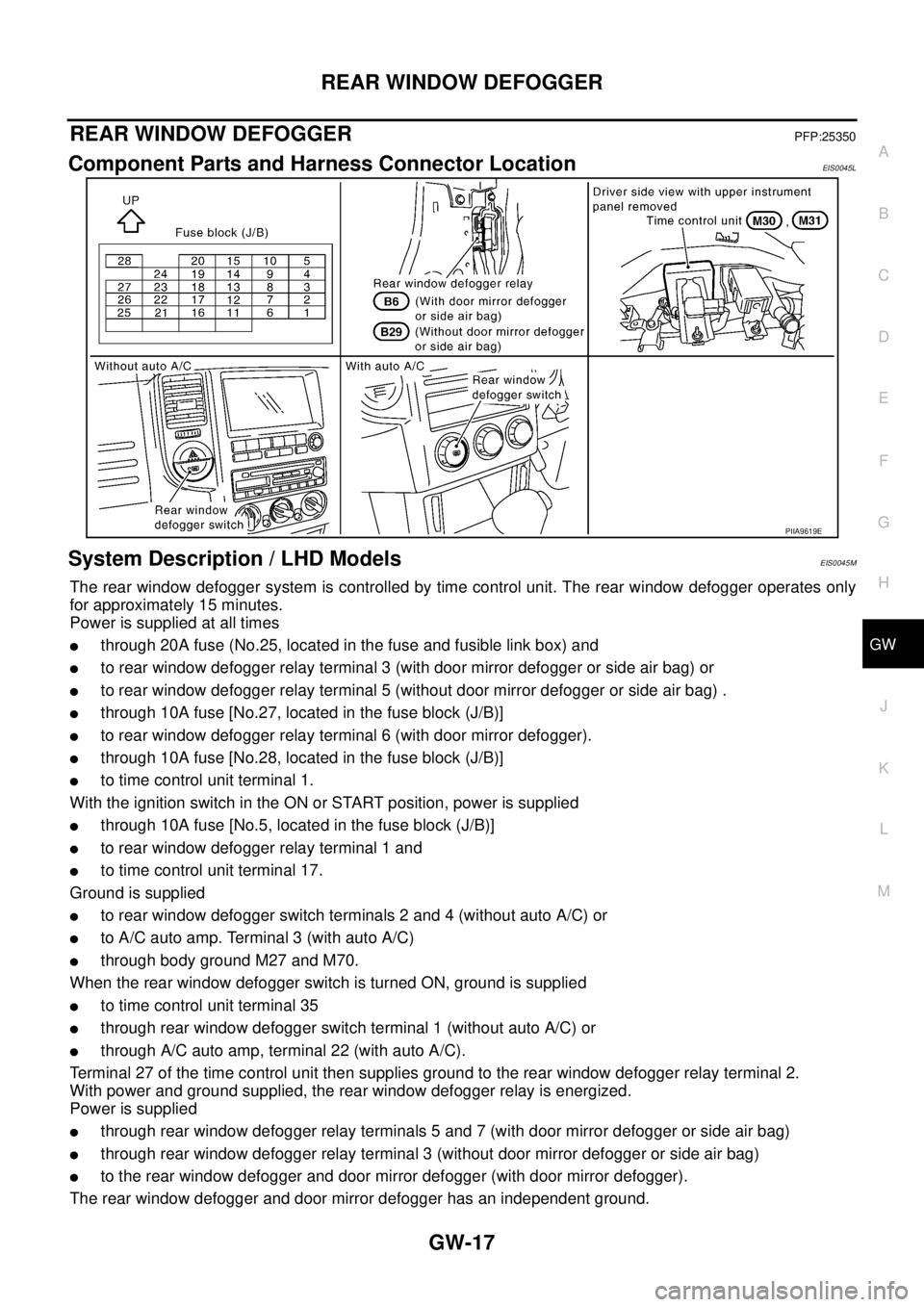

Component Parts and Harness Connector LocationEIS0045L
System Description / LHD ModelsEIS0045M
The rear window defo

Page 3204 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual GW-18
REAR WINDOW DEFOGGER

With power and ground supplied, the rear window defogger and door mirror defogger filaments heat and defog
the rear window and door mirror.
When the system is activated, t

GW-18
REAR WINDOW DEFOGGER

With power and ground supplied, the rear window defogger and door mirror defogger filaments heat and defog
the rear window and door mirror.
When the system is activated, the rear window defogger indicator illuminates in the rear window defogger
switch.
Power is supplied
through rear window defogger relay terminal 3 (without door mirror defogger or side air bag) or
through rear window defogger relay terminal 5 (with door mirror defogger or side air bag)
to rear window defogger switch terminal 3 (without auto A/C) or
to A/C auto amp, terminal 23 (with auto A/C).
System Description / RHD ModelsEIS008O7
The rear window defogger system is controlled by time control unit. The rear window defogger operates only
for approximately 15 minutes.
Power is supplied at all times
through 20A fuse (No.25, located in the fuse and fusible link box) and
to rear window defogger relay terminal 3 (with side air bag) or
to rear window defogger relay terminal 5 (without side air bag).
With the ignition switch in the ON or START position, power is supplied
through 10A fuse [No.5, located in the fuse block (J/B)]
to rear window defogger relay terminal 1 and
to time control unit terminal 17.
Ground is supplied
to rear window defogger switch terminals 2 and 4 (without auto A/C) or
to A/C auto amp. Terminal 3 (with auto A/C)
through body ground M27 and M70.
When the rear window defogger switch is turned ON, ground is supplied
to time control unit terminal 35
through rear window defogger switch terminal 1 (without auto A/C) or
through A/C auto amp, terminal 22 (with auto A/C).
Terminal 27 of the time control unit then supplies ground to the rear window defogger relay terminal 2.
With power and ground supplied, the rear window defogger relay is energized.
Power is supplied
through rear window defogger terminal 3 (without side air bag) or
through rear window defogger terminal 5 (with side air bag)
to the rear window defogger.
The rear window defogger and door mirror defogger has an independent ground.
With power and ground supplied, the rear window defogger and door mirror defogger filaments heat and defog
the rear window and door mirror.
When the system is activated, the rear window defogger indicator illuminates in the rear window defogger
switch.
Power is supplied
through rear window defogger relay terminal 3 (without side air bag) or
through rear window defogger relay terminal 5 (with side air bag)
to rear window defogger switch terminal 3 (without auto A/C) or
to A/C auto amp, terminal 23 (with auto A/C).

Page 3205 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual REAR WINDOW DEFOGGER
GW-19
C
D
E
F
G
H
J
K
L
MA
B
GW

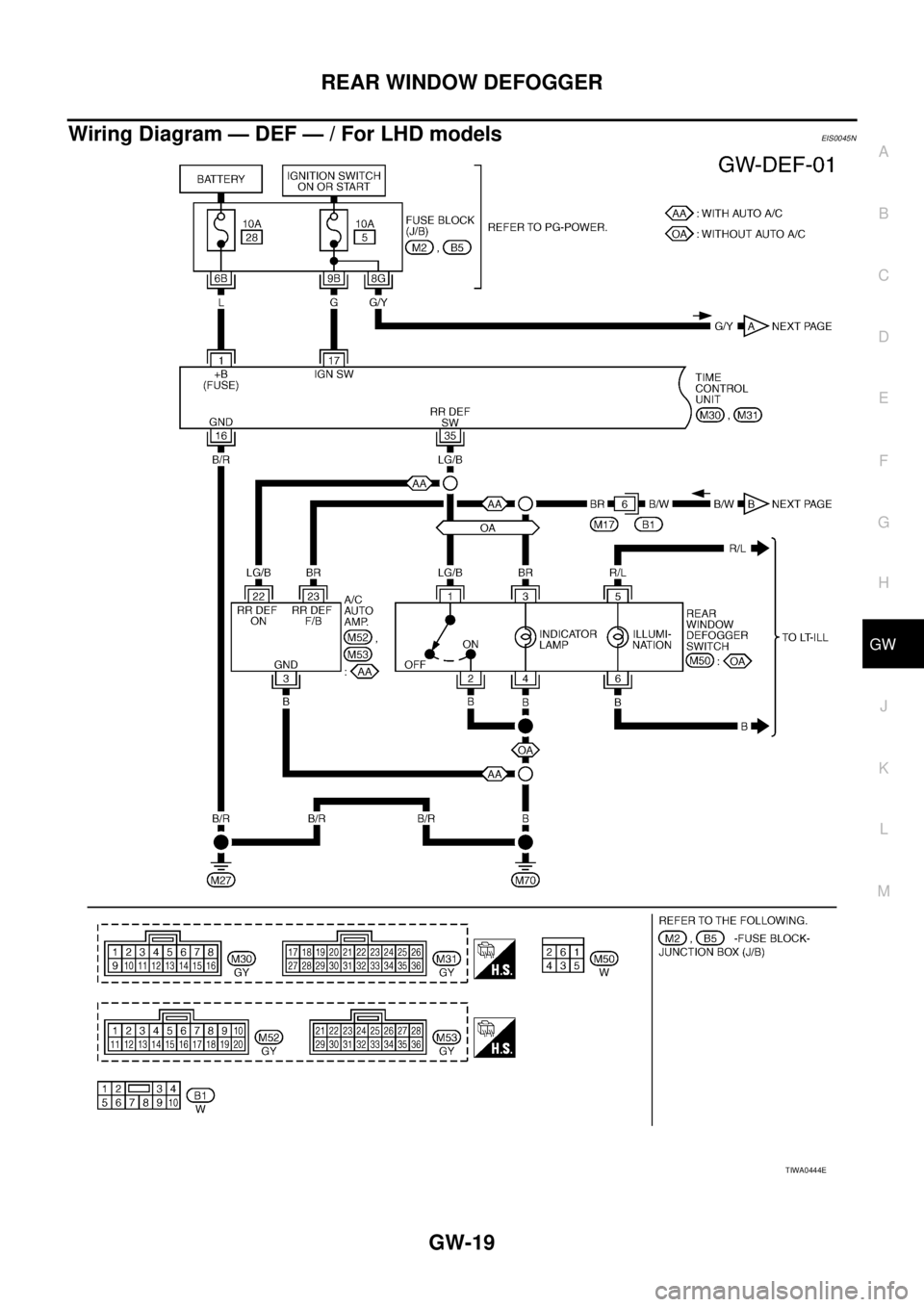

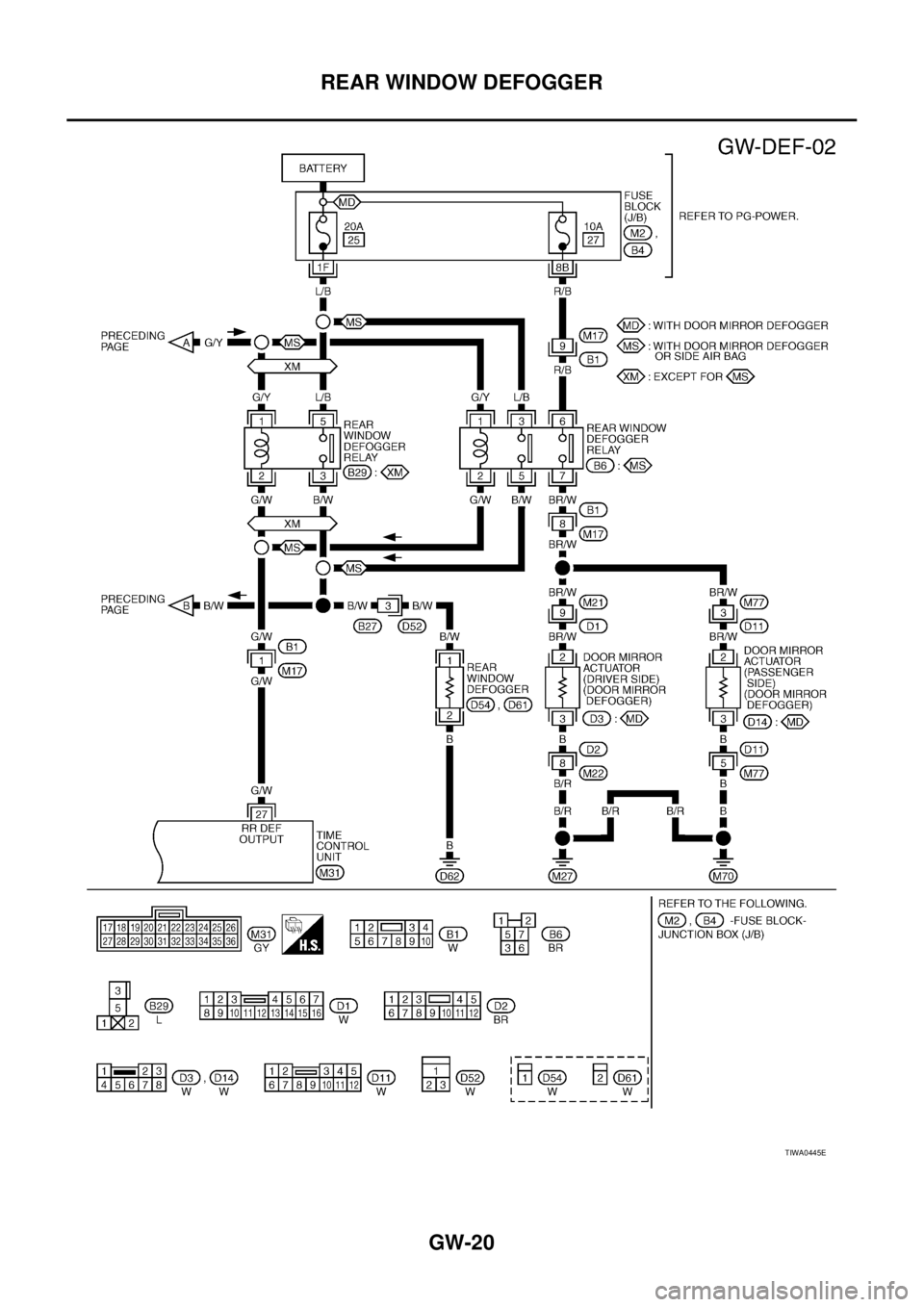

Wiring Diagram — DEF — / For LHD modelsEIS0045N
TIWA0444E

Page 3206 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual GW-20
REAR WINDOW DEFOGGER

TIWA0445E

Page 3207 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual REAR WINDOW DEFOGGER
GW-21
C
D
E
F
G
H
J
K
L
MA
B
GW

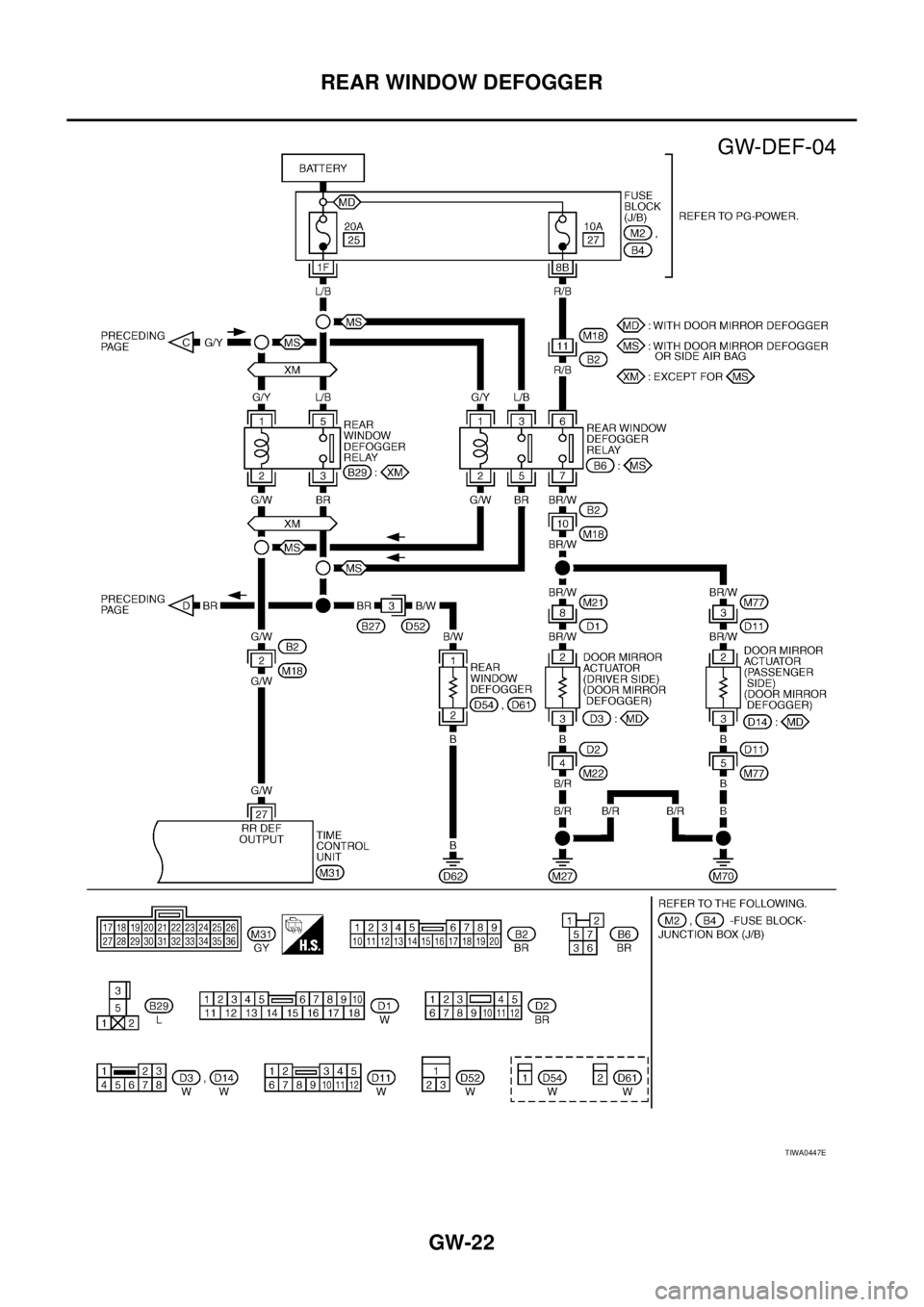

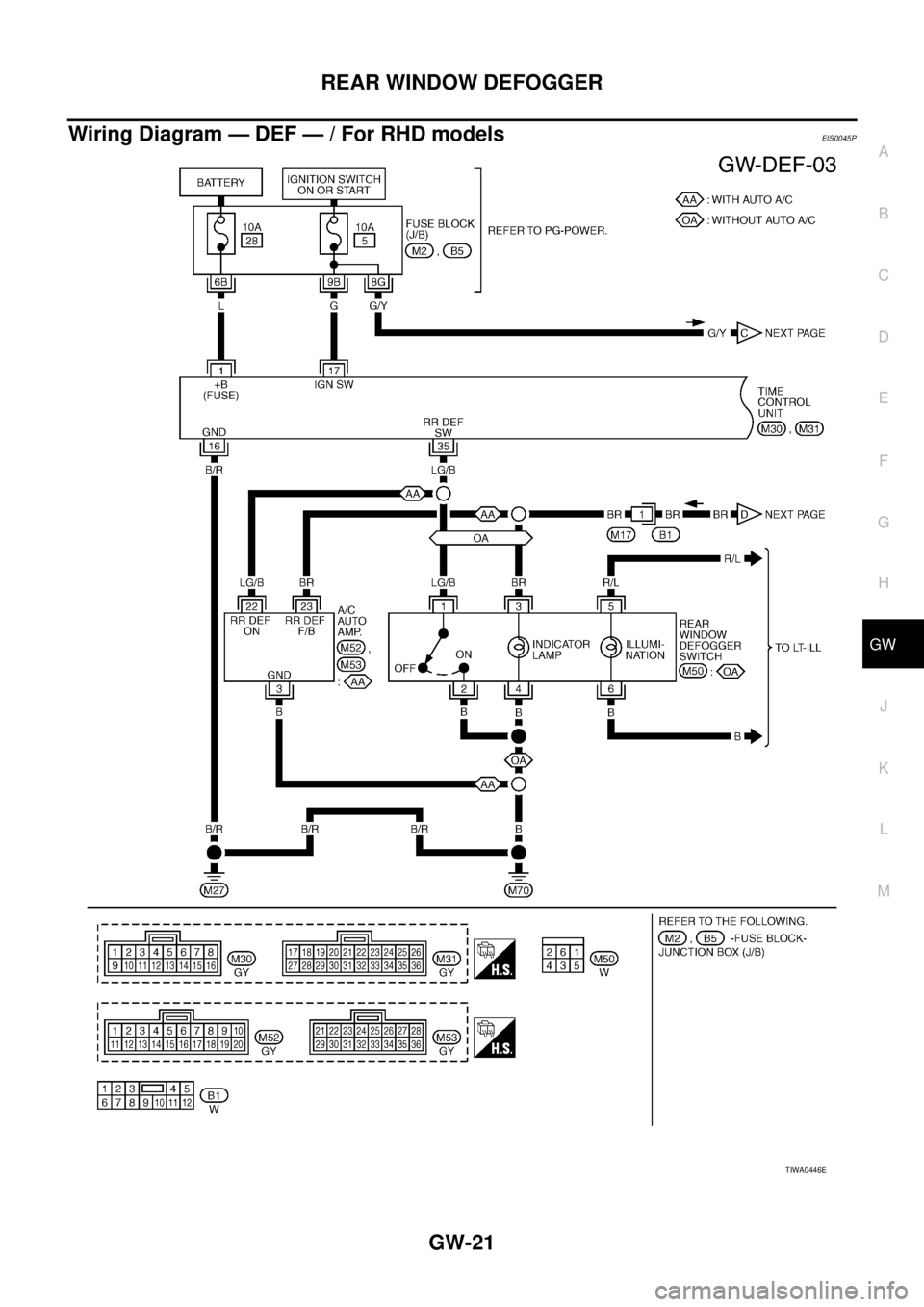

Wiring Diagram — DEF — / For RHD modelsEIS0045P
TIWA0446E

Page 3208 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual GW-22
REAR WINDOW DEFOGGER

TIWA0447E
