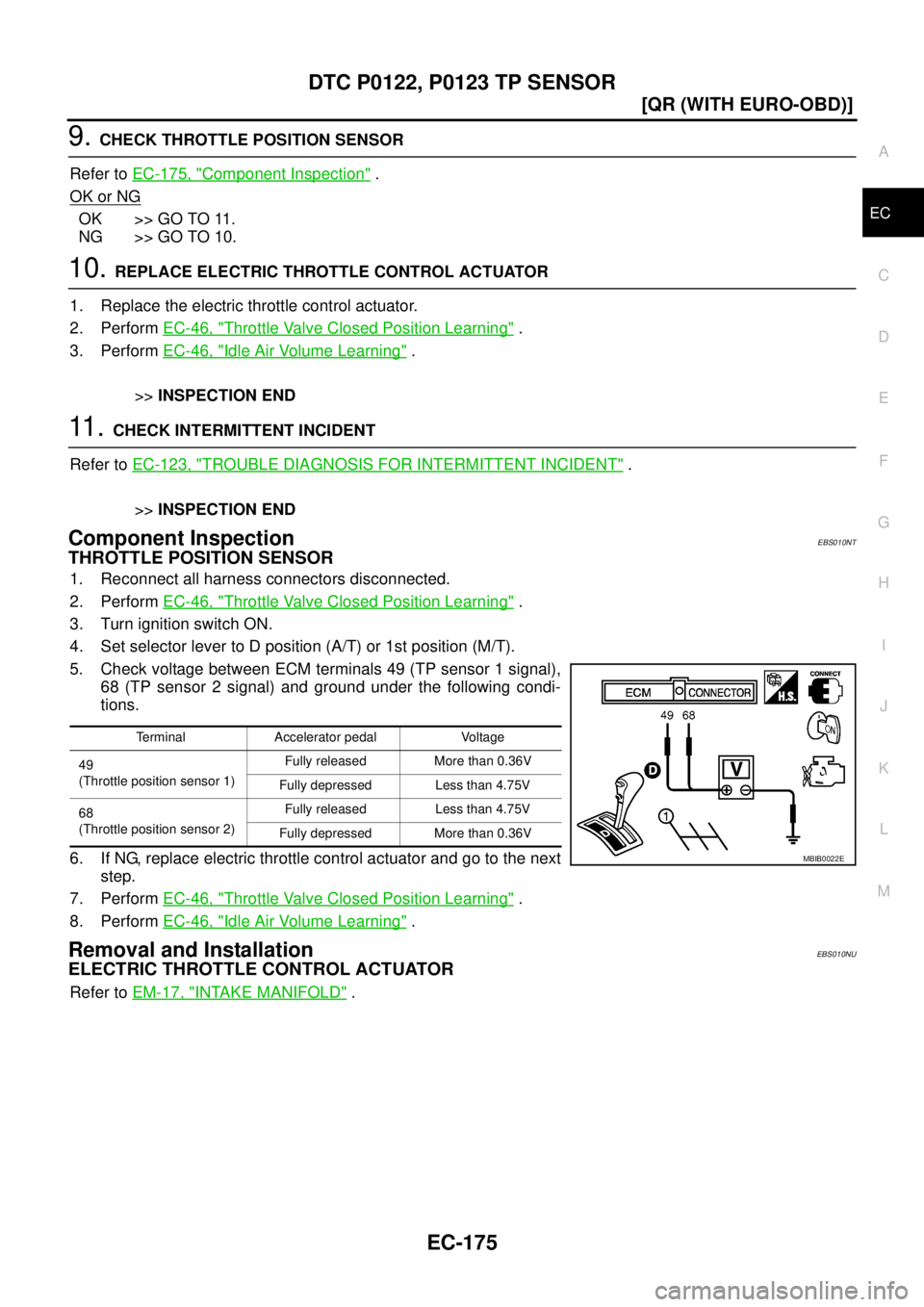

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0122, P0123 TP SENSOR EC-175 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC 9. CHECK THROTTLE POSITION SENSOR Refer to EC-175, " Component Inspection" . OK or NG OK >> GO TO 11. NG >> GO TO 10.

Page 554 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-176 [QR (WITH EURO-OBD)] DTC P0132 HO2S1 DTC P0132 HO2S1PFP:22690 Component DescriptionEBS010NV The heated oxygen sensor 1 is placed into the exhaust manifold. It detects the amount of oxygen in

Page 555 of 4179

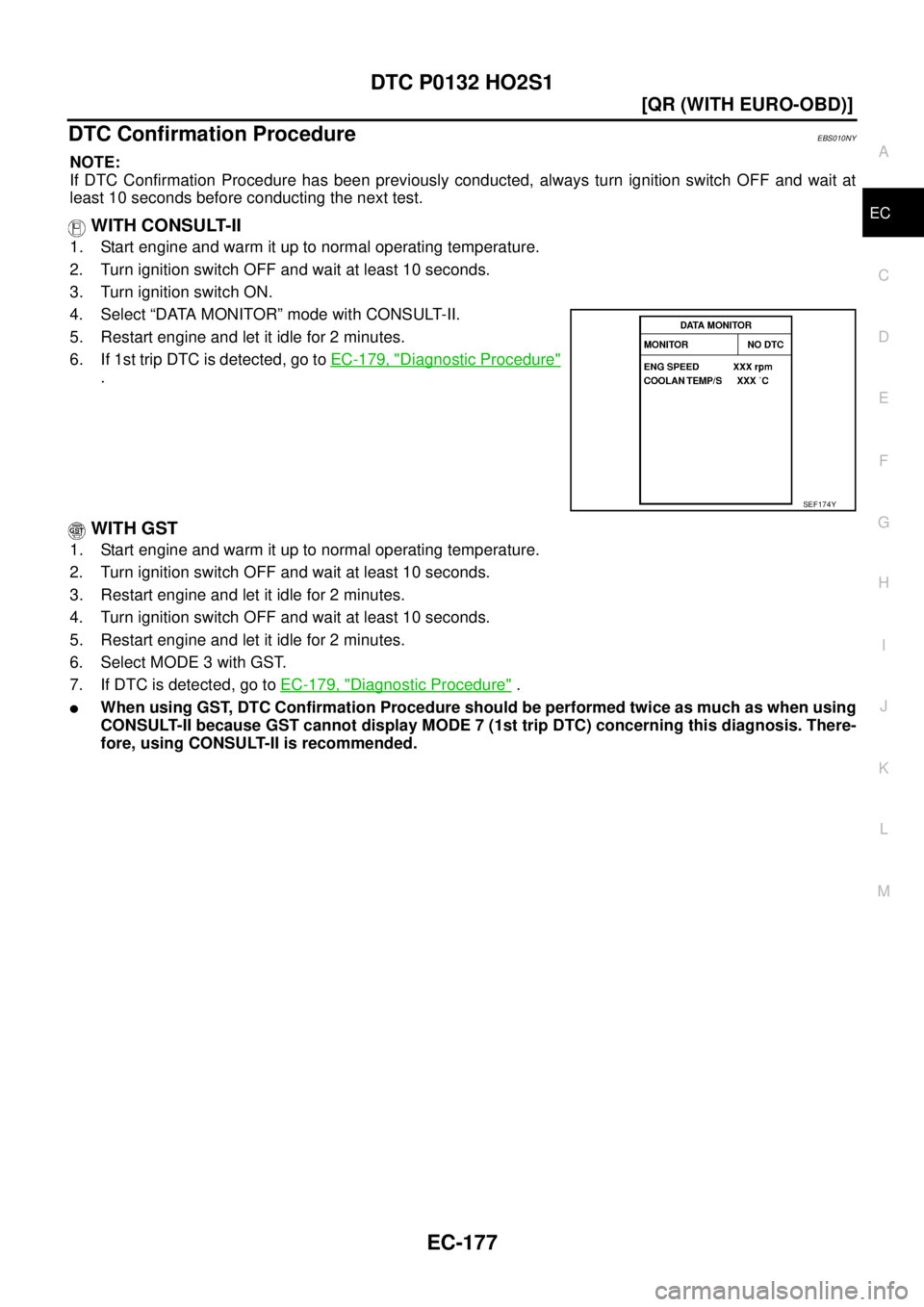

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0132 HO2S1 EC-177 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC DTC Confirmation ProcedureEBS010NY NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switc

Page 556 of 4179

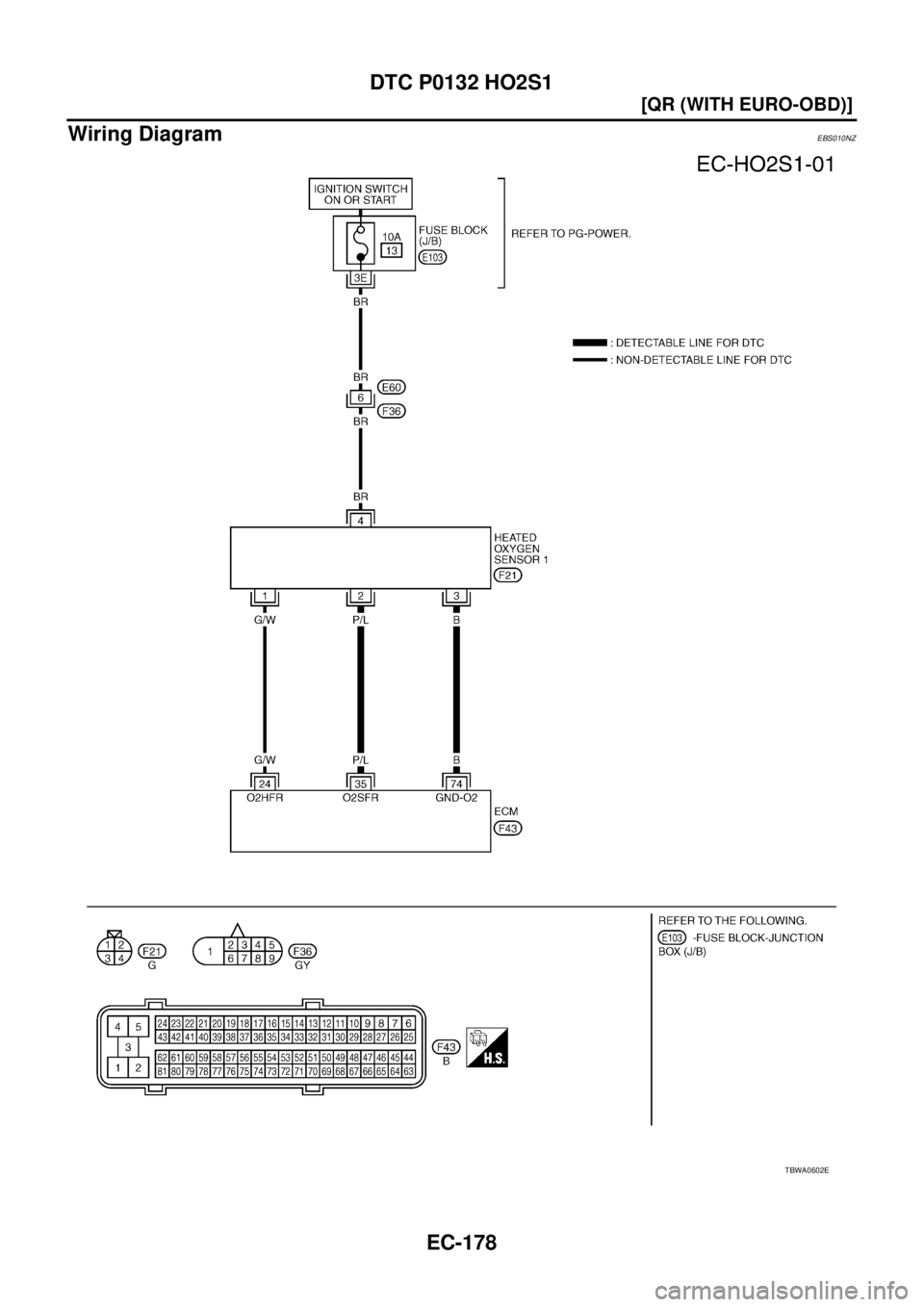

NISSAN X-TRAIL 2003 Service Repair Manual EC-178 [QR (WITH EURO-OBD)] DTC P0132 HO2S1 Wiring DiagramEBS010NZ TBWA0602E

Page 557 of 4179

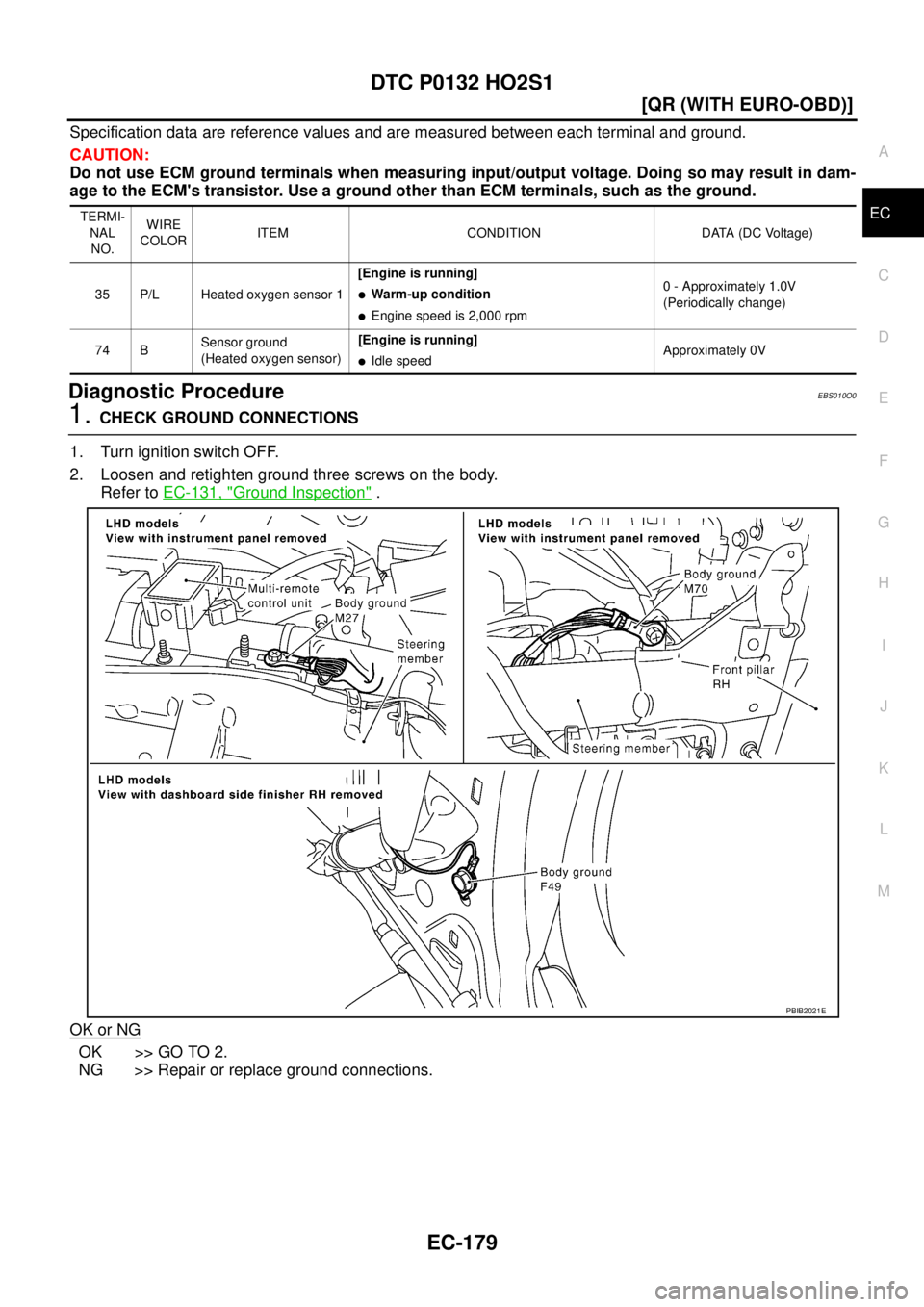

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0132 HO2S1 EC-179 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground termin

Page 558 of 4179

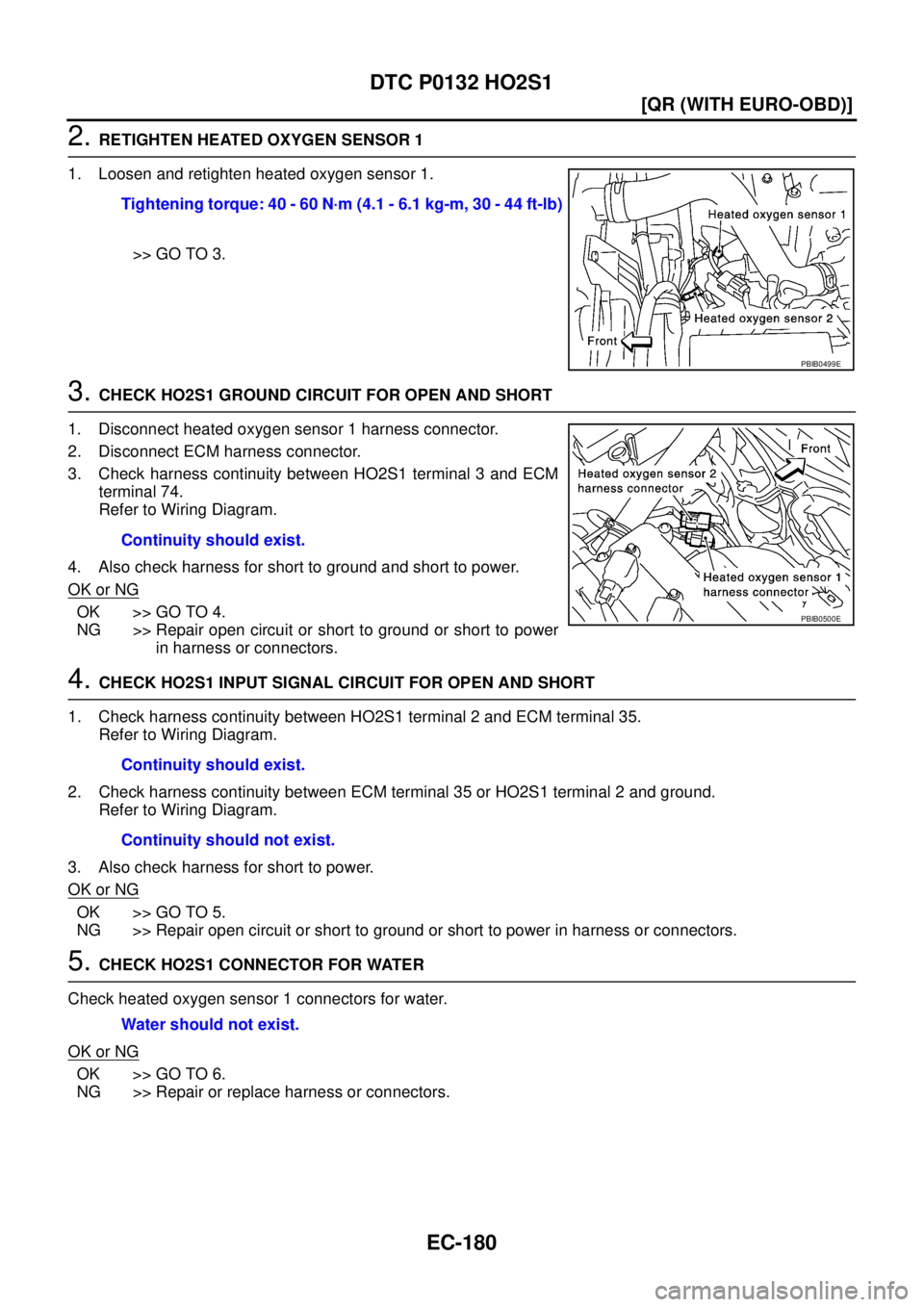

NISSAN X-TRAIL 2003 Service Repair Manual EC-180 [QR (WITH EURO-OBD)] DTC P0132 HO2S1 2. RETIGHTEN HEATED OXYGEN SENSOR 1 1. Loosen and retighten heated oxygen sensor 1. >> GO TO 3. 3. CHECK HO2S1 GROUND CIRCUIT FOR OPEN AND SHORT 1. Discon

Page 559 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0132 HO2S1 EC-181 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC 6. CHECK HEATED OXYGEN SENSOR 1 Refer to EC-181, " Component Inspection" . OK or NG OK >> GO TO 7. NG >> Replace heated oxygen s

Page 560 of 4179

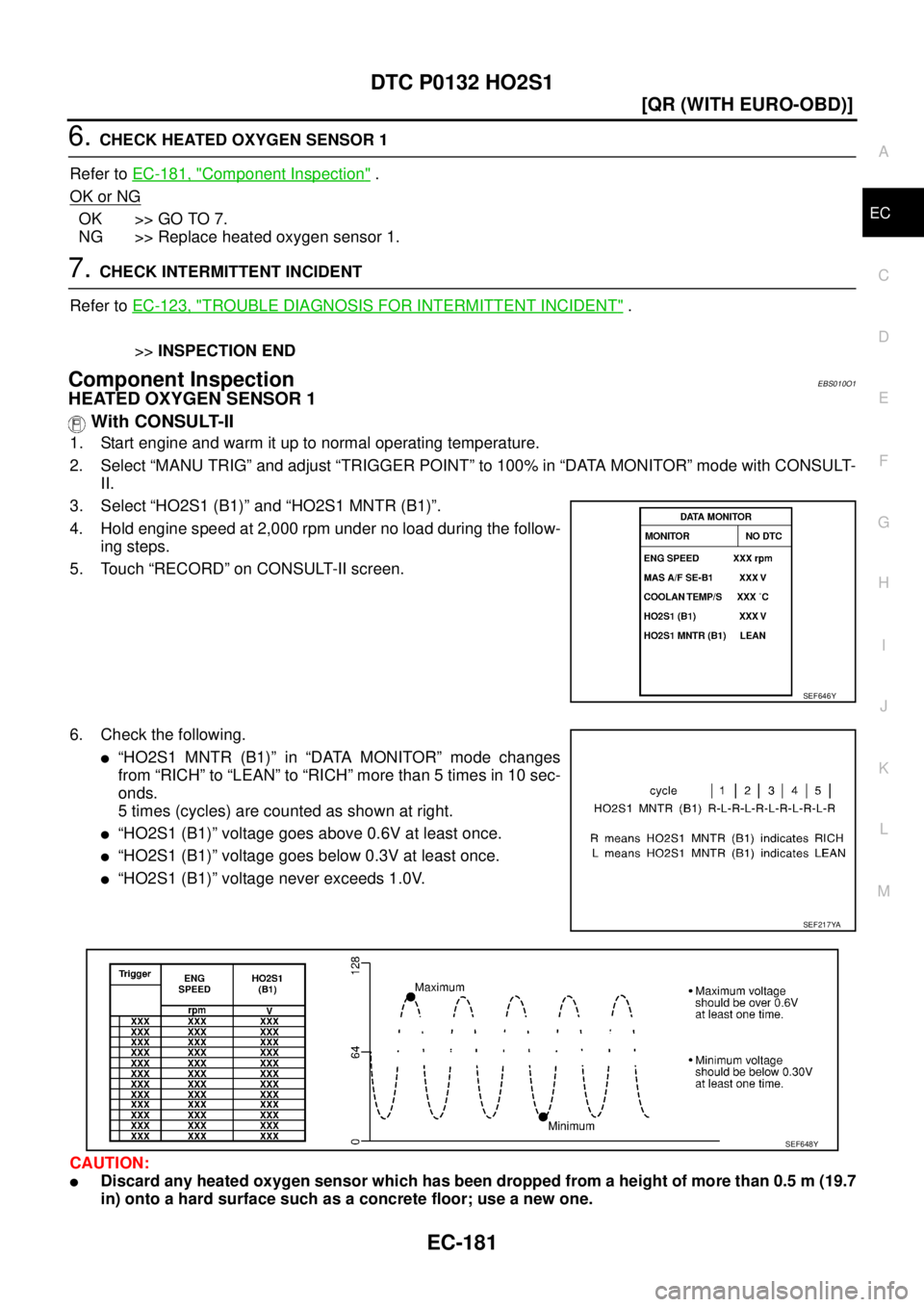

NISSAN X-TRAIL 2003 Service Repair Manual EC-182 [QR (WITH EURO-OBD)] DTC P0132 HO2S1 Before installing new oxygen sensor, clean exhaust system threads using Oxygen Sensor Thread Cleaner tool J-43897-18 or J-43897-12 and approved anti-seiz
