GI-22
HOW TO USE THIS MANUAL

AbbreviationsEAS000G5
The following ABBREVIATIONS are used:
ABBREVIATION DESCRIPTION
A/C Air Conditioner
A/T Automatic Transaxle/Transmission
ATF Automatic Transmission Fluid
D
1Drive range 1st gear
D
2Drive range 2nd gear
D
3Drive range 3rd gear
D
4Drive range 4th gear
FR, RR Front, Rear
LH, RH Left-Hand, Right-Hand
M/T Manual Transaxle/Transmission
OD Overdrive
P/S Power Steering
SAE Society of Automotive Engineers, Inc.
SDS Service Data and Specifications
SST Special Service Tools
2WD 2-Wheel Drive
2
22nd range 2nd gear
2
12nd range 1st gear
1
21st range 2nd gear
1
11st range 1st gear

TOW TRUCK TOWING
GI-39
C
D
E
F
G
H
I
J
K
L
MB
GI

TOW TRUCK TOWINGPFP:00000
Tow Truck TowingEAS000FL
CAUTION:

All applicable local laws regarding the towing operation must be obeyed.

It is necessary to use proper towing equipment to avoid possible damage to the vehicle during
towing operation. Towing is in accordance with Towing Procedure Manual at dealer.

Always attach safety chains before towing.

When towing, make sure that the transmission, steering system and power train are in good order.
If any unit is damaged, dollies must be used.

Never tow an automatic transmission model from the rear (that is backward) with four wheels on
the ground. This may cause serious and expensive damage to the transmission.
NISSAN recommends that towing dollies be used when towing your
vehicle beplaced on a flat bed truck as illustrated.
TOWING AN AUTOMATIC TRANSAXLE MODEL WITH FOUR WHEELS ON GROUND
Observe the following restricted towing speeds and distances.
CAUTION:
Never tow an automatic transaxle model from the rear (i.e., backward) with four wheels on the ground
as this may cause serious and expensive damage to the transaxle.
PAIA0012E
Speed :Below 50 km/h (30 MPH)
Distance :Less than 65 km(40 miles)

EM-18
[QR]
INTAKE MANIFOLD

b. Loosen mounting bolts in reverse order as shown in the figure,
and remove electric throttle control actuator and gasket.
CAUTION:

Handle carefully to avoid any shock to electric throttle
control actuator.

Do not disassemble.
5. Disconnect harness, power steering piping, vacuum hose and PCV hose from intake manifold, and move
them aside.
6. Remove intake manifold support and gasket.
7. Disconnect sub-harness from fuel injector. Refer to EM-32, "
Removal and Installation (QR20DE)" .
8. Loosen mounting bolts and nuts in reverse order as shown in
the figure, and remove intake manifold (with fuel tube and fuel
injector assembly) and gasket.
CAUTION:

Do not disassemble intake manifold.

Cover engine openings to avoid entry of foreign materi-
als.
NOTE:
Disregard No. 6 when loosening.
9. Remove fuel tube and fuel injector assembly from intake manifold. Refer to EM-32, "
Removal and Installa-
tion (QR20DE)" .
INSTALLATION
Note the following, and install in the reverse order of removal.
Intake Manifold

If stud bolts were removed, install them and tighten to the specified torque below.

Check if gasket is not dropped from the installation groove of intake manifold.

Tighten in numerical order as shown in the figure.
NOTE:
No. 6 means double tightening of bolt No. 1.
EMJ1612D
PBIC2173E
: 10.8 N·m (1.1 kg-m, 8 ft-lb)
PBIC2173E

INTAKE MANIFOLD
EM-21
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

a. Disconnect harness connector.
b. Loosen mounting bolts in reverse order as shown in the figure,
and remove electric throttle control actuator and gasket.
CAUTION:

Handle carefully to avoid any shock to electric throttle
control actuator.

Do not disassemble.
5. Disconnect harness, vacuum hose and PCV hose from intake manifold collector, and move them aside.
6. Remove intake manifold rear support and intake manifold support.
7. Loosen mounting bolts and nuts in reverse order as shown in
the figure, and remove intake manifold collector and gasket.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
NOTE:
Disregard No. 8 when loosening.
8. Disconnect power steering piping from intake manifold, and move them aside.
9. Disconnect sub-harness from fuel injector. Refer to EM-37, "
Removal and Installation (QR25DE)" .
10. Loosen mounting bolts and nuts in reverse order as shown in
the figure, and remove intake manifold (with fuel tube and fuel
injector assembly) and gasket.
CAUTION:
Cover engine openings to avoid entry of foreign materials.
NOTE:
Disregard No. 6 when loosening.
11. Remove fuel tube and fuel injector assembly from intake manifold. Refer to EM-37, "
Removal and Installa-
tion (QR25DE)" .
INSPECTION AFTER REMOVAL
Surface Distortion

Using straightedge and feeler gauge, check the surface distor-
tion of both the intake manifold collector mating surface and the
intake manifold mating surfaces.

If it exceeds the limit, replace intake manifold and/or intake man-
ifold collector.
EMJ1612D
SBIA0230E
SBIA0231E
Limit : 0.1 mm (0.004 in)
KBIA0235E

TIMING CHAIN
EM-45
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM


Hood assembly; Refer to BL-12, "HOOD" .

RH and LH undercovers

PCV hose; Refer to EM-17, "INTAKE MANIFOLD" .

Ignition coil; Refer to EM-29, "IGNITION COIL" .

Rocker cover; Refer to EM-42, "ROCKER COVER" .

Engine coolant reservoir tank; Refer to CO-12, "RADIATOR" .

Drive belt; Refer to EM-13, "REMOVAL" .

Alternator; Refer to SC-12, "CHARGING SYSTEM" .

Drive belt auto-tensioner; Refer to EM-14, "REMOVAL" .

Exhaust front tube; Refer to EX-2, "EXHAUST SYSTEM" .
2. Remove A/C compressor from engine. Temporarily secure A/C compressor to vehicle side with a rope to
avoid putting a load on them.
3. Remove bracket mounting bolts for fixing A/C piping on right strut housing and exhaust manifold cover.
Doing so simplifies moving.
4. Remove power steering oil pump with piping connected, and secure it to vehicle side temporarily. Refer to
PS-34, "
HYDRAULIC LINE" .
5. Remove power steering reservoir tank from bracket to move power steering piping. Refer to PS-34,
"HYDRAULIC LINE" .
CAUTION:
To avoid power steering fluid leakage, temporarily fix power steering reservoir tank vertically.
6. Install engine slingers into front left of cylinder head and rear
right of cylinder head.

Use alternator bracket mounting bolt holes for the front side.
7. Lift with hoist, and support the engine posture.
8. Remove RH engine mounting insulator and bracket. Refer to EM-78, "
ENGINE ASSEMBLY" .
9. Remove center member and rear engine mounting bracket. Refer to EM-78, "
ENGINE ASSEMBLY" .
10. Drain engine oil. Refer to LU-8, "
Changing Engine Oil" .
11. Remove oil pan (upper and lower), and oil strainer. Refer to EM-25, "
OIL PAN AND OIL STRAINER" .
12. Remove intake valve timing control cover.

Loosen bolts in reverse order as shown in the figure.

U s e a s e a l c u t t e r ( s p e c i a l s e r v i c e t o o l : K V 1 0 1111 0 0 ) o r e q u i v -
alent tool to cut liquid gasket for removal.
CAUTION:
Be careful not to damage mounting surface.
13. Pull chain guide between camshaft sprockets out through front cover.
14. Set No. 1 cylinder at TDC on its compression stroke with the following procedure:Slinger bolts:
Front
: 57.9 N·m (5.9 kg-m, 43 ft-lb)
Rear
: 28.0 N·m (2.9 kg-m, 21 ft-lb)
SBIA0271E
KBIA0085E

TIMING CHAIN
EM-51
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

b. Apply a continuous bead of liquid gasket with a tube presser
(special service tool: WS39930000) to front cover as shown in
the figure.
Use Genuine Liquid Gasket or equivalent.
NOTE:
Application instruction differs depending on the position.
c. Make sure that mating marks of timing chain and each sprocket are still aligned. Then install front cover.
CAUTION:

Do not let A/C and power steering pipings interfere with upper part of front cover.

Be careful not to damage front oil seal by interference with front end of crankshaft.
d. Tighten mounting bolts in numerical order as shown in the fig-
ure.
e. After all bolts are tightened, retighten them to specified torque in
numerical order as shown in the figure.
CAUTION:
Be sure to wipe off any excessive liquid gasket leaking to
surface for fitting oil pan.
8. Install chain guide between camshaft sprockets.
9. Install intake valve timing control cover with the following procedure:
a. Install intake valve timing control solenoid valves to intake valve timing control cover if removed.
b. Install oil rings to the camshaft sprocket (INT) insertion points on backside of intake valve timing control
cover.
c. Install O-ring to front cover.Detail of A : Cross over the start of the applica-
tion and the end.
Detail of B : Apply liquid gasket outside of bolt
holes. (For all bolt holes other than
B, apply to the inside.)
Detail of C : Between here only, apply 4.5 - 5.5
mm (0.177 - 0.217 in) dia.
SBIA0267E
KBIA0083E

CAMSHAFT
EM-53
[QR]
C
D
E
F
G
H
I
J
K
L
MA
EM

CAMSHAFTPFP:13001
Removal and InstallationEBS00LS2
NOTE:
This section describes removal/installation procedure of camshaft without removing front cover. If front cover
is removed or installed, removal of camshaft bracket (No. 1) is easier before step 8 and installation is easier
after step 3. Regarding removal and installation of front cover, refer to EM-44, "
TIMING CHAIN" .
REMOVAL
1. Release fuel pressure. Refer to EC-48, "FUEL PRESSURE RELEASE" (WITH EURO-OBD) or EC-510,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
2. Remove the following parts.

Ignition coil; Refer to EM-29, "IGNITION COIL" .

Rocker cover; Refer to EM-42, "ROCKER COVER" .
3. Remove power steering reservoir tank from bracket to move power steering piping. Refer to PS-34,
"HYDRAULIC LINE" .

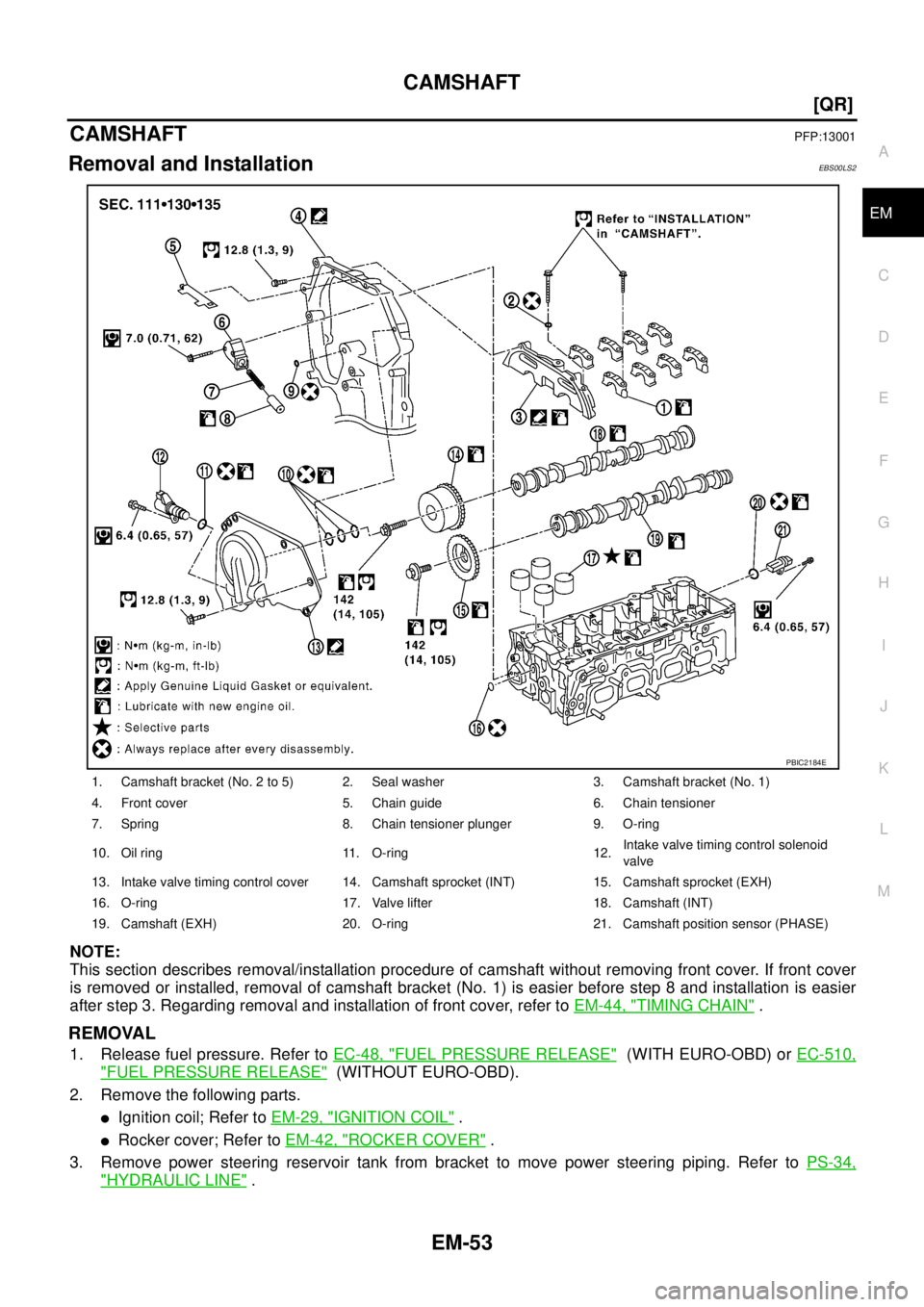

1. Camshaft bracket (No. 2 to 5) 2. Seal washer 3. Camshaft bracket (No. 1)
4. Front cover 5. Chain guide 6. Chain tensioner
7. Spring 8. Chain tensioner plunger 9. O-ring
10. Oil ring 11. O-ring 12.Intake valve timing control solenoid
valve
13. Intake valve timing control cover 14. Camshaft sprocket (INT) 15. Camshaft sprocket (EXH)
16. O-ring 17. Valve lifter 18. Camshaft (INT)
19. Camshaft (EXH) 20. O-ring 21. Camshaft position sensor (PHASE)
PBIC2184E
