NISSAN X-TRAIL 2003 Service Repair Manual INDEX FOR DTC
EC-1207
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

X: Applicable —: Not applicable
DTC*Items
(CONSULT-II screen item) MI lighting up Reference page
U1000 CAN COMM CIRCUIT —E

Page 1586 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1208
[YD (WITHOUT EURO-OBD)]
INDEX FOR DTC

*: This number is prescribed by ISO 15031-6.P0653 SENSOR PWR/CIRC2 —EC-1393
P0686 ECM RELAY —EC-1399
P1211 TCS C/U FUNCTN —EC-1402
P1212 TCS/CIRC

Page 1587 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PRECAUTIONS
EC-1209
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EBS011

PRECAUTIONS
EC-1209
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EBS011WR
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
On Board Diagnostic (OBD) System of EngineEBS011WS
The ECM has an on board diagnostic system. It will light up the malfunction indicator (MI) to warn the driver of
a malfunction causing emission deterioration.
CAUTION:
Be sure to turn the ignition switch OFF and disconnect the battery ground cable before any repair
or inspection work. The open/short circuit of related switches, sensors, solenoid valves, etc. will
cause the MI to light up.
Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MI to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
Certain systems and components, especially those related to OBD, may use a new style slide-
locking type harness connector. For description and how to disconnect, refer to PG-70, "
HAR-
NESS CONNECTOR" .
Be sure to route and secure the harnesses properly after work. The interference of the harness
with a bracket, etc. may cause the MI to light up due to the short circuit.
Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MI to light up due to the malfunction of the fuel system, etc.
Be sure to erase the unnecessary malfunction information (repairs completed) from the ECM
before returning the vehicle to the customer.
PrecautionsEBS011WT
Always use a 12 volt battery as power source.
Do not attempt to disconnect battery cables while engine is
running.
Before connecting or disconnecting the ECM harness con-
nector, turn ignition switch OFF and disconnect battery
ground cable. Failure to do so may damage the ECM
because battery voltage is applied to ECM even if ignition
switch is turned off.
Before removing parts, turn ignition switch OFF and then
disconnect battery ground cable.
SEF289H

Page 1588 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1210
[YD (WITHOUT EURO-OBD)]
PRECAUTIONS

Do not disassemble ECM.
When connecting ECM harness connector, fasten it
securely with levers as far as they will go as shown in the
figure.
When conne

Page 1589 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PRECAUTIONS
EC-1211
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

After performing each TROUBLE DIAGNOSIS, perform DTC
Confirmation Procedure or Overall Function Check.
The DTC should not be di

Page 1590 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1212
[YD (WITHOUT EURO-OBD)]
PRECAUTIONS

Wiring Diagrams and Trouble DiagnosisEBS011WU
When you read Wiring diagrams, refer to the following:
GI-14, "How to Read Wiring Diagrams".
PG-2, "POWER

Page 1591 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PREPARATION
EC-1213
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

PREPARATIONPFP:00002
Special Service ToolsEBS011WV
Commercial Service ToolsEBS011WW
Tool number
Tool nameDescription
EG17650301

Page 1592 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1214
[YD (WITHOUT EURO-OBD)]
ENGINE CONTROL SYSTEM

ENGINE CONTROL SYSTEMPFP:23710

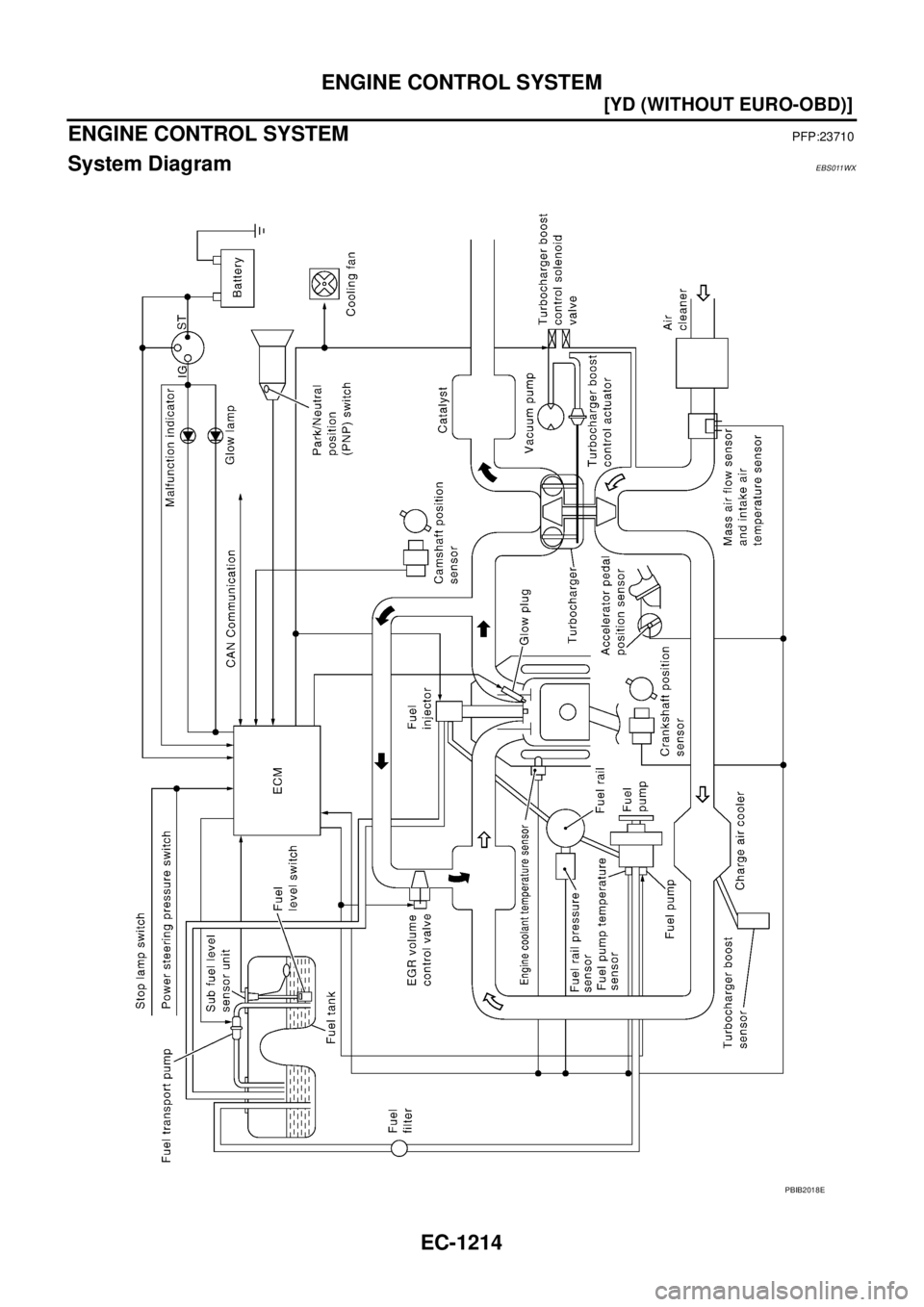

System DiagramEBS011WX
PBIB2018E
