Page 3753 of 4179
FRONT WIPER AND WASHER SYSTEM
WW-13
C
D
E
F
G
H
I
J
L
MA
B
WW
Removal and Installation for Washer Tank EKS0032X

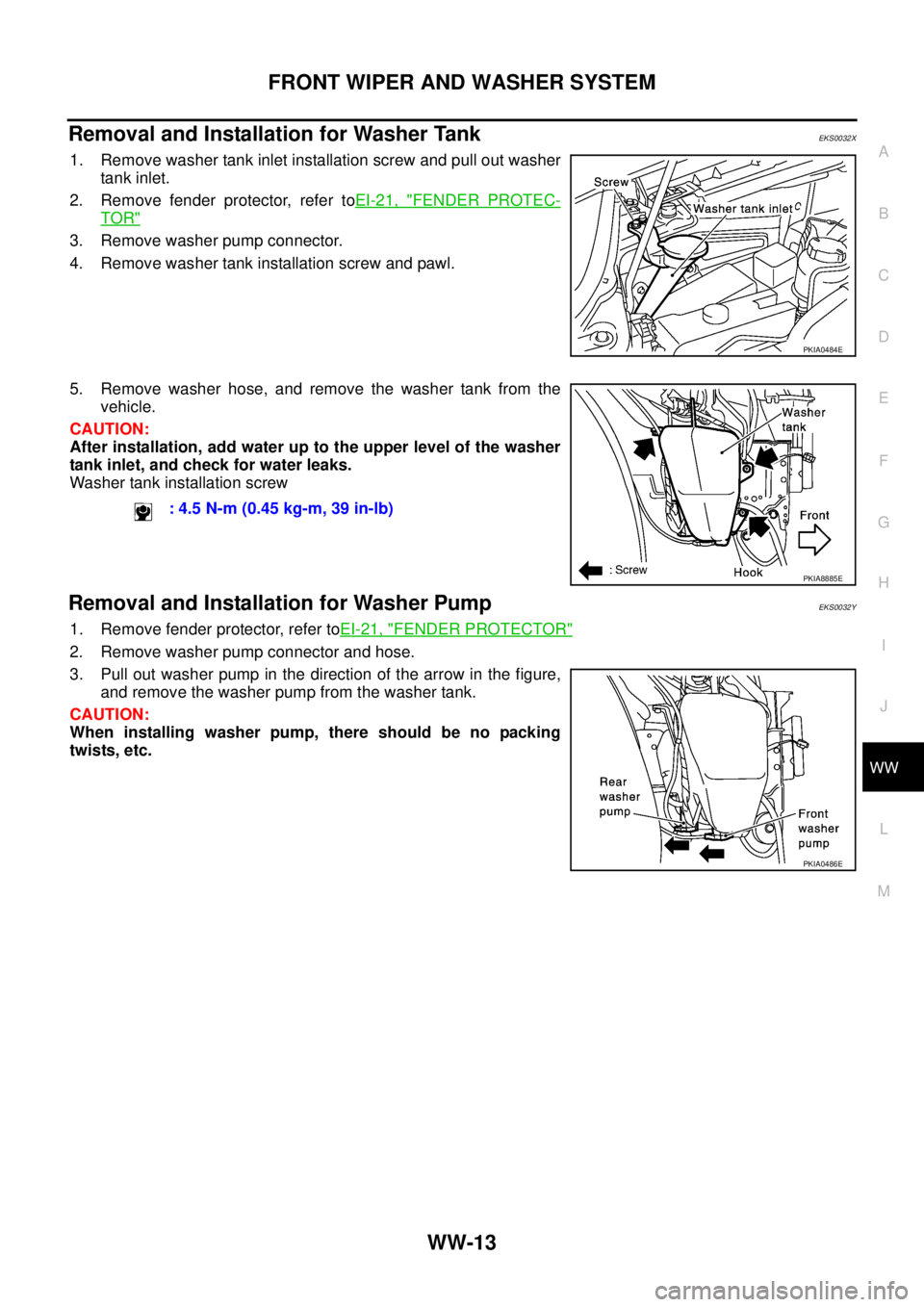

1. Remove washer tank inlet installation screw and pull out washer
tank inlet.
2. Remove fender protector, refer toEI-21, "
FENDER PROTEC-
TOR"
3. Remove washer pump connector.
4. Remove washer tank installation screw and pawl.
5. Remove washer hose, and remove the washer tank from the
vehicle.
CAUTION:
After installation, add water up to the upper level of the washer
tank inlet, and check for water leaks.
Washer tank installation screw
Removal and Installation for Washer Pump EKS0032Y
1. Remove fender protector, refer toEI-21, "FENDER PROTECTOR"
2. Remove washer pump connector and hose.
3. Pull out washer pump in the direction of the arrow in the figure,
and remove the washer pump from the washer tank.
CAUTION:
When installing washer pump, there should be no packing
twists, etc.
PKIA0484E
: 4.5 N-m (0.45 kg-m, 39 in-lb)
PKIA8885E
PKIA0486E
Page 3754 of 4179
WW-14
REAR WIPER AND WASHER SYSTEM
REAR WIPER AND WASHER SYSTEMPFP:28710
Wiring Diagram — WIP/R —EKS0032Z

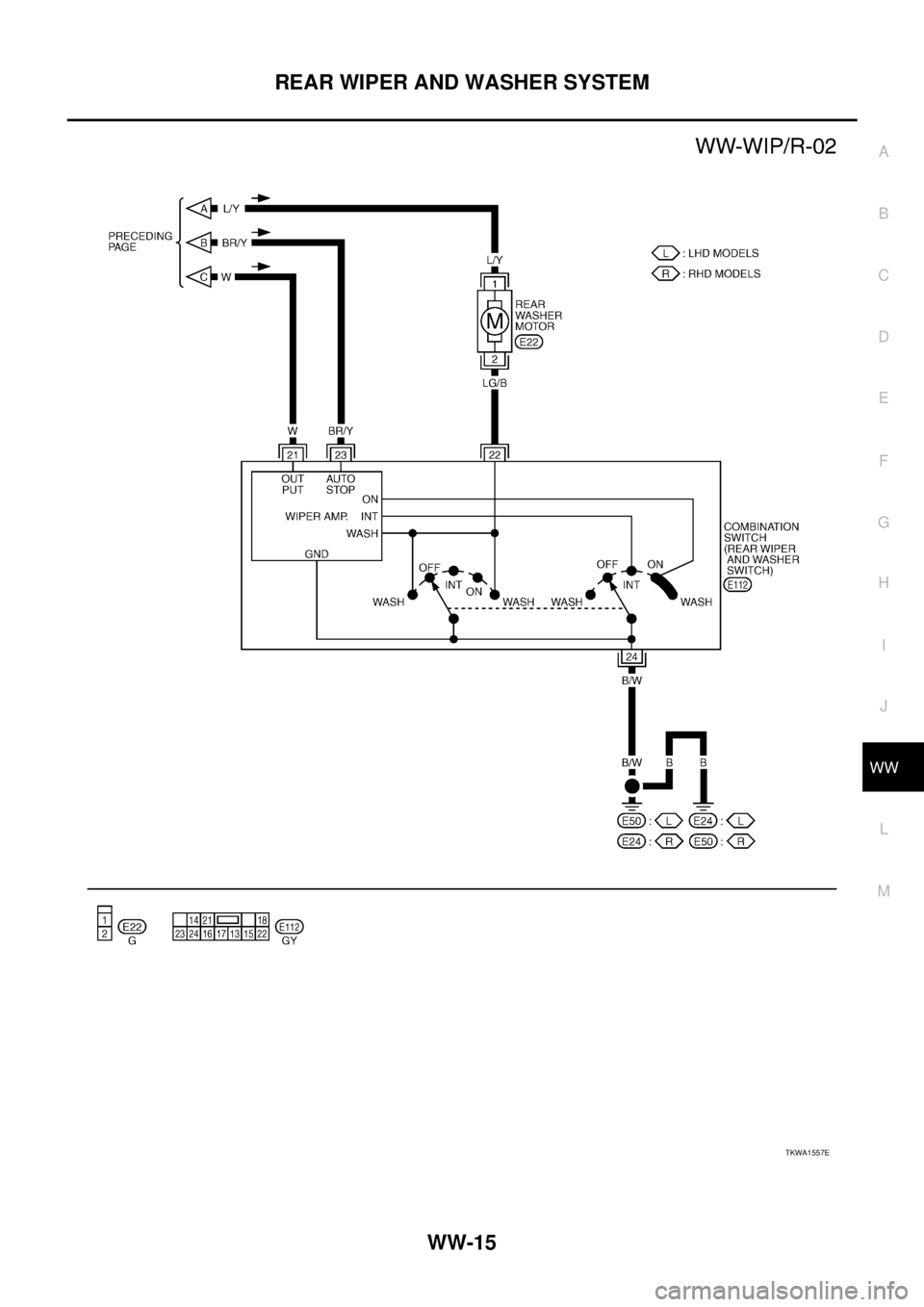

TKWA1556E
Page 3755 of 4179
REAR WIPER AND WASHER SYSTEM
WW-15
C
D
E
F
G
H
I
J
L
MA
B
WW

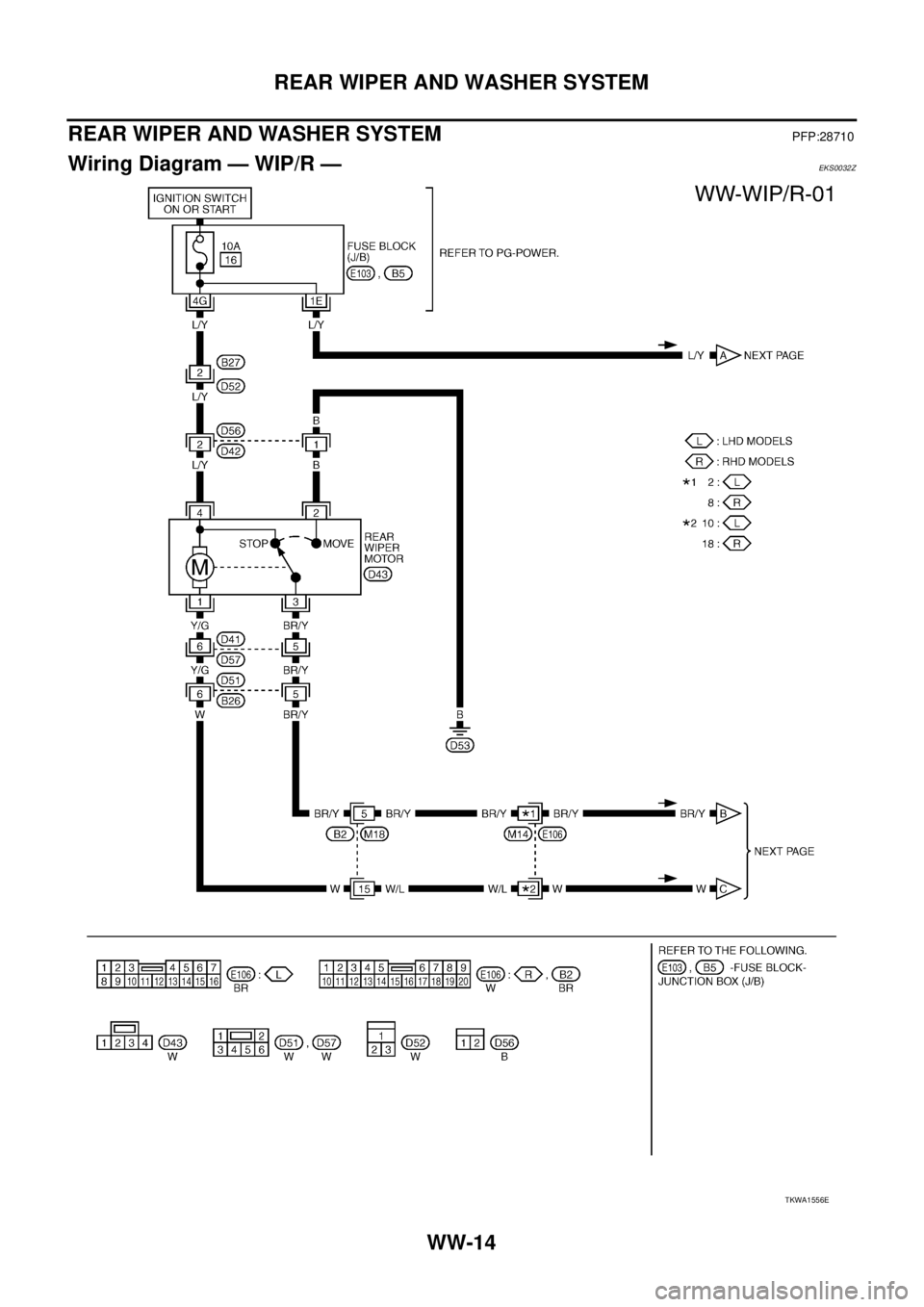

TKWA1557E
Page 3756 of 4179

WW-16
REAR WIPER AND WASHER SYSTEM
Terminal and Reference Values for Combination SwitchEKS00330
Removal and Installation for Rear Wiper Arms EKS00331
WIPER ARMS

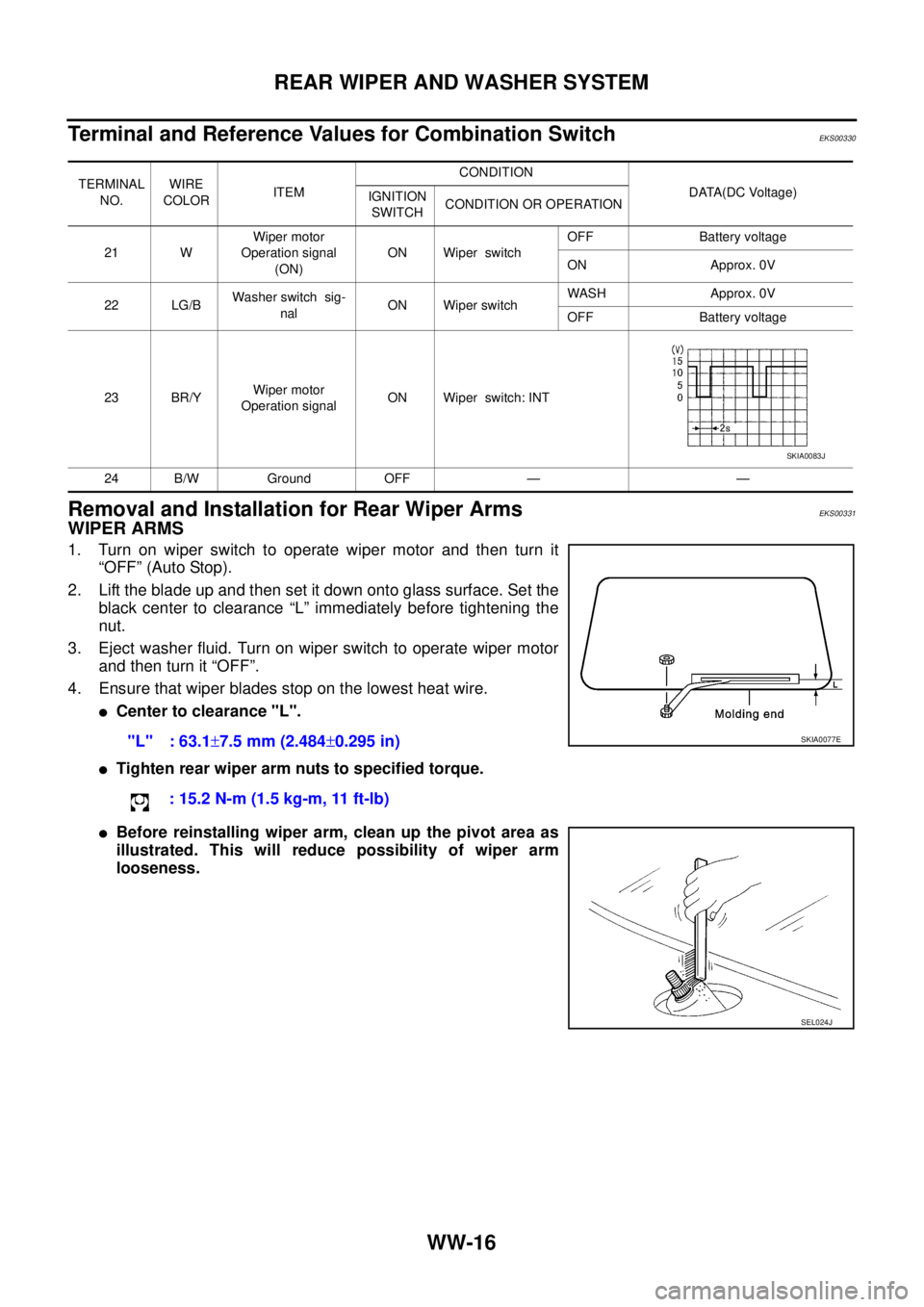

1. Turn on wiper switch to operate wiper motor and then turn it
“OFF” (Auto Stop).
2. Lift the blade up and then set it down onto glass surface. Set the
black center to clearance “L” immediately before tightening the
nut.
3. Eject washer fluid. Turn on wiper switch to operate wiper motor
and then turn it “OFF”.
4. Ensure that wiper blades stop on the lowest heat wire.
Center to clearance "L".
Tighten rear wiper arm nuts to specified torque.
Before reinstalling wiper arm, clean up the pivot area as
illustrated. This will reduce possibility of wiper arm
looseness.
TERMINAL
NO.WIRE
COLORITEM CONDITION
DATA(DC Voltage)
IGNITION
SWITCHCONDITION OR OPERATION
21 WWiper motor
Operation signal
(ON)ON Wiper switchOFF Battery voltage
ON Approx. 0V
22 LG/BWasher switch sig-
nalON Wiper switchWASH Approx. 0V
OFF Battery voltage
23 BR/YWiper motor
Operation signalON Wiper switch: INT
24 B/W Ground OFF — —
SKIA0083J
"L" : 63.1±7.5 mm (2.484±0.295 in)
: 15.2 N-m (1.5 kg-m, 11 ft-lb)SKIA0077E
SEL024J
Page 3757 of 4179

REAR WIPER AND WASHER SYSTEM
WW-17
C
D
E
F
G
H
I
J
L
MA
B
WW
Removal and Installation for Wiper Motor and Linkage EKS00332
REMOVAL
1. Remove the back door finisher. Refer to EI-34, "BACK DOOR TRIM" .
2. Operate the wiper motor, and stop it at the auto stop position.
3. Disconnect wiper motor connector.
4. Remove wiper arm from the vehicle.
5. Remove wiper motor form the vehicle.
6. Remove rubber from the vehicle.
INSTALLATION
1. Install rubber to the vehicle.
2. Install wiper motor to the vehicle.
3. Connect wiper motor to connector. Turn the wiper switch ON to operate wiper motor, then turn the wiper
switch OFF (auto stop).
4. Install wiper arm to the vehicle.
5. Install back door finisher. Refer to EI-34, "
BACK DOOR TRIM" .
Tighten rear wiper arm nuts to specified torque.
Tighten rear wiper motor nuts to specified torque.
CAUTION:
Do not drop the wiper motor or cause it to contact other parts.
Check the grease conditions of the motor arm and wiper link joint (at retainer). Apply grease if
necessary.

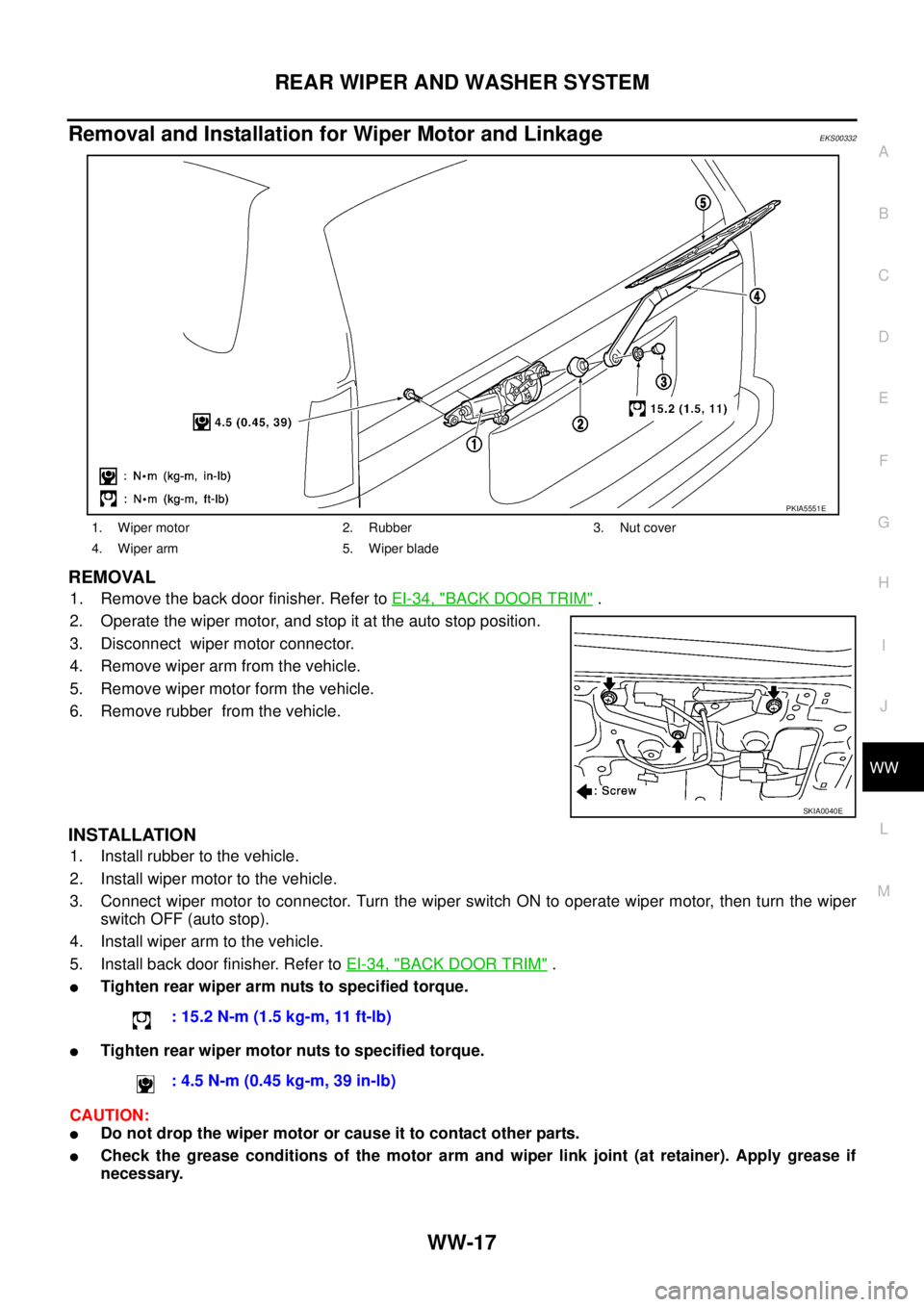

1. Wiper motor 2. Rubber 3. Nut cover
4. Wiper arm 5. Wiper blade
PKIA5551E
SKIA0040E
: 15.2 N-m (1.5 kg-m, 11 ft-lb)
: 4.5 N-m (0.45 kg-m, 39 in-lb)
Page 3758 of 4179
WW-18
REAR WIPER AND WASHER SYSTEM
Washer Nozzle AdjustmentEKS00333

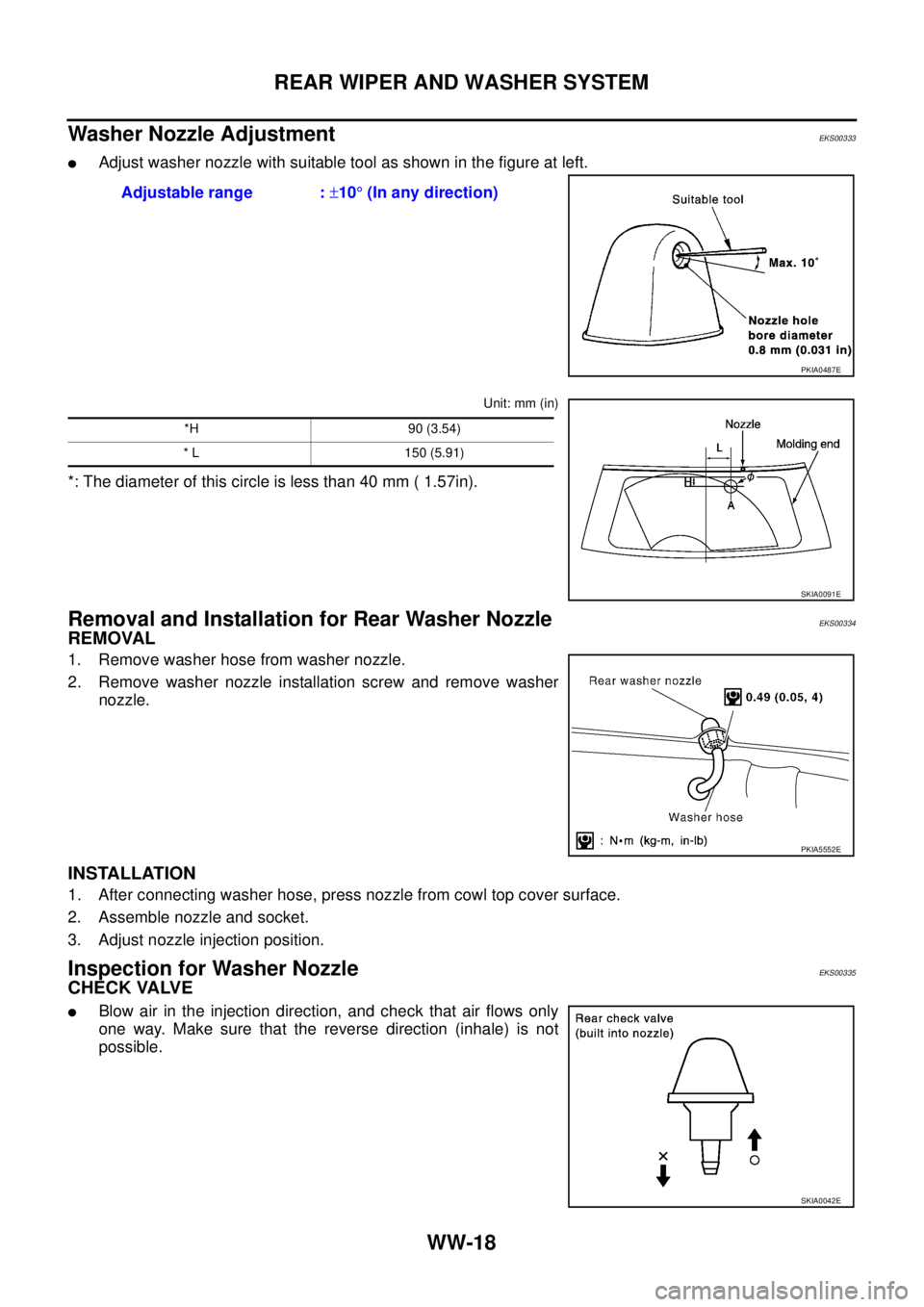

Adjust washer nozzle with suitable tool as shown in the figure at left.
Unit: mm (in)
*: The diameter of this circle is less than 40 mm ( 1.57in).
Removal and Installation for Rear Washer Nozzle EKS00334
REMOVAL
1. Remove washer hose from washer nozzle.
2. Remove washer nozzle installation screw and remove washer
nozzle.
INSTALLATION
1. After connecting washer hose, press nozzle from cowl top cover surface.
2. Assemble nozzle and socket.
3. Adjust nozzle injection position.
Inspection for Washer Nozzle EKS00335
CHECK VALVE
Blow air in the injection direction, and check that air flows only
one way. Make sure that the reverse direction (inhale) is not
possible. Adjustable range : ±10° (In any direction)
PKIA0487E
*H 90 (3.54)
* L 150 (5.91)
SKIA0091E
PKIA5552E
SKIA0042E
Page 3759 of 4179
REAR WIPER AND WASHER SYSTEM
WW-19
C
D
E
F
G
H
I
J
L
MA
B
WW
Removal and Installation for Wiper and Washer Switch EKS00336
Refer to WW-12, "Removal and Installation for Wiper and Washer Switch" .
Removal and Installation for Washer Tank EKS00337
Refer to WW-13, "Removal and Installation for Washer Tank" .
Removal and Installation for Washer Pump EKS00338
Refer to WW-13, "Removal and Installation for Washer Pump" .

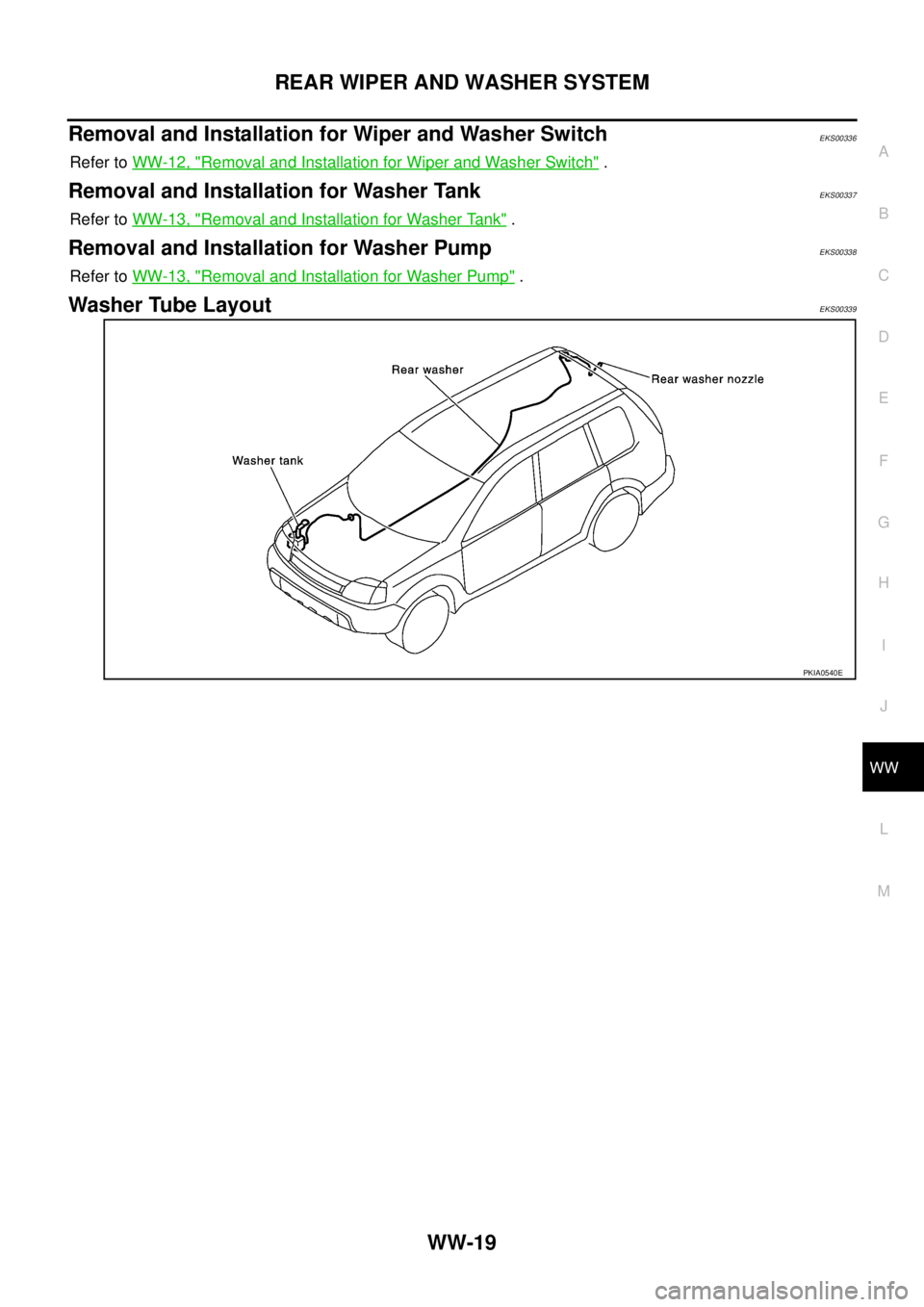

Washer Tube LayoutEKS00339
PKIA0540E
Page 3760 of 4179
WW-20
HEADLAMP WASHER
HEADLAMP WASHERPFP:28620
System DescriptionEKS0036H
The headlamp washer is controlled by the headlamp washer timer. With power and ground supplied, the head-
lamp washer motor operates.
Power is supplied at all times
through 30A fusible link (letter E, located in fuse and fusible link box)
to headlamp washer motor terminal 1, and
through 10A fuse (No. 31, located in fuse and fusible link box)
to lighting switch terminal 11.
With ignition switch in the ON or START position, power is supplied
through 10A fuse [No. 11, located in fuse block (J/B)]
to headlamp washer timer terminal 4.
Ground is supplied
to headlamp washer timer terminal 5 through grounds E24 and E50.
When headlamp washer switch is pushed during lighting switch is in 1st or 2ND position.
Ground is supplied
to headlamp washer timer terminal 6
through headlamp washer switch and grounds M27 and M70, and
to headlamp washer motor terminal 2
through headlamp washer timer terminal 2.
