TROUBLE DIAGNOSES FOR SYMPTOMS
AT-325
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

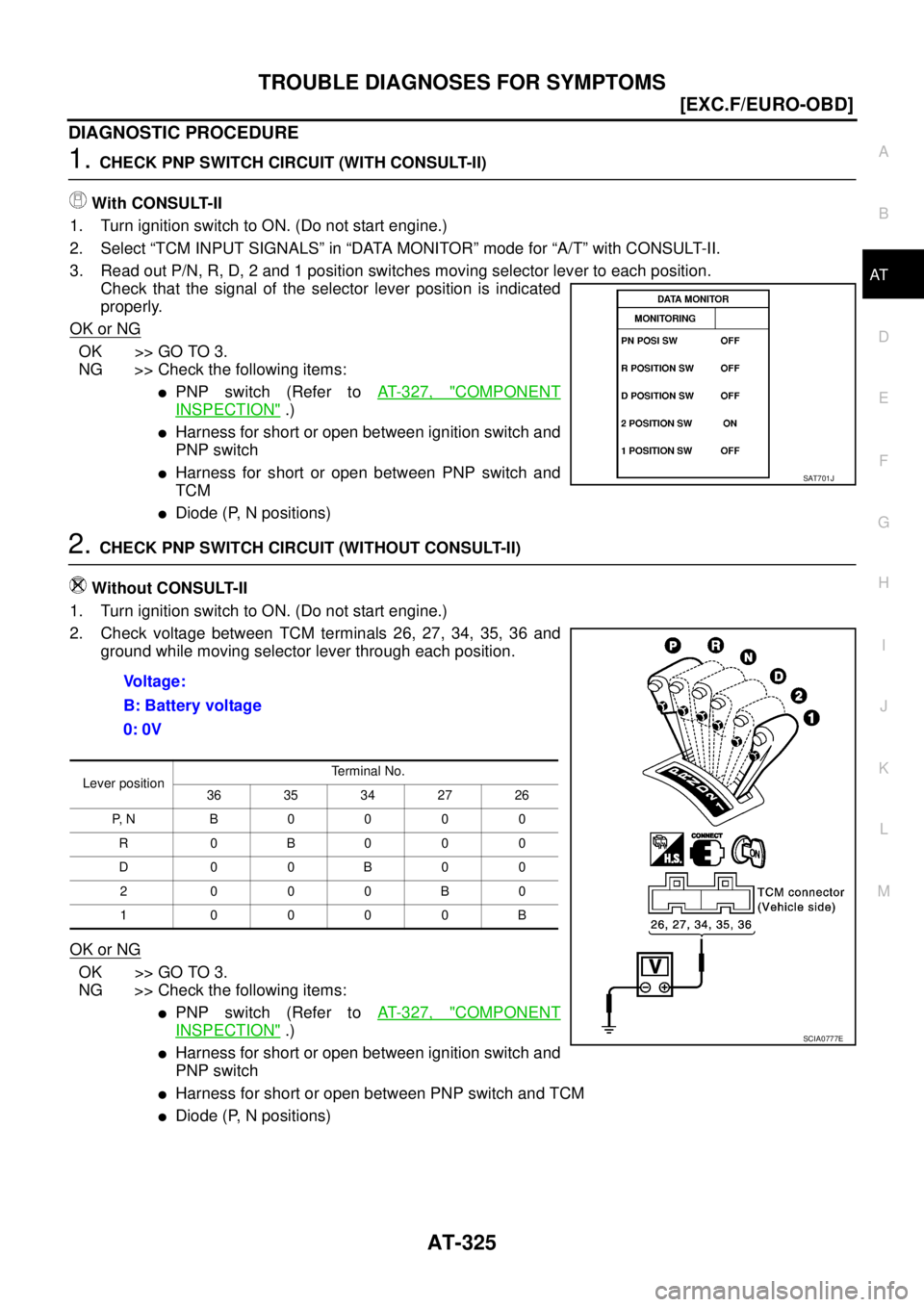

DIAGNOSTIC PROCEDURE
1. CHECK PNP SWITCH CIRCUIT (WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out P/N, R, D, 2 and 1 position switches moving selector lever to each position.
Check that the signal of the selector lever position is indicated
properly.
OK or NG
OK >> GO TO 3.
NG >> Check the following items:
PNP switch (Refer to AT- 3 2 7 , "COMPONENT
INSPECTION" .)
Harness for short or open between ignition switch and
PNP switch
Harness for short or open between PNP switch and
TCM
Diode (P, N positions)
2. CHECK PNP SWITCH CIRCUIT (WITHOUT CONSULT-II)
Without CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Check voltage between TCM terminals 26, 27, 34, 35, 36 and
ground while moving selector lever through each position.
OK or NG
OK >> GO TO 3.
NG >> Check the following items:
PNP switch (Refer to AT- 3 2 7 , "COMPONENT
INSPECTION" .)
Harness for short or open between ignition switch and
PNP switch
Harness for short or open between PNP switch and TCM
Diode (P, N positions)
SAT701J
Vo l t a g e :
B: Battery voltage
0: 0V
Lever positionTerminal No.
36 35 34 27 26
P, N B0000
R0B000
D00B00
2000B0
1 0000B
SCIA0777E
Page 2362 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual AT-326
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS

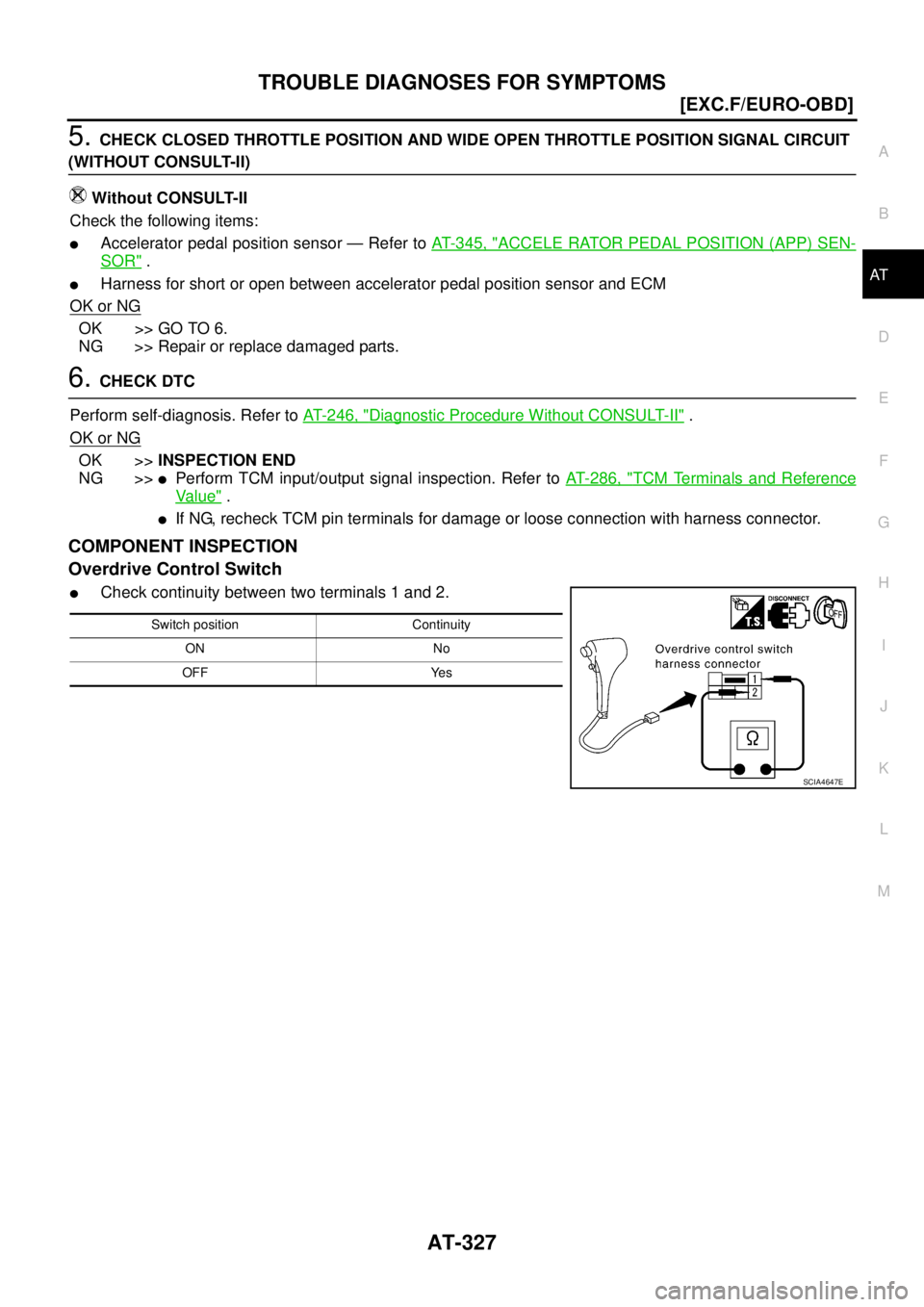

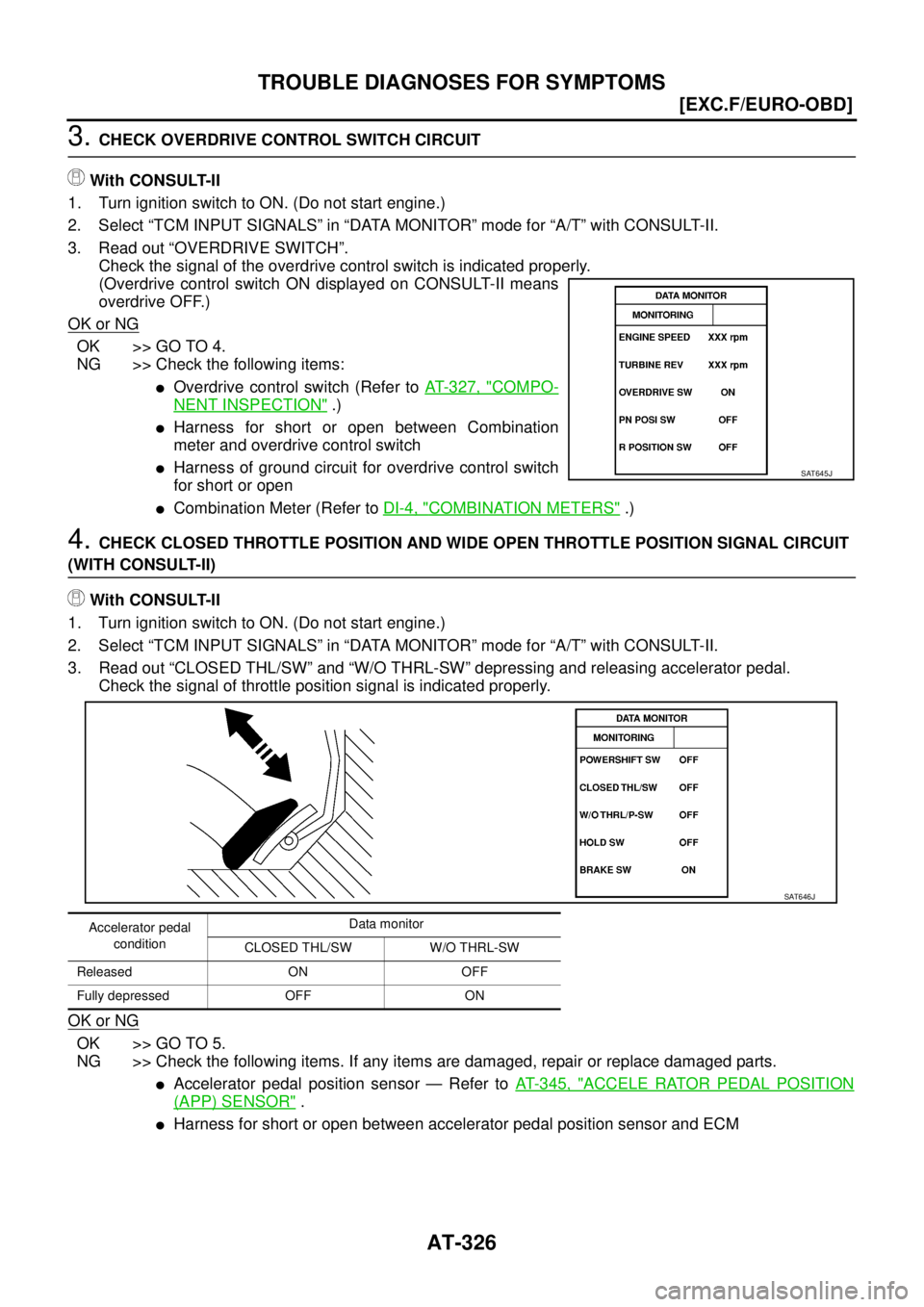

3. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS NISSAN X-TRAIL 2003 Service Repair Manual AT-326
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
3. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS](/manual-img/5/57404/w960_57404-2361.png)
AT-326
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
3. CHECK OVERDRIVE CONTROL SWITCH CIRCUIT
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “OVERDRIVE SWITCH”.
Check the signal of the overdrive control switch is indicated properly.
(Overdrive control switch ON displayed on CONSULT-II means
overdrive OFF.)
OK or NG
OK >> GO TO 4.
NG >> Check the following items:
Overdrive control switch (Refer to AT- 3 2 7 , "COMPO-
NENT INSPECTION" .)
Harness for short or open between Combination
meter and overdrive control switch
Harness of ground circuit for overdrive control switch
for short or open
Combination Meter (Refer to DI-4, "COMBINATION METERS" .)
4. CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITH CONSULT-II)
With CONSULT-II
1. Turn ignition switch to ON. (Do not start engine.)
2. Select “TCM INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out “CLOSED THL/SW” and “W/O THRL-SW” depressing and releasing accelerator pedal.
Check the signal of throttle position signal is indicated properly.
OK or NG
OK >> GO TO 5.
NG >> Check the following items. If any items are damaged, repair or replace damaged parts.
Accelerator pedal position sensor — Refer to AT- 3 4 5 , "ACCELE RATOR PEDAL POSITION
(APP) SENSOR" .
Harness for short or open between accelerator pedal position sensor and ECM
SAT645J
Accelerator pedal
conditionData monitor
CLOSED THL/SW W/O THRL-SW
Released ON OFF
Fully depressed OFF ON
SAT646J
Page 2363 of 4179
TROUBLE DIAGNOSES FOR SYMPTOMS
AT-327
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT
5. CHECK CLOSED THROTTLE POSITION AND WIDE OPEN THROTTLE POSITION SIGNAL CIRCUIT
(WITHOUT CONSULT-II)
Without CONSULT-II
Check the following items:
Accelerator pedal position sensor — Refer to AT- 3 4 5 , "ACCELE RATOR PEDAL POSITION (APP) SEN-
SOR" .
Harness for short or open between accelerator pedal position sensor and ECM
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
6. CHECK DTC
Perform self-diagnosis. Refer to AT- 2 4 6 , "
Diagnostic Procedure Without CONSULT-II" .
OK or NG
OK >>INSPECTION END
NG >>
Perform TCM input/output signal inspection. Refer to AT- 2 8 6 , "TCM Terminals and Reference
Va l u e" .
If NG, recheck TCM pin terminals for damage or loose connection with harness connector.

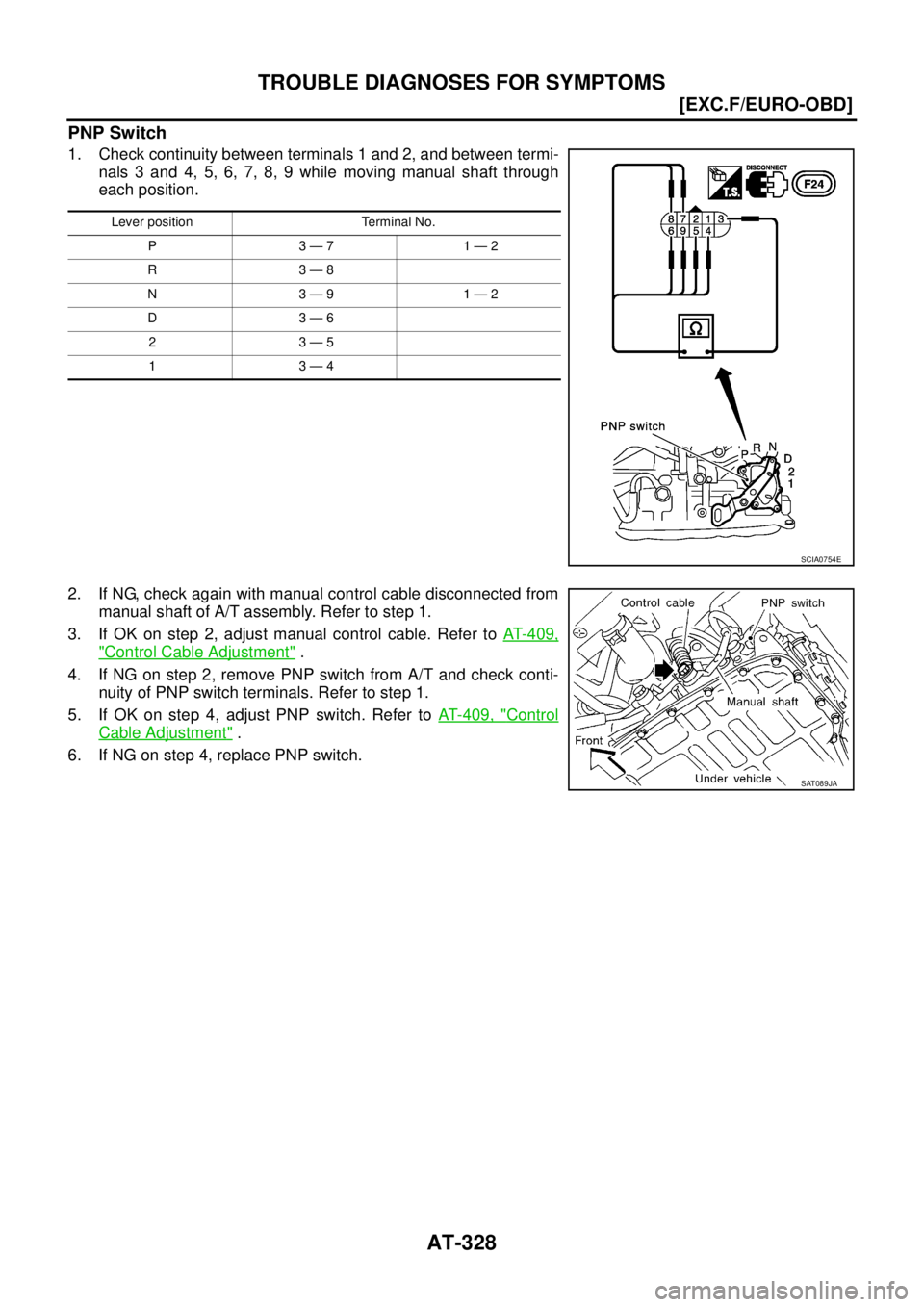

COMPONENT INSPECTION
Overdrive Control Switch
Check continuity between two terminals 1 and 2.
Switch position Continuity
ON No
OFF Yes
SCIA4647E
Page 2364 of 4179
AT-328
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSES FOR SYMPTOMS
PNP Switch
1. Check continuity between terminals 1 and 2, and between termi-
nals 3 and 4, 5, 6, 7, 8, 9 while moving manual shaft through
each position.
2. If NG, check again with manual control cable disconnected from
manual shaft of A/T assembly. Refer to step 1.
3. If OK on step 2, adjust manual control cable. Refer to AT- 4 0 9 ,
"Control Cable Adjustment" .
4. If NG on step 2, remove PNP switch from A/T and check conti-
nuity of PNP switch terminals. Refer to step 1.
5. If OK on step 4, adjust PNP switch. Refer to AT- 4 0 9 , "
Control
Cable Adjustment" .
6. If NG on step 4, replace PNP switch.
Lever position Terminal No.
P 3 — 7 1 — 2
R3 — 8
N 3 — 9 1 — 2
D3 — 6
23 — 5
13 — 4
SCIA0754E
SAT089JA
Page 2365 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual CAN COMMUNICATION LINE
AT-329
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
[ALL]CAN COMMUNICATION LINEPFP:31940
DescriptionECS004UJ
CAN (Control Area Network) is a serial communication line for real time applica NISSAN X-TRAIL 2003 Service Repair Manual CAN COMMUNICATION LINE
AT-329
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
[ALL]CAN COMMUNICATION LINEPFP:31940
DescriptionECS004UJ
CAN (Control Area Network) is a serial communication line for real time applica](/manual-img/5/57404/w960_57404-2364.png)
CAN COMMUNICATION LINE
AT-329
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
[ALL]CAN COMMUNICATION LINEPFP:31940
DescriptionECS004UJ
CAN (Control Area Network) is a serial communication line for real time application. It is an on-vehicle multi-
plex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicECS004UK
Possible CauseECS00CT9
Harness or connector
(CAN communication line is open or shorted.)
DTC Confirmation ProcedureECS004UL
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch OFF and
wait at least 10 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Wait at least 6 seconds or start engine and wait for at least 6
seconds.
4. If DTC is detected, go to AT- 3 3 1 , "
Diagnostic Procedure" .
WITHOUT CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Wait at least 6 seconds or start engine and wait at least 6 sec-
onds.
3. Perform self-diagnosis.
Refer to AT- 5 2 , "
Diagnostic Procedure Without CONSULT-II" .
4. If DTC is detected, go to AT- 3 3 1 , "
Diagnostic Procedure" .
Diagnostic trouble code Malfunction is detected when... Check items (Possible cause)
: CAN COMM CIRCUIT
When a malfunction is detected in CAN
communication line.
Harness or connectors
(CAN communication line is open or
shorted.)
: 11th judgement flicker
SAT014K
SCIA4673E
Page 2366 of 4179
AT-330
[ALL]
CAN COMMUNICATION LINE

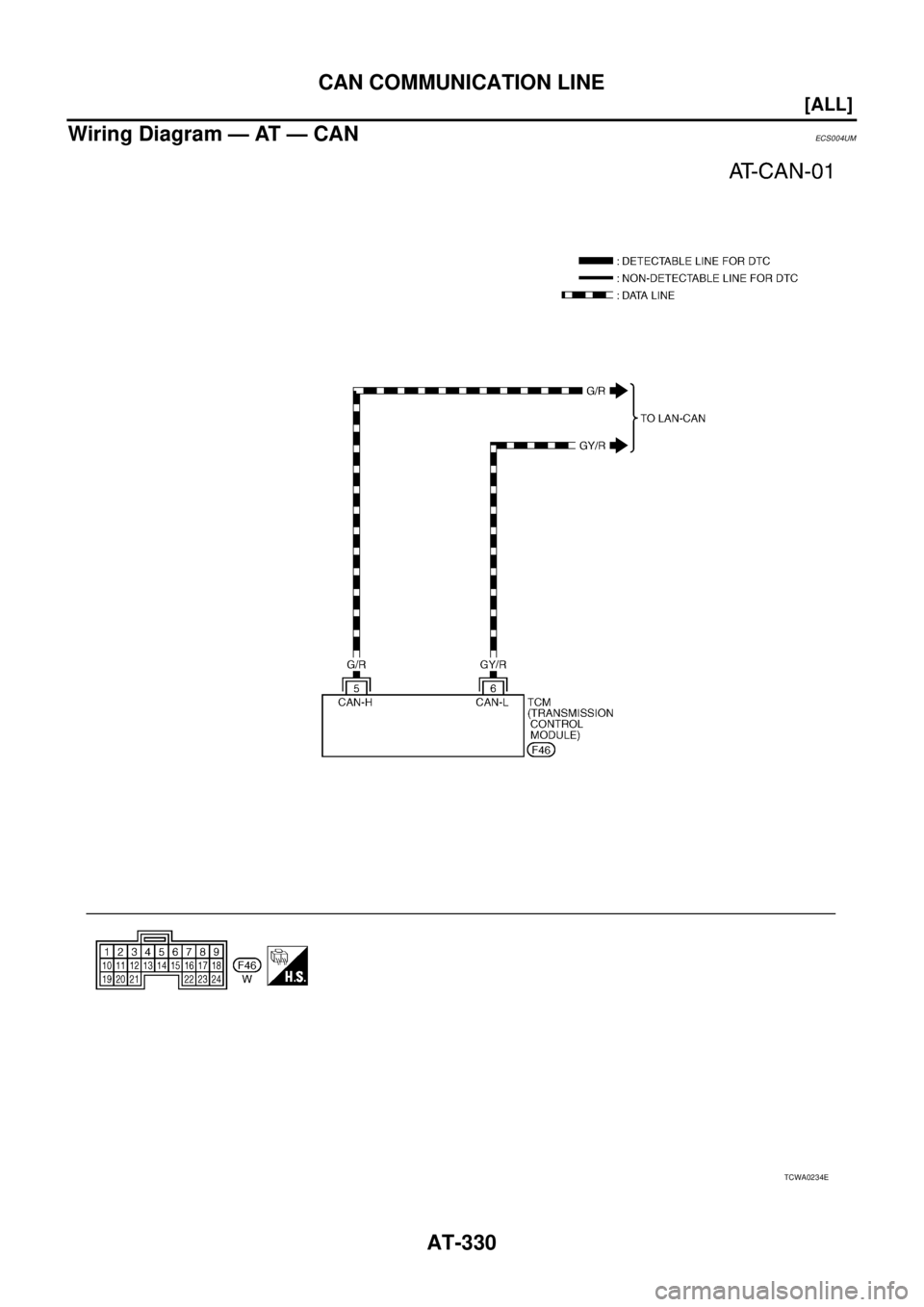

Wiring Diagram — AT — CANECS004UM
