Page 3833 of 4179
CAN SYSTEM (TYPE 3)
LAN-55
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

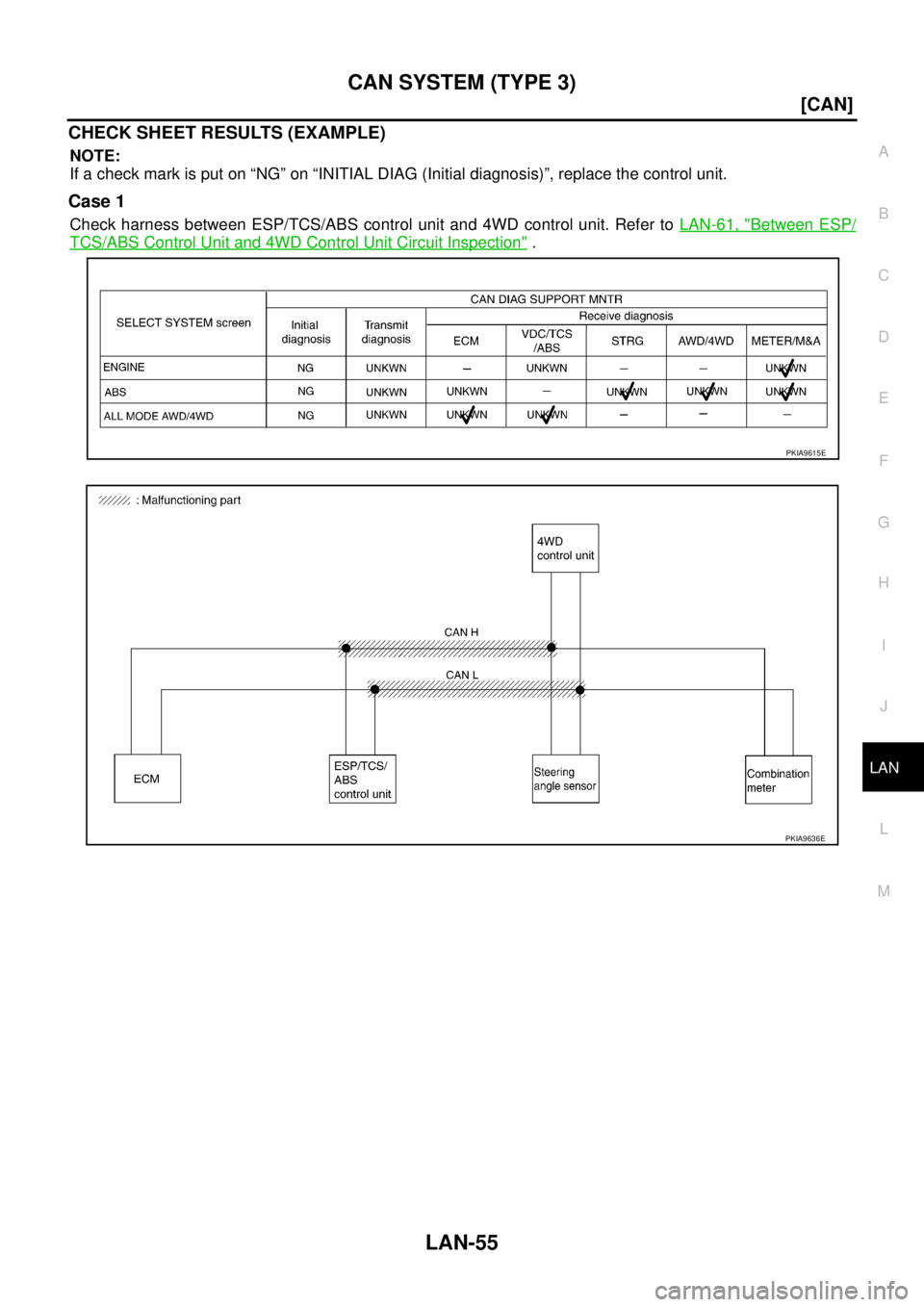

Case 1
Check harness between ESP/TCS/ABS control unit and 4WD control unit. Refer to LAN-61, "Between ESP/
TCS/ABS Control Unit and 4WD Control Unit Circuit Inspection" .
PKIA9615E
PKIA9636E
Page 3834 of 4179
LAN-56
[CAN]
CAN SYSTEM (TYPE 3)

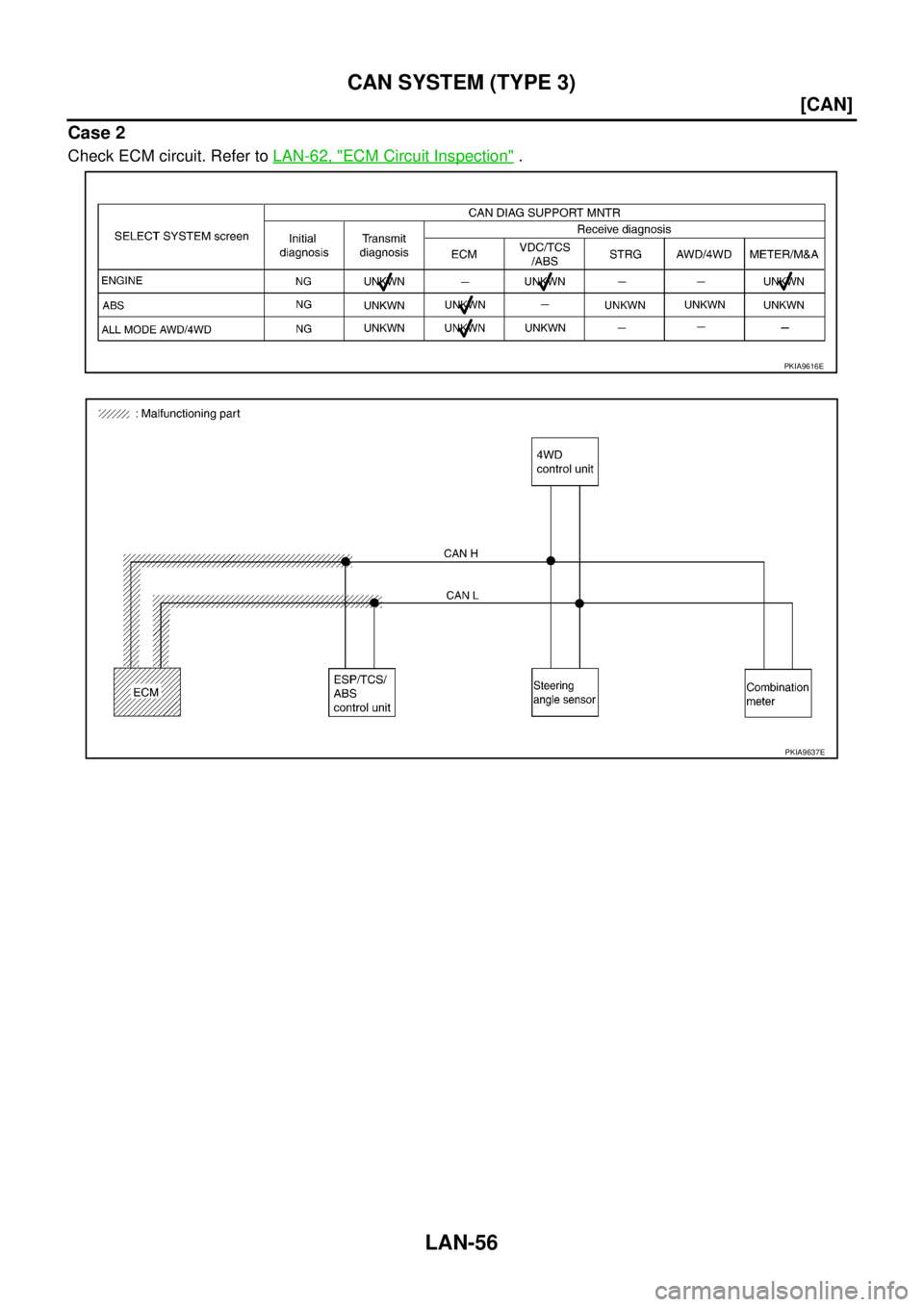

Case 2
Check ECM circuit. Refer to LAN-62, "ECM Circuit Inspection" .
PKIA9616E
PKIA9637E
Page 3835 of 4179
CAN SYSTEM (TYPE 3)
LAN-57
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

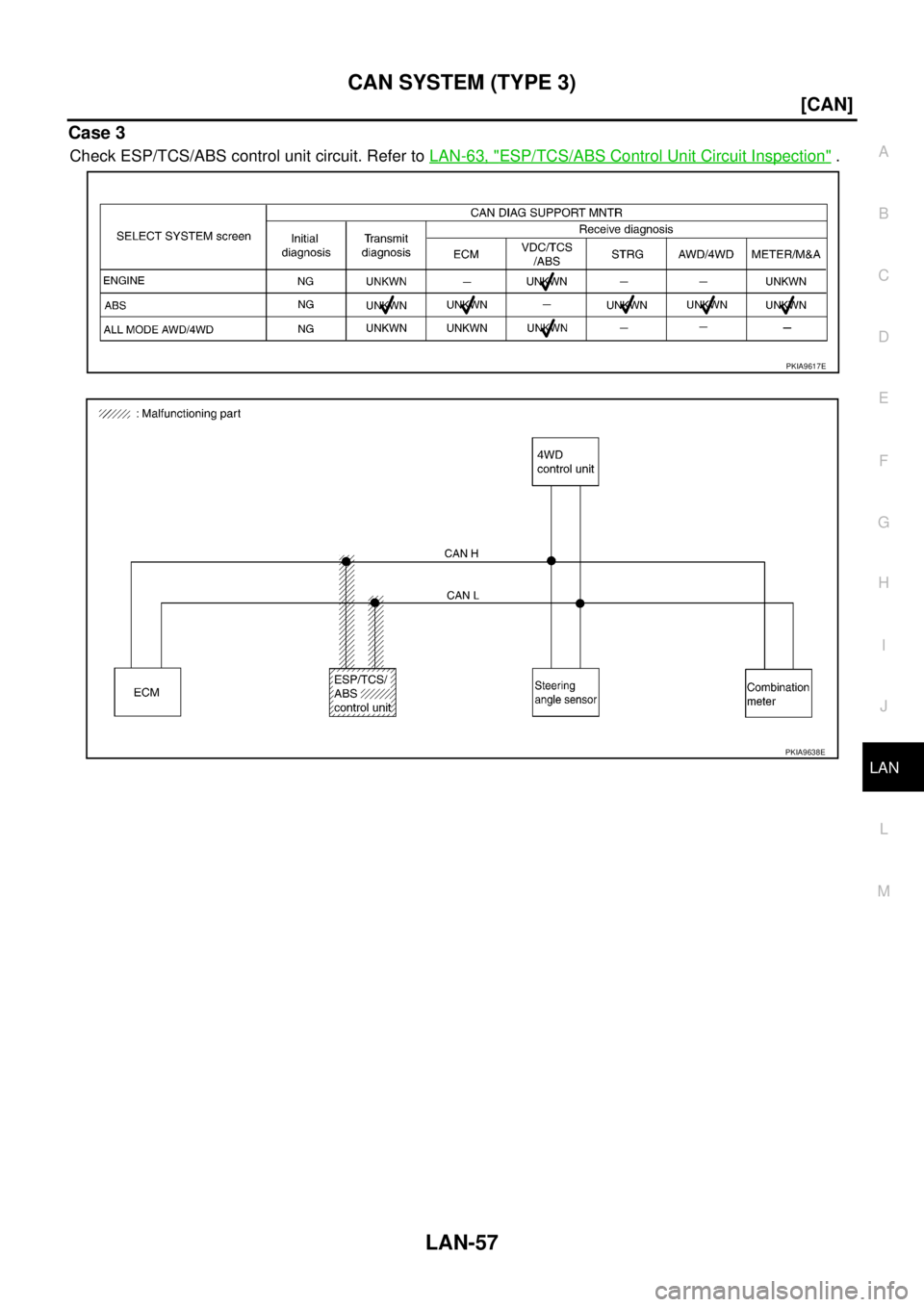

Case 3
Check ESP/TCS/ABS control unit circuit. Refer to LAN-63, "ESP/TCS/ABS Control Unit Circuit Inspection" .
PKIA9617E
PKIA9638E
Page 3836 of 4179
LAN-58
[CAN]
CAN SYSTEM (TYPE 3)

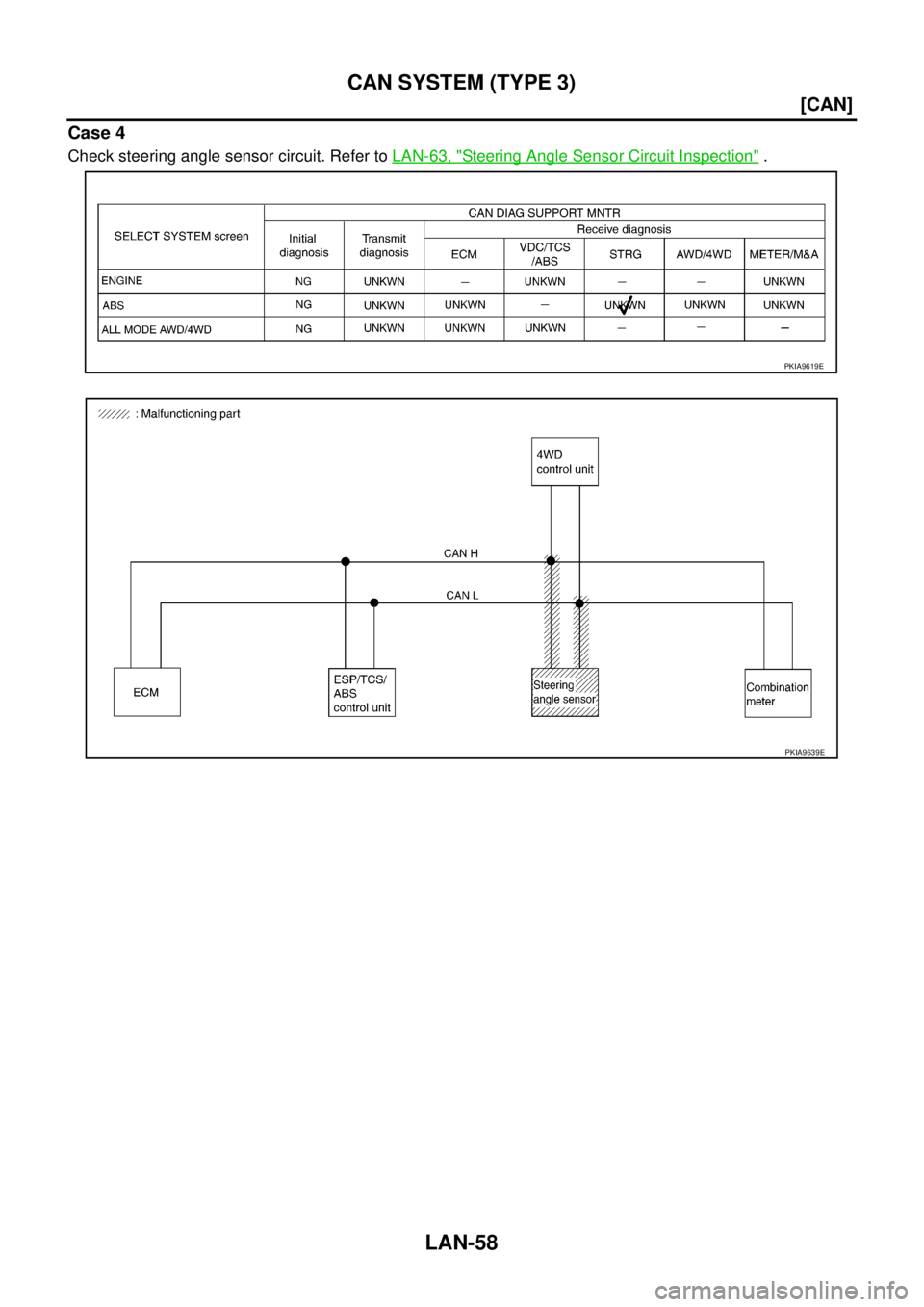

Case 4
Check steering angle sensor circuit. Refer to LAN-63, "Steering Angle Sensor Circuit Inspection" .
PKIA9619E
PKIA9639E
Page 3837 of 4179
CAN SYSTEM (TYPE 3)
LAN-59
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

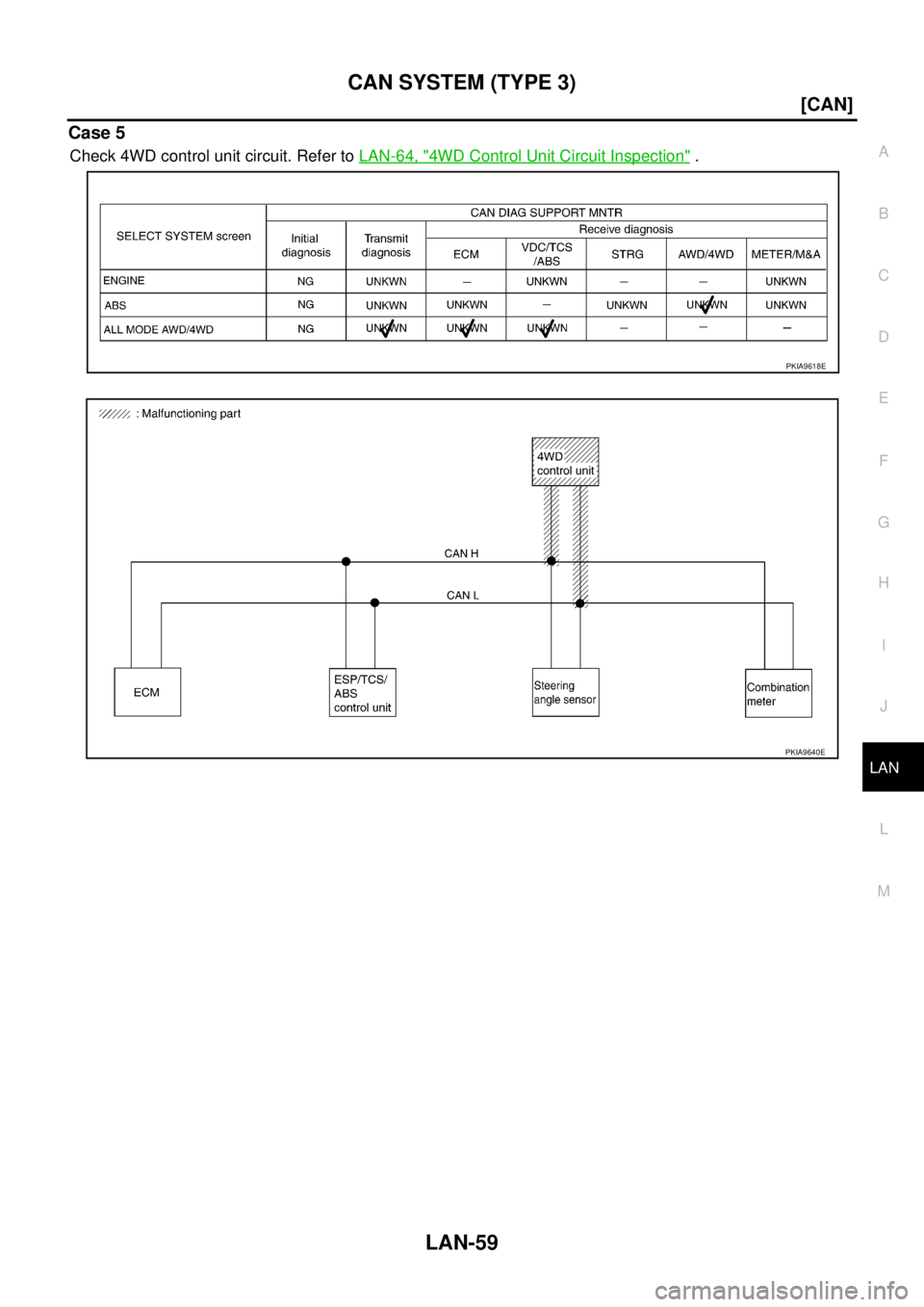

Case 5
Check 4WD control unit circuit. Refer to LAN-64, "4WD Control Unit Circuit Inspection" .
PKIA9618E
PKIA9640E
Page 3838 of 4179
LAN-60
[CAN]
CAN SYSTEM (TYPE 3)

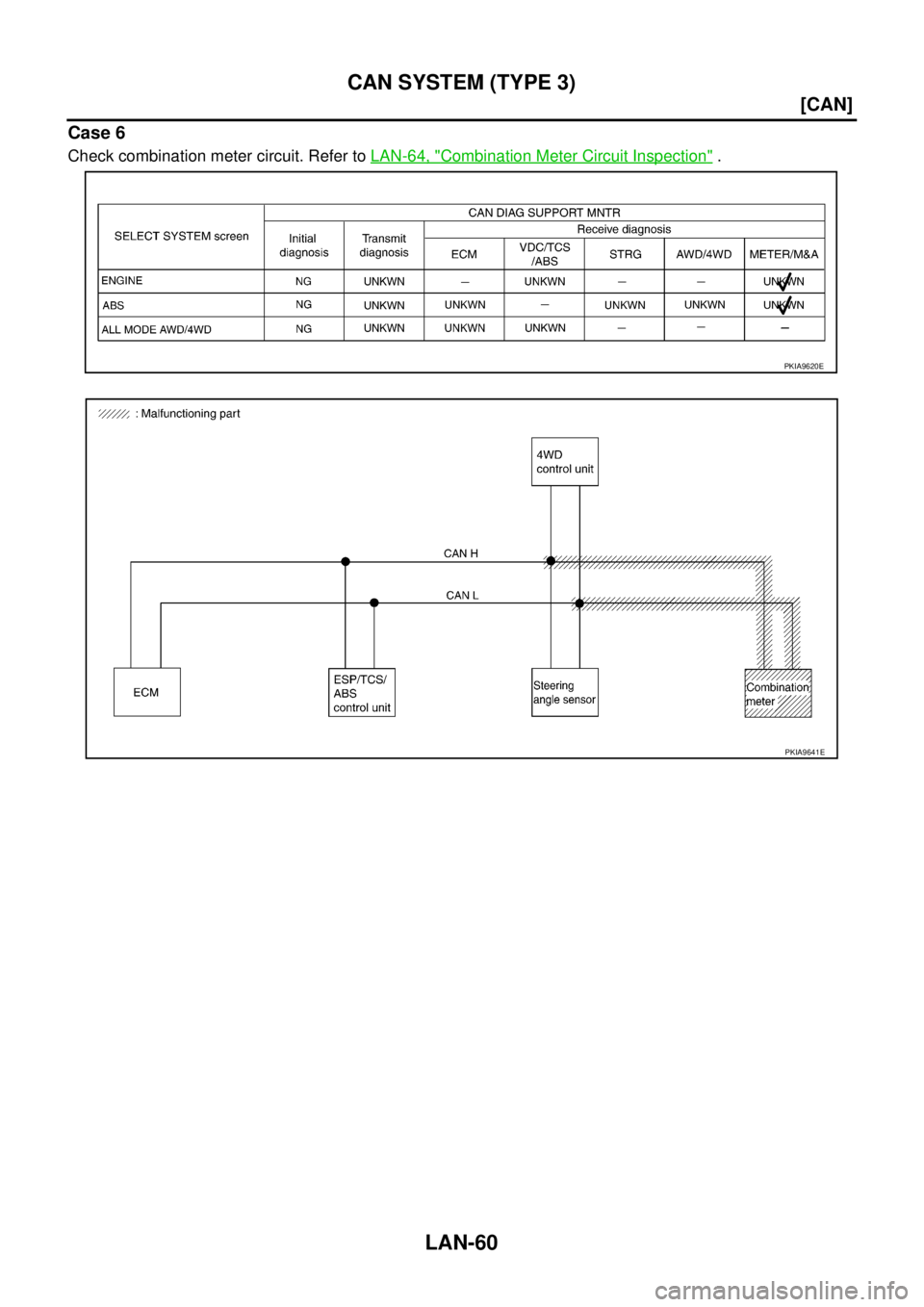

Case 6
Check combination meter circuit. Refer to LAN-64, "Combination Meter Circuit Inspection" .
PKIA9620E
PKIA9641E
Page 3839 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 3)
LAN-61
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

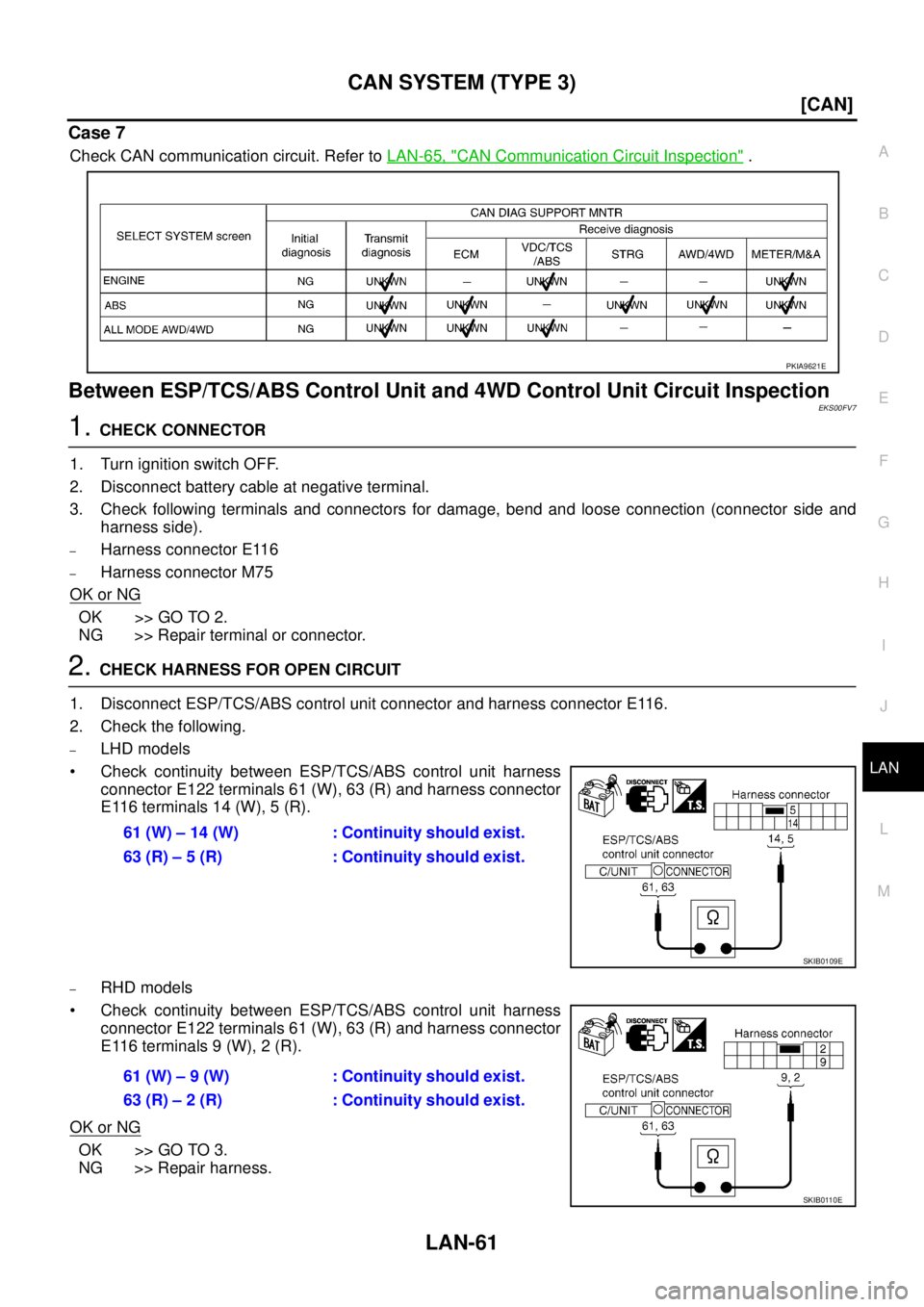

Case 7
Check CAN communication circuit. Refer to LAN-65, "CAN Communication Circuit Inspection" .
Between ESP/TCS/ABS Control Unit and 4WD NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 3)
LAN-61
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 7
Check CAN communication circuit. Refer to LAN-65, "CAN Communication Circuit Inspection" .
Between ESP/TCS/ABS Control Unit and 4WD](/manual-img/5/57404/w960_57404-3838.png)
CAN SYSTEM (TYPE 3)
LAN-61
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Case 7
Check CAN communication circuit. Refer to LAN-65, "CAN Communication Circuit Inspection" .
Between ESP/TCS/ABS Control Unit and 4WD Control Unit Circuit InspectionEKS00FV7
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect battery cable at negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector E116
–Harness connector M75
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ESP/TCS/ABS control unit connector and harness connector E116.
2. Check the following.
–LHD models
Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W), 63 (R) and harness connector
E116 terminals 14 (W), 5 (R).
–RHD models
Check continuity between ESP/TCS/ABS control unit harness
connector E122 terminals 61 (W), 63 (R) and harness connector
E116 terminals 9 (W), 2 (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
PKIA9621E
61 (W) – 14 (W) : Continuity should exist.
63 (R) – 5 (R) : Continuity should exist.
SKIB0109E
61 (W) – 9 (W) : Continuity should exist.
63 (R) – 2 (R) : Continuity should exist.
SKIB0110E
Page 3840 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual LAN-62
[CAN]
CAN SYSTEM (TYPE 3)

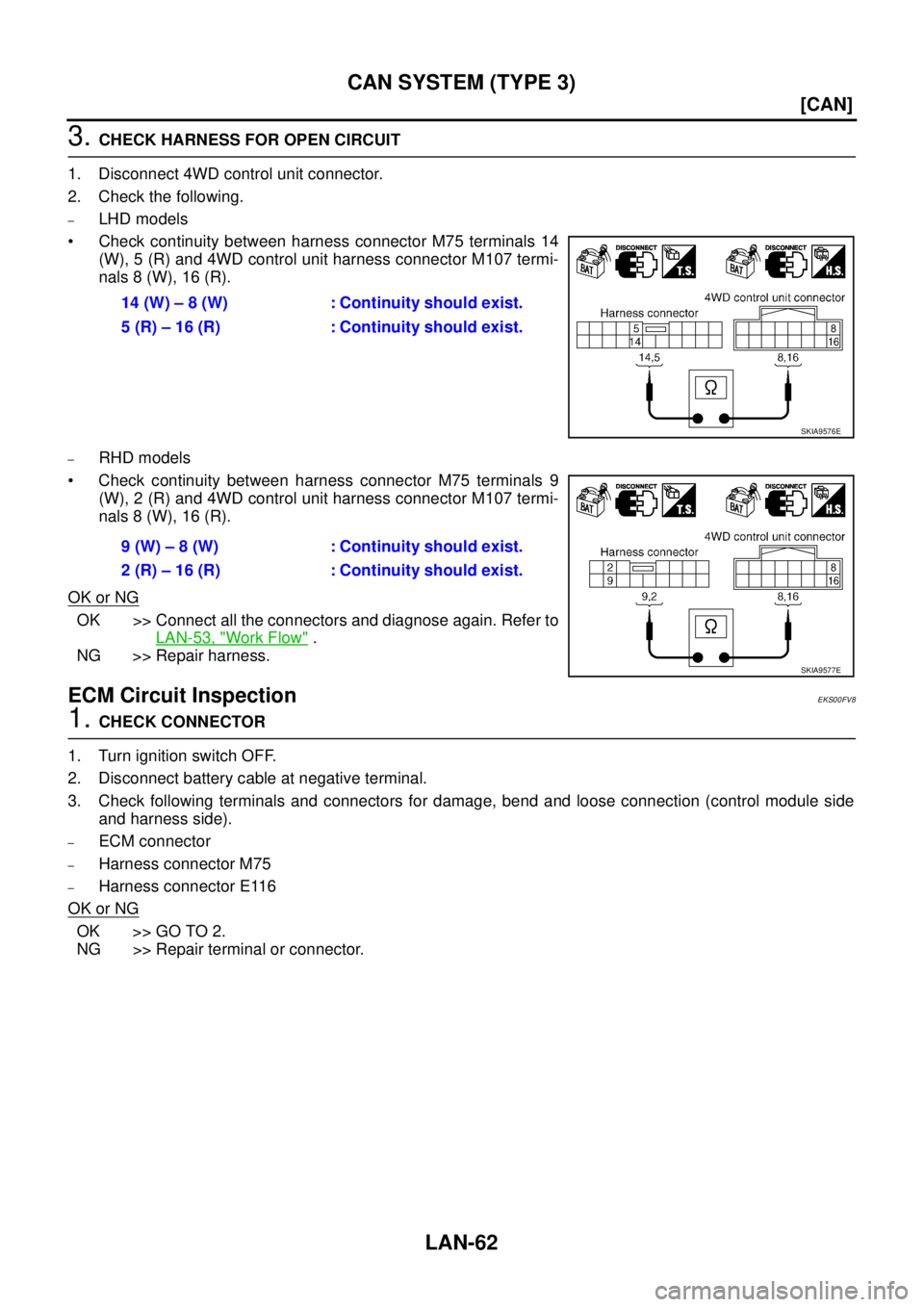

3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect 4WD control unit connector.
2. Check the following.
–LHD models
Check continuity between harness connector M75 te NISSAN X-TRAIL 2003 Service Repair Manual LAN-62
[CAN]
CAN SYSTEM (TYPE 3)
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect 4WD control unit connector.
2. Check the following.
–LHD models
Check continuity between harness connector M75 te](/manual-img/5/57404/w960_57404-3839.png)
LAN-62
[CAN]
CAN SYSTEM (TYPE 3)
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect 4WD control unit connector.
2. Check the following.
–LHD models
Check continuity between harness connector M75 terminals 14
(W), 5 (R) and 4WD control unit harness connector M107 termi-
nals 8 (W), 16 (R).
–RHD models
Check continuity between harness connector M75 terminals 9
(W), 2 (R) and 4WD control unit harness connector M107 termi-
nals 8 (W), 16 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-53, "
Work Flow" .
NG >> Repair harness.
ECM Circuit InspectionEKS00FV8
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect battery cable at negative terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side
and harness side).
–ECM connector
–Harness connector M75
–Harness connector E116
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.14 (W) – 8 (W) : Continuity should exist.
5 (R) – 16 (R) : Continuity should exist.
SKIA9576E
9 (W) – 8 (W) : Continuity should exist.
2 (R) – 16 (R) : Continuity should exist.
SKIA9577E
