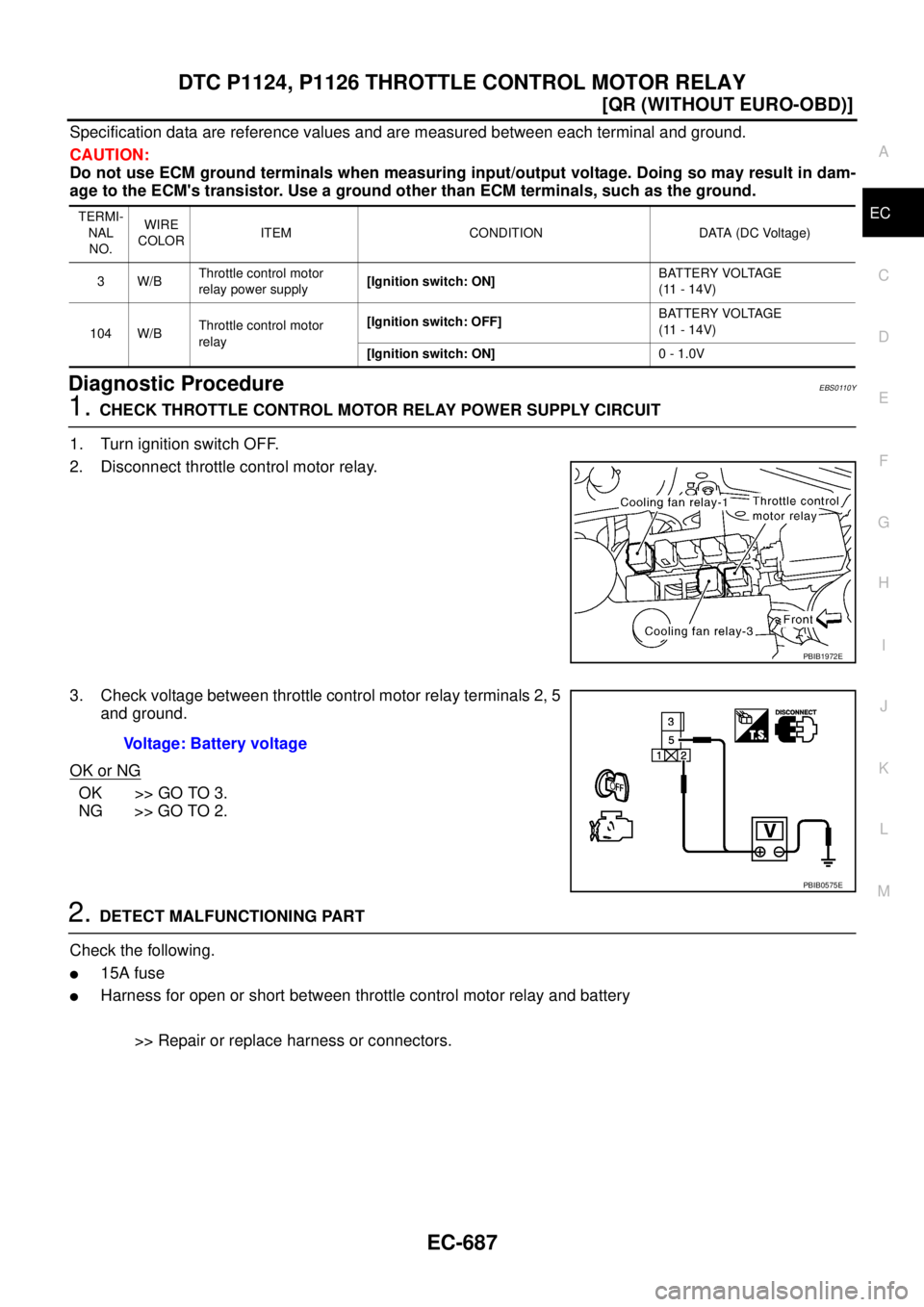

Page 1065 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY EC-687 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. CAUT

Page 1066 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-688 [QR (WITHOUT EURO-OBD)] DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY 3. CHECK THROTTLE CONTROL MOTOR RELAY INPUT SIGNAL CIRCUIT 1. Disconnect ECM harness connector. 2. Check harness continui

Page 1067 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY EC-689 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Component InspectionEBS0110Z THROTTLE CONTROL MOTOR RELAY 1. Apply 12V direct current between r

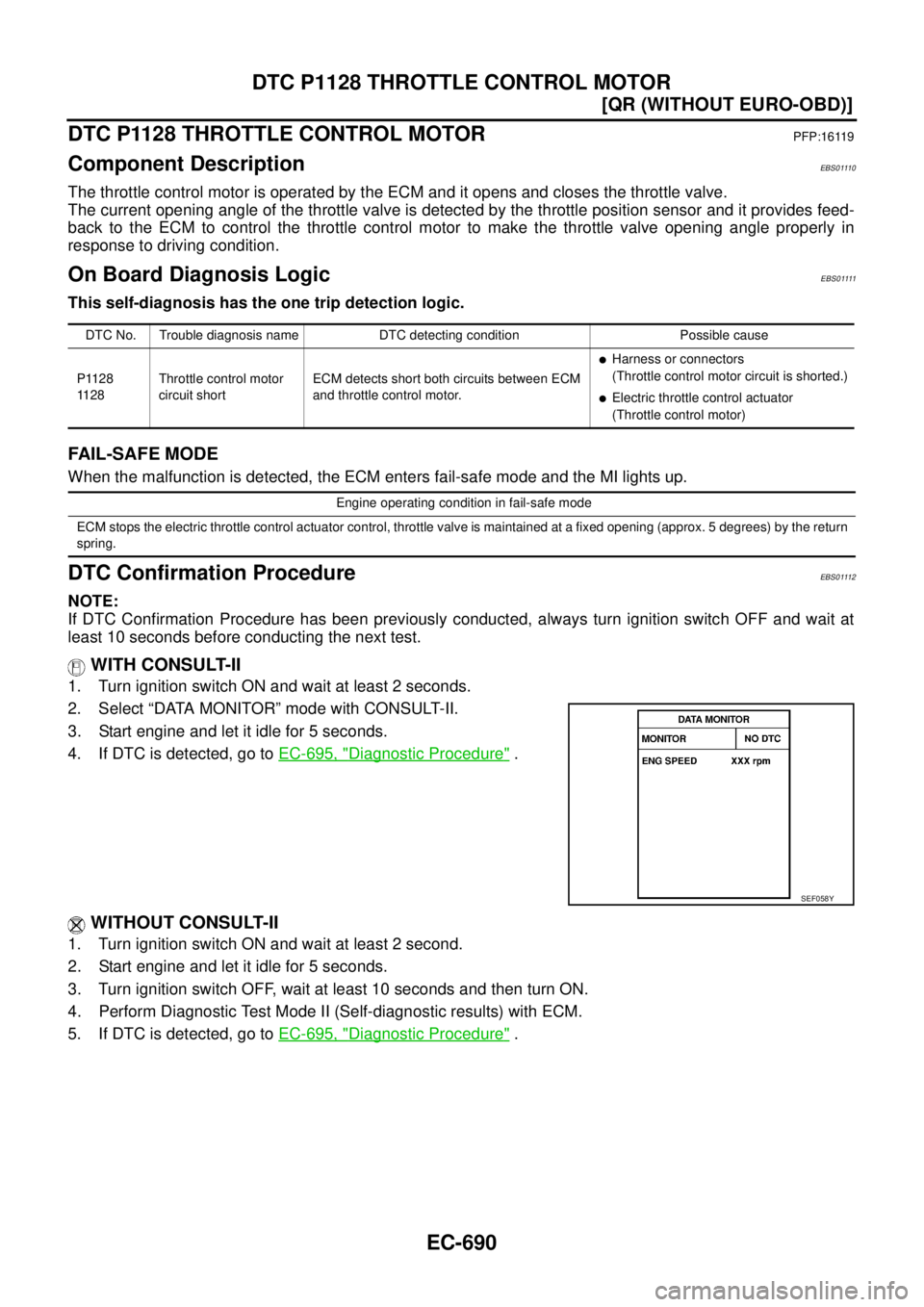

Page 1068 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-690 [QR (WITHOUT EURO-OBD)] DTC P1128 THROTTLE CONTROL MOTOR DTC P1128 THROTTLE CONTROL MOTORPFP:16119 Component DescriptionEBS01110 The throttle control motor is operated by the ECM and it opens

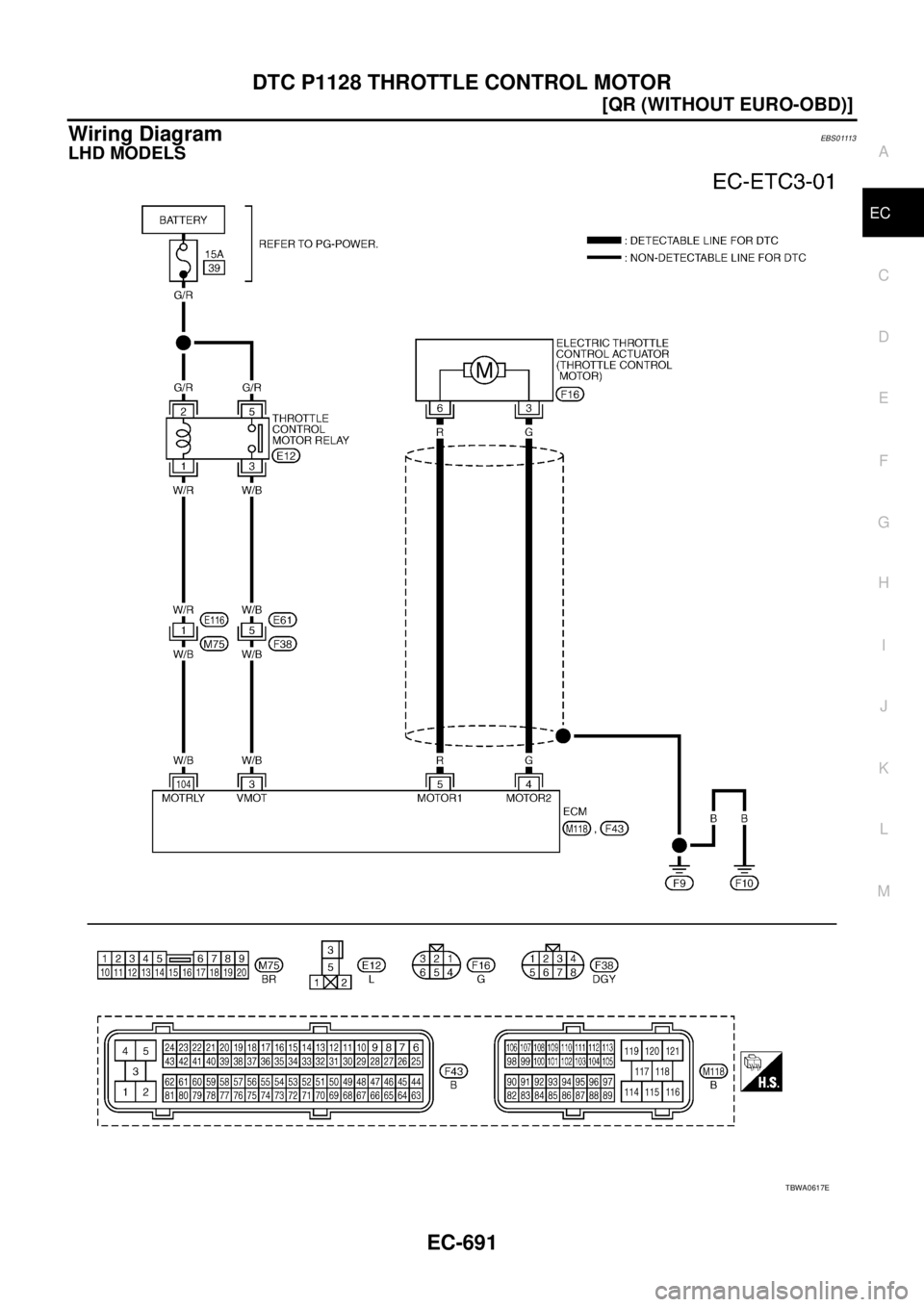

Page 1069 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1128 THROTTLE CONTROL MOTOR EC-691 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC Wiring DiagramEBS01113 LHD MODELS TBWA0617E

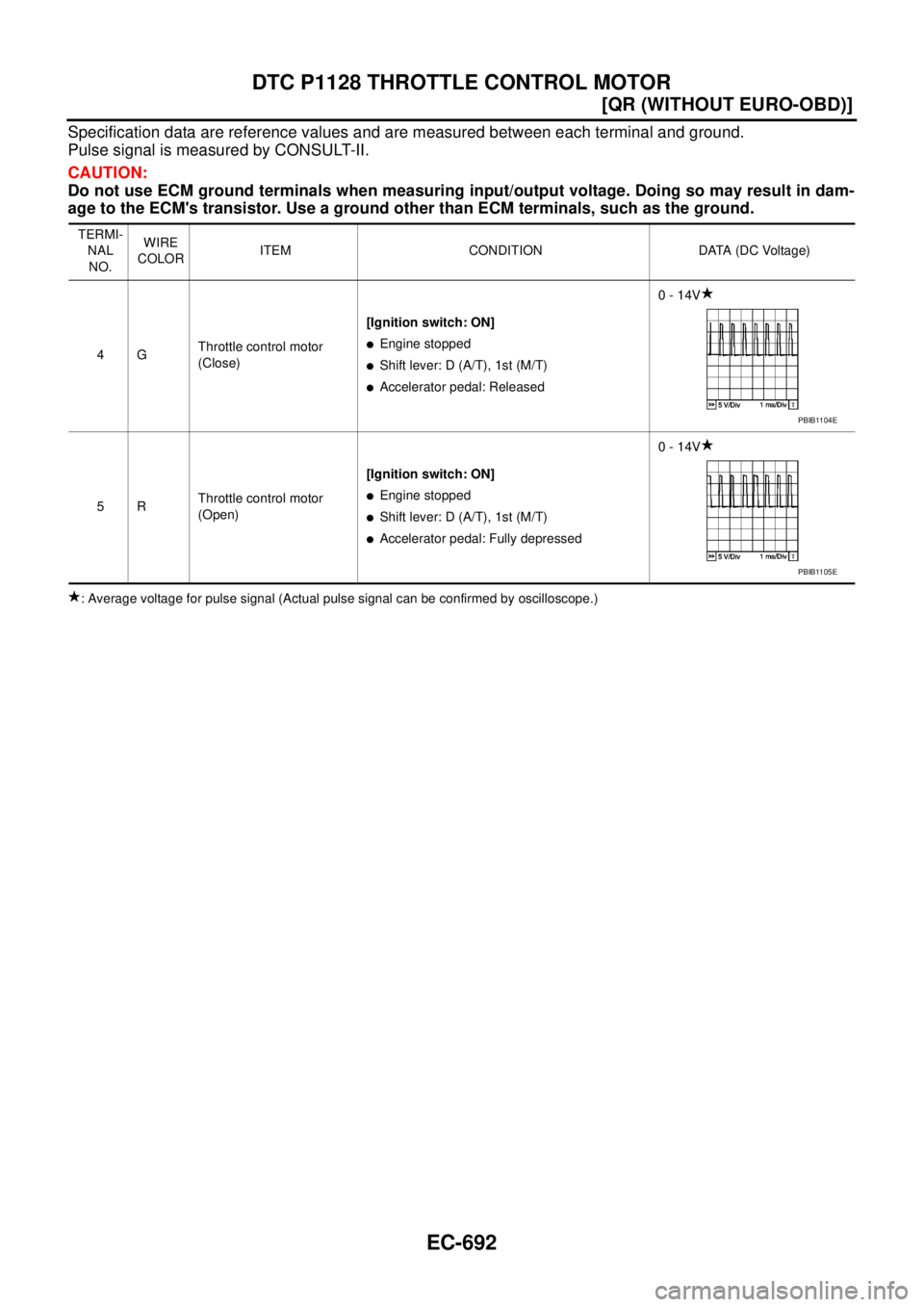

Page 1070 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-692 [QR (WITHOUT EURO-OBD)] DTC P1128 THROTTLE CONTROL MOTOR Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II. CAU

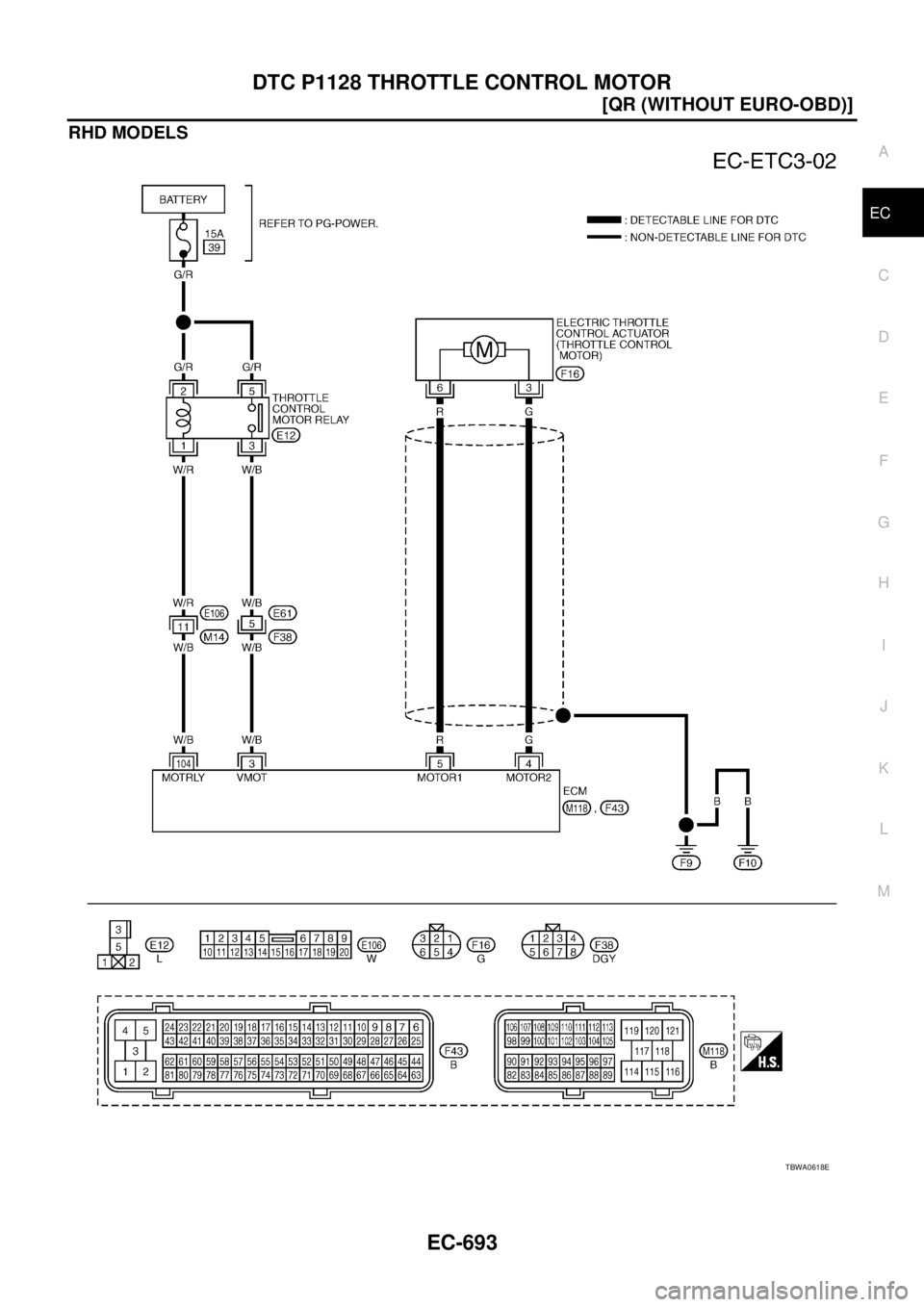

Page 1071 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1128 THROTTLE CONTROL MOTOR EC-693 [QR (WITHOUT EURO-OBD)] C D E F G H I J K L MA EC RHD MODELS TBWA0618E

Page 1072 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-694 [QR (WITHOUT EURO-OBD)] DTC P1128 THROTTLE CONTROL MOTOR Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-II. CAU
