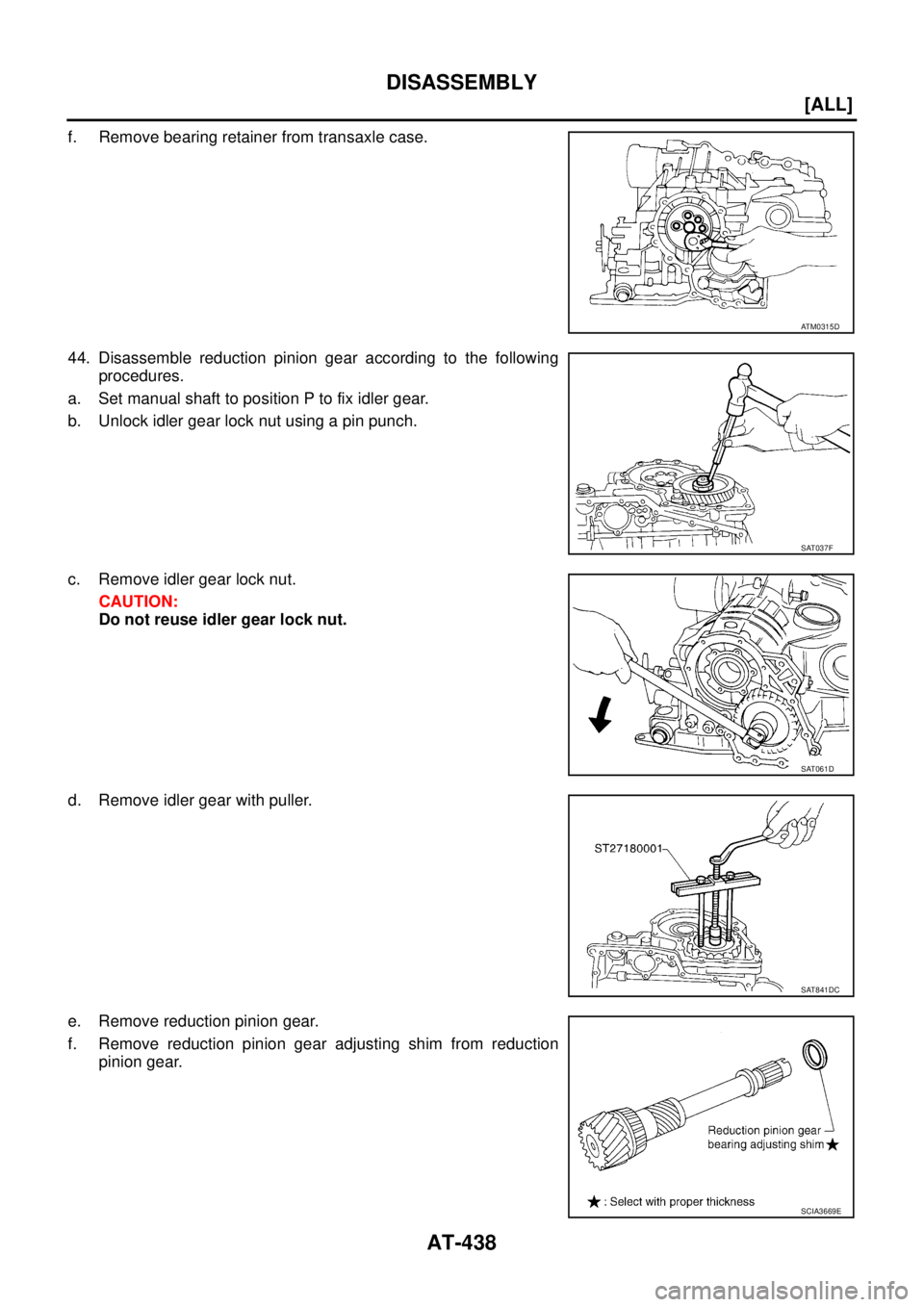

NISSAN X-TRAIL 2003 Service Repair Manual DISASSEMBLY AT-437 [ALL] D E F G H I J K L MA B AT b. Remove side cover by lightly tapping it with a soft hammer. CAUTION: Be careful not to drop output shaft assembly. It might come out when remov

Page 2474 of 4179

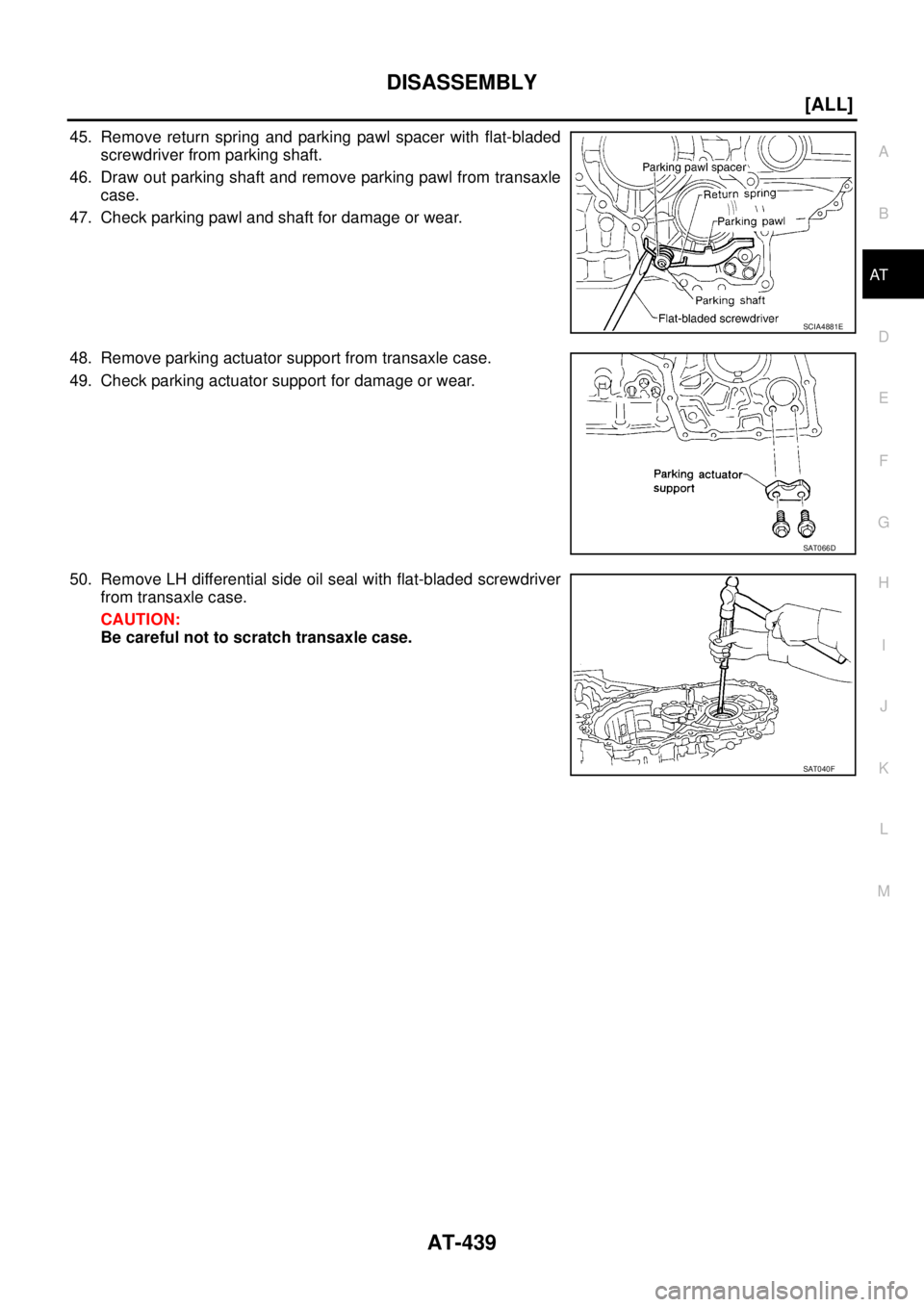

NISSAN X-TRAIL 2003 Service Repair Manual AT-438 [ALL] DISASSEMBLY f. Remove bearing retainer from transaxle case. 44. Disassemble reduction pinion gear according to the following procedures. a. Set manual shaft to position P to fix idler g

Page 2475 of 4179

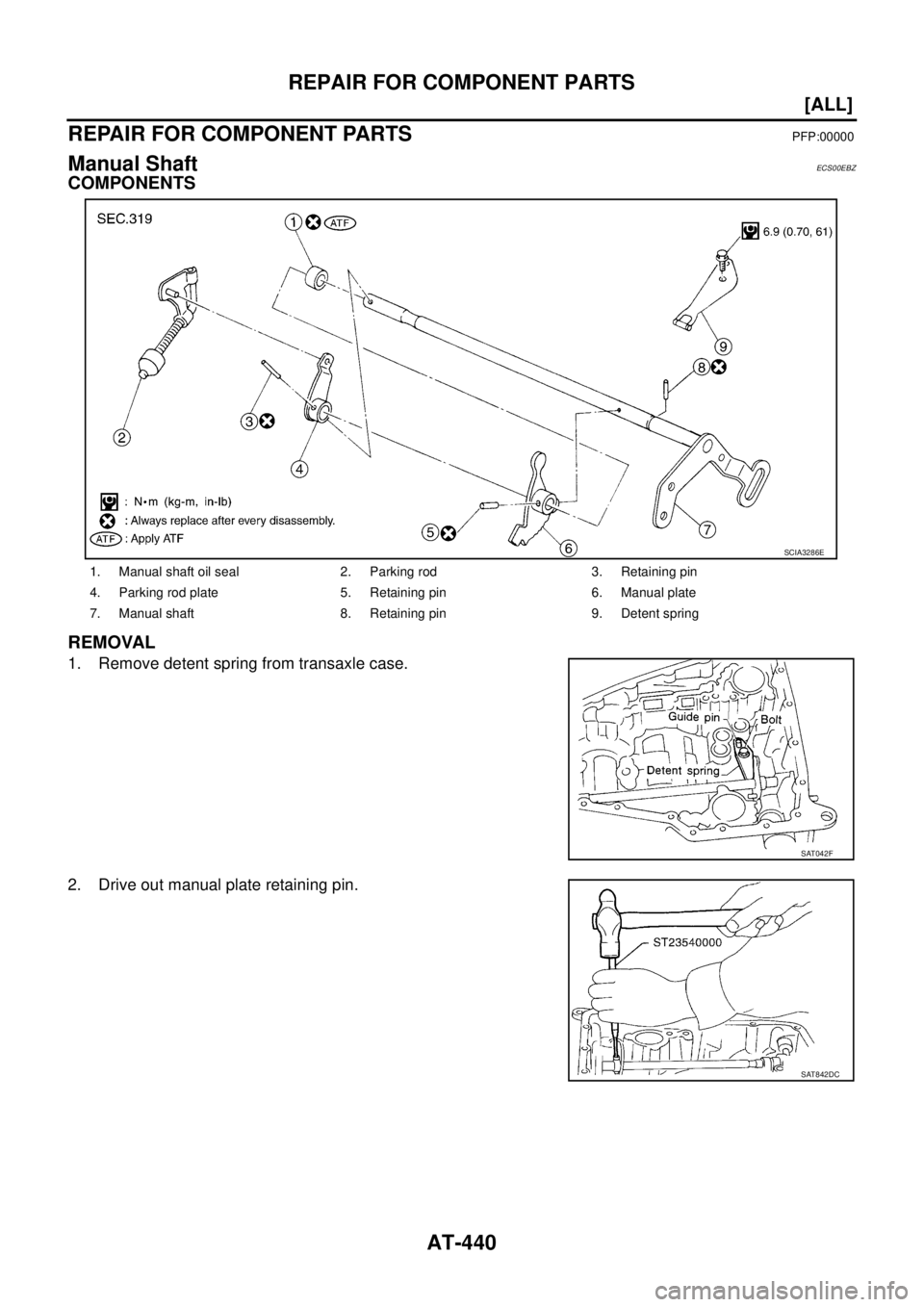

NISSAN X-TRAIL 2003 Service Repair Manual DISASSEMBLY AT-439 [ALL] D E F G H I J K L MA B AT 45. Remove return spring and parking pawl spacer with flat-bladed screwdriver from parking shaft. 46. Draw out parking shaft and remove parking paw

Page 2476 of 4179

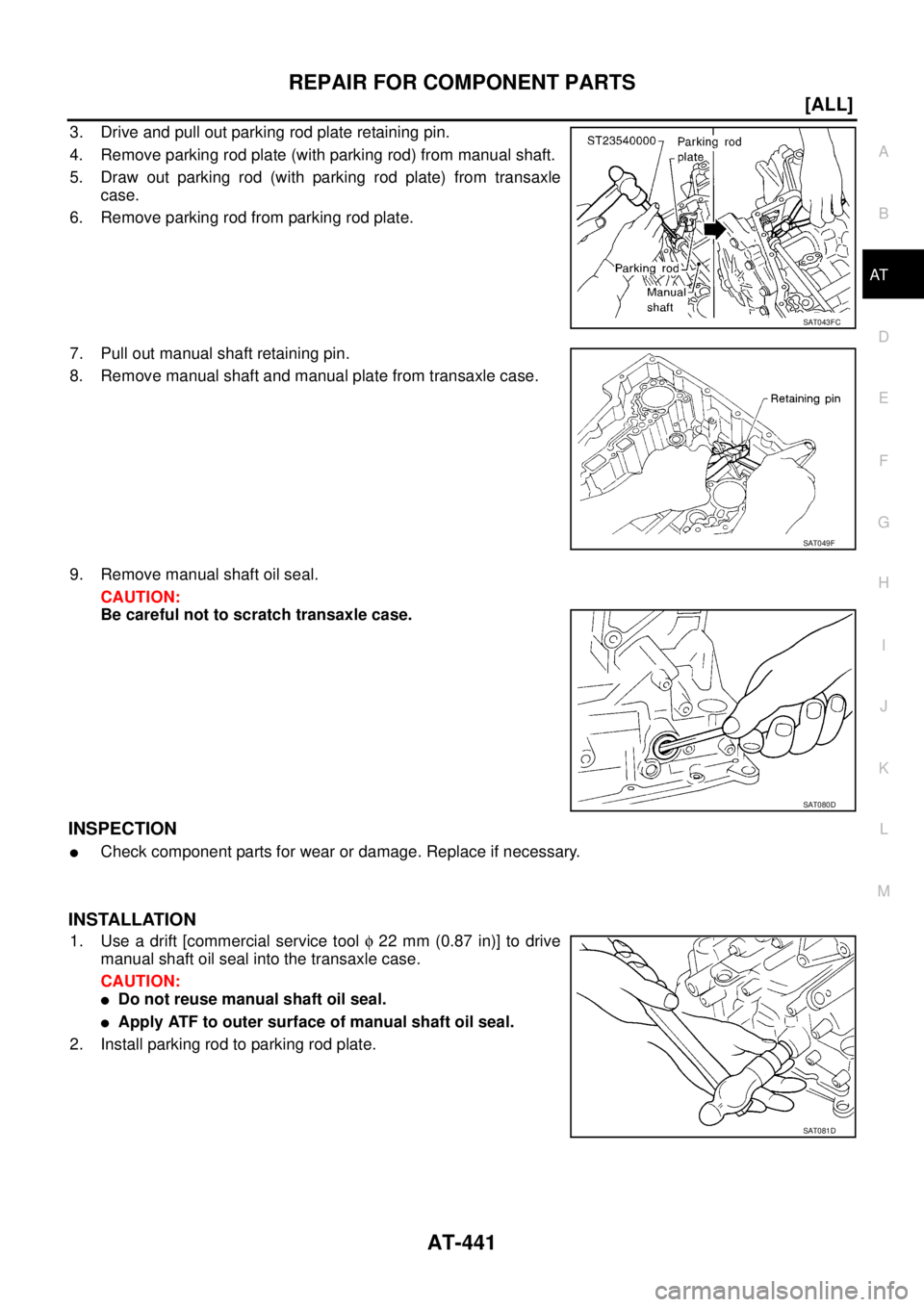

NISSAN X-TRAIL 2003 Service Repair Manual AT-440 [ALL] REPAIR FOR COMPONENT PARTS REPAIR FOR COMPONENT PARTSPFP:00000 Manual ShaftECS00EBZ COMPONENTS REMOVAL 1. Remove detent spring from transaxle case. 2. Drive out manual plate retaining p

Page 2477 of 4179

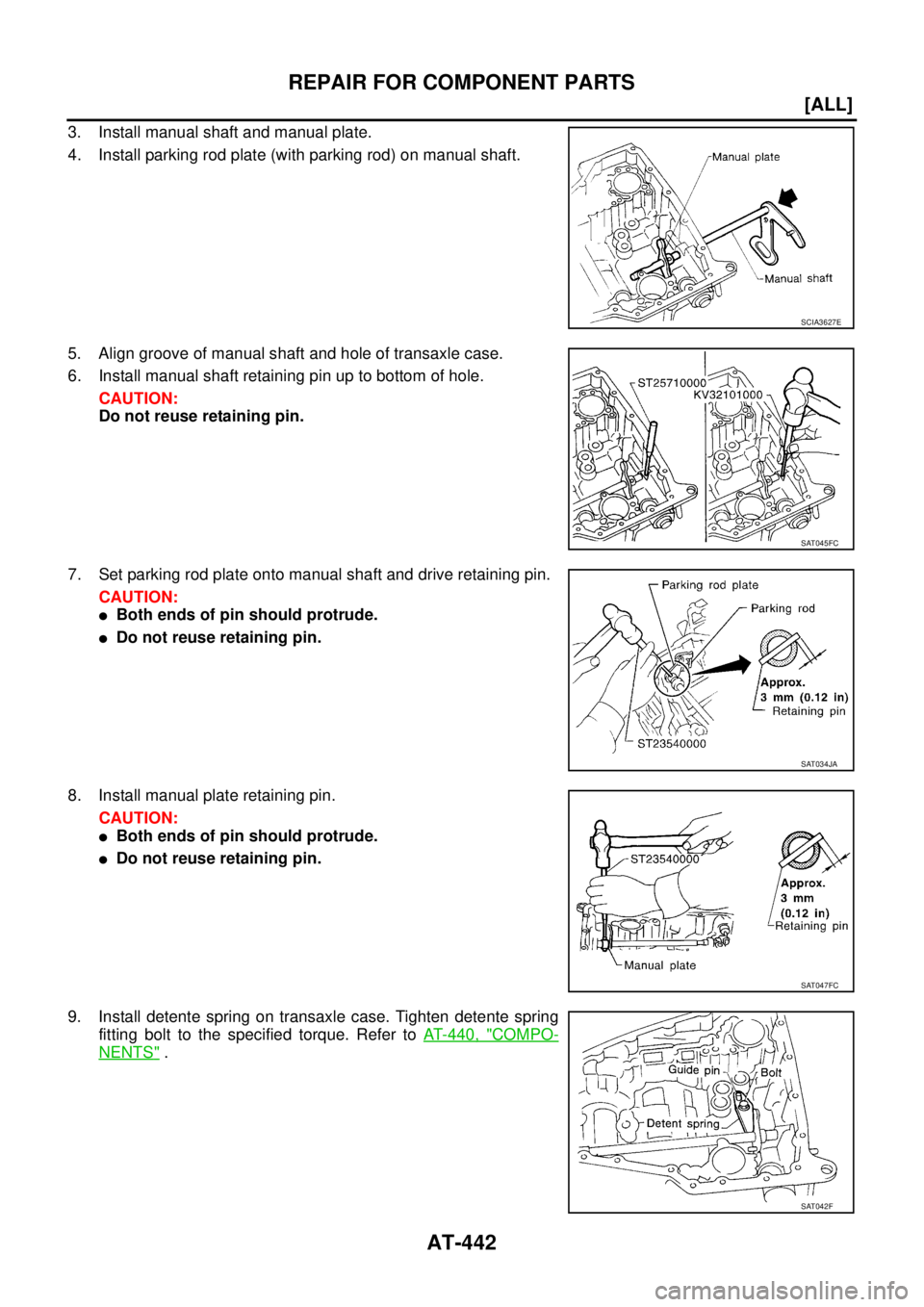

NISSAN X-TRAIL 2003 Service Repair Manual REPAIR FOR COMPONENT PARTS AT-441 [ALL] D E F G H I J K L MA B AT 3. Drive and pull out parking rod plate retaining pin. 4. Remove parking rod plate (with parking rod) from manual shaft. 5. Draw out

Page 2478 of 4179

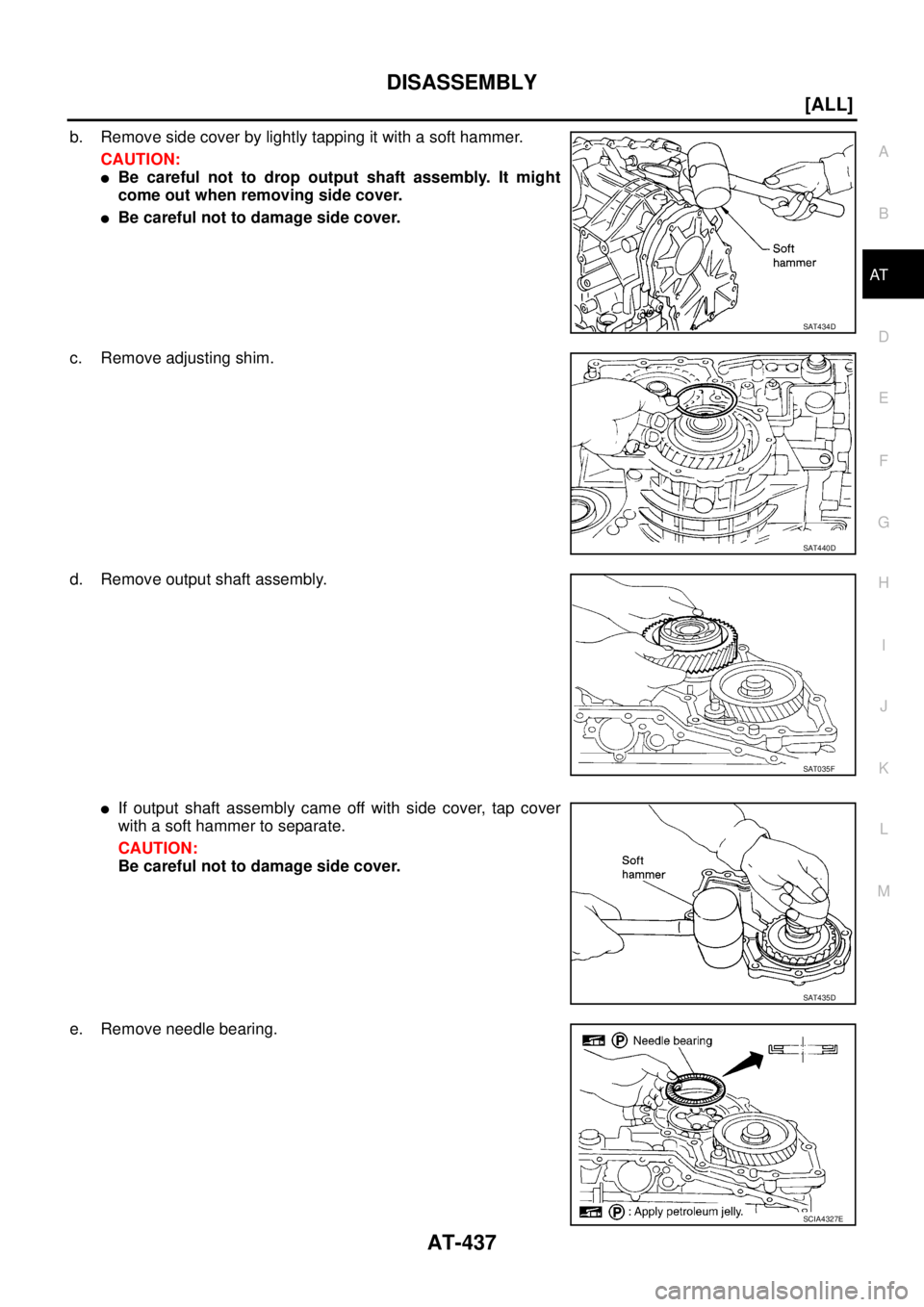

NISSAN X-TRAIL 2003 Service Repair Manual AT-442 [ALL] REPAIR FOR COMPONENT PARTS 3. Install manual shaft and manual plate. 4. Install parking rod plate (with parking rod) on manual shaft. 5. Align groove of manual shaft and hole of transax

Page 2479 of 4179

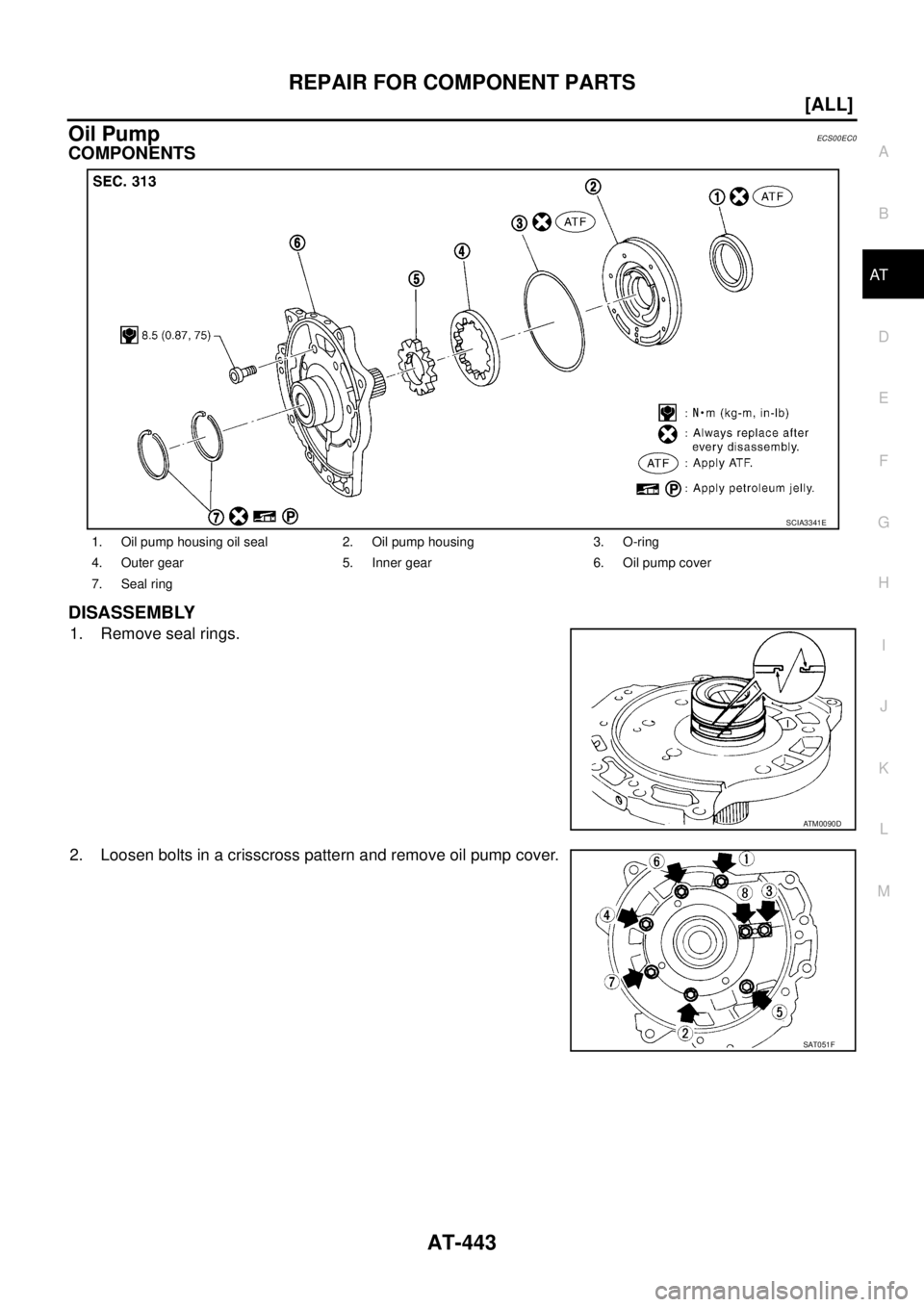

NISSAN X-TRAIL 2003 Service Repair Manual REPAIR FOR COMPONENT PARTS AT-443 [ALL] D E F G H I J K L MA B AT Oil PumpECS00EC0 COMPONENTS DISASSEMBLY 1. Remove seal rings. 2. Loosen bolts in a crisscross pattern and remove oil pump cover. 1.

Page 2480 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-444 [ALL] REPAIR FOR COMPONENT PARTS 3. Remove inner and outer gear from oil pump housing. 4. Remove O-ring from oil pump housing. 5. Remove oil pump housing oil seal. CAUTION: Be careful not to
