Page 1953 of 4179

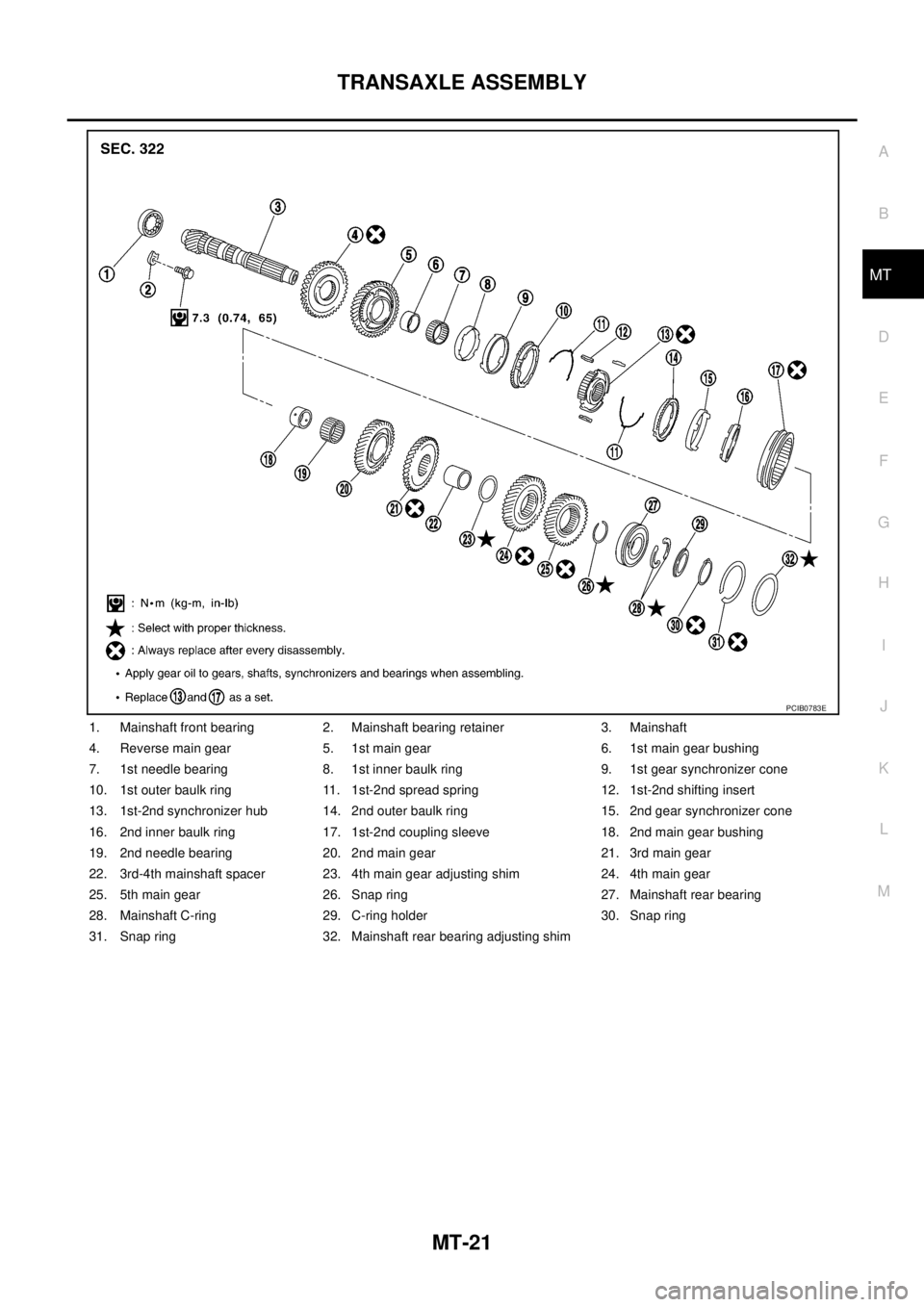

NISSAN X-TRAIL 2003 Service Repair Manual TRANSAXLE ASSEMBLY MT-21 D E F G H I J K L MA B MT 1. Mainshaft front bearing 2. Mainshaft bearing retainer 3. Mainshaft 4. Reverse main gear 5. 1st main gear 6. 1st main gear bushing 7. 1st needle

Page 1954 of 4179

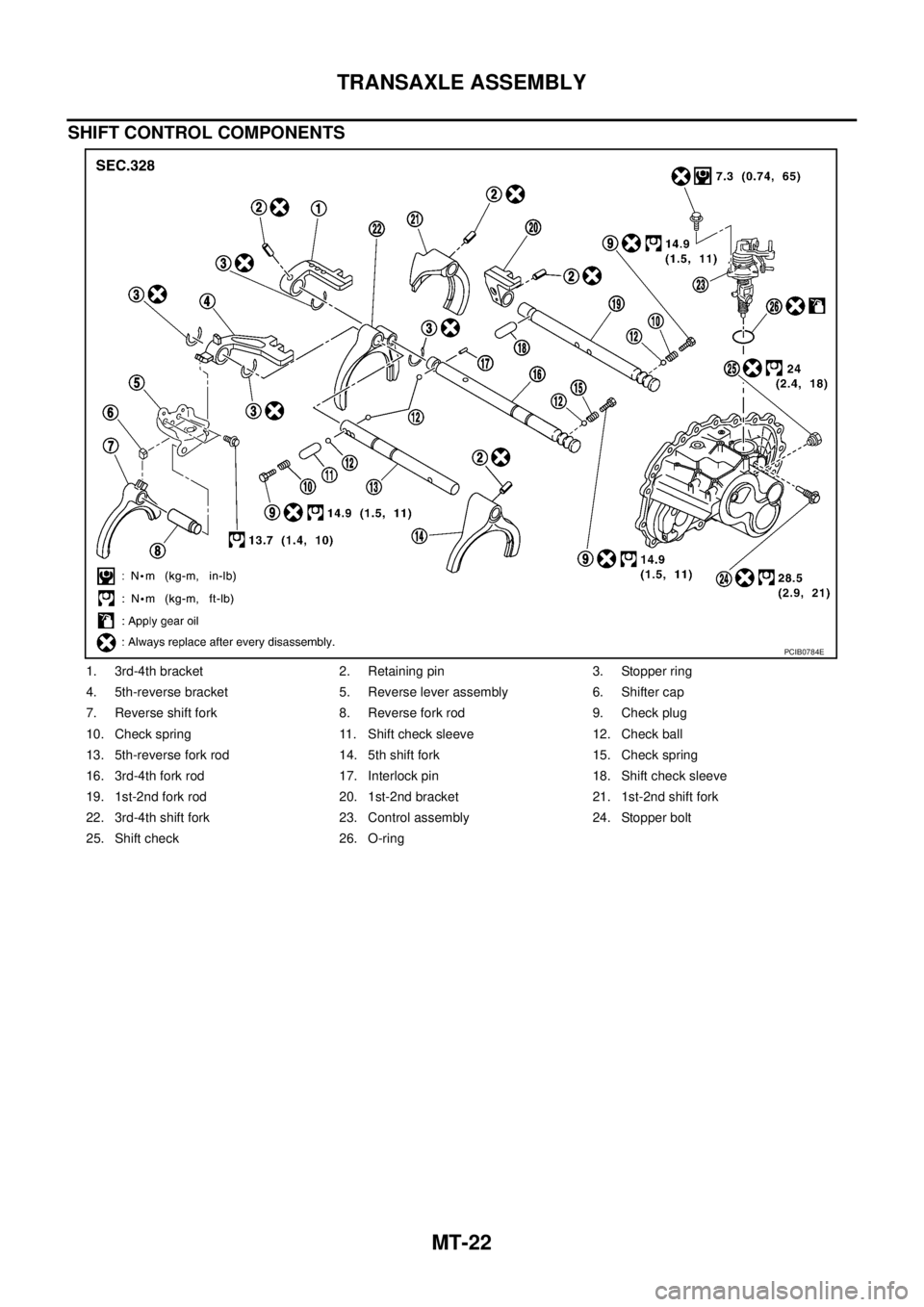

NISSAN X-TRAIL 2003 Service Repair Manual MT-22 TRANSAXLE ASSEMBLY SHIFT CONTROL COMPONENTS 1. 3rd-4th bracket 2. Retaining pin 3. Stopper ring 4. 5th-reverse bracket 5. Reverse lever assembly 6. Shifter cap 7. Reverse shift fork 8. Reverse

Page 1955 of 4179

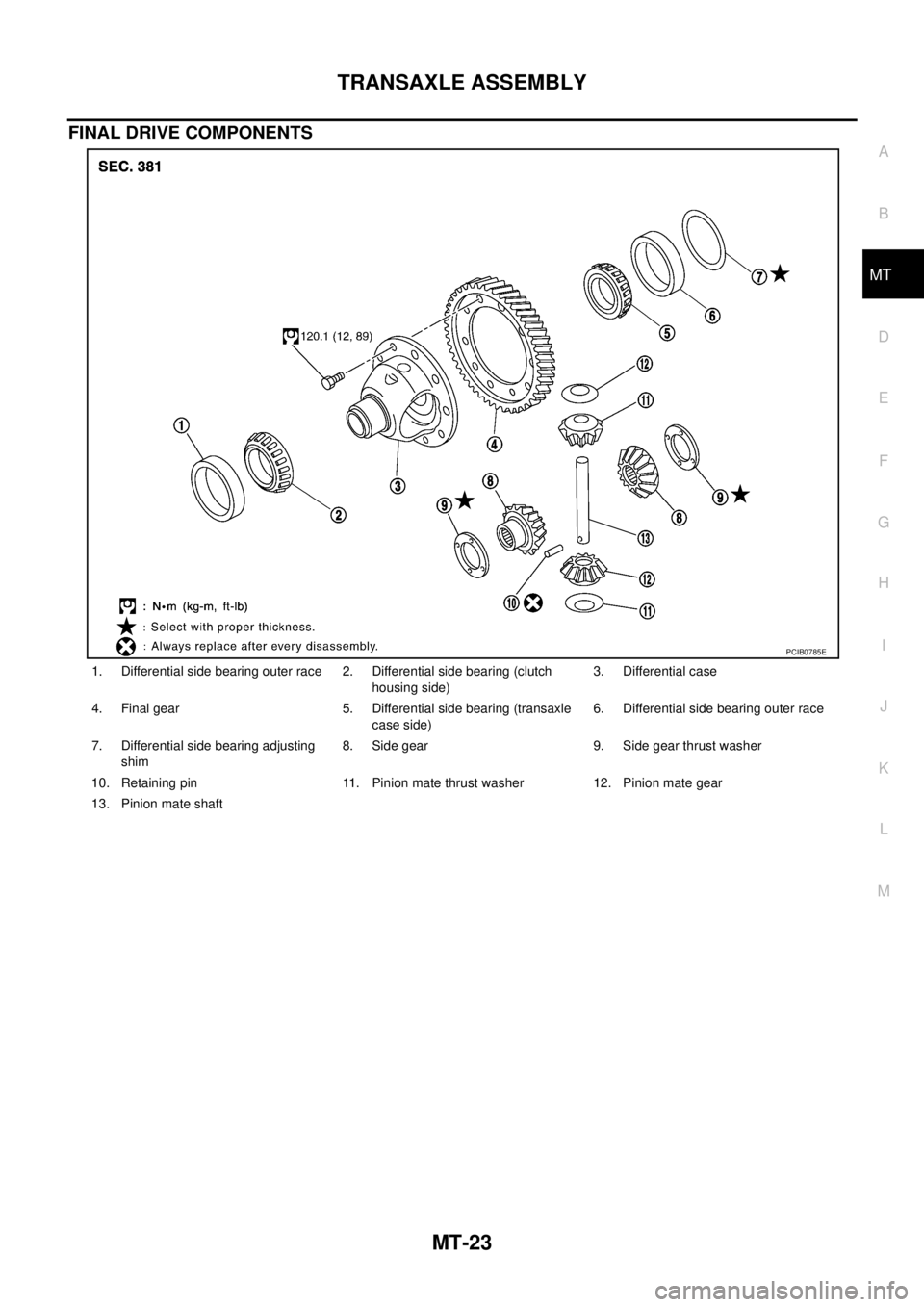

NISSAN X-TRAIL 2003 Service Repair Manual TRANSAXLE ASSEMBLY MT-23 D E F G H I J K L MA B MT FINAL DRIVE COMPONENTS 1. Differential side bearing outer race 2. Differential side bearing (clutch housing side)3. Differential case 4. Final gea

Page 1956 of 4179

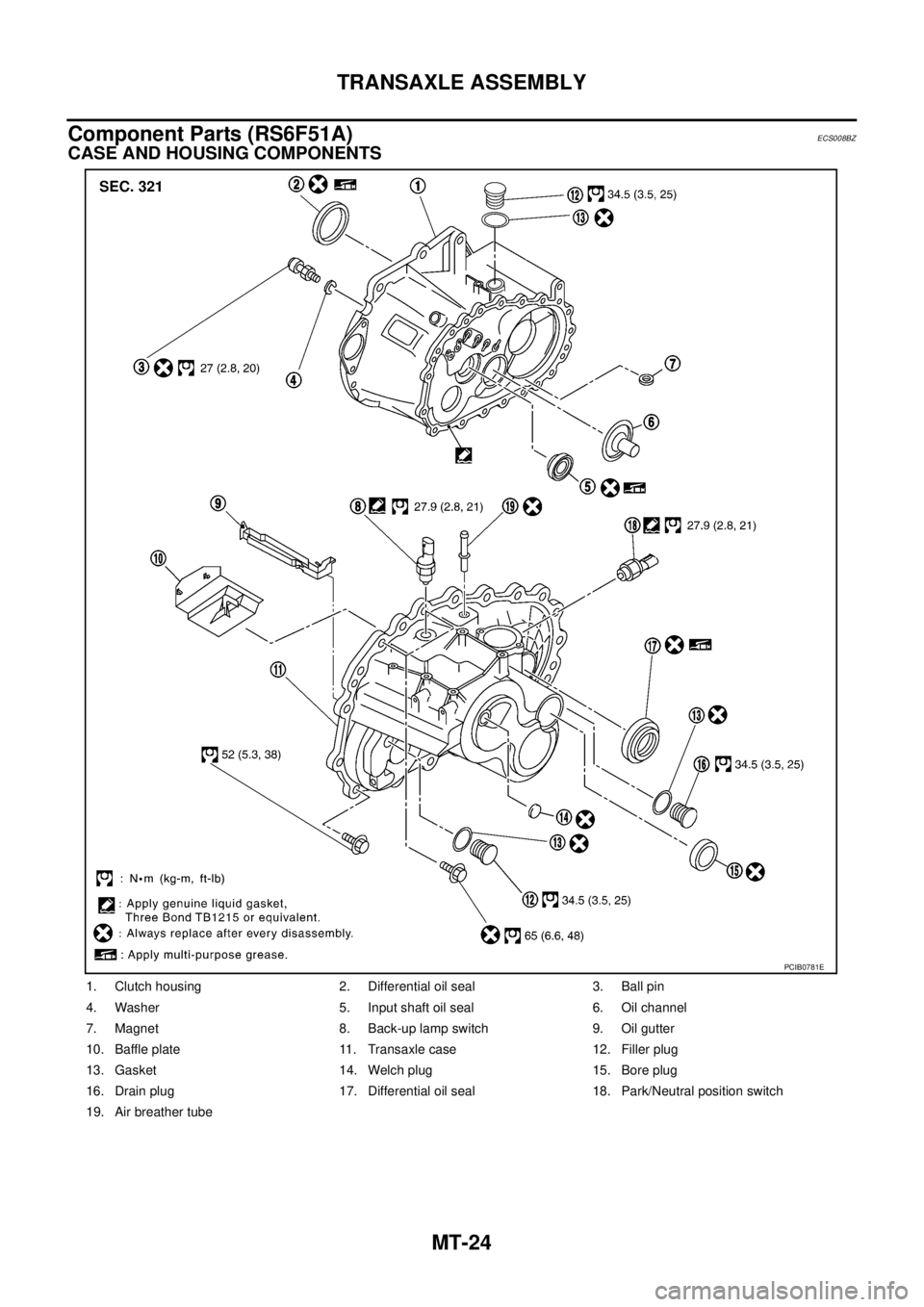

NISSAN X-TRAIL 2003 Service Repair Manual MT-24 TRANSAXLE ASSEMBLY Component Parts (RS6F51A)ECS008BZ CASE AND HOUSING COMPONENTS 1. Clutch housing 2. Differential oil seal 3. Ball pin 4. Washer 5. Input shaft oil seal 6. Oil channel 7. Magn

Page 1957 of 4179

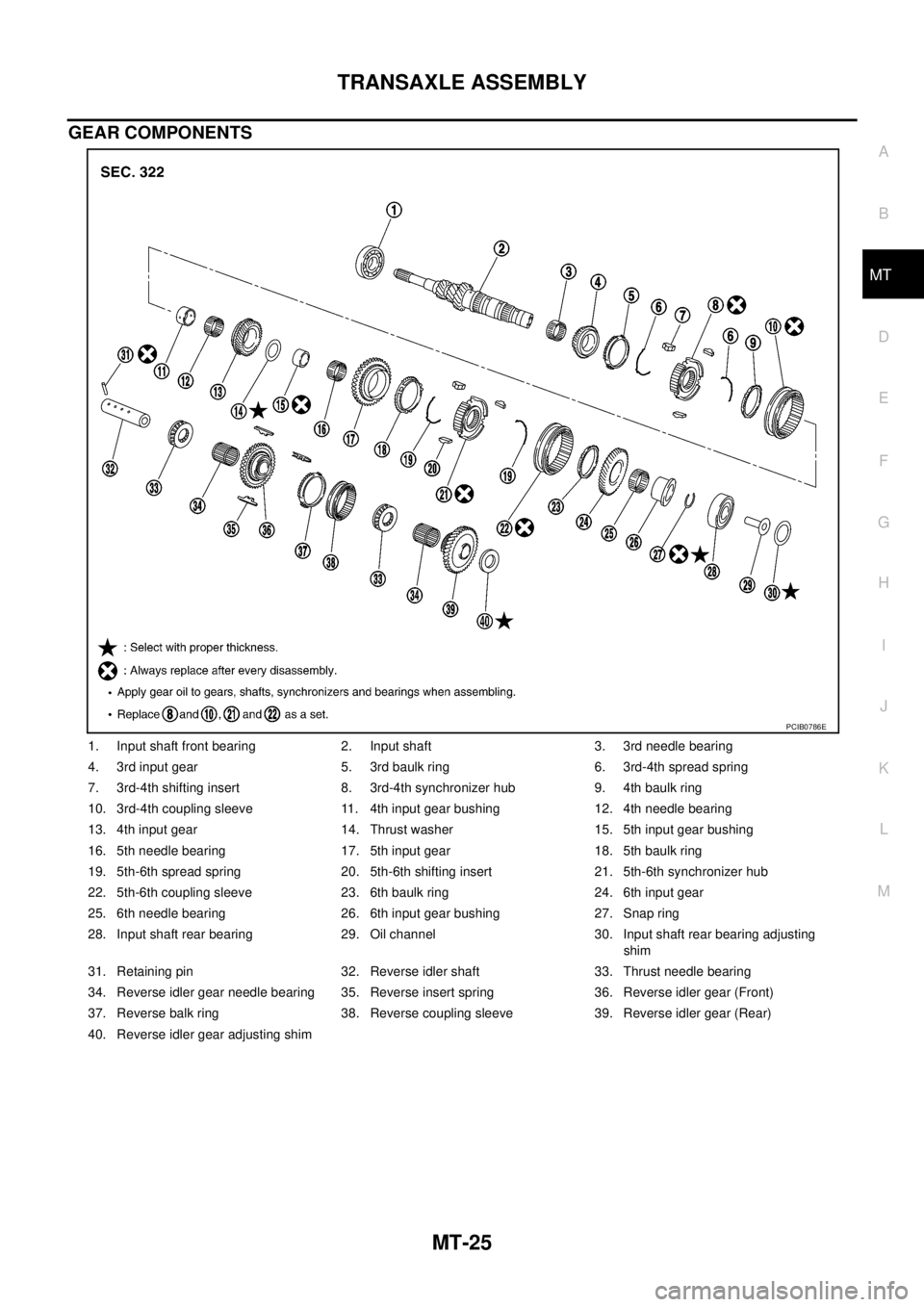

NISSAN X-TRAIL 2003 Service Repair Manual TRANSAXLE ASSEMBLY MT-25 D E F G H I J K L MA B MT GEAR COMPONENTS 1. Input shaft front bearing 2. Input shaft 3. 3rd needle bearing 4. 3rd input gear 5. 3rd baulk ring 6. 3rd-4th spread spring 7. 3

Page 1958 of 4179

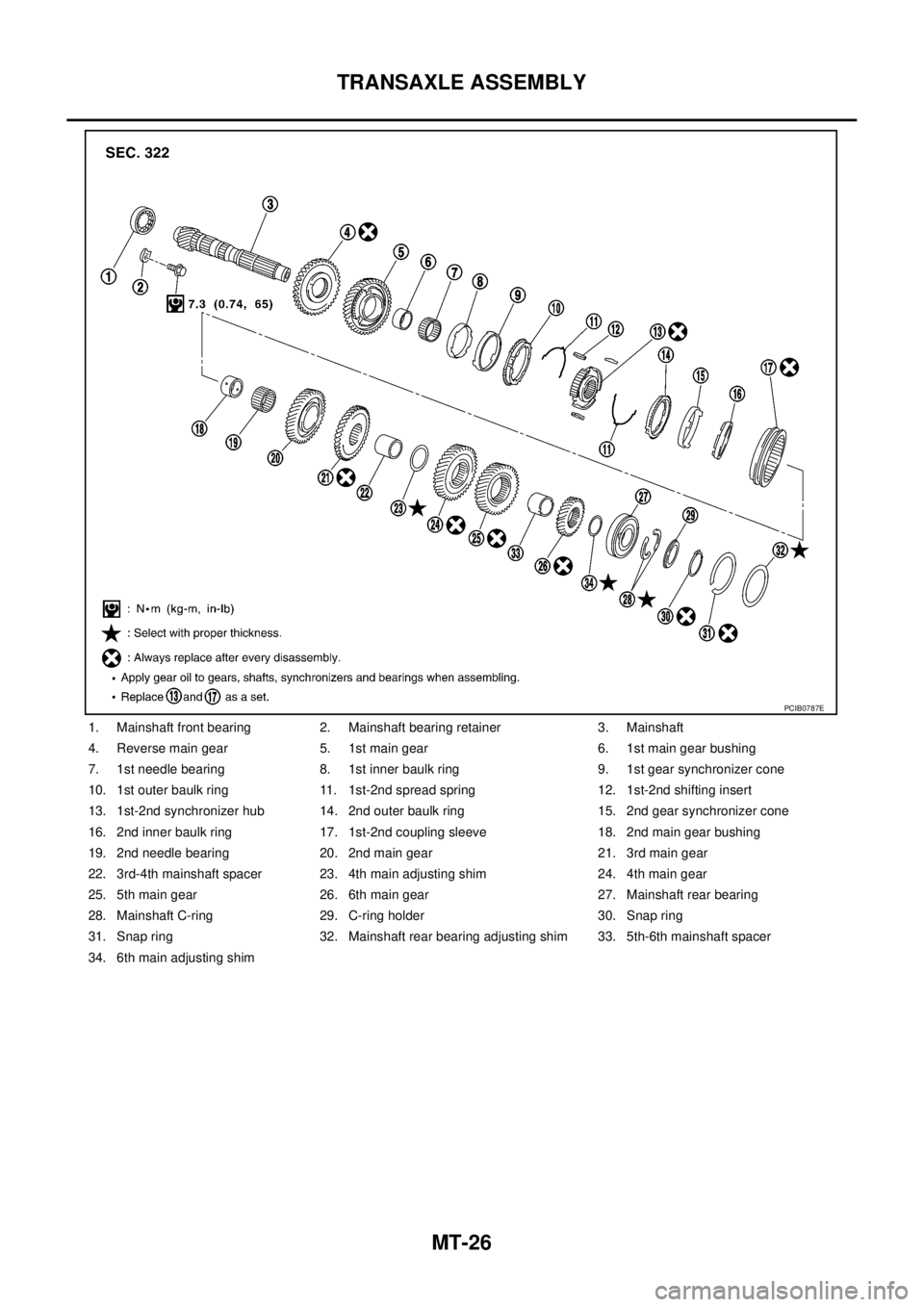

NISSAN X-TRAIL 2003 Service Repair Manual MT-26 TRANSAXLE ASSEMBLY 1. Mainshaft front bearing 2. Mainshaft bearing retainer 3. Mainshaft 4. Reverse main gear 5. 1st main gear 6. 1st main gear bushing 7. 1st needle bearing 8. 1st inner baulk

Page 1959 of 4179

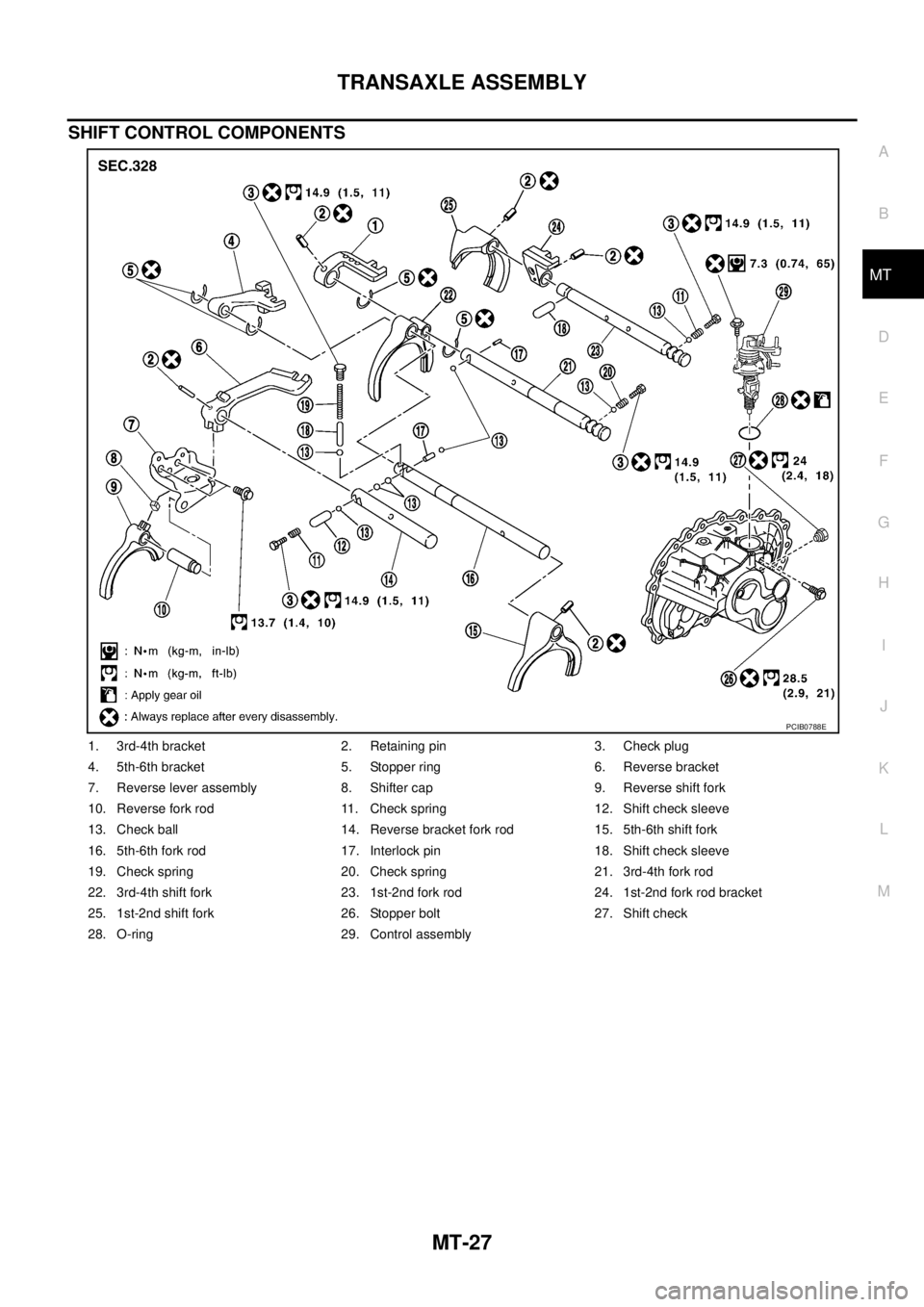

NISSAN X-TRAIL 2003 Service Repair Manual TRANSAXLE ASSEMBLY MT-27 D E F G H I J K L MA B MT SHIFT CONTROL COMPONENTS 1. 3rd-4th bracket 2. Retaining pin 3. Check plug 4. 5th-6th bracket 5. Stopper ring 6. Reverse bracket 7. Reverse lever a

Page 1960 of 4179

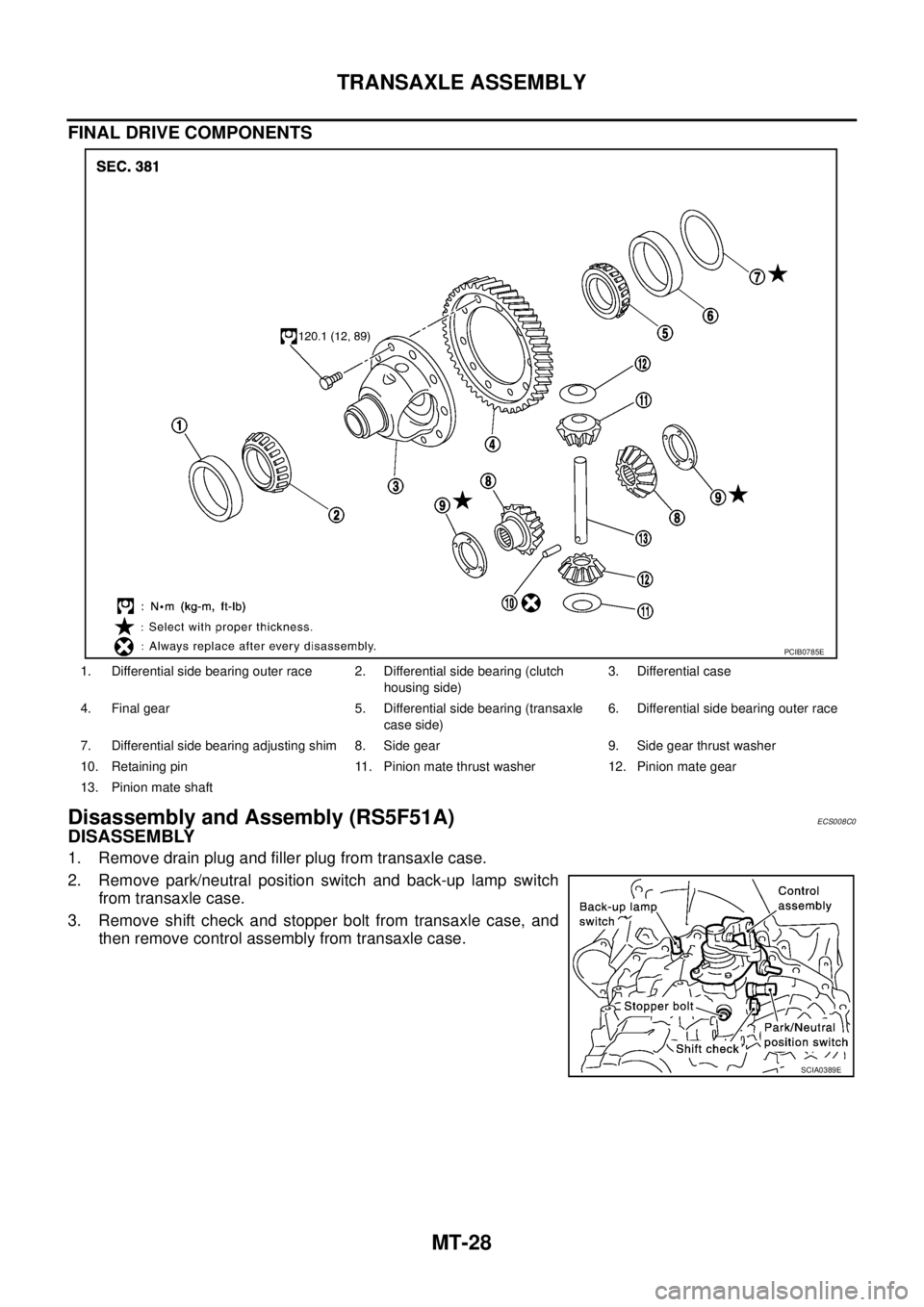

NISSAN X-TRAIL 2003 Service Repair Manual MT-28 TRANSAXLE ASSEMBLY FINAL DRIVE COMPONENTS Disassembly and Assembly (RS5F51A)ECS008C0 DISASSEMBLY 1. Remove drain plug and filler plug from transaxle case. 2. Remove park/neutral position switc
