Page 825 of 4179

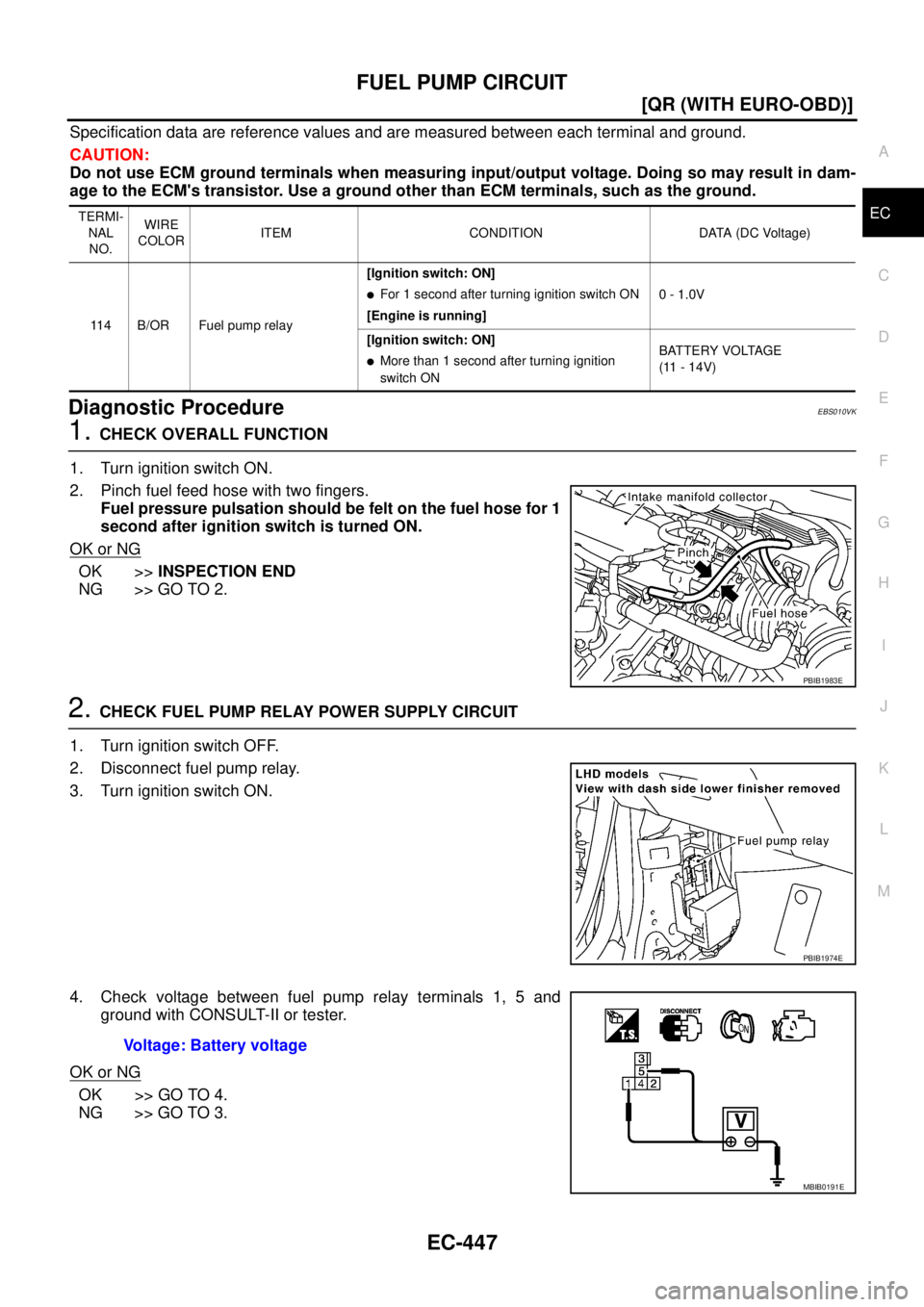

NISSAN X-TRAIL 2003 Service Repair Manual FUEL PUMP CIRCUIT EC-447 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground term

Page 826 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-448 [QR (WITH EURO-OBD)] FUEL PUMP CIRCUIT 3. DETECT MALFUNCTIONING PART Check the following. Harness connectors M17, B1 Fuse block (J/B) connector M1 15A fuse Harness for open or short betwe

Page 827 of 4179

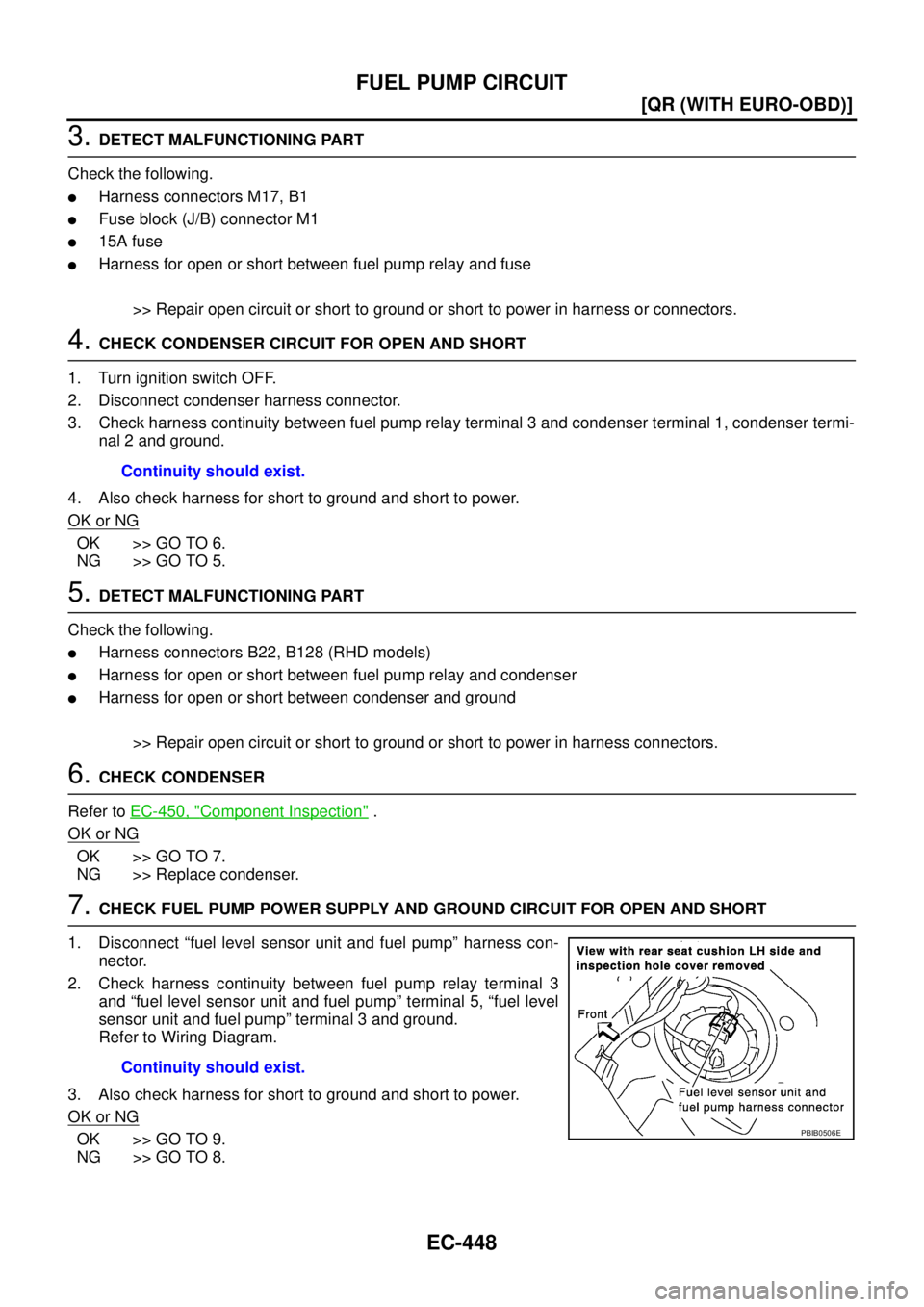

NISSAN X-TRAIL 2003 Service Repair Manual FUEL PUMP CIRCUIT EC-449 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC 8. DETECT MALFUNCTIONING PART Check the following. Harness connectors B22, B128 (RHD models) Harness for open or short betwe

Page 828 of 4179

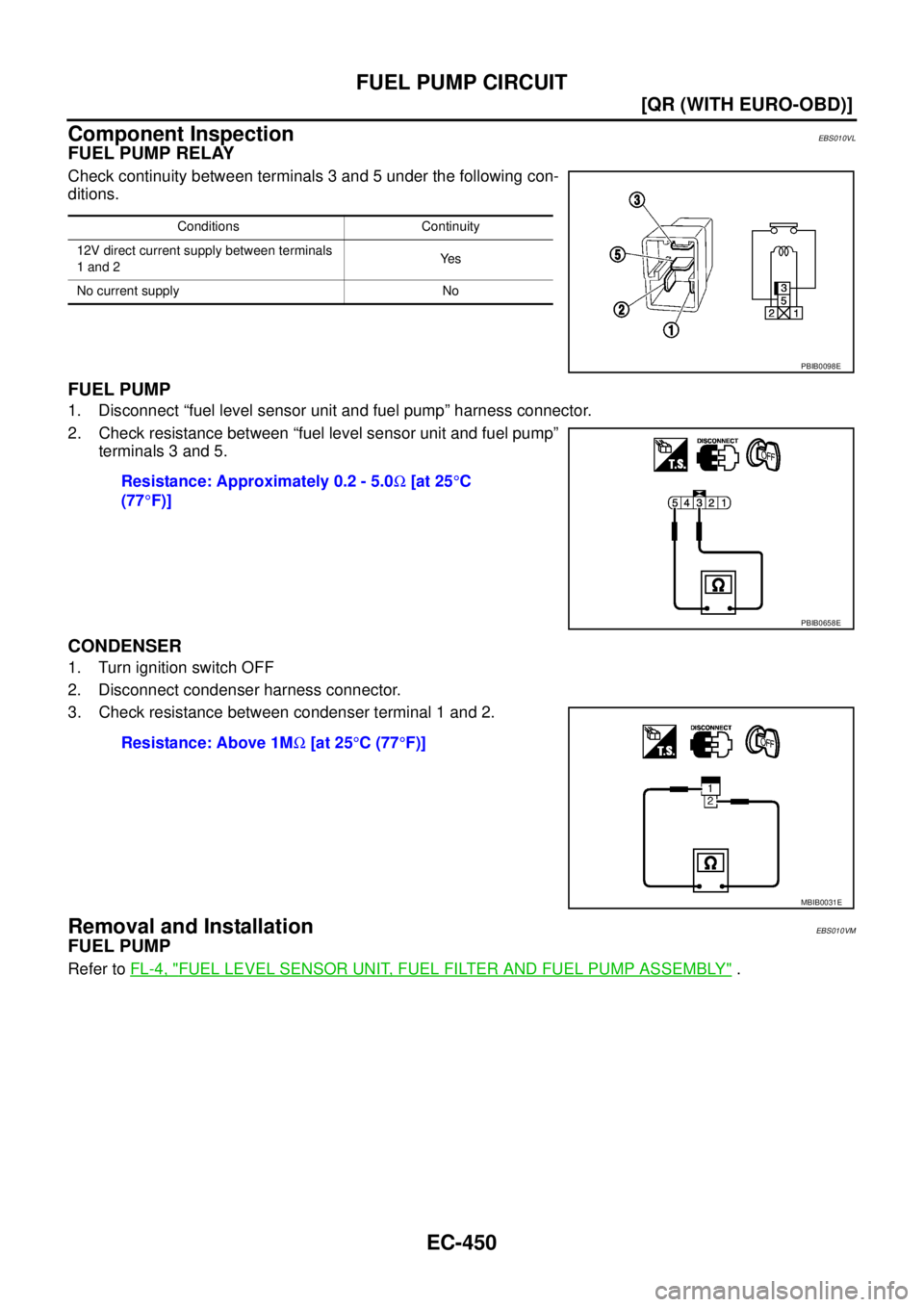

NISSAN X-TRAIL 2003 Service Repair Manual EC-450 [QR (WITH EURO-OBD)] FUEL PUMP CIRCUIT Component InspectionEBS010VL FUEL PUMP RELAY Check continuity between terminals 3 and 5 under the following con- ditions. FUEL PUMP 1. Disconnect “fue

Page 829 of 4179

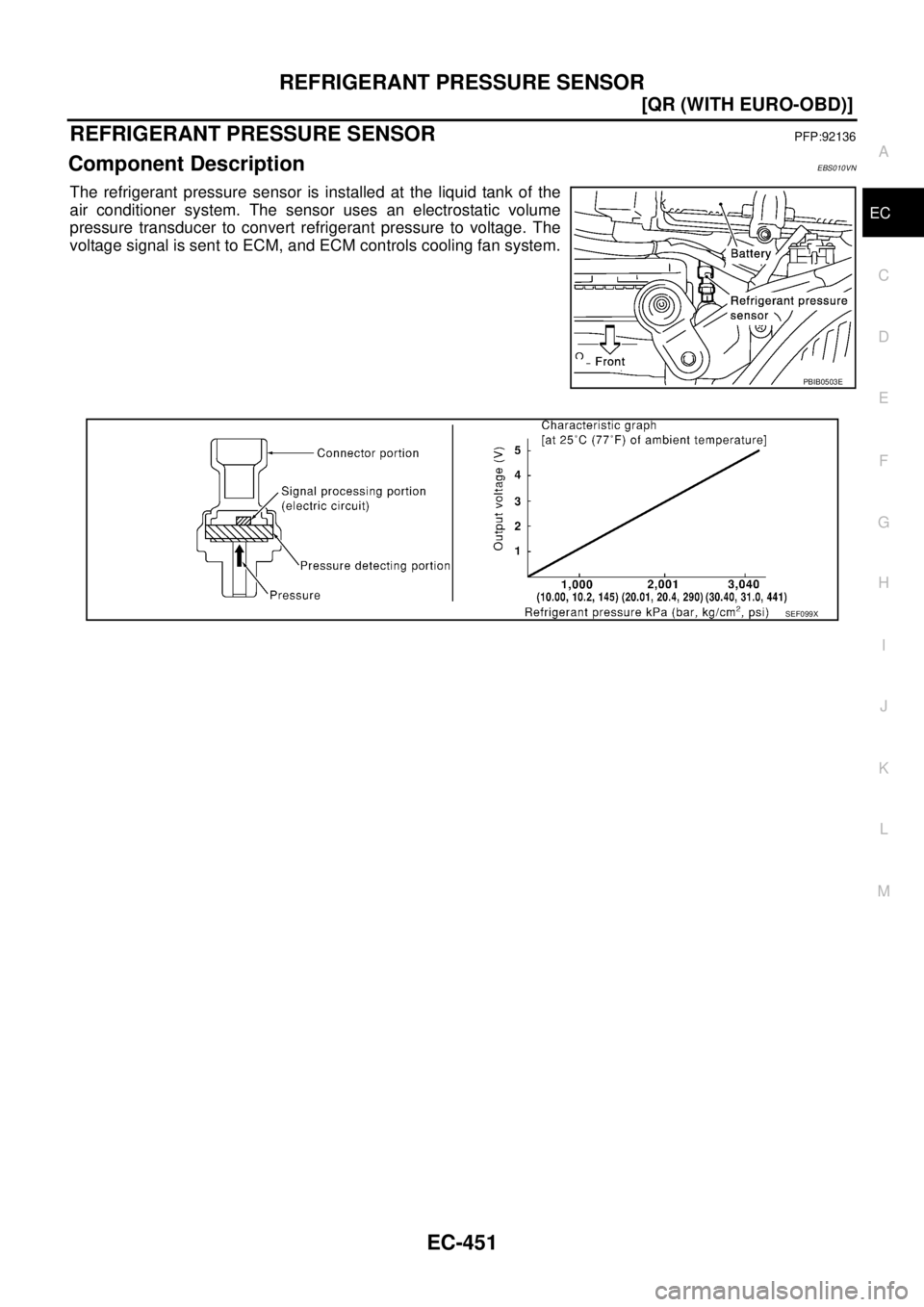

NISSAN X-TRAIL 2003 Service Repair Manual REFRIGERANT PRESSURE SENSOR EC-451 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC REFRIGERANT PRESSURE SENSORPFP:92136 Component DescriptionEBS010VN The refrigerant pressure sensor is installed at t

Page 830 of 4179

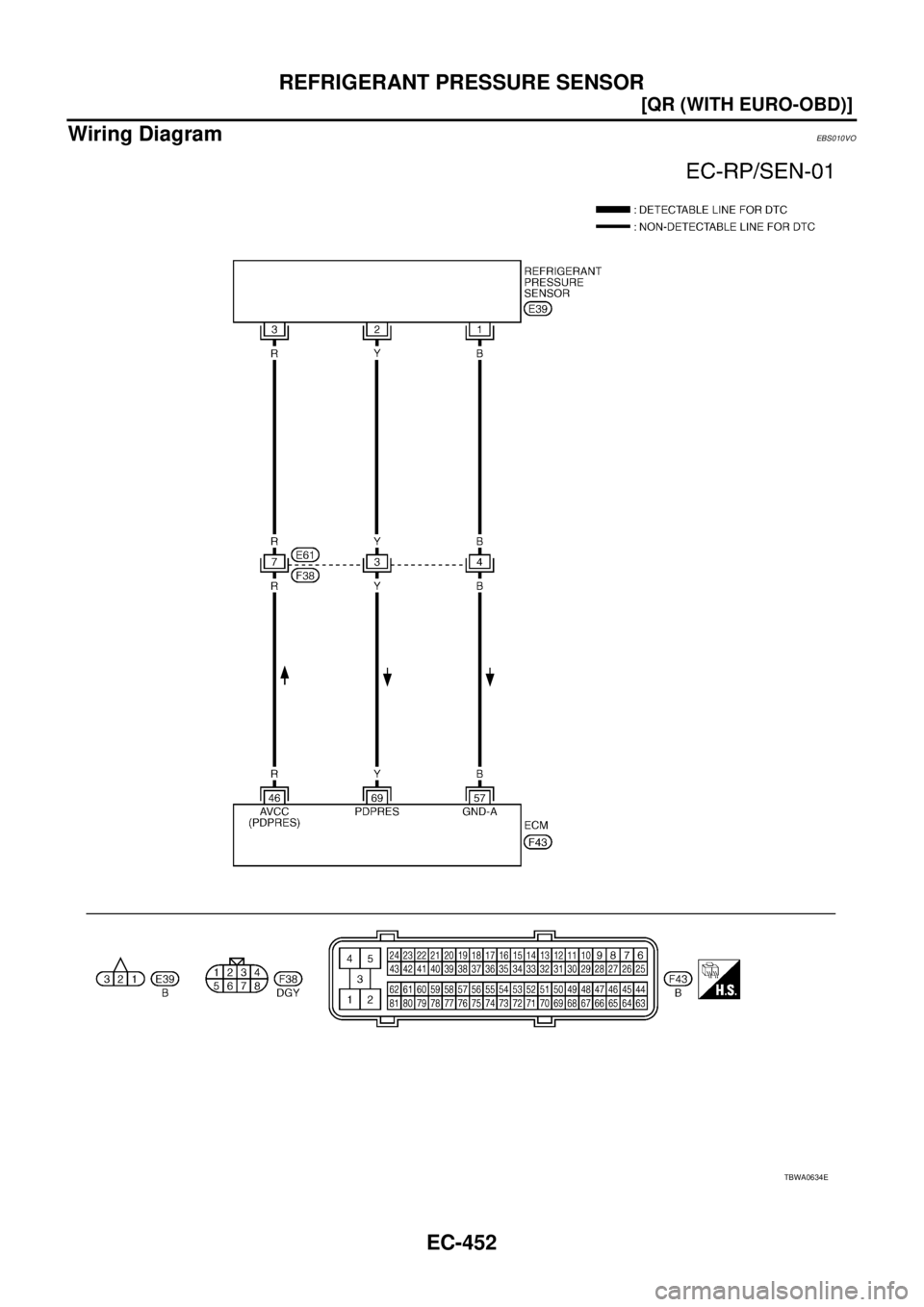

NISSAN X-TRAIL 2003 Service Repair Manual EC-452 [QR (WITH EURO-OBD)] REFRIGERANT PRESSURE SENSOR Wiring DiagramEBS010VO TBWA0634E

Page 831 of 4179

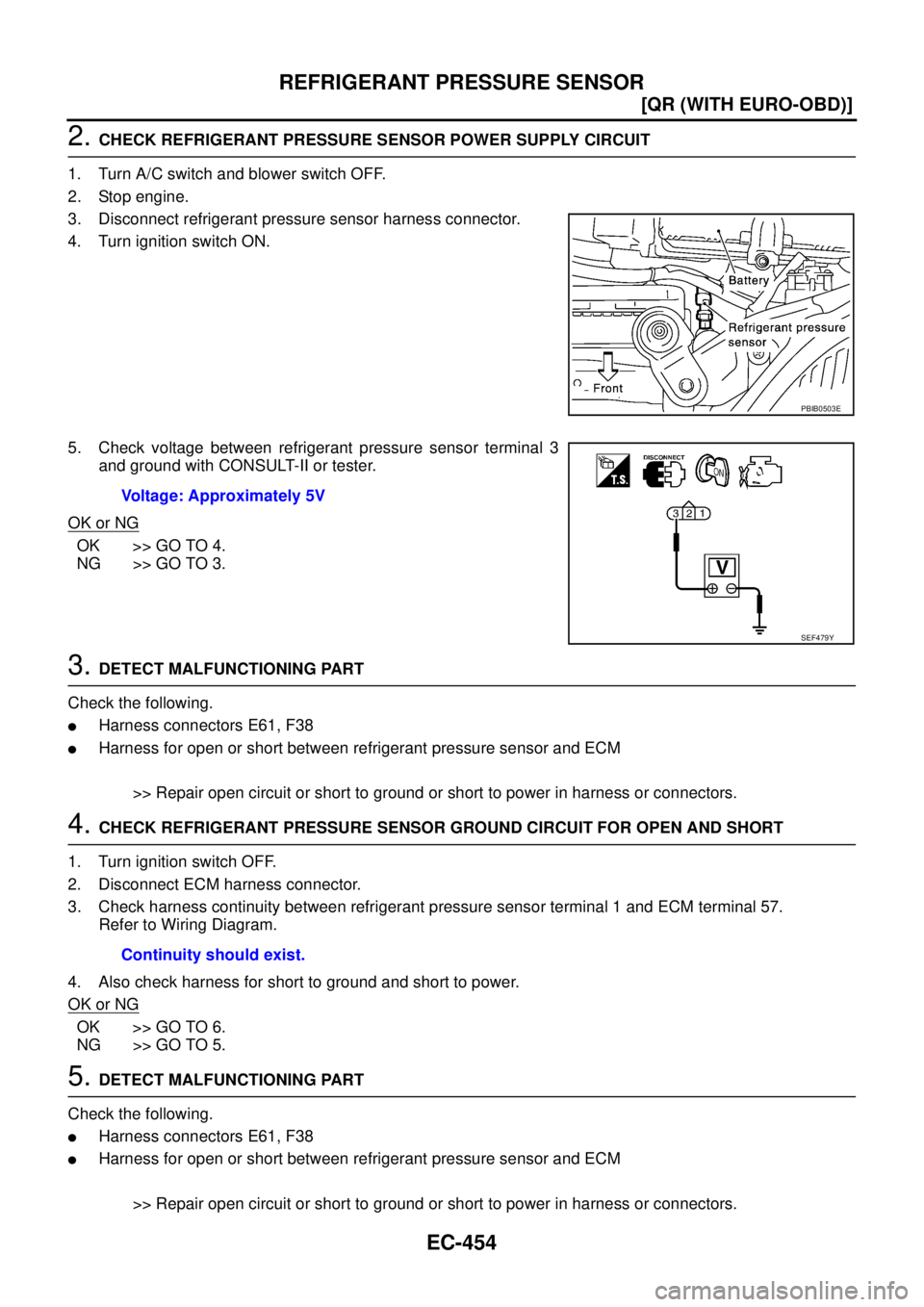

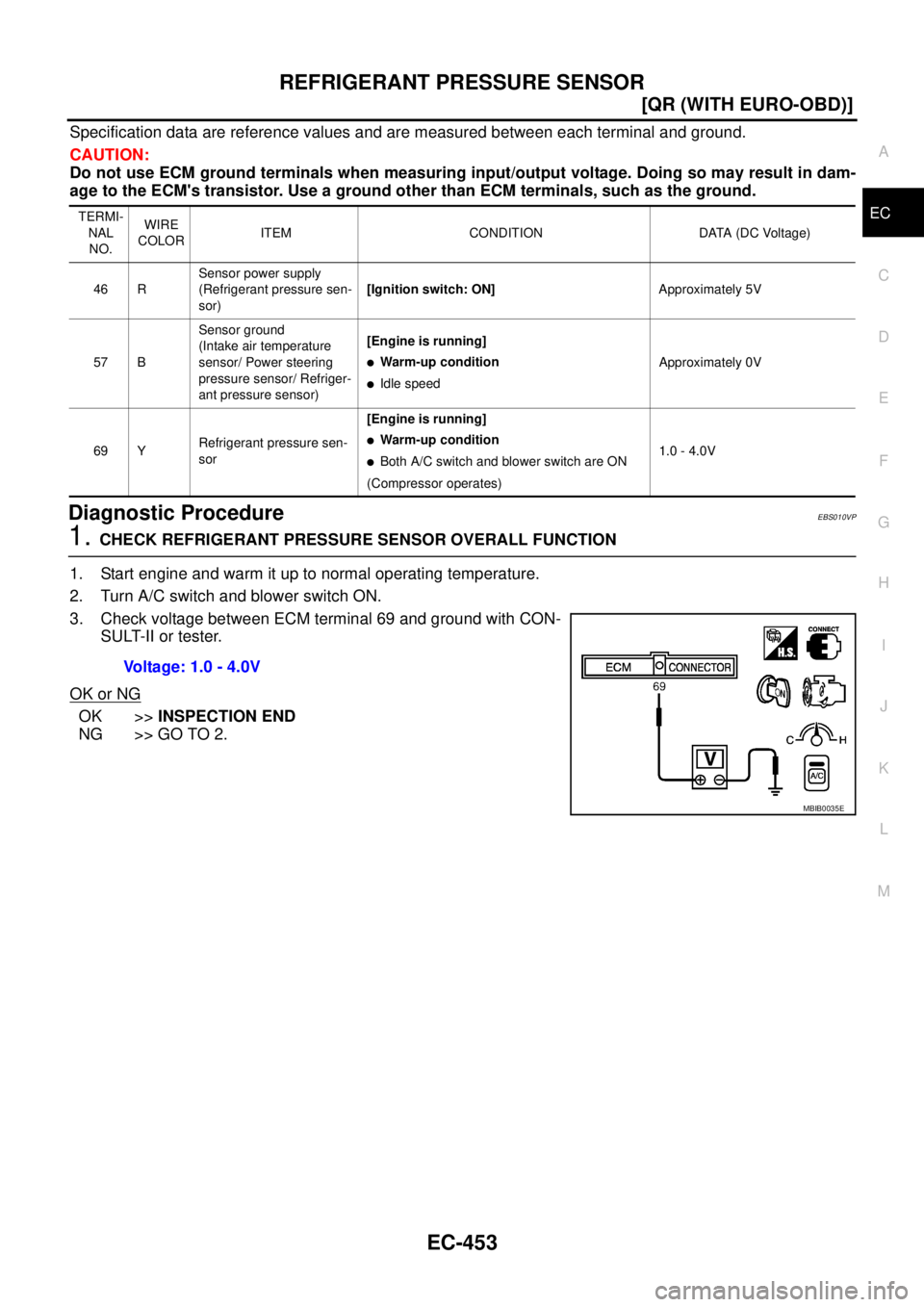

NISSAN X-TRAIL 2003 Service Repair Manual REFRIGERANT PRESSURE SENSOR EC-453 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM g

Page 832 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-454 [QR (WITH EURO-OBD)] REFRIGERANT PRESSURE SENSOR 2. CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT 1. Turn A/C switch and blower switch OFF. 2. Stop engine. 3. Disconnect refrigerant
