Page 313 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual OIL PUMP LU-15 [QR] C D E F G H I J K L MA LU Regulator Valve Clearance (Clearance) = (Valve hole diameter “D1”) – (Regulator valve outer diameter “D2”) If out of the standard, replace oi

Page 314 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LU-16 [QR] SERVICE DATA AND SPECIFICATIONS (SDS) SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030 Standard and LimitEBS00KO9 OIL PRESSURE *: Engine oil temperature at 80° (176°F) ENGINE OIL CAPACIT

Page 315 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PRECAUTIONS LU-17 [YD22DDTi] C D E F G H I J K L MA LU [YD22DDTi]PRECAUTIONSPFP:00001 Precautions for Liquid GasketEBS011SZ LIQUID GASKET APPLICATION PROCEDURE 1. Remove the old liquid gasket adheri

Page 316 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LU-18 [YD22DDTi] PREPARATION PREPARATIONPFP:00002 Special Service ToolsEBS00B01 Commercial Service ToolsEBS011WH Tool number Tool nameDescription ST25051001 Oil pressure gaugeMeasuring oil pressure

Page 317 of 4179

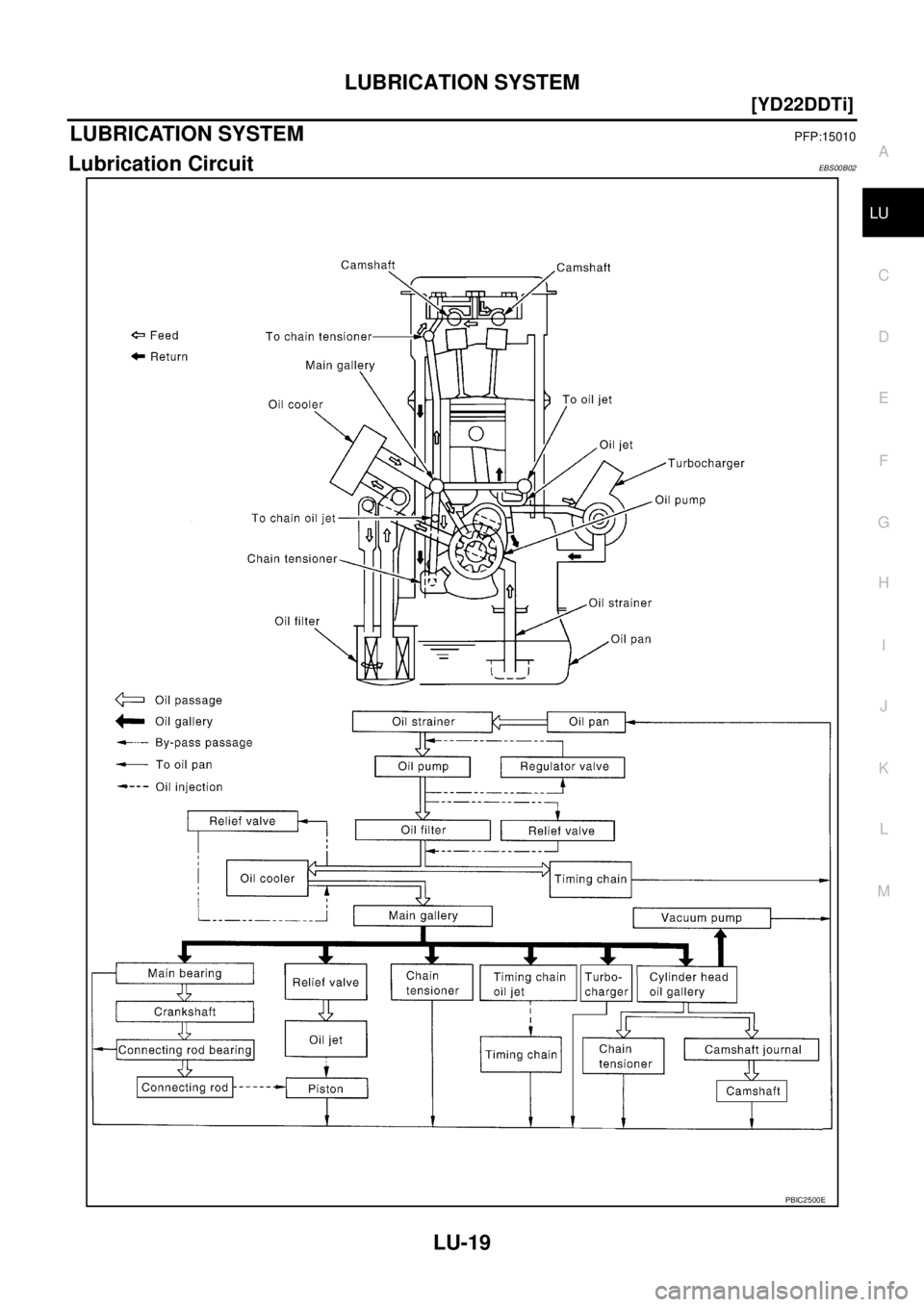

NISSAN X-TRAIL 2003 Service Repair Manual LUBRICATION SYSTEM LU-19 [YD22DDTi] C D E F G H I J K L MA LU LUBRICATION SYSTEMPFP:15010 Lubrication CircuitEBS00B02 PBIC2500E

Page 318 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LU-20 [YD22DDTi] ENGINE OIL ENGINE OILPFP:KLA92 InspectionEBS00B03 ENGINE OIL LEVEL NOTE: Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already starte

Page 319 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual ENGINE OIL LU-21 [YD22DDTi] C D E F G H I J K L MA LU 4. Disconnect harness connector at oil pressure switch, and using deep socket (commercial service tool), remove oil pressure switch. 5. Install

Page 320 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual LU-22 [YD22DDTi] ENGINE OIL 3. Loosen oil filler cap and then remove drain plug. 4. Drain engine oil. 5. Install drain plug with new washer. Refer to EM-147, " OIL PAN AND OIL STRAINER" . CAUTION: B
