INJECTOR CIRCUIT
EC-823
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK OVERALL FUNCTION

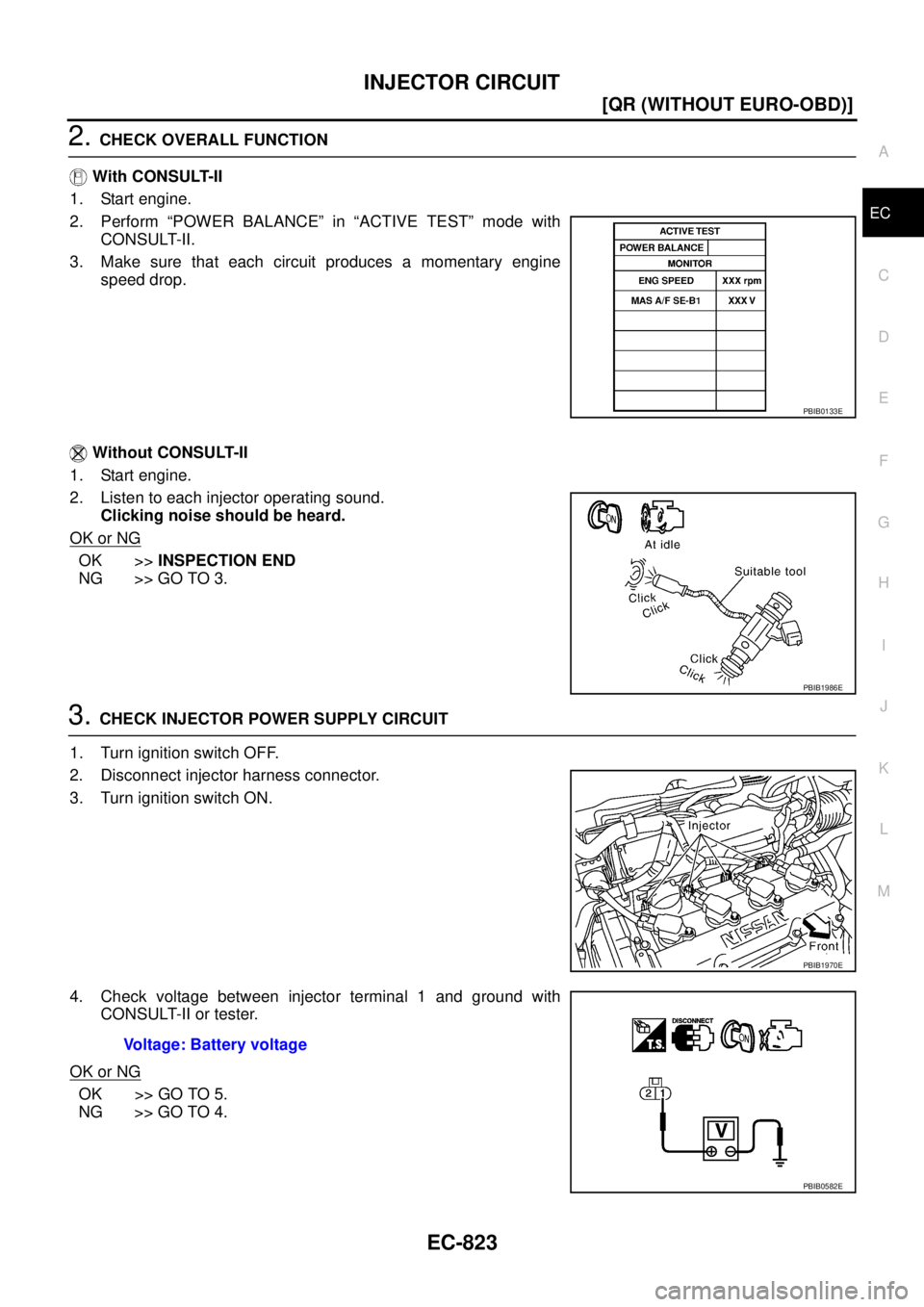

With CONSULT-II
1. Start engine.
2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with
CONSULT-II.
3. Make sure that each circuit produces a momentary engine
speed drop.
Without CONSULT-II
1. Start engine.
2. Listen to each injector operating sound.
Clicking noise should be heard.
OK or NG
OK >>INSPECTION END
NG >> GO TO 3.
3. CHECK INJECTOR POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect injector harness connector.
3. Turn ignition switch ON.
4. Check voltage between injector terminal 1 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
PBIB0133E
PBIB1986E
PBIB1970E
Voltage: Battery voltage
PBIB0582E
Page 1202 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-824
[QR (WITHOUT EURO-OBD)]
INJECTOR CIRCUIT
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M61, F41
Harness connectors F1, F101
Fuse block (J/B) connector M1
10A fuse
NISSAN X-TRAIL 2003 Service Repair Manual EC-824
[QR (WITHOUT EURO-OBD)]
INJECTOR CIRCUIT
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M61, F41
Harness connectors F1, F101
Fuse block (J/B) connector M1
10A fuse](/manual-img/5/57404/w960_57404-1201.png)
EC-824
[QR (WITHOUT EURO-OBD)]
INJECTOR CIRCUIT
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M61, F41
Harness connectors F1, F101
Fuse block (J/B) connector M1
10A fuse
Harness for open or short between injector and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK INJECTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between injector terminal 2 and ECM terminals 22, 23, 41, 42.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFONCTIONING PART
Check the following.
Harness connectors F101, F1
Harness for open or short between injector and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK INJECTOR
Refer to EC-825, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace injector.
8. CHECK INTERMITTENT INCIDENT
Refer to EC-570, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
Page 1203 of 4179
INJECTOR CIRCUIT
EC-825
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Component InspectionEBS0114M
INJECTOR
1. Disconnect injector harness connector.
2. Check resistance between terminals as shown in the figure.
Removal and InstallationEBS0114N
INJECTOR
Refer to EM-32, "FUEL INJECTOR AND FUEL TUBE" . Resistance: 13.5 - 17.5Ω [at 10 - 60°C (50 - 140°F)]
PBIB1727E
Page 1204 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-826
[QR (WITHOUT EURO-OBD)]
VIAS
VIASPFP:14956
DescriptionEBS011I0
SYSTEM DESCRIPTION
*: The ECM determines the start signal status by the signals of engine speed and battery voltage.
When the en NISSAN X-TRAIL 2003 Service Repair Manual EC-826
[QR (WITHOUT EURO-OBD)]
VIAS
VIASPFP:14956
DescriptionEBS011I0
SYSTEM DESCRIPTION
*: The ECM determines the start signal status by the signals of engine speed and battery voltage.
When the en](/manual-img/5/57404/w960_57404-1203.png)
EC-826
[QR (WITHOUT EURO-OBD)]
VIAS
VIASPFP:14956
DescriptionEBS011I0
SYSTEM DESCRIPTION
*: The ECM determines the start signal status by the signals of engine speed and battery voltage.
When the engine is running at low or medium speed, the power valve is fully closed. Under this condition, the
effective suction port length is equivalent to the total length of the intake manifold collector's suction port
including the intake valve. This long suction port provides increased air intake which results in improved suc-
tion efficiency and higher torque generation.
The surge tank and one-way valve are provided. When engine is running at high speed, the ECM sends the
signal to the VIAS control solenoid valve. This signal introduces the intake manifold vacuum into the power
valve actuator and therefore opens the power valve to two suction passages together in the collector.
Under this condition, the effective port length is equivalent to the length of the suction port provided indepen-
dently for each cylinder. This shortened port length results in enhanced engine output with reduced suction
resistance under high speeds.
COMPONENT DESCRIPTION
Power Valve

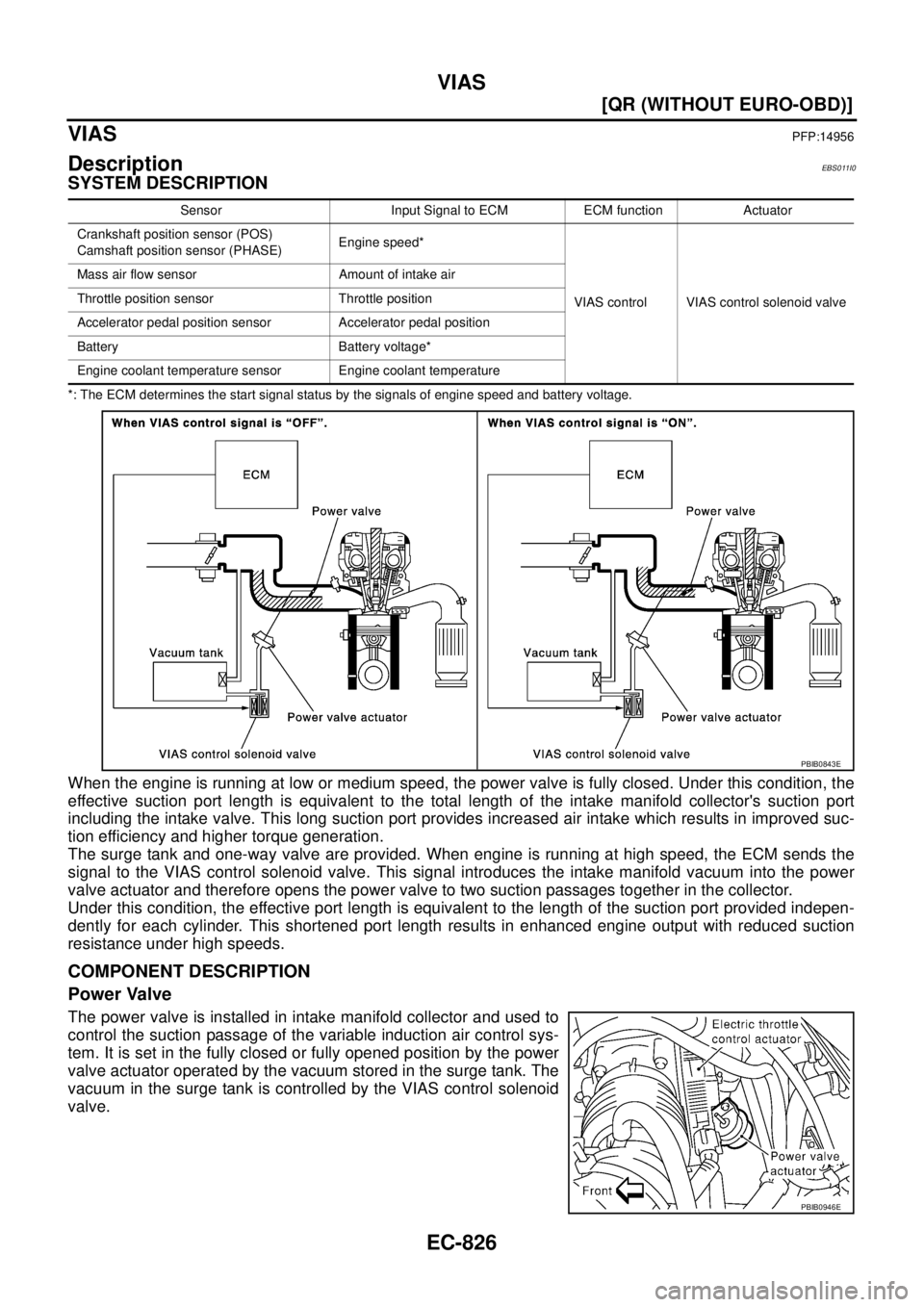

The power valve is installed in intake manifold collector and used to
control the suction passage of the variable induction air control sys-
tem. It is set in the fully closed or fully opened position by the power
valve actuator operated by the vacuum stored in the surge tank. The
vacuum in the surge tank is controlled by the VIAS control solenoid
valve.
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
VIAS control VIAS control solenoid valve Mass air flow sensor Amount of intake air
Throttle position sensor Throttle position
Accelerator pedal position sensor Accelerator pedal position
Battery Battery voltage*
Engine coolant temperature sensor Engine coolant temperature
PBIB0843E
PBIB0946E
Page 1205 of 4179
VIAS
EC-827
[QR (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
VIAS Control Solenoid Valve
The VIAS control solenoid valve cuts the intake manifold vacuum
signal for power valve control. It responds to ON/OFF signals from
the ECM. When the solenoid is off, the vacuum signal from the
intake manifold is cut. When the ECM sends an ON signal the coil
pulls the plunger downward and feeds the vacuum signal to the
power valve actuator.
CONSULT-II Reference Value in Data Monitor ModeEBS011I1
PBIB0947E
MONITOR ITEM CONDITION SPECIFICATION
VIAS S/V
Engine: After warming upIdle OFF
More than 5,000 rpm ON
Page 1206 of 4179
EC-828
[QR (WITHOUT EURO-OBD)]
VIAS

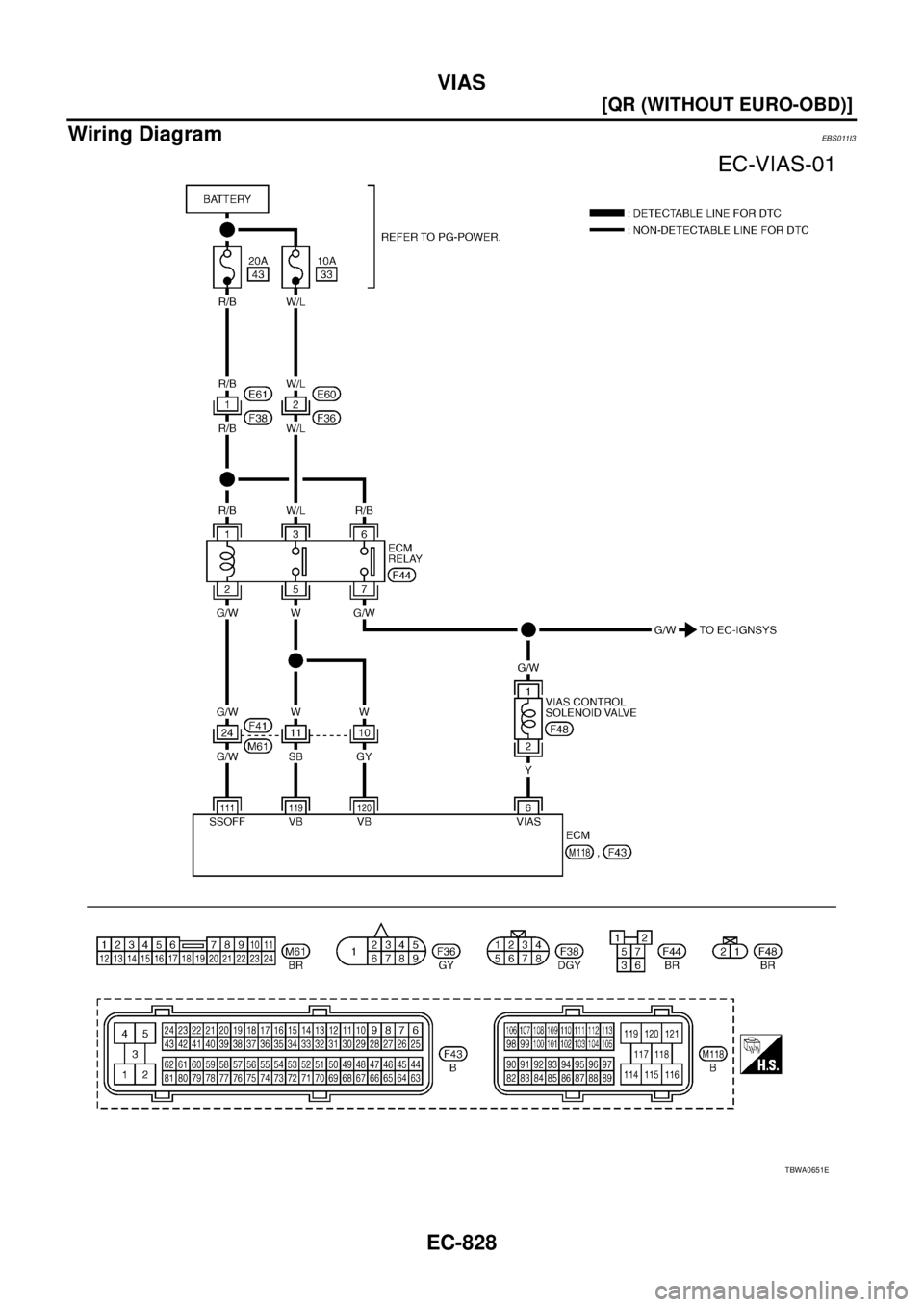

Wiring DiagramEBS011I3
