NISSAN X-TRAIL 2003 Service Repair Manual CYLINDER BLOCK
EM-221
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

19. Install fuel pump bracket.
Align the bracket with the dowel pins on cylinder block to
install.
The two bolts used for dowel pins have

Page 274 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EM-222
[YD22DDTi]
CYLINDER BLOCK

How to Select Piston and BearingEBS00ODY
DESCRIPTION
The identification grade stamped on each part is the grade for the dimension measured in new condition.
This gr

Page 275 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual CYLINDER BLOCK
EM-223
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

Piston Selection Table
Unit: mm (in)
NOTE:
Piston is available together with piston pin as an assembly.
HOW TO SELECT CONNECTING ROD BEARIN

CYLINDER BLOCK
EM-223
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

Piston Selection Table
Unit: mm (in)
NOTE:
Piston is available together with piston pin as an assembly.
HOW TO SELECT CONNECTING ROD BEARING
When Using New Crankshaft and Connecting Rod
1. Identify the pin diameter grade (No. 0, 1, or 2) on front surface of
crankshaft.
2. Select connecting rod bearings of the same grade.
NOTE:
There is no grading for the inner diameter of the big end of the
connecting rod.
When Re-using the Removed Crankshaft and Connecting Rod
1. Measure the inner diameter of the big end of connecting rod and make sure it is within the specified
range. Refer to EM-228, "
CONNECTING ROD BIG END INNER DIAMETER" .
2. Measure the outer diameter of the crankshaft pin. Refer to EM-231, "
CRANKSHAFT PIN OUTER DIAME-
TER" .
3. Determine the crankshaft pin grade by comparing the measurement with the values under the column
“Crankshaft pin outer diameter” in “Selection Table of connecting Rod Bearing”.
4. Choose bearings of the same grade.
Selection Table of connecting Rod Bearing
Unit: mm (in)
Unit: mm (in)
Under Size Bearing Usage
If bearing clearance is out of the specifications for connecting rod bearings in standard size, use under
size bearings.
When using under size bearings, measure bearing inner diameter with bearing installed, and grind crank-
shaft pins to adjust clearance to specification.
Grade (punched) 1 2 3
Cylinder bore
inner diameter86.000 - 86.010(3.3858 - 3.3862) 86.010 - 86.020(3.3862 - 3.3866) 86.020 - 86.030(3.3866 - 3.3870)
Piston outer
diameter85.928 - 85.942(3.3830 - 3.3835) 85.938 - 85.952(3.3834 - 3.3839) 85.948 - 85.962(3.3838 - 3.3843)
JEM215G
Connecting rod big end inner diameter 55.000 - 55.013 (2.1654 - 2.1659)
Crankshaft pin outer diameter Grade (Mark) Dimension (Bearing thickness range) Bearing grade No. Color
51.968 - 51.974 (2.0460 - 2.0462) 0 1.492 - 1.496 (0.0587 - 0.0589) STD 0 Black
51.961 - 51.968 (2.0457 - 2.0460) 1 1.496 - 1.500 (0.0589 - 0.0591) STD 1 Brown
51.954 - 51.961 (2.0454 - 2.0457) 2 1.500 - 1.504 (0.0591 - 0.0592) STD 2 Green

Page 276 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EM-224
[YD22DDTi]
CYLINDER BLOCK

Connecting Rod Bearing Under Size List
Unit: mm (in)
CAUTION:
When grinding the crankshaft pin to use an under size bearing,
avoid damaging the fillet R.
HOW TO SELE

Page 277 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual CYLINDER BLOCK
EM-225
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

Main Bearing Grade Table
Unit: mm (in)
Under Size Bearing Usage
If bearing clearance is out of the specifications for main bearings in sta

Page 278 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EM-226
[YD22DDTi]
CYLINDER BLOCK

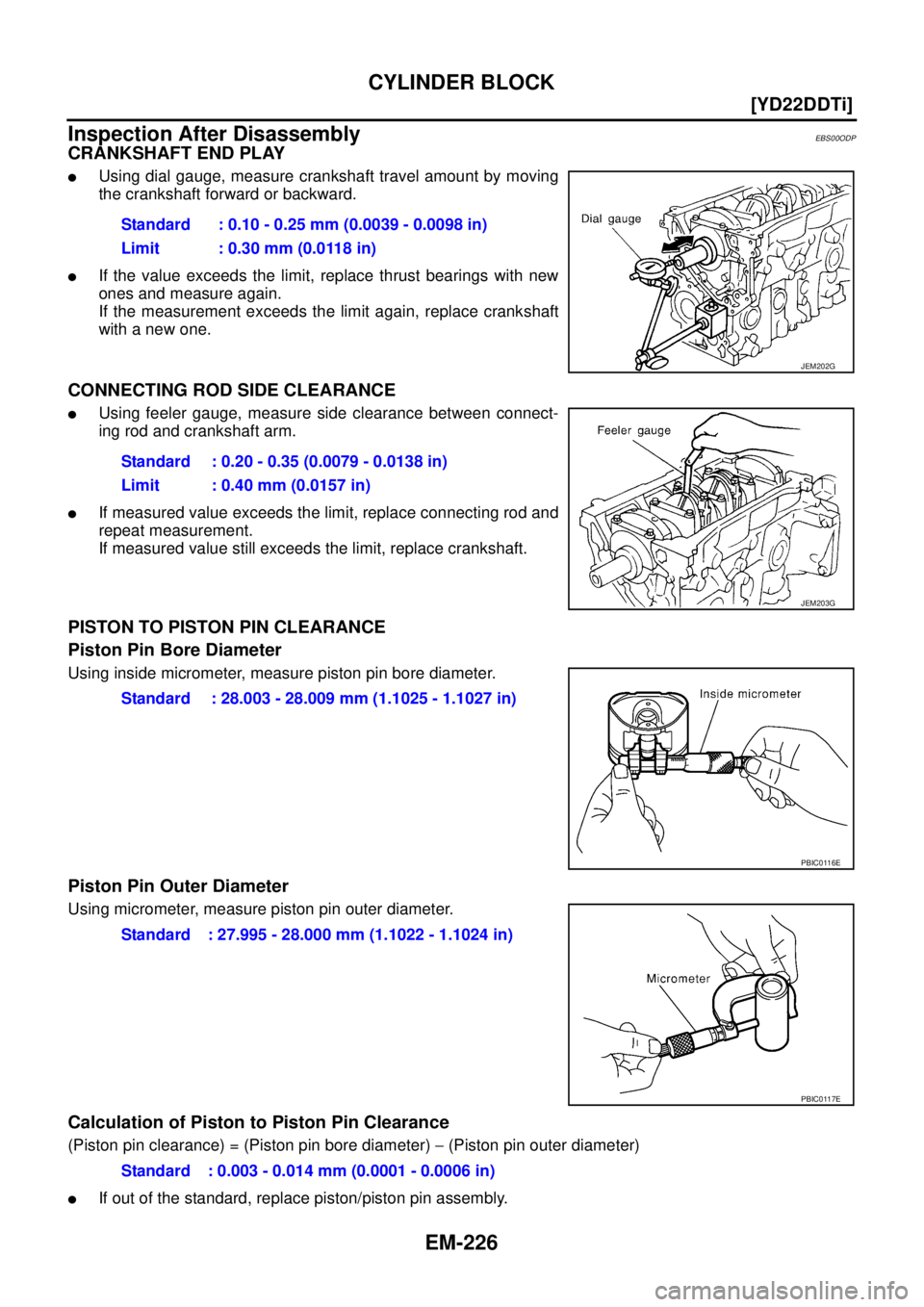

Inspection After DisassemblyEBS00ODP
CRANKSHAFT END PLAY
Using dial gauge, measure crankshaft travel amount by moving
the crankshaft forward or backward.
If the va

Page 279 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual CYLINDER BLOCK
EM-227
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM

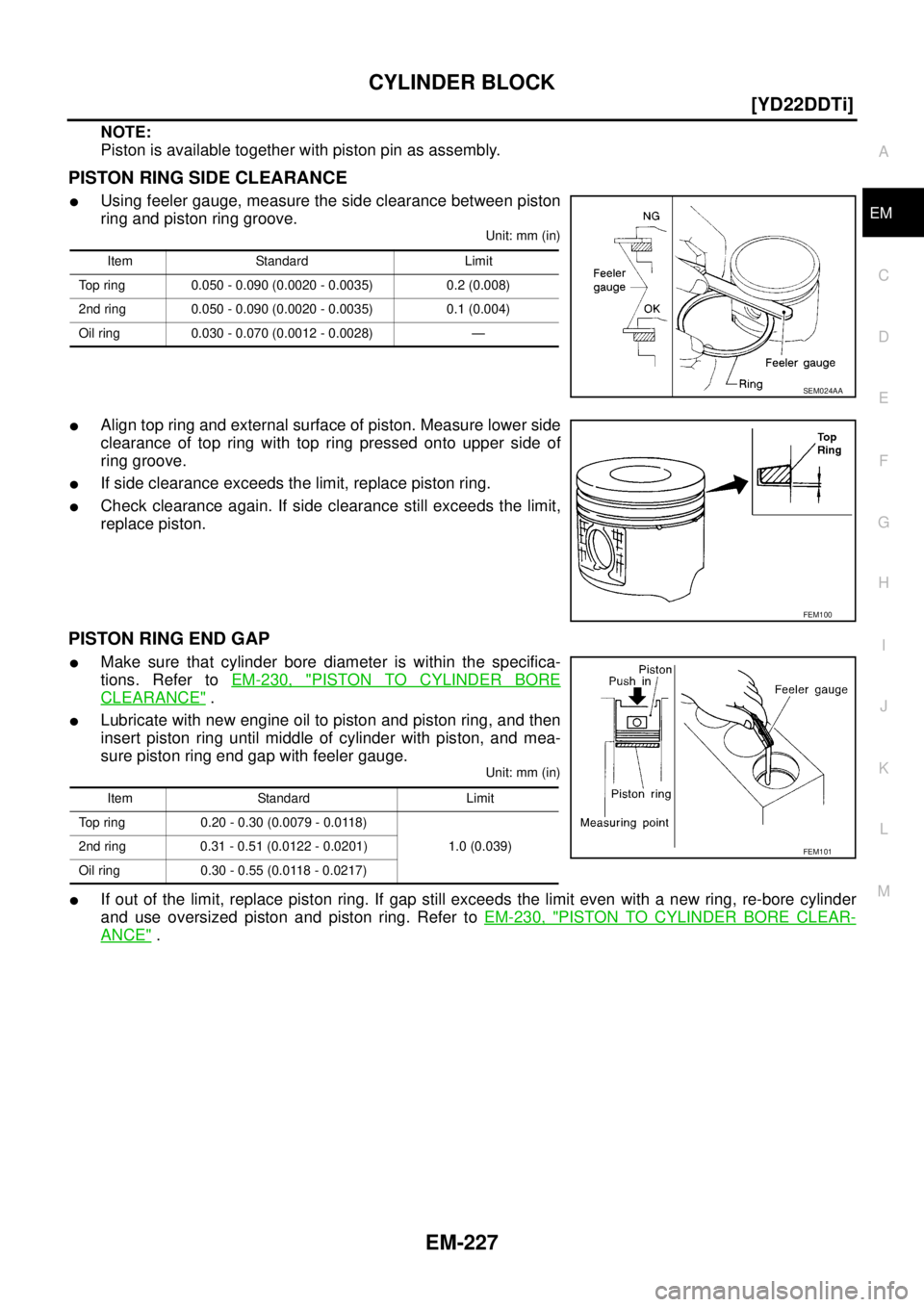

NOTE:
Piston is available together with piston pin as assembly.
PISTON RING SIDE CLEARANCE
Using feeler gauge, measure the side clearance

Page 280 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EM-228
[YD22DDTi]
CYLINDER BLOCK

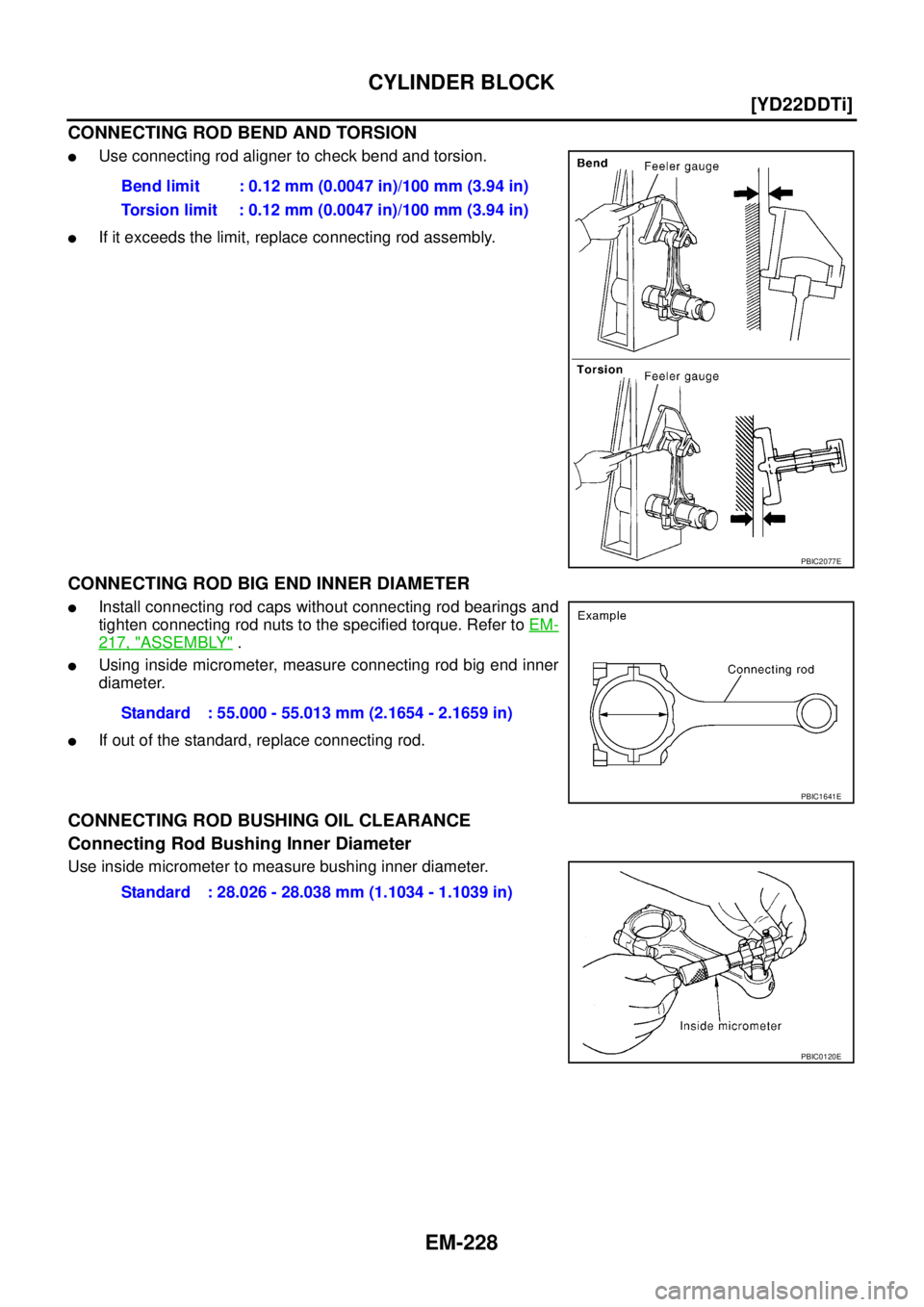

CONNECTING ROD BEND AND TORSION
Use connecting rod aligner to check bend and torsion.
If it exceeds the limit, replace connecting rod assembly.
CONNECTING ROD BIG
