Page 2969 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual POWER STEERING OIL PUMP PS-33 C D E F H I J K L MA B PS 4. Insert pin 2 into pin groove 1 of front housing and front side plate. Then install cam ring 3 as shown at left. Cam ring : D 1 is less tha

Page 2970 of 4179

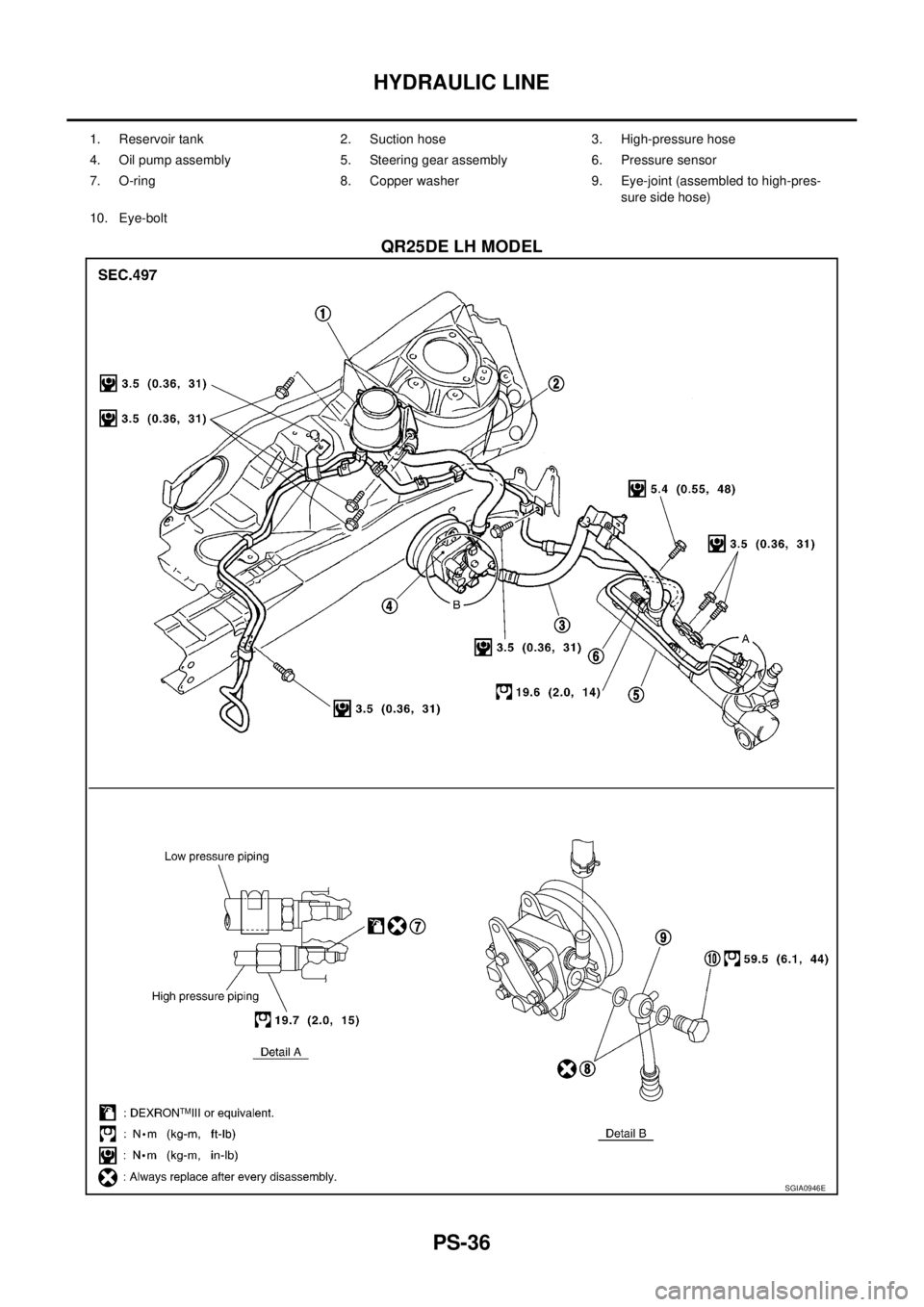

NISSAN X-TRAIL 2003 Service Repair Manual PS-34 HYDRAULIC LINE HYDRAULIC LINEPFP:49721 Components (QR20DE and QR25DE engine models)EGS0004O CAUTION: Securely insert harness connector to oil pressure sensor. QR20DE LH MODEL SGIA0944E

Page 2971 of 4179

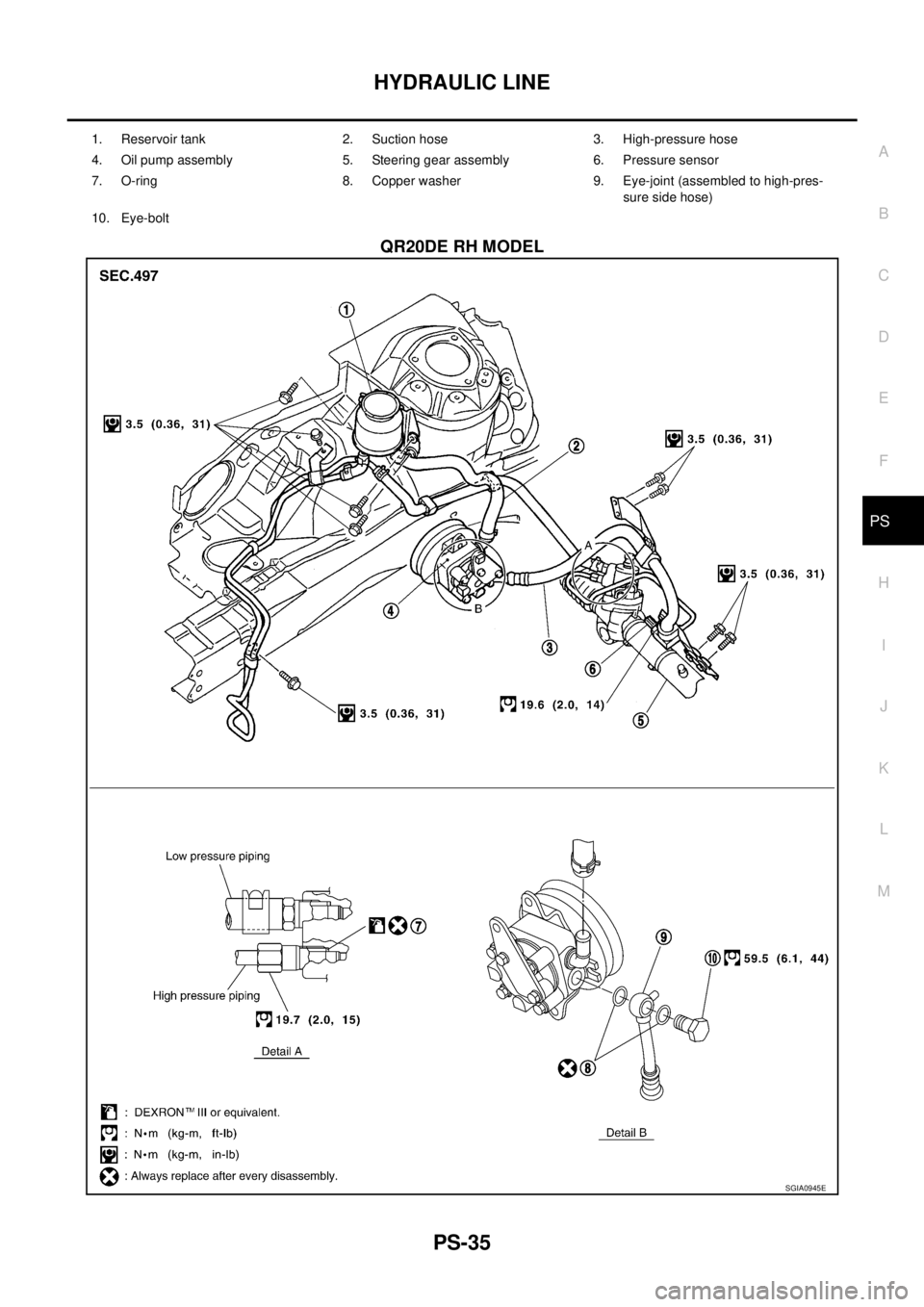

NISSAN X-TRAIL 2003 Service Repair Manual HYDRAULIC LINE PS-35 C D E F H I J K L MA B PS QR20DE RH MODEL 1. Reservoir tank 2. Suction hose 3. High-pressure hose 4. Oil pump assembly 5. Steering gear assembly 6. Pressure sensor 7. O-ring 8.

Page 2972 of 4179

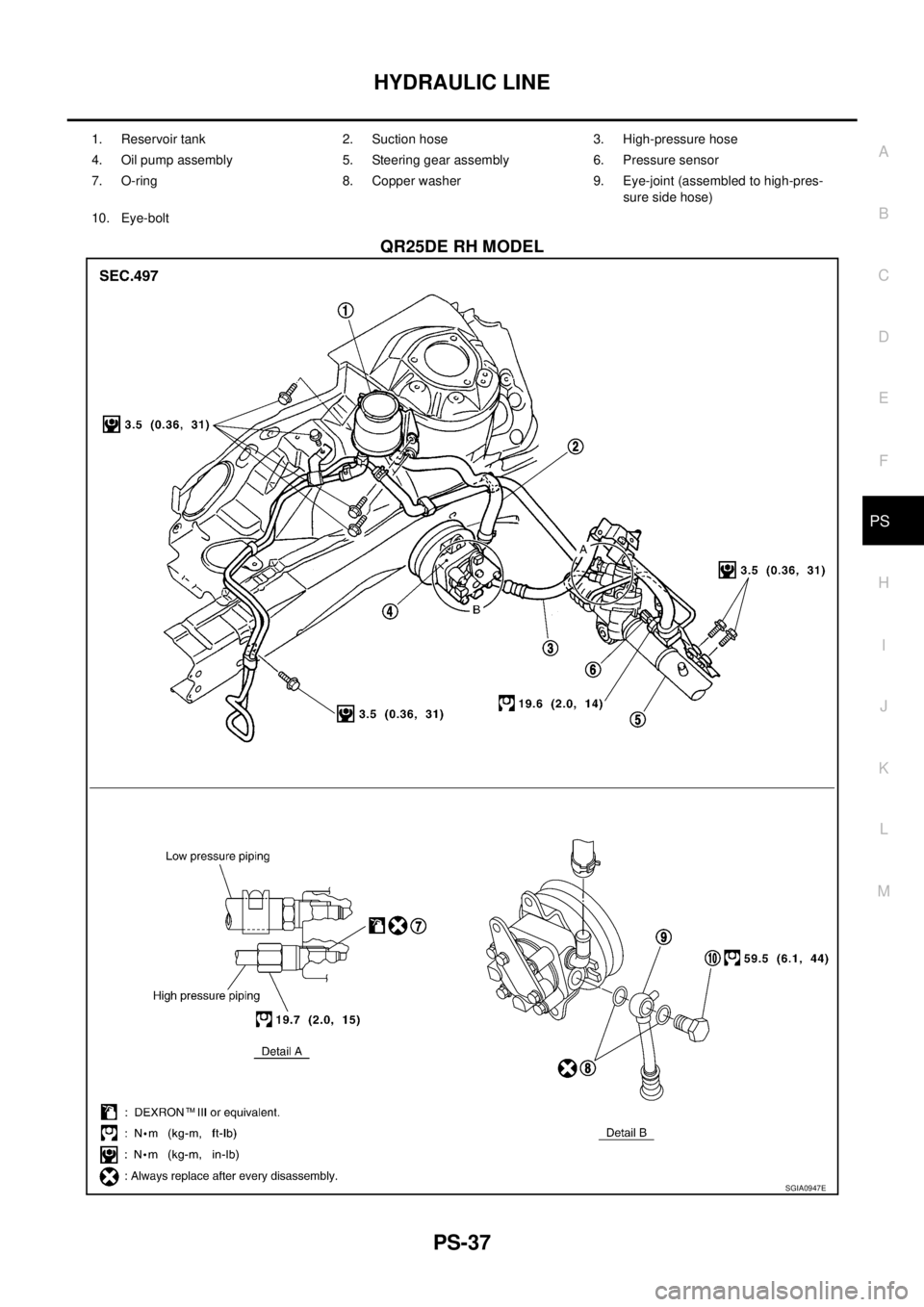

NISSAN X-TRAIL 2003 Service Repair Manual PS-36 HYDRAULIC LINE QR25DE LH MODEL 1. Reservoir tank 2. Suction hose 3. High-pressure hose 4. Oil pump assembly 5. Steering gear assembly 6. Pressure sensor 7. O-ring 8. Copper washer 9. Eye-joint

Page 2973 of 4179

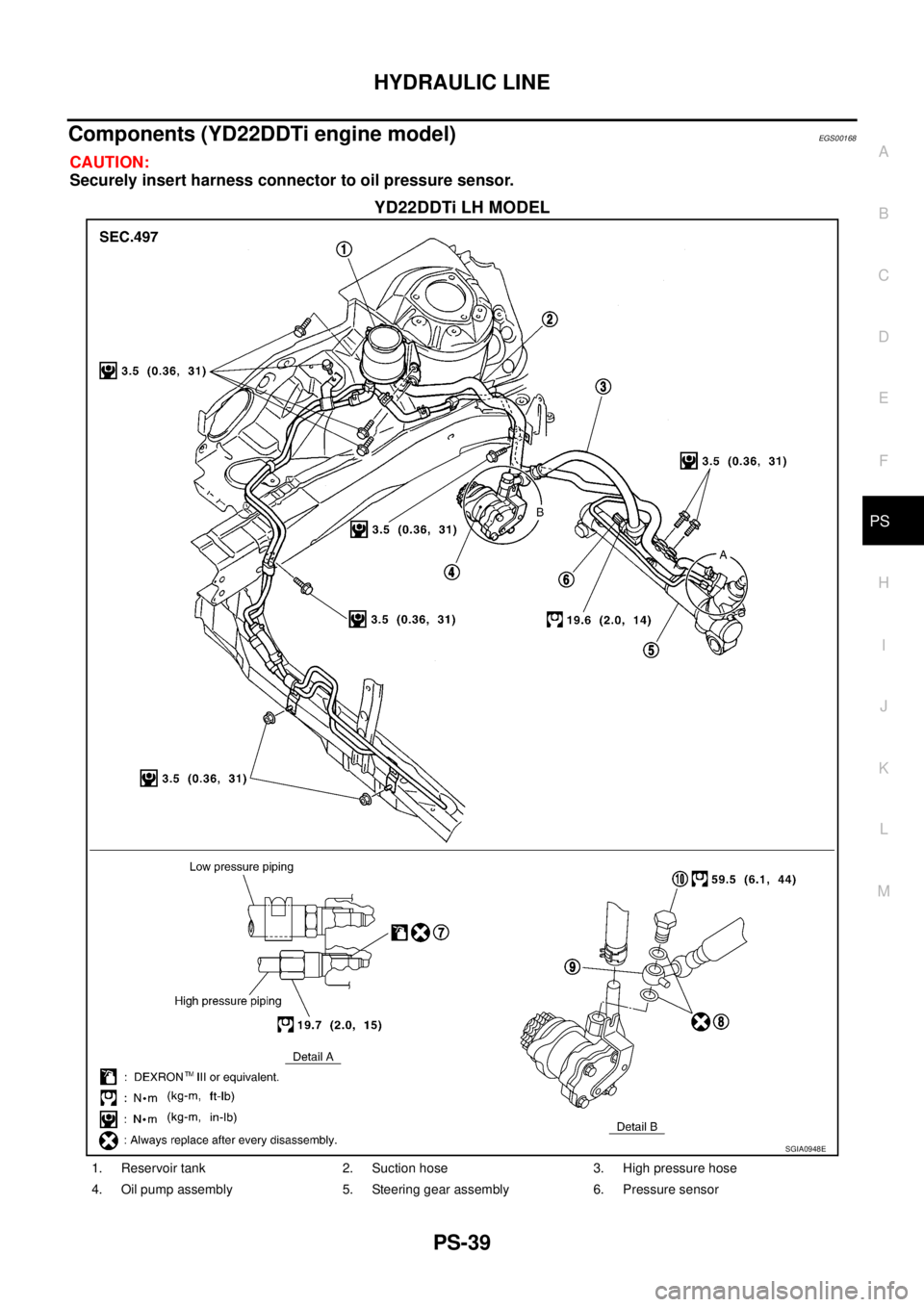

NISSAN X-TRAIL 2003 Service Repair Manual HYDRAULIC LINE PS-37 C D E F H I J K L MA B PS QR25DE RH MODEL 1. Reservoir tank 2. Suction hose 3. High-pressure hose 4. Oil pump assembly 5. Steering gear assembly 6. Pressure sensor 7. O-ring 8.

Page 2974 of 4179

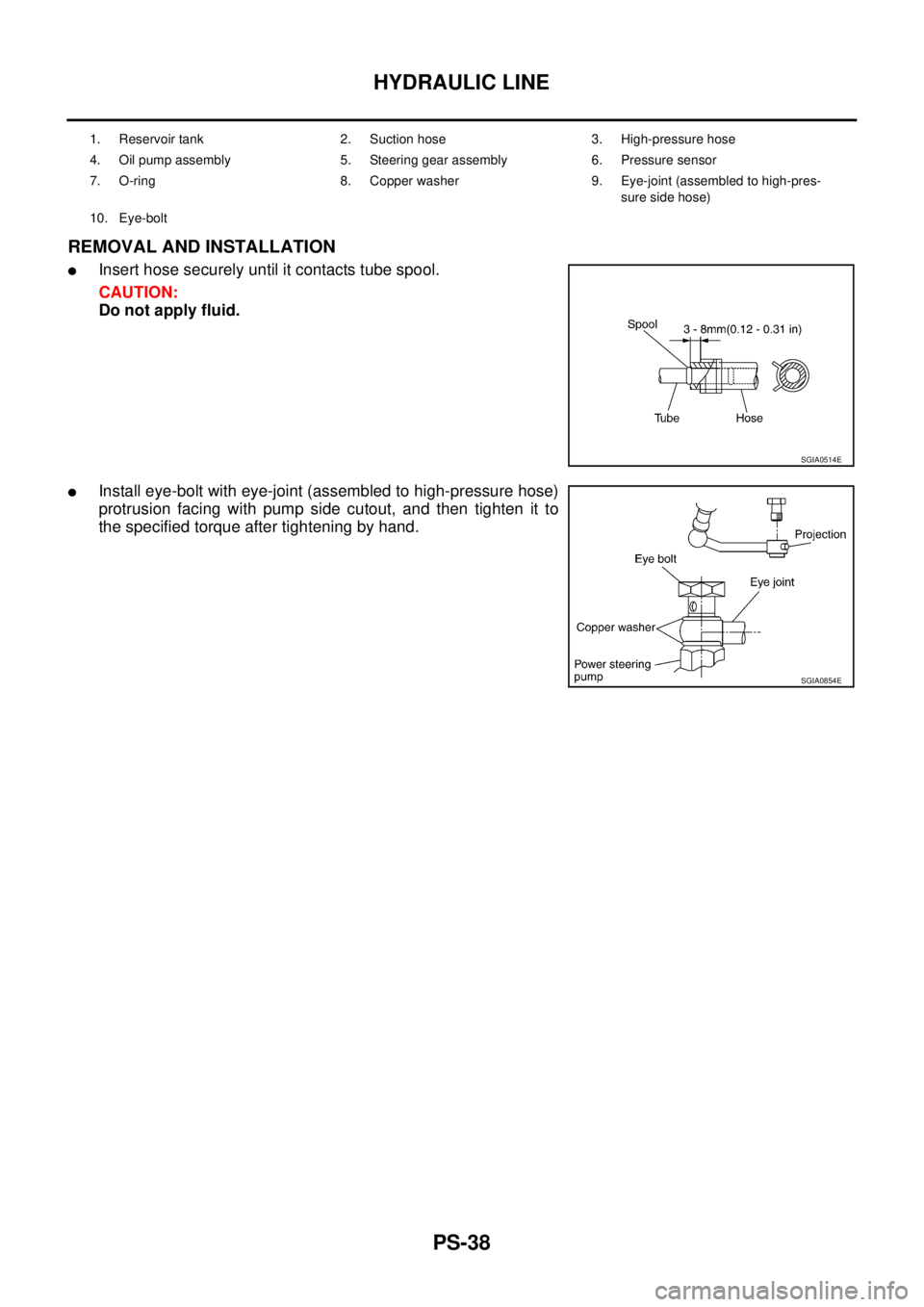

NISSAN X-TRAIL 2003 Service Repair Manual PS-38 HYDRAULIC LINE REMOVAL AND INSTALLATION Insert hose securely until it contacts tube spool. CAUTION: Do not apply fluid. Install eye-bolt with eye-joint (assembled to high-pressure hose) prot

Page 2975 of 4179

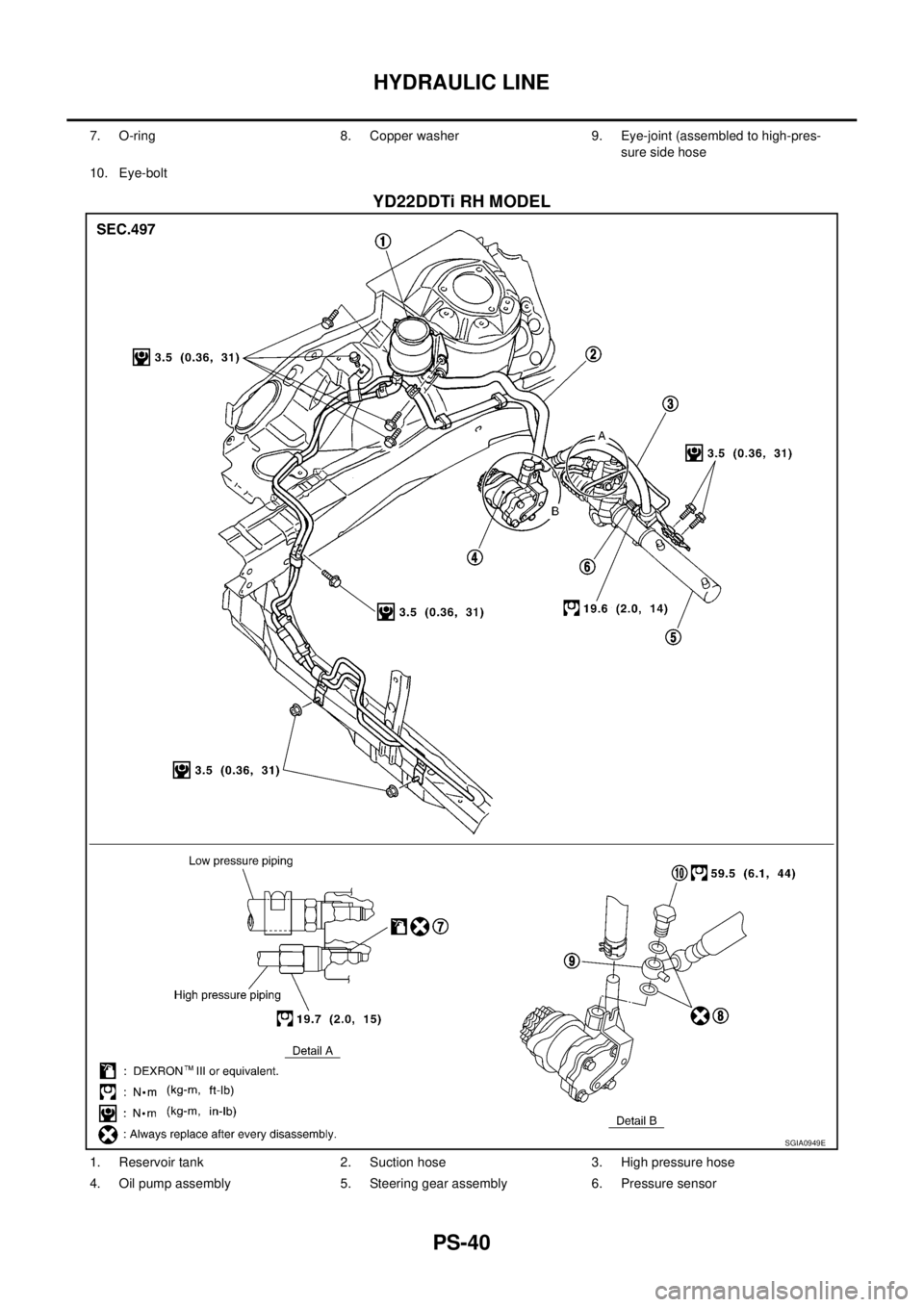

NISSAN X-TRAIL 2003 Service Repair Manual HYDRAULIC LINE PS-39 C D E F H I J K L MA B PS Components (YD22DDTi engine model)EGS00168 CAUTION: Securely insert harness connector to oil pressure sensor. YD22DDTi LH MODEL SGIA0948E 1. Reservoir

Page 2976 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PS-40 HYDRAULIC LINE YD22DDTi RH MODEL 7. O-ring 8. Copper washer 9. Eye-joint (assembled to high-pres- sure side hose 10. Eye-bolt SGIA0949E 1. Reservoir tank 2. Suction hose 3. High pressure hose
Load next 8 pages
