2003 NISSAN X-TRAIL Service Repair Manual

warning light battery capacity rims mirror transmission fluid horn

Page 2289 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION
AT-253
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

Diagnostic Worksheet
1.❏ Read the Fail-safe and listen to customer complaints.AT- 11,
AT- 2 5 2
2.❏ Check A/

TROUBLE DIAGNOSIS — INTRODUCTION
AT-253
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

Diagnostic Worksheet
1.❏ Read the Fail-safe and listen to customer complaints.AT- 11,
AT- 2 5 2
2.❏ Check A/T fluidAT- 2 5 6
❏ Leakage (Follow specified procedure)
❏ Fluid condition
❏ Fluid level
3.❏ Perform Stall Test and Line Pressure Test.AT- 2 5 7
,
AT- 2 6 0
❏ Stall test — Mark possible damaged components/others.
❏ Torque converter one-way clutch
❏ Reverse clutch
❏ Forward clutch
❏ Overrun clutch
❏ Forward one-way clutch❏ Low & reverse brake
❏ Low one-way clutch
❏ Engine
❏ Line pressure is low
❏ Clutches and brakes except high clutch and
brake band are OK
❏ Line Pressure test — Suspected parts:
4.❏ Perform all Road Test and mark required procedures.AT- 2 6 2
4-1. Check before engine is started.AT- 2 6 3
❏ O/D OFF Indicator Lamp Does Not Come On, AT- 2 9 1 .
❏ SELF-DIAGNOSTIC CONFIRMATION PROCEDURE — Mark detected items.
❏ Vehicle speed sensor·A/T (Revolution sensor), AT- 3 3 2
.
❏ Vehicle speed sensor·MTR, AT-339
.
❏ Accelerator pedal position (APP) sensor, AT-345
.
❏ Shift solenoid valve A, AT- 3 5 0
.
❏ Shift solenoid valve B, AT- 3 5 6
.
❏ Overrun clutch solenoid valve, AT- 3 6 2
.
❏ Torque converter clutch solenoid valve, AT-368
.
❏ A/T fluid temperature sensor and TCM power source, AT-374
.
❏ Engine speed signal, AT- 3 8 2
.
❏ Line pressure solenoid valve, AT-387
.
❏ CAN communication line, AT- 3 2 9
.
❏ Control unit (RAM), control unit (ROM), AT-198
.
❏ Control unit (EEP ROM), AT-200
.
❏ PNP & overdrive control switches, and throttle position sensor, AT- 3 2 4
.
❏ Battery
❏ Others
4-2. Check at idleAT- 2 6 4
❏ Engine Cannot Be Started In “P” And “N” Position, AT- 2 9 3 .
❏ In “P” Position, Vehicle Moves Forward Or Backward When Pushed, AT- 2 9 4
.
❏ In “N” Position, Vehicle Moves, AT- 2 9 5
.
❏ Large Shock. “N” → “R” Position, AT- 2 9 6
.
❏ Vehicle Does Not Creep Backward In “R” Position, AT- 2 9 7
.
❏ Vehicle Does Not Creep Forward In “D”, “2” Or “1” Position, AT-299
.

Page 2290 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-254
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION

4. 4-3. Cruise testAT-266,
AT-270
Part-1
❏ Vehicle Cannot Be Started From D
1 , AT- 3 0 1 .
❏ A/T Does Not Shift: D
1 → D2 Or Does

AT-254
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — INTRODUCTION

4. 4-3. Cruise testAT-266,
AT-270
Part-1
❏ Vehicle Cannot Be Started From D
1 , AT- 3 0 1 .
❏ A/T Does Not Shift: D
1 → D2 Or Does Not Kickdown: D4 → D2 , AT-304 .
❏ A/T Does Not Shift: D
2 → D3 , AT- 3 0 7 .
❏ A/T Does Not Shift: D
3 → D4 , AT- 3 0 9 .
❏ A/T Does Not Perform Lock-up,AT- 3 11
.
❏ A/T Does Not Hold Lock-up Condition, AT- 3 1 2
.
❏ Lock-up Is Not Released, AT- 3 1 4
.
❏ Engine Speed Does Not Return To Idle (Light Braking D
4 → D3 ), AT-315 .
Part-2AT-273
❏ Vehicle Does Not Start From D1 , AT- 3 1 7 .
❏ A/T Does Not Shift: D
1 → D2 Or Does Not Kickdown: D4 → D2 , AT-304 .
❏ A/T Does Not Shift: D
2 → D3 , AT- 3 0 7 .
❏ A/T Does Not Shift: D
3 → D4 , AT- 3 0 9 .
Part-3AT-275
❏ A/T Does Not Shift: D4 → D3 When Overdrive Control Switch “ON” → “OFF”, AT-318 .
❏ Engine Speed Does Not Return To Idle (Engine Brake In D
3 ), AT- 3 1 5 .
❏ A/T Does Not Shift: D
3 → 22 , When Selector Lever “D” → “2” Position, AT- 3 1 9 .
❏ Engine Speed Does Not Return To Idle (Engine Brake In 2
2 ),AT-315 .
❏ A/T Does Not Shift: 2
2 → 11 , When Selector Lever “2” → “1” Position, AT-320 .
❏ Vehicle Does Not Decelerate By Engine Brake, AT- 3 2 2
.
❏ TCM Self-diagnosis Does Not Activate (PNP & Overdrive Control Switches, and throttle position sensor
Circuit Checks), AT-324
.
❏ SELF-DIAGNOSTIC PROCEDURE — Mark detected items.
❏ Vehicle speed sensor·A/T (Revolution sensor), AT-332
.
❏ Vehicle speed sensor·MTR, AT- 3 3 9
.
❏ Accelerator pedal position (APP) sensor, AT-345
.
❏ Shift solenoid valve A, AT-350
.
❏ Shift solenoid valve B, AT-356
.
❏ Overrun clutch solenoid valve, AT-362
.
❏ Torque converter clutch solenoid valve, AT- 3 6 8
.
❏ Batt/fluid temp sen (A/T fluid temperature sensor and TCM power source), AT-374
.
❏ Engine speed signal, AT-382
.
❏ Line pressure solenoid valve, AT-387
.
❏ CAN communication line, AT-329
.
❏ Control unit (RAM), control unit (ROM), AT- 1 9 8
.
❏ Control unit (EEP ROM), AT- 2 0 0
.
❏ PNP & overdrive control switches, and throttle position sensor, AT- 3 2 4
.
❏ Battery
❏ Others
5.❏ For self-diagnosis NG items, inspect each component. Repair or replace the damaged parts.AT-246
6.❏ Perform all Road Test and re-mark required procedures.AT-262
7.❏ Perform the Diagnostic Procedures for all remaining items marked NG. Repair or replace the damaged parts.
Refer to the Symptom Chart when you perform the procedures. (The chart also shows some other possible
symptoms and the component inspection orders.)AT-277
8.❏ Erase self-diagnosis code from TCM memories.AT-245, AT-
250

Page 2291 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS — INTRODUCTION
AT-255
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

Work FlowECS004TG
HOW TO PERFORM TROUBLE DIAGNOSES FOR QUICK AND ACCURATE REPAIR
A good understanding of the malf

Page 2292 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-256
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

TROUBLE DIAGNOSIS — BASIC INSPECTIONPFP:00000
A/T Fluid CheckECS004VR
FLUID LEAKAGE CHECK
1. Clean area suspected of leaking. — for

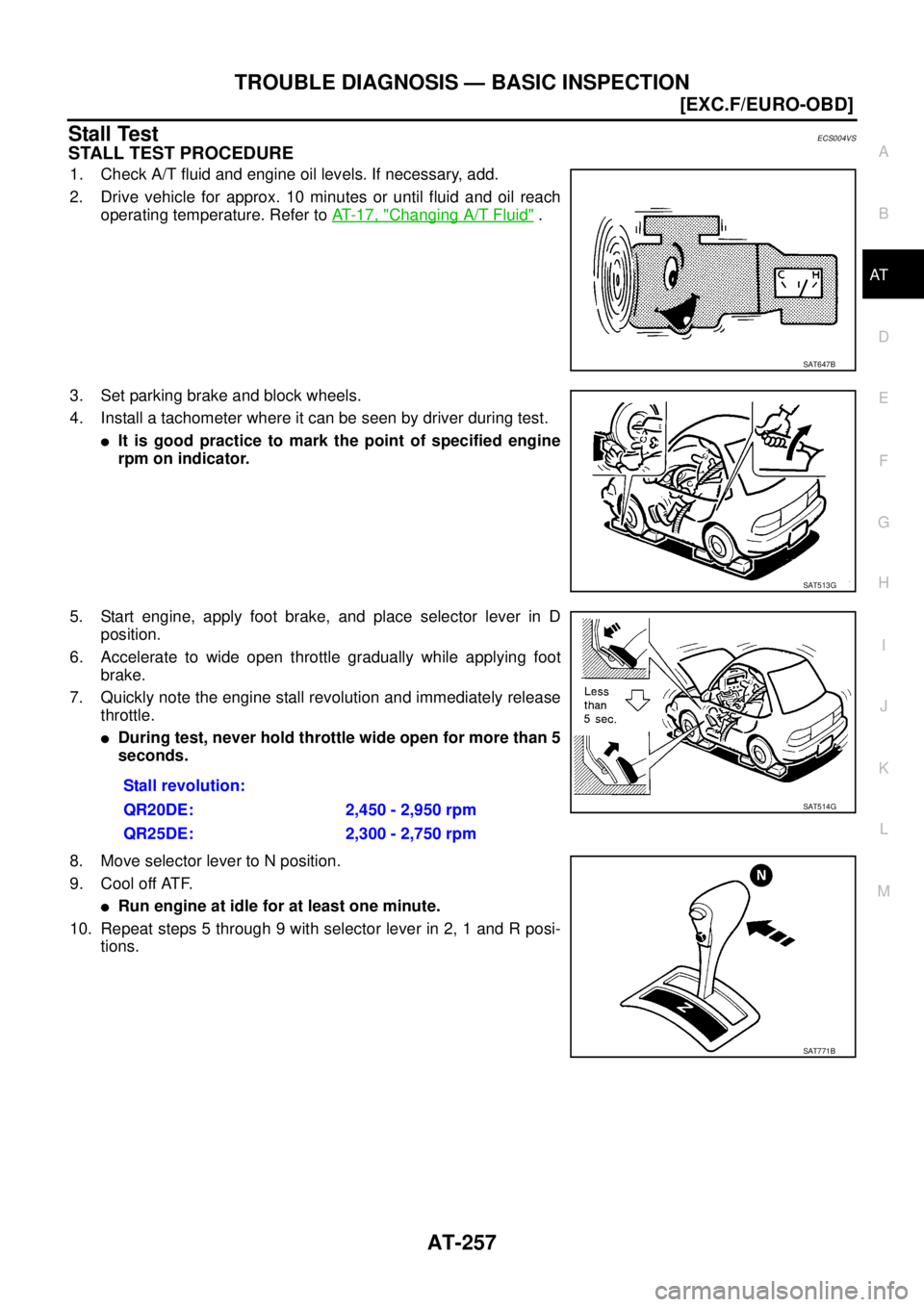

Page 2293 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-257
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

Stall TestECS004VS
STALL TEST PROCEDURE
1. Check A/T fluid and engine oil levels. If necessary, add.
2. Drive

Page 2294 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-258
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

JUDGEMENT OF STALL TEST
The test result and possible damaged components relating to each result are shown in the illustrations on next

Page 2295 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS — BASIC INSPECTION
AT-259
[EXC.F/EURO-OBD]
D
E
F
G
H
I
J
K
L
MA
B
AT

SCIA0707E

Page 2296 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AT-260
[EXC.F/EURO-OBD]
TROUBLE DIAGNOSIS — BASIC INSPECTION

Line Pressure TestECS004VT
LINE PRESSURE TEST PORTS
Location of line pressure test ports are shown in the illustration.
Always replace

Load next 8 pages
