2003 NISSAN X-TRAIL Service Repair Manual

fuse diagram jack points park assist radiator cap height tires

Load previous 8 pages

Page 673 of 4179

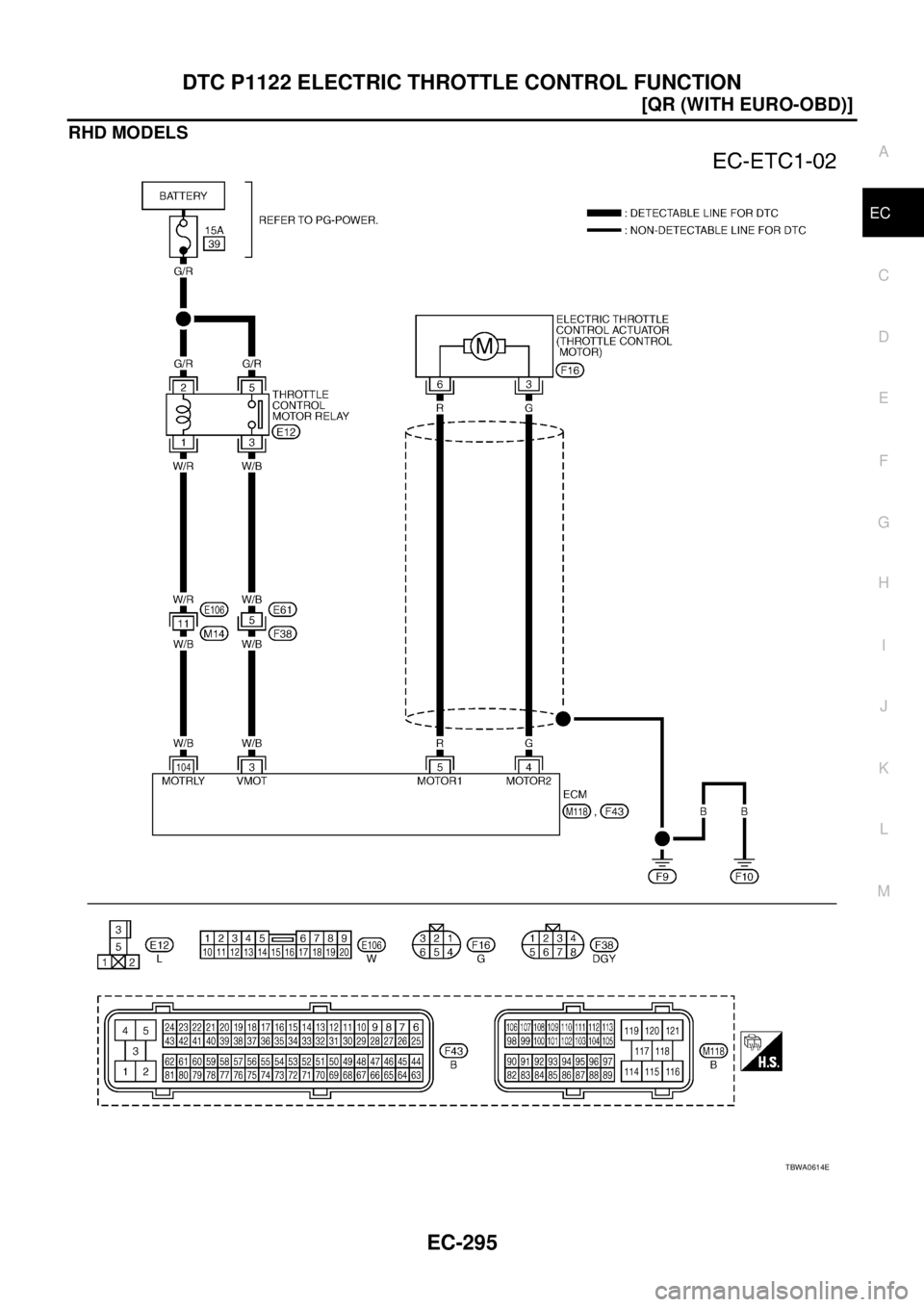

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION
EC-295
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

RHD MODELS
TBWA0614E

Page 674 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-296
[QR (WITH EURO-OBD)]
DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION

Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSUL

Page 675 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION
EC-297
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

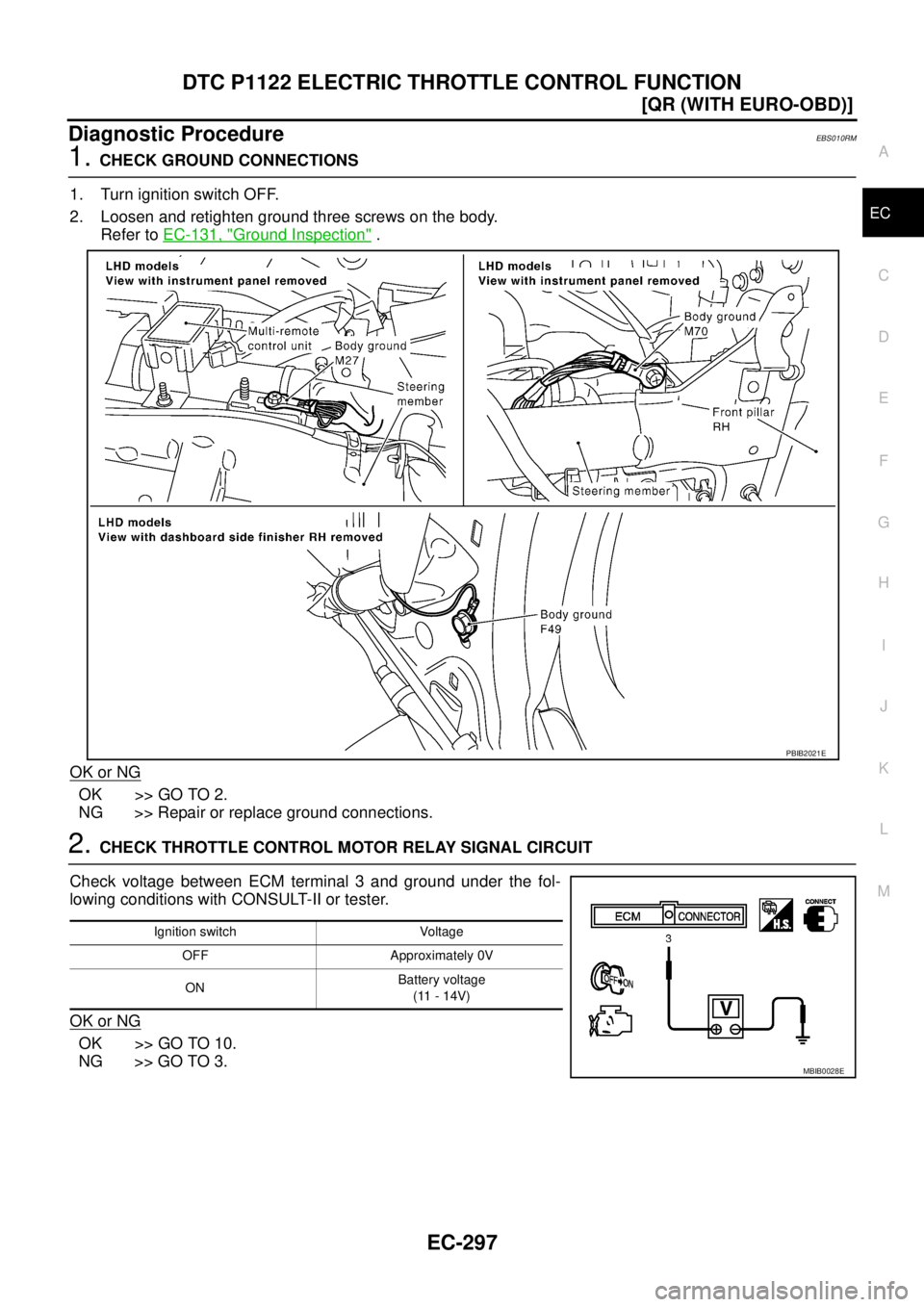

Diagnostic ProcedureEBS010RM
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and

Page 676 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-298
[QR (WITH EURO-OBD)]
DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION

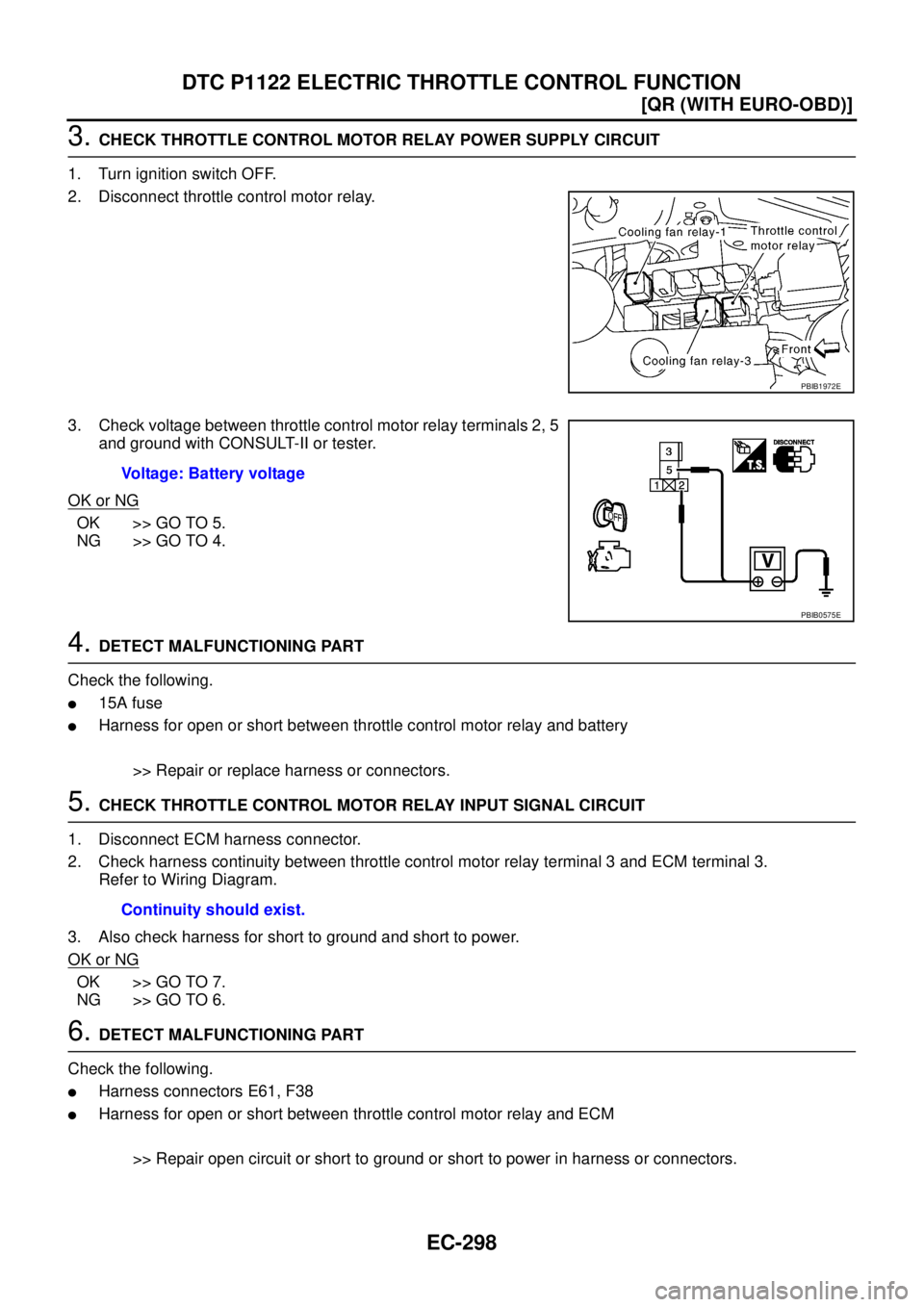

3. CHECK THROTTLE CONTROL MOTOR RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect throttle control motor

Page 677 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION
EC-299
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

7. CHECK THROTTLE CONTROL MOTOR RELAY OUTPUT SIGNAL CIRCUIT
1. Check continuity between throttle co

Page 678 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-300
[QR (WITH EURO-OBD)]
DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION

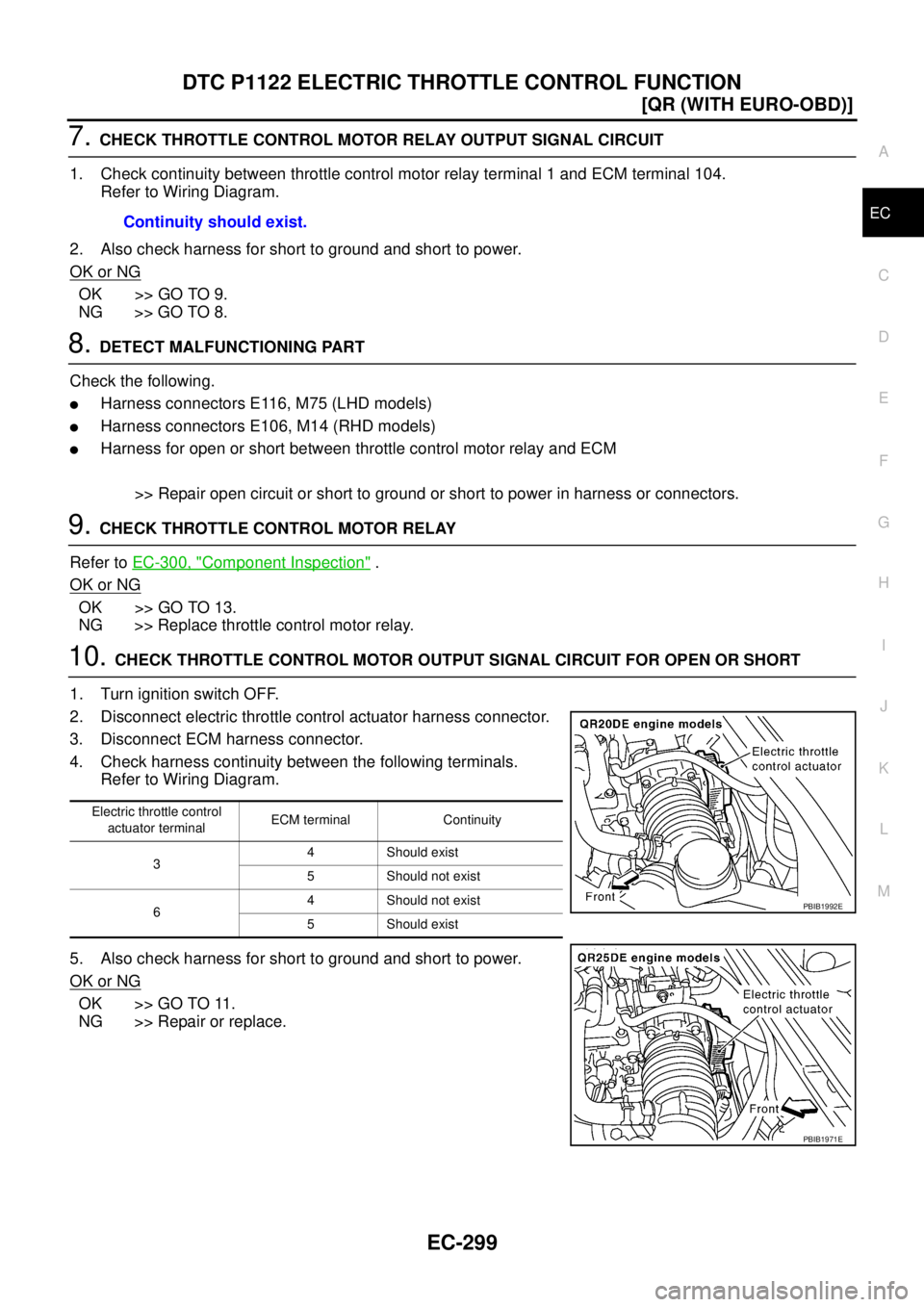

11 . CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Remove the intake air duct.
2. Check if foreign matter is caught

Page 679 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1122 ELECTRIC THROTTLE CONTROL FUNCTION
EC-301
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

2. Check resistance between terminals 3 and 6.
3. If NG, replace electric throttle control actuator

Page 680 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-302
[QR (WITH EURO-OBD)]
DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAYPFP:16119
Component DescriptionEBS010RP
Power supply for the Throttle control m

EC-302
[QR (WITH EURO-OBD)]
DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAY

DTC P1124, P1126 THROTTLE CONTROL MOTOR RELAYPFP:16119
Component DescriptionEBS010RP
Power supply for the Throttle control motor is provided to the ECM via throttle control motor relay. The throttle
control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends
an ON signal to throttle control motor relay and battery voltage is provided to the ECM. When the ignition
switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not
provided to the ECM.
CONSULT-II Reference Value in Data Monitor ModeEBS010RQ
Specification data are reference values.
On Board Diagnosis LogicEBS010RR
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
DTC Confirmation ProcedureEBS010RS
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR DTC P1124
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V.

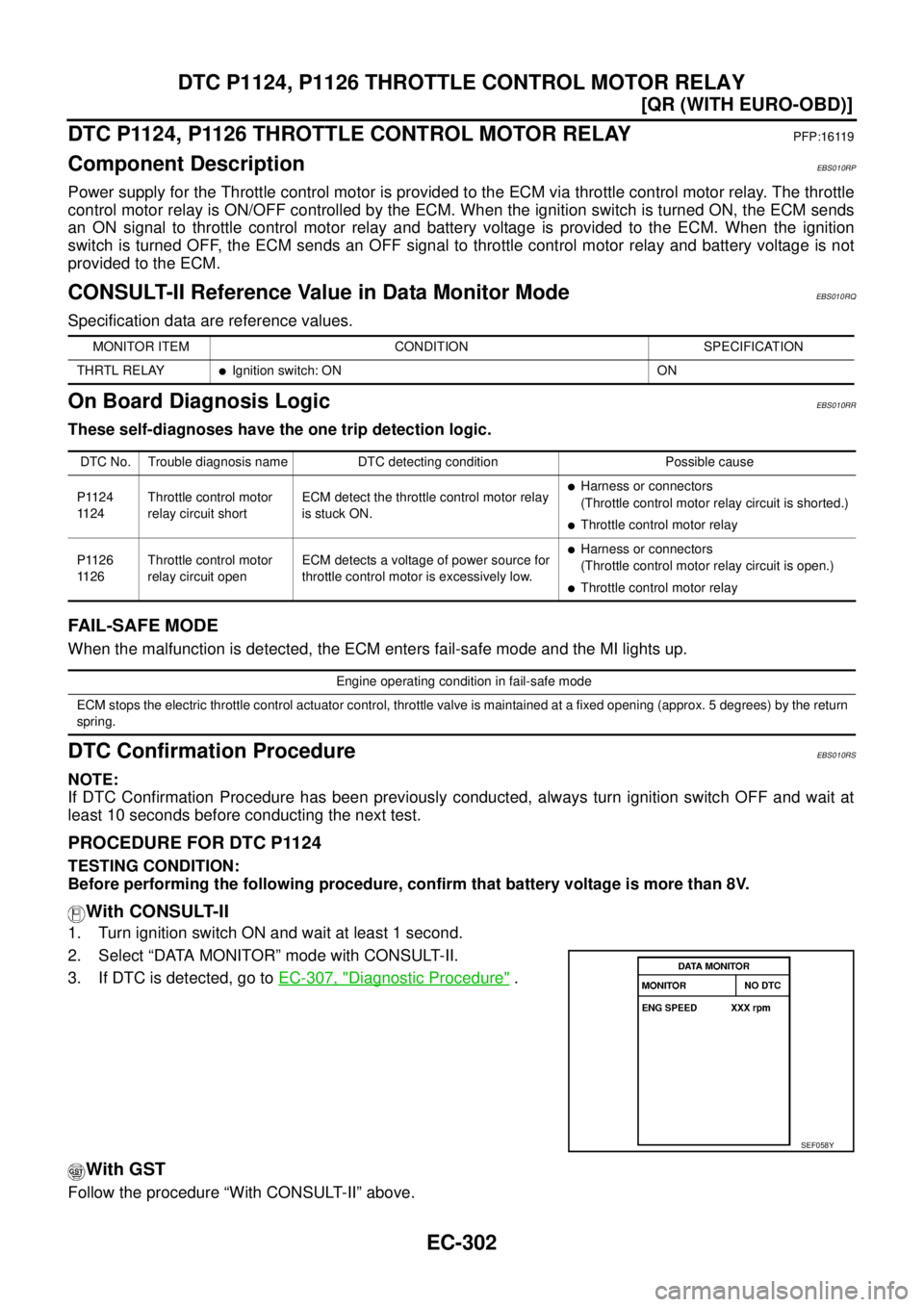

With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. If DTC is detected, go to EC-307, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
THRTL RELAY
Ignition switch: ON ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1124
1124Throttle control motor
relay circuit shortECM detect the throttle control motor relay
is stuck ON.
Harness or connectors
(Throttle control motor relay circuit is shorted.)
Throttle control motor relay
P1126
1126Throttle control motor
relay circuit openECM detects a voltage of power source for
throttle control motor is excessively low.
Harness or connectors
(Throttle control motor relay circuit is open.)
Throttle control motor relay
Engine operating condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) by the return
spring.
SEF058Y
