PNP SWITCH
EC-1479
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PNP SWITCHPFP:32006
DescriptionEBS01265
When the gear position is in Neutral, park/neutral position is ON. ECM detects the position because the conti-
nuity of the line (the “ON” signal) exists.
CONSULT-II Reference Value in Data Monitor ModeEBS01266
Specification data are reference values.
ECM Terminals and Reference ValueEBS01267
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW
Ignition switch: ONShift lever: Neutral position ON
Except above OFF
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage)
110 G/ORPark/Neutral position
switch[Ignition switch ON]
Gear position is Neutral Approximately 0V
[Ignition switch ON]
Except the above gear positionBATTERY VOLTAGE
(11 - 14V)
Page 1858 of 4179
EC-1480
[YD (WITHOUT EURO-OBD)]
PNP SWITCH

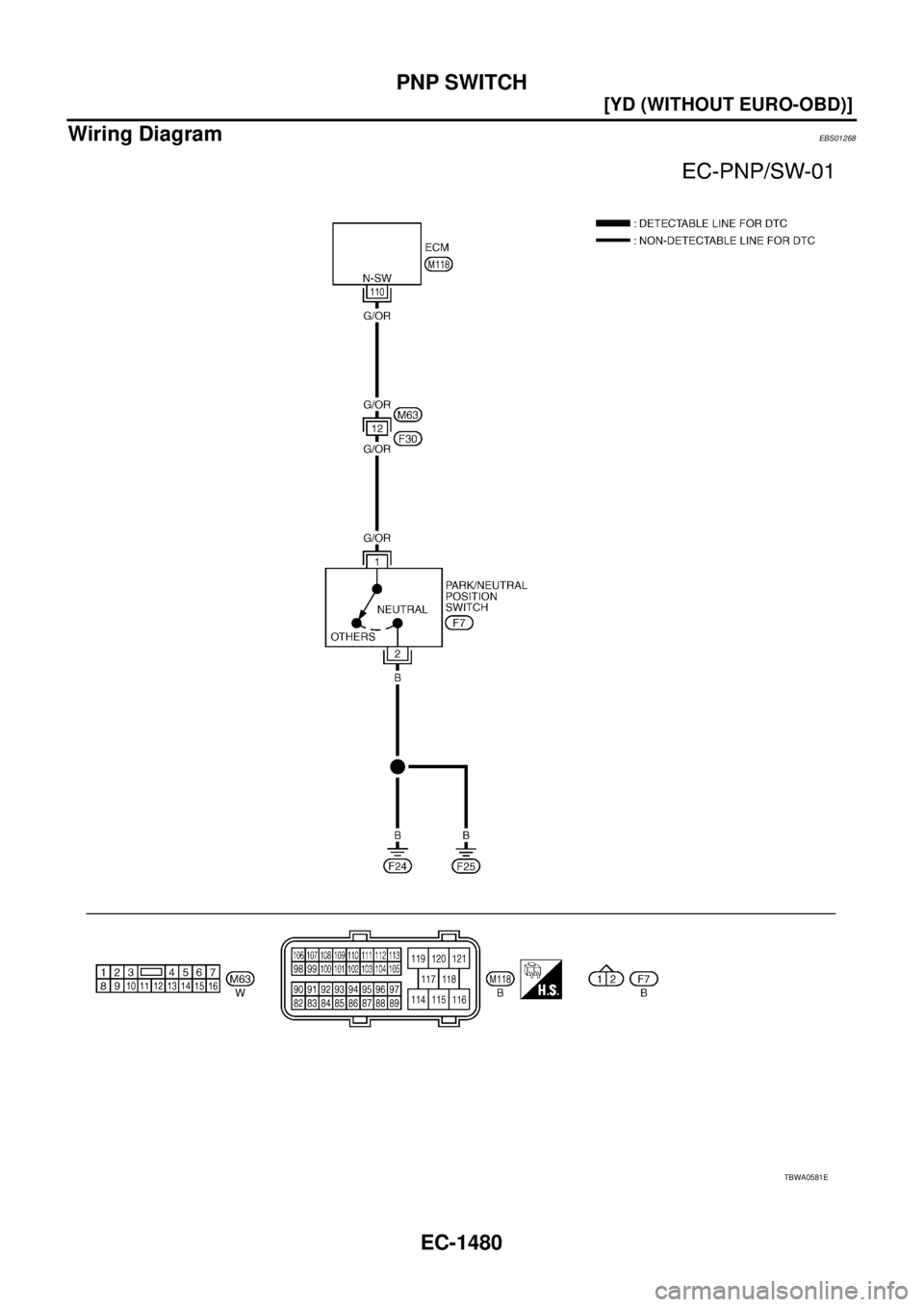

Wiring DiagramEBS01268
TBWA0581E
Page 1859 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual PNP SWITCH
EC-1481
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

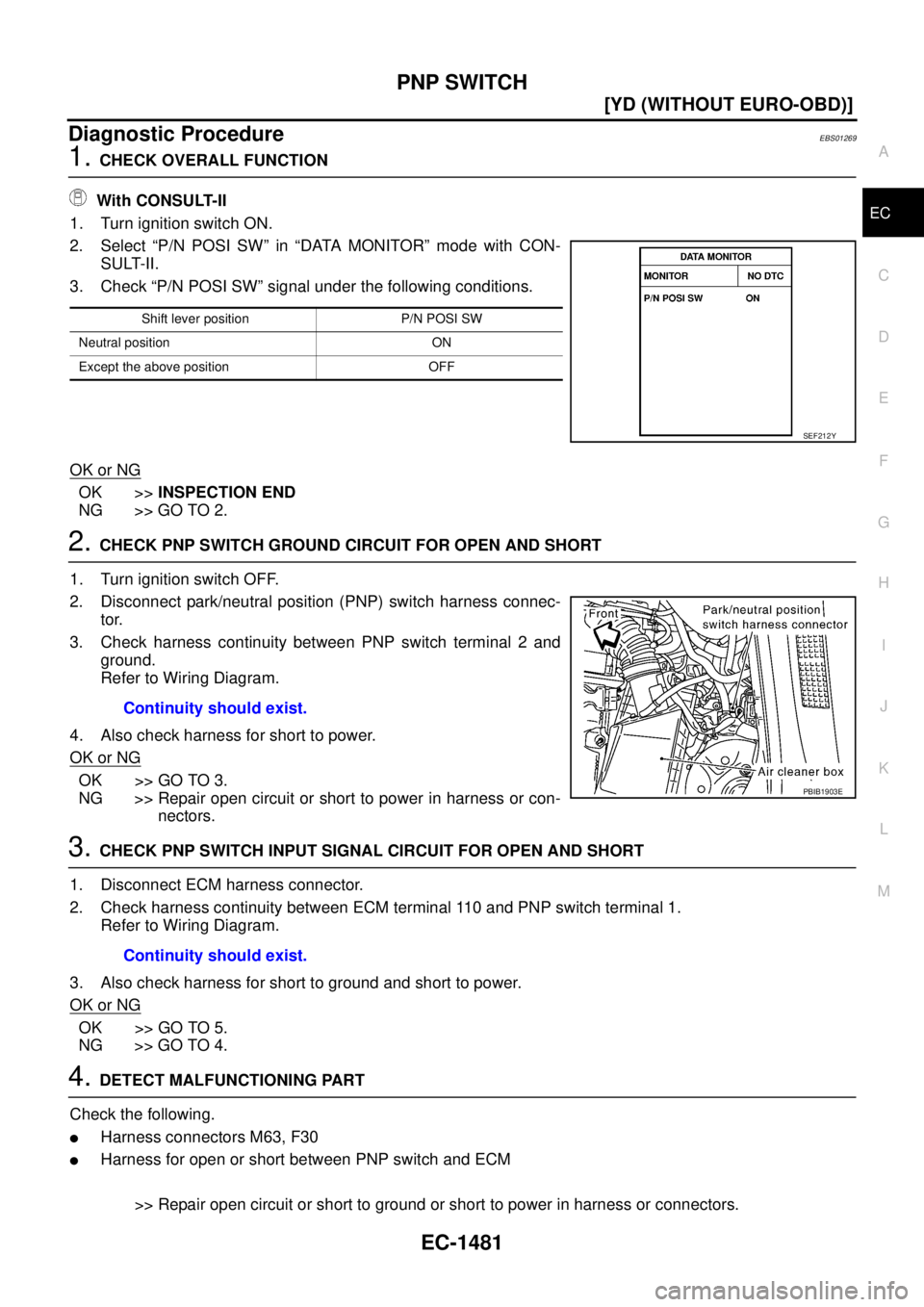

Diagnostic ProcedureEBS01269
1. CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch ON.
2. Select “P/N POSI SW” i NISSAN X-TRAIL 2003 Service Repair Manual PNP SWITCH
EC-1481
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS01269
1. CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch ON.
2. Select “P/N POSI SW” i](/manual-img/5/57404/w960_57404-1858.png)
PNP SWITCH
EC-1481
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS01269
1. CHECK OVERALL FUNCTION
With CONSULT-II
1. Turn ignition switch ON.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check “P/N POSI SW” signal under the following conditions.
OK or NG
OK >>INSPECTION END
NG >> GO TO 2.
2. CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect park/neutral position (PNP) switch harness connec-
tor.
3. Check harness continuity between PNP switch terminal 2 and
ground.
Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to power in harness or con-
nectors.
3. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 110 and PNP switch terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M63, F30
Harness for open or short between PNP switch and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
Shift lever position P/N POSI SW
Neutral position ON
Except the above position OFF
SEF212Y
Continuity should exist.
PBIB1903E
Continuity should exist.
Page 1860 of 4179
EC-1482
[YD (WITHOUT EURO-OBD)]
PNP SWITCH
5. CHECK PARK/NEUTRAL POSITION SWITCH
Refer to MT-13, "
POSITION SWITCH" .
OK or NG
OK >> GO TO 6.
NG >> Replace park/neutral position switch.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-1260, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Page 1861 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual PSP SWITCH
EC-1483
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PSP SWITCHPFP:49761

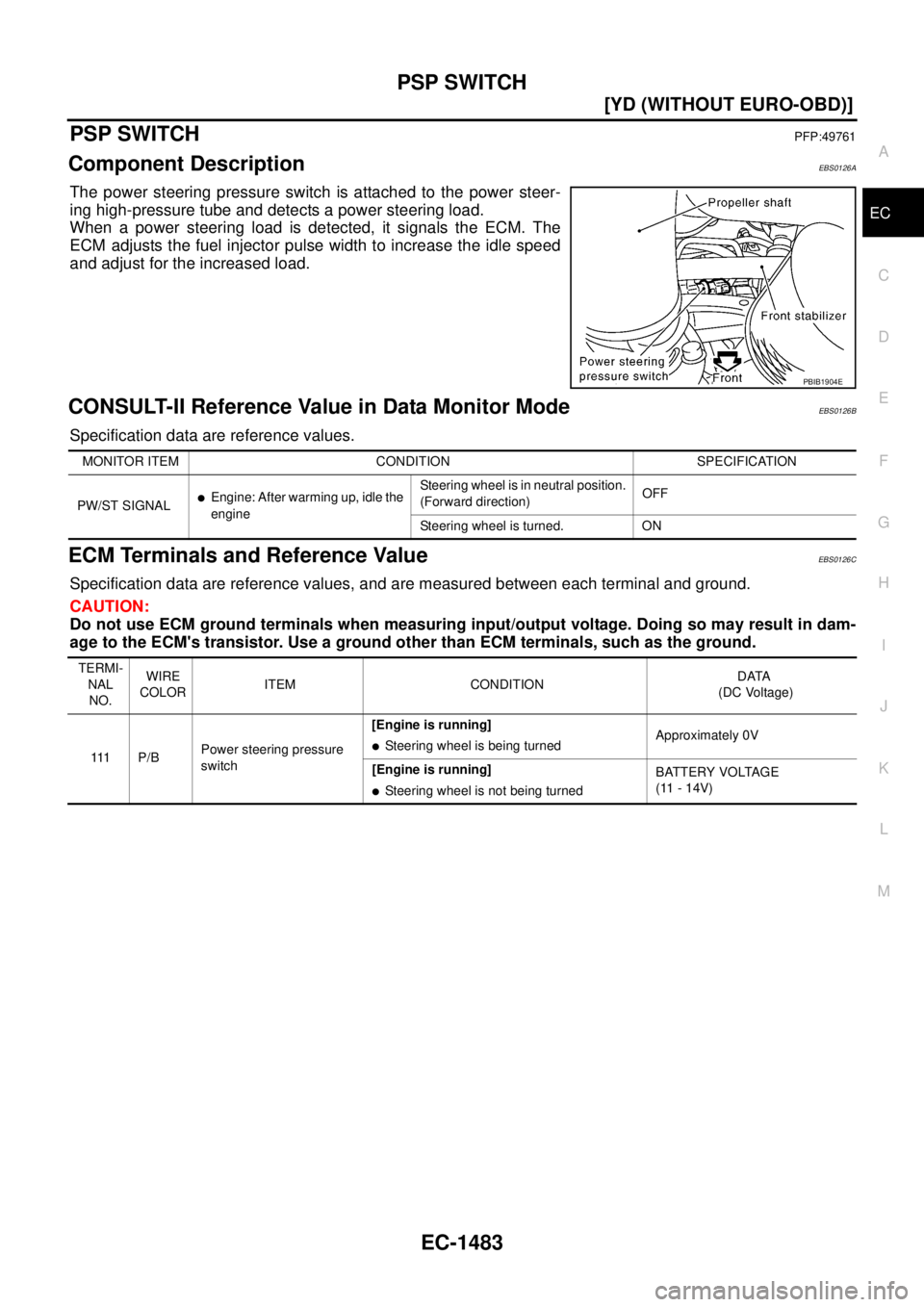

Component DescriptionEBS0126A
The power steering pressure switch is attached to the power steer-
ing high-pre NISSAN X-TRAIL 2003 Service Repair Manual PSP SWITCH
EC-1483
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PSP SWITCHPFP:49761
Component DescriptionEBS0126A
The power steering pressure switch is attached to the power steer-
ing high-pre](/manual-img/5/57404/w960_57404-1860.png)
PSP SWITCH
EC-1483
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
PSP SWITCHPFP:49761
Component DescriptionEBS0126A
The power steering pressure switch is attached to the power steer-
ing high-pressure tube and detects a power steering load.
When a power steering load is detected, it signals the ECM. The
ECM adjusts the fuel injector pulse width to increase the idle speed
and adjust for the increased load.
CONSULT-II Reference Value in Data Monitor ModeEBS0126B
Specification data are reference values.
ECM Terminals and Reference ValueEBS0126C
Specification data are reference values, and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
PBIB1904E
MONITOR ITEM CONDITION SPECIFICATION
PW/ST SIGNAL
Engine: After warming up, idle the
engineSteering wheel is in neutral position.
(Forward direction)OFF
Steering wheel is turned. ON
TERMI-
NAL
NO.WIRE
COLORITEM CONDITIONDATA
(DC Voltage)
111 P / BPower steering pressure
switch[Engine is running]
Steering wheel is being turnedApproximately 0V
[Engine is running]
Steering wheel is not being turnedBATTERY VOLTAGE
(11 - 14V)
Page 1862 of 4179
EC-1484
[YD (WITHOUT EURO-OBD)]
PSP SWITCH

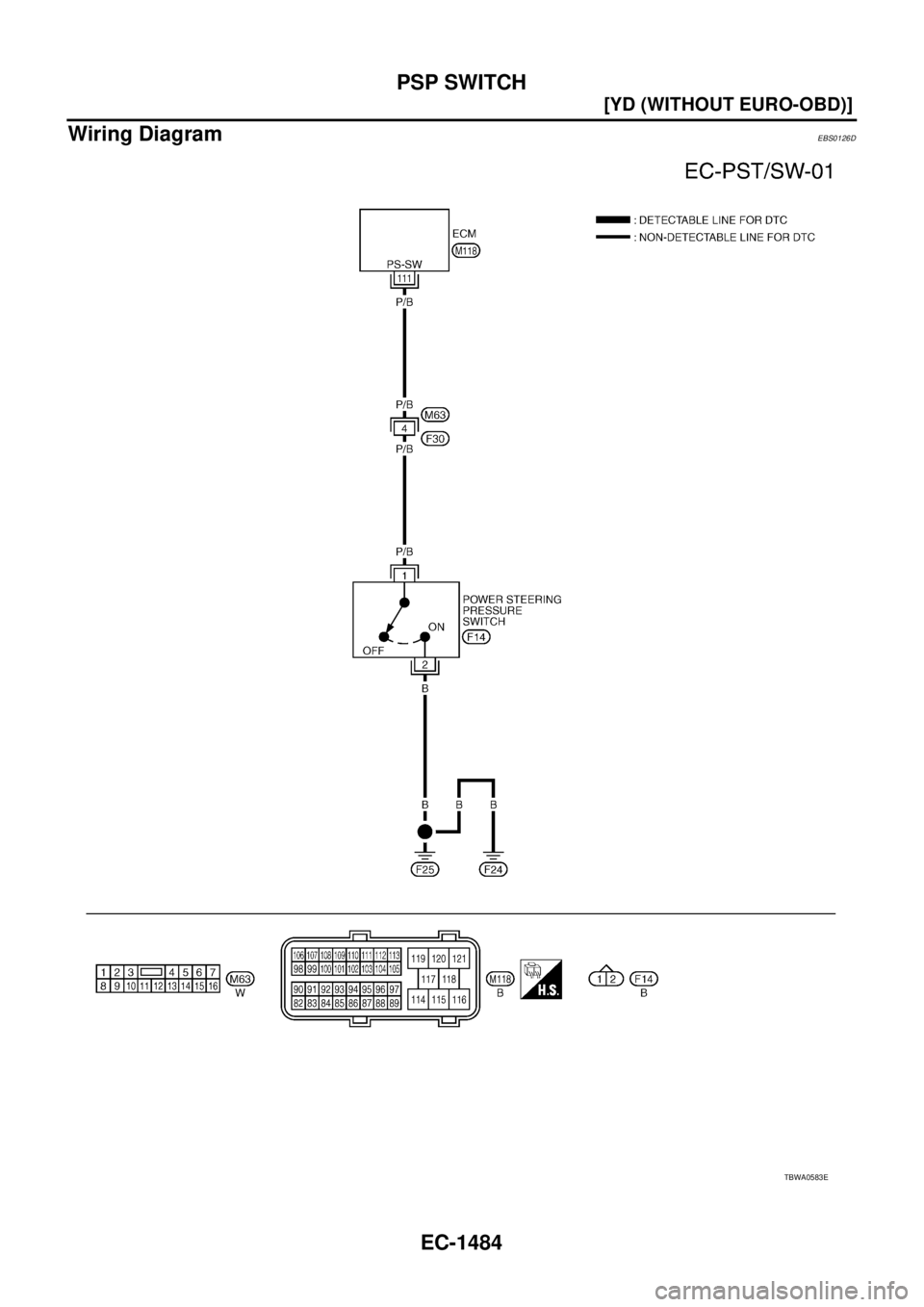

Wiring DiagramEBS0126D
