Page 3353 of 4179

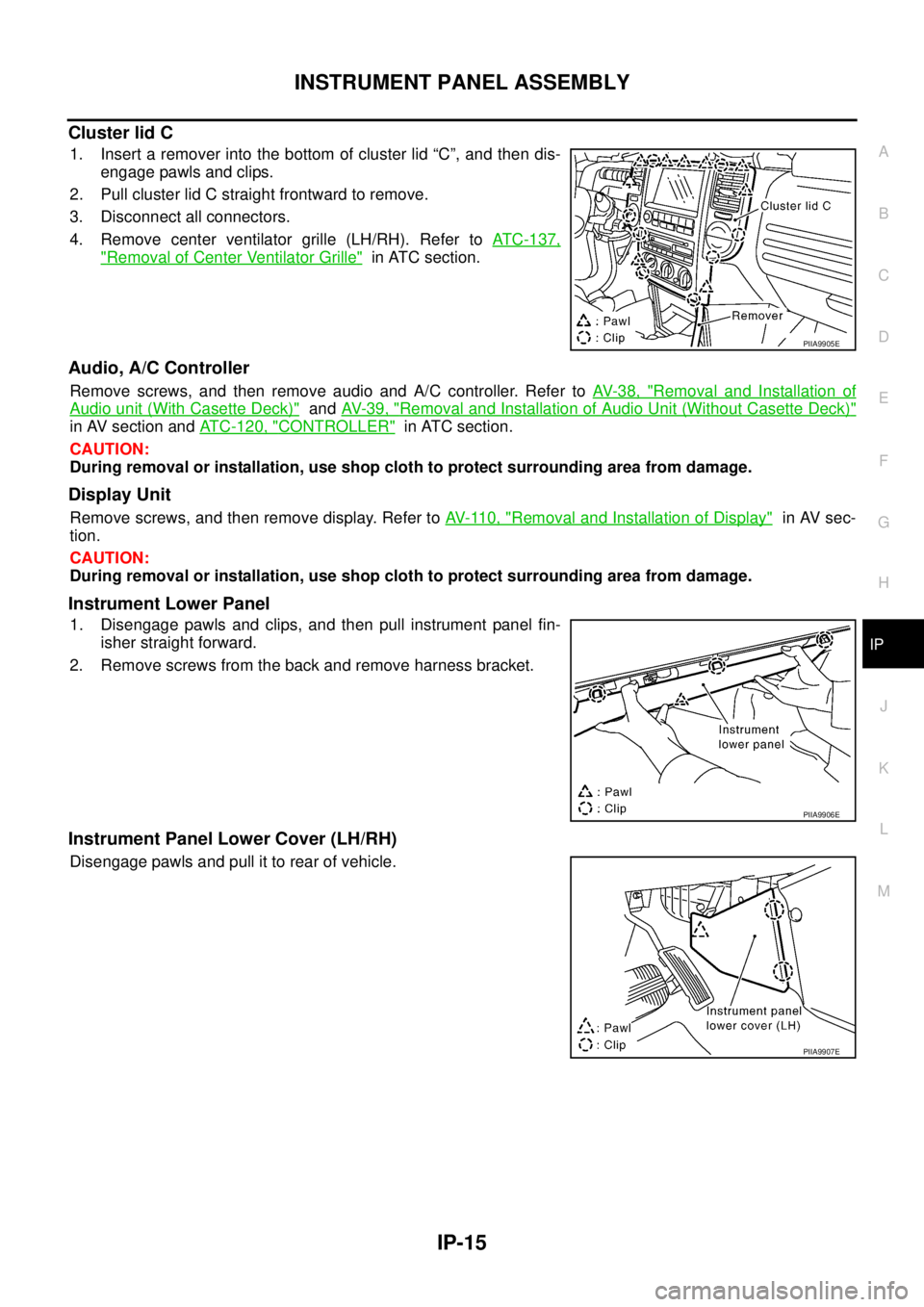

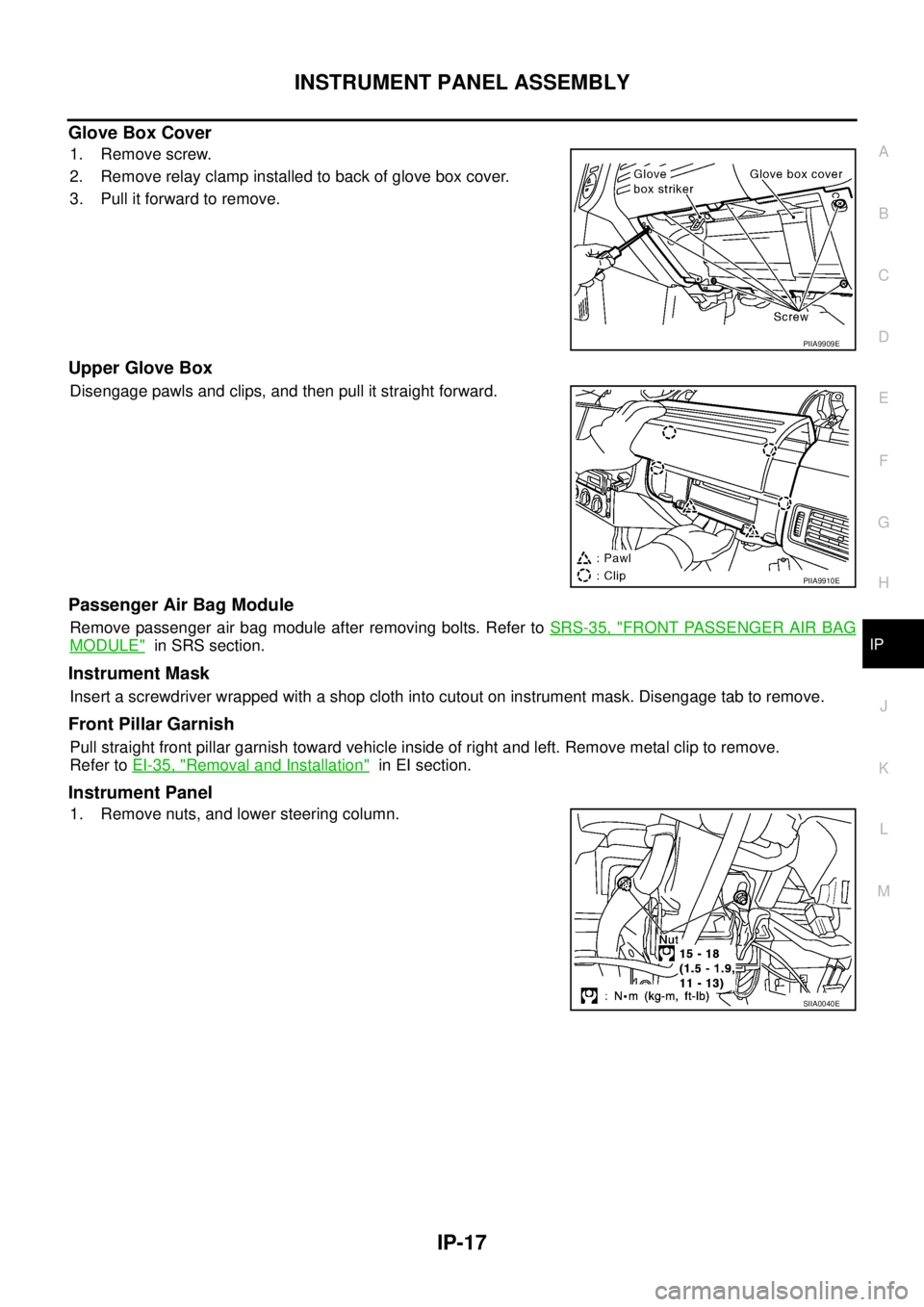

NISSAN X-TRAIL 2003 Service Repair Manual INSTRUMENT PANEL ASSEMBLY IP-15 C D E F G H J K L MA B IP Cluster lid C 1. Insert a remover into the bottom of cluster lid “C”, and then dis- engage pawls and clips. 2. Pull cluster lid C straig

Page 3354 of 4179

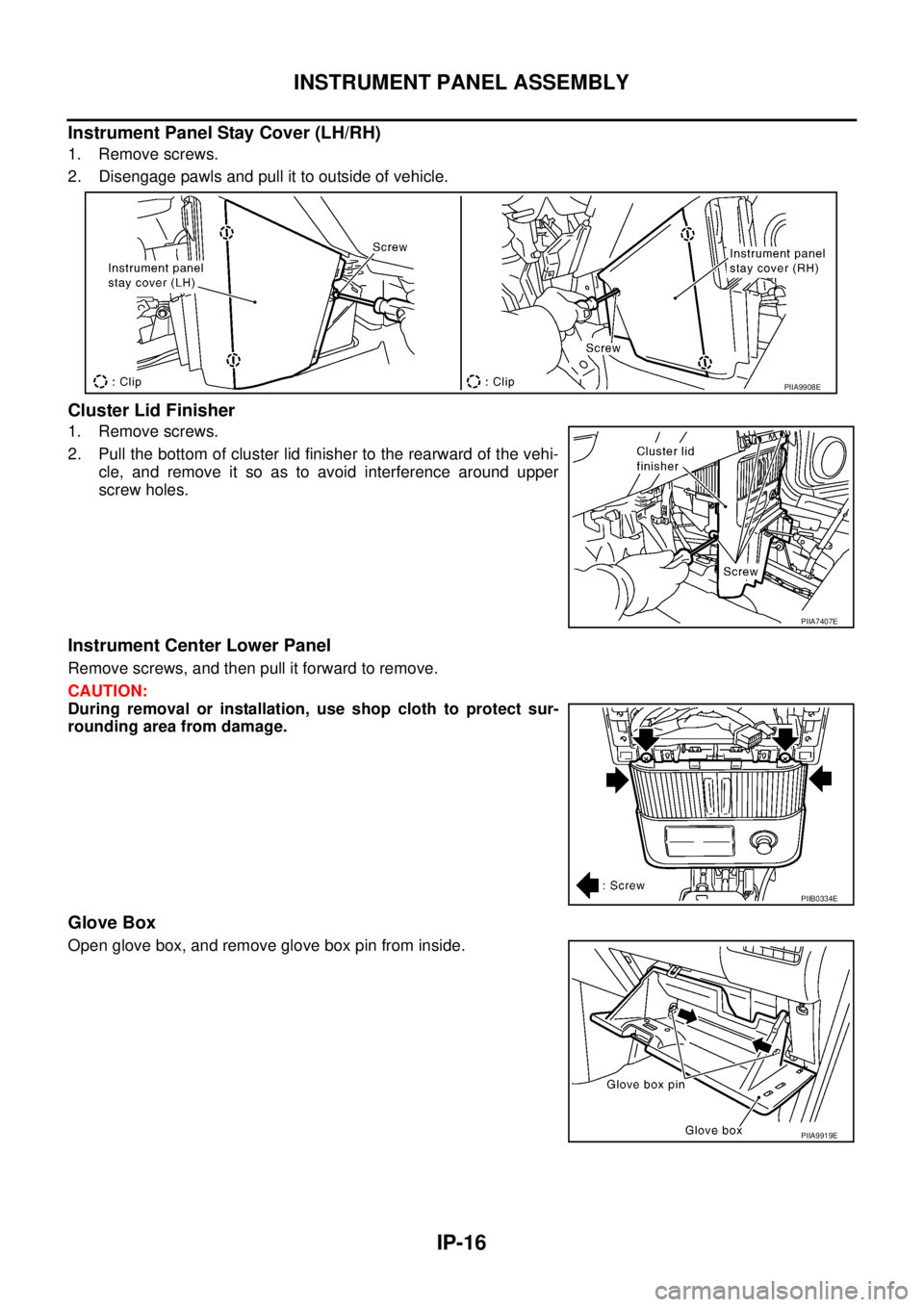

NISSAN X-TRAIL 2003 Service Repair Manual IP-16 INSTRUMENT PANEL ASSEMBLY Instrument Panel Stay Cover (LH/RH) 1. Remove screws. 2. Disengage pawls and pull it to outside of vehicle. Cluster Lid Finisher 1. Remove screws. 2. Pull the bottom

Page 3355 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual INSTRUMENT PANEL ASSEMBLY IP-17 C D E F G H J K L MA B IP Glove Box Cover 1. Remove screw. 2. Remove relay clamp installed to back of glove box cover. 3. Pull it forward to remove. Upper Glove Box D

Page 3356 of 4179

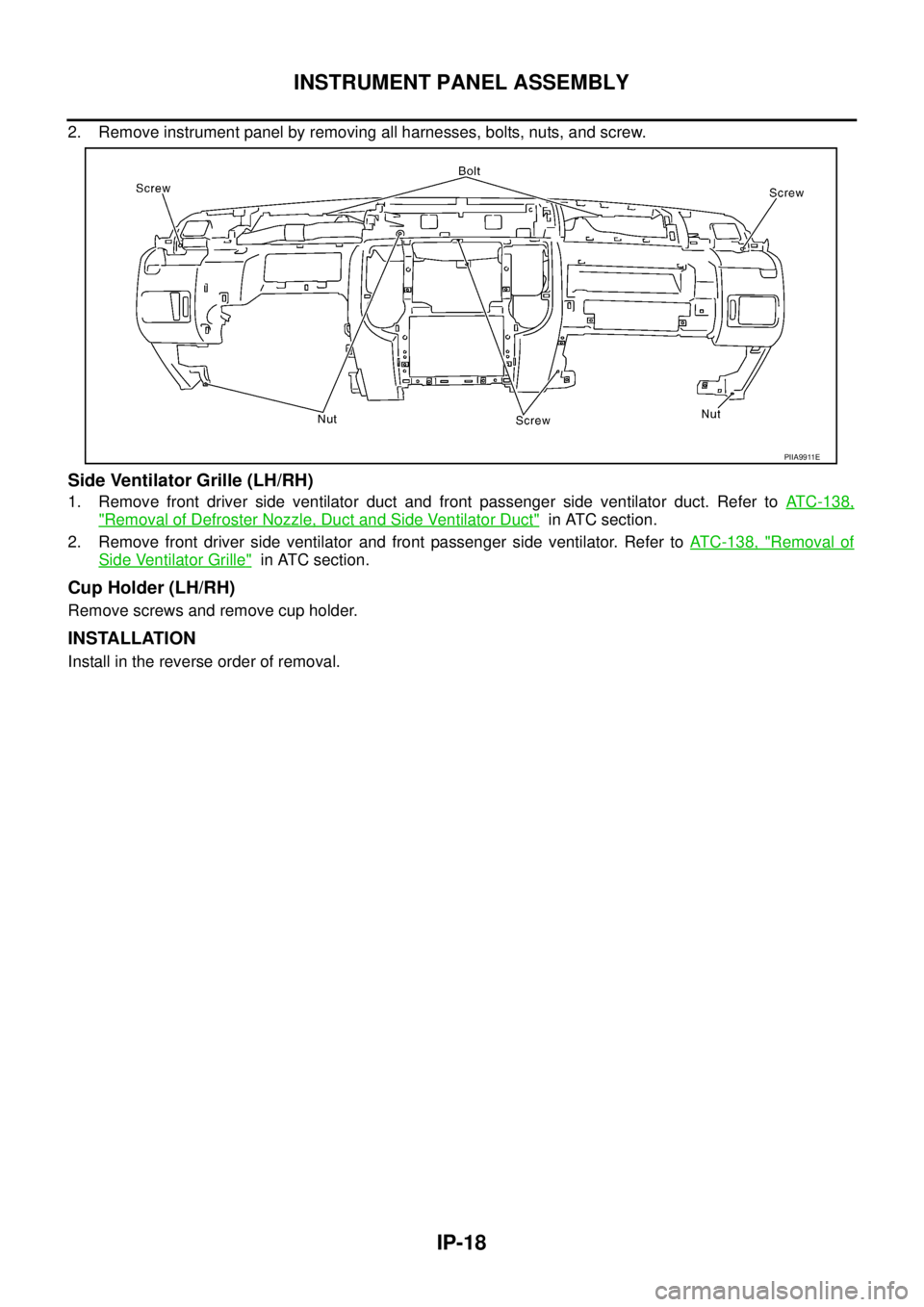

NISSAN X-TRAIL 2003 Service Repair Manual IP-18 INSTRUMENT PANEL ASSEMBLY 2. Remove instrument panel by removing all harnesses, bolts, nuts, and screw. Side Ventilator Grille (LH/RH) 1. Remove front driver side ventilator duct and front pas

Page 3357 of 4179

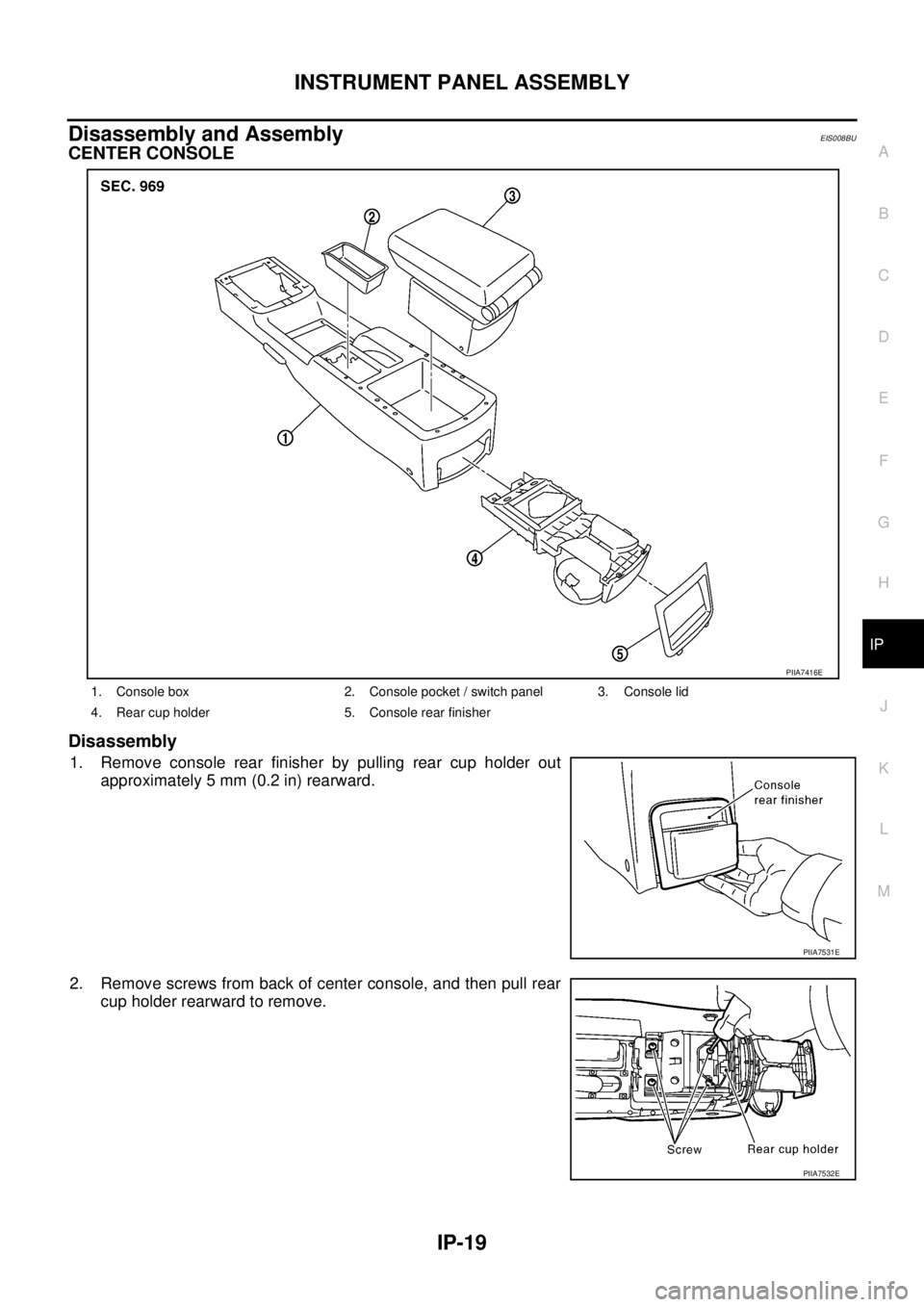

NISSAN X-TRAIL 2003 Service Repair Manual INSTRUMENT PANEL ASSEMBLY IP-19 C D E F G H J K L MA B IP Disassembly and AssemblyEIS008BU CENTER CONSOLE Disassembly 1. Remove console rear finisher by pulling rear cup holder out approximately 5 m

Page 3358 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual IP-20 INSTRUMENT PANEL ASSEMBLY 3. Remove screws from back of center console, and then remove console lid. 4. Remove console pocket. Assembly Assemble in the reverse order of disassembly. PIIA7533E

Page 3359 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual INSTRUMENT PANEL ASSEMBLY IP-21 C D E F G H J K L MA B IP INSTRUMENT CENTER LOWER PANEL Disassembly 1. Remove instrument center lower panel. Refer to IP-16, "Instrument Center Lower Panel" . 2. Rem

Page 3360 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual IP-22 INSTRUMENT PANEL ASSEMBLY
