LINE PRESSURE SOLENOID VALVE
AT-389
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

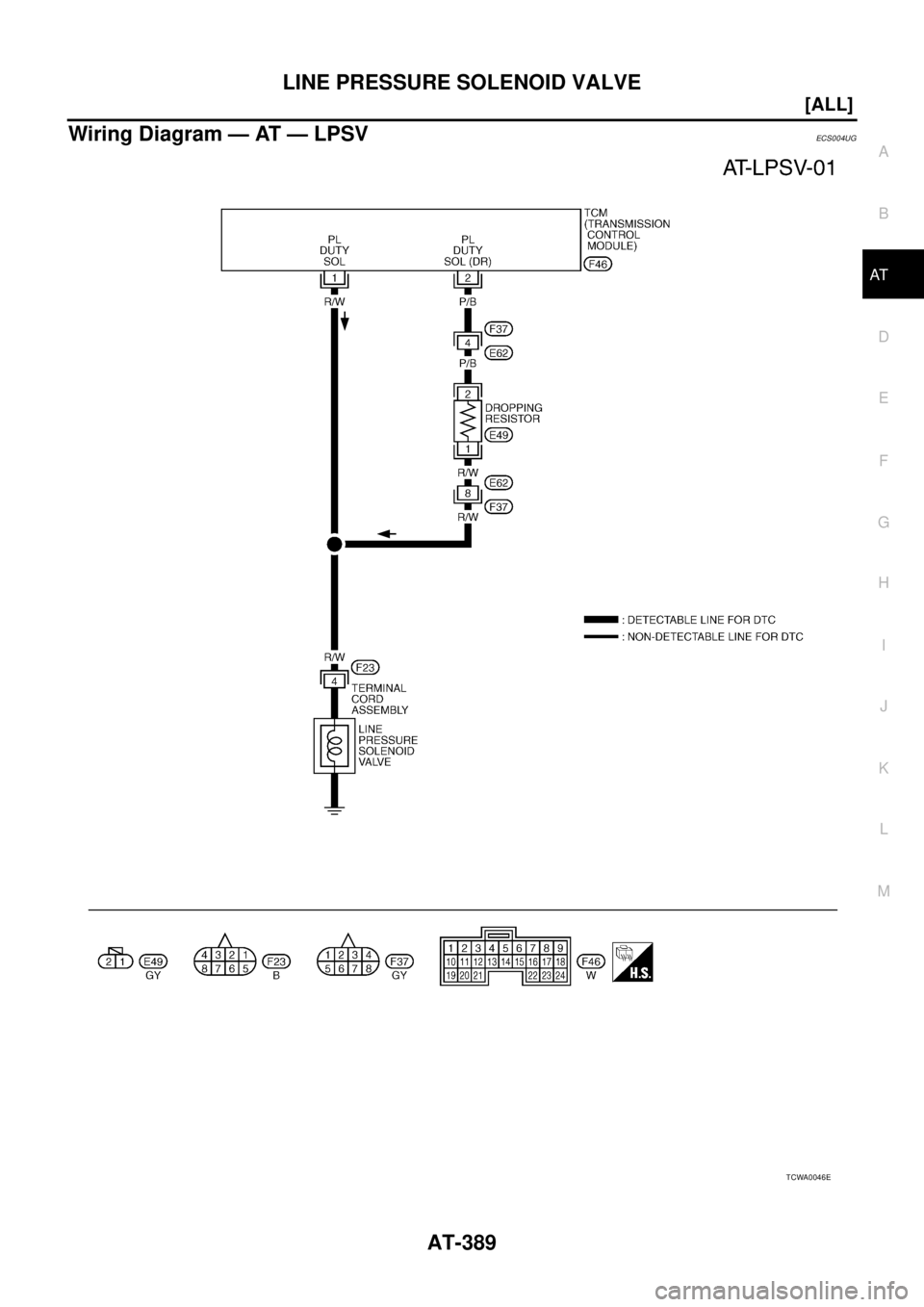

Wiring Diagram — AT — LPSVECS004UG
TCWA0046E
Page 2426 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual AT-390
[ALL]
LINE PRESSURE SOLENOID VALVE
TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004UH

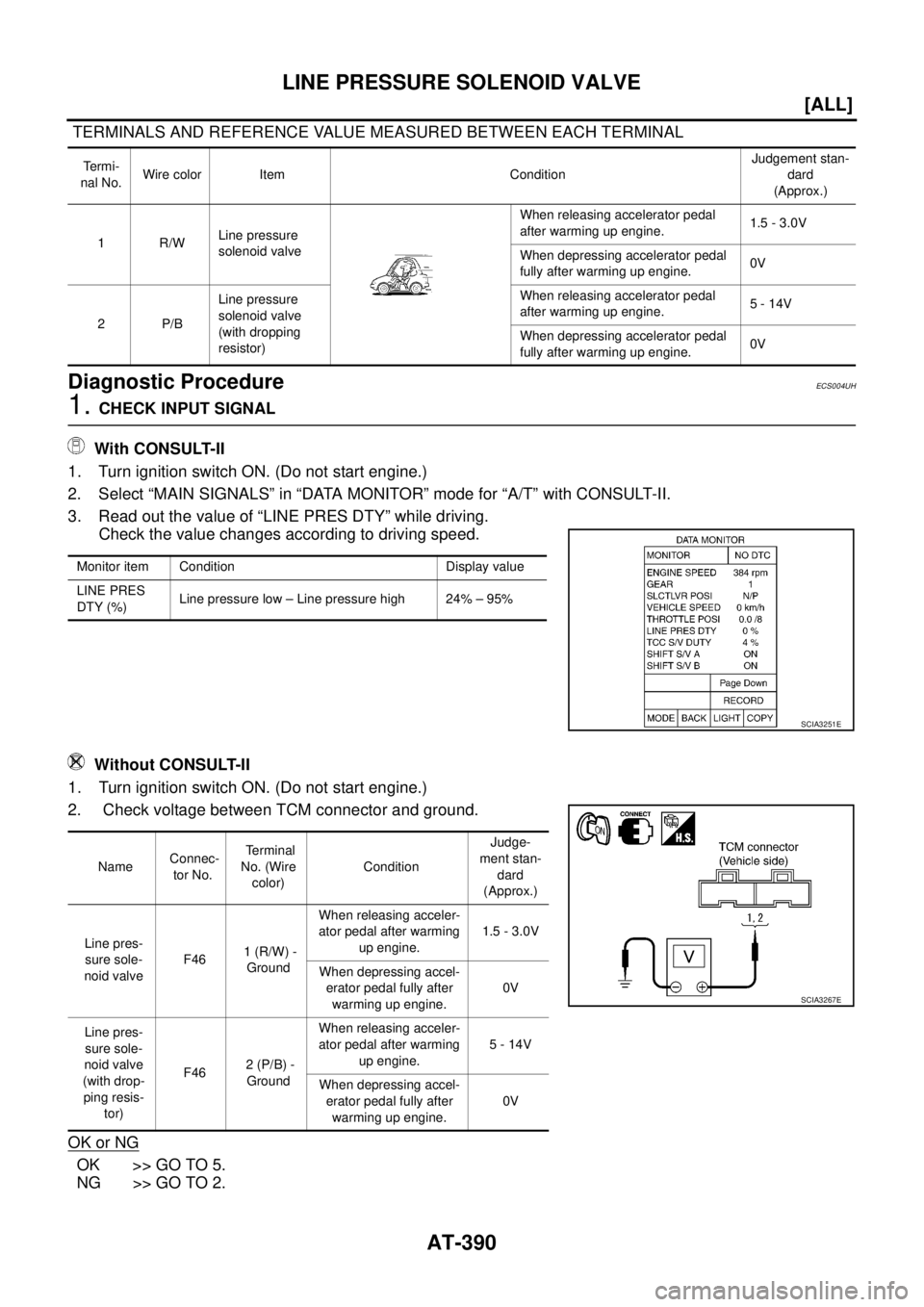

1. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON NISSAN X-TRAIL 2003 Service Repair Manual AT-390
[ALL]
LINE PRESSURE SOLENOID VALVE
TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004UH
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON](/manual-img/5/57404/w960_57404-2425.png)
AT-390
[ALL]
LINE PRESSURE SOLENOID VALVE
TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004UH
1. CHECK INPUT SIGNAL
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Read out the value of “LINE PRES DTY” while driving.
Check the value changes according to driving speed.
Without CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between TCM connector and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
1R/WLine pressure
solenoid valveWhen releasing accelerator pedal
after warming up engine.1.5 - 3.0V
When depressing accelerator pedal
fully after warming up engine.0V
2P/BLine pressure
solenoid valve
(with dropping
resistor)When releasing accelerator pedal
after warming up engine.5 - 14V
When depressing accelerator pedal
fully after warming up engine.0V
Monitor item Condition Display value
LINE PRES
DTY (%)Line pressure low – Line pressure high 24% – 95%
SCIA3251E
Name Connec-
tor No. Terminal
No. (Wire
color) ConditionJudge-
ment stan-
dard
(Approx.)
Line pres-
sure sole-
noid valve F46 1 (R/W) -
GroundWhen releasing acceler-
ator pedal after warming
up engine.1.5 - 3.0V
When depressing accel-
erator pedal fully after
warming up engine.0V
Line pres-
sure sole-
noid valve
(with drop-
ping resis-
tor) F46 2 (P/B) -
GroundWhen releasing acceler-
ator pedal after warming
up engine.5 - 14V
When depressing accel-
erator pedal fully after
warming up engine.0V
SCIA3267E
Page 2427 of 4179
LINE PRESSURE SOLENOID VALVE
AT-391
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

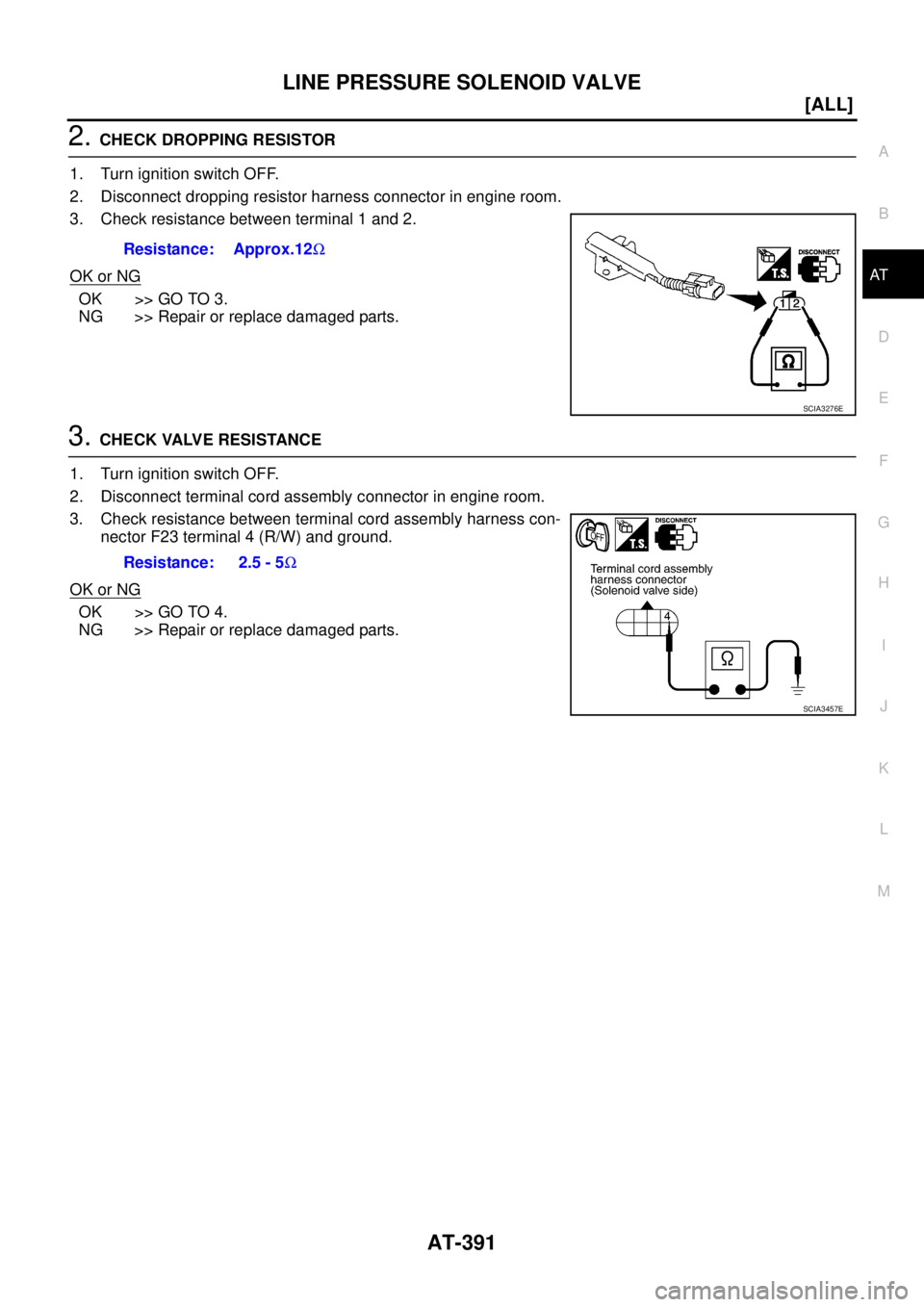

2. CHECK DROPPING RESISTOR
1. Turn ignition switch OFF.
2. Disconnect dropping resistor harness connector in engine room.
3. Check resistance between terminal 1 and 2.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace damaged parts.
3. CHECK VALVE RESISTANCE
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly connector in engine room.
3. Check resistance between terminal cord assembly harness con-
nector F23 terminal 4 (R/W) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.Resistance: Approx.12Ω
SCIA3276E
Resistance: 2.5 - 5Ω
SCIA3457E
Page 2428 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual AT-392
[ALL]
LINE PRESSURE SOLENOID VALVE

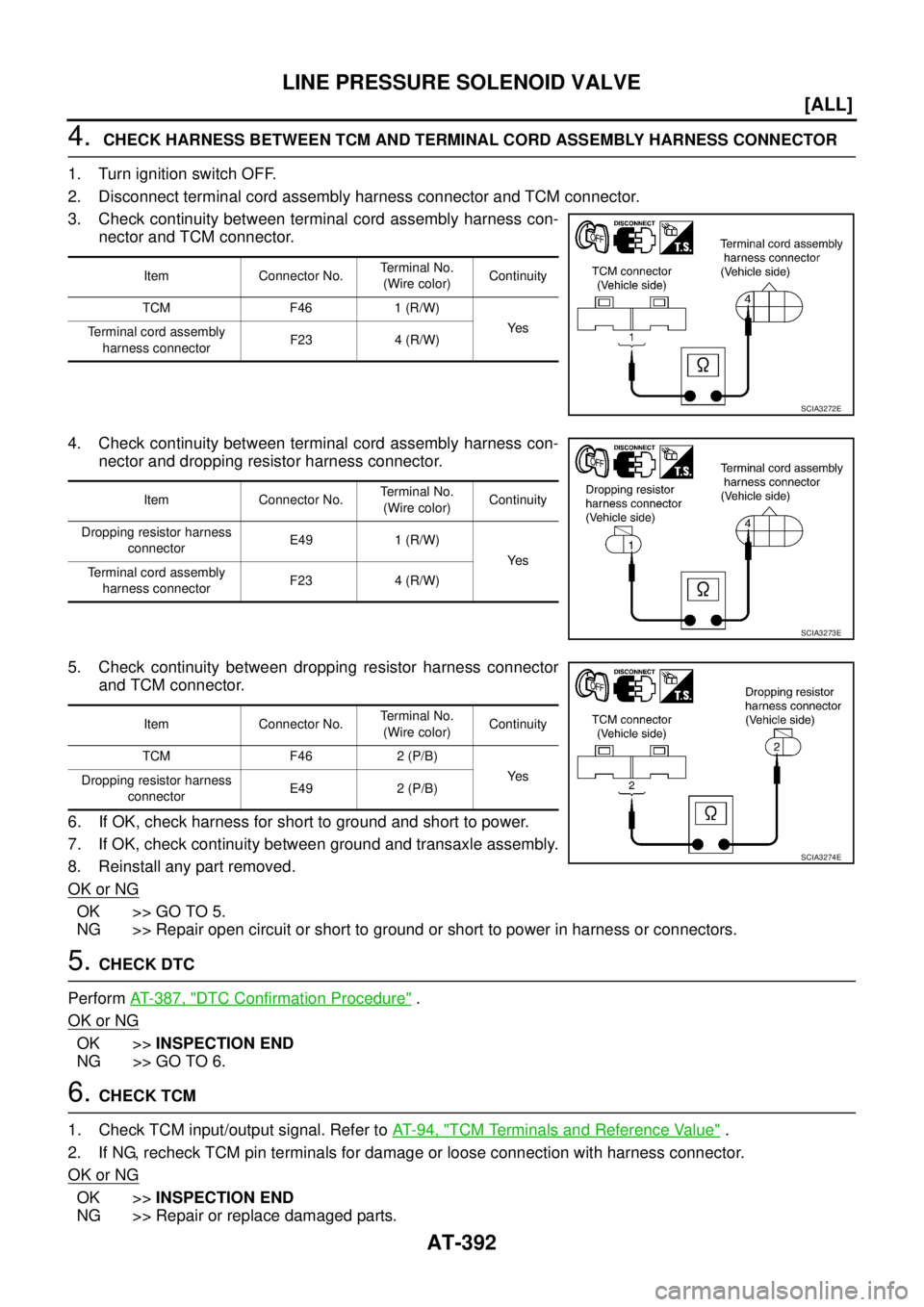

4. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connect NISSAN X-TRAIL 2003 Service Repair Manual AT-392
[ALL]
LINE PRESSURE SOLENOID VALVE
4. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connect](/manual-img/5/57404/w960_57404-2427.png)
AT-392
[ALL]
LINE PRESSURE SOLENOID VALVE
4. CHECK HARNESS BETWEEN TCM AND TERMINAL CORD ASSEMBLY HARNESS CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect terminal cord assembly harness connector and TCM connector.
3. Check continuity between terminal cord assembly harness con-
nector and TCM connector.
4. Check continuity between terminal cord assembly harness con-
nector and dropping resistor harness connector.
5. Check continuity between dropping resistor harness connector
and TCM connector.
6. If OK, check harness for short to ground and short to power.
7. If OK, check continuity between ground and transaxle assembly.
8. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK DTC
Perform AT- 3 8 7 , "
DTC Confirmation Procedure" .
OK or NG
OK >>INSPECTION END
NG >> GO TO 6.
6. CHECK TCM
1. Check TCM input/output signal. Refer to AT- 9 4 , "
TCM Terminals and Reference Value" .
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >>INSPECTION END
NG >> Repair or replace damaged parts.
Item Connector No.Terminal No.
(Wire color)Continuity
TCM F46 1 (R/W)
Ye s
Terminal cord assembly
harness connectorF23 4 (R/W)
SCIA3272E
Item Connector No.Terminal No.
(Wire color)Continuity
Dropping resistor harness
connectorE49 1 (R/W)
Ye s
Terminal cord assembly
harness connectorF23 4 (R/W)
SCIA3273E
Item Connector No.Terminal No.
(Wire color)Continuity
TCM F46 2 (P/B)
Ye s
Dropping resistor harness
connectorE49 2 (P/B)
SCIA3274E
Page 2429 of 4179
LINE PRESSURE SOLENOID VALVE
AT-393
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT
Component InspectionECS004UI
LINE PRESSURE SOLENOID VALVE
For removal, refer to AT- 4 0 4 , "Control Valve Assembly and Accumulators" .

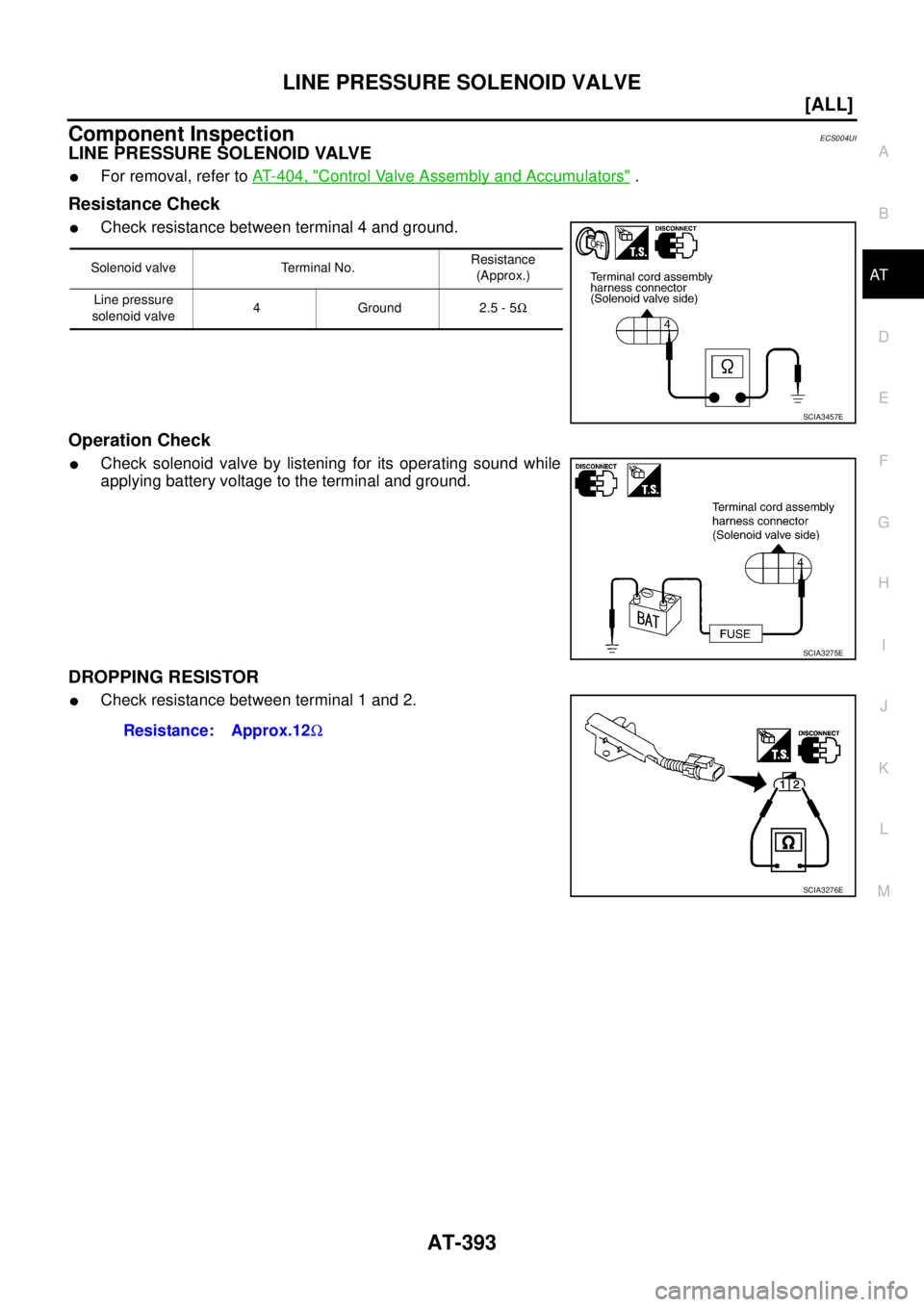

Resistance Check
Check resistance between terminal 4 and ground.
Operation Check
Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
DROPPING RESISTOR
Check resistance between terminal 1 and 2.
Solenoid valve Terminal No.Resistance
(Approx.)
Line pressure
solenoid valve4Ground2.5 - 5Ω
SCIA3457E
SCIA3275E
Resistance: Approx.12Ω
SCIA3276E
Page 2430 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual AT-394
[ALL]
MAIN POWER SUPPLY AND GROUND CIRCUIT
MAIN POWER SUPPLY AND GROUND CIRCUITPFP:00100
DescriptionECS00CS1
When the power supply to the TCM is cut OFF, for example because the battery is re NISSAN X-TRAIL 2003 Service Repair Manual AT-394
[ALL]
MAIN POWER SUPPLY AND GROUND CIRCUIT
MAIN POWER SUPPLY AND GROUND CIRCUITPFP:00100
DescriptionECS00CS1
When the power supply to the TCM is cut OFF, for example because the battery is re](/manual-img/5/57404/w960_57404-2429.png)
AT-394
[ALL]
MAIN POWER SUPPLY AND GROUND CIRCUIT
MAIN POWER SUPPLY AND GROUND CIRCUITPFP:00100
DescriptionECS00CS1
When the power supply to the TCM is cut OFF, for example because the battery is removed, and the self-diag-
nostics memory function stops, malfunction is detected.
On Board Diagnosis LogicECS00CS2
Diagnostic trouble code “INITIAL START” with CONSULT-II is detected when TCM dose not receive the
voltage signal from the battery power supply.
This is not a malfunction message. (Whenever shutting “OFF” a power supply to the TCM, this message
appears on the screen.)
Possible CauseECS00CS3
Harness or connector
(Battery or ignition switch and TCM circuit is open or shorted.)
DTC Confirmation ProcedureECS00CS4
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
WITH CONSULT-II

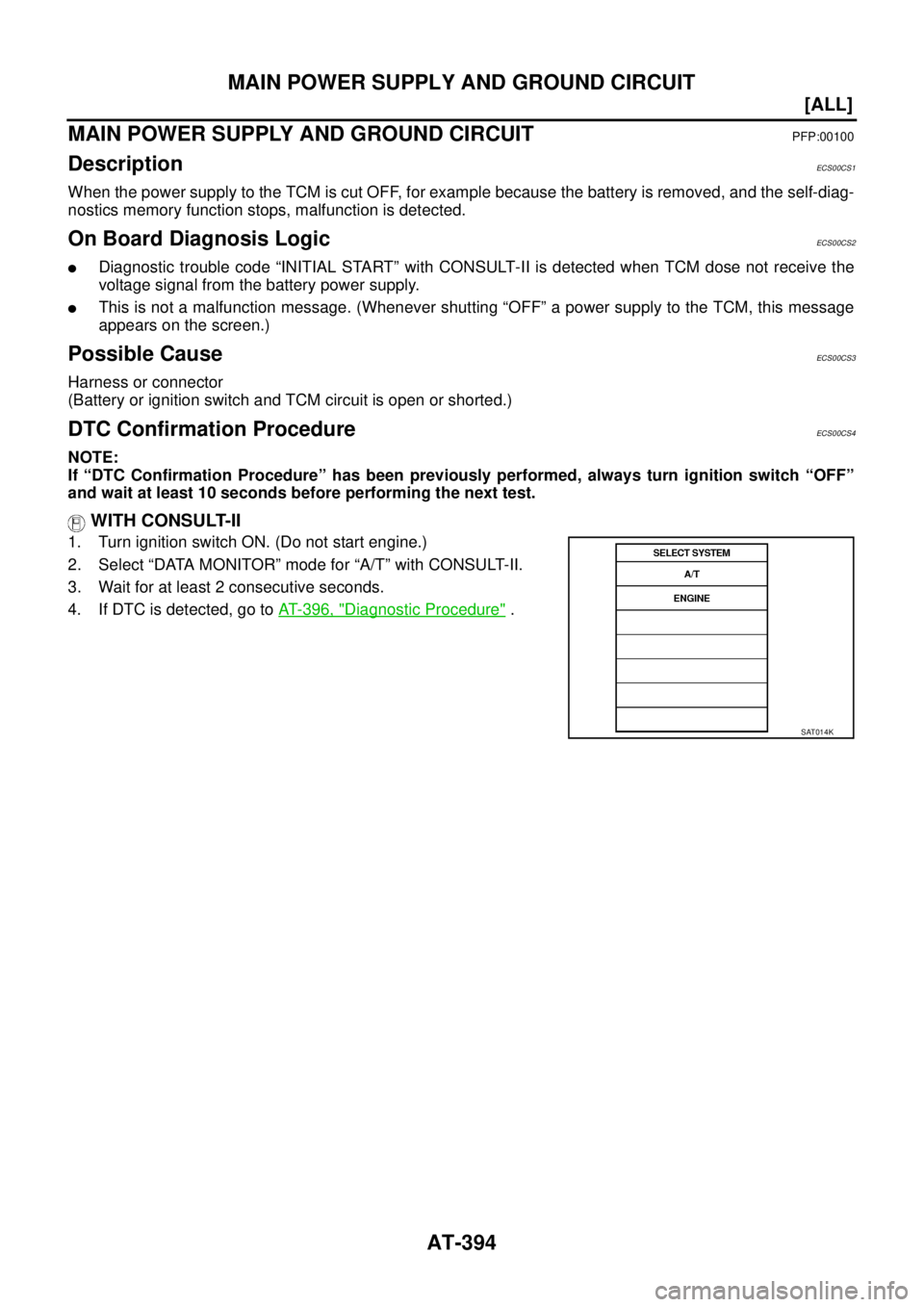

1. Turn ignition switch ON. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Wait for at least 2 consecutive seconds.
4. If DTC is detected, go to AT- 3 9 6 , "
Diagnostic Procedure" .
SAT014K
Page 2431 of 4179
MAIN POWER SUPPLY AND GROUND CIRCUIT
AT-395
[ALL]
D
E
F
G
H
I
J
K
L
MA
B
AT

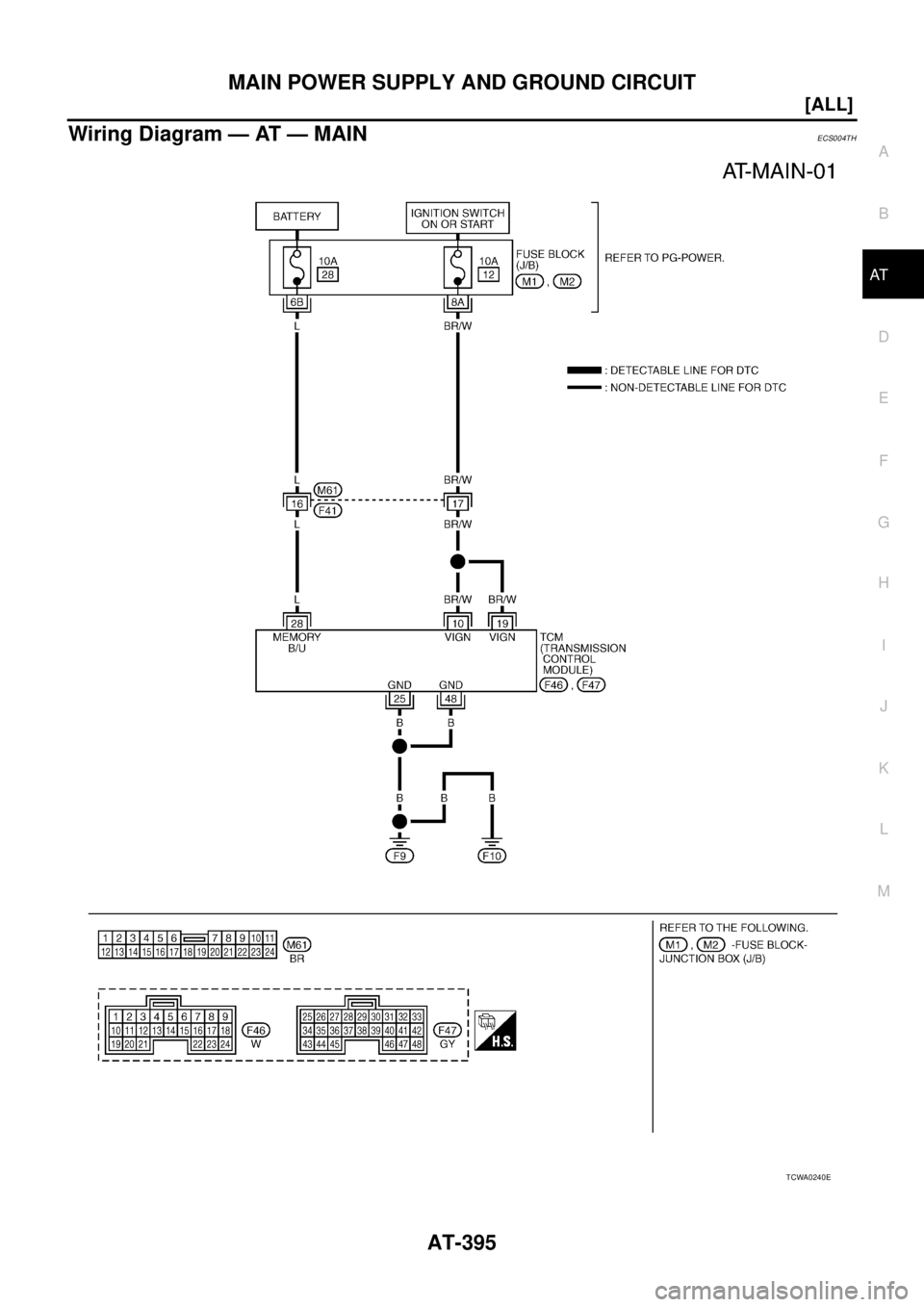

Wiring Diagram — AT — MAINECS004TH
TCWA0240E
Page 2432 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual AT-396
[ALL]
MAIN POWER SUPPLY AND GROUND CIRCUIT
TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004TI
1. CHECK TCM POWER SOURCE
1. Turn ignition switch to ON. NISSAN X-TRAIL 2003 Service Repair Manual AT-396
[ALL]
MAIN POWER SUPPLY AND GROUND CIRCUIT
TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004TI
1. CHECK TCM POWER SOURCE
1. Turn ignition switch to ON.](/manual-img/5/57404/w960_57404-2431.png)
AT-396
[ALL]
MAIN POWER SUPPLY AND GROUND CIRCUIT
TERMINALS AND REFERENCE VALUE MEASURED BETWEEN EACH TERMINAL
Diagnostic ProcedureECS004TI

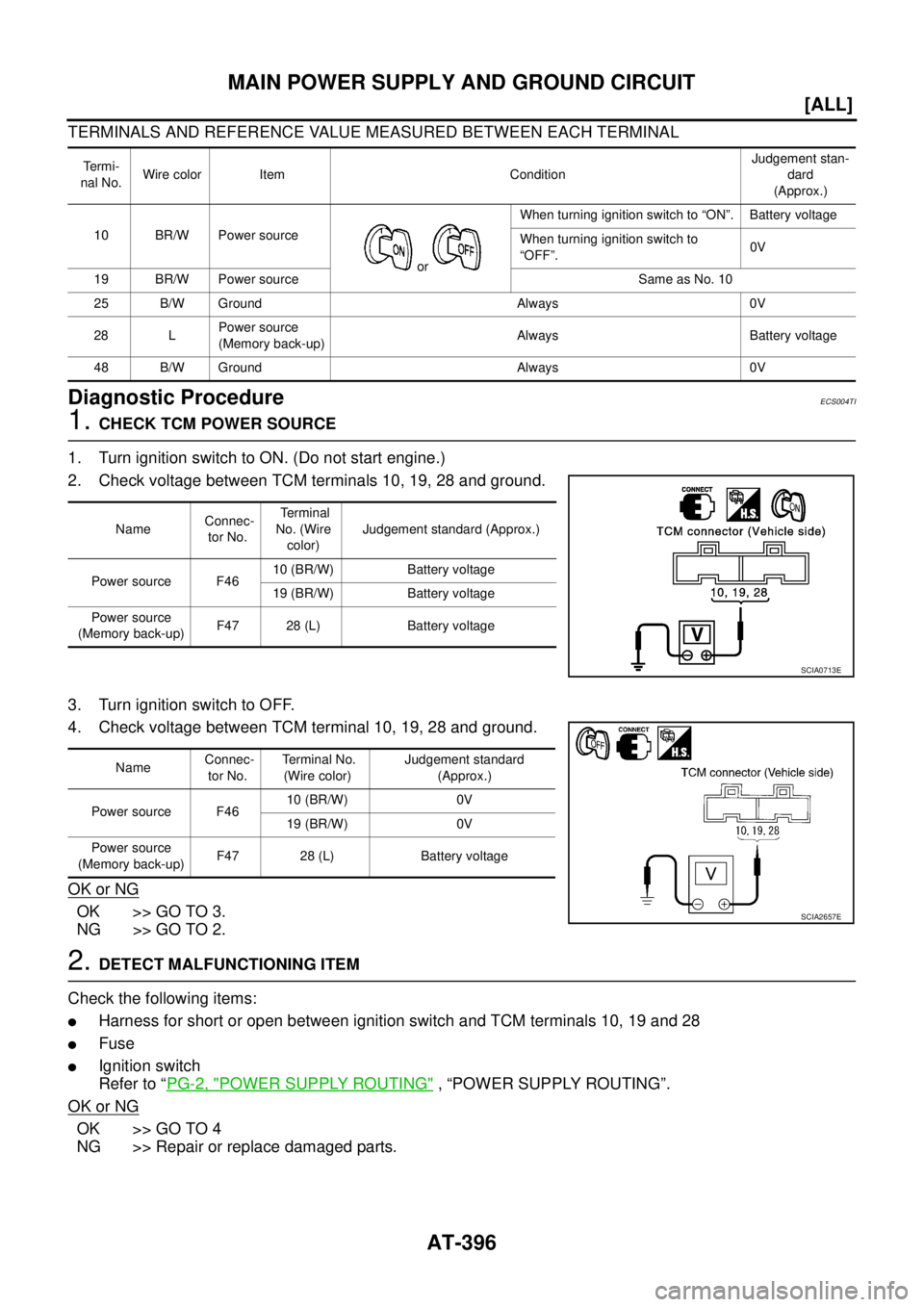

1. CHECK TCM POWER SOURCE
1. Turn ignition switch to ON. (Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
3. Turn ignition switch to OFF.
4. Check voltage between TCM terminal 10, 19, 28 and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING ITEM
Check the following items:
Harness for short or open between ignition switch and TCM terminals 10, 19 and 28
Fuse
Ignition switch
Refer to “PG-2, "
POWER SUPPLY ROUTING" , “POWER SUPPLY ROUTING”.
OK or NG
OK >> GO TO 4
NG >> Repair or replace damaged parts.
Te r m i -
nal No.Wire color Item ConditionJudgement stan-
dard
(Approx.)
10 BR/W Power source
or When turning ignition switch to “ON”. Battery voltage
When turning ignition switch to
“OFF”.0V
19 BR/W Power source Same as No. 10
25 B/W Ground Always 0V
28 LPower source
(Memory back-up)Always Battery voltage
48 B/W Ground Always 0V
Name Connec-
tor No. Terminal
No. (Wire
color)Judgement standard (Approx.)
Power source F4610 (BR/W) Battery voltage
19 (BR/W) Battery voltage
Power source
(Memory back-up)F47 28 (L) Battery voltage
SCIA0713E
Name Connec-
tor No. Terminal No.
(Wire color)Judgement standard
(Approx.)
Power source F4610 (BR/W) 0V
19 (BR/W) 0V
Power source
(Memory back-up)F47 28 (L) Battery voltage
SCIA2657E
