SERVICE DATA AND SPECIFICATIONS (SDS)
EM-245
[YD22DDTi]
C
D
E
F
G
H
I
J
K
L
MA
EM
Bearing Clearance
Unit: mm (in)
Tightening TorqueEBS00OE0
*1: Parts to be tightened in particular orders.
1)-: Order of tightening when tightening two or more times separately.
Unit: N·m (kg-m, ft-lb)
Unit: N·m (kg-m, in-lb)*2
Main bearing oil clearance Standard 0.039 - 0.066 (0.0015 - 0.0026)
Connecting rod bearing oil
clearanceStandard 0.031 - 0.061 (0.0012 - 0.0024)
Alternator Nut C 19 - 24 (1.9 - 2.5, 14 - 18)
Nut D 44 - 57 (4.4 - 5.9, 32 - 42)
Idler pulley Nut A 31 - 39 (3.1 - 4.0, 23 - 28)
Catalyst48.5 (4.9, 36)
Catalyst rear diffuser33.5 (3.4, 25)
Catalyst insulator Catalyst side
7.4 (0.75, 65)*
2
Catalyst rear diffuser
side9.6 (0.97, 85)*
2
Turbocharger43 - 54 (4.3 - 5.5, 32 - 40)
Charge air cooler Bracket 22 (2.2, 16)
Charge air cooler cover
7.0 (0.71, 62)*
2
EGR volume control valve 62 - 78 (6.3 - 8.0, 46 - 57)
EGR cooler Exhaust manifold side 60 - 69 (6.1 - 7.1, 45 - 51)
EGR volume control
valve side62 - 78 (6.3 - 8.0, 46 - 57)
BracketEGR volume control
valve side21 - 26 (2.1 - 2.7, 16 - 19)
Intake manifold side 5.0 - 8.4 (0.51 - 0.86, 45 - 74)
Exhaust manifold insulator
5.1 - 6.4 (0.52 - 0.66, 46 - 57)*
2
*1 Exhaust manifold29 - 33 (2.9 - 3.4, 21 - 24)
*1 Rocker cover1)
7.8 (0.8, 69)*
2
2)
7.8 (0.8, 69) *2
Oil pan lower
7 (0.7, 62)*2
Oil pan drain plug34 (3.5, 25)
Oil strainer17 (1.7, 13)
*1 Oil pan upper M6 bolt
7 (0.7, 62)*
2
M8 bolt 21.5 (2.2, 16)
M10 bolt 33.5 (3.4, 25)
Va c u u m p u m p23.5 (2.4, 17)
Cylinder head rear cover M6 bolt
9.7 (0.98, 86) *
2
M8 bolt 17 (1.7, 13)
Injection tube Nozzle side 23.0 (2.3, 17)
Fuel rail side 23.0 (2.3, 17)
Injection tube center23.0 (2.3, 17)
Nozzle support26.2 (2.7, 19)
Page 298 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EM-246
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)
Spill tube Nozzle side 18.7 (1.9, 14)
Cylinder head side 18.7 (1.9, 14)
Fuel rail57.5 (5.9, 42)
Fuel pump31.4 (3.2, 23)
Fuel pump sprocket39 ( NISSAN X-TRAIL 2003 Service Repair Manual EM-246
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)
Spill tube Nozzle side 18.7 (1.9, 14)
Cylinder head side 18.7 (1.9, 14)
Fuel rail57.5 (5.9, 42)
Fuel pump31.4 (3.2, 23)
Fuel pump sprocket39 (](/manual-img/5/57404/w960_57404-297.png)
EM-246
[YD22DDTi]
SERVICE DATA AND SPECIFICATIONS (SDS)
Spill tube Nozzle side 18.7 (1.9, 14)
Cylinder head side 18.7 (1.9, 14)
Fuel rail57.5 (5.9, 42)
Fuel pump31.4 (3.2, 23)
Fuel pump sprocket39 (4.0, 29)
*1 Camshaft bracket 1) 2 (0.2, 1)
2) 6 (0.6, 4)
3) 12 - 13 (1.2 - 1.4, 9 - 10)
Front chain case
7.9 (0.8, 70)*
2
Chain tensioner
9.6 (0.98, 85)*2
Tension guide23.5 (2.4, 18)
Slack guide23.5 (2.4, 18)
Camshaft sprocket 143 (15, 105)
Oil pump housing12.5 (1.3, 9)
Power steering oil pump 53.5 (5.5, 39)
Rear chain case12.5 (1.3, 9)
Engine coolant temperature sensor 13.5 (1.4, 10)
*1 Cylinder head 1) 35 - 44 (3.5 - 4.5, 26 - 32)
2) 180 degrees to 185 degrees
3) 0 (0, 0)
4) 35 - 44 (3.5 - 4.5, 26 - 32)
5) 90 degrees to 95 degrees (angle
tightening)
6) 90 degrees to 95 degrees (angle
tightening)
Glow plug20.5 (2.1, 15)
*1 Flywheel103 - 112 (10.5 - 11.5, 76 - 83)
Oil pressure switch13 - 17 (1.25 - 1.75, 9 - 12)
Oil jet6.0 - 10.8 (0.62 - 1.1, 54 - 95)
Oil jet relief valve40 - 58 (4.0 - 6.0, 29 - 43)
Rear oil seal retainer12 - 13 (1.2 - 1.4, 9 - 10)
Page 299 of 4179

LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION
A
LU
ENGINE LUBRICATION SYSTEM
QR
PRECAUTIONS .......................................................... 3
Precautions for Liquid Gasket .................................. 3
LIQUID GASKET APPLICATION PROCEDURE ..... 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
LUBRICATION SYSTEM ............................................ 5

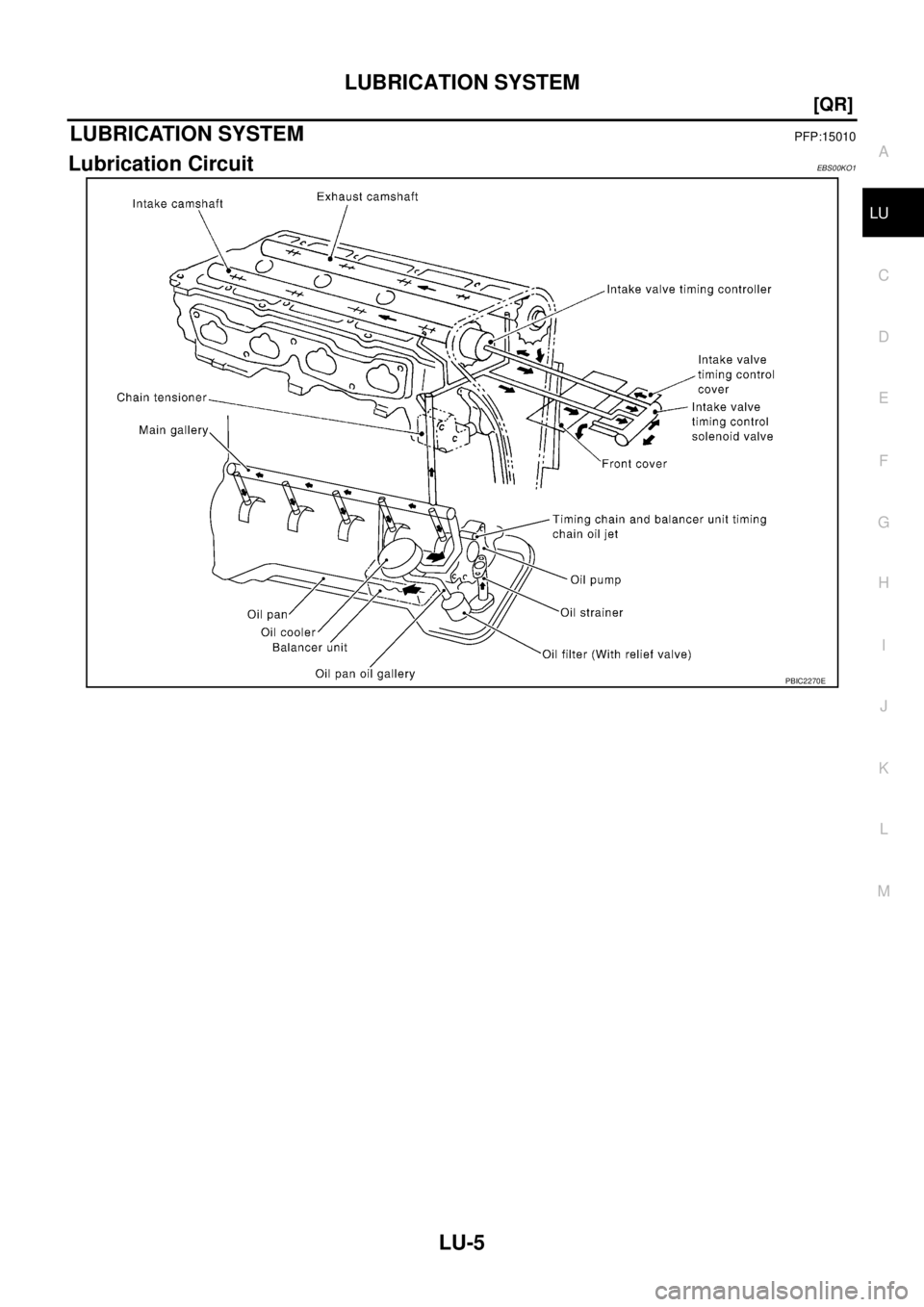

Lubrication Circuit .................................................... 5

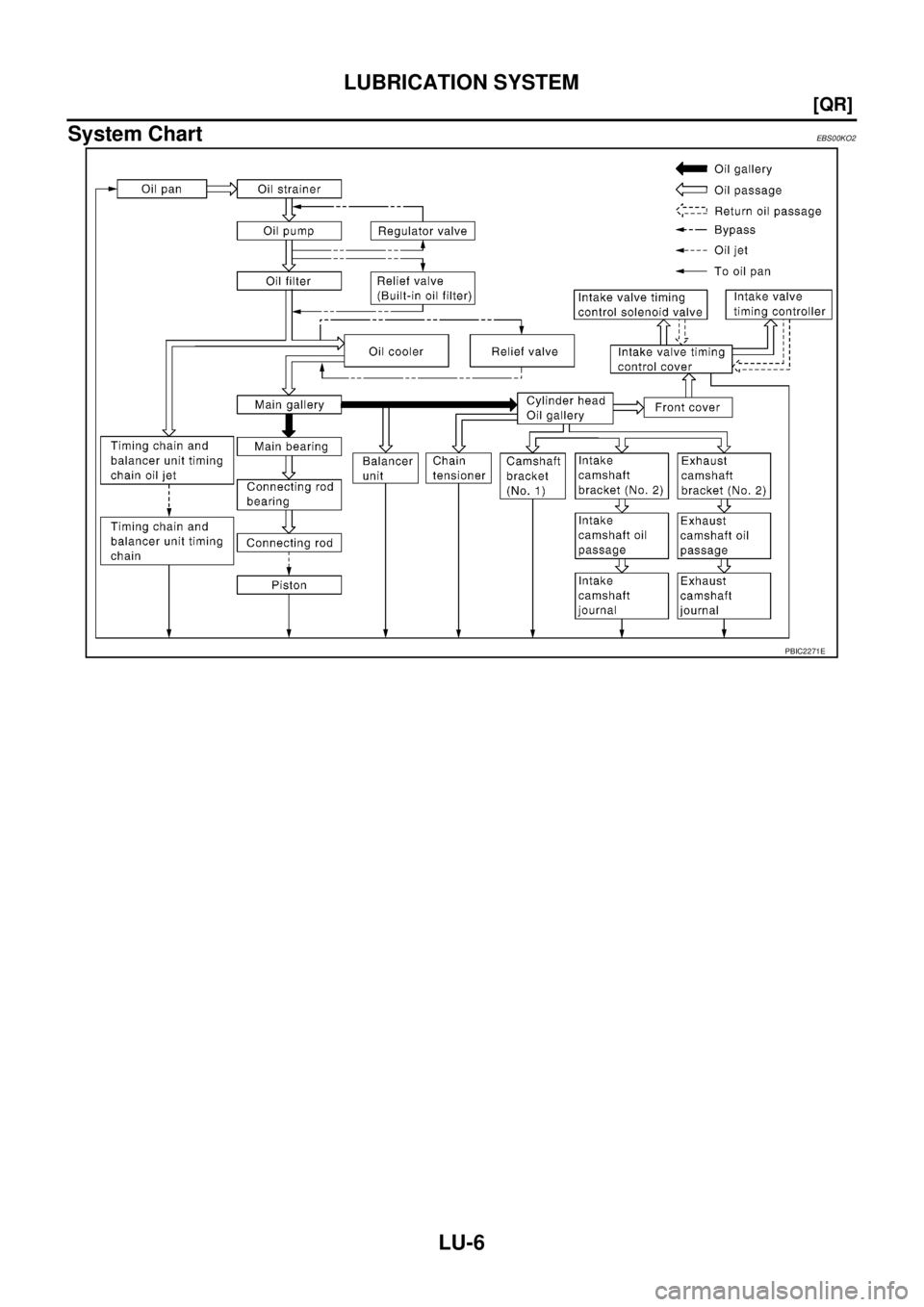

System Chart ........................................................... 6
ENGINE OIL ............................................................... 7
Inspection ................................................................. 7
ENGINE OIL LEVEL ............................................. 7
ENGINE OIL APPEARANCE ................................ 7
ENGINE OIL LEAKAGE ........................................ 7
OIL PRESSURE CHECK ...................................... 7
Changing Engine Oil ................................................ 8
OIL FILTER ............................................................... 10
Removal and Installation ........................................ 10
REMOVAL ........................................................... 10
INSTALLATION ................................................... 10
INSPECTION AFTER INSTALLATION ............... 10
OIL COOLER .............................................................11
Removal and Installation ......................................... 11
REMOVAL ............................................................ 11
INSPECTION AFTER REMOVAL ........................ 11
INSTALLATION .................................................... 11
INSPECTION AFTER INSTALLATION ................ 11
OIL PUMP ................................................................. 13
Removal and Installation ........................................ 13
REMOVAL ........................................................... 13
INSTALLATION ................................................... 13
INSPECTION AFTER INSTALLATION ............... 13
Disassembly and Assembly ................................... 13
DISASSEMBLY ................................................... 13
INSPECTION AFTER DISASSEMBLY ............... 14
ASSEMBLY ......................................................... 15
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 16
Standard and Limit ................................................. 16
OIL PRESSURE .................................................. 16ENGINE OIL CAPACITY (APPROXIMATE) ........ 16
OIL PUMP ........................................................... 16
REGULATOR VALVE .......................................... 16
Tightening Torque ................................................... 16
YD22DDTi
PRECAUTIONS ........................................................ 17
Precautions for Liquid Gasket ................................ 17
LIQUID GASKET APPLICATION PROCEDURE ... 17
PREPARATION ......................................................... 18
Special Service Tools ............................................. 18
Commercial Service Tools ...................................... 18
LUBRICATION SYSTEM .......................................... 19
Lubrication Circuit ................................................... 19
ENGINE OIL .............................................................. 20
Inspection ............................................................... 20
ENGINE OIL LEVEL ............................................ 20
ENGINE OIL APPEARANCE .............................. 20
ENGINE OIL LEAKAGE ...................................... 20
ENGINE OIL PRESSURE CHECK ..................... 20
Changing Engine Oil ............................................... 21
OIL FILTER ............................................................... 23
Removal and Installation (TYPE A) ........................ 23
REMOVAL ........................................................... 23
INSTALLATION ................................................... 23
INSPECTION AFTER INSTALLATION ................ 23
Removal and Installation (TYPE B) ........................ 24
REMOVAL ........................................................... 24
INSTALLATION ................................................... 25
INSPECTION AFTER INSTALLATION ................ 25
OIL FILTER BRACKET ............................................. 26
Removal and Installation (TYPE A) ........................ 26
REMOVAL ........................................................... 26
INSTALLATION ................................................... 26
INSPECTION AFTER INSTALLATION ................ 26
Removal and Installation (TYPE B) ........................ 27
REMOVAL ........................................................... 27
INSTALLATION ................................................... 27
INSPECTION AFTER INSTALLATION ................ 27
Page 300 of 4179

LU-2 OIL COOLER ............................................................ 28
Removal and Installation ........................................ 28
REMOVAL ........................................................... 28
INSPECTION AFTER REMOVAL ........................ 28
INSTALLATION .................................................... 28
INSPECTION AFTER INSTALLATION ................ 28
OIL PUMP ................................................................. 30
Removal and Installation ........................................ 30
REMOVAL ........................................................... 30
INSTALLATION .................................................... 30INSPECTION AFTER INSTALLATION ................ 30
Disassembly and Assembly .................................... 30
DISASSEMBLY .................................................... 30
INSPECTION AFTER DISASSEMBLY ................ 30
ASSEMBLY .......................................................... 32
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 33
Standard and Limit .................................................. 33
OIL PRESSURE .................................................. 33
OIL PUMP ............................................................ 33
REGULATOR VALVE ........................................... 33
OIL CAPACITY (APPROXIMATE) ....................... 33
Tightening Torque ................................................... 33
Page 301 of 4179
PRECAUTIONS
LU-3
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU
[QR]PRECAUTIONSPFP:00001
Precautions for Liquid GasketEBS011UN
LIQUID GASKET APPLICATION PROCEDURE
1. Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.
Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and bolt
holes.
2. Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.
3. Attach liquid gasket tube to the tube presser (special service
tool).
Use Genuine Liquid Gasket or equivalent.
Within five minutes of liquid gasket application, install the mat-
ing component.
If liquid gasket protrudes, wipe it off immediately.
Do not retighten mounting bolts or nuts after the installation.
Wait 30 minutes or more after installation before refilling
engine oil and engine coolant.
PBIC2160E
Page 302 of 4179
LU-4
[QR]
PREPARATION
PREPARATIONPFP:00002
Special Service ToolsEBS00KO0
Commercial Service ToolsEBS011TG
Tool number
Tool nameDescription
ST25051001
Oil pressure gaugeMeasuring oil pressure
Maximum measuring range:
2,452 kPa (24.52 bar, 25 kg/cm
2 , 356 psi)
ST25052000
HoseAdapting oil pressure gauge to cylinder block
KV10115801
Oil filter wrenchRemoving and installing oil filter
a: 64.3 mm (2.531 in)
WS39930000
Tube presserPressing the tube of liquid gasket
S-NT050
S-NT559
S-NT375
S-NT052
Tool nameDescription
Deep socketRemoving and installing oil pressure switch
a: 27 mm (1.06 in)
PBIC2072E
Page 303 of 4179
LUBRICATION SYSTEM
LU-5
[QR]
C
D
E
F
G
H
I
J
K
L
MA
LU
LUBRICATION SYSTEMPFP:15010
Lubrication CircuitEBS00KO1
PBIC2270E
Page 304 of 4179
LU-6
[QR]
LUBRICATION SYSTEM
System ChartEBS00KO2
PBIC2271E
