Page 753 of 4179
DTC P1706 PNP SWITCH
EC-375
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS010U0

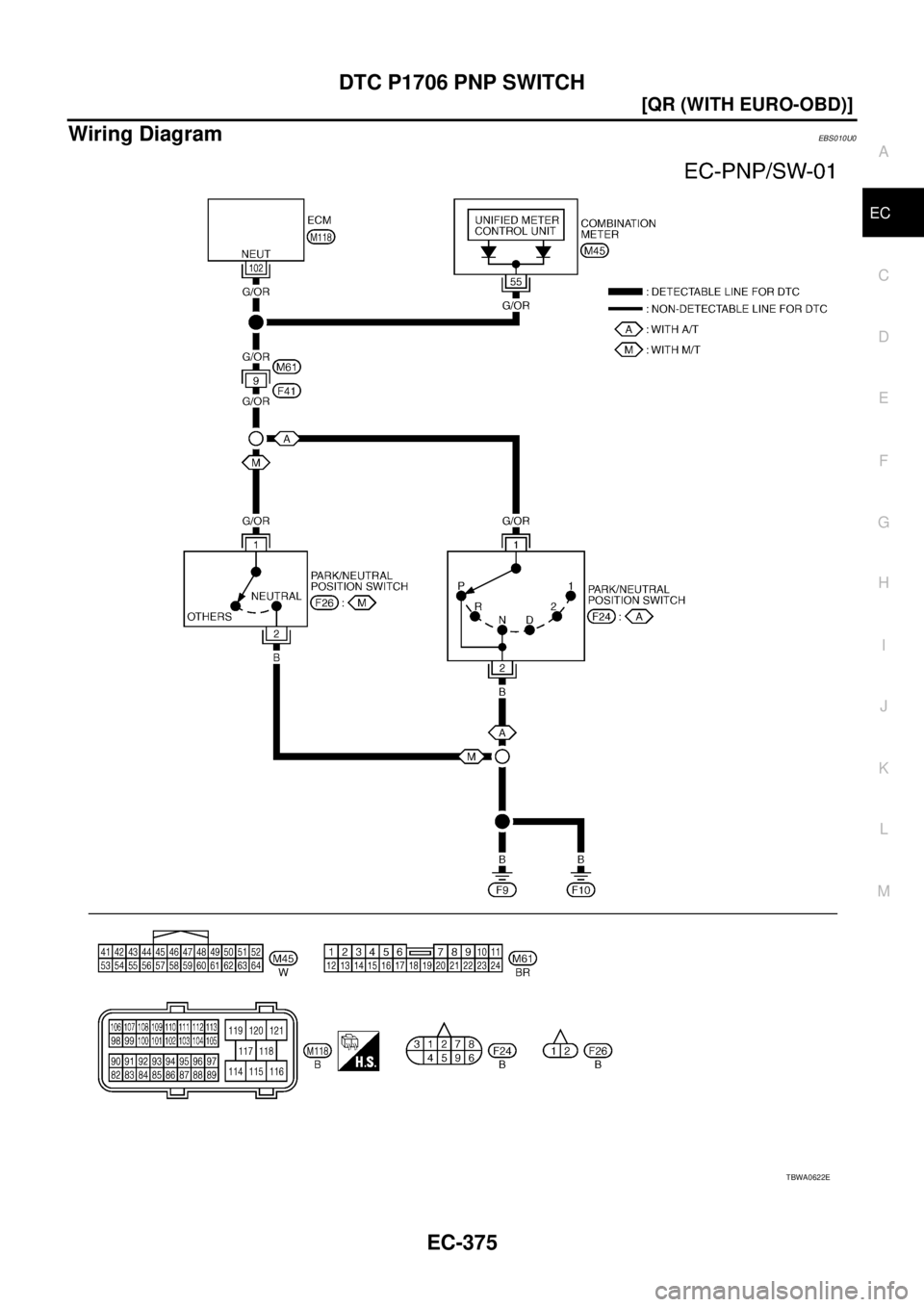

TBWA0622E
Page 754 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-376
[QR (WITH EURO-OBD)]
DTC P1706 PNP SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in NISSAN X-TRAIL 2003 Service Repair Manual EC-376
[QR (WITH EURO-OBD)]
DTC P1706 PNP SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in](/manual-img/5/57404/w960_57404-753.png)
EC-376
[QR (WITH EURO-OBD)]
DTC P1706 PNP SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS010U1
1. CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect PNP switch harness connector.
3. Check harness continuity between PNP switch terminal 2 and ground.
Refer to Wiring Diagram.
4. Also check harness for short to power.
OK or NG
OK >> GO TO 2.
NG >> Repair open circuit or short to power in harness or connectors.
2. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Disconnect combination meter harness connector.
3. Check harness continuity between PNP switch terminal 1 and ECM terminal 102, combination meter ter-
minal 55. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M61, F41
Harness for open or short between PNP switch and ECM
Harness for open or short between PNP switch and combination meter
>> Repair open circuit or short to ground or short to power in harness or connectors.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
102 G/OR PNP switch[Ignition switch: ON]
Shift lever: P or N (A/T), Neutral (M/T)Approximately 0V
[Ignition switch: ON]
Except above positionA/T models
BATTERY VOLTAGE
(11 - 14V)
M/T models
Approximately 5V
Continuity should exist.
Continuity should exist.
Page 755 of 4179
DTC P1706 PNP SWITCH
EC-377
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
4. CHECK PNP SWITCH
Refer to AT- 4 0 8 , "
Park/Neutral Position (PNP) Switch" (A/T) or MT-13, "PARK/NEUTRAL POSITION
SWITCH" (M/T).
OK or NG
OK >> GO TO 5.
NG >> Replace PNP switch.
5. CHECK INTERMITTENT INCIDENT
Refer to EC-123, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Page 756 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-378
[QR (WITH EURO-OBD)]
DTC P1720 VSS
DTC P1720 VSSPFP:31036
DescriptionEBS018LQ
NOTE:
If DTC P1720 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
EC-13 NISSAN X-TRAIL 2003 Service Repair Manual EC-378
[QR (WITH EURO-OBD)]
DTC P1720 VSS
DTC P1720 VSSPFP:31036
DescriptionEBS018LQ
NOTE:
If DTC P1720 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
EC-13](/manual-img/5/57404/w960_57404-755.png)
EC-378
[QR (WITH EURO-OBD)]
DTC P1720 VSS
DTC P1720 VSSPFP:31036
DescriptionEBS018LQ
NOTE:
If DTC P1720 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to
EC-132, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
ECM receives two vehicle speed sensor signals via CAN communication line. One is sent from ESP/TCS/ABS
control unit (models with ESP) or “ABS actuator and electric unit (control unit)”(models without ESP), and the
other is from TCM (Transmission control module). ECM uses these two signals for engine control.
CONSULT-II Reference Value in Data Monitor ModeEBS018LR
Specification data are reference values.
On Board Diagnosis LogicEBS018LS
The MI will not light up for this diagnosis.
DTC Confirmation ProcedureEBS018LT
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine.
4. Drive vehicle at a speed of 20 km/h (12 MPH) or more for at least 5 seconds without brake pedal depress-
ing.
5. If 1st trip DTC is detected, go to EC-379, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
VEH SPEED SE
Turn drive wheels and compare the CONSULT-II value with speedometer
indicationAlmost the same speed as the
speedometer indication
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1720
1720Vehicle speed sensor
(A/T output)ECM detects a difference between two
vehicle speed sensor signals is out of the
specified range.
Harness or connectors
(The CAN communication line is open or
shorted)
Harness or connectors
(Revolution sensor circuit is open or shorted)
Harness or connectors
(Wheel sensor circuit is open or shorted.)
TCM
ESP/TCS/ABS control unit (models with ESP)
“ABS actuator and electric unit (control unit)”
(models without ESP)
Combination meter
Wheel sensor
Revolution sensor
Page 757 of 4179
DTC P1720 VSS
EC-379
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Diagnostic ProcedureEBS018LU
1. CHECK DTC WITH TCM
Check DTC with TCM. Refer to AT- 6 , "
TROUBLE DIAGNOSIS — INDEX" .
OK or NG
OK >> GO TO 2.
NG >> Perform trouble shooting relevant to DTC indicated.
2. CHECK DTC WITH ESP/TCS/ABS CONTROL UNIT (MODELS WITH ESP), “ABS ACTUATOR AND
ELECTRIC UNIT (CONTROL UNIT)” (MODELS WITHOUT ESP)
Check DTC with ESP/TCS/ABS control unit (models with ESP), “ABS actuator and electric unit (control unit)”
(models without ESP). Refer to BRC-58, "
TROUBLE DIAGNOSIS" (models with ESP), BRC-11, "TROUBLE
DIAGNOSIS" (models without ESP).
OK or NG
OK >> GO TO 3.
NG >> Perform trouble shooting relevant to DTC indicated.
3. CHECK COMBINATION METER
Check combination meter function. Refer to DI-4, "
COMBINATION METERS" .
>>INSPECTION END
Page 758 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-380
[QR (WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH
DTC P1805 BRAKE SWITCHPFP:25320
DescriptionEBS010U2
Brake switch signal is applied to the ECM through the stop lamp switch when the brake pedal is NISSAN X-TRAIL 2003 Service Repair Manual EC-380
[QR (WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH
DTC P1805 BRAKE SWITCHPFP:25320
DescriptionEBS010U2
Brake switch signal is applied to the ECM through the stop lamp switch when the brake pedal is](/manual-img/5/57404/w960_57404-757.png)

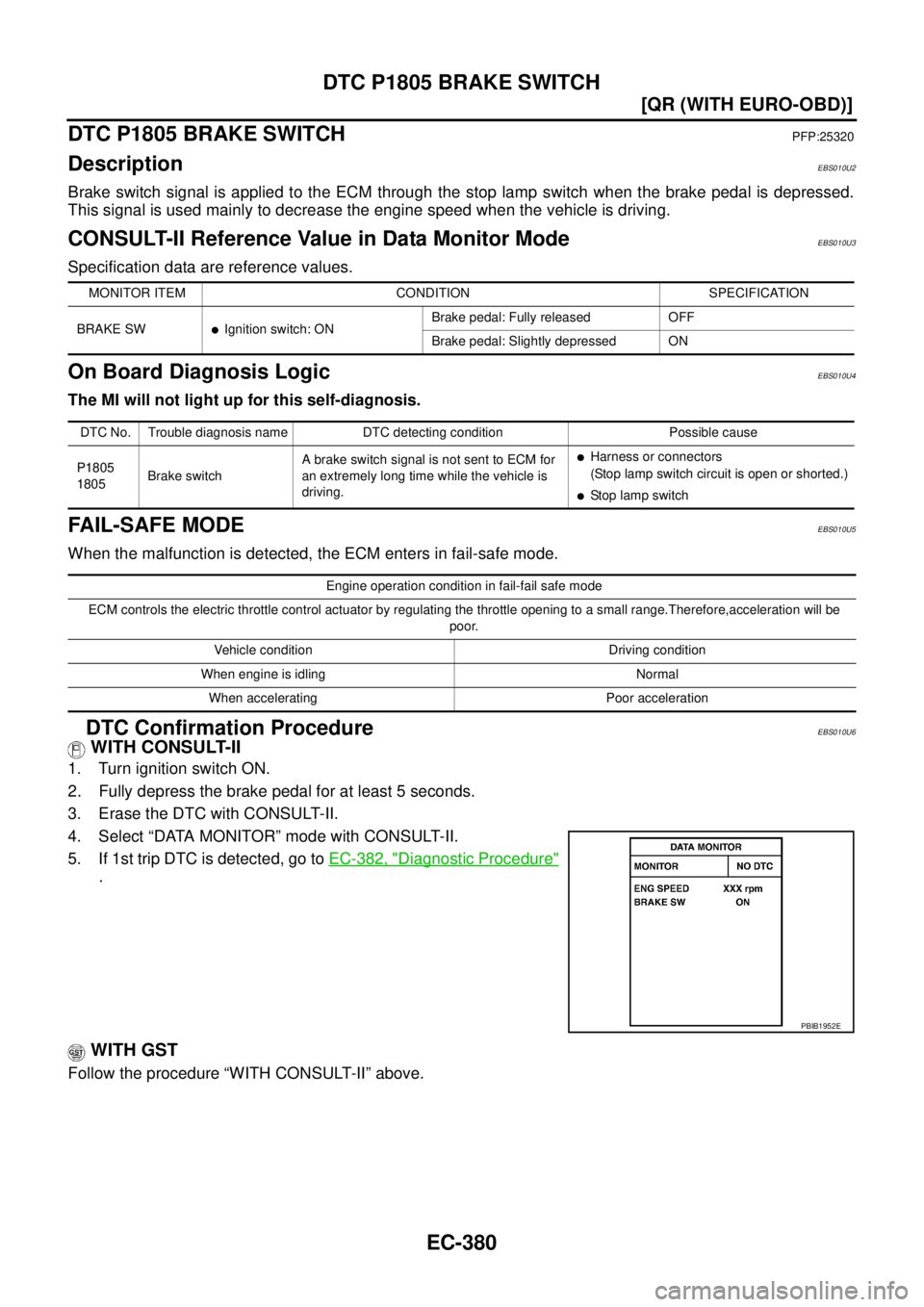

EC-380
[QR (WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH
DTC P1805 BRAKE SWITCHPFP:25320
DescriptionEBS010U2
Brake switch signal is applied to the ECM through the stop lamp switch when the brake pedal is depressed.
This signal is used mainly to decrease the engine speed when the vehicle is driving.
CONSULT-II Reference Value in Data Monitor ModeEBS010U3
Specification data are reference values.
On Board Diagnosis LogicEBS010U4
The MI will not light up for this self-diagnosis.
FAIL-SAFE MODEEBS010U5
When the malfunction is detected, the ECM enters in fail-safe mode.
DTC Confirmation ProcedureEBS010U6
WITH CONSULT-II
1. Turn ignition switch ON.
2. Fully depress the brake pedal for at least 5 seconds.
3. Erase the DTC with CONSULT-II.
4. Select “DATA MONITOR” mode with CONSULT-II.
5. If 1st trip DTC is detected, go to EC-382, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1805
1805Brake switchA brake switch signal is not sent to ECM for
an extremely long time while the vehicle is
driving.
Harness or connectors
(Stop lamp switch circuit is open or shorted.)
Stop lamp switch
Engine operation condition in fail-fail safe mode
ECM controls the electric throttle control actuator by regulating the throttle opening to a small range.Therefore,acceleration will be
poor.
Vehicle condition Driving condition
When engine is idling Normal
When accelerating Poor acceleration
PBIB1952E
Page 759 of 4179
DTC P1805 BRAKE SWITCH
EC-381
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
Wiring DiagramEBS010U7

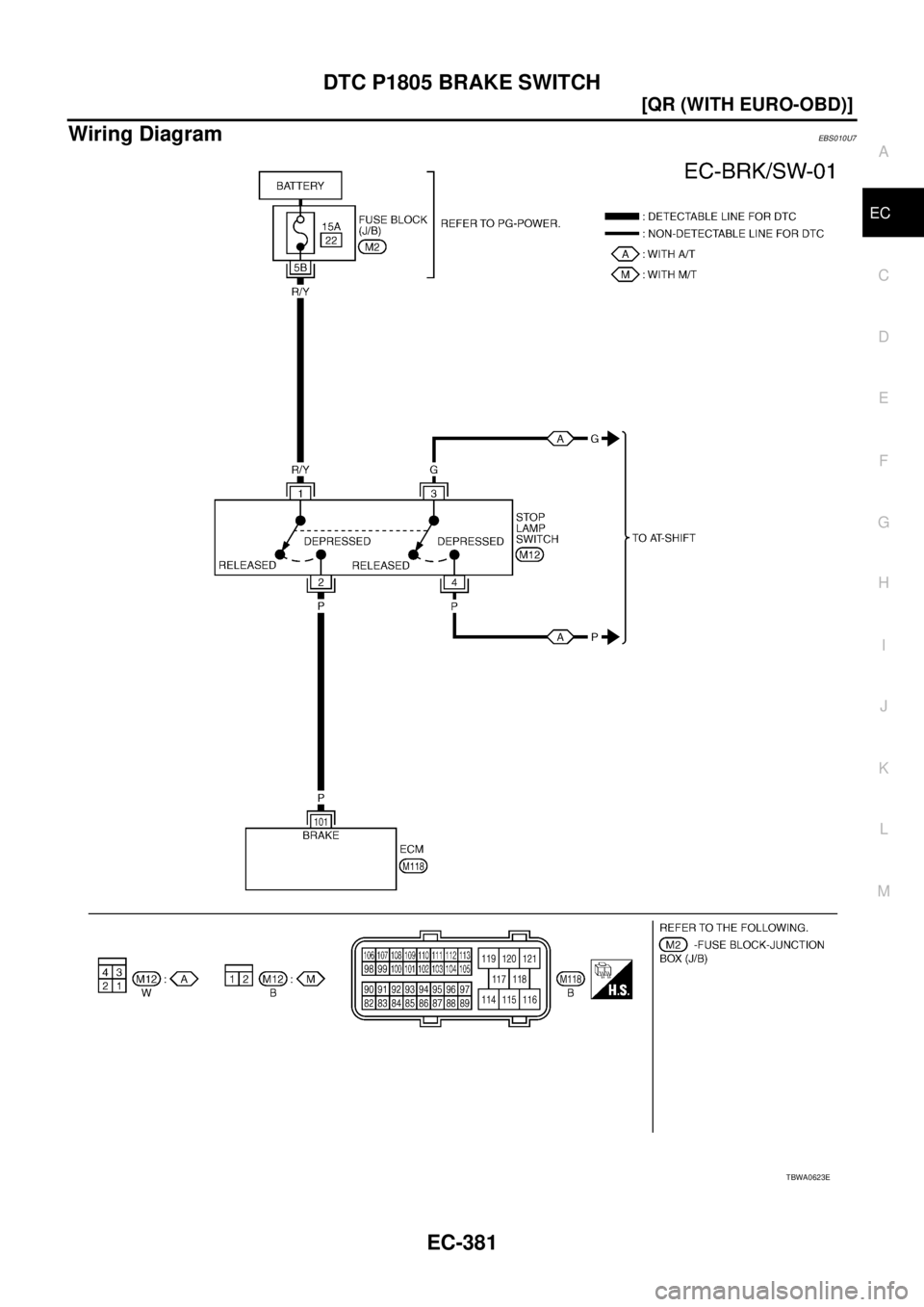

TBWA0623E
Page 760 of 4179
EC-382
[QR (WITH EURO-OBD)]
DTC P1805 BRAKE SWITCH
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureEBS010U8
1. CHECK STOP LAMP SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Check the stop lamp when depressing and releasing the brake pedal.
OK or NG
OK >> GO TO 4.
NG >> GO TO 2.
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
101 P Stop lamp switch[Ignition switch: OFF]
Brake pedal is fully releasedApproximately 0V
[Ignition switch: OFF]
Brake pedal is slightly depressedBATTERY VOLTAGE
(11 - 14V)
Brake pedal Stop lamp
Fully released Not illuminated
Slightly depressed Illuminated
