DTC P2228, P2229 BARO SENSOR
EC-1455
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P2228, P2229 BARO SENSORPFP:23731
DescriptionEBS0125D
The barometric pressure sensor is built into ECM. The sensor
detects ambient barometric pressure and sends the voltage signal to
the microcomputer.
On Board Diagnosis LogicEBS0125E
The MI will not light up for these self-diagnoses.
DTC Confirmation ProcedureEBS0125F
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Wait at least 5 seconds.
4. If 1st trip DTC is detected, go to EC-1455, "
Diagnostic Proce-
dure" .
Diagnostic ProcedureEBS0125G
1. INSPECTION START
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4. Perform EC-1455, "
DTC Confirmation Procedure" , again.
5. Is 1st trip DTC P2228 or P2229 displayed again?
Ye s o r N o
Ye s > > G O T O 2 .
No >>INSPECTION END
MBIB0625E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2228Barometric pressure sen-
sor circuit low inputAn excessively low voltage from the barometric
pressure sensor (built-into ECM) is sent to ECM.
ECM
P2229Barometric pressure sen-
sor circuit high inputAn excessively high voltage from the barometric
pressure sensor (built-into ECM) is sent to ECM.
SEF058Y
Page 1834 of 4179
EC-1456
[YD (WITHOUT EURO-OBD)]
DTC P2228, P2229 BARO SENSOR
2. REPLACE ECM
1. Replace ECM.
2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to EC-1224,
"NATS (Nissan Anti-theft System)" .
3. Perform Fuel Pump Learning Valve Clearing. Refer to EC-1221, "
Fuel Pump Learning Value Clearing" .
>>INSPECTION END
Page 1835 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual GLOW CONTROL SYSTEM
EC-1457
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
GLOW CONTROL SYSTEMPFP:25230
DescriptionEBS0125H
SYSTEM DESCRIPTION
When engine coolant temperature is more than approxi NISSAN X-TRAIL 2003 Service Repair Manual GLOW CONTROL SYSTEM
EC-1457
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
GLOW CONTROL SYSTEMPFP:25230
DescriptionEBS0125H
SYSTEM DESCRIPTION
When engine coolant temperature is more than approxi](/manual-img/5/57404/w960_57404-1834.png)
GLOW CONTROL SYSTEM
EC-1457
[YD (WITHOUT EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
GLOW CONTROL SYSTEMPFP:25230
DescriptionEBS0125H
SYSTEM DESCRIPTION
When engine coolant temperature is more than approximately 80°C (176°F), the glow relay turns off.
When coolant temperature is lower than approximately 80°C (176°F):
Ignition switch ON
After ignition switch has turned to ON, the glow relay turns ON for a certain period of time in relation to
engine coolant temperature, allowing current to flow through glow plug.
Cranking
The glow relay turns ON, allowing current to flow through glow plug.
Sta rti ng
After engine has started, current continues to flow through glow plug (after-glow mode) for a certain period
in relation to engine coolant temperature.
The glow indicator lamp turns ON for a certain period of time in relation to engine coolant temperature at the
time glow relay is turned ON.
COMPONENT DESCRIPTION
Glow Plug
The glow plug is provided with a ceramic heating element to obtain a
high-temperature resistance. It glows in response to a signal sent
from the ECM, allowing current to flow through the glow plug via the
glow relay.
Sensor Input Signal to ECM ECM Function Actuator
Crankshaft position sensor Engine speed
Glow controlGlow lamp
Glow relay
Glow plugs Engine coolant temperature sensor Engine coolant temperature
SEF376Y
Page 1836 of 4179
EC-1458
[YD (WITHOUT EURO-OBD)]
GLOW CONTROL SYSTEM

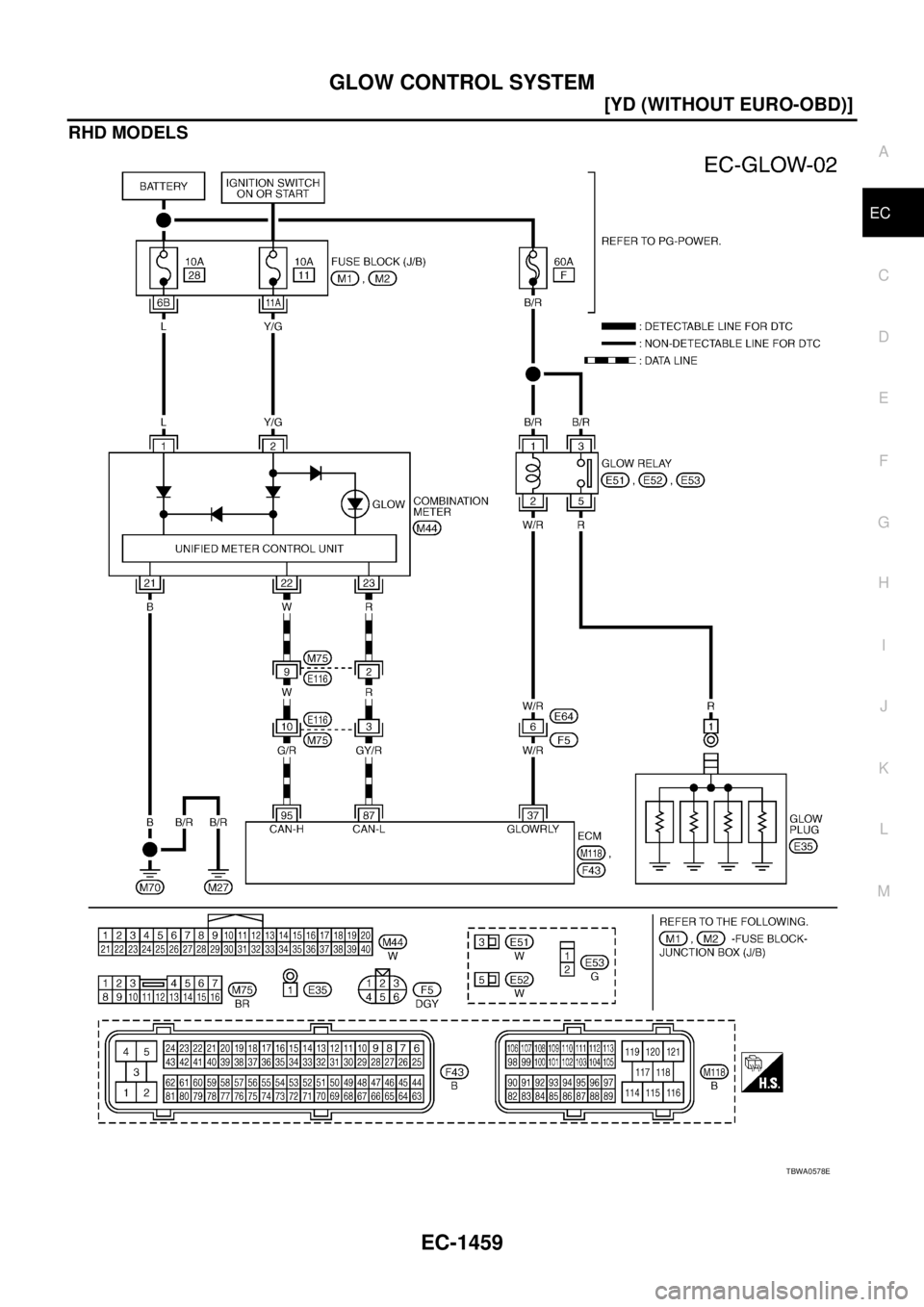

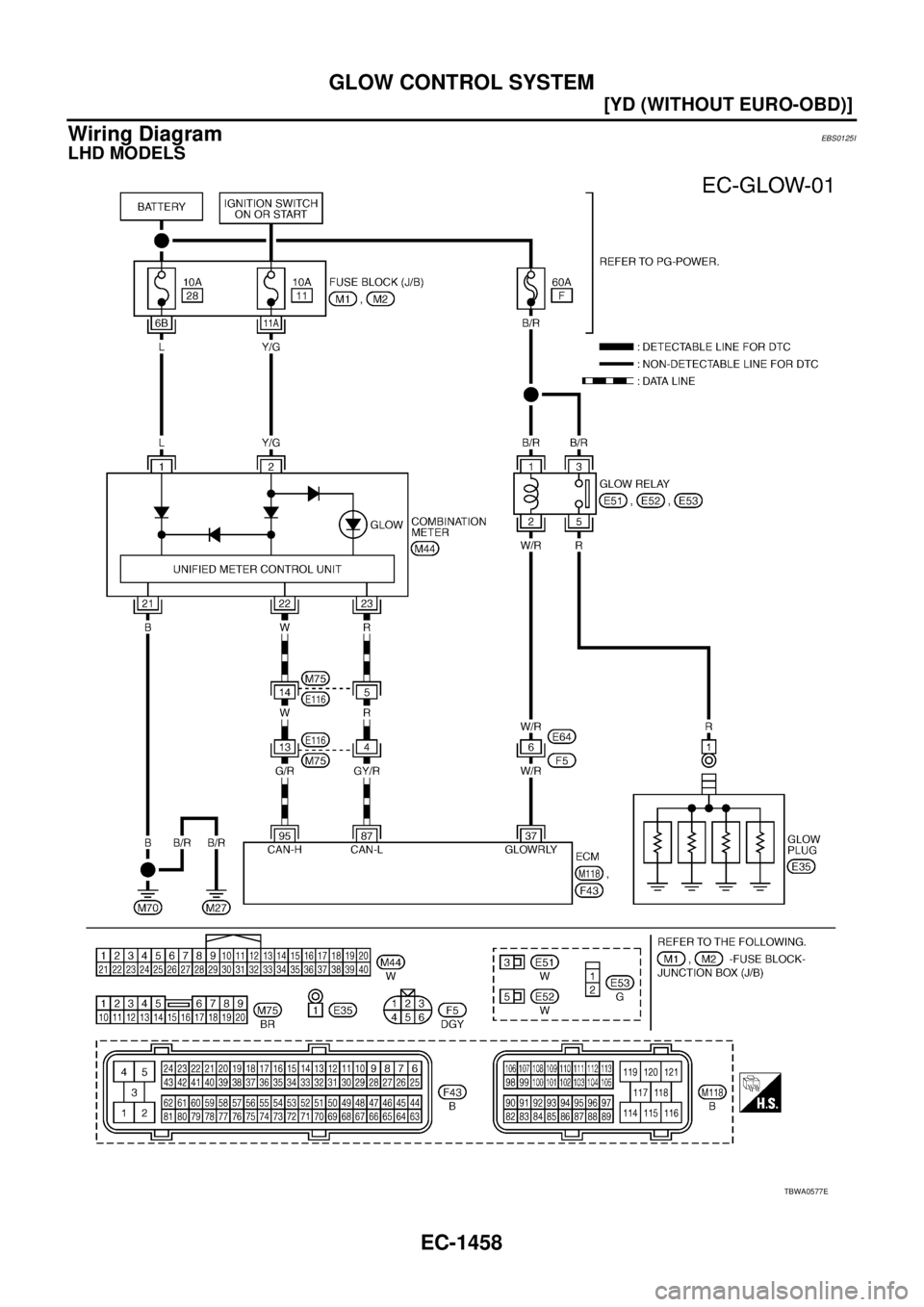

Wiring DiagramEBS0125I
