CAN SYSTEM (TYPE 2)
LAN-47
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
5. CHECK HARNESS FOR OPEN CIRCUIT
LHD models
1. Check continuity between TCM harness connector F46 termi-
nals 5 (G/R), 6 (GY/R) and ground.
2. Check continuity between harness connector M61 terminals 21
(L/R), 8 (B/W) and ground.
RHD models
Check continuity between TCM harness connector F46 termi-
nals 5 (G/R), 6 (GY/R) and ground.
OK or NG
OK >> GO TO 6.
NG >>
LHD models
Check the following harness. If any harness is dam-
aged, repair the harness.
–Harness between TCM and harness connector F41
–Harness between harness connector M61 and Harness connector M75
RHD models
–Repair harness between TCM and harness connector F36. 5 (G/R) – Ground : Continuity should not exist.
6 (GY/R) – Ground : Continuity should not exist.
SKIB0099E
21 (L/R) – Ground : Continuity should not exist.
8 (B/W) – Ground : Continuity should not exist.
SKIB0100E
5 (G/R) – Ground : Continuity should not exist.
6 (GY/R) – Ground : Continuity should not exist.
SKIB0099E
Page 3826 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual LAN-48
[CAN]
CAN SYSTEM (TYPE 2)
6. CHECK HARNESS FOR SHORT CIRCUIT
LHD models
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check continuity between ABS actuator and ele NISSAN X-TRAIL 2003 Service Repair Manual LAN-48
[CAN]
CAN SYSTEM (TYPE 2)
6. CHECK HARNESS FOR SHORT CIRCUIT
LHD models
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check continuity between ABS actuator and ele](/manual-img/5/57404/w960_57404-3825.png)
LAN-48
[CAN]
CAN SYSTEM (TYPE 2)
6. CHECK HARNESS FOR SHORT CIRCUIT
LHD models
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check continuity between ABS actuator and electric unit (control
unit) harness connector E69 terminals 20 (W) and 23 (R).
RHD models
1. Disconnect ABS actuator and electric unit (control unit) connector and harness connector E116.
2. Check continuity between ABS actuator and electric unit (control
unit) harness connector E69 terminals 20 (W) and 23 (R).
OK or NG
OK >> GO TO 7.
NG >> Repair harness between ABS actuator and electric unit
(control unit) and harness connector E116.
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E69 terminals 20 (W), 23 (R) and ground.
OK or NG
OK >> GO TO 8.
NG >> Repair harness between ABS actuator and electric unit
(control unit) and harness connector E116. 20 (W) – 23 (R) : Continuity should not exist.
SKIA9769E
20 (W) – 23 (R) : Continuity should not exist.
SKIA9769E
20 (W) – Ground : Continuity should not exist.
23 (R) – Ground : Continuity should not exist.
SKIA9778E
Page 3827 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 2)
LAN-49
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect 4WD control unit connector and combination meter connector.
2. Check continuity between c NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 2)
LAN-49
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect 4WD control unit connector and combination meter connector.
2. Check continuity between c](/manual-img/5/57404/w960_57404-3826.png)
CAN SYSTEM (TYPE 2)
LAN-49
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
8. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect 4WD control unit connector and combination meter connector.
2. Check continuity between combination meter harness connector
M44 terminals 22 (W) and 23 (R).
OK or NG
OK >> GO TO 9.
NG >> Check the following harness. If any harness is dam-
aged, repair the harness.
Harness between combination meter and 4WD con-
trol unit
Harness between combination meter and harness
connector M75
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between combination meter harness connector
M44 terminals 22 (W), 23 (R) and ground.
OK or NO
OK >> GO TO 10.
NG >> Check the following harness. If any harness is dam-
aged, repair the harness.
Harness between combination meter and 4WD con-
trol unit
Harness between combination meter and harness connector M75
10. CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT
Check components inspection. Refer to LAN-49, "
CHECK ECM AND COMBINATION METER INTERNAL
CIRCUIT" .
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-28, "Work Flow" .
NG >> Replace ECM and/or combination meter.
Component InspectionEKS00FIB
CHECK ECM AND COMBINATION METER INTERNAL CIRCUIT
Remove ECM and combination meter from vehicle.
Check resistance between ECM terminals 94 and 86.
Check resistance between combination meter terminals 22 and
23.22 (W) – 23 (R) : Continuity should not exist.
SKIA9780E
22 (W) – Ground : Continuity should not exist.
23 (R) – Ground : Continuity should not exist.
SKIA9980E
Unit TerminalResistance (Ω)
(Approx.)
ECM 94 – 86
108 – 132
Combination meter 22 – 23
PKIA0830E
Page 3828 of 4179
LAN-50
[CAN]
CAN SYSTEM (TYPE 3)
CAN SYSTEM (TYPE 3)PFP:23710
System DescriptionEKS00FV3
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Component Parts and Harness Connector LocationEKS00FV4
SKIB0125E
Page 3829 of 4179
CAN SYSTEM (TYPE 3)
LAN-51
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

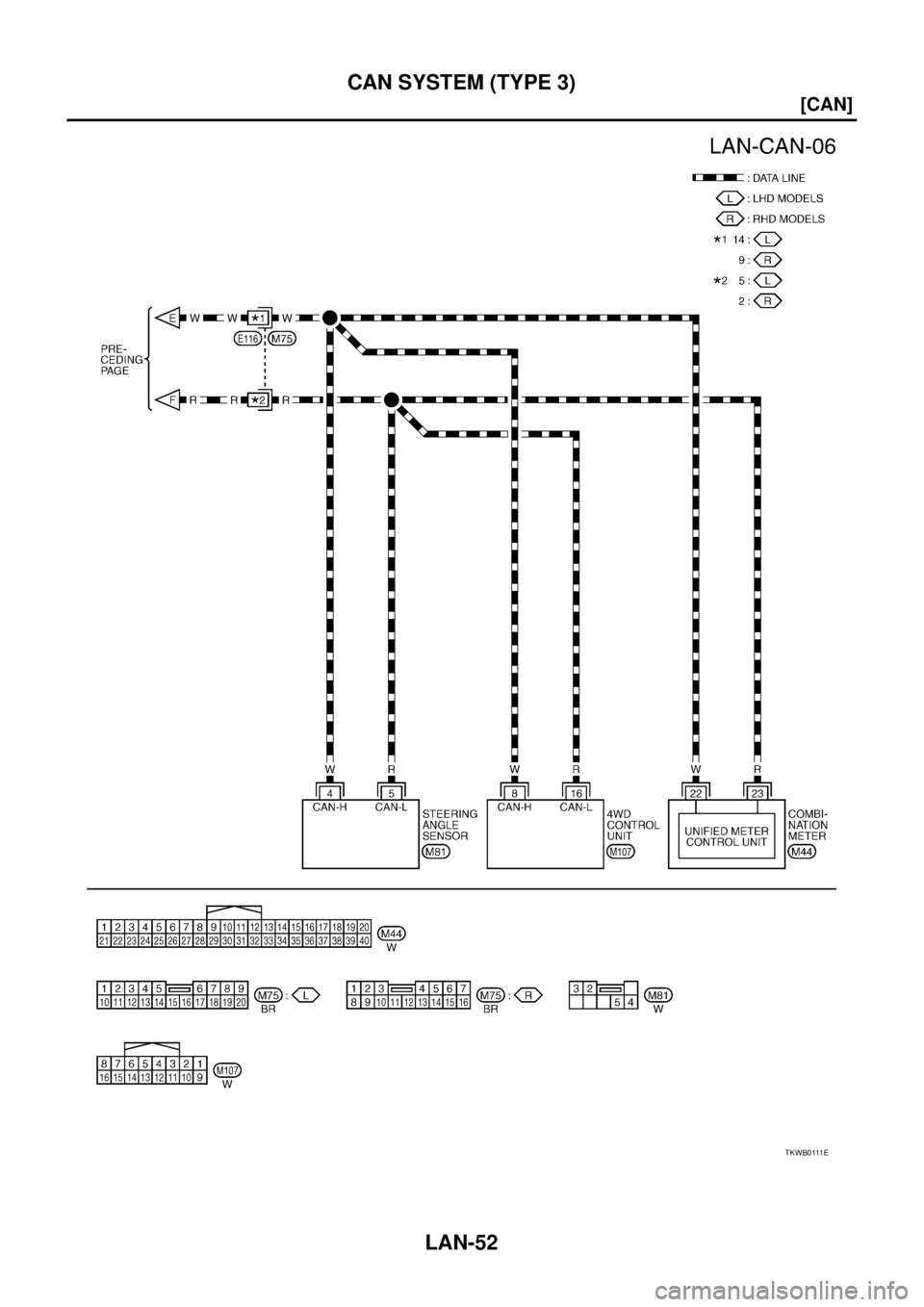

Wiring Diagram — CAN —EKS00FV5
TKWB0110E
Page 3830 of 4179
LAN-52
[CAN]
CAN SYSTEM (TYPE 3)
T K W B 0 111 E
Page 3831 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 3)
LAN-53
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00FV6
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed
on CON NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 3)
LAN-53
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00FV6
1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed
on CON](/manual-img/5/57404/w960_57404-3830.png)
CAN SYSTEM (TYPE 3)
LAN-53
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Work FlowEKS00FV6

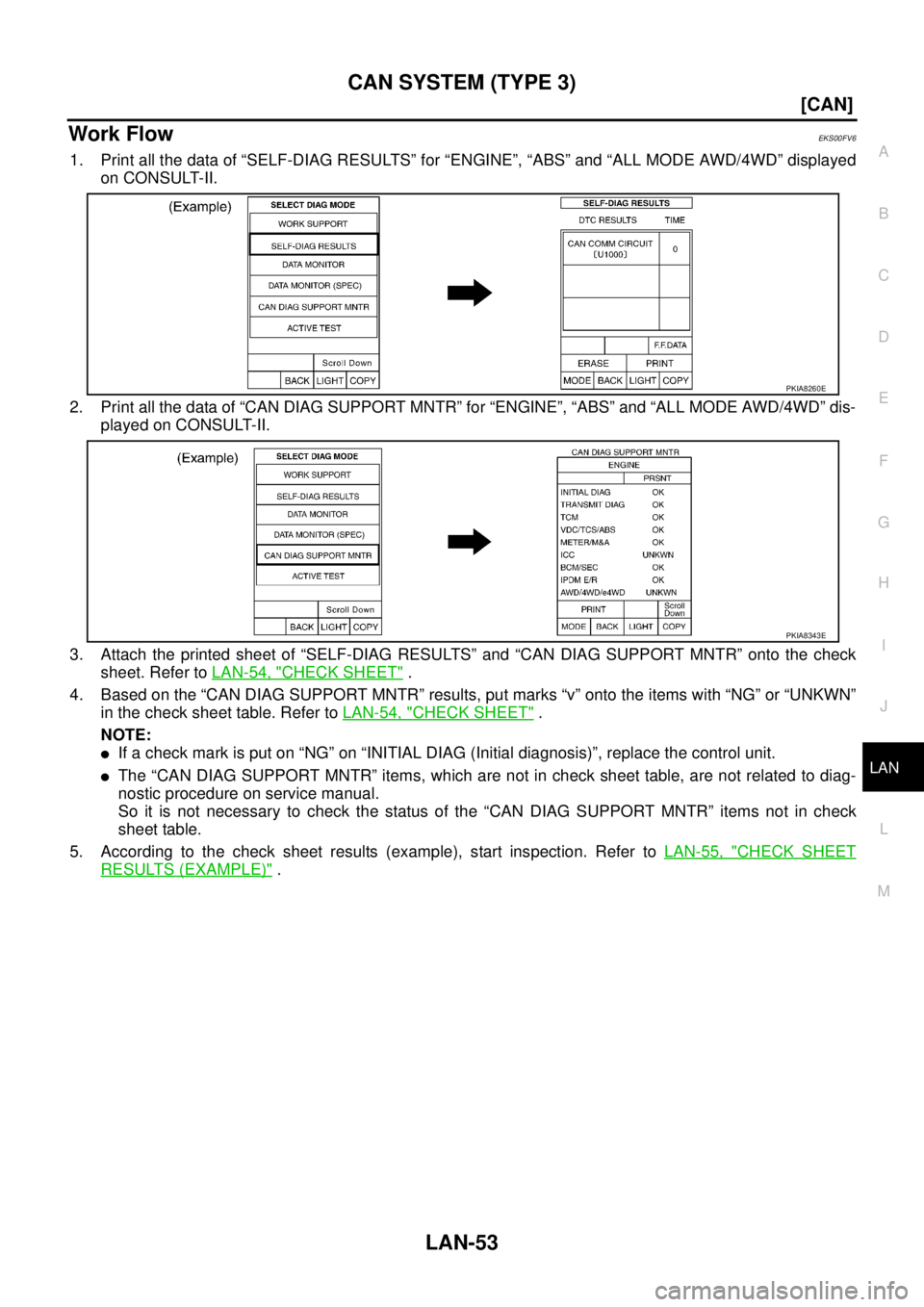

1. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” displayed
on CONSULT-II.
2. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “ABS” and “ALL MODE AWD/4WD” dis-
played on CONSULT-II.
3. Attach the printed sheet of “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT MNTR” onto the check
sheet. Refer to LAN-54, "
CHECK SHEET" .
4. Based on the “CAN DIAG SUPPORT MNTR” results, put marks “v” onto the items with “NG” or “UNKWN”
in the check sheet table. Refer to LAN-54, "
CHECK SHEET" .
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of the “CAN DIAG SUPPORT MNTR” items not in check
sheet table.
5. According to the check sheet results (example), start inspection. Refer to LAN-55, "
CHECK SHEET
RESULTS (EXAMPLE)" .
PKIA8260E
PKIA8343E
Page 3832 of 4179
LAN-54
[CAN]
CAN SYSTEM (TYPE 3)

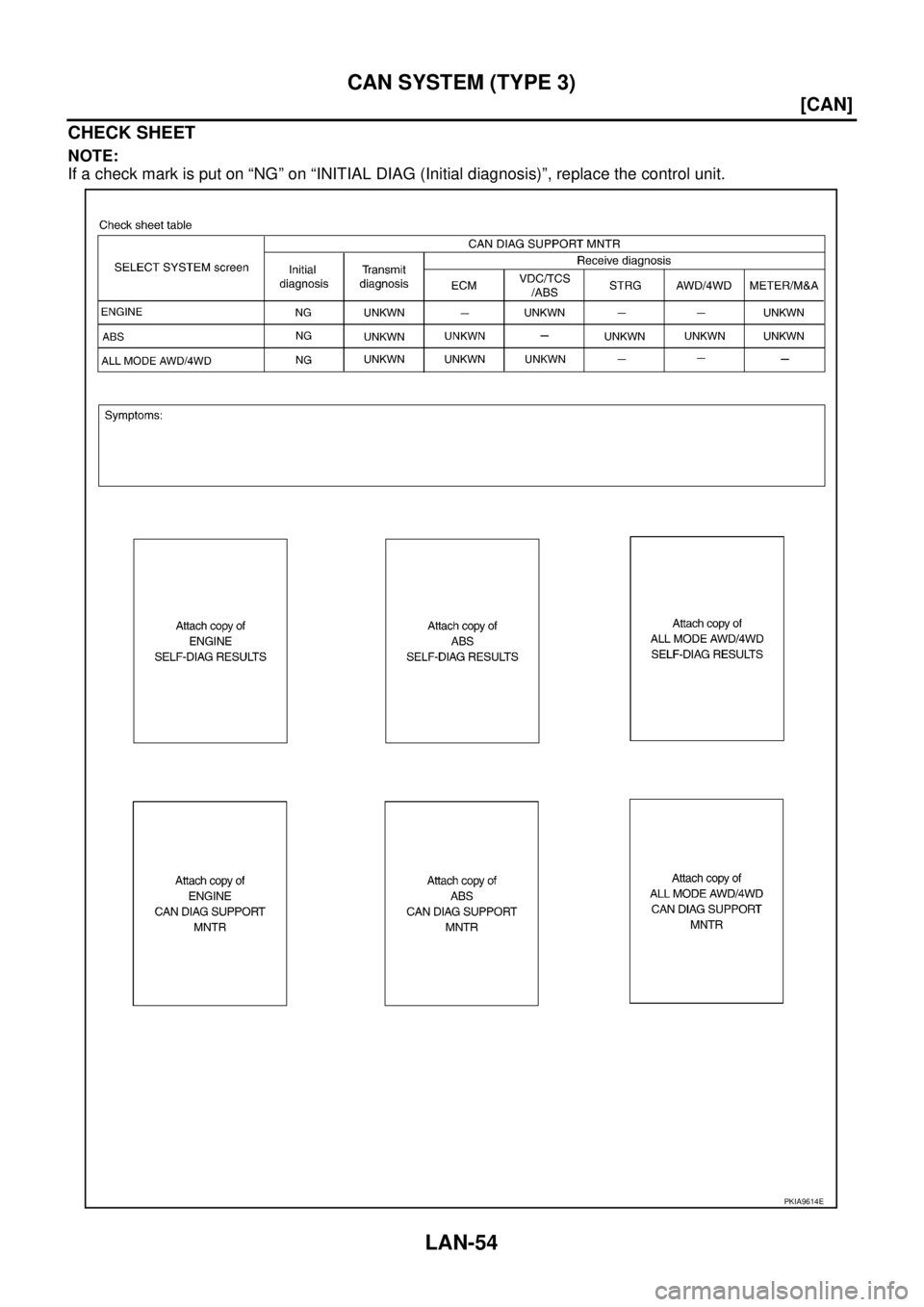

CHECK SHEET
