Page 729 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE EC-351 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC 13. Restart engine and make sure that cooling fan operates at higher speed than low speed. Be careful not to o

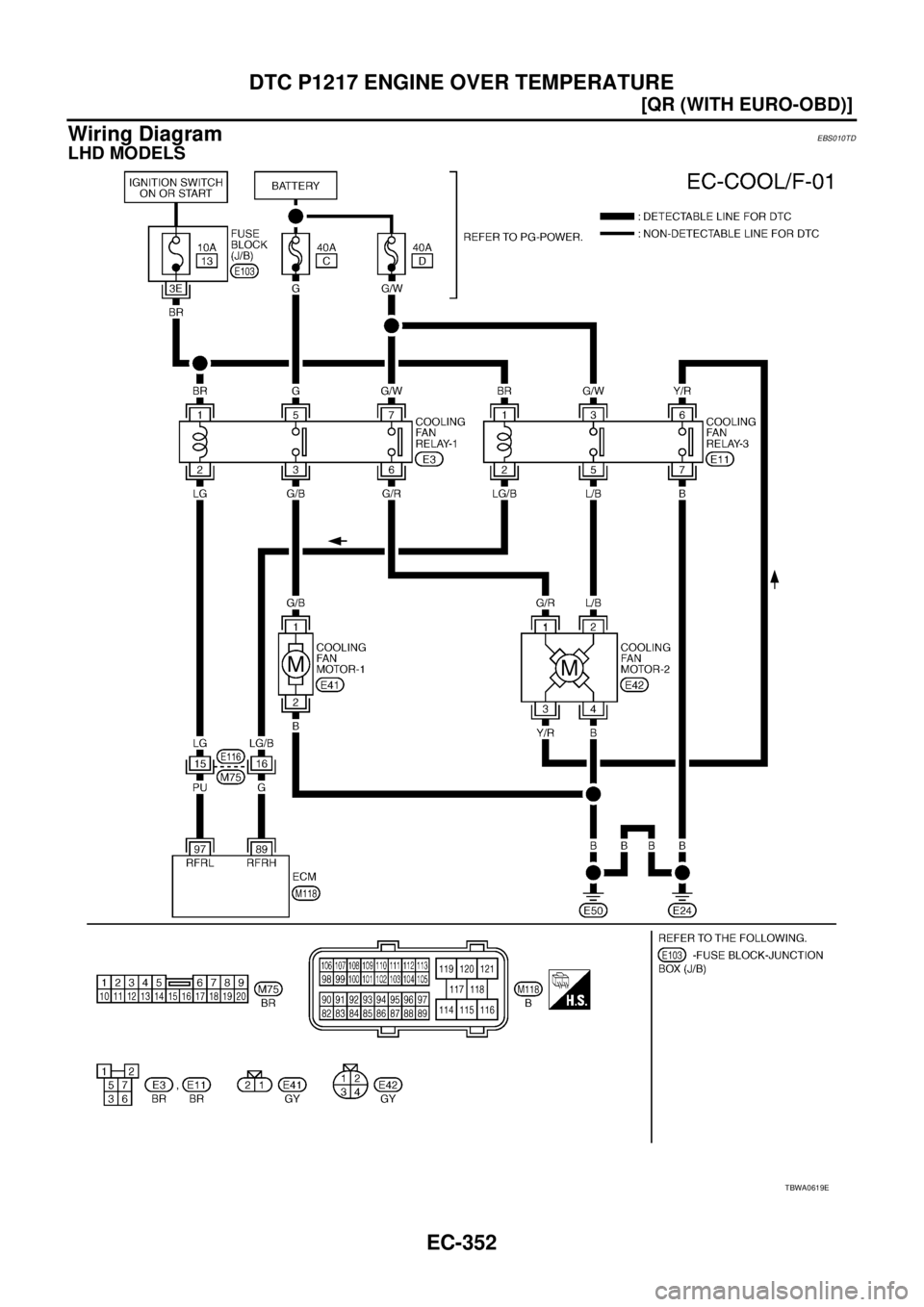

Page 730 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-352 [QR (WITH EURO-OBD)] DTC P1217 ENGINE OVER TEMPERATURE Wiring DiagramEBS010TD LHD MODELS TBWA0619E

Page 731 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE EC-353 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use

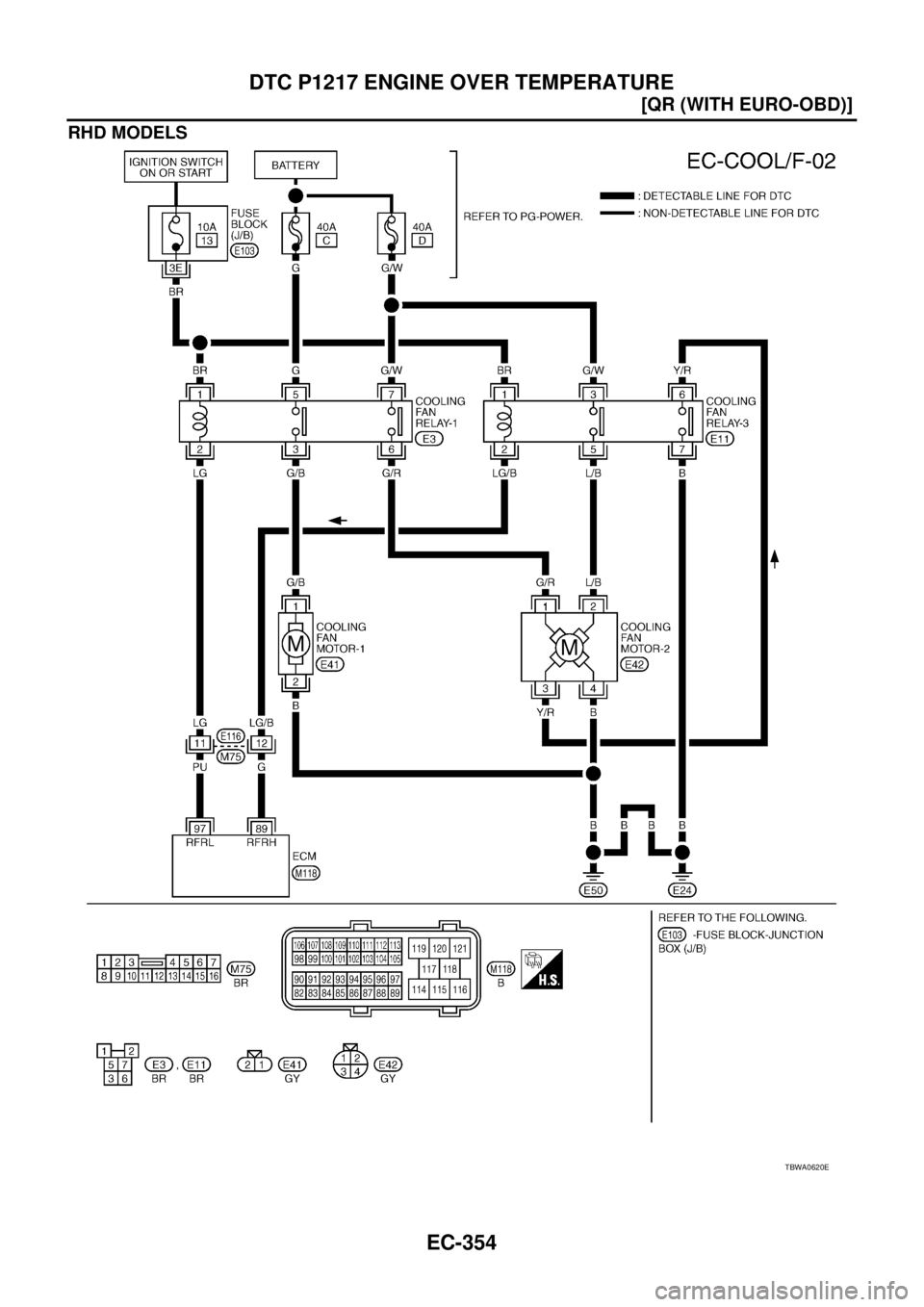

Page 732 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-354 [QR (WITH EURO-OBD)] DTC P1217 ENGINE OVER TEMPERATURE RHD MODELS TBWA0620E

Page 733 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE EC-355 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use

Page 734 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-356 [QR (WITH EURO-OBD)] DTC P1217 ENGINE OVER TEMPERATURE 4. CHECK COOLING FAN LOW SPEED OPERATION Without CONSULT-II 1. Disconnect cooling fan relay-3. 2. Start engine and let it idle. 3. Turn

Page 735 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1217 ENGINE OVER TEMPERATURE EC-357 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC 6. CHECK COOLING SYSTEM FOR LEAK Apply pressure to the cooling system with a tester, and check if the pressure

Page 736 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-358 [QR (WITH EURO-OBD)] DTC P1217 ENGINE OVER TEMPERATURE 9. CHECK THERMOSTAT 1. Remove thermostat. 2. Check valve seating condition at normal room temperatures. It should seat tightly. 3. Check
