NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
EC-927
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

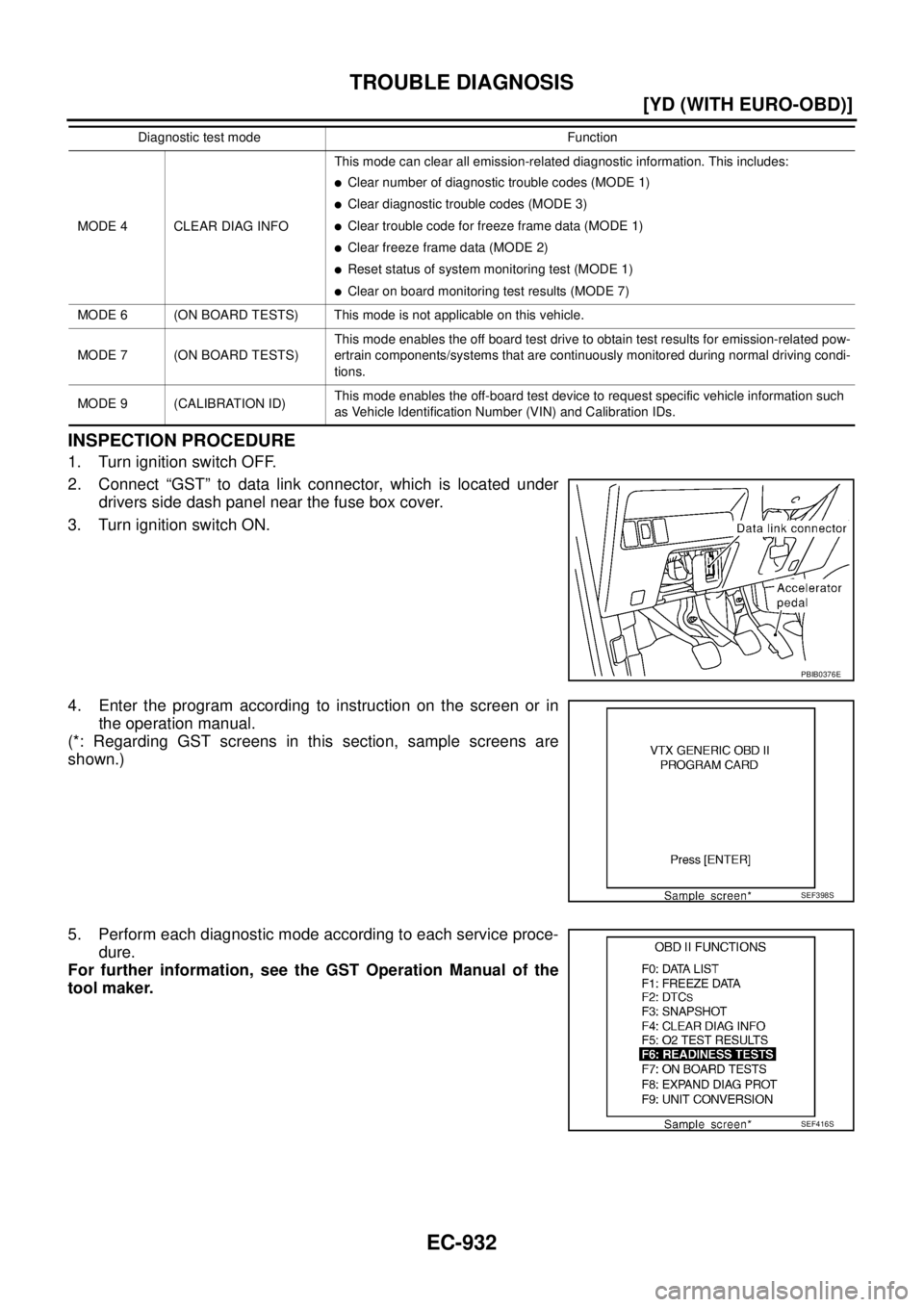

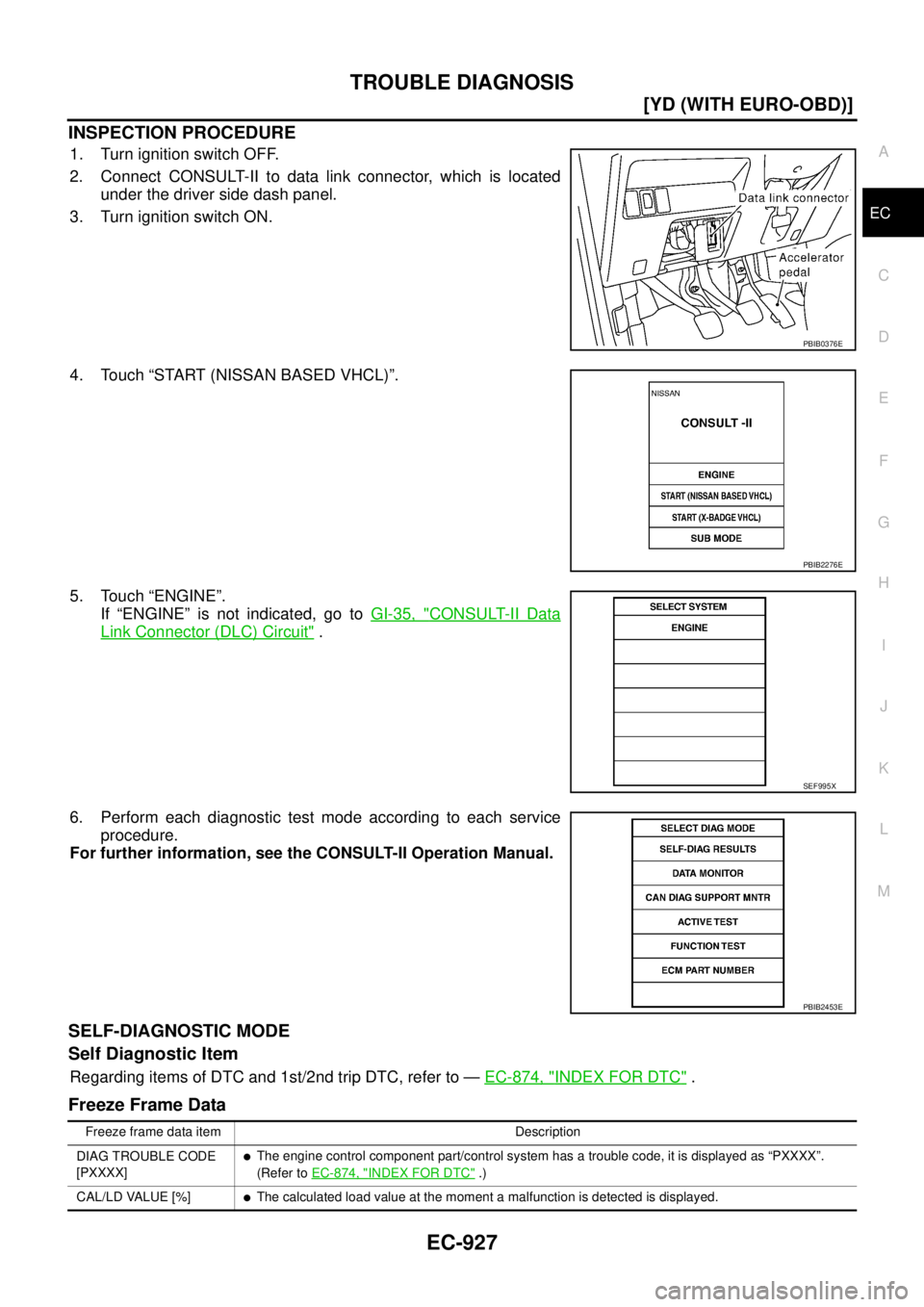

INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect CONSULT-II to data link connector, which is located
under the dri

Page 1306 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-928
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

DATA MONITOR MODE
COOLANT TEMP [°C] or
[°F]The engine coolant temperature at the moment a malfunction is detected is displayed.
ENGINE SPEED [rpm]

EC-928
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

DATA MONITOR MODE
COOLANT TEMP [°C] or
[°F]The engine coolant temperature at the moment a malfunction is detected is displayed.
ENGINE SPEED [rpm]
The engine speed at the moment a malfunction is detected is displayed.
VEHICL SPEED [km/h] or
[mph]
The vehicle speed at the moment a malfunction is detected is displayed.
INT MANI PRES [kPa]
The intake manifold pressure at the moment a malfunction is detected is displayed. Freeze frame data item Description
MONITOR ITEMECM
INPUT
SIGNALMAIN
SIG-
NALSCONDITION SPECIFICATION
CKPS·RPM (TDC) [rpm]××
The engine speed computed from the
crankshaft position sensor signal is dis-
played.
COOLAN TEMP/S
[°C] or [°F]××
The engine coolant temperature (deter-
mined by the signal voltage of the engine
coolant temperature sensor) is dis-
played.When the engine coolant temper-
ature circuit is open or short, ECM
enters fail-safe mode. The engine
coolant temperature determined
by the ECM is displayed.
VHCL SPEED SE
[km/h] or [mph]××
The vehicle speed computed form the
vehicle speed sensor signal is displayed.
FUEL TEMP SEN
[°C] or [°F]××
The fuel temperature (determined by the
signal voltage of the fuel pump tempera-
ture sensor) is displayed.
ACCEL POS SEN [V]××
The accelerator pedal position sensor 1
signal voltage is displayed.
ACCEL SEN 2 [V]××
The accelerator pedal position sensor 2
signal voltage is displayed.
ACT CR PRESS [MPa]××
The Fuel rail pressure (determined by
the signal voltage of the fuel rail pressure
sensor) is displayed.
BATTERY VOLT [V]××
The power supply voltage of ECM is dis-
played.
P/N POSI SW [ON/OFF]××
Indicates [ON/OFF] condition from the
park/neutral position switch signal.
START SIGNAL [ON/OFF]××
indicates [ON/OFF] condition from the
starter signal.
PW/ST SIGNAL [ON/OFF]×
indicates [ON/OFF] condition from the
power steering pressure switch signal.
BRAKE SW [ON/OFF]××
indicates [ON/OFF] condition from the
stop lamp switch signal.
IGN SW [ON/OFF]××
Indicates [ON/OFF] condition from igni-
tion switch signal.
MAS AIR/FL SE [V]××
The signal voltage of the mass air flow
sensor is displayed.
MAIN INJ WID [msec]×
Indicates the actual fuel injection pulse
width compensated by ECM according to
the input signals.
PUMP CURRENT [mA]×
Indicates the fuel pump power supply
current from the ECM.
GLOW RLY [ON/OFF]×
The glow relay control condition (deter-
mined by ECM according to the input sig-
nal) is displayed.

Page 1307 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
EC-929
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TES

TROUBLE DIAGNOSIS
EC-929
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
ACTIVE TEST MODE
COOLING FAN
[LOW/HI/OFF]×
Indicates the control condition of the
cooling fans (determined by ECM
according to the input signal).
LOW ... Operates at low speed.
HI ... Operates at high speed.
OFF ... Stopped
EGR VOL CON/V [step]×
Indicates the EGR volume control value
computed by the ECM according to the
input signals.
The opening becomes larger as the
value increases.
INT/A VOLUME [mg/]
The intake air volume computed from the
mass air flow sensor signal is displayed.
BARO SEN [kPa]××
The barometric pressure (determined by
the signal voltage from the absolute
pressure sensor built into the ECM) is
displayed.
INT/M PRES SE [kPa]
Turbocharger boost (determined by the
signal voltage from the turbocharger
boost sensor) is displayed.
CYL COUNT [1/2/3/4]
The cylinder being injected is displayed.
1 ... Cylinder No.1 is injected.
2 ... Cylinder No.2 is injected.
3 ... Cylinder No.3 is injected.
4 ... Cylinder No.4 is injected.
Voltage [V]
Voltage, frequency, duty cycle or pulse
width measured by the probe.Only “#” is displayed if item is
unable to be measured.
Figures with “#”s are temporary
ones.
They are the same figures as an
actual piece of data which was
just previously measured. [Hz] or
[%] Frequency [msec], [Hz] or
[%]
DUTY-HI
DUTY-LOW
PLS WIDTH-HI
PLS WIDTH-LOWMONITOR ITEMECM
INPUT
SIGNALMAIN
SIG-
NALSCONDITION SPECIFICATION
TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
POWER BAL-
ANCE
Engine: After warming up, idle the
engine.
A/C switch: OFF
Shift lever: N
Cut off each injector signal one at
a time using CONSULT-IIEngine runs rough or dies.
Harness and connectors
Compression
Fuel injector
COOLING FAN *
Ignition switch: ON
Operate the cooling fan at LOW,
HI speed and turn OFF using
CONSULT-II.Cooling fan moves at LOW, HI
speed and stops.
Harness and connector
Cooling fan motor
Cooling fan relay
ENG COOLANT
TEMP
Engine: Return to the original
trouble condition
Change the engine coolant tem-
perature using CONSULT-II.If trouble symptom disappears, see
CHECK ITEM.
Harness and connectors
Engine coolant temperature sen-
sor
Fuel injector

Page 1308 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-930
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

*:Leaving cooling fan OFF with CONSULT-II while engine is running may cause the engine to overheat.
REAL TIME DIAGNOSIS IN DATA MONITOR MODE
CONSULT-II

EC-930
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

*:Leaving cooling fan OFF with CONSULT-II while engine is running may cause the engine to overheat.
REAL TIME DIAGNOSIS IN DATA MONITOR MODE

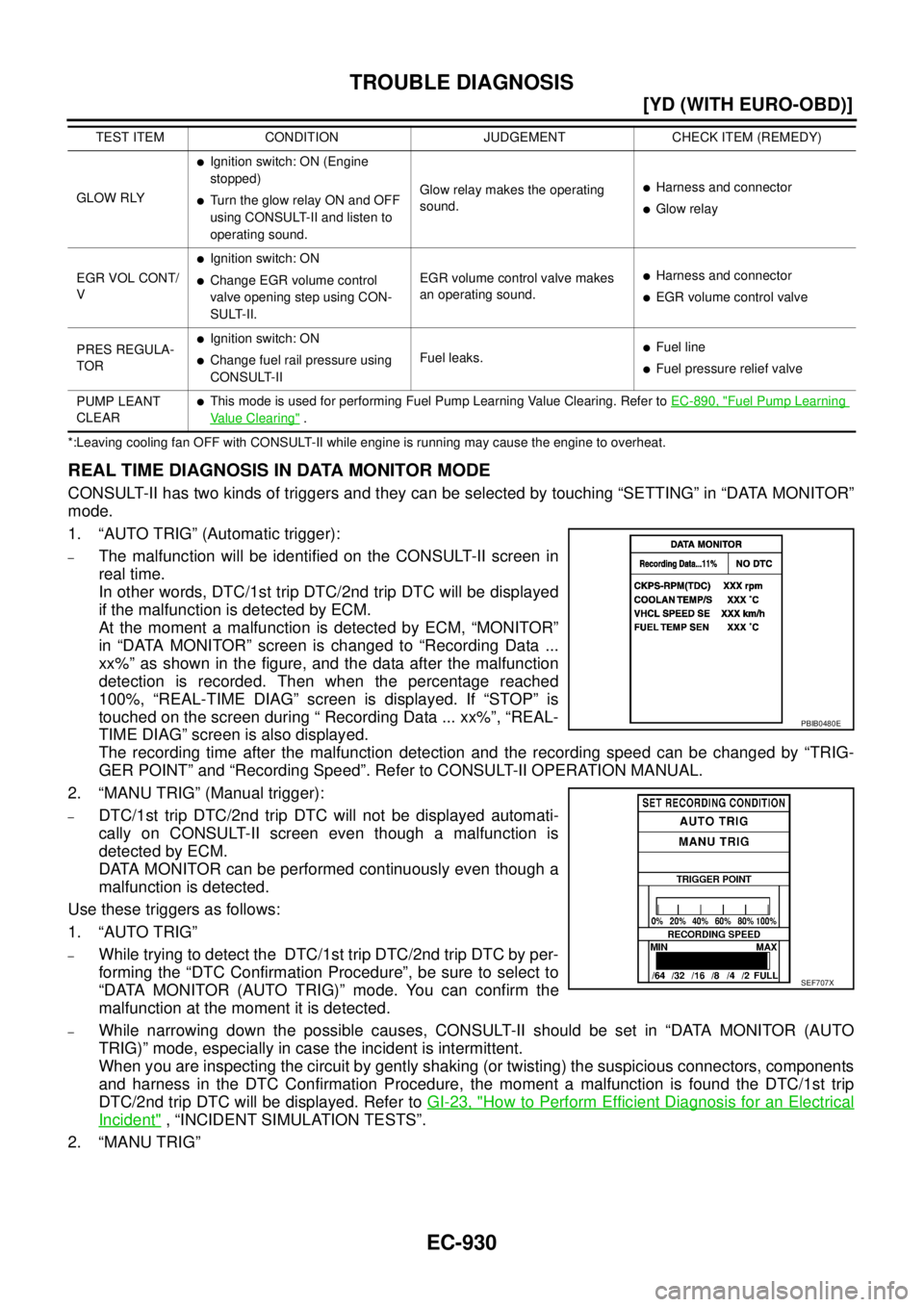

CONSULT-II has two kinds of triggers and they can be selected by touching “SETTING” in “DATA MONITOR”
mode.
1. “AUTO TRIG” (Automatic trigger):
–The malfunction will be identified on the CONSULT-II screen in
real time.
In other words, DTC/1st trip DTC/2nd trip DTC will be displayed
if the malfunction is detected by ECM.
At the moment a malfunction is detected by ECM, “MONITOR”
in “DATA MONITOR” screen is changed to “Recording Data ...
xx%” as shown in the figure, and the data after the malfunction
detection is recorded. Then when the percentage reached
100%, “REAL-TIME DIAG” screen is displayed. If “STOP” is
touched on the screen during “ Recording Data ... xx%”, “REAL-
TIME DIAG” screen is also displayed.
The recording time after the malfunction detection and the recording speed can be changed by “TRIG-
GER POINT” and “Recording Speed”. Refer to CONSULT-II OPERATION MANUAL.
2. “MANU TRIG” (Manual trigger):
–DTC/1st trip DTC/2nd trip DTC will not be displayed automati-
cally on CONSULT-II screen even though a malfunction is
detected by ECM.
DATA MONITOR can be performed continuously even though a
malfunction is detected.
Use these triggers as follows:
1. “AUTO TRIG”
–While trying to detect the DTC/1st trip DTC/2nd trip DTC by per-
forming the “DTC Confirmation Procedure”, be sure to select to
“DATA MONITOR (AUTO TRIG)” mode. You can confirm the
malfunction at the moment it is detected.
–While narrowing down the possible causes, CONSULT-II should be set in “DATA MONITOR (AUTO
TRIG)” mode, especially in case the incident is intermittent.
When you are inspecting the circuit by gently shaking (or twisting) the suspicious connectors, components
and harness in the DTC Confirmation Procedure, the moment a malfunction is found the DTC/1st trip
DTC/2nd trip DTC will be displayed. Refer to GI-23, "
How to Perform Efficient Diagnosis for an Electrical
Incident" , “INCIDENT SIMULATION TESTS”.
2. “MANU TRIG”
GLOW RLY
Ignition switch: ON (Engine
stopped)
Turn the glow relay ON and OFF
using CONSULT-II and listen to
operating sound.Glow relay makes the operating
sound.Harness and connector
Glow relay
EGR VOL CONT/
V
Ignition switch: ON
Change EGR volume control
valve opening step using CON-
SULT-II.EGR volume control valve makes
an operating sound.Harness and connector
EGR volume control valve
PRES REGULA-
TOR
Ignition switch: ON
Change fuel rail pressure using
CONSULT-IIFuel leaks.Fuel line
Fuel pressure relief valve
PUMP LEANT
CLEAR
This mode is used for performing Fuel Pump Learning Value Clearing. Refer to EC-890, "Fuel Pump Learning
Value Clearing" . TEST ITEM CONDITION JUDGEMENT CHECK ITEM (REMEDY)
PBIB0480E
SEF707X

Page 1309 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
EC-931
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

–If the malfunction is displayed as soon as “DATA MONITOR” is selected, reset CONSULT-II to “MANU
TRIG”. By selectin

Page 1310 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-932
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

INSPECTION PROCEDURE
1. Turn ignition switch OFF.
2. Connect “GST” to data link connector, which is located under
drivers side dash panel near the f

Page 1311 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
EC-933
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

CONSULT-II Reference Value in Data Monitor ModeEBS0117H
Remarks:
Specification data are reference values.
Specification da

TROUBLE DIAGNOSIS
EC-933
[YD (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

CONSULT-II Reference Value in Data Monitor ModeEBS0117H
Remarks:
Specification data are reference values.
Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
MONITOR ITEM CONDITION SPECIFICATION
CKPS-RPM (TDC)
Run engine and compare CONSULT-II value with the tachometer
indication.Almost the same speed as the
tachometer indication
COOLAN TEMP/S
Engine: After warming up More than 70°C (158°F)
VHCL SPEED SE
Turn drive wheels and compare CONSULT-II value with the speed-
ometer indicationAlmost the same speed as the
speedometer indication
FUEL TEMP SEN
Engine: After warming up More than 40°C (104°F)
ACCEL POS SEN*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.2 - 0.7V
Accelerator pedal: Fully depressed 3.9 - 4.9V
ACCEL SEN 2*
Ignition switch: ON
(Engine stopped)Accelerator pedal: Fully released 0.1 - 0.4V
Accelerator pedal: Fully depressed 1.9 - 2.4V
MAS AIR/FL SE*
Engine: After warming up
Air conditioner switch: OFF
Shift lever: Neutral position
No-loadIdle 1.5 - 2.0V
2,000 rpm 2.2 - 2.7V
BATTERY VOLT
Ignition switch: ON (Engine stopped) 11 - 14V
P/N POSI SW
Ignition switch: ONShift lever: Neutral position ON
Except above OFF
START SIGNAL
Ignition switch: ON → START → ON OFF → ON → OFF
PW/ST SIGNAL
Engine: After warming up, idle
the engineSteering wheel is in neutral posi-
tion. (Forward direction)OFF
Steering wheel is turned. ON
BRAKE SW
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
IGN SW
Ignition switch: ON → OFF ON → OFF
ACT CR PRESS
Engine: After warming up
Air conditioner switch: OFF
Shift lever: Neutral position
No-loadIdle 20 - 30 MPa
2,000 rpm 45 - 55 MPa
MAIN INJ WID
Engine: After warming up
Shift lever: Neutral position
Idle speedNo-load 0.68 - 0.78 msec
Blower fan switch: ON
Rear window defogger switch: ON0.78 - 0.88 msec
GLOW RLY Refer to EC-1169, "
GLOW CONTROL SYSTEM" .
PUMP CURRENT
Engine: After warming up
Air conditioner switch: OFF
Shift lever: Neutral position
No-loadIdle 1,700 - 1,900 mA
2,000 rpm 1,600 - 1,800 mA
COOLING FAN
When cooling fan is stopped. OFF
When cooling fans operate at low speed. LOW
When cooling fans operate at high speed. HI
EGR VOL CON/V
Engine: After warming up
Air conditioner switch: OFF
Shift lever: Neutral position
No-loadAfter 1 minute at idle More than 10 steps
Revving engine from idle to 3,600
rpm0 step

Page 1312 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-934
[YD (WITH EURO-OBD)]
TROUBLE DIAGNOSIS

NOTE:
Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
*: These signals are converted by EC

Load next 8 pages

Page: < prev 1-10 ... 1273-1280 1281-1288 1289-1296 1297-1304 1305-1312 1313-1320 1321-1328 1329-1336 1337-1344 ... 4184 next >

fuse box diagram wheel torque light climate control carplay oil viscosity
