Page 3265 of 4179
POWER WINDOW SYSTEM
GW-79
C
D
E
F
G
H
J
K
L
MA
B
GW
5. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Connect power window main switch connector.
2.(LHD models)
Check voltage between power window main switch connector
D7 terminal 6 and ground.
(RHD models)
Check voltage between power window main switch connector
D7 terminal 2 and ground.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Replace power window main switch. 6 (R) - Ground : Battery voltage
PIIA9613E
2 (R) - Ground : Battery voltage
PIIA9614E
Page 3266 of 4179
GW-80
FRONT DOOR GLASS AND REGULATOR

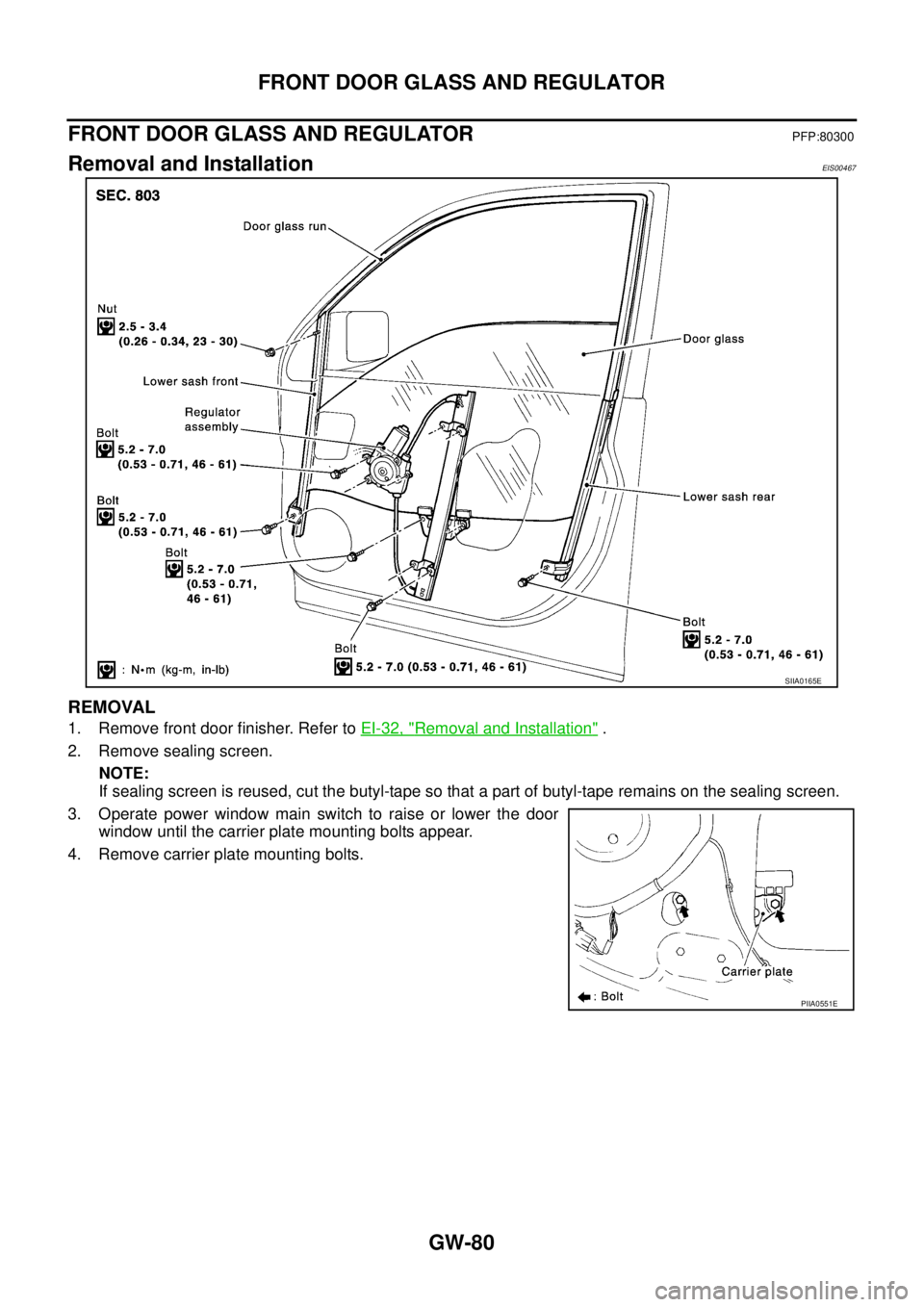

FRONT DOOR GLASS AND REGULATORPFP:80300
Removal and InstallationEIS00467
REMOVAL
1. Remove front door finisher. Refer to EI-32, "Removal and Installation" .
2. Remove sealing screen.
NOTE:
If sealing screen is reused, cut the butyl-tape so that a part of butyl-tape remains on the sealing screen.
3. Operate power window main switch to raise or lower the door
window until the carrier plate mounting bolts appear.
4. Remove carrier plate mounting bolts.
SIIA0165E
PIIA0551E
Page 3267 of 4179

FRONT DOOR GLASS AND REGULATOR
GW-81
C
D
E
F
G
H
J
K
L
MA
B
GW
5. While holding door window, raise it at the rear end to pull glass
out of the sash toward the outside of door.
6. Disconnect power window motor connector.
7. Remove regulator assembly and guide rail mounting bolts
through the access hole.
INSTALLATION
Install in the reverse order of removal.
INSPECTION AFTER REMOVAL
Check regulator assembly for the following items. If a malfunction is
detected, replace or grease it.
Wire wear
Regulator deformation
Grease condition for each sliding part
The arrows in the figure show body grease application points of the
body grease.
INSPECTION AFTER INSTALLATION
Setting of Limit Switch (Driver side)
If any of the following work has been done, set the limit switch (integrated in the motor).
Removal and installation of regulator
Removal and installation of motor from the regulator
Operate regulators as a unit
Removal and installation of glass
Removal and installation of glass run
OCC3422D
PIIA0552E
OCC3424D
Page 3268 of 4179
GW-82
FRONT DOOR GLASS AND REGULATOR
Reset Operation
After installing each component to the vehicle, follow the steps
below.
1. Raise glass to the top position.
2. While pressing and holding reset switch, lower glass to the bot-
tom position.
3. Release reset switch, and check that reset switch returns to the
original position. Then raise glass to the top position.
CAUTION:
Do not operate glass automatically to raise glass to the top
position.
FITTING INSPECTION
Check that glass is securely fit into glass run groove.
While raising and lowering the window, check for abnormal operation.
Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the sash
is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,
guide rail mounting bolts, and glass & carrier plate mounting bolts to correct the glass position.
PIIA0553E
Page 3269 of 4179
REAR DOOR GLASS AND REGULATOR
GW-83
C
D
E
F
G
H
J
K
L
MA
B
GW

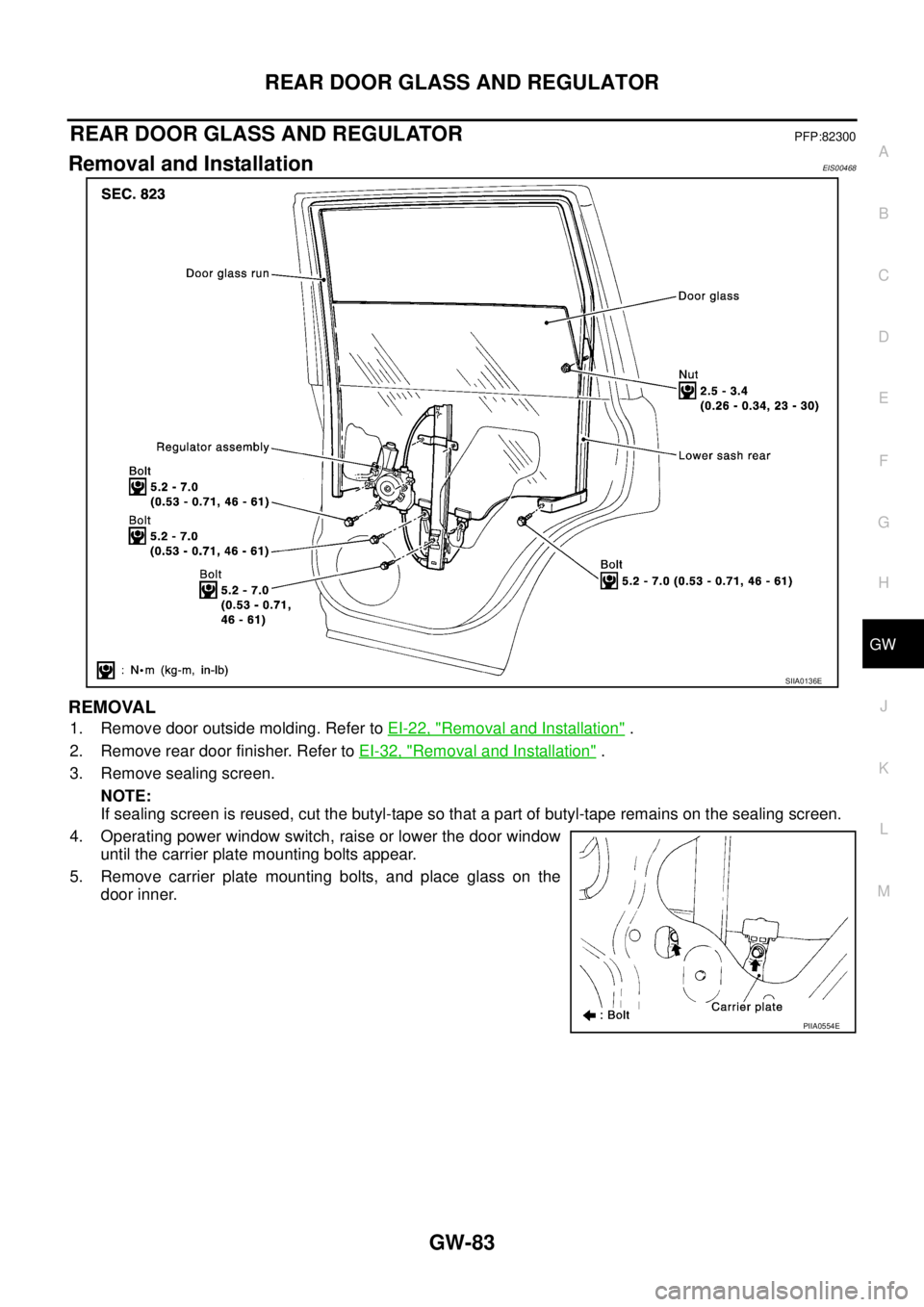

REAR DOOR GLASS AND REGULATORPFP:82300
Removal and InstallationEIS00468
REMOVAL
1. Remove door outside molding. Refer to EI-22, "Removal and Installation" .
2. Remove rear door finisher. Refer to EI-32, "
Removal and Installation" .
3. Remove sealing screen.
NOTE:
If sealing screen is reused, cut the butyl-tape so that a part of butyl-tape remains on the sealing screen.
4. Operating power window switch, raise or lower the door window
until the carrier plate mounting bolts appear.
5. Remove carrier plate mounting bolts, and place glass on the
door inner.
SIIA0136E
PIIA0554E
Page 3270 of 4179
GW-84
REAR DOOR GLASS AND REGULATOR
6. Using a slotted screwdriver or similar tool, remove clip on the
corner inner cover. Slide upper hook to remove, and remove the
cover.
7. Slide the corner inner cover sash cover forward to remove.
8. Remove corner outer cover mounting bolts. Disconnect upper
hook, and remove the cover.
9. Remove mounting nuts on upper portion of rear lower sash.
10. Remove mounting bolts from lower portion of rear lower sash.
11. Rotate rear lower sash, and remove door window from glass
run.
12. Pull out the door window toward the outside of the door to
remove.
13. Remove glass run from rear lower sash.
14. Remove rear lower sash.
15. Disconnect power window motor connector.
SIIA0132E
SIIA0140E
SIIA0133E
SIIA0134E
Page 3271 of 4179

REAR DOOR GLASS AND REGULATOR
GW-85
C
D
E
F
G
H
J
K
L
MA
B
GW
16. Remove regulator assembly and the guide rail mounting bolts
through the access hole.
INSTALLATION
Install in the reverse order of removal.
INSPECTION AFTER REMOVAL
Check regulator assembly for the following items. If a malfunction is
detected, replace or grease it.
Gear wear
Regulator deformation
Spring damage
Grease condition for each sliding part
The arrows in the figure show body grease application points of the
grease “Dow Corning Moly Coat SK 623” or equivalent.
FITTING INSPECTION
Check that glass is securely fit into glass run groove.
While raising and lowering the window, check for abnormal operation.
Lower the glass slightly [approx. 10 to 20 mm (0.39 to 0.79 in)], and check that the clearance to the sash
is parallel. If the clearance between the glass and sash is not parallel, loosen the regulator mounting bolts,
guide rail mounting bolts, and glass & carrier plate mounting bolts to correct the glass position.
PIIA0556E
OCC3565D
Page 3272 of 4179

GW-86
DOOR MIRROR
DOOR MIRRORPFP:96301
Precautions to Handle Retractable Power Door MirrorsEIS004JO
Do not manually operate retractable power door mirrors. If mirror
is operated manually, be sure to use the retracting switch to
move mirror fully to the opposite direction until it stops. In this
case, a loud click sound is heard, but it is not abnormal. (If mirror
body is manually moved to the neutral position, door mirror will
have some disturbing symptoms during driving, including vibra-
tion, rough retracting movement, or sometimes no retracting.)
CAUTION:
Tilting mirror body forward with excessive force may dam-
age it.
When operating retracting switch to move mirror from the neu-
tral position to the fully-closed (backward limit) position, at the
beginning of the movement a faint click sound is heard, but it is not abnormal.
RH and LH retractable power door mirror bodies have different mounting angles in the neutral position.
This is why the RH mirror body delays slightly when operated with the retracting switch.
NOTE:
When the retractable power door mirror body is in the neutral
position, if retracting switch is operated to the opening direc-
tion while pressing it forward, mirror body is moved to the for-
ward limit position, but it is not abnormal. In this case, be sure
to operate retracting switch to move mirror to the fully-closed
(backward limit) position.
When the retracting switch is operated continuously 5 times
or more, the retractable power door mirror may be inactivated
to prevent overheating. In this case, wait for approximately 5
minutes to recover.
PIIA0513E
PIIA0514E
