Page 3025 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
SRS-21
C
D
E
F
G
I
J
K
L
MA
B
SRS

10. After repairing the malfunction, touch “SELF-DIAG [CURRENT]”
to check that “No DTC IS DETECTED” is displayed.
After checking the disp

Page 3026 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual SRS-22
TROUBLE DIAGNOSIS

Diagnostic Code ChartEHS000O9
Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”
NO DTC IS
DETECTED.When malfunction is
indicated by the “AIR

SRS-22
TROUBLE DIAGNOSIS

Diagnostic Code ChartEHS000O9
Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”
NO DTC IS
DETECTED.When malfunction is
indicated by the “AIR
BAG” warning lamp in
User mode.
Low battery voltage (Less than 9V)Go to SRS-21, "DIAGNOSTIC PRO-
CEDURE 3" after charging the bat-
tery.
Self-diagnostic result “SELF-DIAG
[PAST]” (previously stored in the
memory) might not be erased after
repair.
Intermittent malfunction has been
detected in the past.
Go to SRS-21, "DIAGNOSTIC PRO-
CEDURE 3" .
No malfunction is detected. —
DRIVER AIRBAG
MODULE
[OPEN]
Driver air bag module circuit is open (including the spiral cable). 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the driver air bag module.
(Before disposal, it must be
deployed.)
4. Replace the spiral cable.
5. Replace the diagnosis sensor unit.
6. Replace the related harness. DRIVER AIRBAG
MODULE
[VB-SHORT]
Driver air bag module circuit is shorted to a power supply circuit
(including the spiral cable).
DRIVER AIRBAG
MODULE
[GND-SHORT]
Driver air bag module circuit is shorted to ground (including the
spiral cable).
DRIVER AIRBAG
MODULE
[SHORT]
Driver air bag module circuit is shorted between lines.
ASSIST A/B MODULE
[OPEN]
Front passenger air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the front passenger air bag
module. (Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. ASSIST A/B MODULE
[VB-SHORT]
Front passenger air bag module circuit is shorted to a power
supply circuit.
ASSIST A/B MODULE
[GND-SHORT]
Front passenger air bag module circuit is shorted to ground.
ASSIST A/B MODULE
[SHORT]
Front passenger air bag module circuit is shorted between lines.
SIDE MODULE LH
[OPEN]
Front LH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the front LH setback
assembly (front LH side air bag
module).
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. SIDE MODULE LH
[VB-SHORT]
Front LH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE LH
[GND-SHORT]
Front LH side air bag module circuit is shorted to ground.
SIDE MODULE LH
[SHORT]
Front LH side air bag module circuit is shorted between lines.
SIDE MODULE RH
[OPEN]
Front RH side air bag module circuit is open. 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the front RH setback
assembly (front RH side air bag
module).
(Before disposal, it must be
deployed.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. SIDE MODULE RH
[VB-SHORT]
Front RH side air bag module circuit is shorted to a power sup-
ply circuit.
SIDE MODULE RH
[GND-SHORT]
Front RH side air bag module circuit is shorted to ground.
SIDE MODULE RH
[SHORT]
Front RH side air bag module circuit is shorted between lines.

Page 3027 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
SRS-23
C
D
E
F
G
I
J
K
L
MA
B
SRS

NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunc-
tion is eliminated using air bag war

TROUBLE DIAGNOSIS
SRS-23
C
D
E
F
G
I
J
K
L
MA
B
SRS

NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunc-
tion is eliminated using air bag warning lamp or CONSULT-II each time repair is finished. If malfunction is
still observed, proceed to the next step. When malfunction is eliminated, further repair work is not
required.
Follow the procedure in numerical order when repairing malfunctioning parts, then make the system
check.
The screen contents are the same as the self-diagnosis results, self-diagnosis results “SELF-DIAG [CUR-
RENT]” and “SELF-DIAG [PAST]”.
SATELLITE SENS LH
[UNIT FAIL]
SATELLITE SENS LH
[COMM FAIL]LH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the LH side air bag (Satel-
lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
SATELLITE SENS RH
[UNIT FAIL]
SATELLITE SENS RH
[COMM FAIL]
RH side air bag (Satellite) sensor 1. Visually check the wiring harness
connection.
2. Replace the harness if it has visible
damage.
3. Replace the RH side air bag (Satel-
lite) sensor.
4. Replace the diagnosis sensor unit.
5. Replace the related harness.
PRE-TEN FRONT LH
[OPEN]
Front LH pre-tensioner circuit is open. 1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace the front LH seat belt.
(Before disposal, it must be acti-
vated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. PRE-TEN FRONT LH
[VB-SHORT]
Front LH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT LH
[GND-SHORT]
Front LH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT LH
[SHORT]
Front LH pre-tensioner circuit is shorted between lines.
PRE-TEN FRONT RH
[OPEN]
Front RH pre-tensioner circuit is open. 1. Visually check the wiring harness
connections.
2. Replace the harness if it has visible
damage.
3. Replace the front RH seat belt.
(Before disposal, it must be acti-
vated.)
4. Replace the diagnosis sensor unit.
5. Replace the related harness. PRE-TEN FRONT RH
[VB-SHORT]
Front RH pre-tensioner circuit is shorted to a power supply cir-
cuit.
PRE-TEN FRONT RH
[GND-SHORT]
Front RH pre-tensioner circuit is shorted to ground.
PRE-TEN FRONT RH
[SHORT]
Front RH pre-tensioner circuit is shorted between lines.
CONTROL UNIT
Diagnosis sensor unit is malfunctioning. 1. Visually check the wiring harness
connection.
2. Replace the diagnosis sensor unit. Diagnostic item ExplanationRepair order
“Recheck SRS at each replacement”

Page 3028 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual SRS-24
TROUBLE DIAGNOSIS

Trouble Diagnosis without CONSULT-IIEHS000OA
DIAGNOSTIC PROCEDURE 4
CAUTION:
SRS will not enter diagnosis mode if no malfunction is detected in user mode.
1. Turn ignition s

Page 3029 of 4179

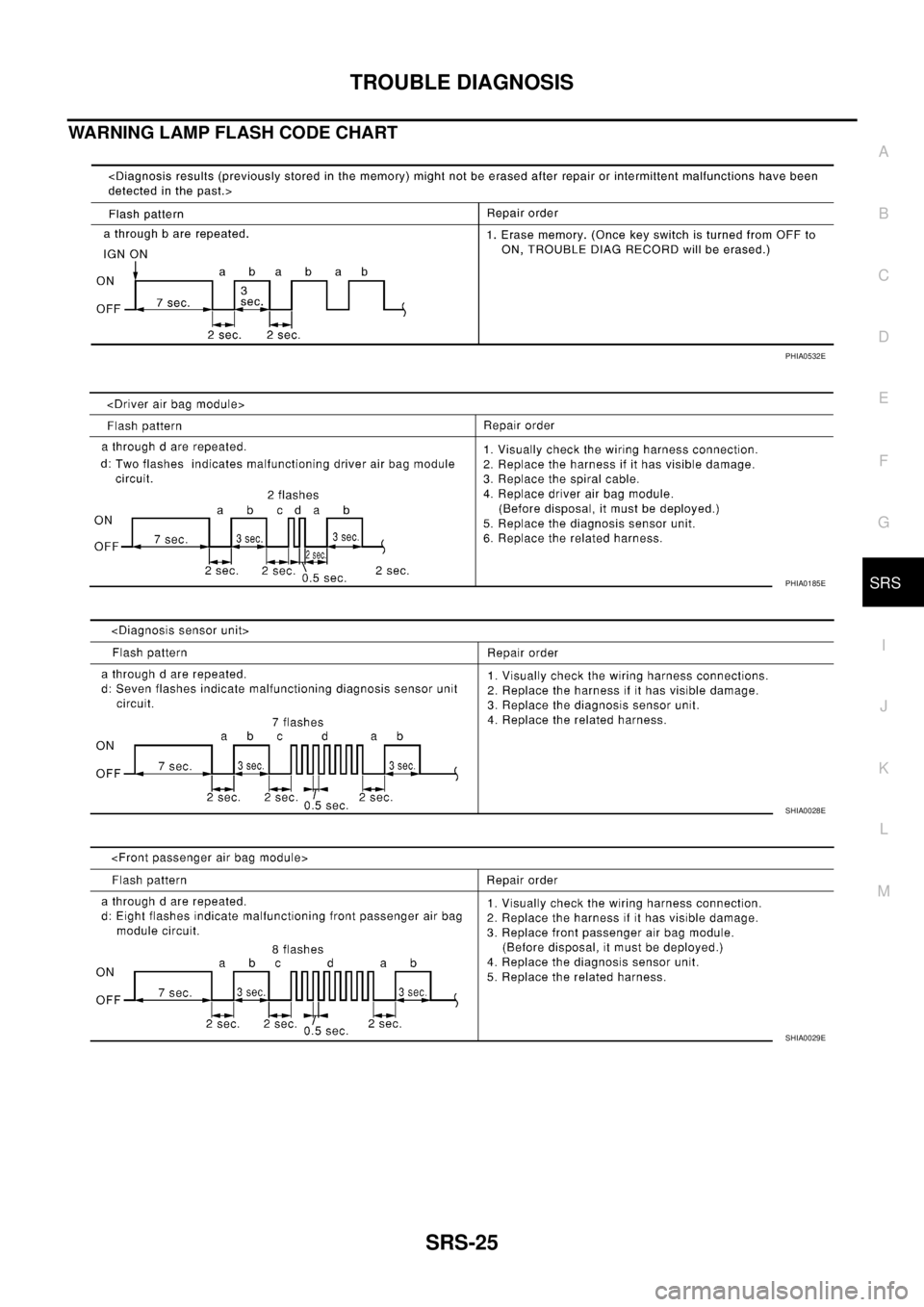

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
SRS-25
C
D
E
F
G
I
J
K
L
MA
B
SRS

WARNING LAMP FLASH CODE CHART
PHIA0532E
PHIA0185E
SHIA0028E
SHIA0029E

Page 3030 of 4179

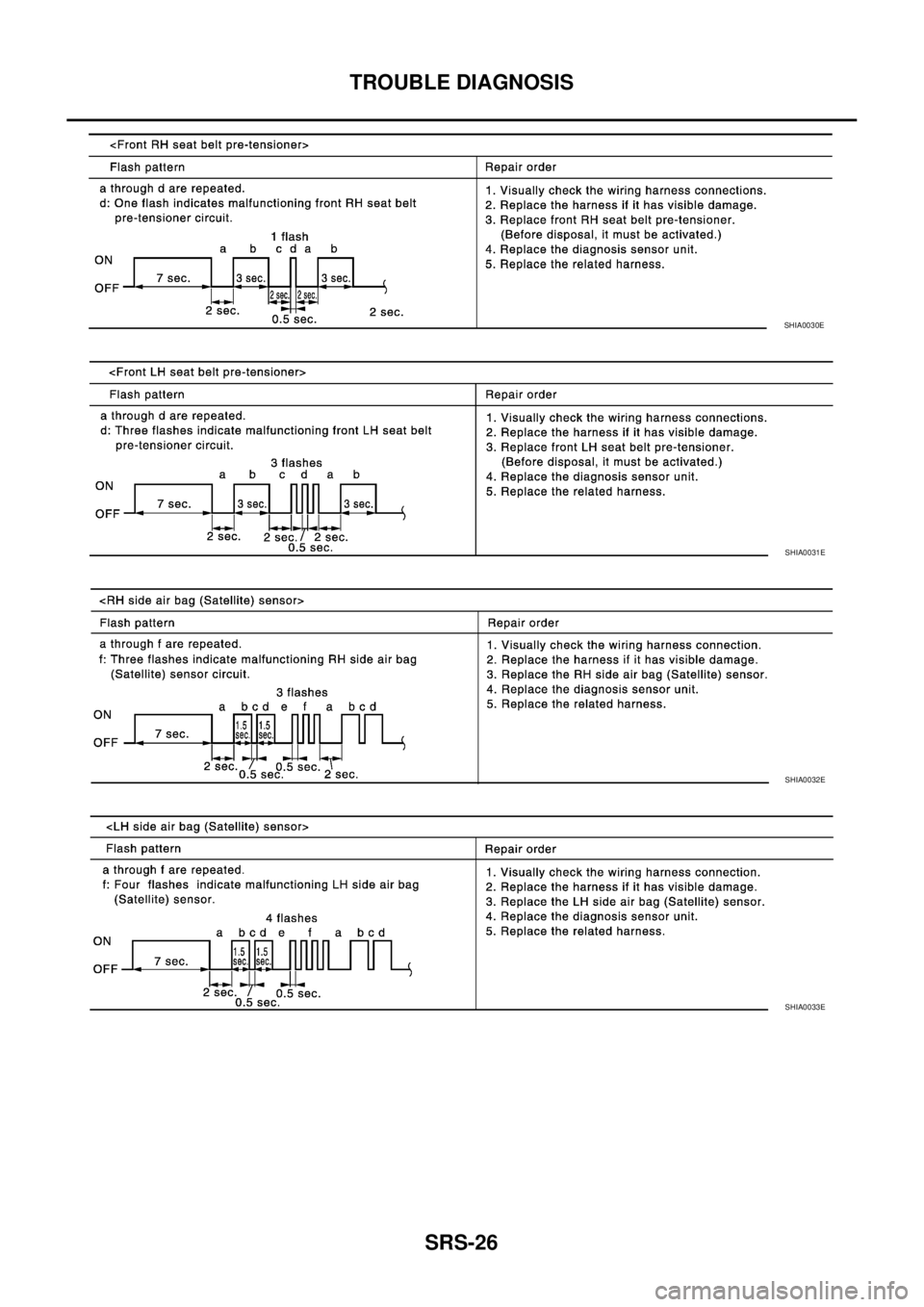

NISSAN X-TRAIL 2003 Service Repair Manual SRS-26
TROUBLE DIAGNOSIS

SHIA0030E
SHIA0031E
SHIA0032E
SHIA0033E

Page 3031 of 4179

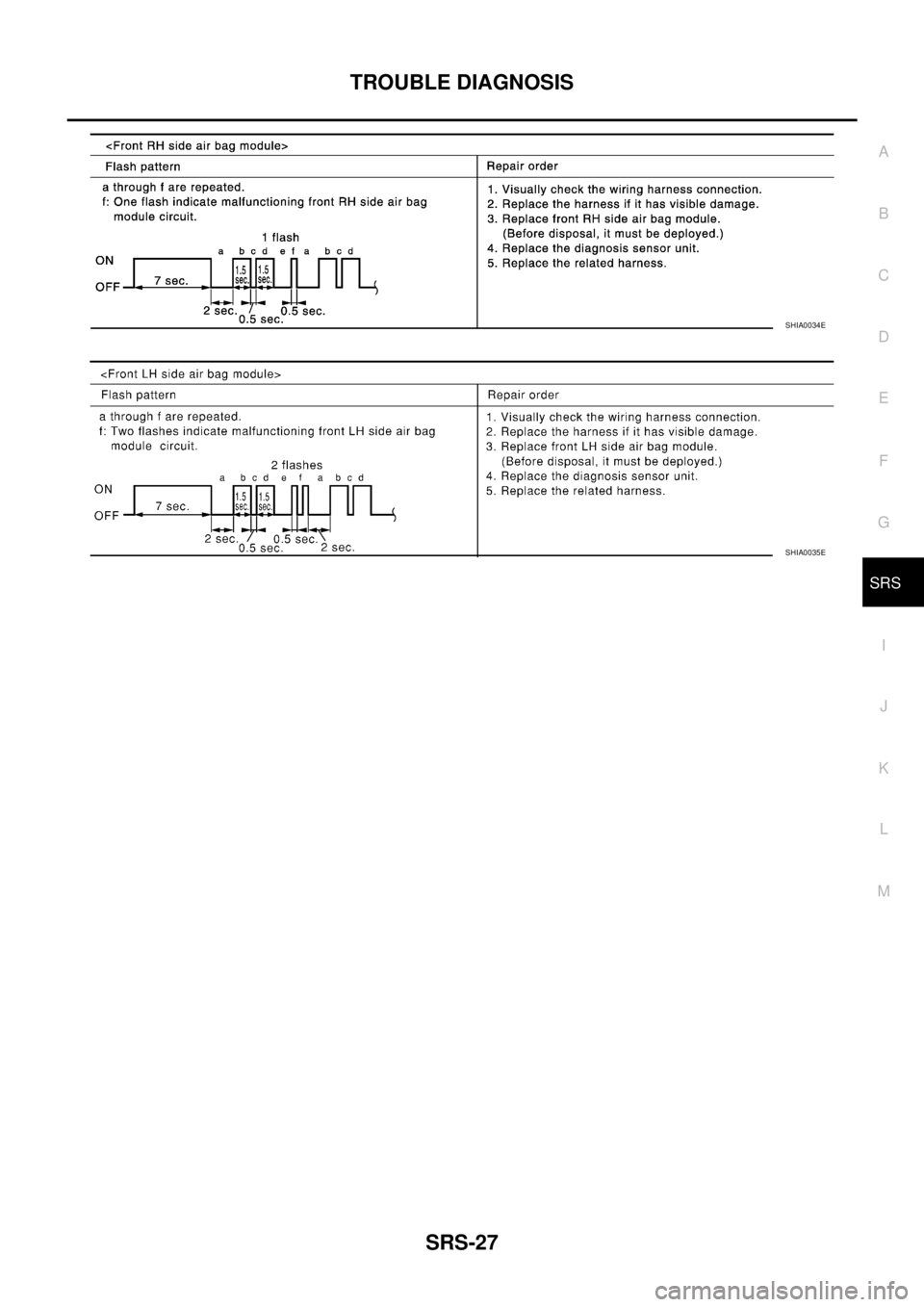

NISSAN X-TRAIL 2003 Service Repair Manual TROUBLE DIAGNOSIS
SRS-27
C
D
E
F
G
I
J
K
L
MA
B
SRS

SHIA0034E
SHIA0035E

Page 3032 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual SRS-28
TROUBLE DIAGNOSIS

Trouble Diagnosis: “AIR BAG” Warning Lamp Does Not Turn OffEHS000OB
DIAGNOSTIC PROCEDURE 5
1. CHECK THE DEPLOYMENT OF AIR BAG MODULE
Is air bag module deployed?
YES or N
