STARTING SYSTEM
SC-21
C
D
E
F
G
H
I
J
L
MA
B
SC
STARTING SYSTEM PFP:00011
System Description EKS0031F
M/T MODELS
Power is supplied at all times
through 30A fusible link (letter J, located in the fuse and fusible link box)
to ignition switch terminal 1.
With the ignition switch in the START position, power is supplied
from ignition switch terminal 5
to starter motor harness connector terminal 1.
The starter motor plunger closes and provides a closed circuit between the battery and starter motor. The
starter motor is grounded to the engine block. With power and ground supplied, cranking occurs and the
engine starts.
A/T MODELS
Power is supplied at all times
through 30A fusible link (letter J, located in the fuse and fusible link box)
to ignition switch terminal 1.
With the ignition switch in the START position, power is supplied
from ignition switch terminal 5
to park/neutral position relay terminal 5.
With the ignition switch in the ON or START position, power is supplied
through 10A fuse [No. 13, located in the fuse block (J/B)]
to park/neutral position relay terminal 1.
With the selector lever in the P or N position, ground is supplied
to park/neutral position relay terminal 2
through the park/neutral position switch terminals 1 and 2, and
through body grounds F9 and F10.
Then park/neutral position relay is energized and power is supplied
from park/neutral position relay terminal 3
to starter motor harness connector terminal 1.
The starter motor plunger closes and provides a closed circuit between the battery and starter motor. The
starter motor is grounded to the engine block. With power and ground supplied, cranking occurs and the
engine starts.
Page 3666 of 4179
SC-22
STARTING SYSTEM

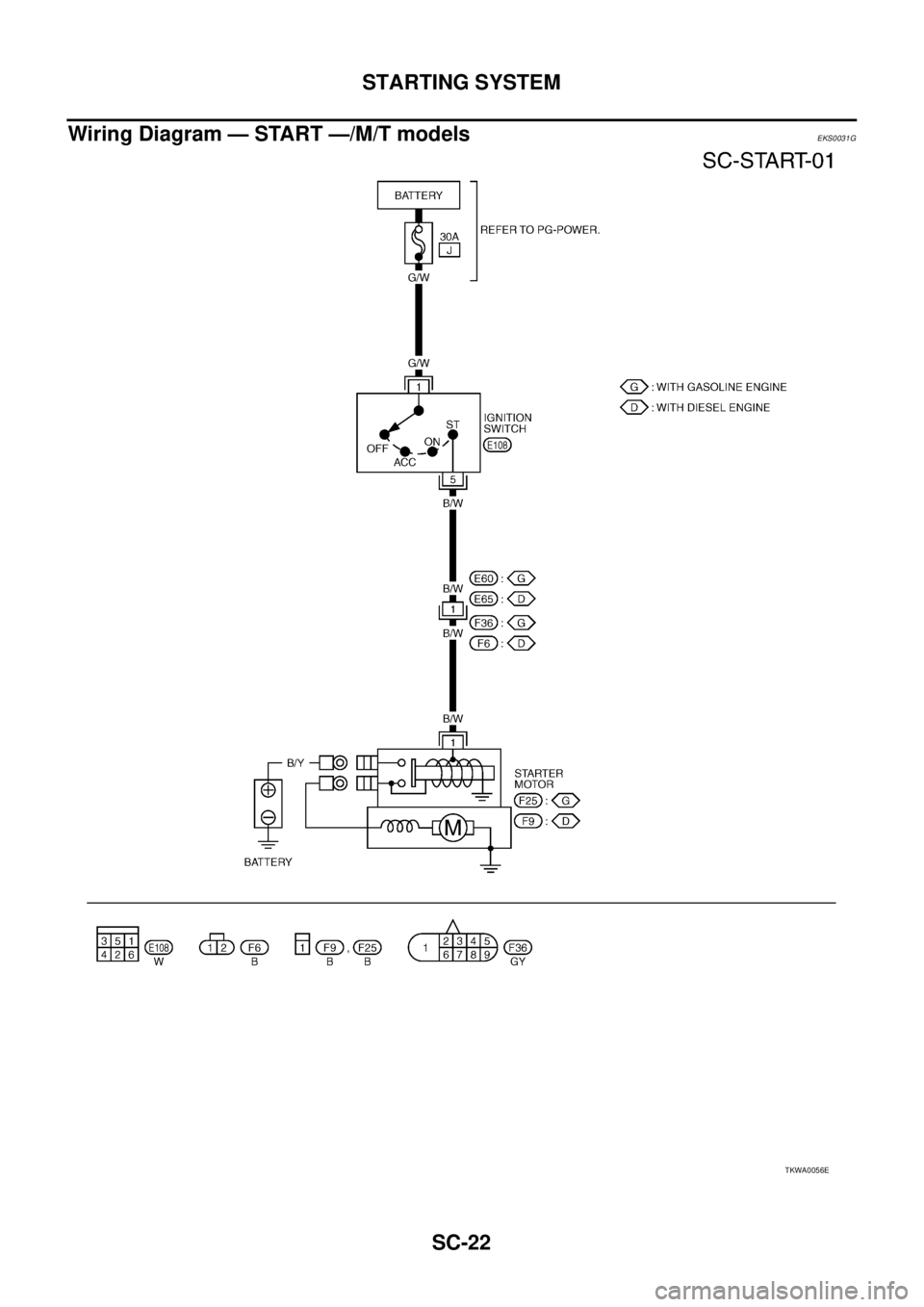

Wiring Diagram — START —/M/T modelsEKS0031G
TKWA0056E
Page 3667 of 4179
STARTING SYSTEM
SC-23
C
D
E
F
G
H
I
J
L
MA
B
SC
Wiring Diagram — START —/A/T modelsEKS0031H
TKWA0057E
Page 3668 of 4179
SC-24
STARTING SYSTEM

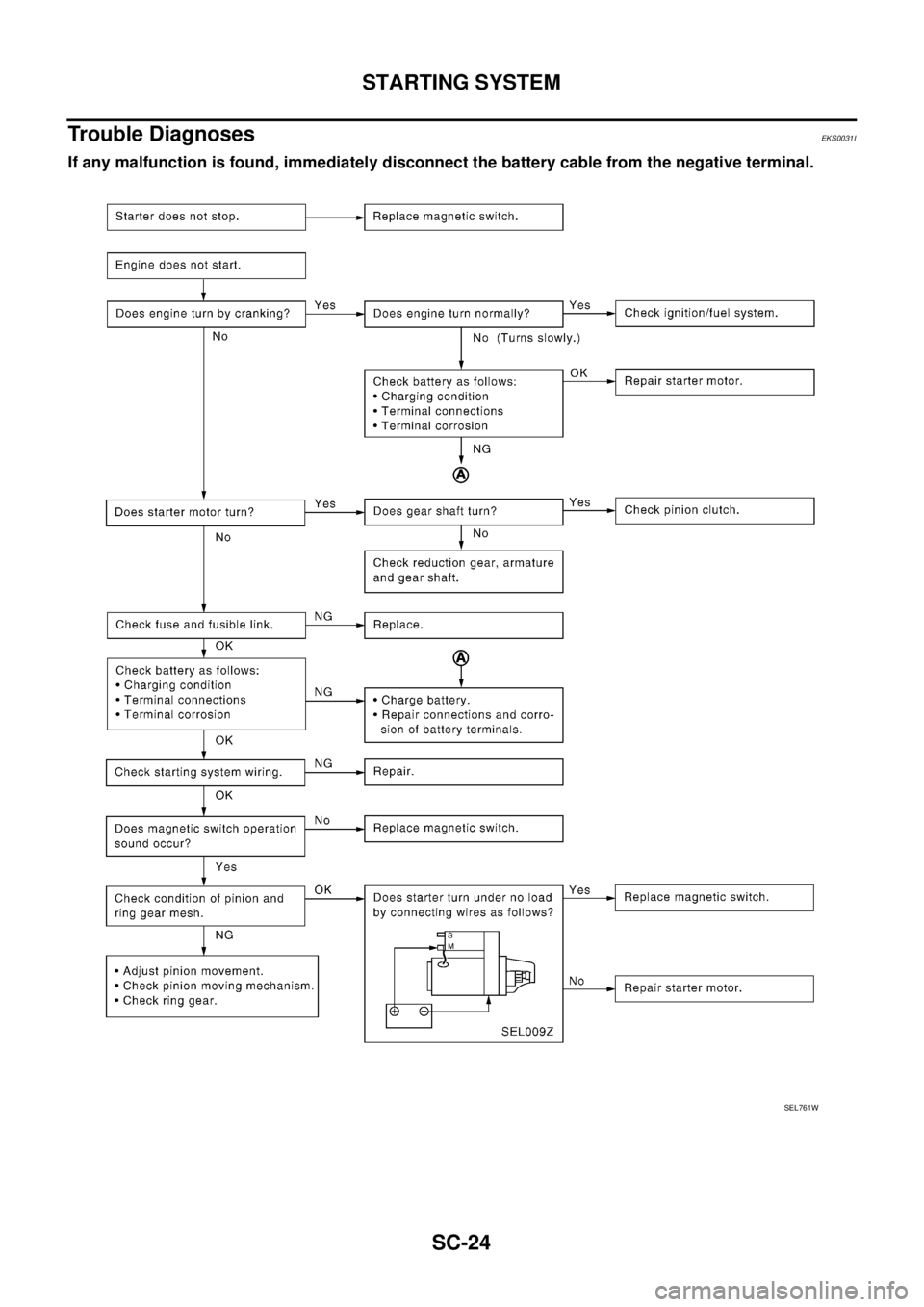

Trouble DiagnosesEKS0031I
If any malfunction is found, immediately disconnect the battery cable from the negative terminal.
SEL761W
Page 3669 of 4179

STARTING SYSTEM
SC-25
C
D
E
F
G
H
I
J
L
MA
B
SC

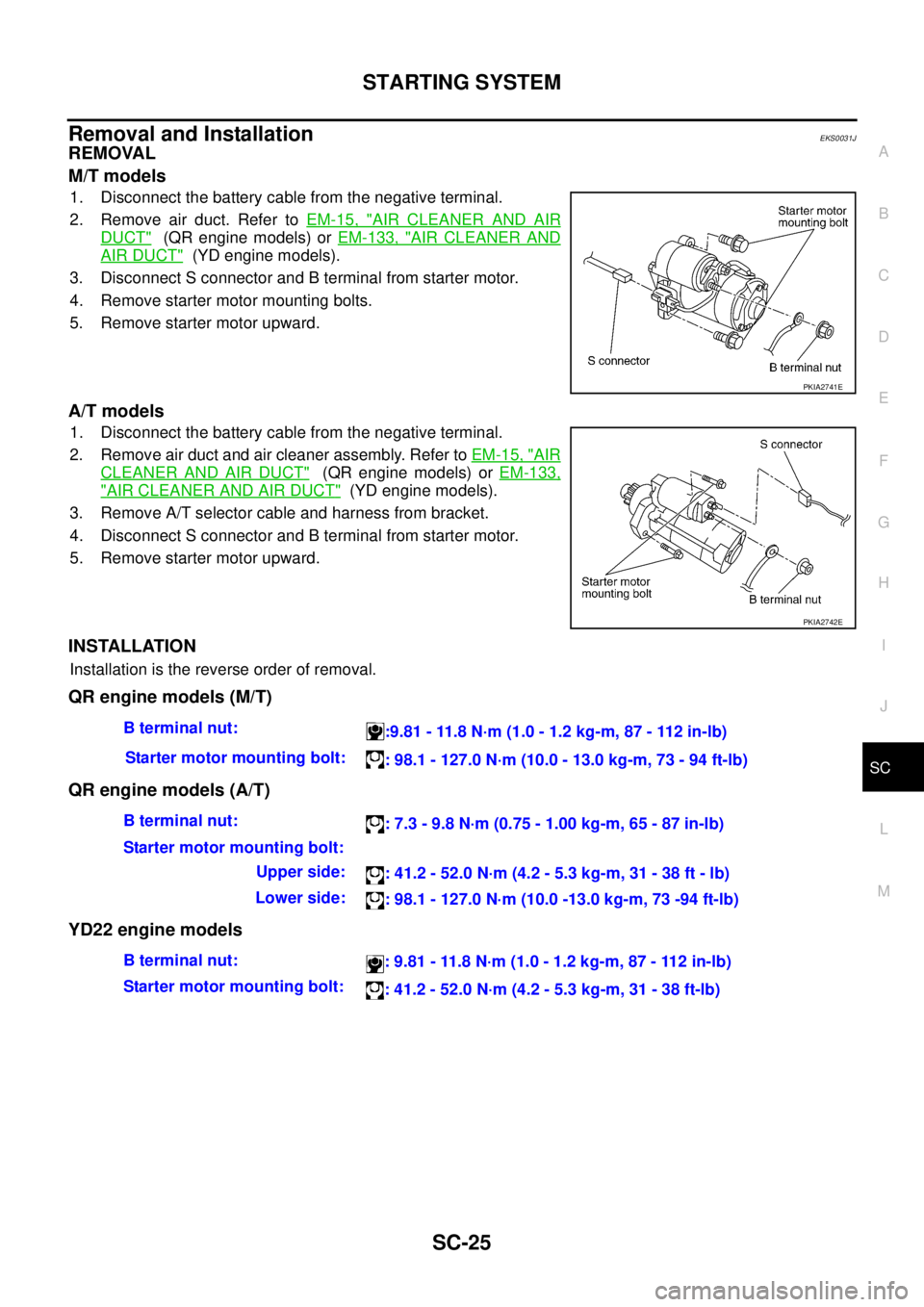

Removal and Installation EKS0031J
REMOVAL
M/T models
1. Disconnect the battery cable from the negative terminal.
2. Remove air duct. Refer to EM-15, "
AIR CLEANER AND AIR
DUCT" (QR engine models) or EM-133, "AIR CLEANER AND
AIR DUCT" (YD engine models).
3. Disconnect S connector and B terminal from starter motor.
4. Remove starter motor mounting bolts.
5. Remove starter motor upward.
A/T models
1. Disconnect the battery cable from the negative terminal.
2. Remove air duct and air cleaner assembly. Refer to EM-15, "
AIR
CLEANER AND AIR DUCT" (QR engine models) or EM-133,
"AIR CLEANER AND AIR DUCT" (YD engine models).
3. Remove A/T selector cable and harness from bracket.
4. Disconnect S connector and B terminal from starter motor.
5. Remove starter motor upward.
INSTALLATION
Installation is the reverse order of removal.
QR engine models (M/T)
QR engine models (A/T)
YD22 engine models
PKIA2741E
PKIA2742E
B terminal nut:
:9.81 - 11.8 N·m (1.0 - 1.2 kg-m, 87 - 112 in-lb)
Starter motor mounting bolt:
: 98.1 - 127.0 N·m (10.0 - 13.0 kg-m, 73 - 94 ft-lb)
B terminal nut:
: 7.3 - 9.8 N·m (0.75 - 1.00 kg-m, 65 - 87 in-lb)
Starter motor mounting bolt:
Upper side:
: 41.2 - 52.0 N·m (4.2 - 5.3 kg-m, 31 - 38 ft - lb)
Lower side:
: 98.1 - 127.0 N·m (10.0 -13.0 kg-m, 73 -94 ft-lb)
B terminal nut:
: 9.81 - 11.8 N·m (1.0 - 1.2 kg-m, 87 - 112 in-lb)
Starter motor mounting bolt:
: 41.2 - 52.0 N·m (4.2 - 5.3 kg-m, 31 - 38 ft-lb)
Page 3670 of 4179
SC-26
STARTING SYSTEM
Disassembly and Assembly EKS0031K

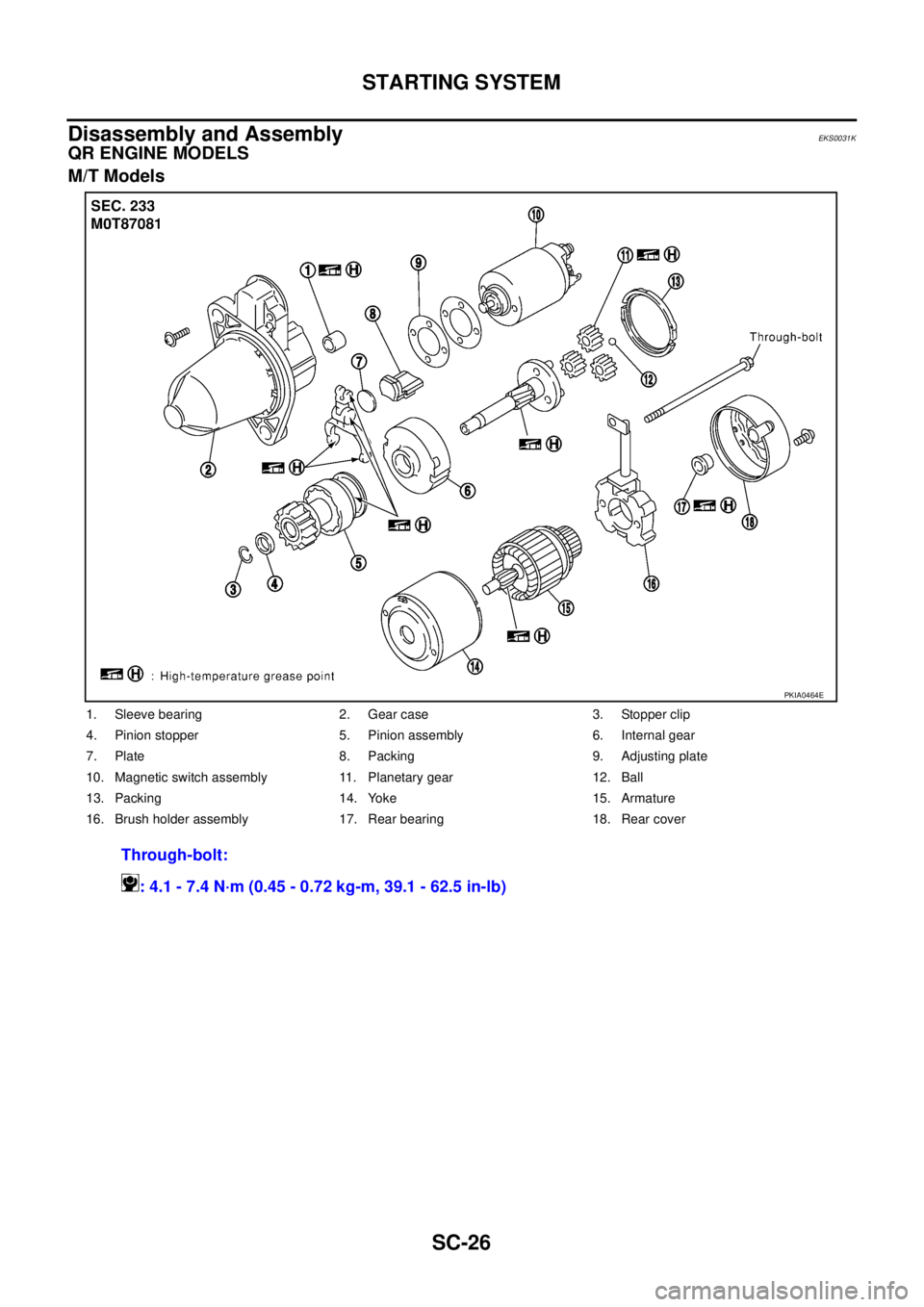

QR ENGINE MODELS
M/T Models
1. Sleeve bearing 2. Gear case 3. Stopper clip
4. Pinion stopper 5. Pinion assembly 6. Internal gear
7. Plate 8. Packing 9. Adjusting plate
10. Magnetic switch assembly 11. Planetary gear 12. Ball
13. Packing 14. Yoke 15. Armature
16. Brush holder assembly 17. Rear bearing 18. Rear cover
Through-bolt:
: 4.1 - 7.4 N·m (0.45 - 0.72 kg-m, 39.1 - 62.5 in-lb)
PKIA0464E
Page 3671 of 4179
STARTING SYSTEM
SC-27
C
D
E
F
G
H
I
J
L
MA
B
SC

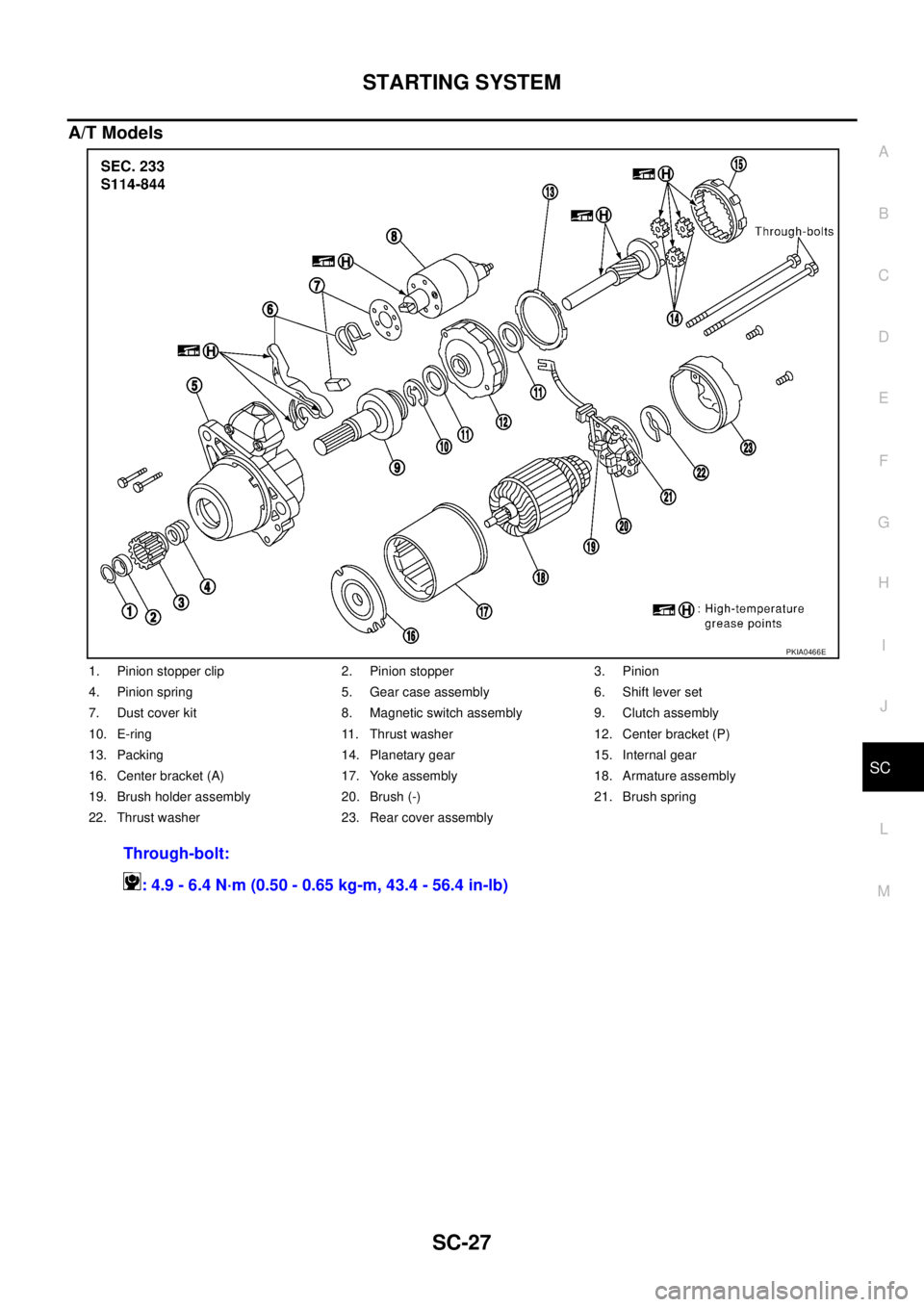

A/T Models
1. Pinion stopper clip 2. Pinion stopper 3. Pinion
4. Pinion spring 5. Gear case assembly 6. Shift lever set
7. Dust cover kit 8. Magnetic switch assembly 9. Clutch assembly
10. E-ring 11. Thrust washer 12. Center bracket (P)
13. Packing 14. Planetary gear 15. Internal gear
16. Center bracket (A) 17. Yoke assembly 18. Armature assembly
19. Brush holder assembly 20. Brush (-) 21. Brush spring
22. Thrust washer 23. Rear cover assembly
Through-bolt:
: 4.9 - 6.4 N·m (0.50 - 0.65 kg-m, 43.4 - 56.4 in-lb)
PKIA0466E
Page 3672 of 4179
SC-28
STARTING SYSTEM

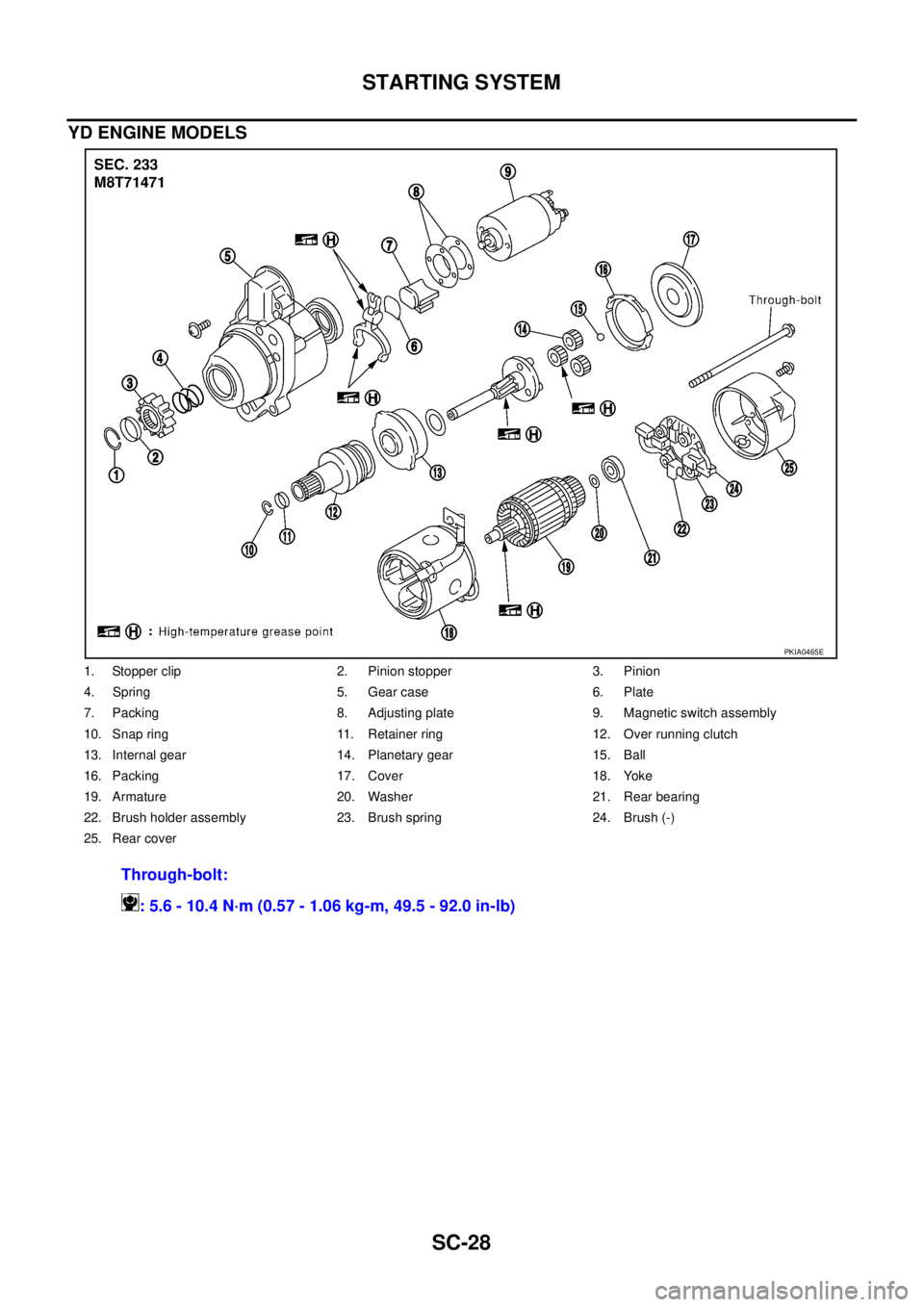

YD ENGINE MODELS
1. Stopper clip 2. Pinion stopper 3. Pinion
4. Spring 5. Gear case 6. Plate
7. Packing 8. Adjusting plate 9. Magnetic switch assembly
10. Snap ring 11. Retainer ring 12. Over running clutch
13. Internal gear 14. Planetary gear 15. Ball
16. Packing 17. Cover 18. Yoke
19. Armature 20. Washer 21. Rear bearing
22. Brush holder assembly 23. Brush spring 24. Brush (-)
25. Rear cover
Through-bolt:
: 5.6 - 10.4 N·m (0.57 - 1.06 kg-m, 49.5 - 92.0 in-lb)
PKIA0465E
