Page 4025 of 4179

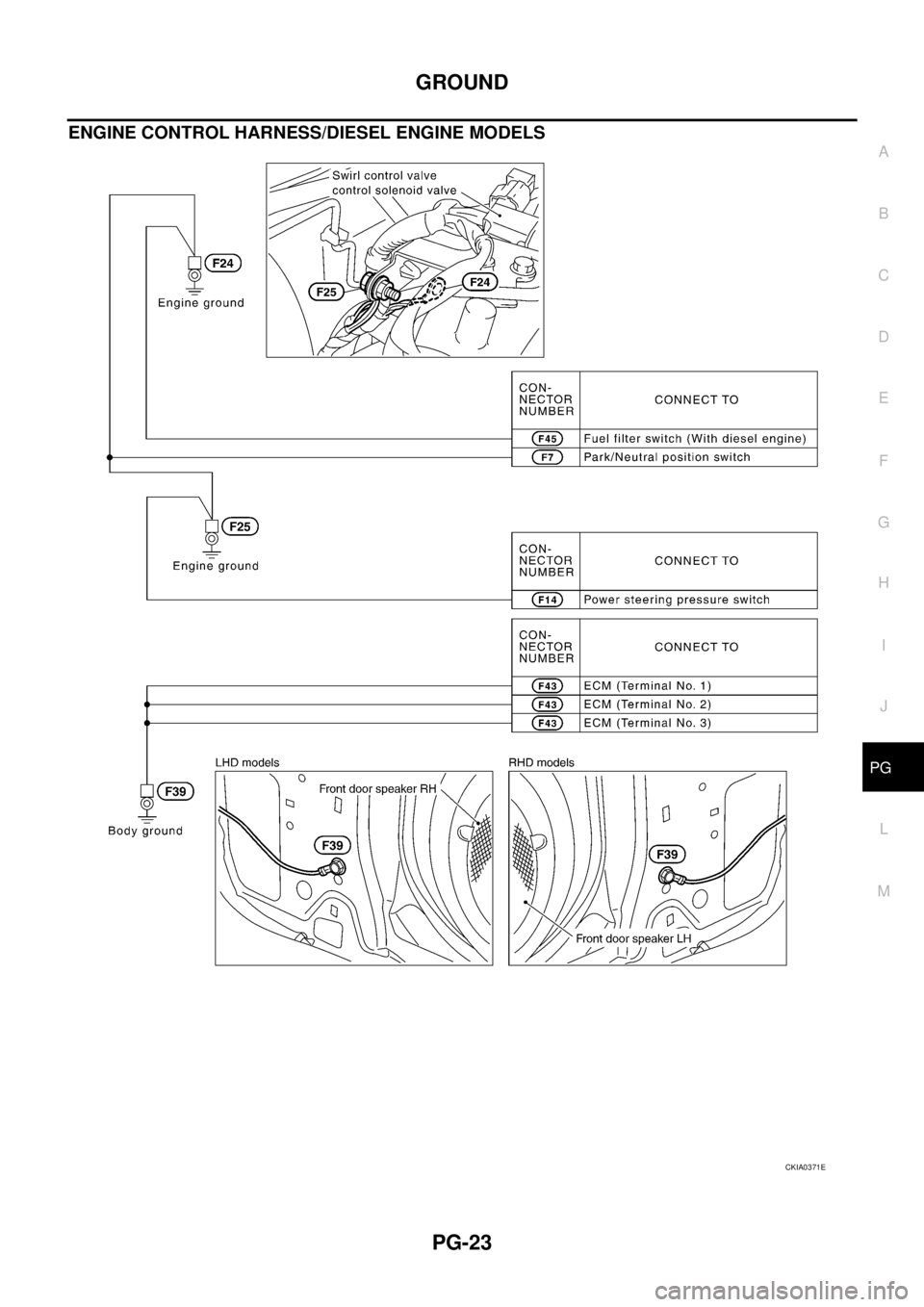

NISSAN X-TRAIL 2003 Service Repair Manual GROUND PG-23 C D E F G H I J L MA B PG ENGINE CONTROL HARNESS/DIESEL ENGINE MODELS CKIA0371E

Page 4026 of 4179

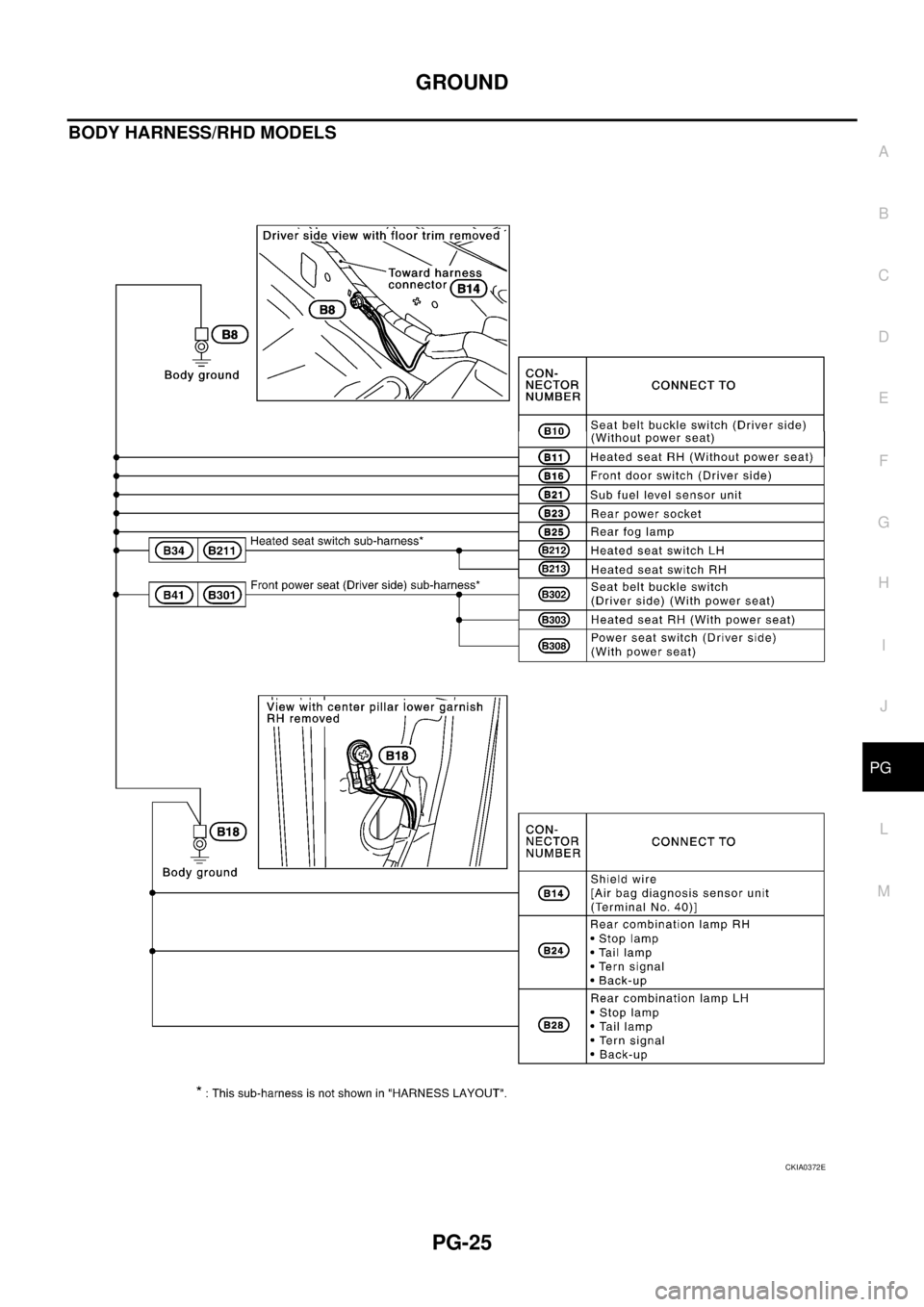

NISSAN X-TRAIL 2003 Service Repair Manual PG-24 GROUND BODY HARNESS/LHD MODELS CKIB0001E

Page 4027 of 4179

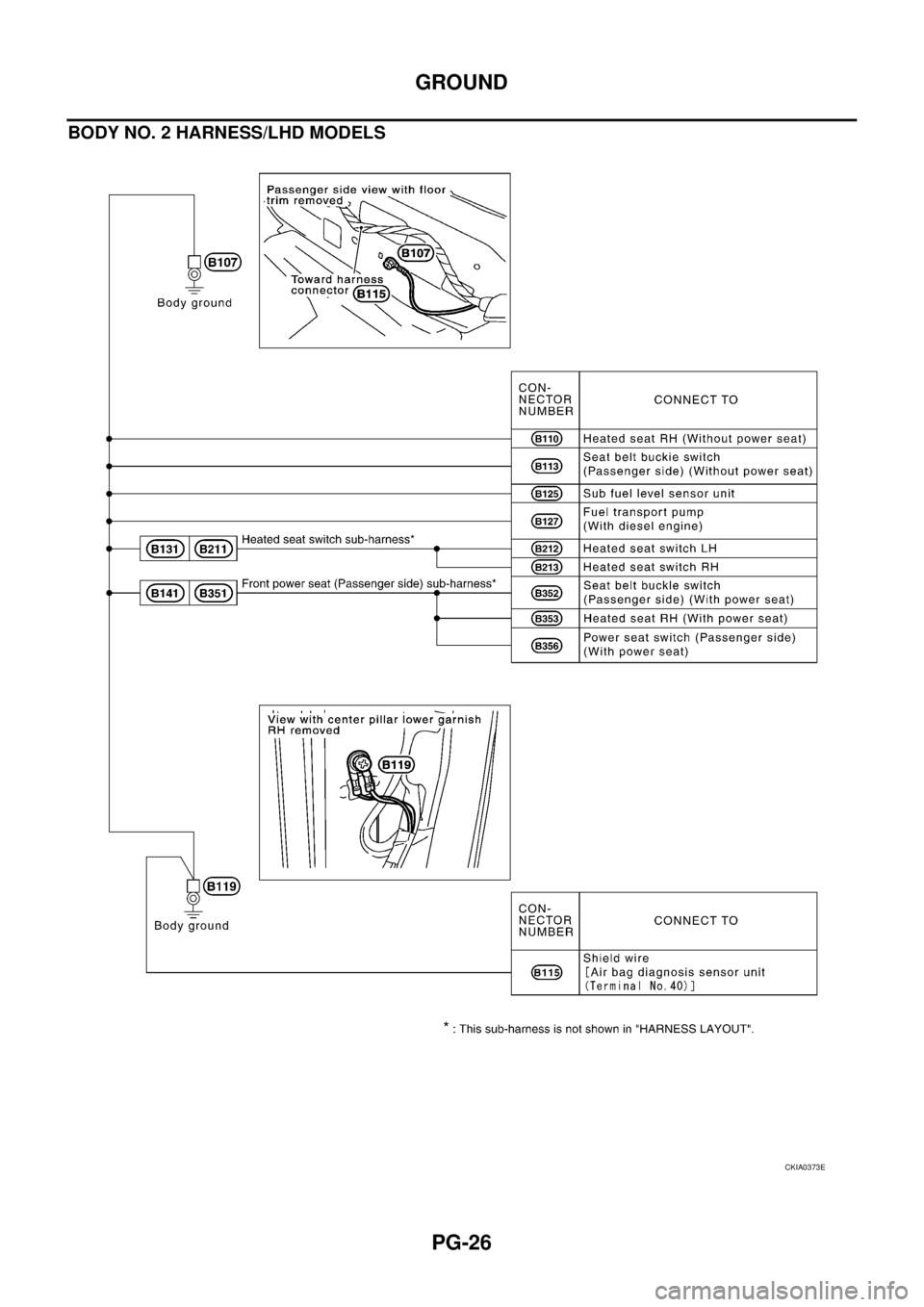

NISSAN X-TRAIL 2003 Service Repair Manual GROUND PG-25 C D E F G H I J L MA B PG BODY HARNESS/RHD MODELS CKIA0372E

Page 4028 of 4179

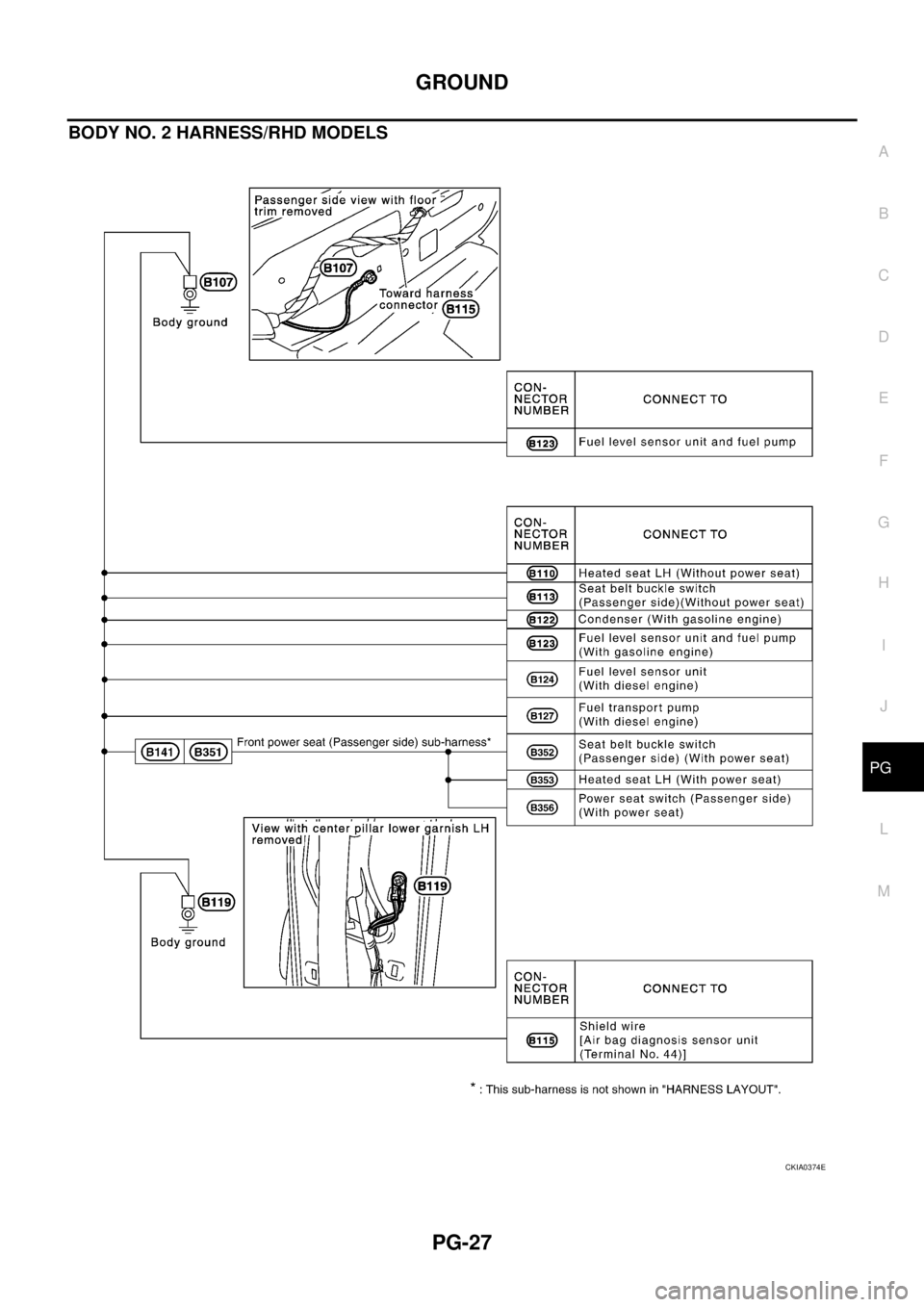

NISSAN X-TRAIL 2003 Service Repair Manual PG-26 GROUND BODY NO. 2 HARNESS/LHD MODELS CKIA0373E

Page 4029 of 4179

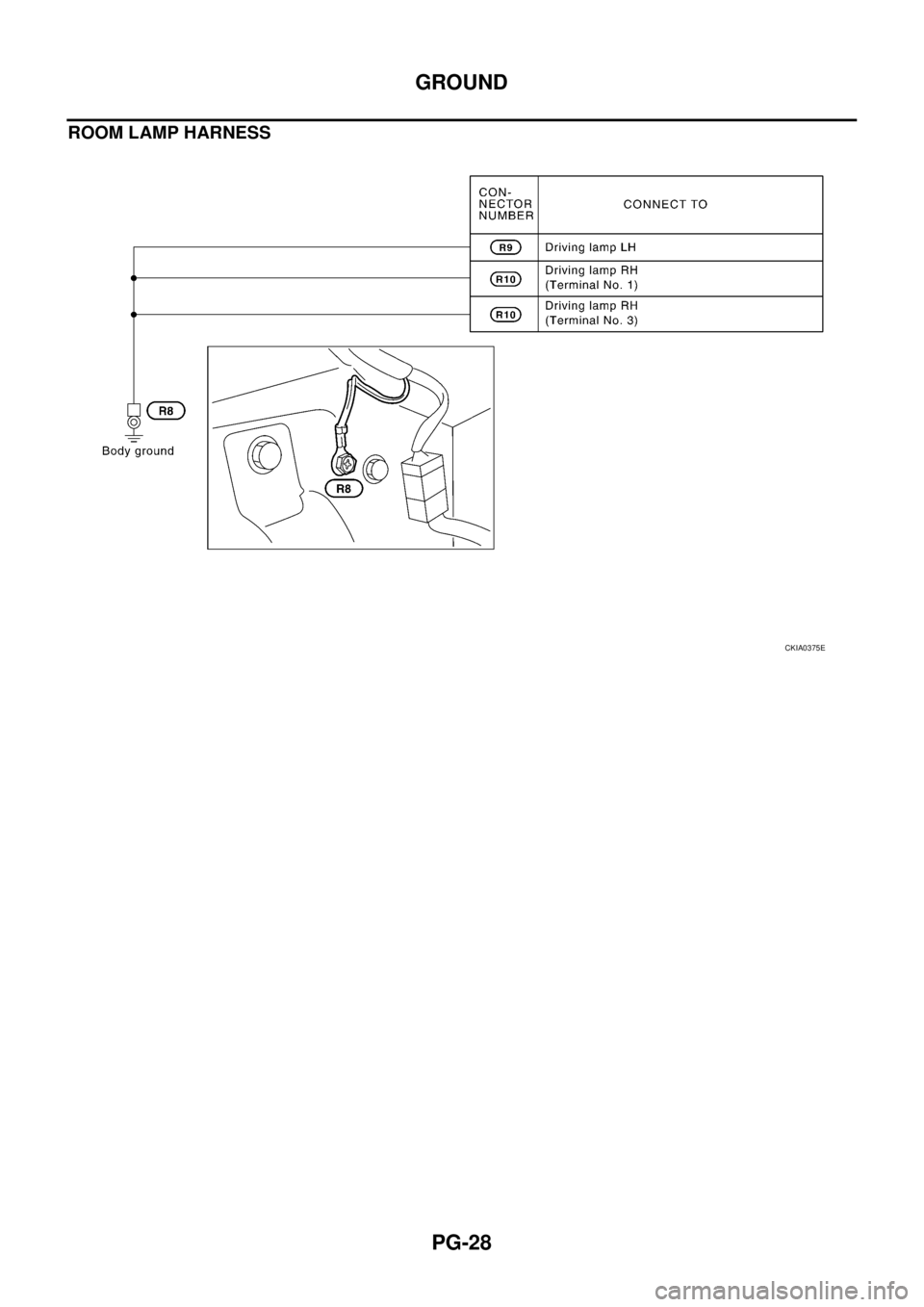

NISSAN X-TRAIL 2003 Service Repair Manual GROUND PG-27 C D E F G H I J L MA B PG BODY NO. 2 HARNESS/RHD MODELS CKIA0374E

Page 4030 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PG-28 GROUND ROOM LAMP HARNESS CKIA0375E

Page 4031 of 4179

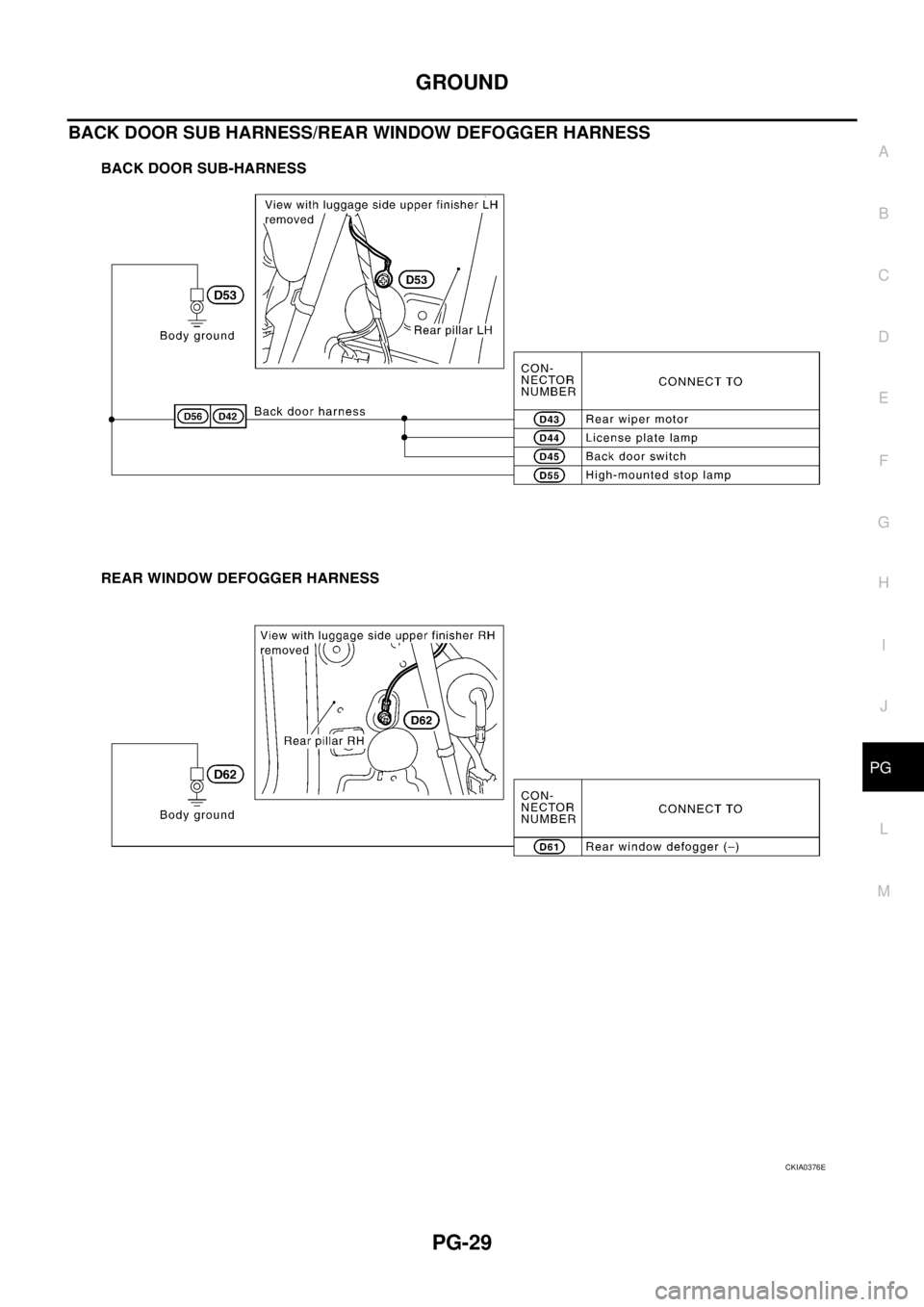

NISSAN X-TRAIL 2003 Service Repair Manual GROUND PG-29 C D E F G H I J L MA B PG BACK DOOR SUB HARNESS/REAR WINDOW DEFOGGER HARNESS CKIA0376E

Page 4032 of 4179

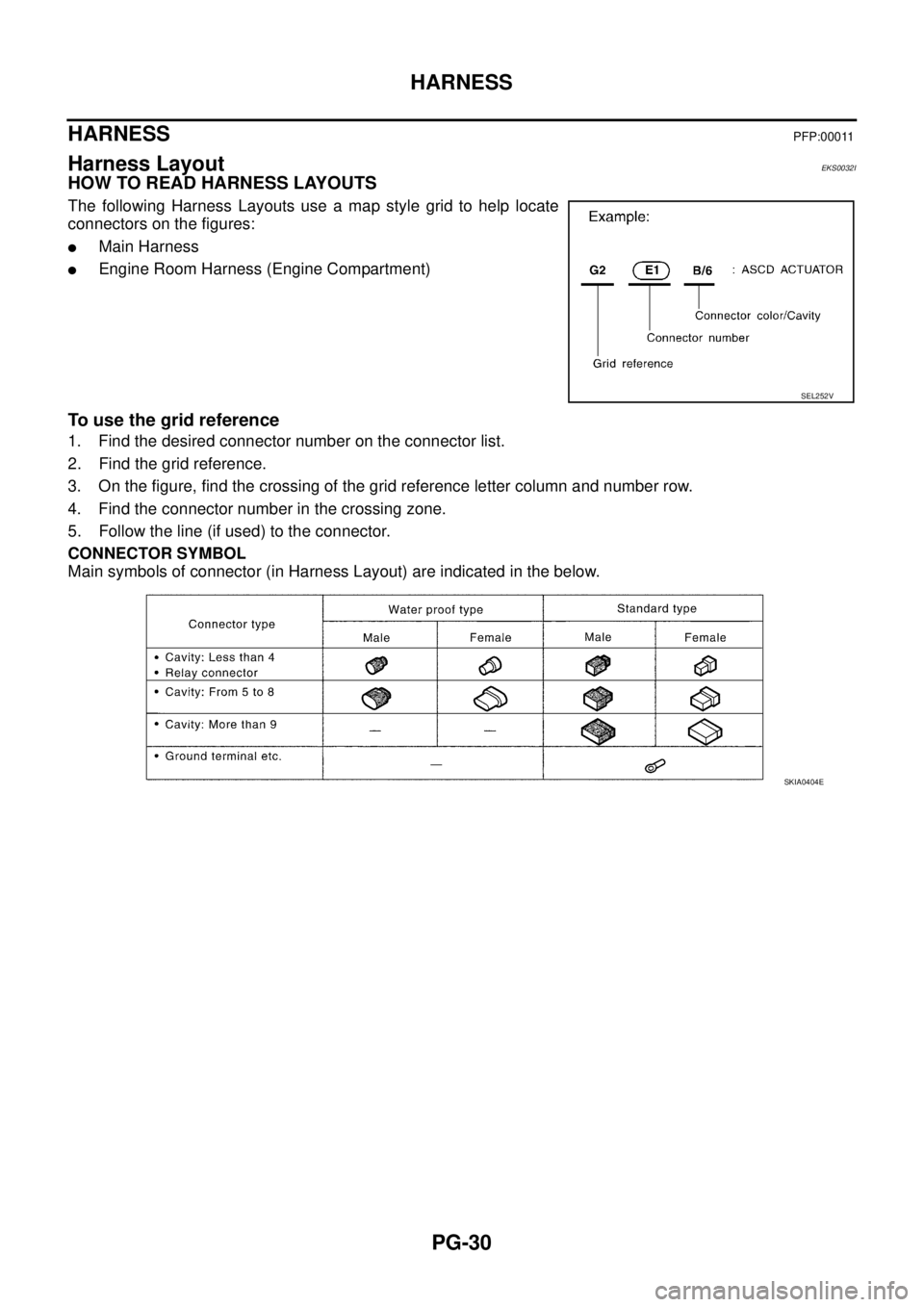

NISSAN X-TRAIL 2003 Service Repair Manual PG-30 HARNESS HARNESS PFP:00011 Harness Layout EKS0032I HOW TO READ HARNESS LAYOUTS The following Harness Layouts use a map style grid to help locate connectors on the figures: Main Harness Engin
