Page 633 of 4179
DTC P0340 CMP SENSOR (PHASE)
EC-255
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

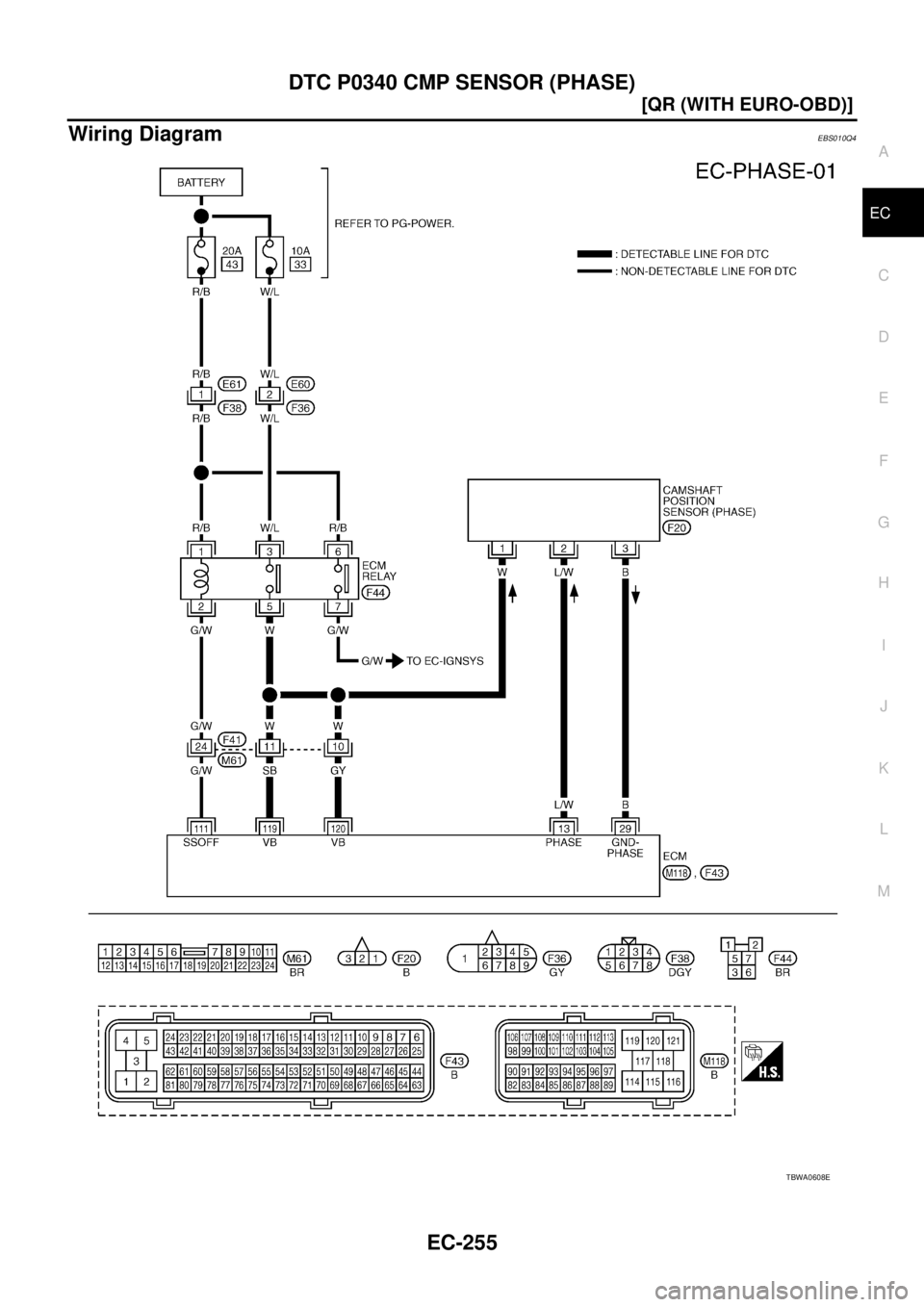

Wiring DiagramEBS010Q4
TBWA0608E
Page 634 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-256
[QR (WITH EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
D NISSAN X-TRAIL 2003 Service Repair Manual EC-256
[QR (WITH EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
D](/manual-img/5/57404/w960_57404-633.png)
EC-256
[QR (WITH EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.)
Diagnostic ProcedureEBS010Q5
1. CHECK STARTING SYSTEM
Turn ignition switch to START position.
Ye s o r N o
Yes >> GO TO 2.
No >> Check starting system. (Refer to SC-21, "
STARTING SYSTEM" .)
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
13 L/WCamshaft position sensor
(PHASE)[Engine is running]
Warm-up condition
Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle1.0 - 4.0V
[Engine is running]
Engine speed is 2,000 rpm1.0 - 4.0V
29 BSensor ground
(Camshaft position sen-
sor)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
PBIB0525E
PBIB0526E
Does the engine turn over?
Does the starter motor operate?
Page 635 of 4179
DTC P0340 CMP SENSOR (PHASE)
EC-257
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
2. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body.

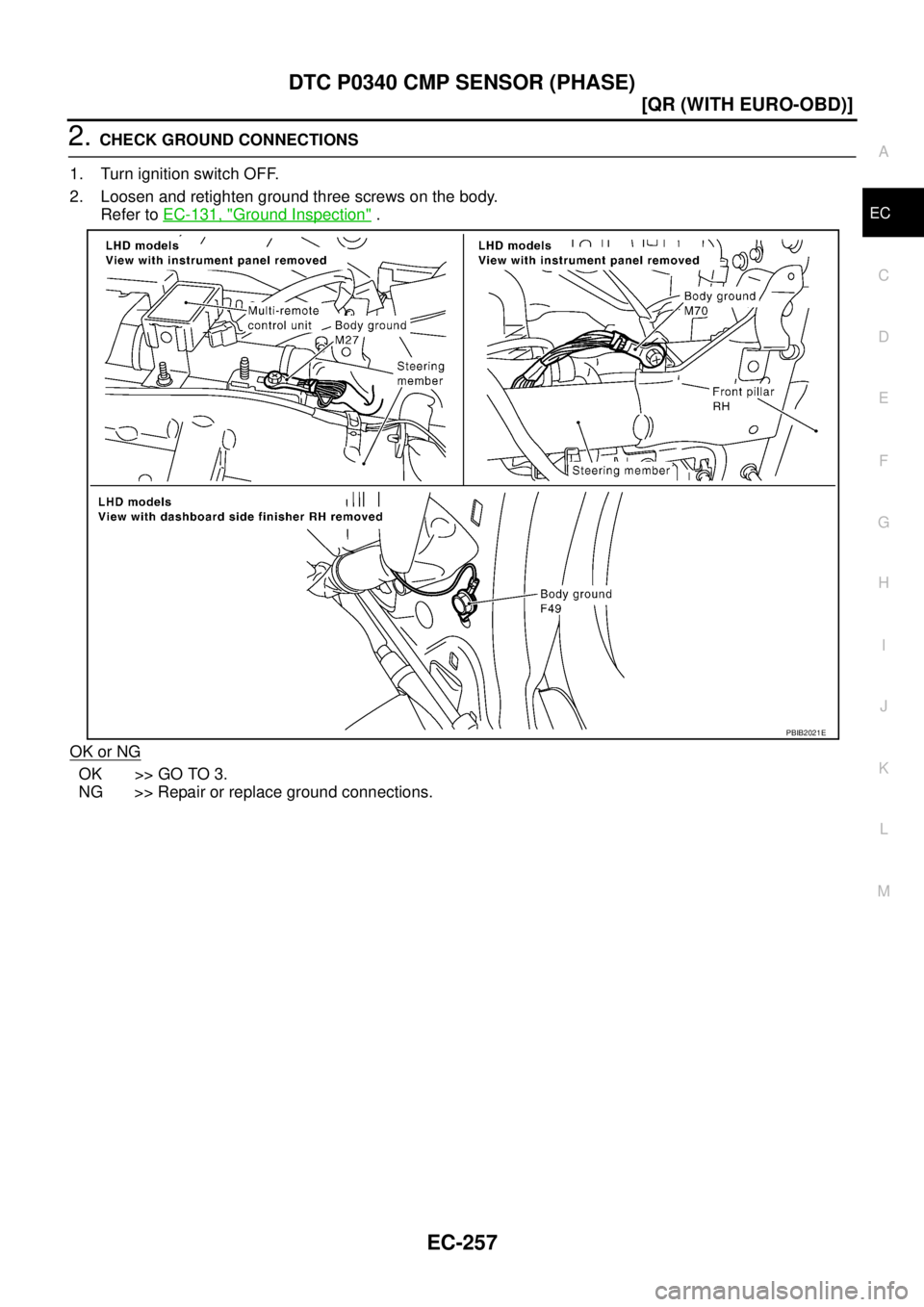

Refer to EC-131, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace ground connections.
PBIB2021E
Page 636 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-258
[QR (WITH EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
3. CHECK CAMSHAFT POSITION (CMP) SENSOR (PHASE) POWER SUPPLY CIRCUIT
1. Disconnect camshaft position (CMP) sensor (PHASE) harness
connector.
NISSAN X-TRAIL 2003 Service Repair Manual EC-258
[QR (WITH EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
3. CHECK CAMSHAFT POSITION (CMP) SENSOR (PHASE) POWER SUPPLY CIRCUIT
1. Disconnect camshaft position (CMP) sensor (PHASE) harness
connector.](/manual-img/5/57404/w960_57404-635.png)
EC-258
[QR (WITH EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)
3. CHECK CAMSHAFT POSITION (CMP) SENSOR (PHASE) POWER SUPPLY CIRCUIT
1. Disconnect camshaft position (CMP) sensor (PHASE) harness
connector.
2. Turn ignition switch ON.

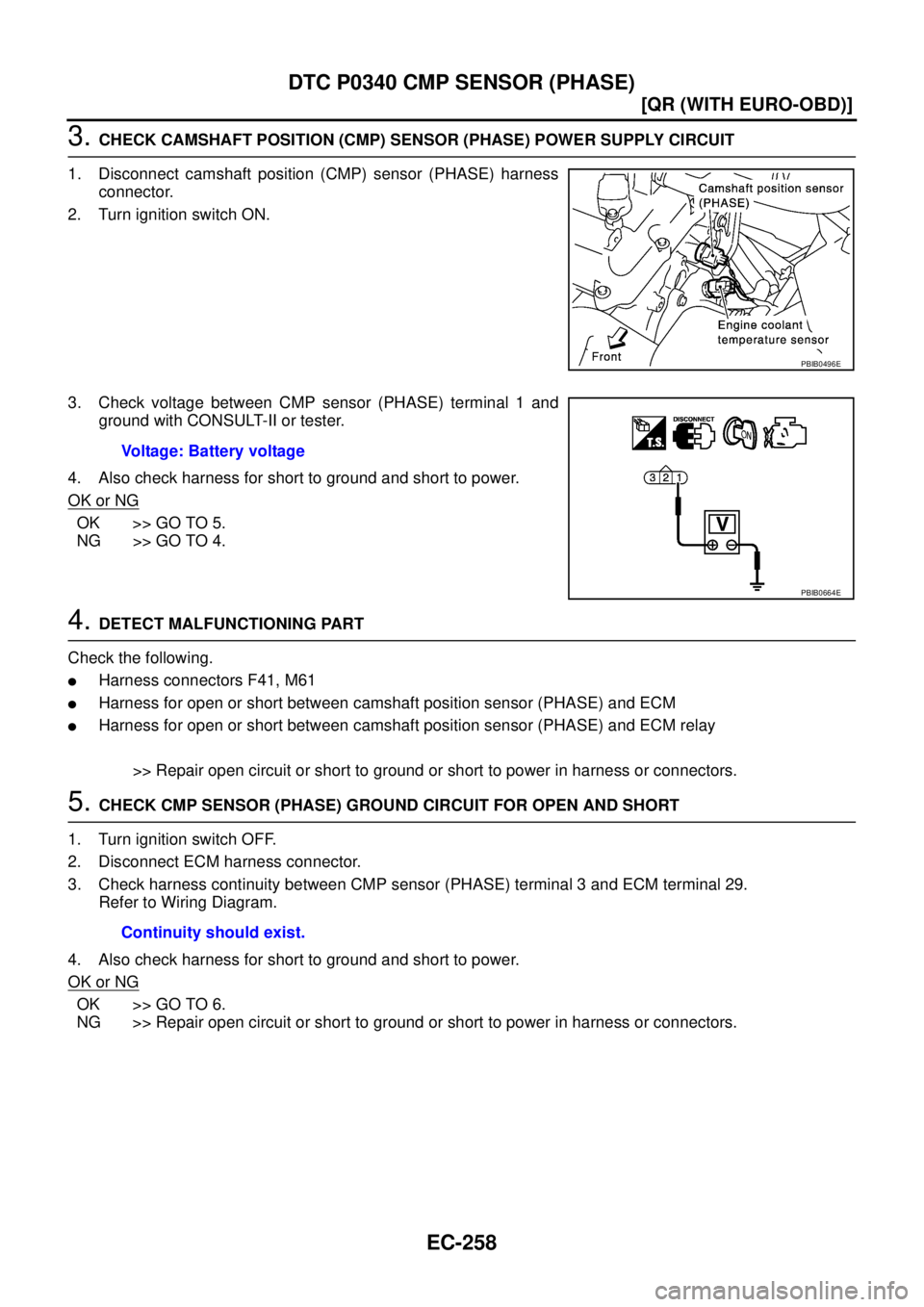

3. Check voltage between CMP sensor (PHASE) terminal 1 and
ground with CONSULT-II or tester.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F41, M61
Harness for open or short between camshaft position sensor (PHASE) and ECM
Harness for open or short between camshaft position sensor (PHASE) and ECM relay
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK CMP SENSOR (PHASE) GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between CMP sensor (PHASE) terminal 3 and ECM terminal 29.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB0496E
Voltage: Battery voltage
PBIB0664E
Continuity should exist.
Page 637 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0340 CMP SENSOR (PHASE)
EC-259
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6. CHECK CMP SENSOR (PHASE) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between CMP sensor NISSAN X-TRAIL 2003 Service Repair Manual DTC P0340 CMP SENSOR (PHASE)
EC-259
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6. CHECK CMP SENSOR (PHASE) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between CMP sensor](/manual-img/5/57404/w960_57404-636.png)
DTC P0340 CMP SENSOR (PHASE)
EC-259
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
6. CHECK CMP SENSOR (PHASE) INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between CMP sensor (PHASE) terminal 2 and ECM terminal 13.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-259, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace camshaft position sensor (PHASE).

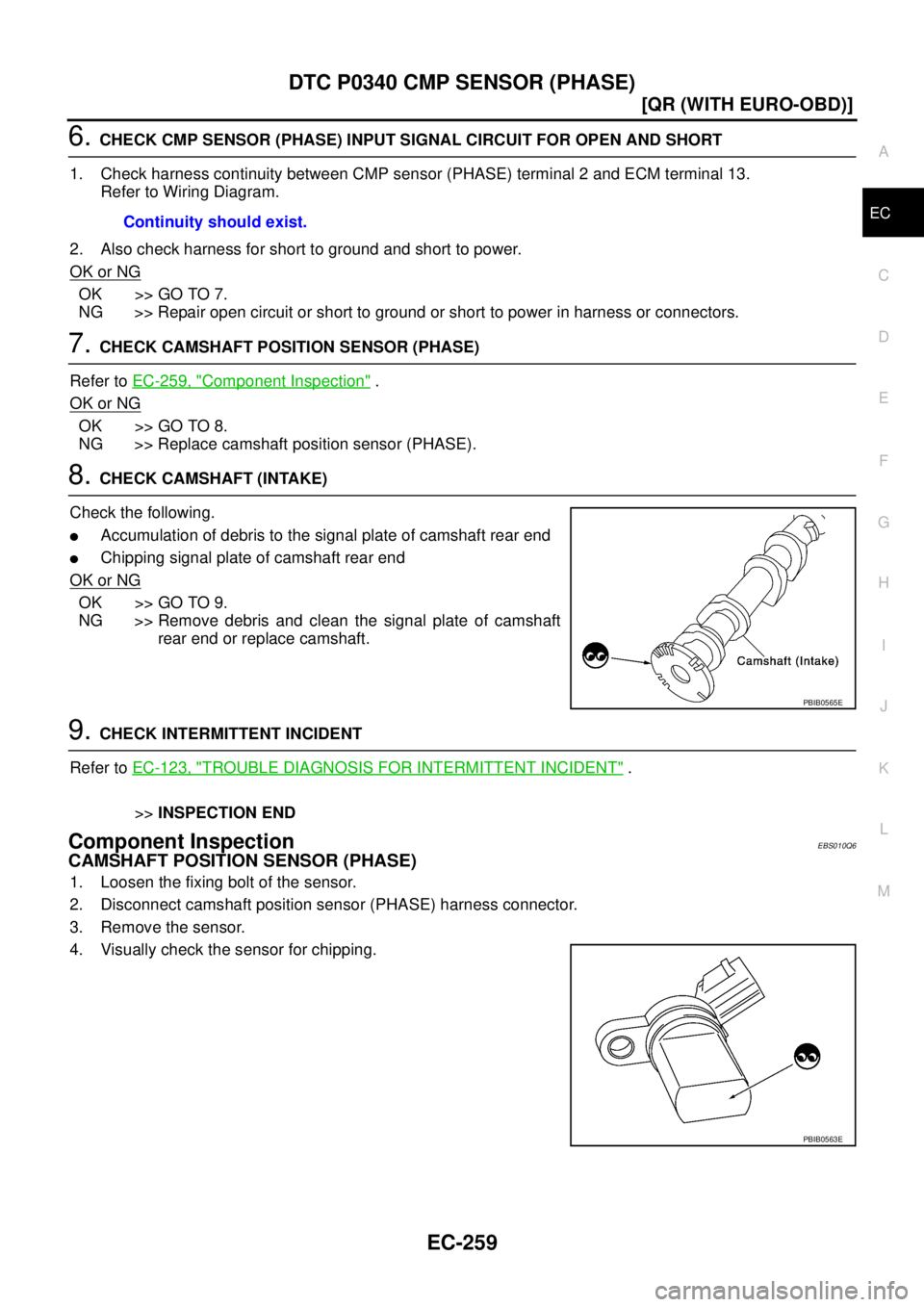

8. CHECK CAMSHAFT (INTAKE)
Check the following.
Accumulation of debris to the signal plate of camshaft rear end
Chipping signal plate of camshaft rear end
OK or NG
OK >> GO TO 9.
NG >> Remove debris and clean the signal plate of camshaft
rear end or replace camshaft.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-123, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionEBS010Q6
CAMSHAFT POSITION SENSOR (PHASE)
1. Loosen the fixing bolt of the sensor.
2. Disconnect camshaft position sensor (PHASE) harness connector.
3. Remove the sensor.
4. Visually check the sensor for chipping.Continuity should exist.
PBIB0565E
PBIB0563E
Page 638 of 4179
EC-260
[QR (WITH EURO-OBD)]
DTC P0340 CMP SENSOR (PHASE)

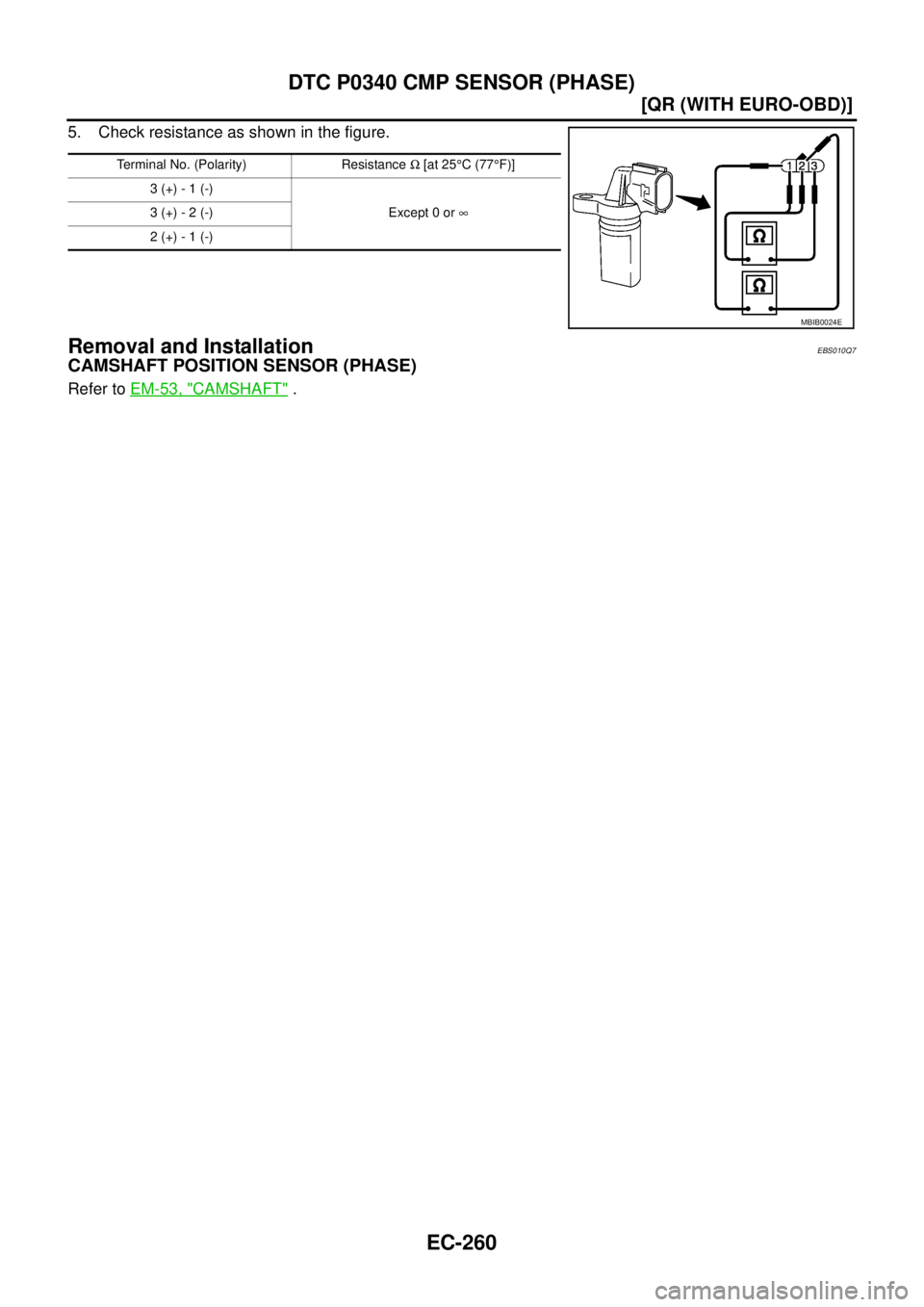

5. Check resistance as shown in the figure.
Removal and InstallationEBS010Q7
CAMSHAFT POSITION SENSOR (PHASE)
Refer to EM-53, "CAMSHAFT" .
Terminal No. (Polarity) Resistance Ω [at 25°C (77°F)]
3 (+) - 1 (-)
Except 0 or ∞ 3 (+) - 2 (-)
2 (+) - 1 (-)
MBIB0024E
Page 639 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual DTC P0420 THREE WAY CATALYST FUNCTION
EC-261
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0420 THREE WAY CATALYST FUNCTIONPFP:20905
On Board Diagnosis LogicEBS010Q8
The ECM monitors the switc NISSAN X-TRAIL 2003 Service Repair Manual DTC P0420 THREE WAY CATALYST FUNCTION
EC-261
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0420 THREE WAY CATALYST FUNCTIONPFP:20905
On Board Diagnosis LogicEBS010Q8
The ECM monitors the switc](/manual-img/5/57404/w960_57404-638.png)
DTC P0420 THREE WAY CATALYST FUNCTION
EC-261
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC
DTC P0420 THREE WAY CATALYST FUNCTIONPFP:20905
On Board Diagnosis LogicEBS010Q8

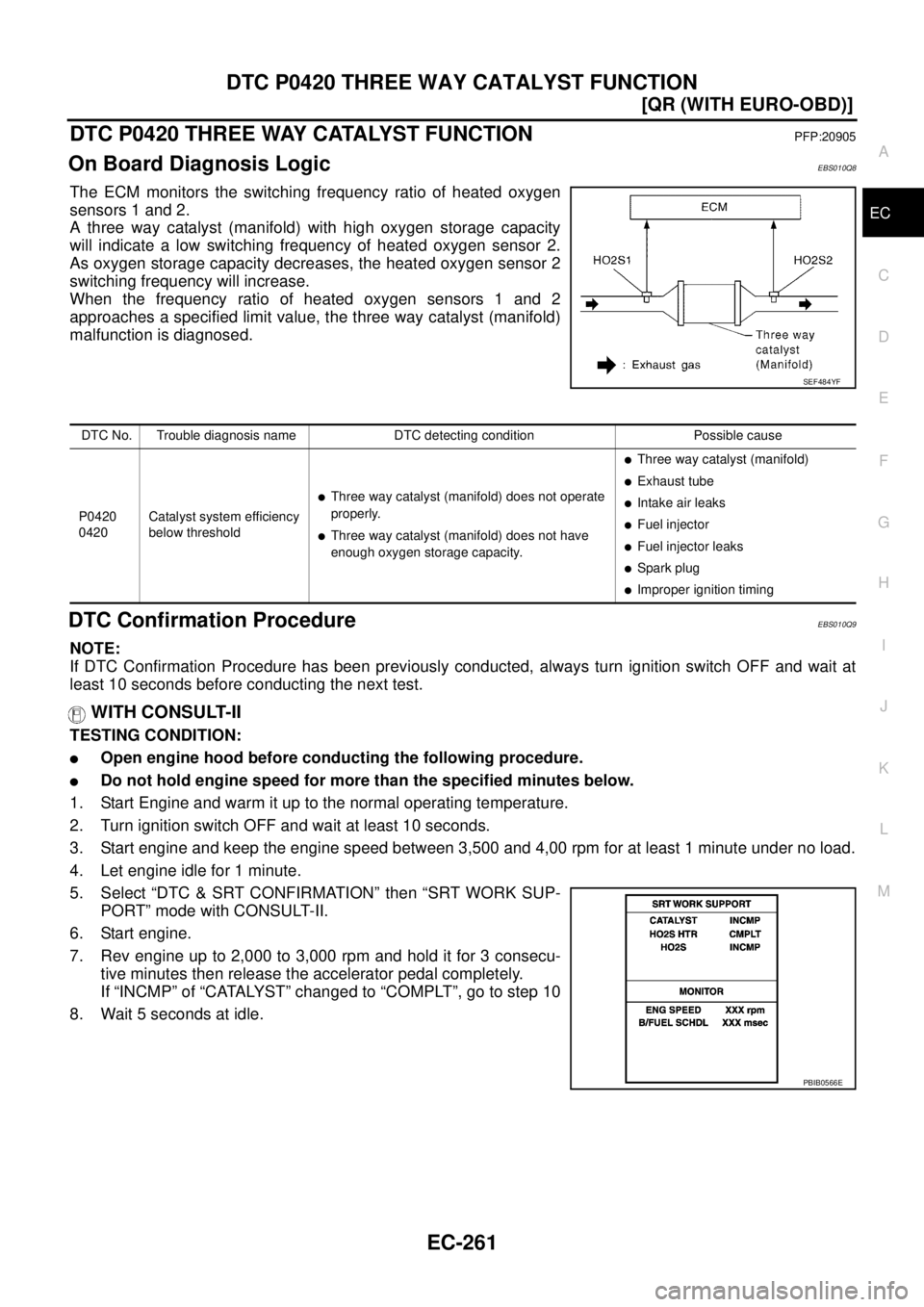

The ECM monitors the switching frequency ratio of heated oxygen
sensors 1 and 2.
A three way catalyst (manifold) with high oxygen storage capacity
will indicate a low switching frequency of heated oxygen sensor 2.
As oxygen storage capacity decreases, the heated oxygen sensor 2
switching frequency will increase.
When the frequency ratio of heated oxygen sensors 1 and 2
approaches a specified limit value, the three way catalyst (manifold)
malfunction is diagnosed.
DTC Confirmation ProcedureEBS010Q9
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
TESTING CONDITION:
Open engine hood before conducting the following procedure.
Do not hold engine speed for more than the specified minutes below.
1. Start Engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,00 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.
5. Select “DTC & SRT CONFIRMATION” then “SRT WORK SUP-
PORT” mode with CONSULT-II.
6. Start engine.
7. Rev engine up to 2,000 to 3,000 rpm and hold it for 3 consecu-
tive minutes then release the accelerator pedal completely.
If “INCMP” of “CATALYST” changed to “COMPLT”, go to step 10
8. Wait 5 seconds at idle.
SEF484YF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0420
0420Catalyst system efficiency
below threshold
Three way catalyst (manifold) does not operate
properly.
Three way catalyst (manifold) does not have
enough oxygen storage capacity.
Three way catalyst (manifold)
Exhaust tube
Intake air leaks
Fuel injector
Fuel injector leaks
Spark plug
Improper ignition timing
PBIB0566E
Page 640 of 4179
![NISSAN X-TRAIL 2003 Service Repair Manual EC-262
[QR (WITH EURO-OBD)]
DTC P0420 THREE WAY CATALYST FUNCTION
9. Rev engine up to 2,000 to 3,000 rpm and maintain it until
“INCMP” of “CATALYST” changes to “CMPLT” (It will take
appr NISSAN X-TRAIL 2003 Service Repair Manual EC-262
[QR (WITH EURO-OBD)]
DTC P0420 THREE WAY CATALYST FUNCTION
9. Rev engine up to 2,000 to 3,000 rpm and maintain it until
“INCMP” of “CATALYST” changes to “CMPLT” (It will take
appr](/manual-img/5/57404/w960_57404-639.png)
EC-262
[QR (WITH EURO-OBD)]
DTC P0420 THREE WAY CATALYST FUNCTION
9. Rev engine up to 2,000 to 3,000 rpm and maintain it until
“INCMP” of “CATALYST” changes to “CMPLT” (It will take
approximately 5 minutes).
If not “CMPLT”, stop engine and cool it down to less than 70°C
(158°F) and then retest from step 1.
a. Turn ignition switch OFF and leave the vehicle in a cool place
(soak the vehicle)
b. Turn ignition switch ON and select “COOLANT TEMP/S” in
“DATA MONITOR” mode with CONSULT-II.
c. Start engine and warm it up while monitoring “COOLANT TEMP/
S” indication on CONSULT-II.
d. When “COOLANT TEMP/S” indication reaches to 70°(158°F),
go to step 3.
10. Select “SELF-DIAG RESULTS” mode with CONSULT-II.
11. Confirm that the 1st trip DTC is not detected.
If the 1st trip DTC is detected, go to EC-263, "
Diagnostic Proce-
dure" .
Overall Function CheckEBS010QA
Use this procedure to check the overall function of the three way catalyst (manifold). During this check, a DTC
might not be confirmed.
CAUTION:
Always drive vehicle at a safe speed.
WITH GST
1. Start engine and warm it up to the normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and keep the engine speed between 3,500 and 4,00 rpm for at least 1 minute under no load.
4. Let engine idle for 1 minute.

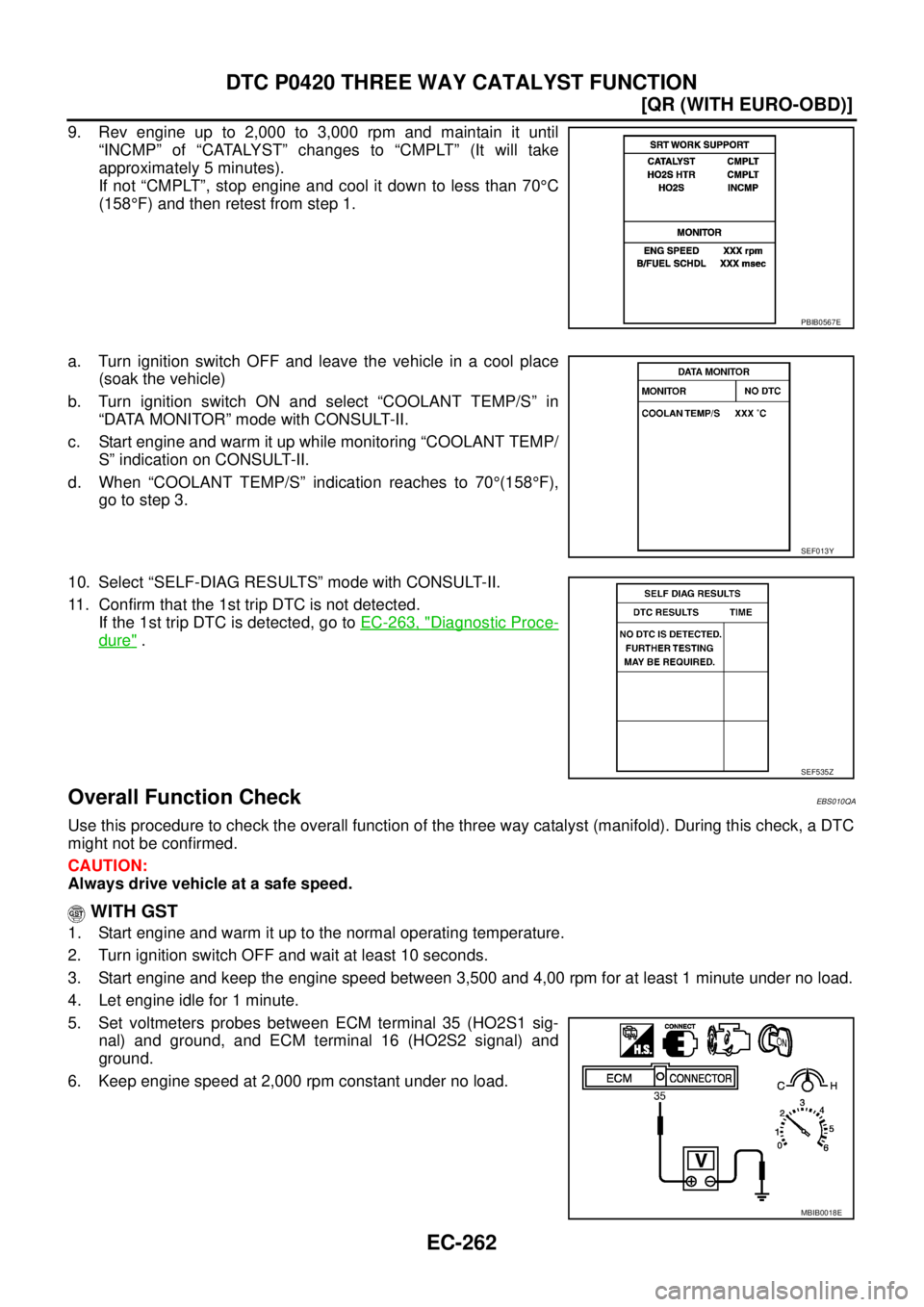

5. Set voltmeters probes between ECM terminal 35 (HO2S1 sig-
nal) and ground, and ECM terminal 16 (HO2S2 signal) and
ground.
6. Keep engine speed at 2,000 rpm constant under no load.
PBIB0567E
SEF013Y
SEF535Z
MBIB0018E
