NISSAN X-TRAIL 2003 Service Repair Manual NAVIGATION SYSTEM
AV-95
C
D
E
F
G
H
I
J
L
MA
B
AV

Guide Sound Is Not HeardEKS00F3K
1. CHECK VOICE GUIDE SETTING.
While driving in the dark pink route, voice guide does not operate.
NOTE:
Voice guid

Page 3986 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AV-96
NAVIGATION SYSTEM

4. VOICE CHANGE RELAY CIRCUIT CHECK 1
1. Turn ignition switch OFF.
2. Disconnect transfer unit connector and voice change relay connector.
3. Check continuity between transfe

Page 3987 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual NAVIGATION SYSTEM
AV-97
C
D
E
F
G
H
I
J
L
MA
B
AV

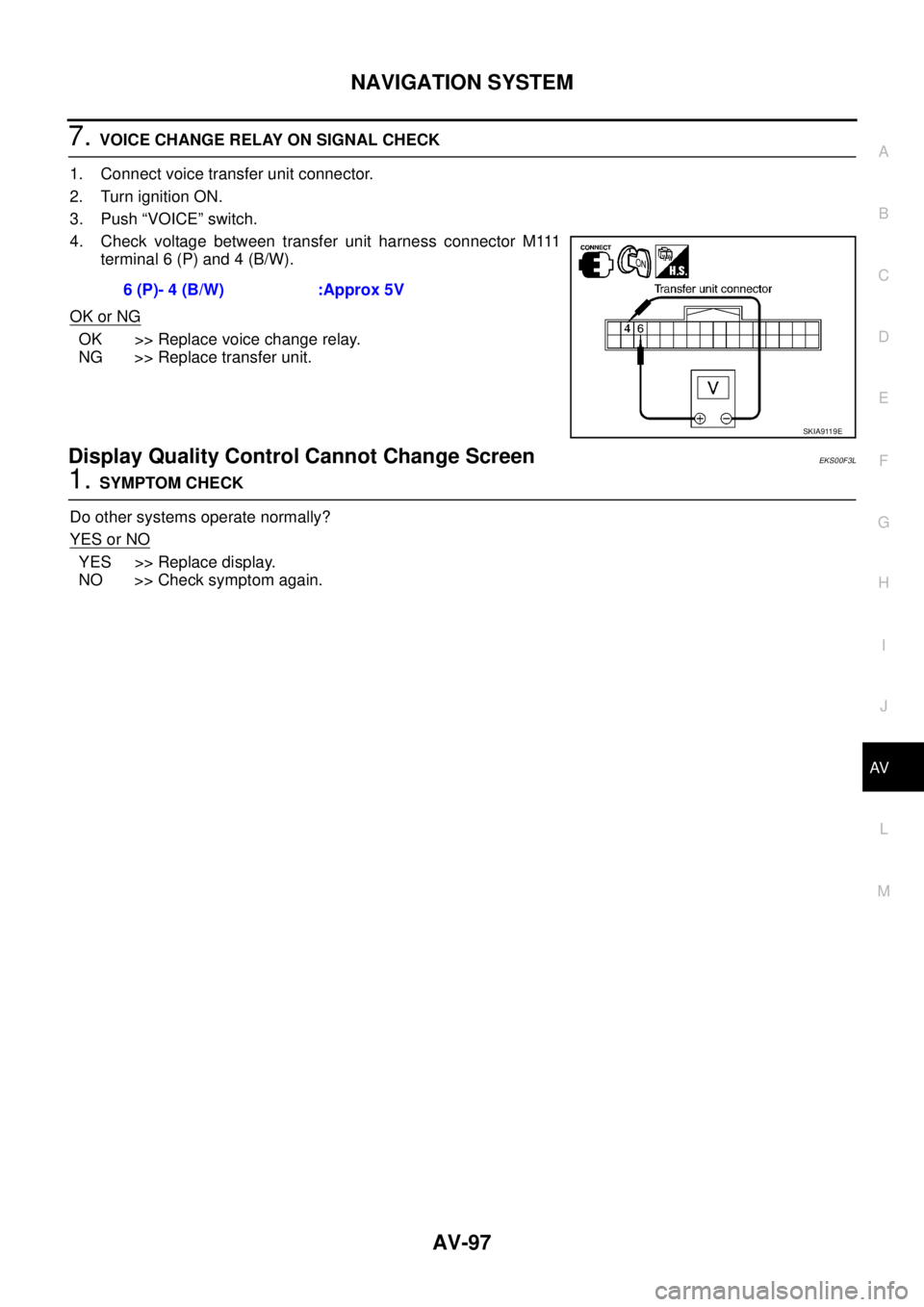

7. VOICE CHANGE RELAY ON SIGNAL CHECK
1. Connect voice transfer unit connector.
2. Turn ignition ON.
3. Push “VOICE” switch.
4. Check voltage b

Page 3988 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AV-98
NAVIGATION SYSTEM

Driving TestEKS00F3M
1. DRIVING TEST 1
1. Scroll the map screen to display the area to make correction. Push “ENTER” and select “CURRENT
LOCATION CORRECTION”.
2. Corr

AV-98
NAVIGATION SYSTEM

Driving TestEKS00F3M
1. DRIVING TEST 1
1. Scroll the map screen to display the area to make correction. Push “ENTER” and select “CURRENT
LOCATION CORRECTION”.
2. Correct direction of the vehicle mark.
3. Perform the distance correction of the “CONFIRMATION/ADJUSTMENT” mode.
NOTE:
Normally, adjustment is not necessary because this system has automatic distance correction function.
However, when a tire chain is fitted, adjustment in accordance with the tire diameter ratio must be made.
4. Are symptoms applicable to the AV- 9 9 , "
Example of Symptoms Judged Not Malfunction" present after
driving the vehicle?
YES or NO
YES >> Limit of the location detection capacity of the navigation system.
NO >> GO TO 2.
2. DRIVING TEST 2
Did any problem occur when the proper test in the following test patterns is performed?
Test pattern
Driving test finds the difference between the symptoms monitored with and without each sensor.
–Test pattern 1: Test method with no GPS location correction
Disconnect the GPS antenna connector connected to the NAVI control unit. Accurately adjust the current
position and the direction, then drive the vehicle.
–Test pattern 2: Test method with no map-matching
Accurately adjust the current position and the direction. Eject the map DVD-ROM from the NAVI control
unit with the ignition switch turned to OFF, then drive the vehicle. After driving, insert the map DVD-ROM
back in the unit, display the track of the vehicle on the map screen and compare it with the actual road
configuration.
Sample tests
– matching or by GPS>
Perform test pattern 1.
–
Perform test pattern 1 and 2.
Compare the track of the vehicle on the map screen and the actual road configuration. For fairly accurate
tracking, plotting shall be made every several hundred meters.
–
Perform test pattern 1 and 2.
Drive on a road of which distance is accurately known (by utilizing distance posts on a highway). Calculate
the rate of change (increased/decreased) of the distance by comparing with the actual distance.
Correction =1– A/B
A: Distance shown on the screen
B: Actual distance
YES or NO
YES >>If adjustment is insufficient, perform adjustment again.
If any error is found in the map, please let us know.
Replace NAVI control unit.
NO >> Limit of the location detection capacity of the navigation system.

Page 3989 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual NAVIGATION SYSTEM
AV-99
C
D
E
F
G
H
I
J
L
MA
B
AV

Example of Symptoms Judged Not MalfunctionEKS00F3N
BASIC OPERATION
VEHICLE MARK
Symptom Cause Remedy
No image is shown. Display brightness adjustm

NAVIGATION SYSTEM
AV-99
C
D
E
F
G
H
I
J
L
MA
B
AV

Example of Symptoms Judged Not MalfunctionEKS00F3N
BASIC OPERATION
VEHICLE MARK
Symptom Cause Remedy
No image is shown. Display brightness adjustment is set fully to
DARK side.Adjust the display brightness.
No guide sound is heard.
Audio guide volume is too low or
too high.Volume control is set to OFF, MIN or MAX. Adjust the audio guide volume.
Audio guidance is not available while the vehicle
is driving on a dark pink route.System is not malfunction.
Screen is too dark.
Motion of the image is too slow.Temperature inside the vehicle is low. Wait until the temperature inside the vehicle
reaches the proper temperature.
Small black or bright spots appear
on the screen.Symptom peculiar to a liquid crystal display. System is not malfunction.
Symptom Cause Remedy
Map screen and BIRDVIEW
®
Name of the place vary with the
screen.Some thinning of the character data is done to
prevent the display becoming to complex. In
some cases and in some locations, the display
contents may differ.
The same place name, street name, etc. may not
be displayed every time on account of the data
processing.System is not malfunction.
Vehicle mark is not positioned cor-
rectly.Vehicle is transferred by ferry or by towing after its
ignition switch is turned to OFF.Drive the vehicle for a while in the GPS sat-
ellite signal receiving condition.
Screen will not switch to nighttime
mode after the lighting switch is
turned ON.The daytime screen is selected by the ″SWITCH
SCREENS″ when the last time the screen dim-
ming setting is done.
Switching between daytime/nighttime screen may
be inhibited by the automatic illumination adjust-
ment function.Perform screen dimming and select the
nighttime screen by “SWITCH SCREENS”.
Map screen will not scroll in accor-
dance with the vehicle travel.Current location is not displayed. Push “MAP” switch to display the current
location.
Vehicle mark will not be shown. Current location is not displayed. Push “MAP” switch to display the current
location.
Accuracy indicator (GPS satellite
mark) on the map screen stays
gray.GPS satellite signal is intercepted because the
vehicle is in or behind a building.Move the vehicle out to an open space.
GPS satellite signal cannot be received because
an obstacle is placed on top of the display.Do not place anything in the center on top of
the display.
GPS satellites are located badly. Wait until the location becomes better.
Vehicle location accuracy is low. Accuracy indicator (GPS satellite mark) on the
map screen stays gray.Current location is not determined.
Vehicle speed setting by the vehicle speed pulse
has been deviated (advanced or retarded) from
the actual vehicle speed because tire chain is fit-
ted or the system has been used on another vehi-
cle.Drive the vehicle for a while [for approx. 30
minutes at approx. 30 km/h (19 MPH)] and
the deviation will be automatically adjusted.
If advancement or retard still occur, perform
the distance adjustment by “CONFIRMA-
TION/ADJUSTMENT” mode of diagnosis
function.
Map data has error or omission. (Vehicle mark is
always deviated to the same position.)As a rule, an updated map DVD-ROM will be
released once a year.

Page 3990 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AV-100
NAVIGATION SYSTEM

DESTINATION, PASSING POINTS, AND MENU ITEMS CANNOT BE SELECTED/SET.
VOICE GUIDE
Symptom Cause Remedy
Passing point is not searched
when re-searching the route.The vehicle

AV-100
NAVIGATION SYSTEM

DESTINATION, PASSING POINTS, AND MENU ITEMS CANNOT BE SELECTED/SET.
VOICE GUIDE
Symptom Cause Remedy
Passing point is not searched
when re-searching the route.The vehicle has already passed the passing point,
or the system judged so.To include the passing points that have been
passed into the route again, set the route
again.
Route information will not be dis-
played.Route searching has not been done. Set the destination and perform route
searching.
Vehicle mark is not on the recommended route. Drive on the recommended route.
Route guide is turned OFF. Turn the route guide ON.
Route information is not available on the dark pink
route.System is not malfunction.
After the route searching, no guide
sign will appear as the vehicle
goes near the entrance/exit to the
toll road.Vehicle mark is not on the recommended route.
(On the display, only guide signs related to the
recommended route will be shown.)Drive on the recommended route.
Automatic route searching is not
possible.Vehicle is driving on a highway (gray route), or no
recommended route is available.Drive on a road to be searched. Or re-
search the route manually. In this case, how-
ever, the whole route will be searched.
Performed automatic detour
search (or detour search). How-
ever, the result is the same as that
of the previous search.Performed search with every conditions consid-
ered. However, the result is the same as that of
the previous search.System is not malfunction.
Passing points cannot be set. More than five passing points were set. Passing points can be set up to five. To stop
at more than five points, perform sharing in
several steps.
When setting the route, the start-
ing point cannot be selected.The current vehicle location is always set as the
starting point of a route.System is not malfunction.
Some menu items cannot be
selected.The vehicle is being driven. Stop the vehicle at a safe place and then
operate the system.
Symptom Cause Remedy
Voice guide will not operate. Note: Voice guide is only available at intersections
that satisfy certain conditions (indicated by on
the map). Therefore, guidance may not be given
even when the route on the map changes direc-
tion.System is not malfunction.
The vehicle is not on the recommended route. Return to the recommended route or re-
search the route.
Voice guide is turned OFF. Turn the voice guide ON.
Route guide is turned OFF. Turn the route guide ON.
Voice guide does not match the
actual road pattern.Voice guide may vary with the direction to which
the vehicle is turn and the connection of the road
to other roads.Drive in conformity to the actual traffic rules.

Page 3991 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual NAVIGATION SYSTEM
AV-101
C
D
E
F
G
H
I
J
L
MA
B
AV

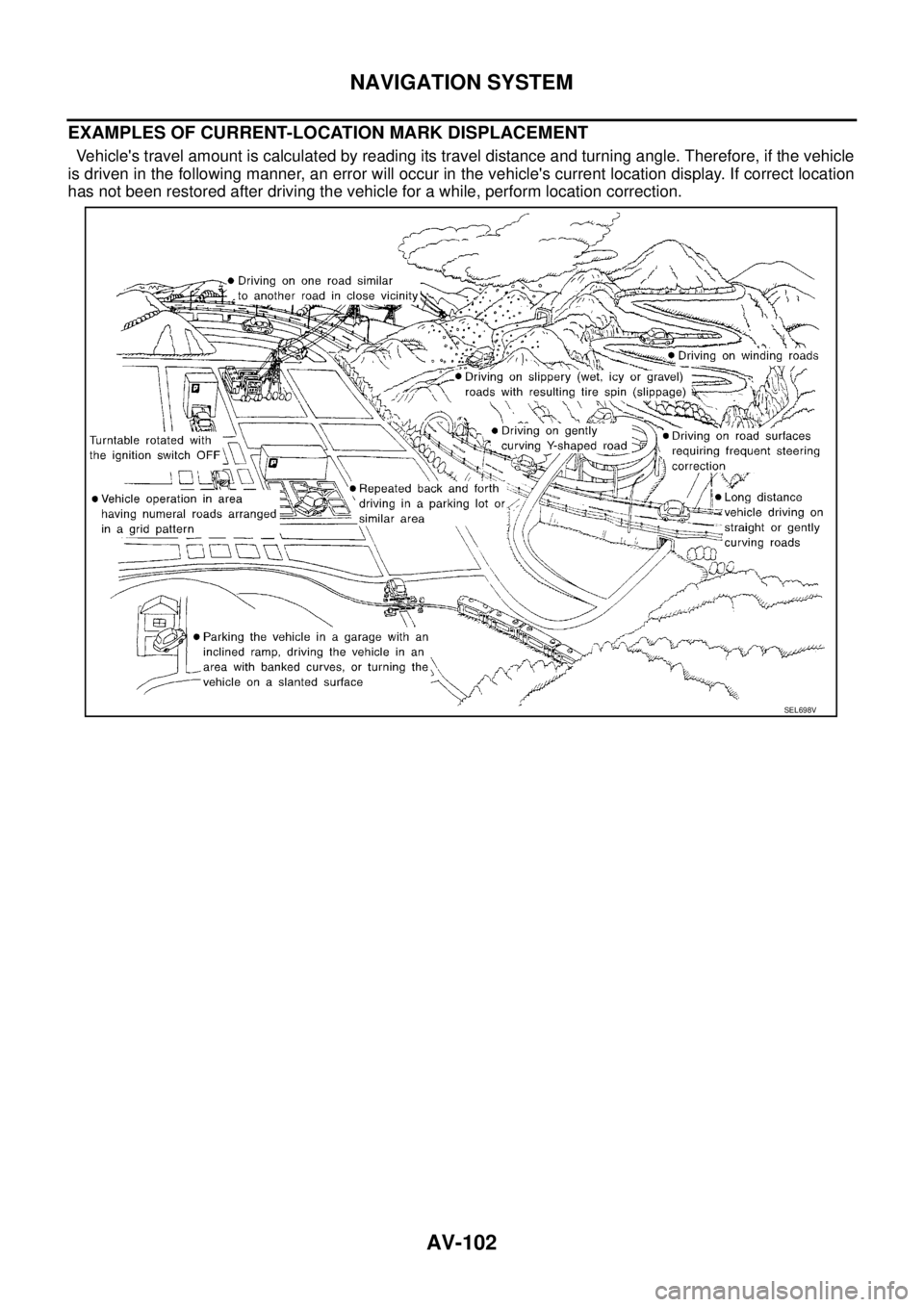

ROUTE SEARCHING
NOTE:
Except for the ordinance-designated cities and the prefectural capitals (Applicable areas may be changed in the updated map

NAVIGATION SYSTEM
AV-101
C
D
E
F
G
H
I
J
L
MA
B
AV

ROUTE SEARCHING
NOTE:
Except for the ordinance-designated cities and the prefectural capitals (Applicable areas may be changed in the updated map disc.) Symptom Cause Remedy
No route is shown. No road to be searched is found around the des-
tination.Find wider road (orange road or wider)
nearby and reset the destination and passing
points onto it. Take care of the traveling
direction when there are separate up and
down roads.
Starting point and the destination are too close. Set the destination at more distant point.
Conditional traffic regulation (day of the week/
time of the day) is set at the area around the cur-
rent position or the destination.Turn the time-regulating search conditions
OFF. Turn “Avoid regulation time” in the
search conditions OFF.
Indicated route is intermittent. In some areas, highways (gray routes) are not
used for the search
(Note) Therefore, the route to
the current position or the passing points may be
intermittent.System is not malfunction.
When the vehicle has passed the
recommended route, it is deleted
from the screen.A recommended route is controlled by each sec-
tion. When the vehicle has passed the passing
point 1, then the map data from the starting point
up to the passing point 1 will be deleted. (The
data may remain undeleted in some area.)System is not malfunction.
Detouring route is recommended. In some areas, highways (gray routes) are not
used for the search. (Note). Therefore, detour
route may be recommended.Set the route closer to the basic route (gray
route).
A detour route may be shown when some traffic
regulation (one-way traffic, etc.) is set at the area
around the starting point or the destination.Slightly move the starting point or the desti-
nation, or set the passing point on the route
of your choice.
In the area where highways (gray routes) are
used for the search, left turn has priority around
the current position and the destination (passing
points). For this reason, the recommended route
may be detouring.System is not malfunction.
Landmarks on the map do not
match the actual ones.This can be happen due to omission or error in
the map data.As a rule, an updated map DVD-ROM will be
released once a year. Wait until the latest
map has become available.
Recommended route is far from
the starting point, passing points,
and destination.Starting point, passing points, and destination of
the route guide were set far from the desired
points because route searching data around
these area were not stored.Reset the destination onto the road nearby. If
this road is one of the highways (gray
routes), an ordinary road nearby may be dis-
played as the recommended route.

Page 3992 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual AV-102
NAVIGATION SYSTEM

EXAMPLES OF CURRENT-LOCATION MARK DISPLACEMENT
Vehicles travel amount is calculated by reading its travel distance and turning angle. Therefore, if the vehicle
is driven i

Load next 8 pages

Page: < prev 1-10 ... 3953-3960 3961-3968 3969-3976 3977-3984 3985-3992 3993-4000 4001-4008 4009-4016 4017-4024 ... 4184 next >

android auto TPMS reset check engine light turn signal bulb engine overheat tailgate
