Page 3377 of 4179

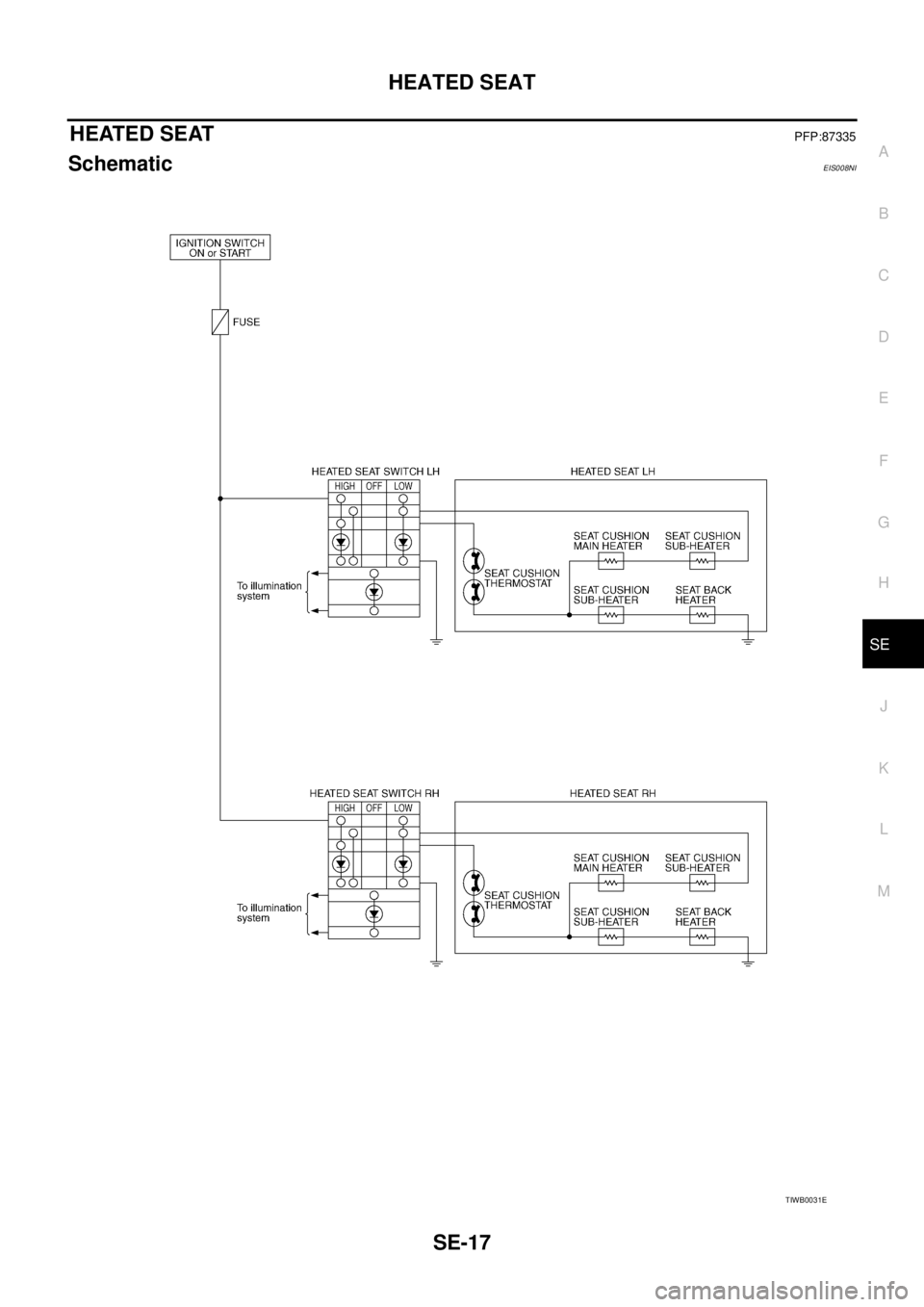

NISSAN X-TRAIL 2003 Service Repair Manual HEATED SEAT SE-17 C D E F G H J K L MA B SE HEATED SEATPFP:87335 SchematicEIS008NI TIWB0031E

Page 3378 of 4179

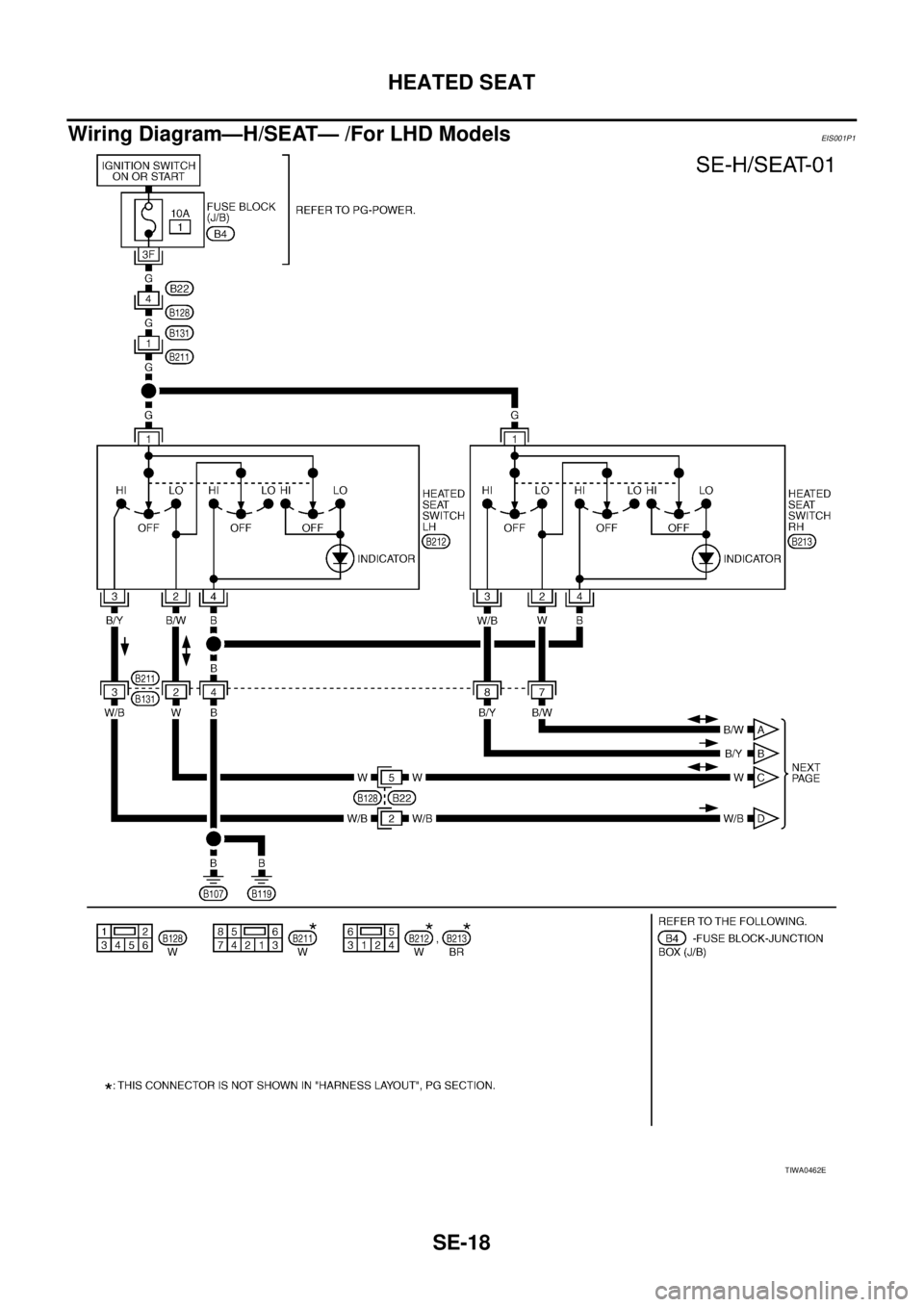

NISSAN X-TRAIL 2003 Service Repair Manual SE-18 HEATED SEAT Wiring Diagram—H/SEAT— /For LHD ModelsEIS001P1 TIWA0462E

Page 3379 of 4179

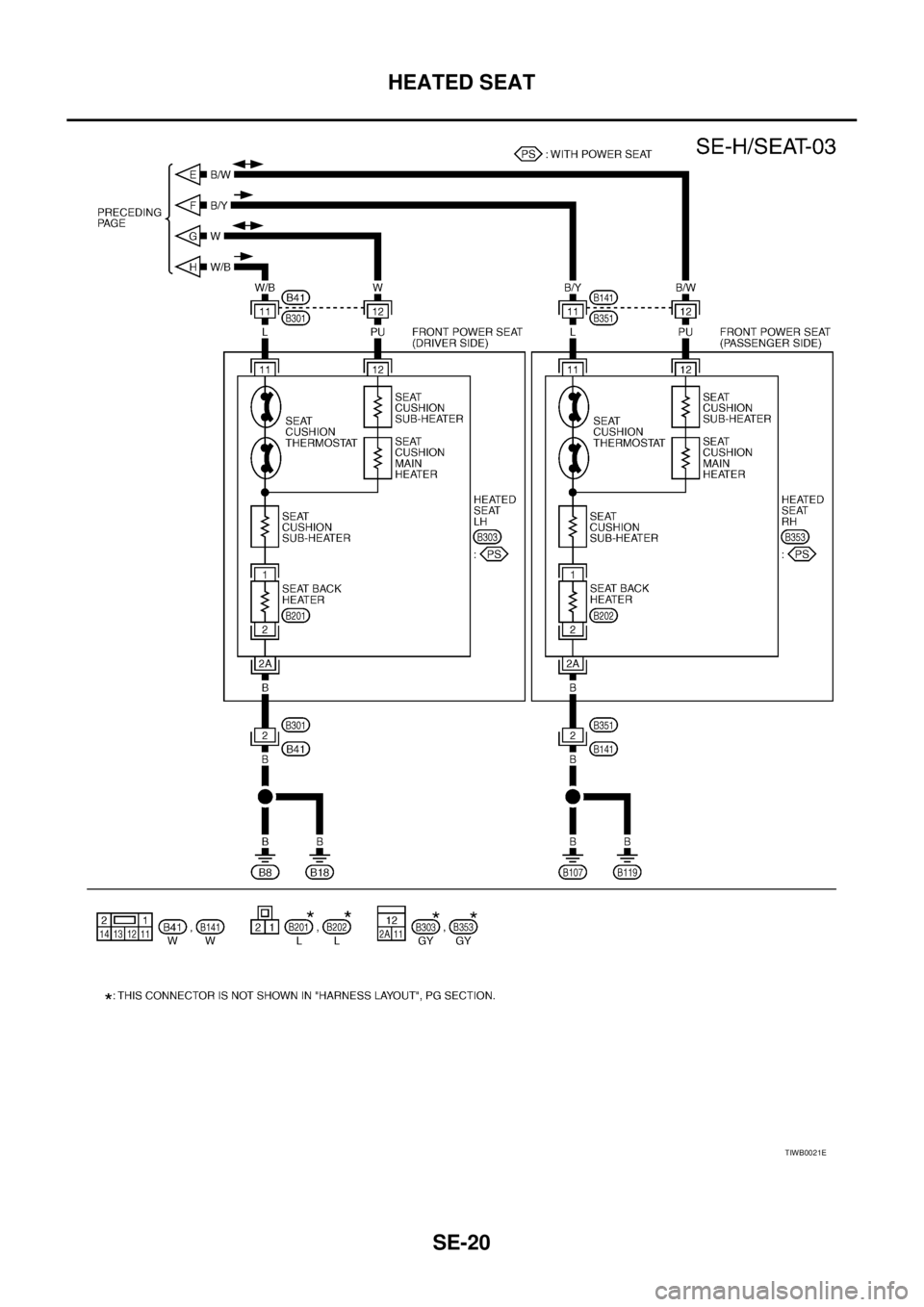

NISSAN X-TRAIL 2003 Service Repair Manual HEATED SEAT SE-19 C D E F G H J K L MA B SE TIWB0027E

Page 3380 of 4179

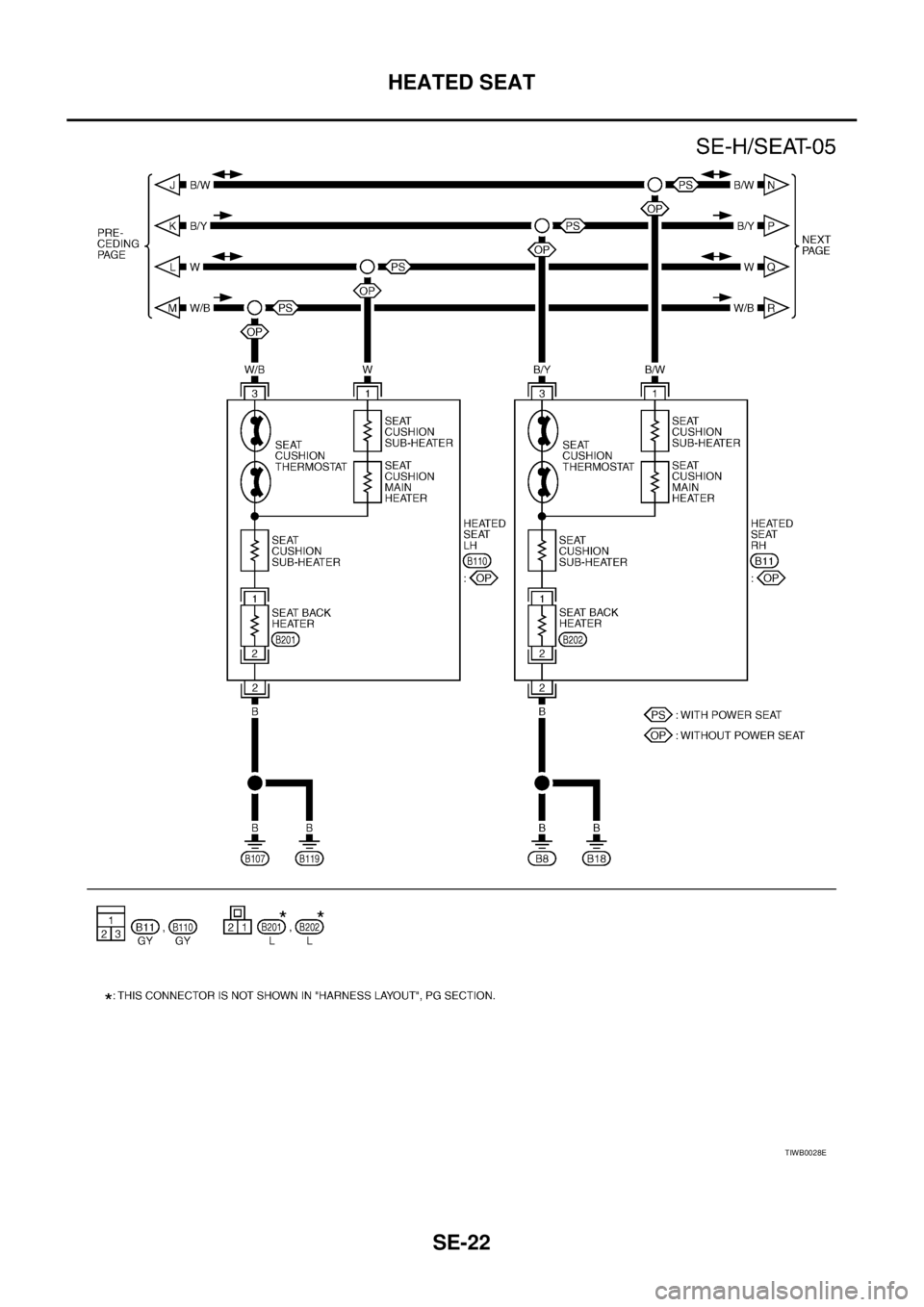

NISSAN X-TRAIL 2003 Service Repair Manual SE-20 HEATED SEAT TIWB0021E

Page 3381 of 4179

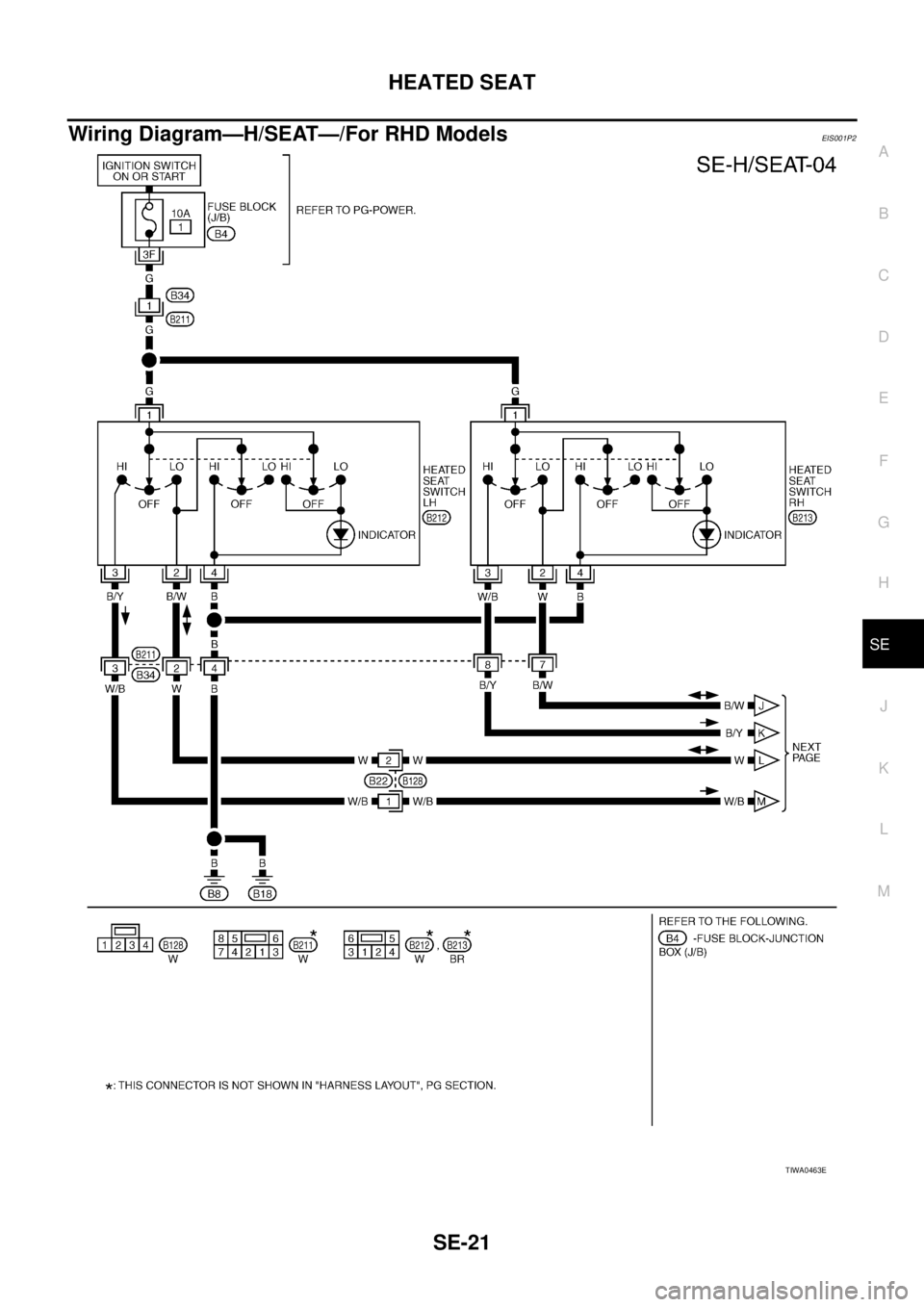

NISSAN X-TRAIL 2003 Service Repair Manual HEATED SEAT SE-21 C D E F G H J K L MA B SE Wiring Diagram—H/SEAT—/For RHD ModelsEIS001P2 TIWA0463E

Page 3382 of 4179

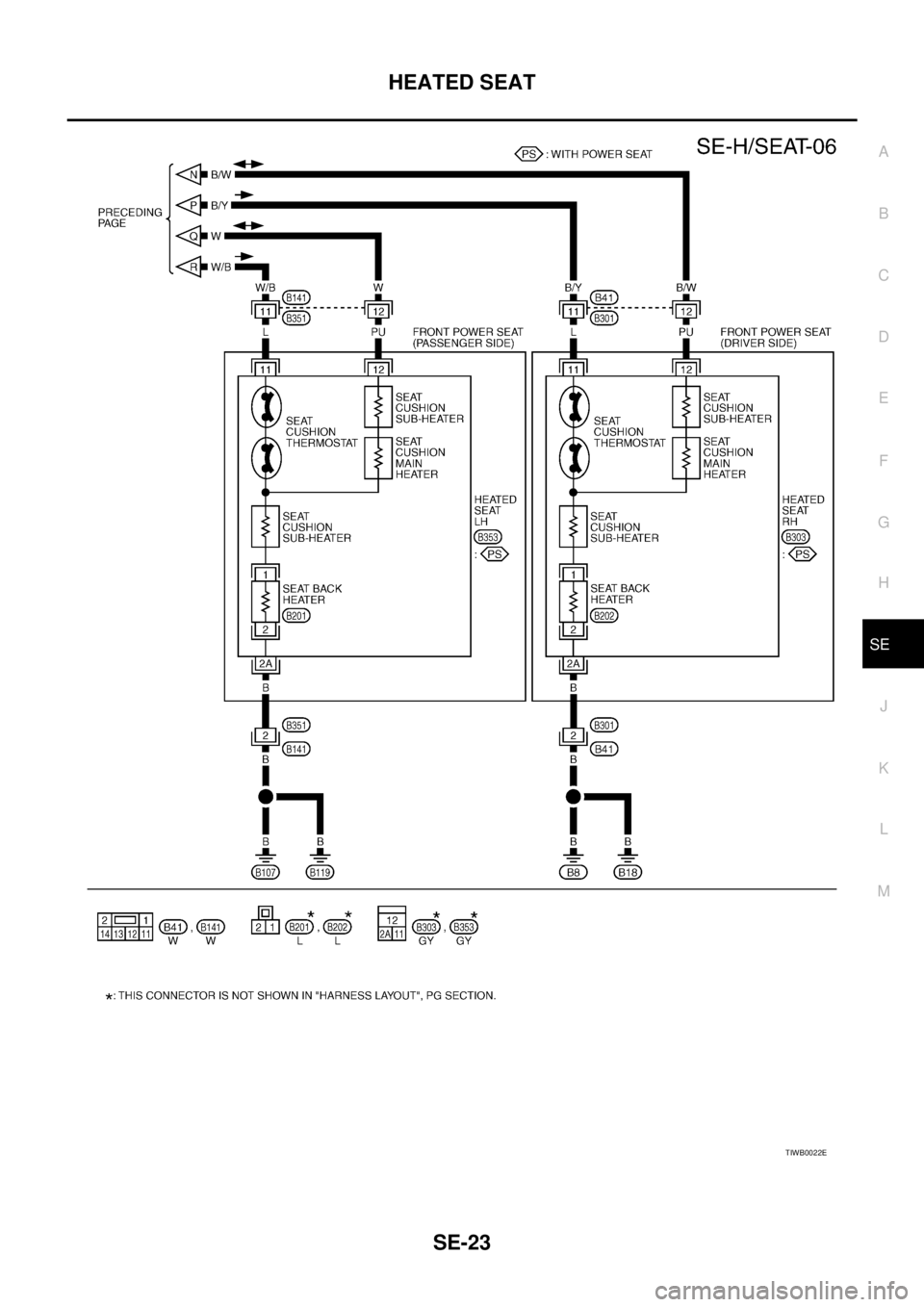

NISSAN X-TRAIL 2003 Service Repair Manual SE-22 HEATED SEAT TIWB0028E

Page 3383 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual HEATED SEAT SE-23 C D E F G H J K L MA B SE TIWB0022E

Page 3384 of 4179

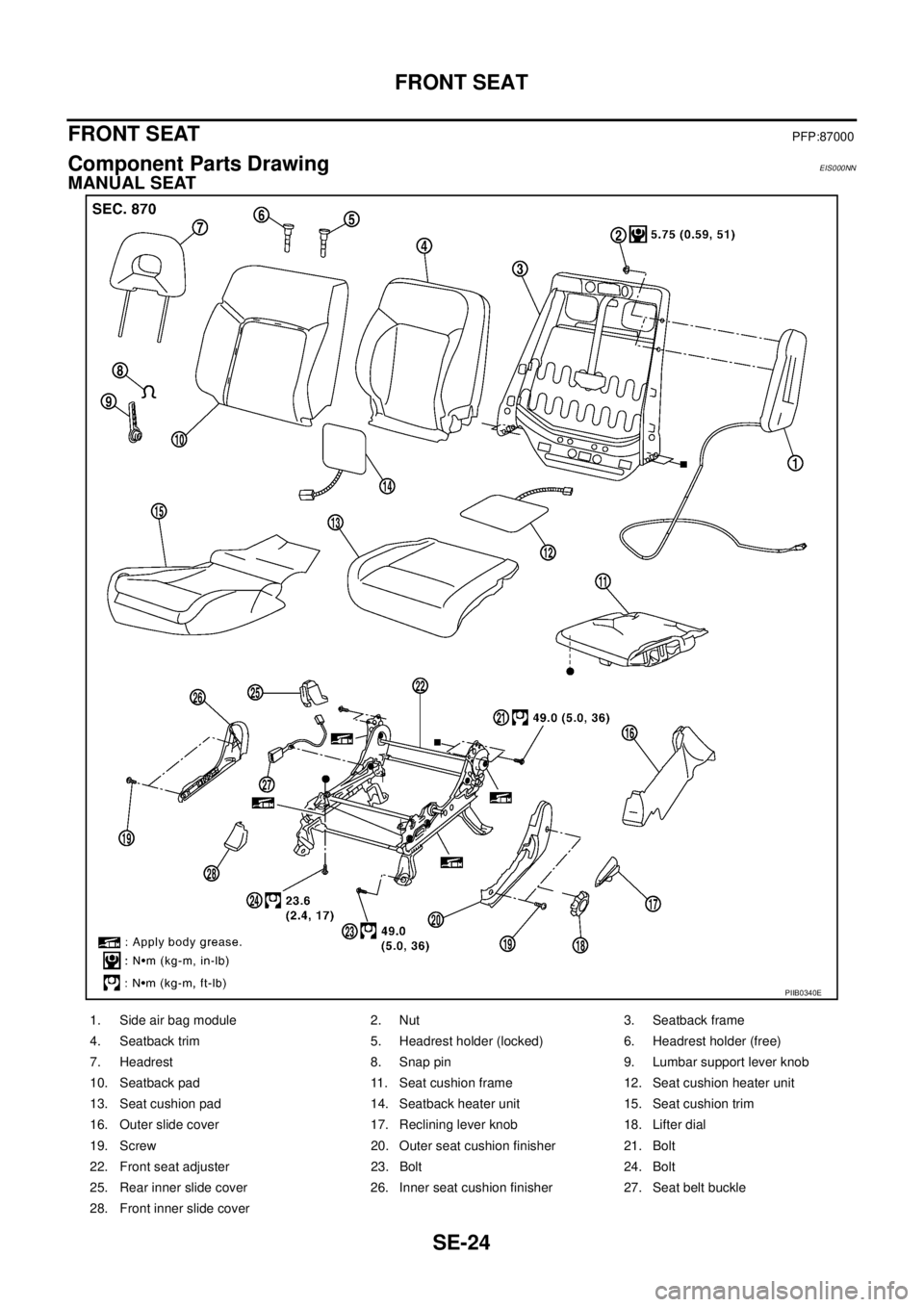

NISSAN X-TRAIL 2003 Service Repair Manual SE-24 FRONT SEAT FRONT SEATPFP:87000 Component Parts DrawingEIS000NN MANUAL SEAT PIIB0340E 1. Side air bag module 2. Nut 3. Seatback frame 4. Seatback trim 5. Headrest holder (locked) 6. Headrest ho
