2003 NISSAN X-TRAIL Service Repair Manual

display automatic transmission fluid length oil filter fog light bulb adblue reset

Load previous 8 pages

Page 41 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TOW TRUCK TOWING
GI-39
C
D
E
F
G
H
I
J
K
L
MB
GI

TOW TRUCK TOWINGPFP:00000
Tow Truck TowingEAS000FL
CAUTION:
All applicable local laws regarding the towing operation must be obeyed.
It is necessar

Page 42 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual GI-40
TOW TRUCK TOWING

TOWING THE VEHICLE WITH REAR WHEELS RAISED (WITH FRONT WHEELS ON GROUND)
OR FRONT WHEELS RAISED
Never tow the vehicle with rear wheels raised (with front wheels on
ground)

Page 43 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual TIGHTENING TORQUE OF STANDARD BOLTS
GI-41
C
D
E
F
G
H
I
J
K
L
MB
GI

TIGHTENING TORQUE OF STANDARD BOLTSPFP:00000
Tightening Torque Table EAS000GD
*: Nominal diameter
1.Special parts are excluded.
2.

Page 44 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual GI-42
IDENTIFICATION INFORMATION

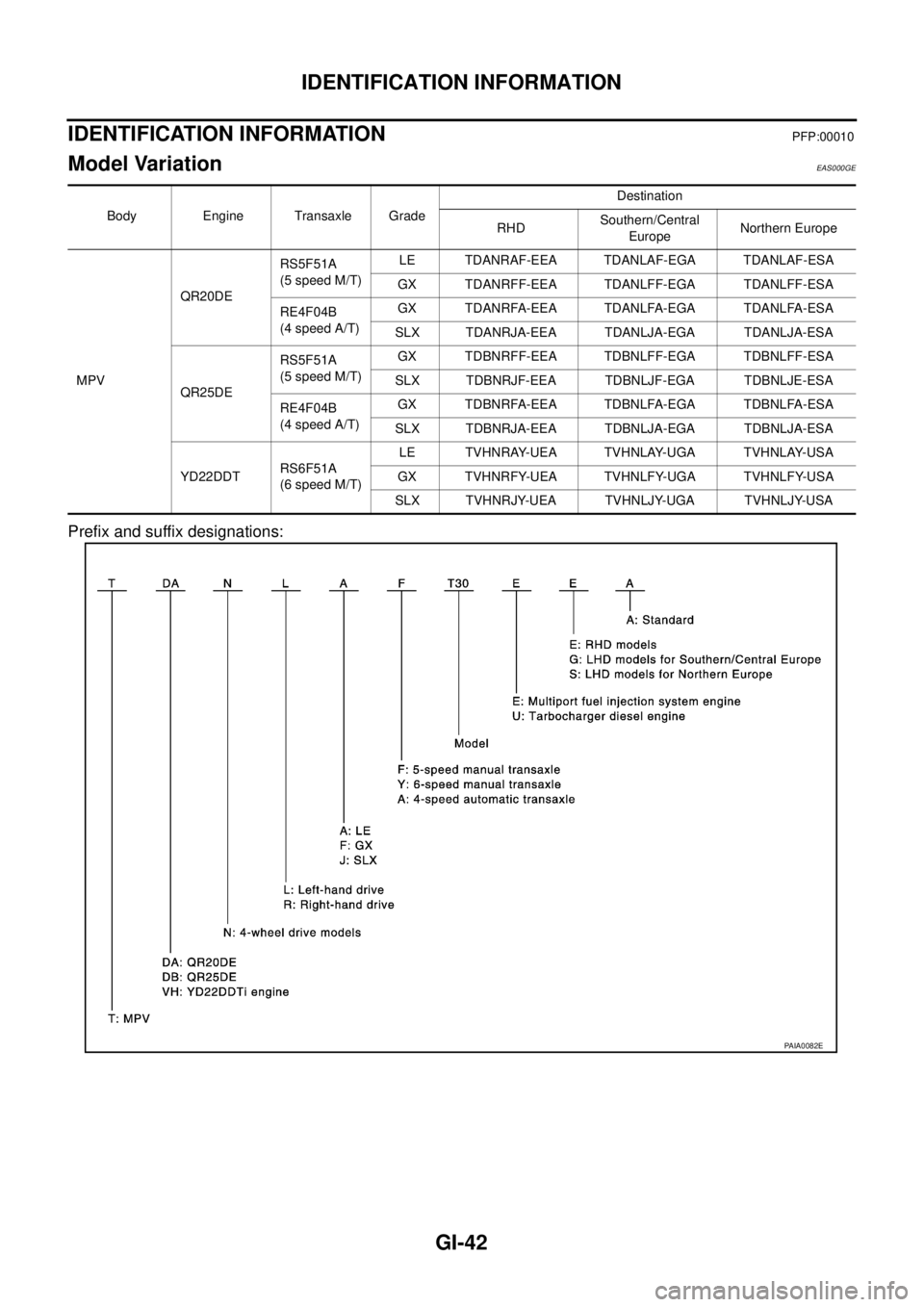

IDENTIFICATION INFORMATIONPFP:00010
Model Variation EAS000GE
Prefix and suffix designations:
Body Engine Transaxle GradeDestination
RHDSouthern/Central
EuropeNorthe

Page 45 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual IDENTIFICATION INFORMATION
GI-43
C
D
E
F
G
H
I
J
K
L
MB
GI

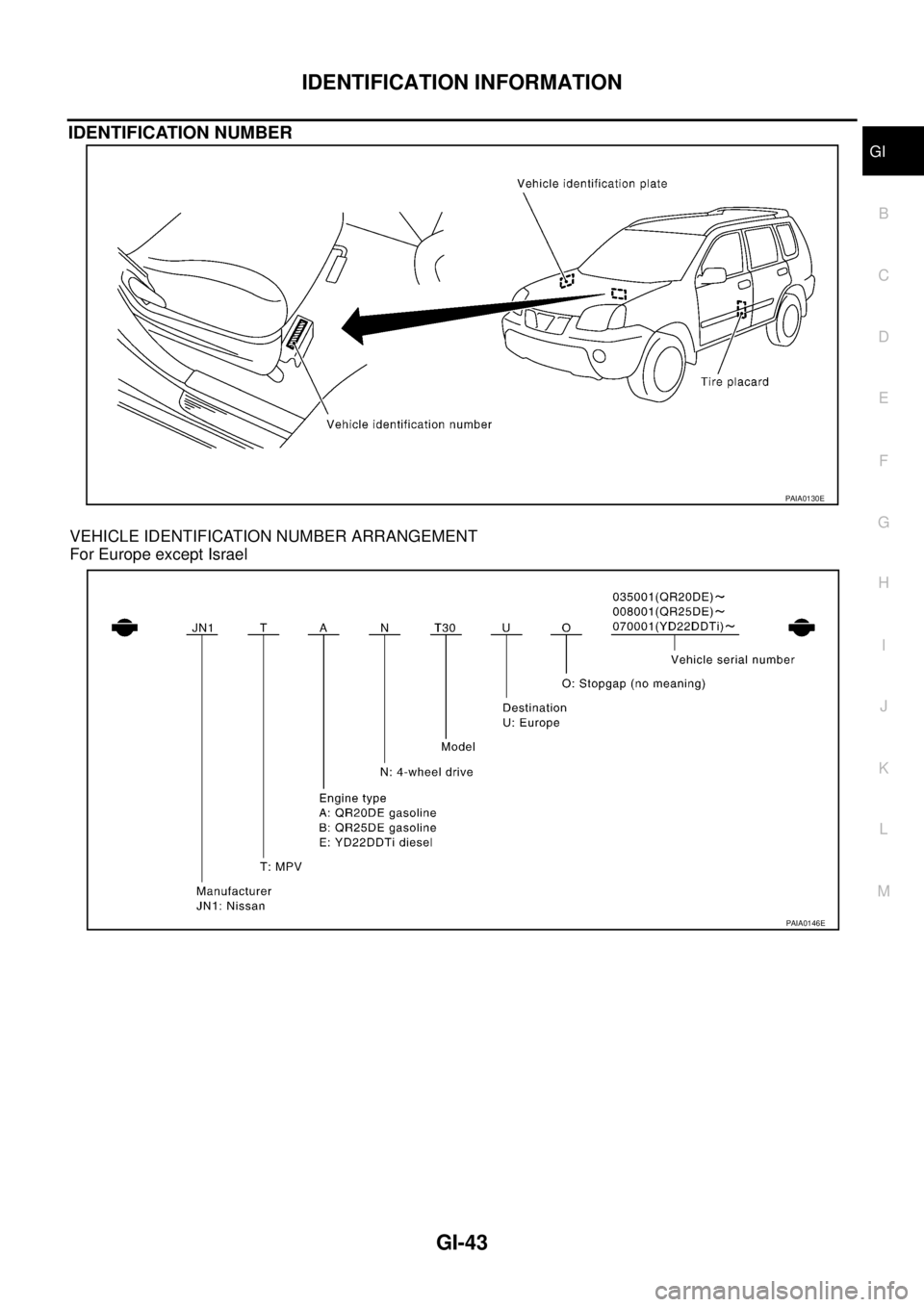

IDENTIFICATION NUMBER
VEHICLE IDENTIFICATION NUMBER ARRANGEMENT
For Europe except Israel
PAIA0130E
PAIA0146E

Page 46 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual GI-44
IDENTIFICATION INFORMATION

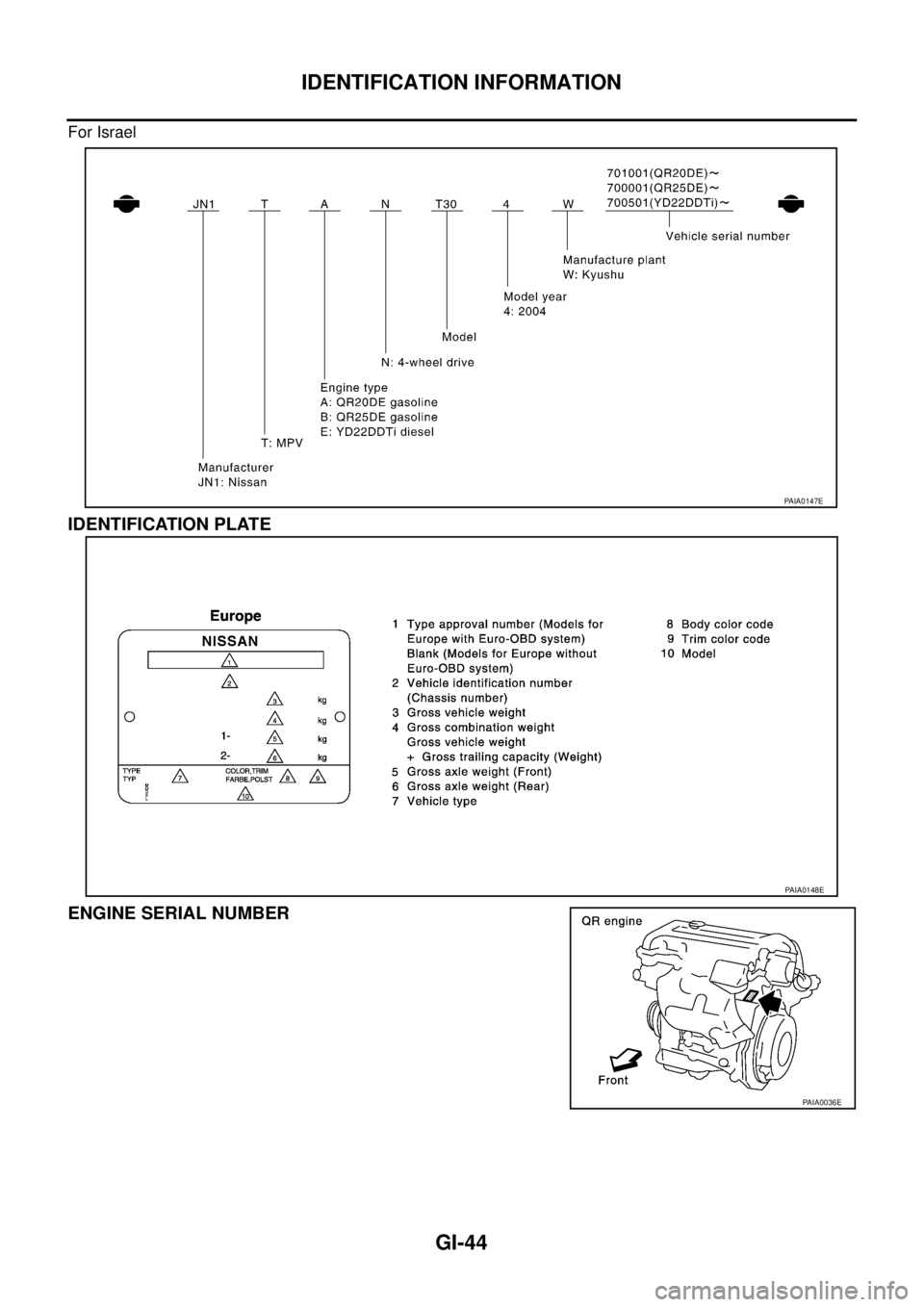

For Israel
IDENTIFICATION PLATE
ENGINE SERIAL NUMBER
PAIA0147E
PAIA0148E
PAIA0036E

Page 47 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual IDENTIFICATION INFORMATION
GI-45
C
D
E
F
G
H
I
J
K
L
MB
GI

AUTOMATIC TRANSAXLE NUMBER
MANUAL TRANSAXLE NUMBER
Dimensions EAS000GF
Unit: mm (in)
Wheels & Tires EAS000GG
PAIA0008E
PAIA0009E
PAIA0010

Page 48 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual GI-46
TERMINOLOGY

TERMINOLOGYPFP:00011
SAE J1930 Terminology List EAS000GH
All emission related terms used in this publication in accordance with SAE J1930 are listed. Accordingly, new
terms, new ac

GI-46
TERMINOLOGY

TERMINOLOGYPFP:00011
SAE J1930 Terminology List EAS000GH
All emission related terms used in this publication in accordance with SAE J1930 are listed. Accordingly, new
terms, new acronyms/abbreviations and old terms are listed in the following chart.
NEW TERMNEW ACRONYM /
ABBREVIATIONOLD TERM
Air cleaner ACL Air cleaner
Barometric pressure BARO ***
Barometric pressure sensor-BCDD BAROS-BCDD BCDD
Camshaft position CMP ***
Camshaft position sensor CMPS Crank angle sensor
Canister *** Canister
Carburetor CARB Carburetor
Charge air cooler CAC Intercooler
Closed loop CL Closed loop
Closed throttle position switch CTP switch Idle switch
Clutch pedal position switch CPP switch Clutch switch
Continuous fuel injection system CFI system ***
Continuous trap oxidizer system CTOX system ***
Crankshaft position CKP ***
Crankshaft position sensor CKPS ***
Data link connector DLC ***
Data link connector for CONSULT-II DLC for CONSULT-II Diagnostic connector for CONSULT-II
Diagnostic test mode DTM Diagnostic mode
Diagnostic test mode selector DTM selector Diagnostic mode selector
Diagnostic test mode I DTM I Mode I
Diagnostic test mode II DTM II Mode II
Diagnostic trouble code DTC Malfunction code
Direct fuel injection system DFI system ***
Distributor ignition system DI system Ignition timing control
Early fuel evaporation-mixture heater EFE-mixture heater Mixture heater
Early fuel evaporation system EFE system Mixture heater control
Electrically erasable programmable read
only memoryEEPROM ***
Electronic ignition system EI system Ignition timing control
Engine control EC ***
Engine control module ECM ECCS control unit
Engine coolant temperature ECT Engine temperature
Engine coolant temperature sensor ECTS Engine temperature sensor
Engine modification EM ***
Engine speed RPM Engine speed
Erasable programmable read only memory EPROM ***
Evaporative emission canister EVAP canister Canister
Evaporative emission system EVAP system Canister control solenoid valve
Exhaust gas recirculation valve EGR valve EGR valve
