Page 1529 of 4179

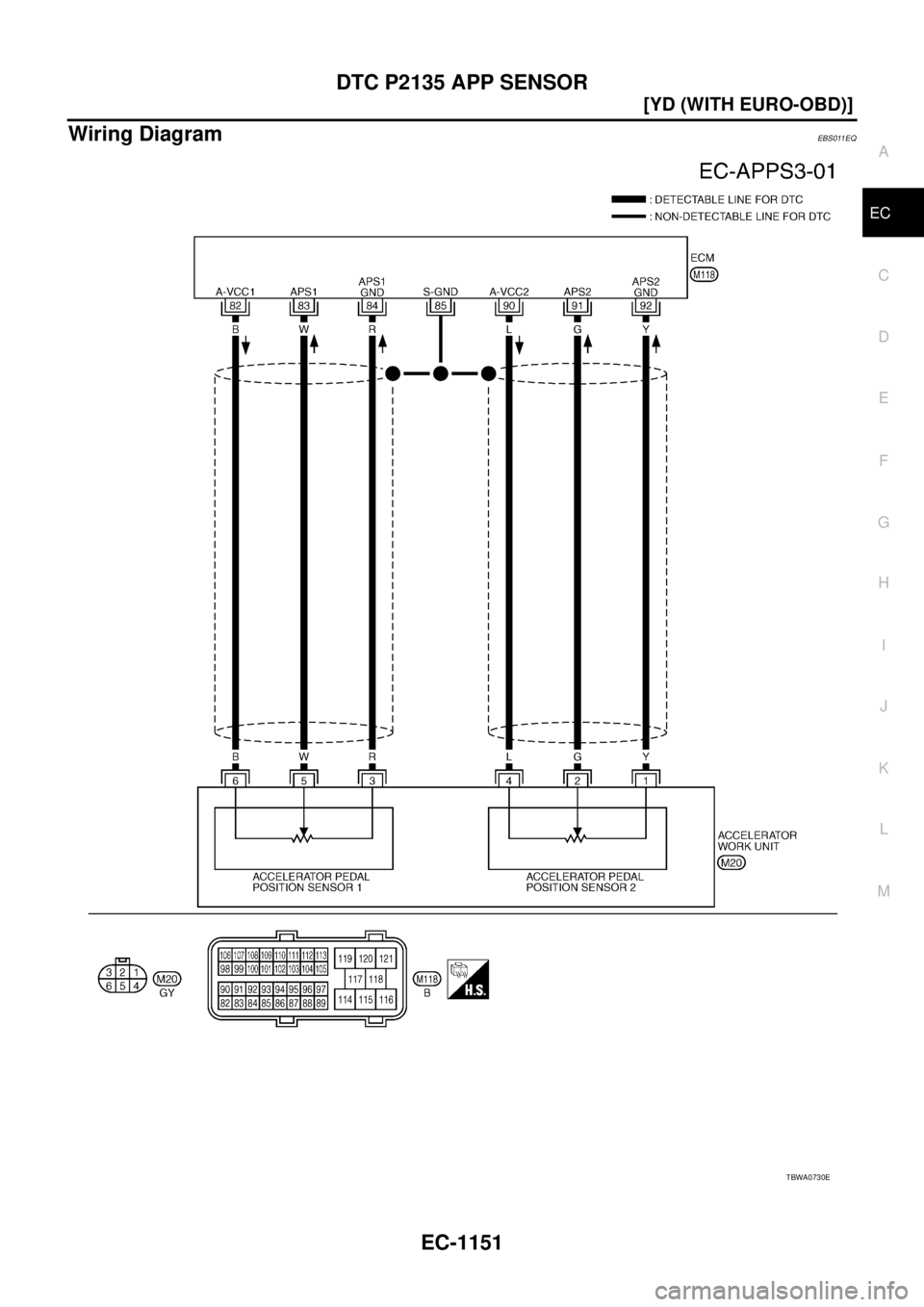

NISSAN X-TRAIL 2003 Service Repair Manual DTC P2135 APP SENSOR EC-1151 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC Wiring DiagramEBS011EQ TBWA0730E

Page 1530 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1152 [YD (WITH EURO-OBD)] DTC P2135 APP SENSOR Diagnostic ProcedureEBS011ER 1. CHECK GROUND CONNECTIONS 1. Turn ignition switch OFF. 2. Loosen and retighten engine ground screws. Refer to EC-943,

Page 1531 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P2135 APP SENSOR EC-1153 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC 2. CHECK APP SENSOR POWER SUPPLY CIRCUIT 1. Disconnect accelerator pedal position (APP) sensor harness connector. 2. Turn

Page 1532 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1154 [YD (WITH EURO-OBD)] DTC P2135 APP SENSOR 6. CHECK INTERMITTENT INCIDENT Refer to EC-936, " TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" . >>INSPECTION END Component InspectionEBS011ES ACCEL

Page 1533 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P2146, P2149 FUEL INJECTOR POWER SUPPLY EC-1155 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC DTC P2146, P2149 FUEL INJECTOR POWER SUPPLYPFP:16600 Component DescriptionEBS011EU The fuel injecto

Page 1534 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-1156 [YD (WITH EURO-OBD)] DTC P2146, P2149 FUEL INJECTOR POWER SUPPLY : Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) On Board Diagnosis LogicEBS011EX 2

Page 1535 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P2146, P2149 FUEL INJECTOR POWER SUPPLY EC-1157 [YD (WITH EURO-OBD)] C D E F G H I J K L MA EC DTC Confirmation ProcedureEBS011EY NOTE: If DTC Confirmation Procedure has been previously conducte

Page 1536 of 4179

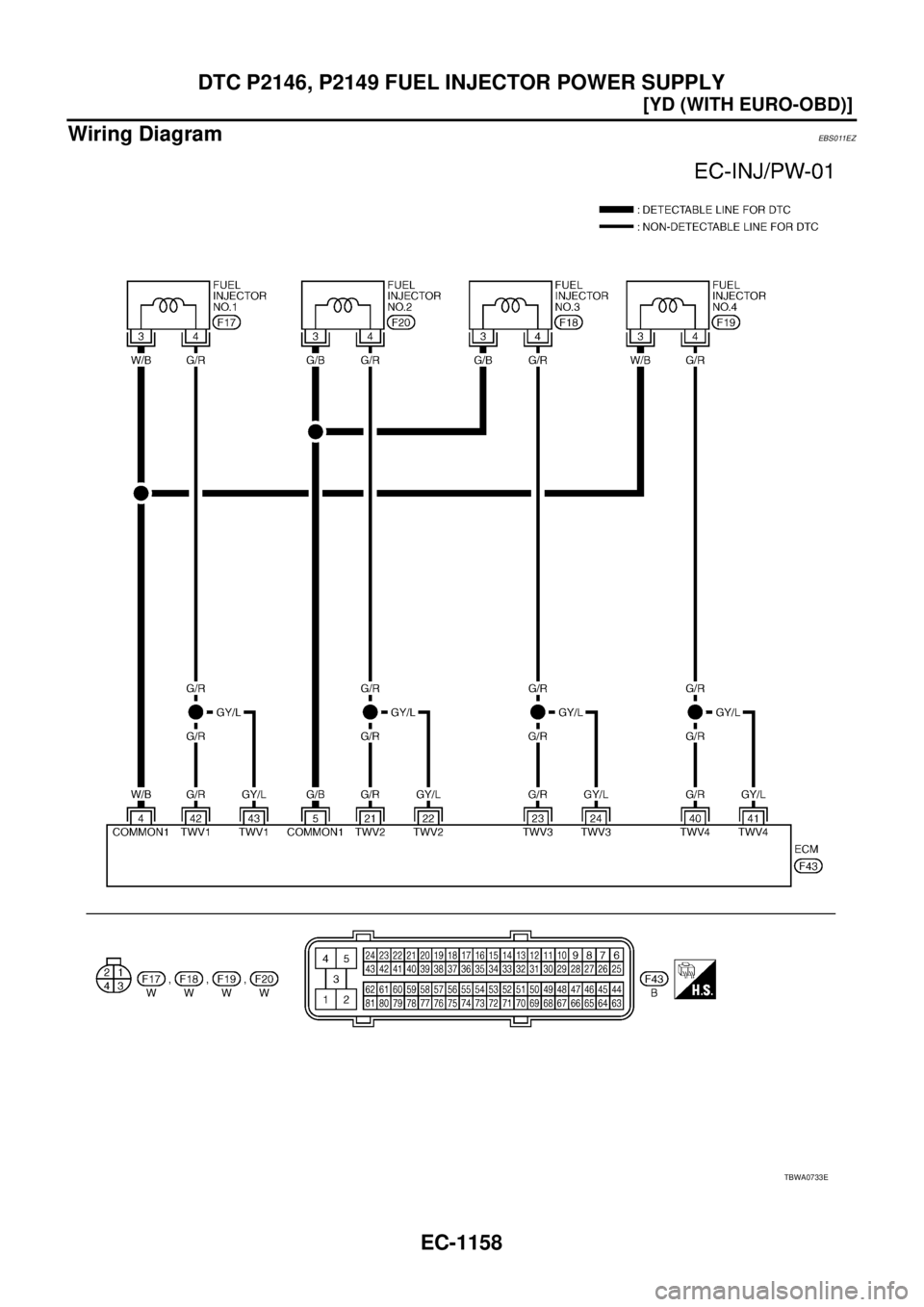

NISSAN X-TRAIL 2003 Service Repair Manual EC-1158 [YD (WITH EURO-OBD)] DTC P2146, P2149 FUEL INJECTOR POWER SUPPLY Wiring DiagramEBS011EZ TBWA0733E
