SUNROOF
SUNROOFPFP:91210
System DescriptionEIS000MK
Operating sunroof switch allows glass lid slide OPEN/CLOSE, and tilt UP/DOWN.
When sunroof slide switch is pressed firmly toward the OPEN side, glass lid automatically opens and
automatic operation is stopped at a point 180 mm (7.09 in)to the fully open position.
NOTE:
After the emergency handle is used to rotate the motor drive shaft, sunroof switch operation may not cor-
respond to actual glass lid movement. When this happens, conduct resuming operation to restore normal
operation.
RESUMING OPERATION
If actual glass lid operation does not correspond to expected opera-
tion, operate sunroof switch to slide glass lid toward area A in the fig-
ure. This should result in resumption of normal operation.
CAUTION:
Before normal operation is resumed, expected sunroof switch
operation and actual glass lid movement may not correspond.
Make sure that neither head nor hands protrude from sunroof
and conduct resuming operation.
Component Parts LocationEIS000ML
SIIA0139E
SIIA0321E
Page 3291 of 4179
SUNROOF
RF-11
C
D
E
F
G
H
J
K
L
MA
B
RF

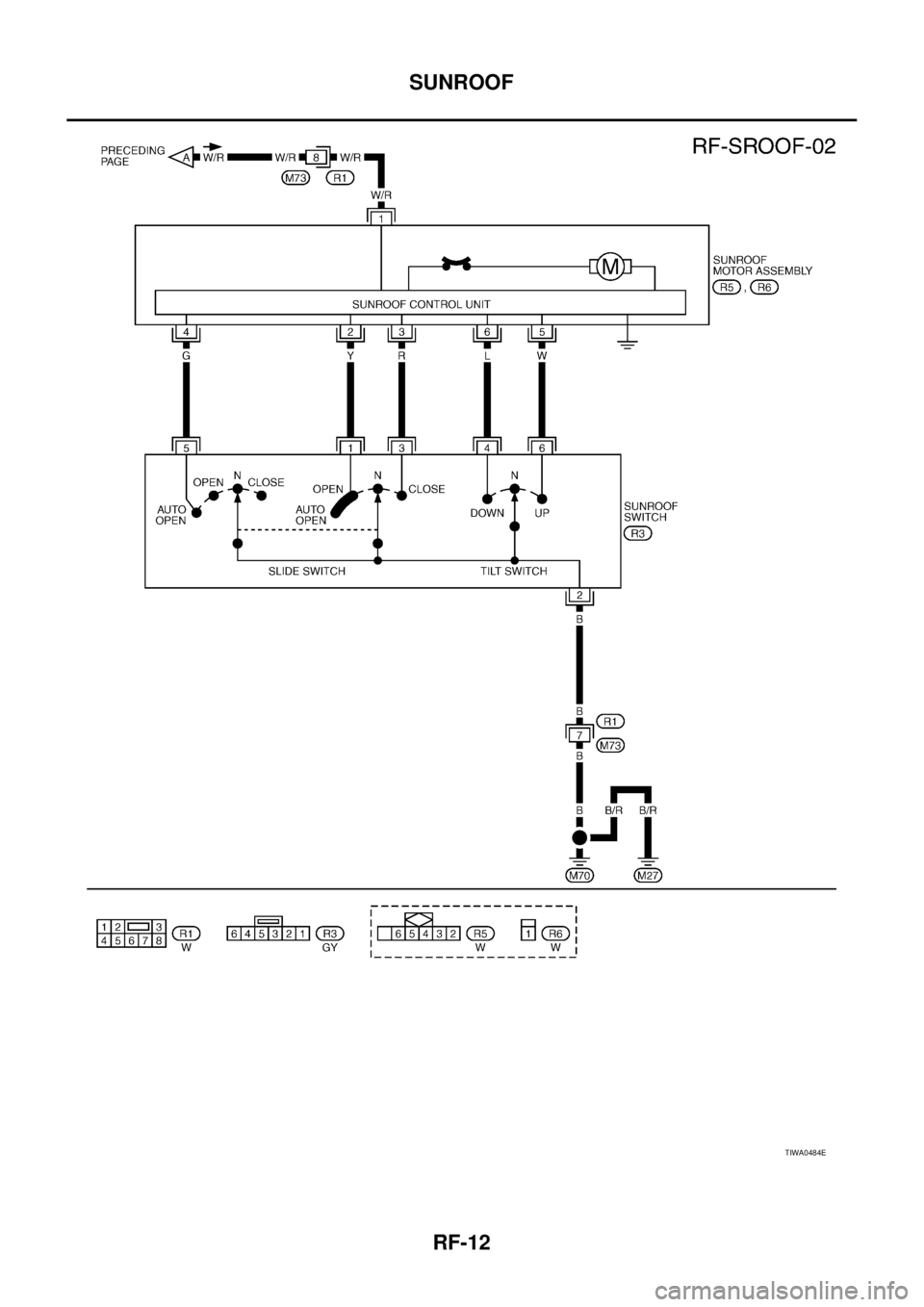

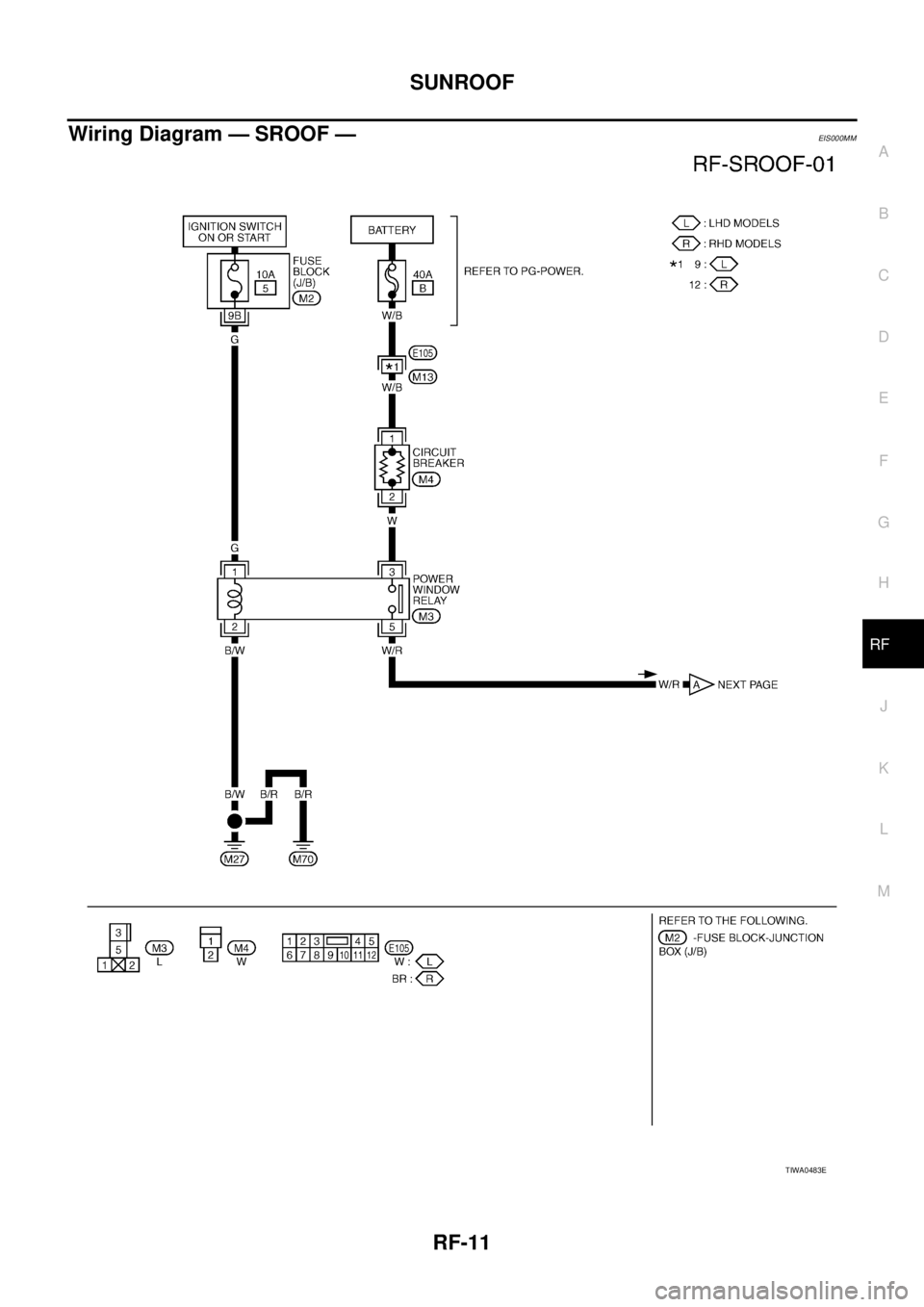

Wiring Diagram — SROOF —EIS000MM
TIWA0483E
Page 3292 of 4179
Page 3293 of 4179

SUNROOF
RF-13
C
D
E
F
G
H
J
K
L
MA
B
RF
Terminal and Reference Value for Sunroof SwitchEIS000MN
Wind Deflector InspectionEIS000MO

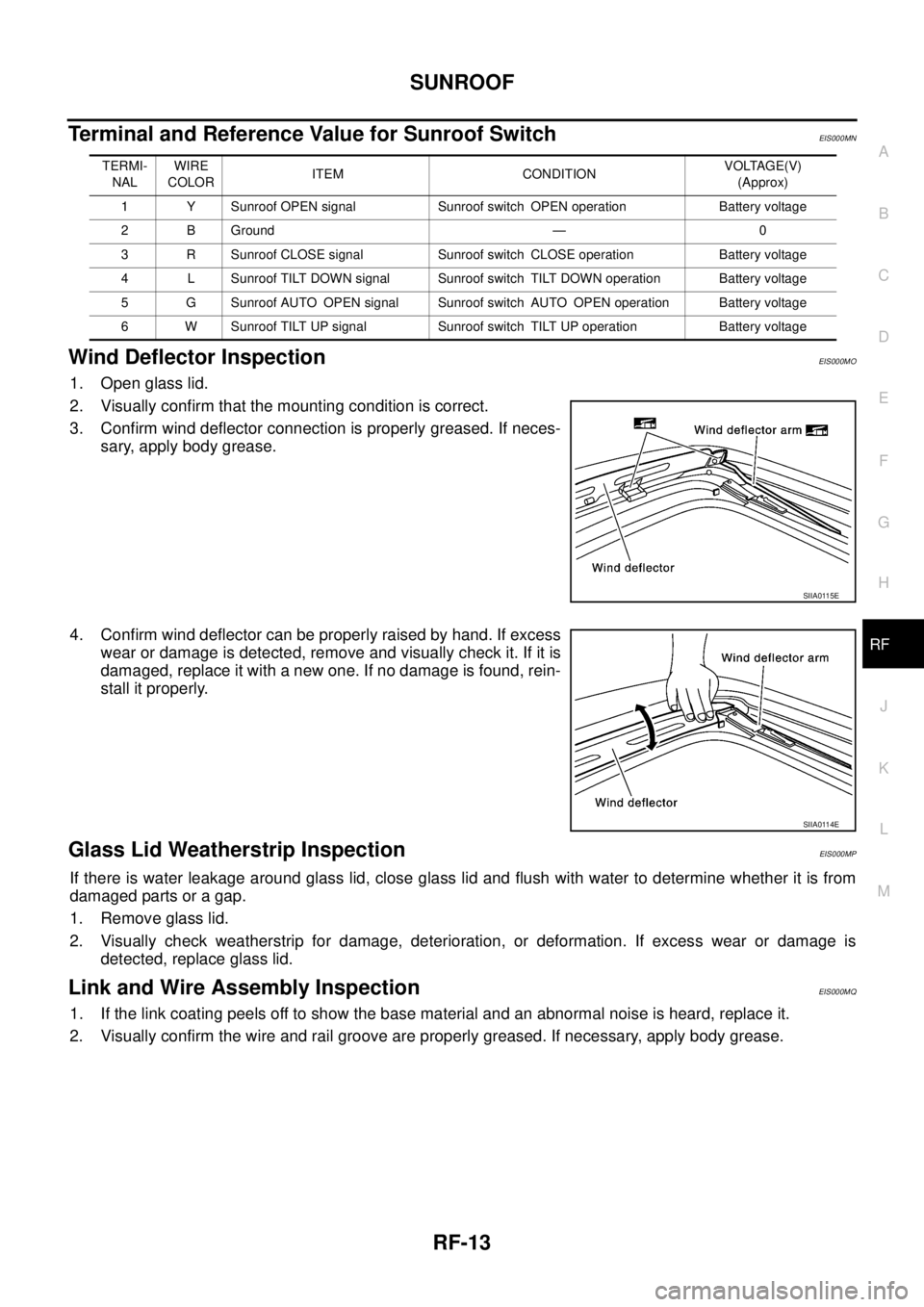

1. Open glass lid.
2. Visually confirm that the mounting condition is correct.
3. Confirm wind deflector connection is properly greased. If neces-
sary, apply body grease.
4. Confirm wind deflector can be properly raised by hand. If excess
wear or damage is detected, remove and visually check it. If it is
damaged, replace it with a new one. If no damage is found, rein-
stall it properly.
Glass Lid Weatherstrip InspectionEIS000MP
If there is water leakage around glass lid, close glass lid and flush with water to determine whether it is from
damaged parts or a gap.
1. Remove glass lid.
2. Visually check weatherstrip for damage, deterioration, or deformation. If excess wear or damage is
detected, replace glass lid.
Link and Wire Assembly InspectionEIS000MQ
1. If the link coating peels off to show the base material and an abnormal noise is heard, replace it.
2. Visually confirm the wire and rail groove are properly greased. If necessary, apply body grease.
TERMI-
NAL WIRE
COLORITEM CONDITIONVOLTAGE(V)
(Approx)
1 Y Sunroof OPEN signal Sunroof switch OPEN operation Battery voltage
2 B Ground — 0
3 R Sunroof CLOSE signal Sunroof switch CLOSE operation Battery voltage
4 L Sunroof TILT DOWN signal Sunroof switch TILT DOWN operation Battery voltage
5 G Sunroof AUTO OPEN signal Sunroof switch AUTO OPEN operation Battery voltage
6 W Sunroof TILT UP signal Sunroof switch TILT UP operation Battery voltage
SIIA0115E
SIIA0114E
Page 3294 of 4179
RF-14
SUNROOF
Fitting AdjustmentEIS000MR
LONGITUDINAL/LATERAL CLEARANCE ADJUSTMENT
1. Tilt up glass lid and then remove side trim.
2. After loosening glass lid mounting nuts, tilt down glass lid.

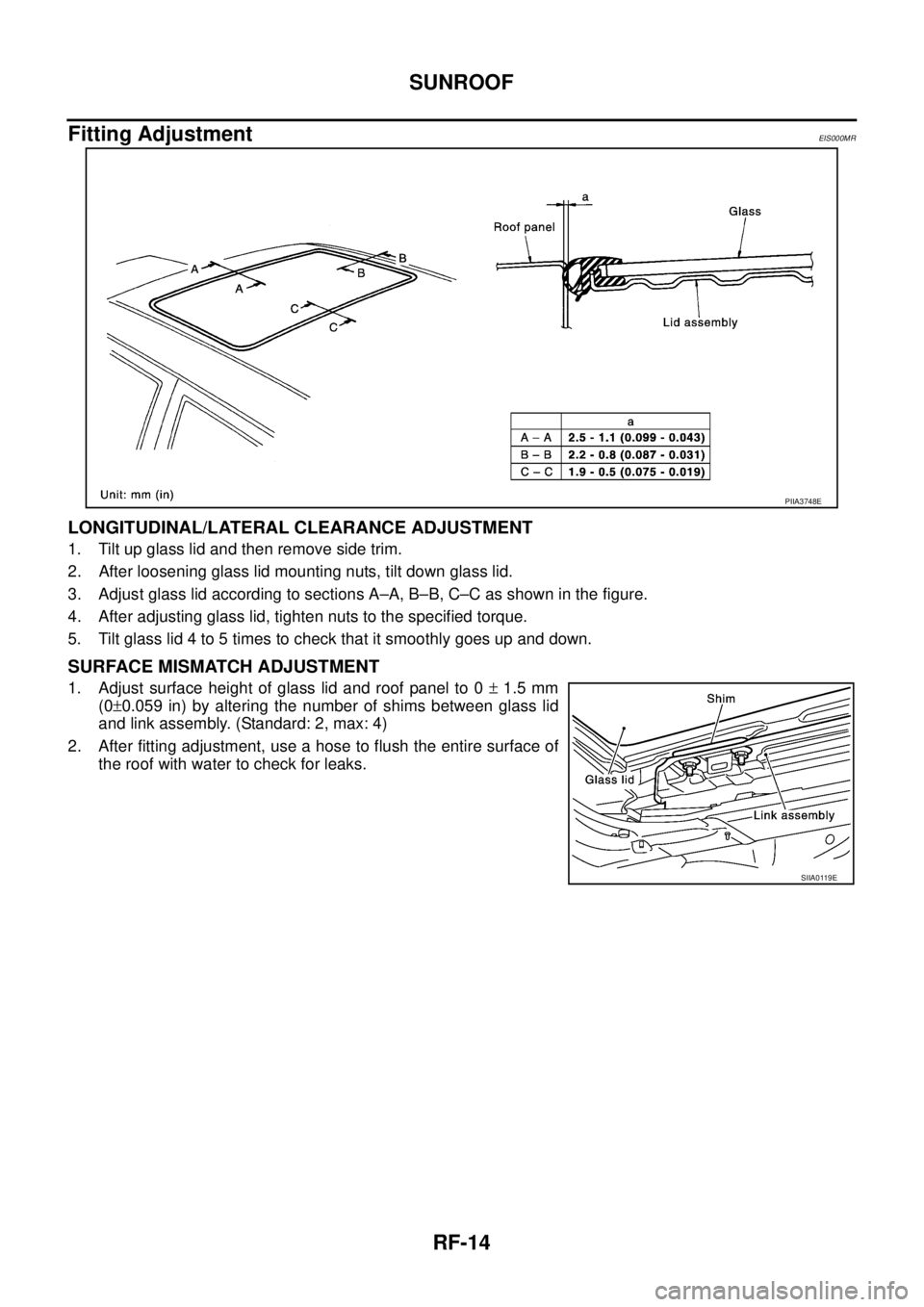

3. Adjust glass lid according to sections A–A, B–B, C–C as shown in the figure.
4. After adjusting glass lid, tighten nuts to the specified torque.
5. Tilt glass lid 4 to 5 times to check that it smoothly goes up and down.
SURFACE MISMATCH ADJUSTMENT
1. Adjust surface height of glass lid and roof panel to 0 ± 1.5 mm
(0±0.059 in) by altering the number of shims between glass lid
and link assembly. (Standard: 2, max: 4)
2. After fitting adjustment, use a hose to flush the entire surface of
the roof with water to check for leaks.
PIIA3748E
SIIA0119E
Page 3295 of 4179
SUNROOF
RF-15
C
D
E
F
G
H
J
K
L
MA
B
RF
Removal and InstallationEIS000MS
SIIA0120E
Page 3296 of 4179
RF-16
SUNROOF
SUNROOF UNIT

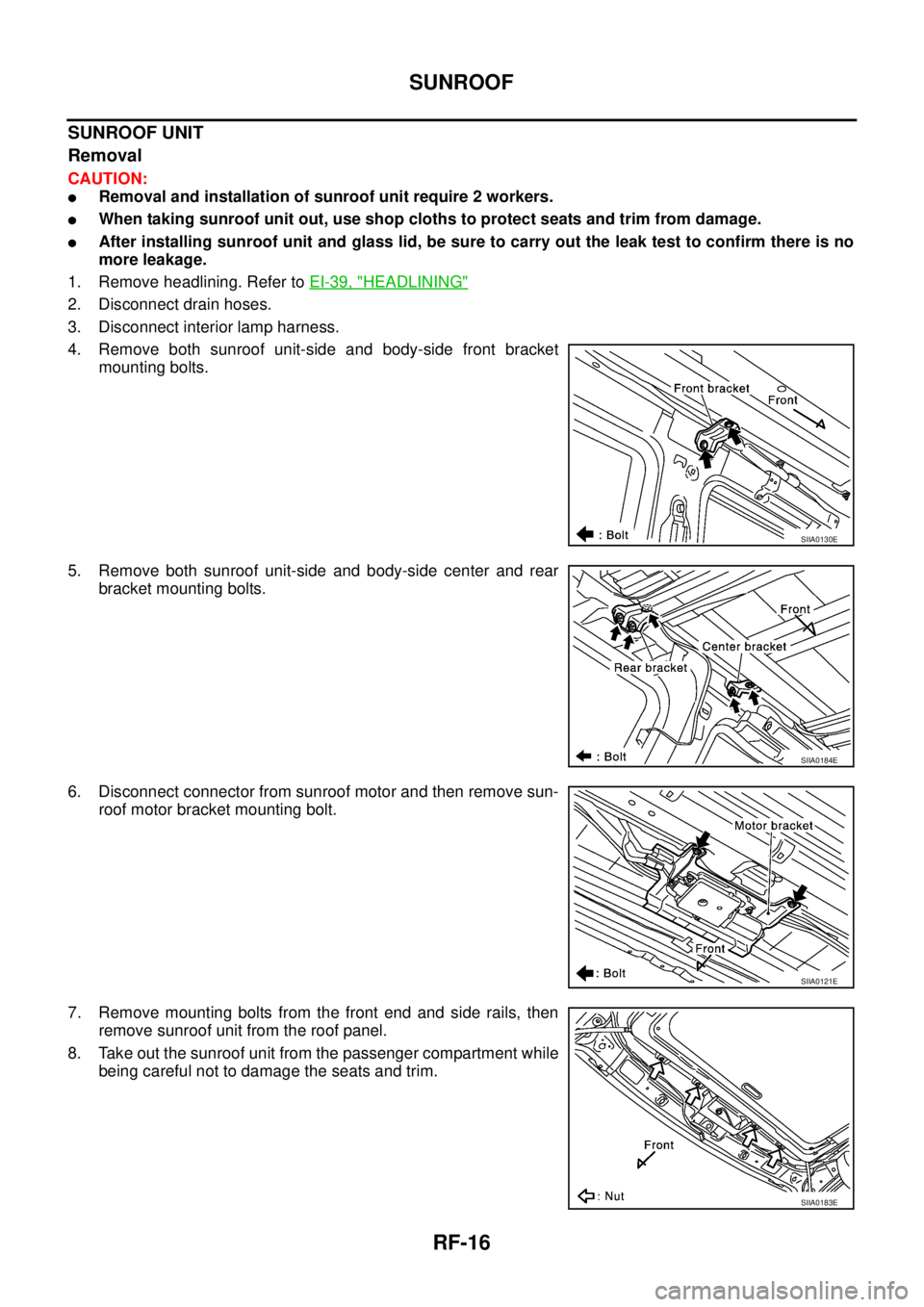

Removal
CAUTION:
Removal and installation of sunroof unit require 2 workers.
When taking sunroof unit out, use shop cloths to protect seats and trim from damage.
After installing sunroof unit and glass lid, be sure to carry out the leak test to confirm there is no
more leakage.
1. Remove headlining. Refer to EI-39, "
HEADLINING"
2. Disconnect drain hoses.
3. Disconnect interior lamp harness.
4. Remove both sunroof unit-side and body-side front bracket
mounting bolts.
5. Remove both sunroof unit-side and body-side center and rear
bracket mounting bolts.
6. Disconnect connector from sunroof motor and then remove sun-
roof motor bracket mounting bolt.
7. Remove mounting bolts from the front end and side rails, then
remove sunroof unit from the roof panel.
8. Take out the sunroof unit from the passenger compartment while
being careful not to damage the seats and trim.
SIIA0130E
SIIA0184E
SIIA0121E
SIIA0183E
