Page 2641 of 4179
TRANSFER ASSEMBLY
TF-65
C
E
F
G
H
I
J
K
L
MA
B
TF
3. Using a drift and replacer, remove the gear ring bearing inner
race (adapter case side) on the gear ring.
4. Using a drift and puller, remove the gear ring bearing inner race
(transfer case side) on the gear ring.
5. Remove the drive gear mounting bolts.
6. Using a plastic hammer, tap the drive gear to remove the drive
gear from the gear ring.
7. Using a puller, remove the gear ring oil seal from the gear ring.
Transfer Case
1. Remove the pinion sleeve assembly. Refer to TF-62, "Pinion Sleeve Assembly" .
2. Remove the adapter case. Refer to TF-63, "
Adapter Case" .
3. Remove the drive gear assembly from the transfer case. Refer to TF-64, "
Drive Gear Assembly" . Tool number : ST33200000
SDIA1560E
Tool number : ST33061000
SDIA1561E
SDIA1807J
Tool number : KV381054S0
SDIA1808E
Page 2642 of 4179

TF-66
TRANSFER ASSEMBLY

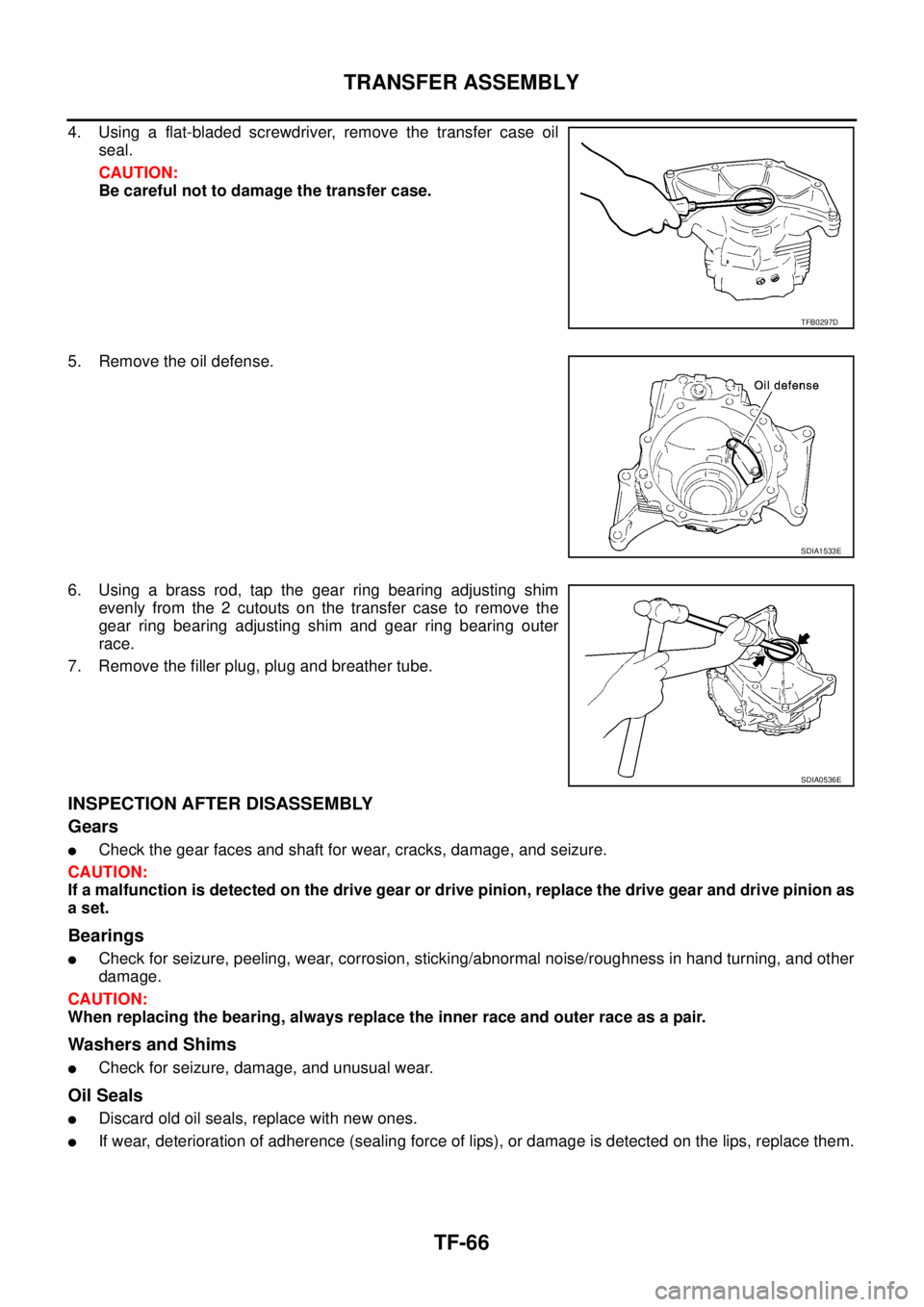

4. Using a flat-bladed screwdriver, remove the transfer case oil
seal.
CAUTION:
Be careful not to damage the transfer case.
5. Remove the oil defense.
6. Using a brass rod, tap the gear ring bearing adjusting shim
evenly from the 2 cutouts on the transfer case to remove the
gear ring bearing adjusting shim and gear ring bearing outer
race.
7. Remove the filler plug, plug and breather tube.
INSPECTION AFTER DISASSEMBLY
Gears
Check the gear faces and shaft for wear, cracks, damage, and seizure.
CAUTION:
If a malfunction is detected on the drive gear or drive pinion, replace the drive gear and drive pinion as
a set.
Bearings
Check for seizure, peeling, wear, corrosion, sticking/abnormal noise/roughness in hand turning, and other
damage.
CAUTION:
When replacing the bearing, always replace the inner race and outer race as a pair.
Washers and Shims
Check for seizure, damage, and unusual wear.
Oil Seals
Discard old oil seals, replace with new ones.
If wear, deterioration of adherence (sealing force of lips), or damage is detected on the lips, replace them.
TFB0297D
SDIA1533E
SDIA0536E
Page 2643 of 4179

TRANSFER ASSEMBLY
TF-67
C
E
F
G
H
I
J
K
L
MA
B
TF
SELECTING ADJUSTING SHIMS
Measurement points
Gear Ring Bearing Adjusting Shim (Transfer Case Side)
1. Measure the points F, H, I, R and U shown in the measurement points.
2. Convert the values F, H, I, R and U according to the standards below.
3. Check dimension Z on the drive gear side face.
NOTE:
Dimension Z indicates the difference between the optimum engagement and the standard dimensions in
increments of 0.01mm (0.0004 in) written on the drive gear side face.
4. Use the formula below to calculate gear ring bearing adjusting shim (transfer case side) thickness T
1 .
5. Select the gear ring bearing adjusting shim (transfer case side).
For information on selecting an adjusting shim, refer to TF-74, "Gear ring Bearing Adjusting Shim
(Transfer Case Side)" .
CAUTION:
Only one adjusting shim can be selected.
If no adjusting shim with the calculated value is available, select the thicker and closest one.
Gear Ring Bearing Adjusting Shim (Adapter Case Side)
1. Measure the points F, H, J, K, U and V shown in the measurement points.
2. Convert the values F, H, J, K, U and V according to the standards below.
SDIA1179E
F: Value obtained by subtracting 163.00 mm (6.42 in) from
the reading [in increments of 0.01 mm (0.0004 in)].
H: Value obtained by subtracting 83.00 mm (3.27 in) from
the reading [in increments of 0.01 mm (0.0004 in)].
I: Value obtained by subtracting 131.90 mm (5.19 in) from
the reading [in increments of 0.01 mm (0.0004 in)].
R: Value obtained by subtracting 17.00 mm (0.67 in) from
the reading [in increments of 0.01 mm (0.0004 in)].
U: Value obtained by subtracting 89.50 mm (3.524 in) from
the reading [in increments of 0.01 mm (0.0004 in)].
T
1 = (I - F + H + Z - U - R) × 0.01 mm (0.0004 in) + 1.49 mm (0.0587 in)
Page 2644 of 4179

TF-68
TRANSFER ASSEMBLY
3. Check dimension Z on the drive gear side face.
NOTE:
Dimension Z indicates the difference between the optimum engagement and the standard dimensions in
increments of 0.01mm (0.0004 in) written on the drive gear side face.
4. Use the formula below to calculate gear ring bearing adjusting shim (adapter case side) thickness T
2 .
5. Select the gear ring bearing adjusting shim (adapter case side).
For information on selecting an adjusting shim, refer to TF-75, "Gear ring Bearing Adjusting Shim
(Adapter Case Side)" .
CAUTION:
Only one adjusting shim can be selected.
If no adjusting shim with the calculated value is available, select the thicker and closest one.
Pinion Sleeve Shim
1. Measure the points L, N and Q shown in the measurement points.
2. Check the dimension S written on the gear end of the drive pinion.
NOTE:
The dimension S indicates the difference between the optimum engagement and the standard dimensions
in increments of 0.01 mm (0.0004 in) written on the gear end of the drive pinion.
3. Use the formula below to calculate pinion sleeve shim thickness T
3 .
4. Select the pinion sleeve shim.
For information on selecting a pinion sleeve shim, refer to TF-75, "Pinion Sleeve Shim" .
CAUTION:
Only one pinion sleeve shim can be selected.
ASSEMBLY
Transfer Case
1. Select the gear ring bearing adjusting shim (transfer case side). Refer to TF-67, "SELECTING ADJUST-
ING SHIMS" . F: Value obtained by subtracting 163.00 mm (6.42 in) from
the reading [in increments of 0.01 mm (0.0004 in)].
H: Value obtained by subtracting 83.00 mm (3.27 in) from
the reading [in increments of 0.01 mm (0.0004 in)].
J: Value obtained by subtracting 109.50 mm (4.31 in) from
the reading [in increments of 0.01 mm (0.0004 in)].
K: Value obtained by subtracting 14.40 mm (0.5669 in) from
the reading [in increments of 0.01 mm (0.0004 in)].
U: Value obtained by subtracting 89.50 mm (3.524 in) from
the reading [in increments of 0.01 mm (0.0004 in)].
V: Value obtained by subtracting 17.00 mm (0.67 in) from
the reading [in increments of 0.01 mm (0.0004 in)].
T
2 = (K + F - H - Z + U - J - V) × 0.01 mm (0.0004 in) + 1.49 mm (0.0587 in)
T
3 = [74.6 mm (2.937 in) + S] + N + Q - L
Page 2645 of 4179

TRANSFER ASSEMBLY
TF-69
C
E
F
G
H
I
J
K
L
MA
B
TF

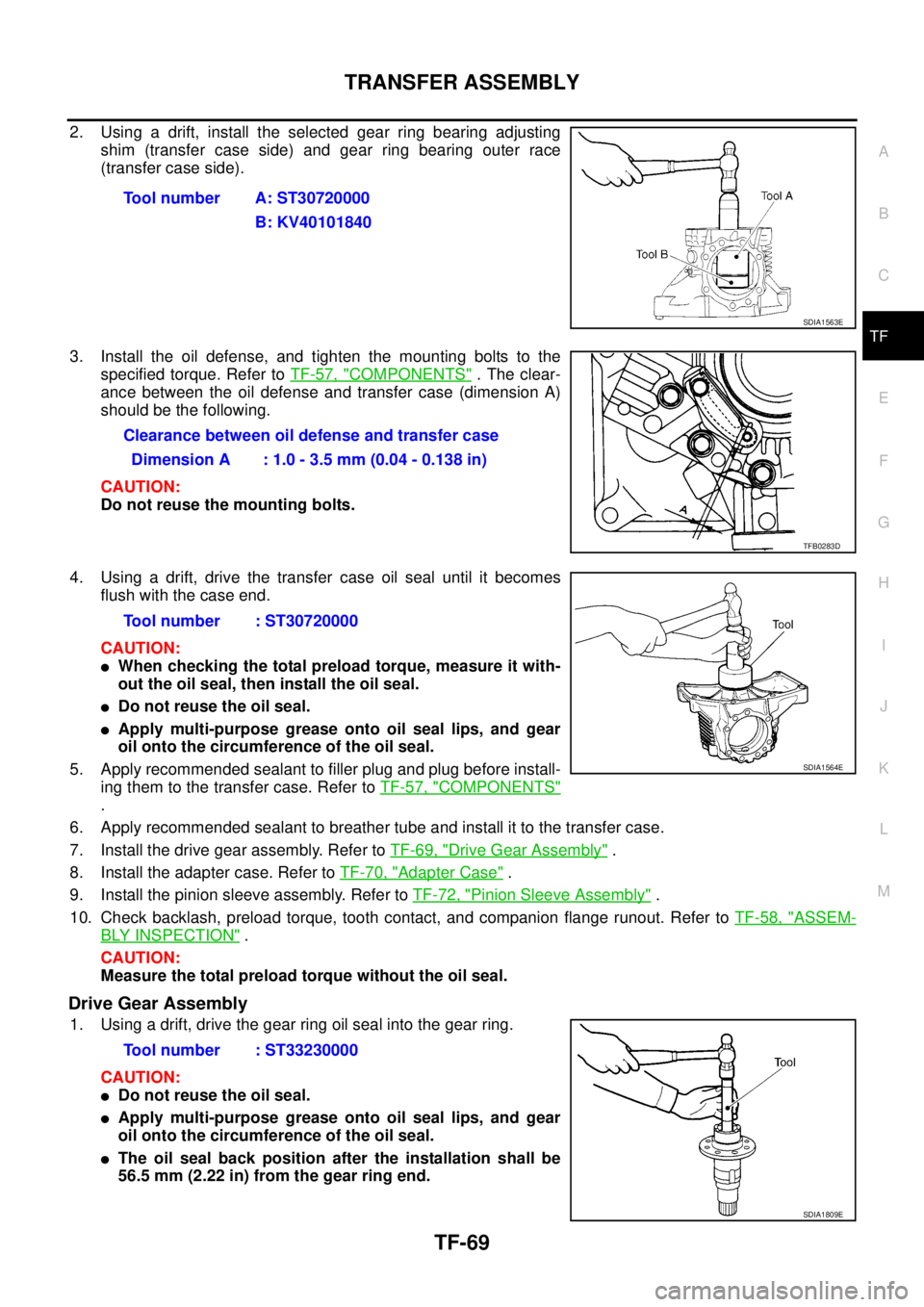

2. Using a drift, install the selected gear ring bearing adjusting
shim (transfer case side) and gear ring bearing outer race
(transfer case side).
3. Install the oil defense, and tighten the mounting bolts to the
specified torque. Refer to TF-57, "
COMPONENTS" . The clear-
ance between the oil defense and transfer case (dimension A)
should be the following.
CAUTION:
Do not reuse the mounting bolts.
4. Using a drift, drive the transfer case oil seal until it becomes
flush with the case end.
CAUTION:
When checking the total preload torque, measure it with-
out the oil seal, then install the oil seal.
Do not reuse the oil seal.
Apply multi-purpose grease onto oil seal lips, and gear
oil onto the circumference of the oil seal.
5. Apply recommended sealant to filler plug and plug before install-
ing them to the transfer case. Refer to TF-57, "
COMPONENTS"
.
6. Apply recommended sealant to breather tube and install it to the transfer case.
7. Install the drive gear assembly. Refer to TF-69, "
Drive Gear Assembly" .
8. Install the adapter case. Refer to TF-70, "
Adapter Case" .
9. Install the pinion sleeve assembly. Refer to TF-72, "
Pinion Sleeve Assembly" .
10. Check backlash, preload torque, tooth contact, and companion flange runout. Refer to TF-58, "
ASSEM-
BLY INSPECTION" .
CAUTION:
Measure the total preload torque without the oil seal.
Drive Gear Assembly
1. Using a drift, drive the gear ring oil seal into the gear ring.
CAUTION:
Do not reuse the oil seal.
Apply multi-purpose grease onto oil seal lips, and gear
oil onto the circumference of the oil seal.
The oil seal back position after the installation shall be
56.5 mm (2.22 in) from the gear ring end.Tool number A: ST30720000
B: KV40101840
SDIA1563E
Clearance between oil defense and transfer case
Dimension A : 1.0 - 3.5 mm (0.04 - 0.138 in)
TFB0283D
Tool number : ST30720000
SDIA1564E
Tool number : ST33230000
SDIA1809E
Page 2646 of 4179

TF-70
TRANSFER ASSEMBLY

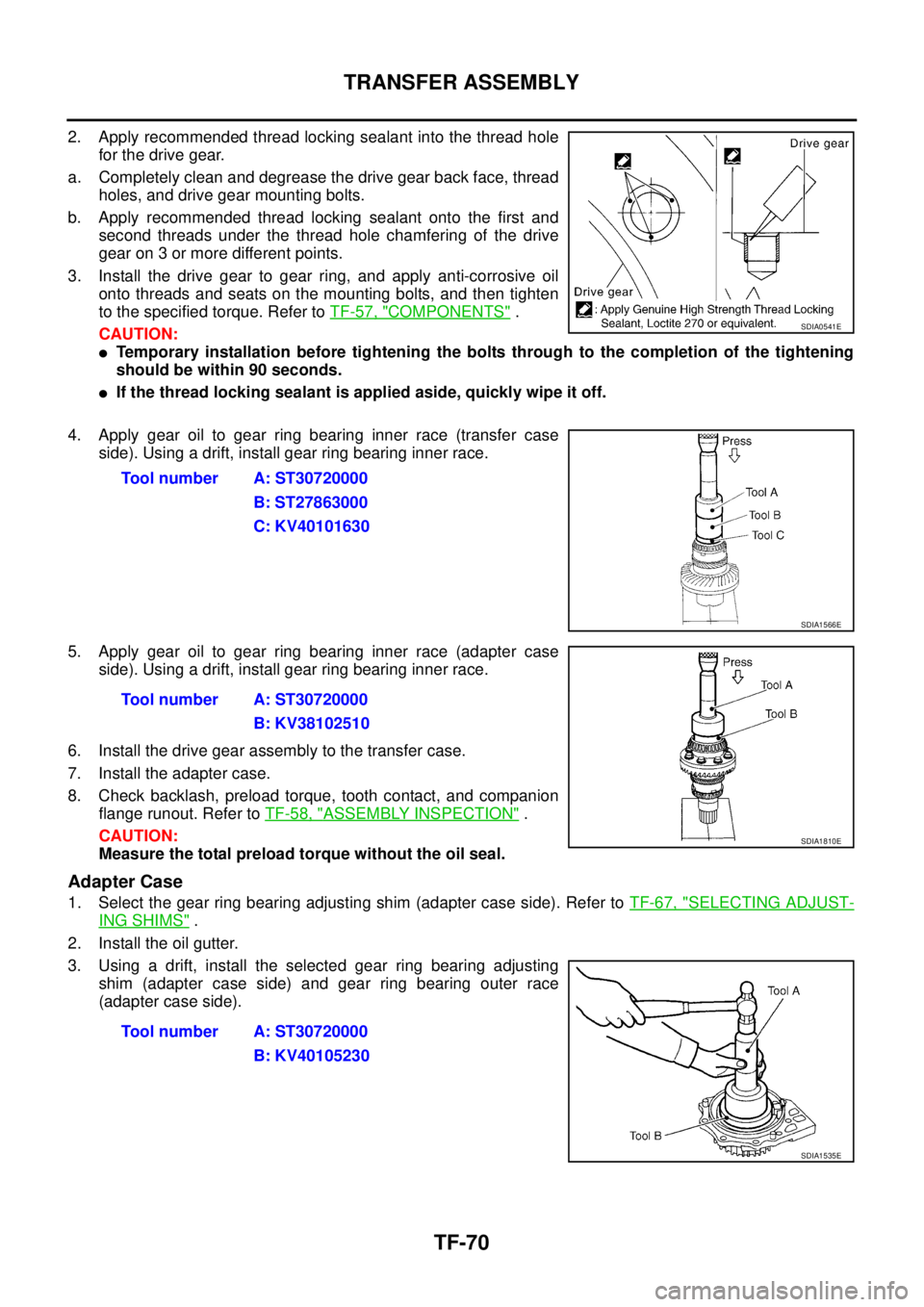

2. Apply recommended thread locking sealant into the thread hole
for the drive gear.
a. Completely clean and degrease the drive gear back face, thread
holes, and drive gear mounting bolts.
b. Apply recommended thread locking sealant onto the first and
second threads under the thread hole chamfering of the drive
gear on 3 or more different points.
3. Install the drive gear to gear ring, and apply anti-corrosive oil
onto threads and seats on the mounting bolts, and then tighten
to the specified torque. Refer to TF-57, "
COMPONENTS" .
CAUTION:
Temporary installation before tightening the bolts through to the completion of the tightening
should be within 90 seconds.
If the thread locking sealant is applied aside, quickly wipe it off.
4. Apply gear oil to gear ring bearing inner race (transfer case
side). Using a drift, install gear ring bearing inner race.
5. Apply gear oil to gear ring bearing inner race (adapter case
side). Using a drift, install gear ring bearing inner race.
6. Install the drive gear assembly to the transfer case.
7. Install the adapter case.
8. Check backlash, preload torque, tooth contact, and companion
flange runout. Refer to TF-58, "
ASSEMBLY INSPECTION" .
CAUTION:
Measure the total preload torque without the oil seal.
Adapter Case
1. Select the gear ring bearing adjusting shim (adapter case side). Refer to TF-67, "SELECTING ADJUST-
ING SHIMS" .
2. Install the oil gutter.
3. Using a drift, install the selected gear ring bearing adjusting
shim (adapter case side) and gear ring bearing outer race
(adapter case side).
SDIA0541E
Tool number A: ST30720000
B: ST27863000
C: KV40101630
SDIA1566E
Tool number A: ST30720000
B: KV38102510
SDIA1810E
Tool number A: ST30720000
B: KV40105230
SDIA1535E
Page 2647 of 4179

TRANSFER ASSEMBLY
TF-71
C
E
F
G
H
I
J
K
L
MA
B
TF

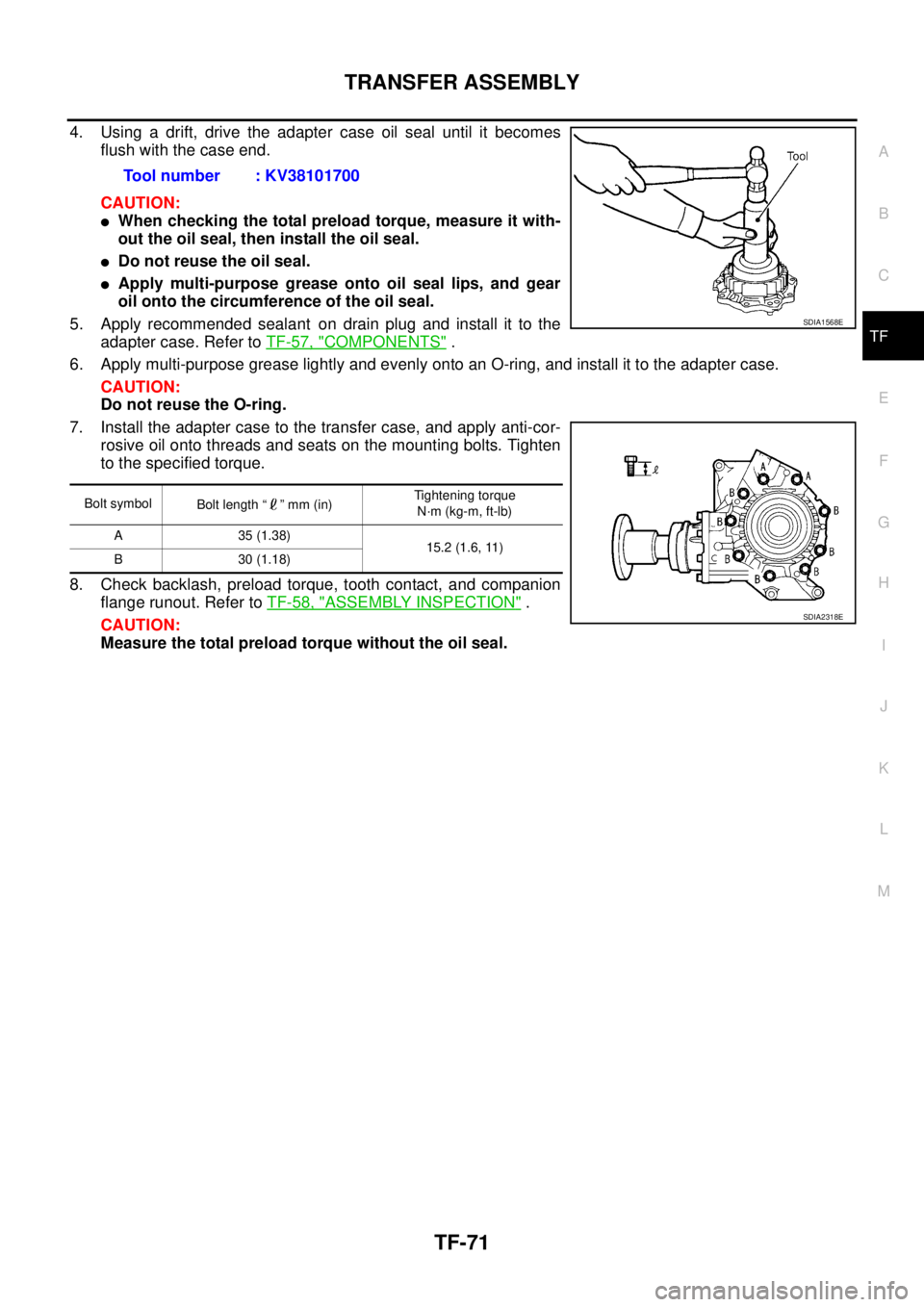

4. Using a drift, drive the adapter case oil seal until it becomes
flush with the case end.
CAUTION:
When checking the total preload torque, measure it with-
out the oil seal, then install the oil seal.
Do not reuse the oil seal.
Apply multi-purpose grease onto oil seal lips, and gear
oil onto the circumference of the oil seal.
5. Apply recommended sealant on drain plug and install it to the
adapter case. Refer to TF-57, "
COMPONENTS" .
6. Apply multi-purpose grease lightly and evenly onto an O-ring, and install it to the adapter case.
CAUTION:
Do not reuse the O-ring.
7. Install the adapter case to the transfer case, and apply anti-cor-
rosive oil onto threads and seats on the mounting bolts. Tighten
to the specified torque.
8. Check backlash, preload torque, tooth contact, and companion
flange runout. Refer to TF-58, "
ASSEMBLY INSPECTION" .
CAUTION:
Measure the total preload torque without the oil seal.Tool number : KV38101700
Bolt symbol
Bolt length “ ” mm (in)Tightening torque
N·m (kg-m, ft-lb)
A 35 (1.38)
15.2 (1.6, 11)
B 30 (1.18)
SDIA1568E
SDIA2318E
Page 2648 of 4179

TF-72
TRANSFER ASSEMBLY

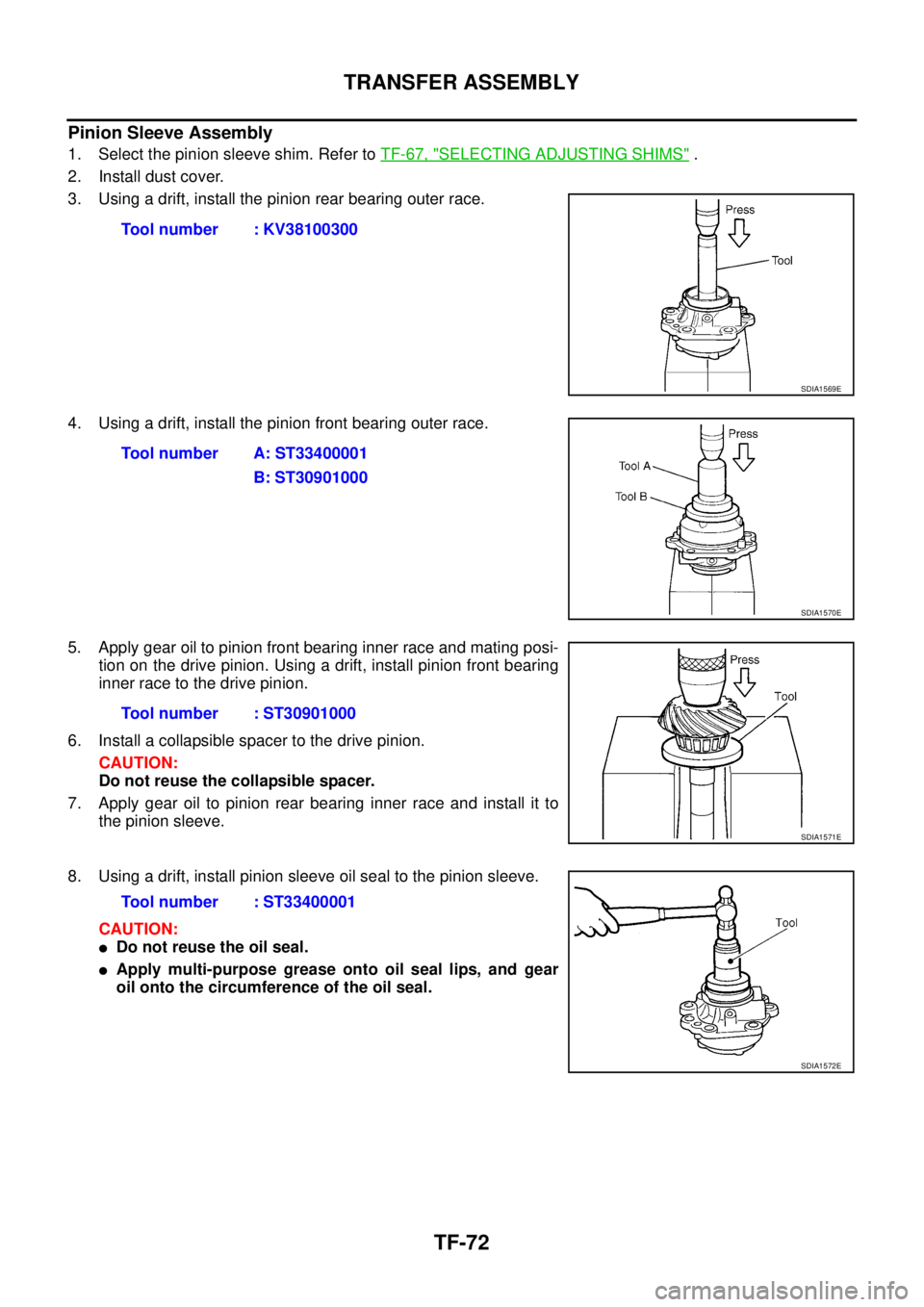

Pinion Sleeve Assembly
1. Select the pinion sleeve shim. Refer to TF-67, "SELECTING ADJUSTING SHIMS" .
2. Install dust cover.
3. Using a drift, install the pinion rear bearing outer race.
4. Using a drift, install the pinion front bearing outer race.
5. Apply gear oil to pinion front bearing inner race and mating posi-
tion on the drive pinion. Using a drift, install pinion front bearing
inner race to the drive pinion.
6. Install a collapsible spacer to the drive pinion.
CAUTION:
Do not reuse the collapsible spacer.
7. Apply gear oil to pinion rear bearing inner race and install it to
the pinion sleeve.
8. Using a drift, install pinion sleeve oil seal to the pinion sleeve.
CAUTION:
Do not reuse the oil seal.
Apply multi-purpose grease onto oil seal lips, and gear
oil onto the circumference of the oil seal.Tool number : KV38100300
SDIA1569E
Tool number A: ST33400001
B: ST30901000
SDIA1570E
Tool number : ST30901000
SDIA1571E
Tool number : ST33400001
SDIA1572E
