Page 3313 of 4179

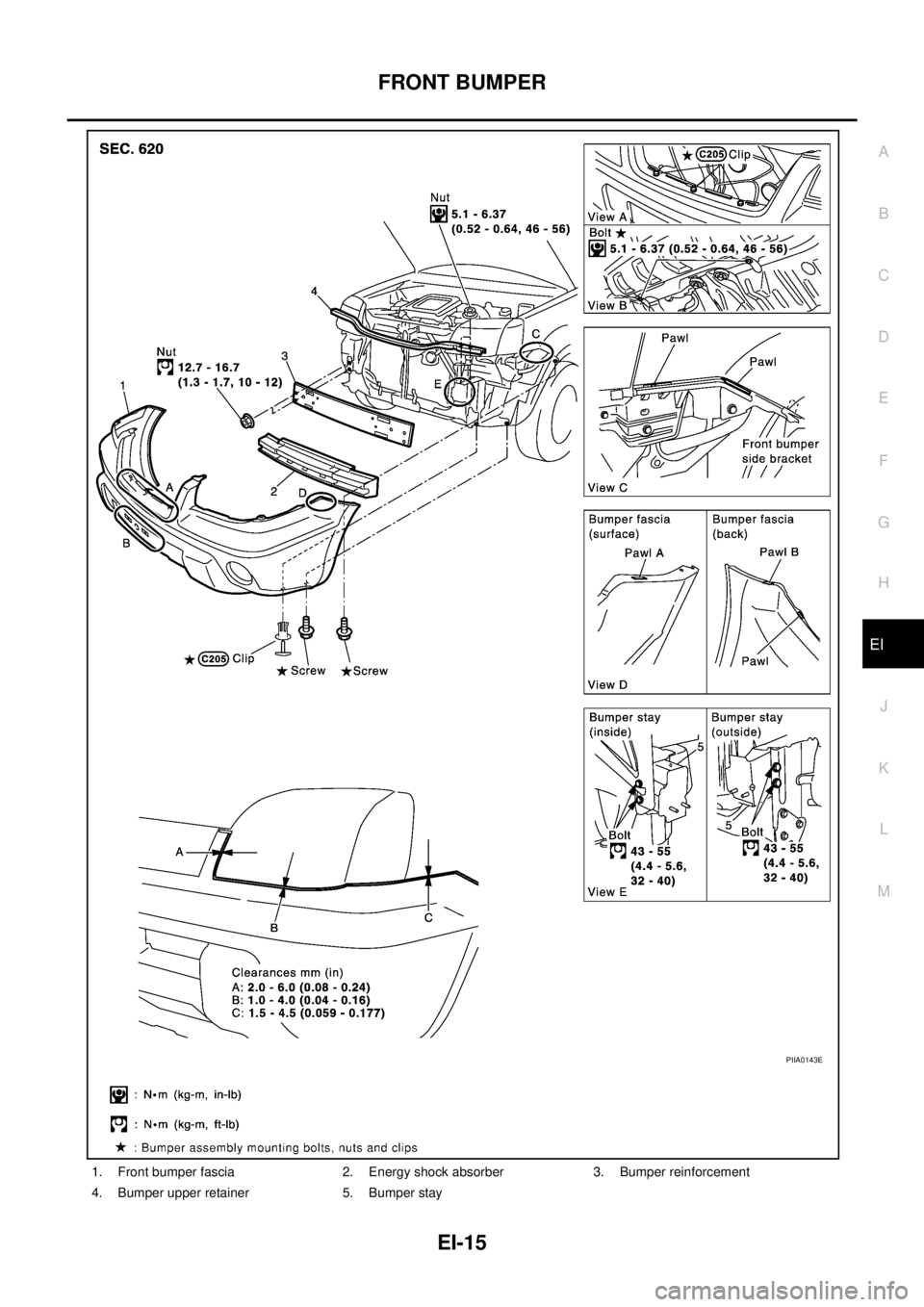

NISSAN X-TRAIL 2003 Service Repair Manual FRONT BUMPER EI-15 C D E F G H J K L MA B EI 1. Front bumper fascia 2. Energy shock absorber 3. Bumper reinforcement 4. Bumper upper retainer 5. Bumper stay PIIA0143E

Page 3314 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EI-16 FRONT BUMPER REMOVAL 1. Remove front grille. Refer to EI-19, "Removal and Installation" . 2. Remove mounting screws and clips on RH/LH front fender protector. 3. Remove front bumper fascia mou

Page 3315 of 4179

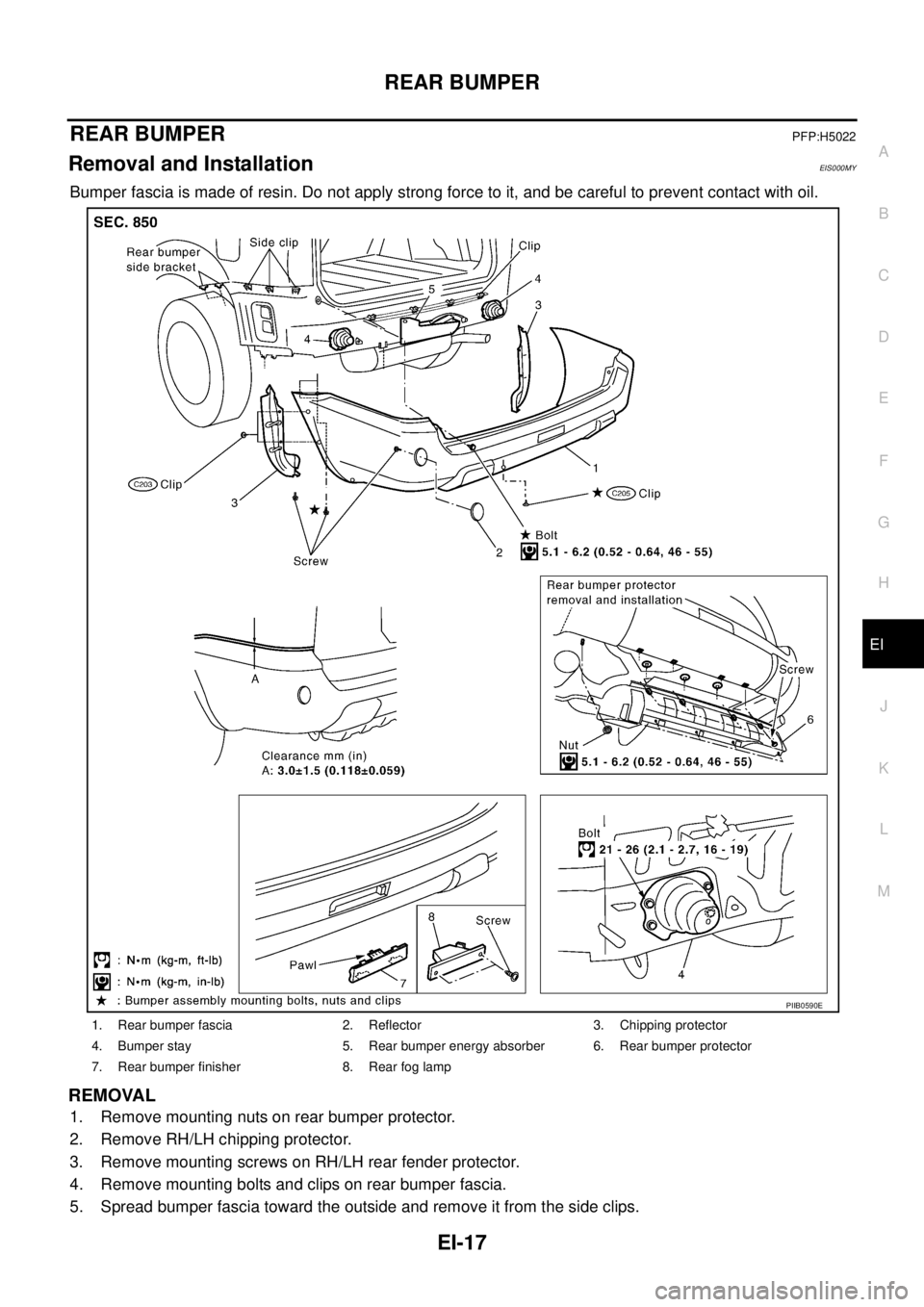

NISSAN X-TRAIL 2003 Service Repair Manual REAR BUMPER EI-17 C D E F G H J K L MA B EI REAR BUMPERPFP:H5022 Removal and InstallationEIS000MY Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact w

Page 3316 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EI-18 REAR BUMPER 6. Remove rear fog lamp connectors. Pull bumper fascia assembly straight rearward to remove. 7. Remove mounting bolts on bumper stay. 8. Remove rear bumper finisher, or rear fog la

Page 3317 of 4179

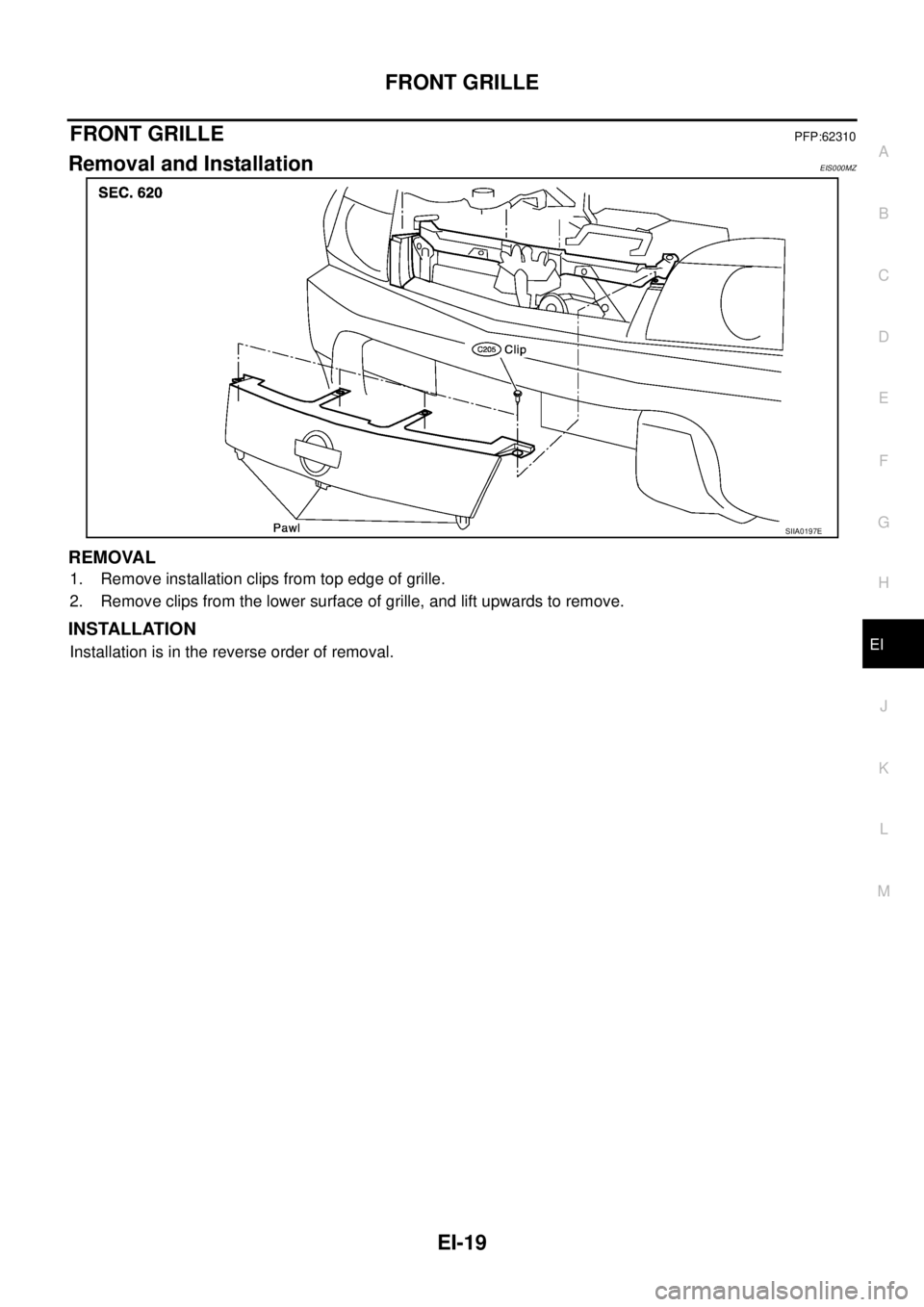

NISSAN X-TRAIL 2003 Service Repair Manual FRONT GRILLE EI-19 C D E F G H J K L MA B EI FRONT GRILLEPFP:62310 Removal and InstallationEIS000MZ REMOVAL 1. Remove installation clips from top edge of grille. 2. Remove clips from the lower surfa

Page 3318 of 4179

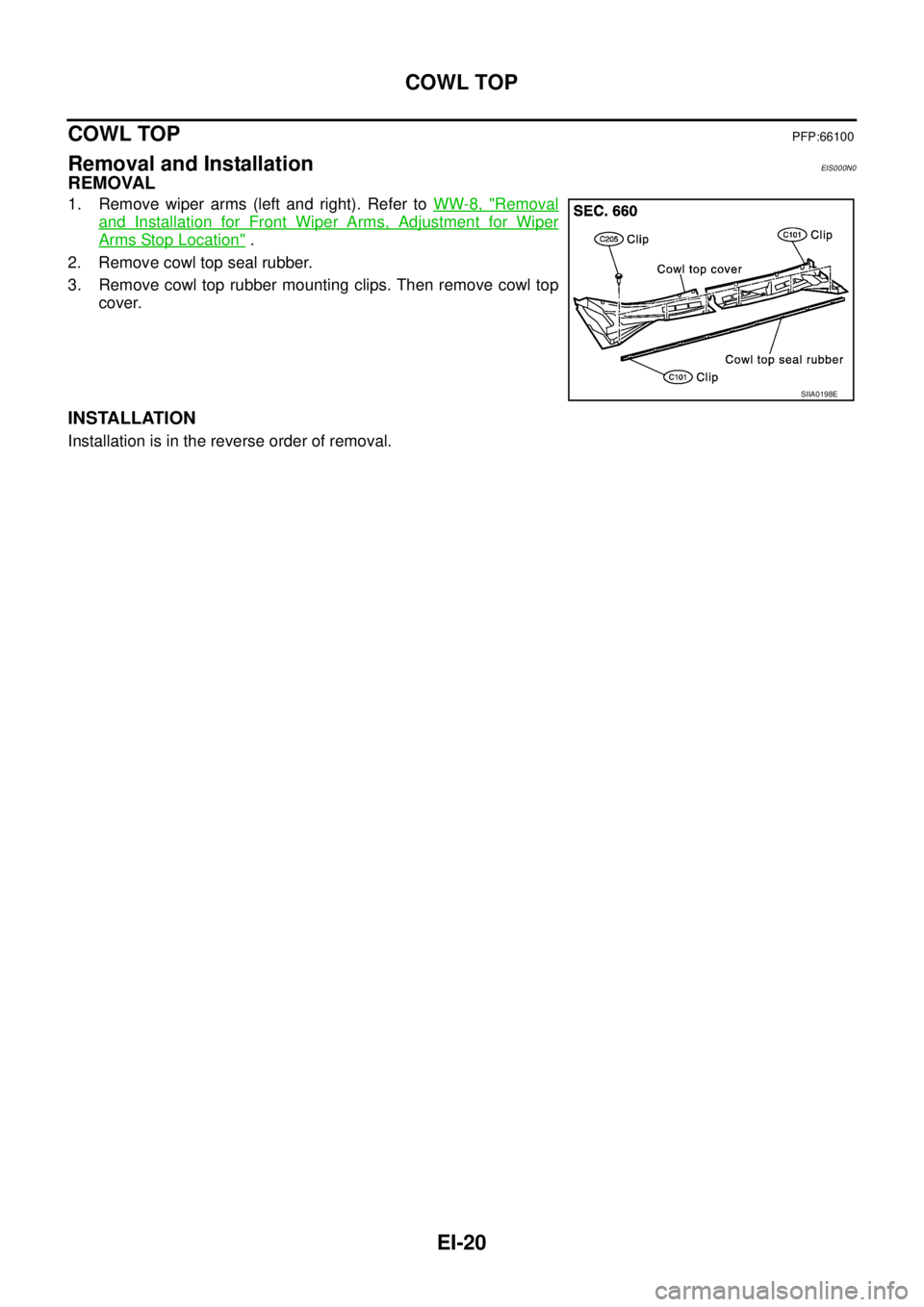

NISSAN X-TRAIL 2003 Service Repair Manual EI-20 COWL TOP COWL TOPPFP:66100 Removal and InstallationEIS000N0 REMOVAL 1. Remove wiper arms (left and right). Refer to WW-8, "Removal and Installation for Front Wiper Arms, Adjustment for Wiper A

Page 3319 of 4179

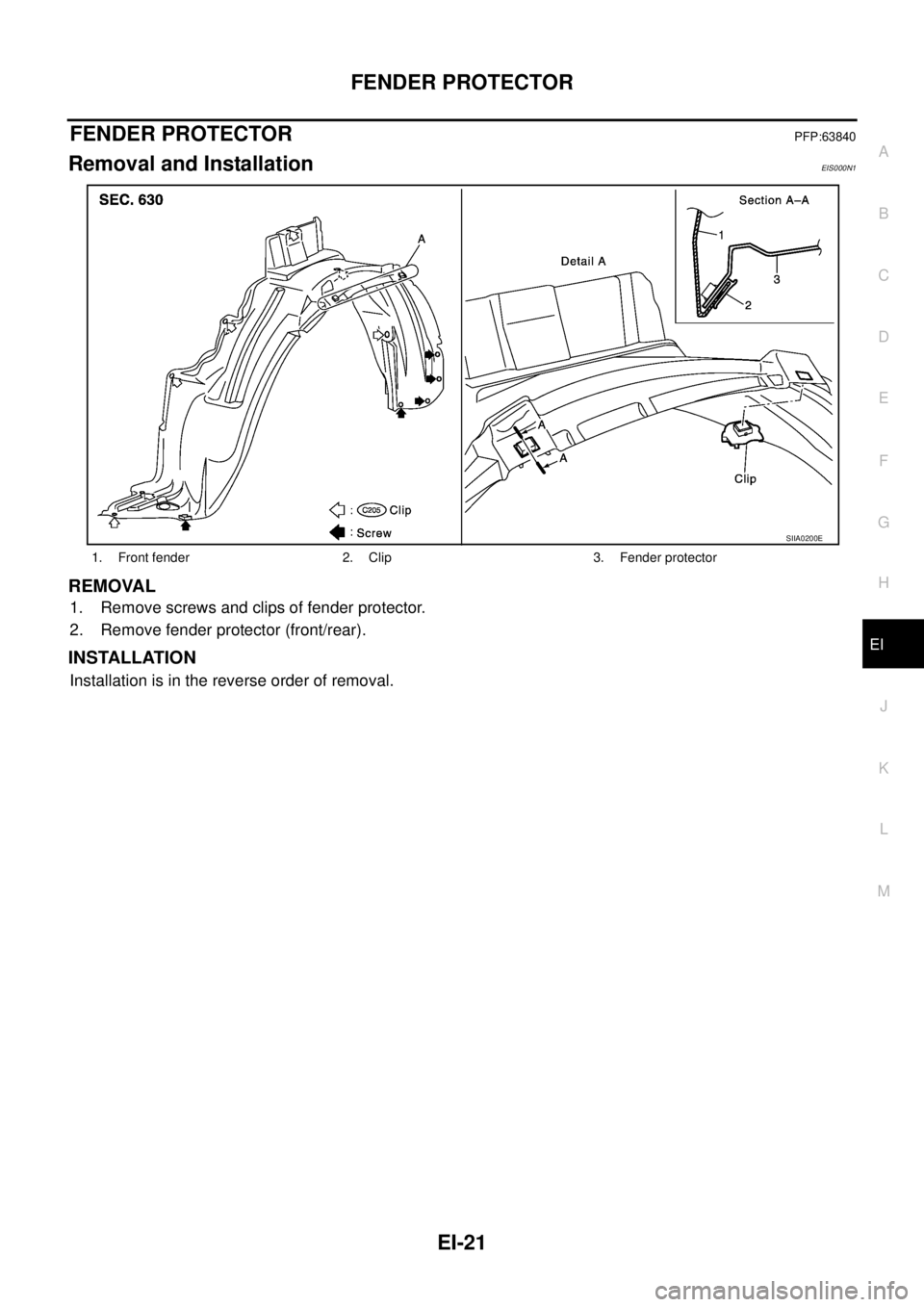

NISSAN X-TRAIL 2003 Service Repair Manual FENDER PROTECTOR EI-21 C D E F G H J K L MA B EI FENDER PROTECTORPFP:63840 Removal and InstallationEIS000N1 REMOVAL 1. Remove screws and clips of fender protector. 2. Remove fender protector (front/

Page 3320 of 4179

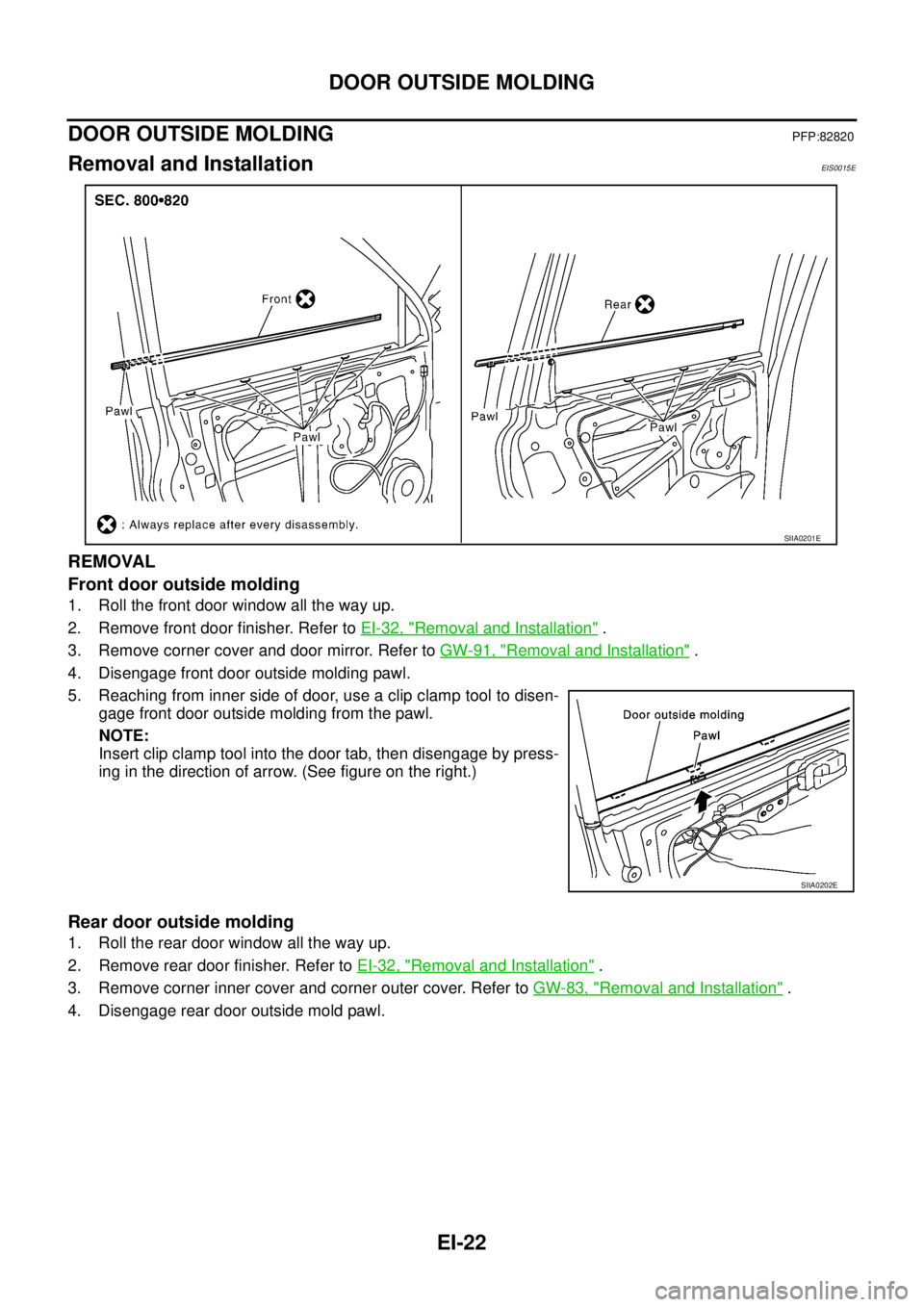

NISSAN X-TRAIL 2003 Service Repair Manual EI-22 DOOR OUTSIDE MOLDING DOOR OUTSIDE MOLDING PFP:82820 Removal and InstallationEIS0015E REMOVAL Front door outside molding 1. Roll the front door window all the way up. 2. Remove front door finis
