Page 657 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0605 ECM EC-279 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC DTC P0605 ECMPFP:23710 Component DescriptionEBS010QW The ECM consists of a microcomputer and connectors for signal input and outpu

Page 658 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-280 [QR (WITH EURO-OBD)] DTC P0605 ECM PROCEDURE FOR MALFUNCTION B With CONSULT-II 1. Turn ignition switch ON and wait at least 1 second. 2. Select “DATA MONITOR” mode with CONSULT-II. 3. Tu

Page 659 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P0605 ECM EC-281 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC 2. REPLACE ECM 1. Replace ECM. 2. Perform initialization of NATS system and registration of all NATS ignition key IDs. Refer to EC

Page 660 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-282 [QR (WITH EURO-OBD)] DTC P1065 ECM POWER SUPPLY DTC P1065 ECM POWER SUPPLYPFP:23710 Component DescriptionEBS010R0 Battery voltage is supplied to the ECM even when the ignition switch is turne

Page 661 of 4179

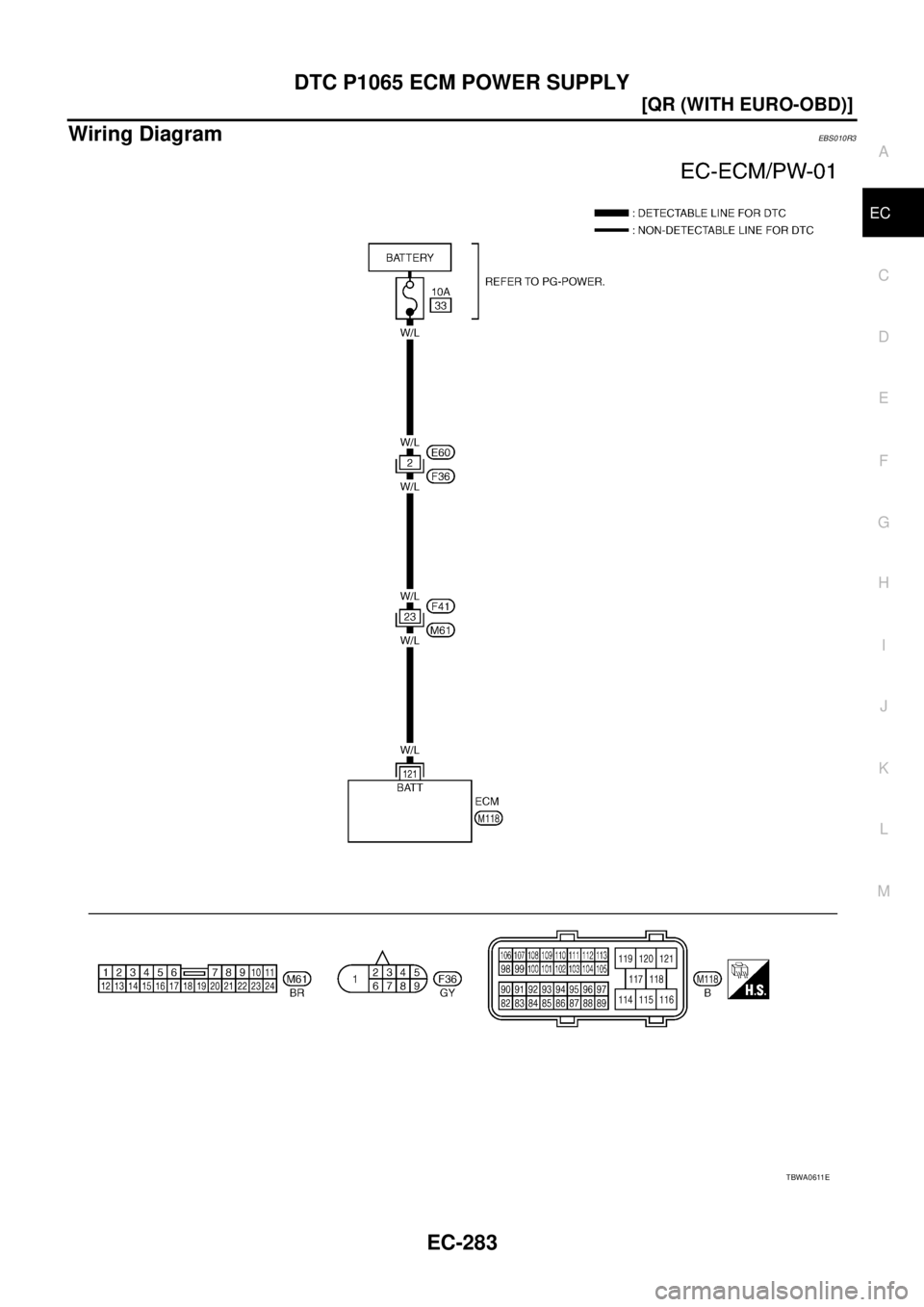

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1065 ECM POWER SUPPLY EC-283 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC Wiring DiagramEBS010R3 TBWA0611E

Page 662 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-284 [QR (WITH EURO-OBD)] DTC P1065 ECM POWER SUPPLY Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground terminals when measur

Page 663 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual DTC P1065 ECM POWER SUPPLY EC-285 [QR (WITH EURO-OBD)] C D E F G H I J K L MA EC 4. PERFORM DTC CONFIRMATION PROCEDURE With CONSULT-II 1. Turn ignition switch ON. 2. Select “SELF DIAG RESULTS”

Page 664 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-286 [QR (WITH EURO-OBD)] DTC P1111 IVT CONTROL SOLENOID VALVE D T C P 1111 I V T C O N T R O L S O L E N O I D VA LV EPFP:23796 Component DescriptionEBS010R5 Intake valve timing control sole
