POWER WINDOW SYSTEM
GW-63
C
D
E
F
G
H
J
K
L
MA
B
GW

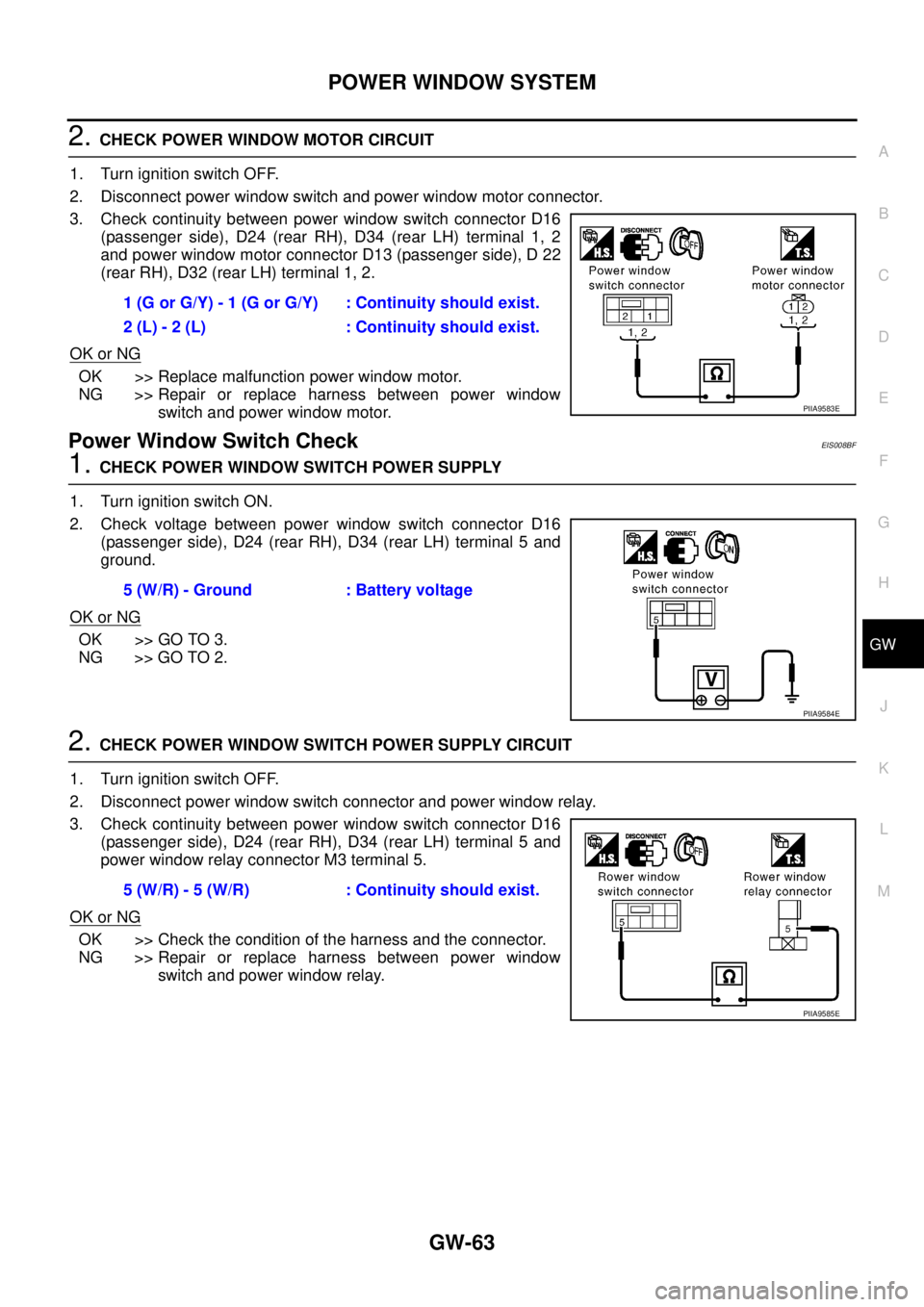

2. CHECK POWER WINDOW MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window switch and power window motor connector.
3. Check continuity between power window switch connector D16
(passenger side), D24 (rear RH), D34 (rear LH) terminal 1, 2
and power window motor connector D13 (passenger side), D 22
(rear RH), D32 (rear LH) terminal 1, 2.
OK or NG
OK >> Replace malfunction power window motor.
NG >> Repair or replace harness between power window
switch and power window motor.
Power Window Switch CheckEIS008BF
1. CHECK POWER WINDOW SWITCH POWER SUPPLY
1. Turn ignition switch ON.
2. Check voltage between power window switch connector D16
(passenger side), D24 (rear RH), D34 (rear LH) terminal 5 and
ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. CHECK POWER WINDOW SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window switch connector and power window relay.
3. Check continuity between power window switch connector D16
(passenger side), D24 (rear RH), D34 (rear LH) terminal 5 and
power window relay connector M3 terminal 5.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Repair or replace harness between power window
switch and power window relay. 1 (G or G/Y) - 1 (G or G/Y) : Continuity should exist.
2 (L) - 2 (L) : Continuity should exist.
PIIA9583E
5 (W/R) - Ground : Battery voltage
PIIA9584E
5 (W/R) - 5 (W/R) : Continuity should exist.
PIIA9585E
Page 3250 of 4179

GW-64
POWER WINDOW SYSTEM

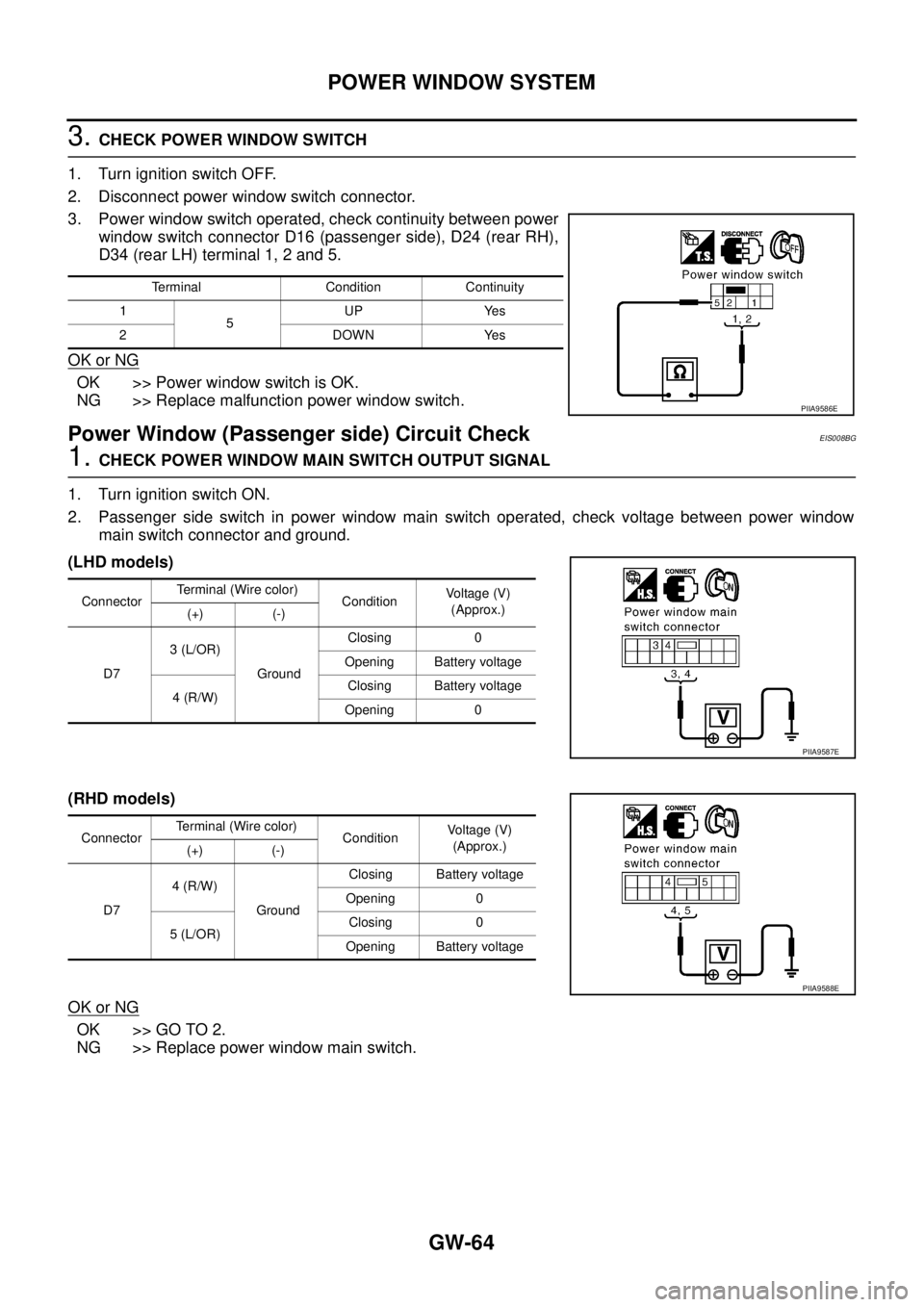

3. CHECK POWER WINDOW SWITCH
1. Turn ignition switch OFF.
2. Disconnect power window switch connector.
3. Power window switch operated, check continuity between power
window switch connector D16 (passenger side), D24 (rear RH),
D34 (rear LH) terminal 1, 2 and 5.
OK or NG
OK >> Power window switch is OK.
NG >> Replace malfunction power window switch.
Power Window (Passenger side) Circuit CheckEIS008BG
1. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Passenger side switch in power window main switch operated, check voltage between power window
main switch connector and ground.
(LHD models)
(RHD models)
OK or NG
OK >> GO TO 2.
NG >> Replace power window main switch.
Terminal Condition Continuity
1
5UP Yes
2DOWNYes
PIIA9586E
Connector Terminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D73 (L/OR)
GroundClosing 0
Opening Battery voltage
4 (R/W) Closing Battery voltage
Opening 0
PIIA9587E
ConnectorTerminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D74 (R/W)
GroundClosing Battery voltage
Opening 0
5 (L/OR)Closing 0
Opening Battery voltage
PIIA9588E
Page 3251 of 4179
POWER WINDOW SYSTEM
GW-65
C
D
E
F
G
H
J
K
L
MA
B
GW
2. CHECK POWER WINDOW SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window main switch and font power window switch (passenger side) connector.
3.(LHD models)
Check continuity between power window main switch connector
D6 terminal 3, 4 and front power window switch (passenger
side) connector D16 terminal 3, 4.
(RHD models)
Check continuity between power window main switch connector
D6 terminal 4, 5 and front power window switch (passenger
side) connector D16 terminal 3, 4.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Repair or replace harness between power window main
switch and front power window switch (passenger side). 3 (L/OR) - 4 (L/OR) : Continuity should exist.
4 (R/W) - 3 (R/W) : Continuity should exist.
PIIA9589E
4 (RW) - 3 (R/W) : Continuity should exist.
5 (L/OR) - 4 (L/OR) : Continuity should exist.
PIIA9590E
Page 3252 of 4179
GW-66
POWER WINDOW SYSTEM

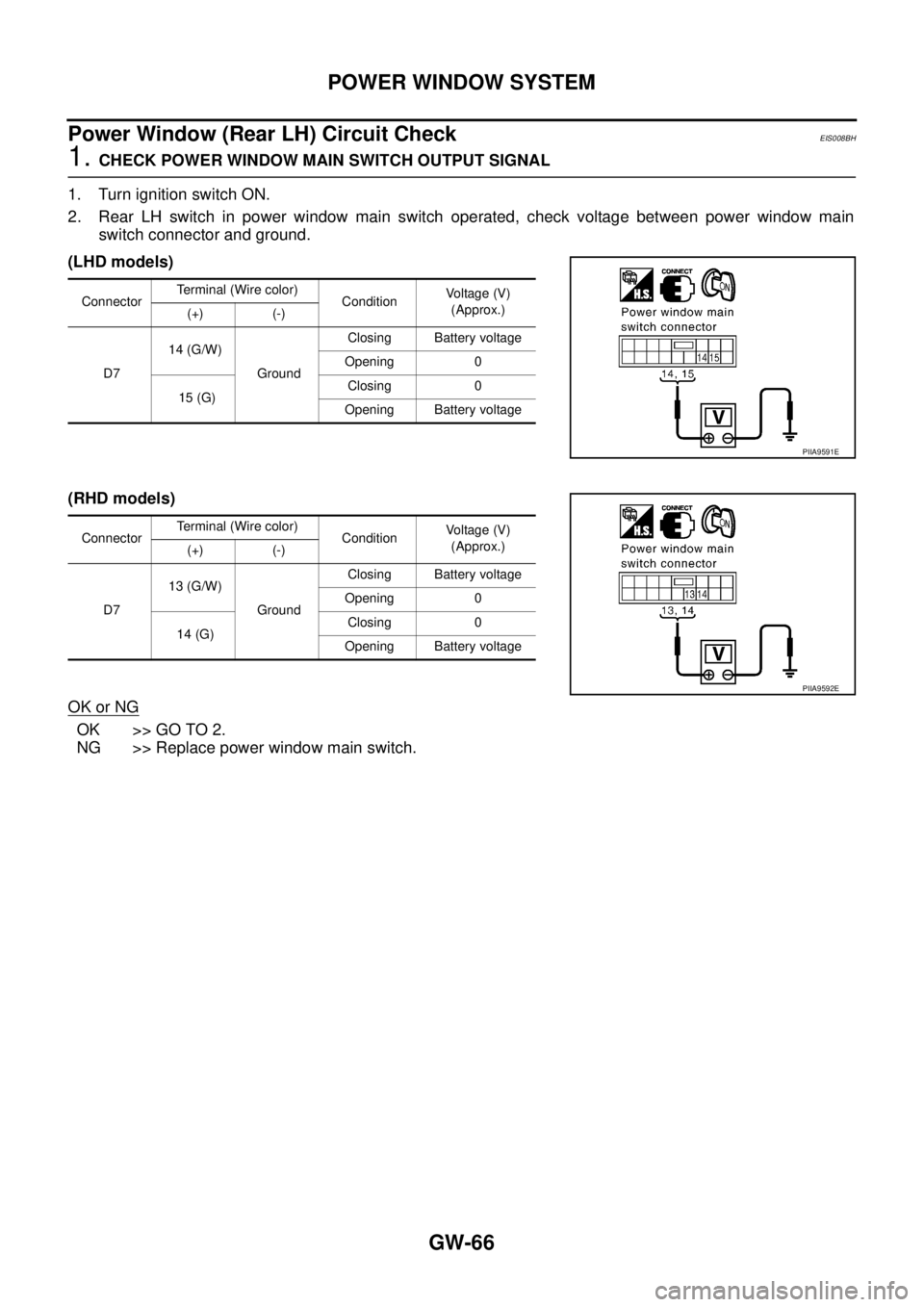

Power Window (Rear LH) Circuit CheckEIS008BH
1. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Rear LH switch in power window main switch operated, check voltage between power window main
switch connector and ground.
(LHD models)
(RHD models)
OK or NG
OK >> GO TO 2.
NG >> Replace power window main switch.
Connector Terminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D714 (G/W)
GroundClosing Battery voltage
Opening 0
15 (G)Closing 0
Opening Battery voltage
PIIA9591E
Connector Terminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D713 (G/W)
GroundClosing Battery voltage
Opening 0
14 (G) Closing 0
Opening Battery voltage
PIIA9592E
Page 3253 of 4179
POWER WINDOW SYSTEM
GW-67
C
D
E
F
G
H
J
K
L
MA
B
GW
2. CHECK POWER WINDOW SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window main switch and rear power window switch LH connector.
3.(LHD models)
Check continuity between power window main switch connector
D7 terminal 14, 15 and rear power window switch LH connector
D34 terminal 3, 4.
(RHD models)
Check continuity between power window main switch connector
D7 terminal 13, 14 and rear power window switch LH connector
D34 terminal 3, 4.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Repair or replace harness between power window main
switch and rear power window switch LH. 14 (G/W) - 3 (G/W) : Continuity should exist.
15 (G) - 4 (G) : Continuity should exist.
PIIA9593E
13 (G/W) - 3 (G/W) : Continuity should exist.
14 (G) - 4 (G) : Continuity should exist.
PIIA9594E
Page 3254 of 4179
GW-68
POWER WINDOW SYSTEM
Power Window (Rear RH) Circuit CheckEIS008BI
1. CHECK POWER WINDOW MAIN SWITCH OUTPUT SIGNAL
1. Turn ignition switch ON.
2. Rear RH switch in power window main switch operated, check voltage between power window main
switch connector and ground.
(LHD models)
(RHD models)
OK or NG
OK >> GO TO 2.
NG >> Replace power window main switch.
Connector Terminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D710 (R/Y)
GroundClosing Battery voltage
Opening 0
11 (R/L)Closing 0
Opening Battery voltage
PIIA9595E
Connector Terminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D79 (R/Y)
GroundClosing Battery voltage
Opening 0
10 (R/L) Closing 0
Opening Battery voltage
PIIA9596E
Page 3255 of 4179
POWER WINDOW SYSTEM
GW-69
C
D
E
F
G
H
J
K
L
MA
B
GW
2. CHECK POWER WINDOW SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect power window main switch and rear power window switch LH connector.
3.(LHD models)
Check continuity between power window main switch connector
D7 terminal 10, 11 and rear power window switch RH connector
D24 terminal 3, 4.
(RHD models)
Check continuity between power window main switch connector
D7 terminal 9, 10 and rear power window switch LH connector
D34 terminal 3, 4.
OK or NG
OK >> Check the condition of the harness and the connector.
NG >> Repair or replace harness between power window main
switch and rear power window switch RH. 10 (R/Y) - 3 (R/Y) : Continuity should exist.
11 (R/L) - 4 (R/L) : Continuity should exist.
PIIA9597E
9 (R/Y) - 3 (R/Y) : Continuity should exist.
10 (R/L) - 4 (R/L) : Continuity should exist.
PIIA9598E
Page 3256 of 4179

GW-70
POWER WINDOW SYSTEM

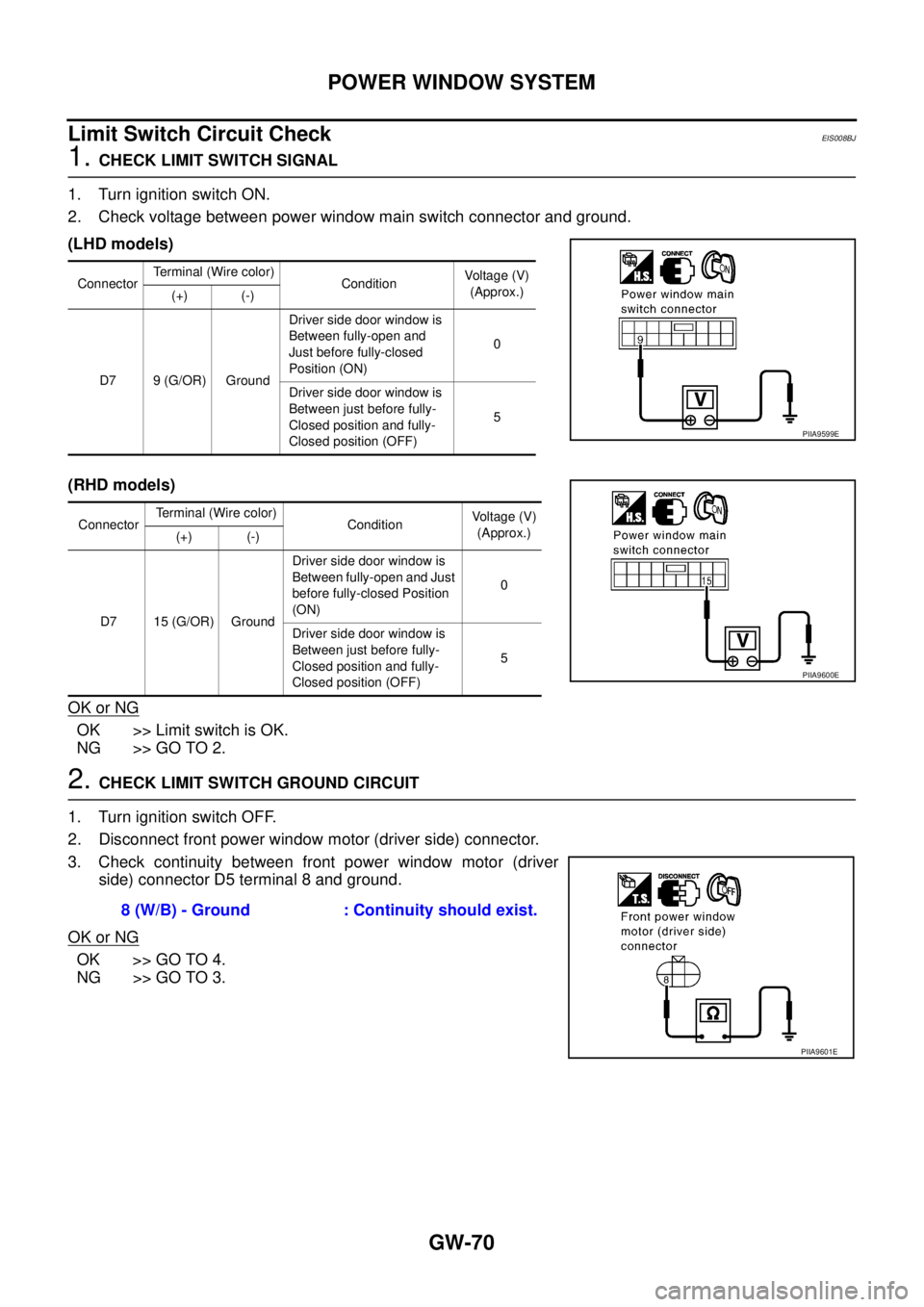

Limit Switch Circuit CheckEIS008BJ
1. CHECK LIMIT SWITCH SIGNAL
1. Turn ignition switch ON.
2. Check voltage between power window main switch connector and ground.
(LHD models)
(RHD models)
OK or NG
OK >> Limit switch is OK.
NG >> GO TO 2.
2. CHECK LIMIT SWITCH GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect front power window motor (driver side) connector.
3. Check continuity between front power window motor (driver
side) connector D5 terminal 8 and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
Connector Terminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D7 9 (G/OR) GroundDriver side door window is
Between fully-open and
Just before fully-closed
Position (ON)0
Driver side door window is
Between just before fully-
Closed position and fully-
Closed position (OFF)5
Connector Terminal (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
D7 15 (G/OR) GroundDriver side door window is
Between fully-open and Just
before fully-closed Position
(ON)0
Driver side door window is
Between just before fully-
Closed position and fully-
Closed position (OFF)5
PIIA9599E
PIIA9600E
8 (W/B) - Ground : Continuity should exist.
PIIA9601E
