Page 3817 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 2) LAN-39 [CAN] C D E F G H I J L MA B LAN 3. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect ABS actuator and electric unit (control unit) connector. 2. Check the following. –LHD mo

Page 3818 of 4179

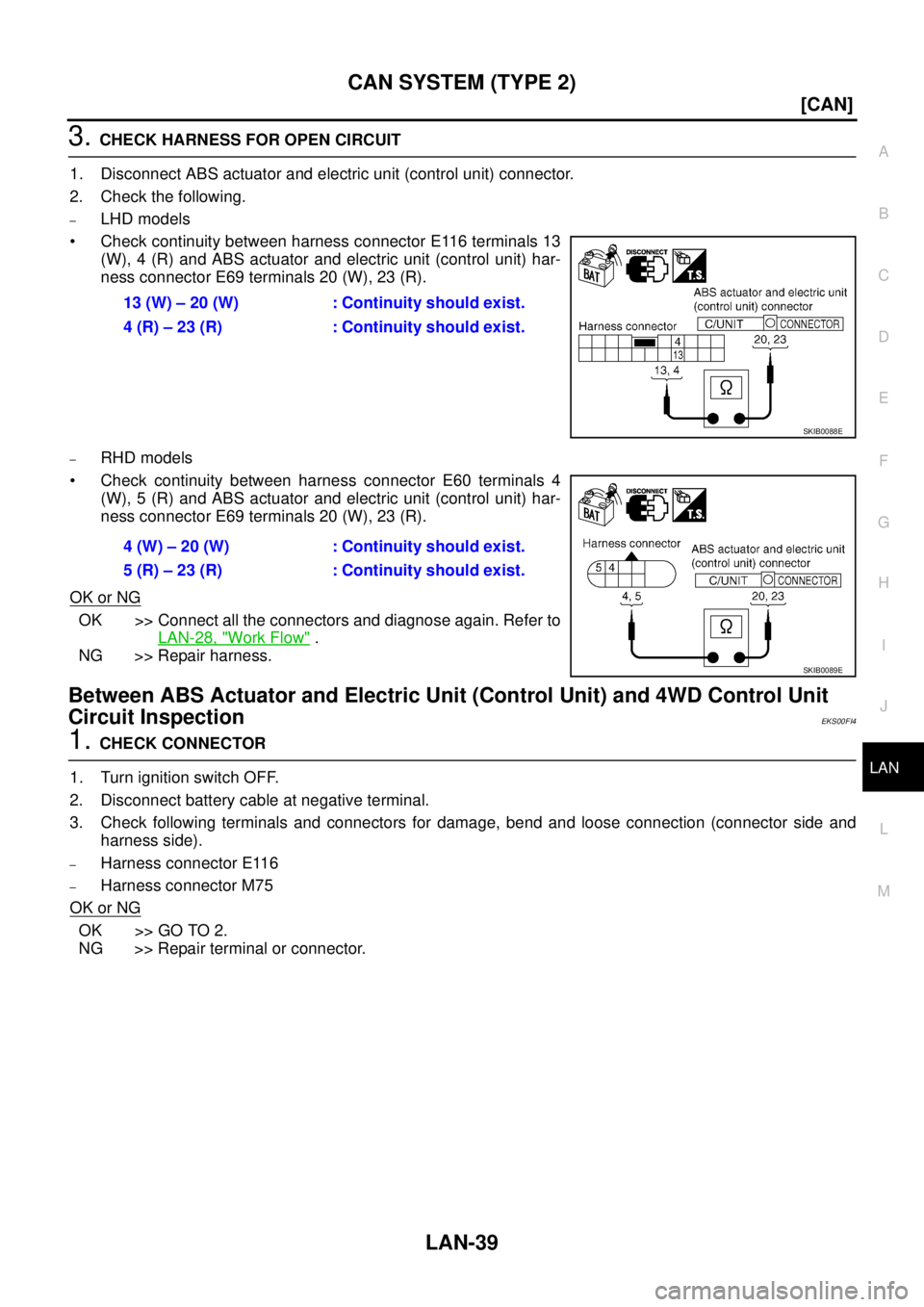

NISSAN X-TRAIL 2003 Service Repair Manual LAN-40 [CAN] CAN SYSTEM (TYPE 2) 2. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect ABS actuator and electric unit (control unit) connector and harness connector E116. 2. Check the following. –LHD mo

Page 3819 of 4179

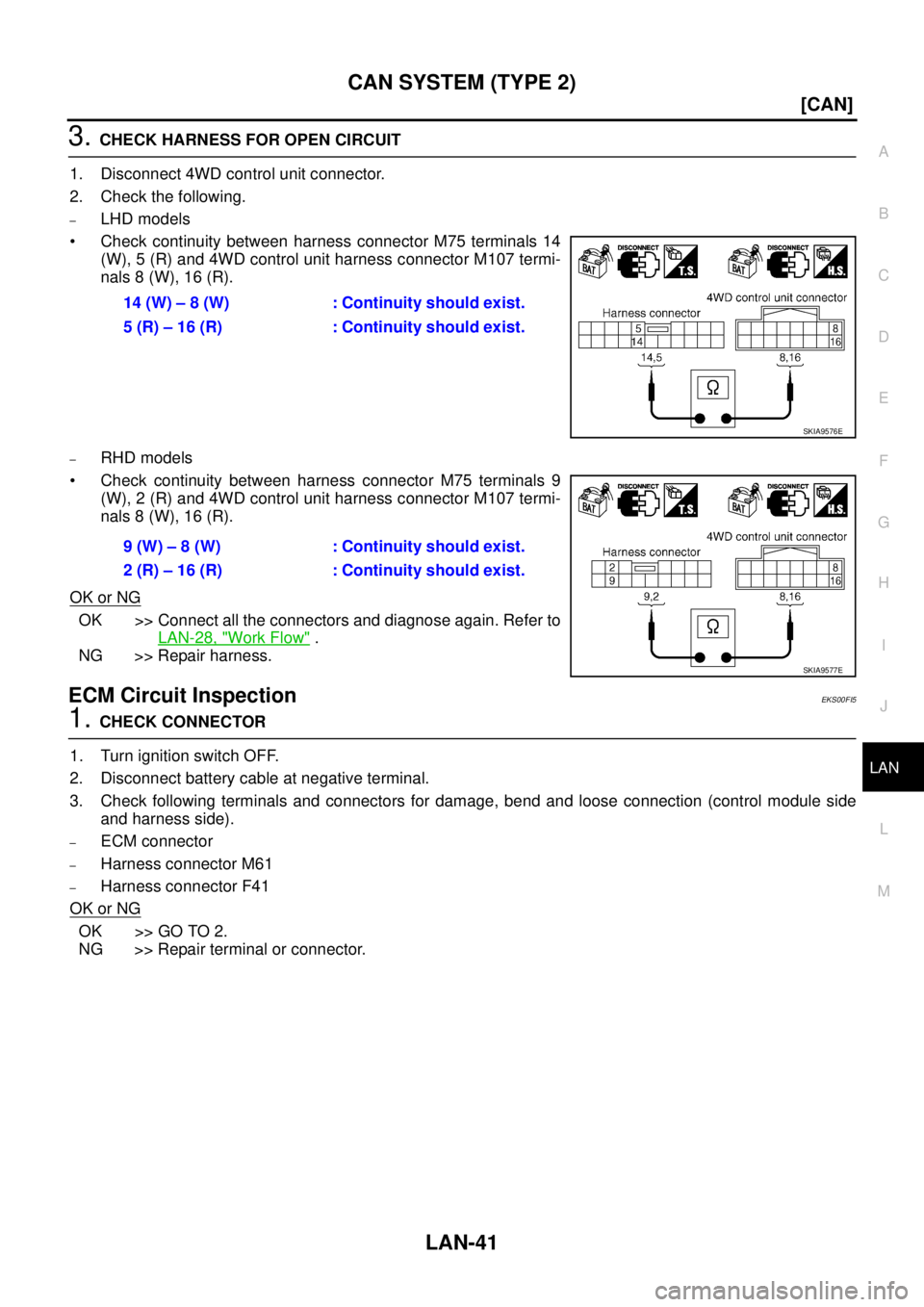

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 2) LAN-41 [CAN] C D E F G H I J L MA B LAN 3. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect 4WD control unit connector. 2. Check the following. –LHD models  Check continuity betwe

Page 3820 of 4179

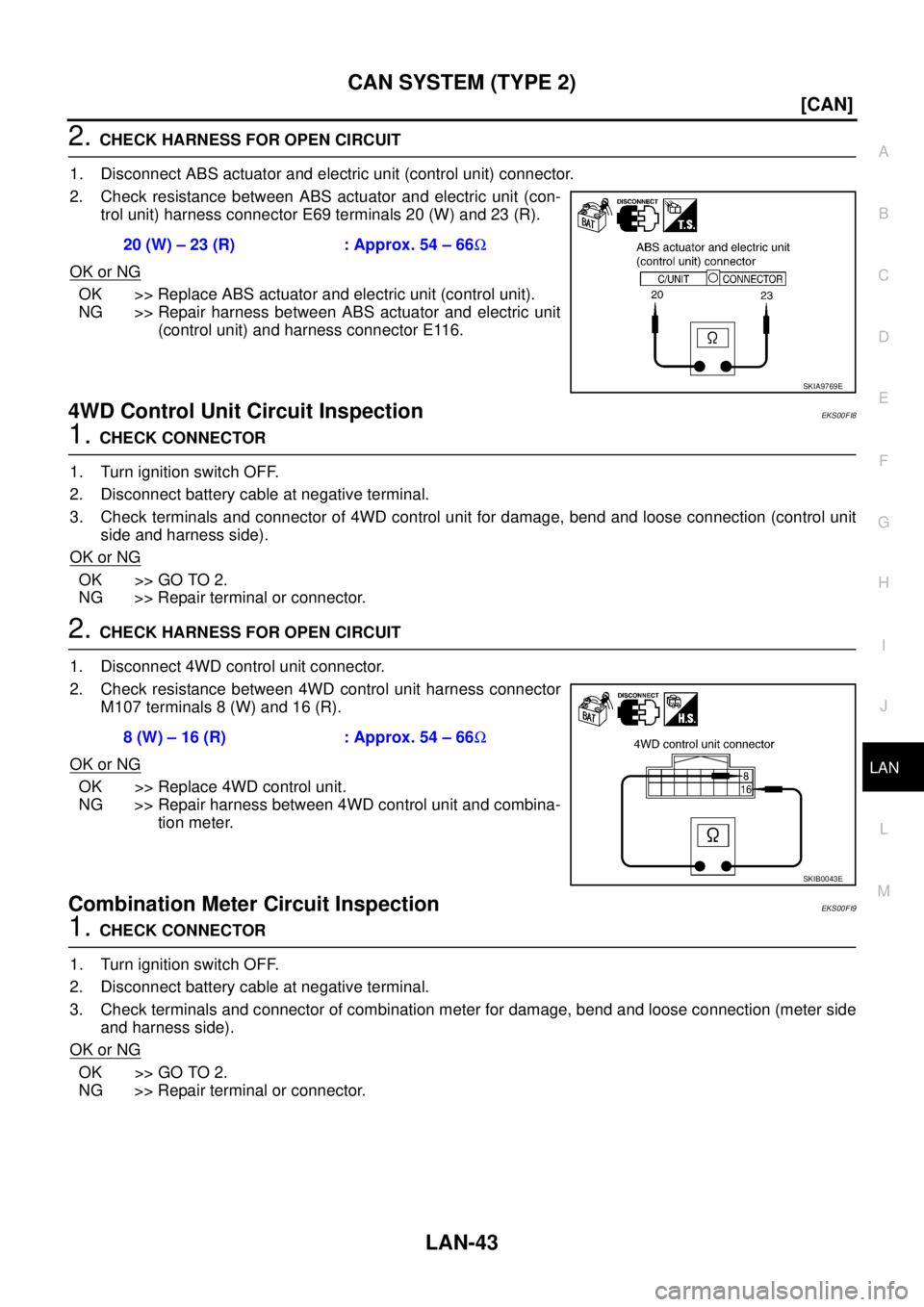

NISSAN X-TRAIL 2003 Service Repair Manual LAN-42 [CAN] CAN SYSTEM (TYPE 2) 2. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect ECM connector. 2. Check resistance between ECM harness connector M118 termi- nals 94 (G/R) and 86 (GY/R). OK or NG OK

Page 3821 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 2) LAN-43 [CAN] C D E F G H I J L MA B LAN 2. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect ABS actuator and electric unit (control unit) connector. 2. Check resistance between ABS a

Page 3822 of 4179

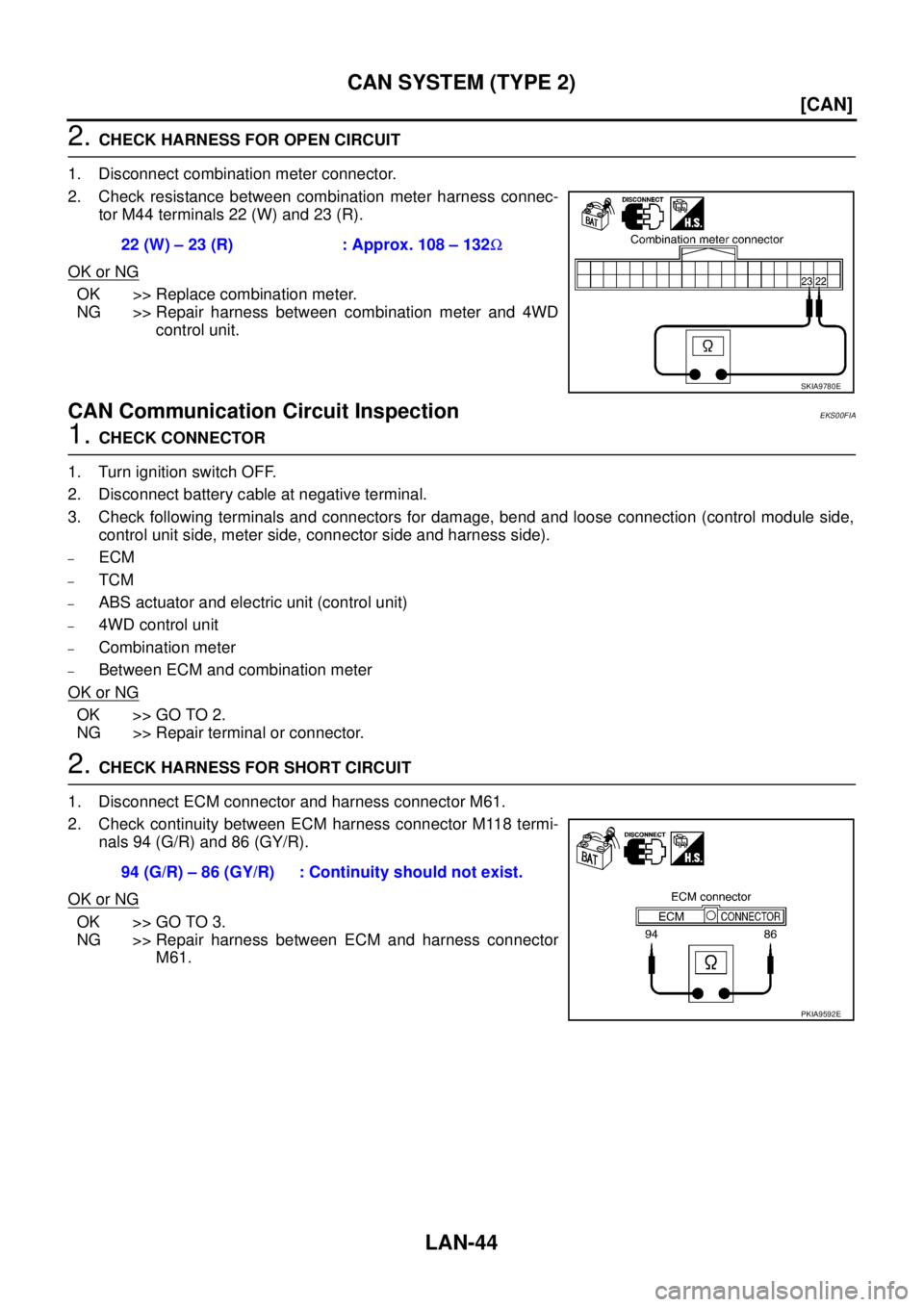

NISSAN X-TRAIL 2003 Service Repair Manual LAN-44 [CAN] CAN SYSTEM (TYPE 2) 2. CHECK HARNESS FOR OPEN CIRCUIT 1. Disconnect combination meter connector. 2. Check resistance between combination meter harness connec- tor M44 terminals 22 (W) a

Page 3823 of 4179

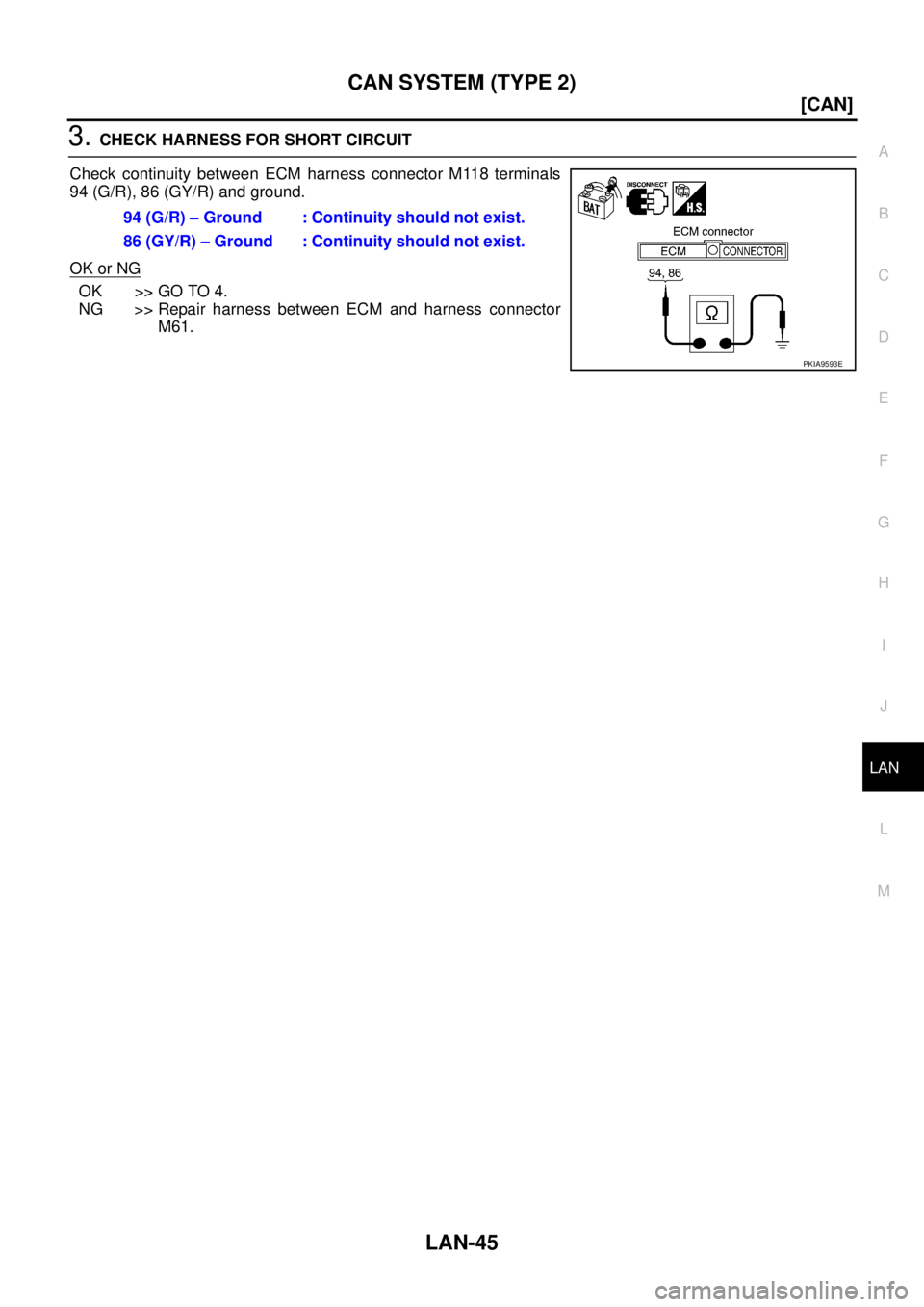

NISSAN X-TRAIL 2003 Service Repair Manual CAN SYSTEM (TYPE 2) LAN-45 [CAN] C D E F G H I J L MA B LAN 3. CHECK HARNESS FOR SHORT CIRCUIT Check continuity between ECM harness connector M118 terminals 94 (G/R), 86 (GY/R) and ground. OK or NG

Page 3824 of 4179

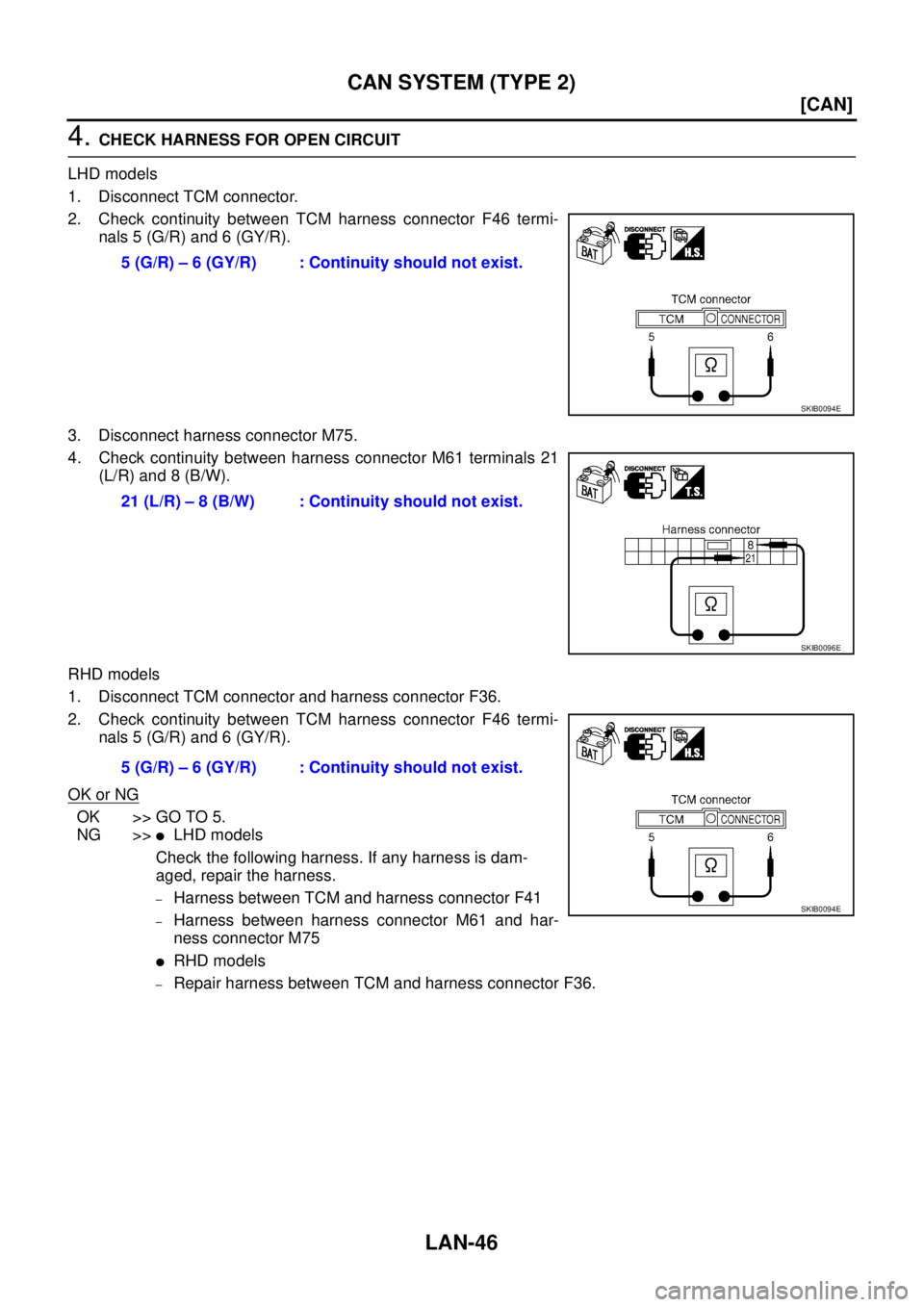

NISSAN X-TRAIL 2003 Service Repair Manual LAN-46 [CAN] CAN SYSTEM (TYPE 2) 4. CHECK HARNESS FOR OPEN CIRCUIT LHD models 1. Disconnect TCM connector. 2. Check continuity between TCM harness connector F46 termi- nals 5 (G/R) and 6 (GY/R). 3.
