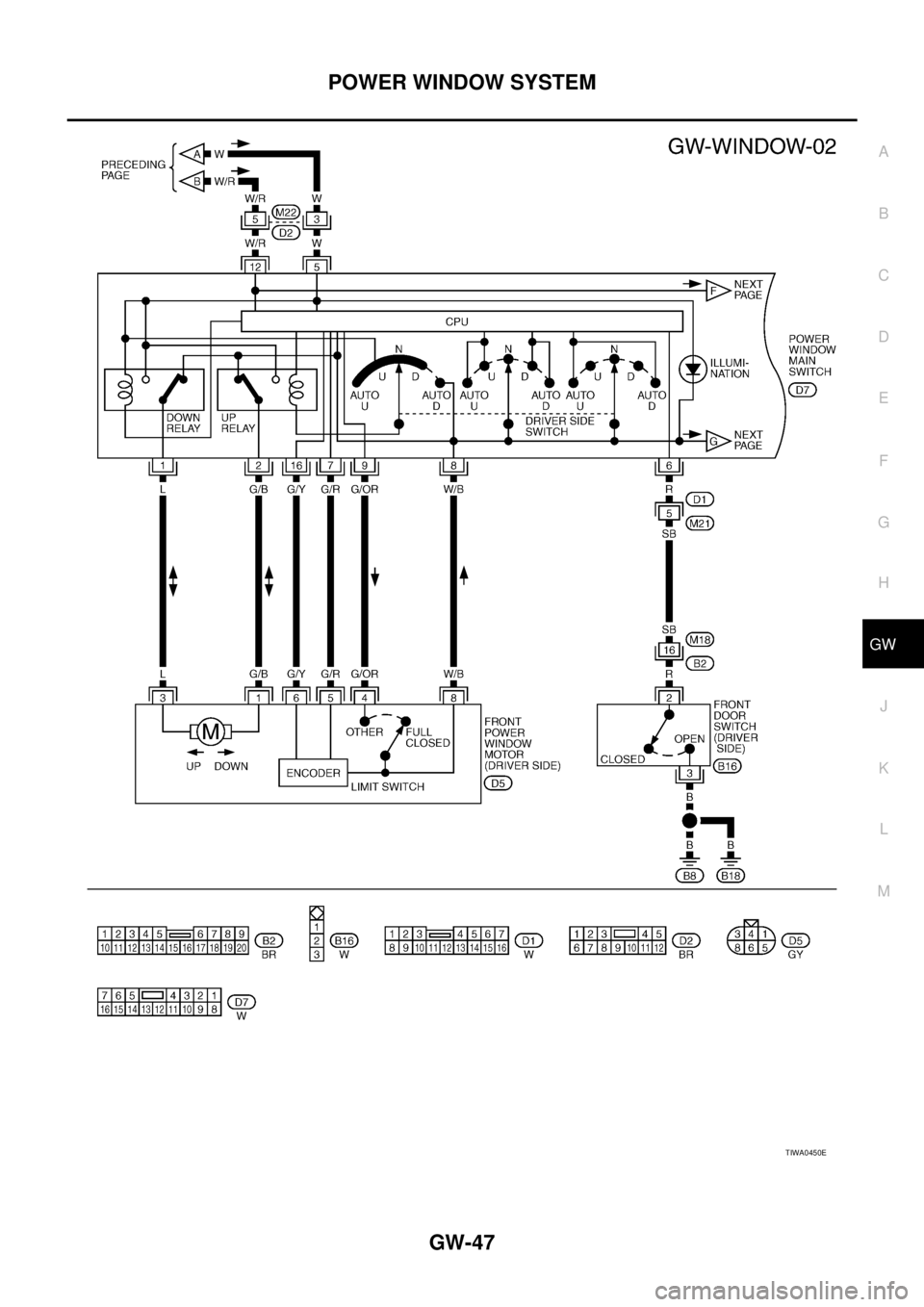

NISSAN X-TRAIL 2003 Service Repair Manual POWER WINDOW SYSTEM GW-47 C D E F G H J K L MA B GW TIWA0450E

Page 3234 of 4179

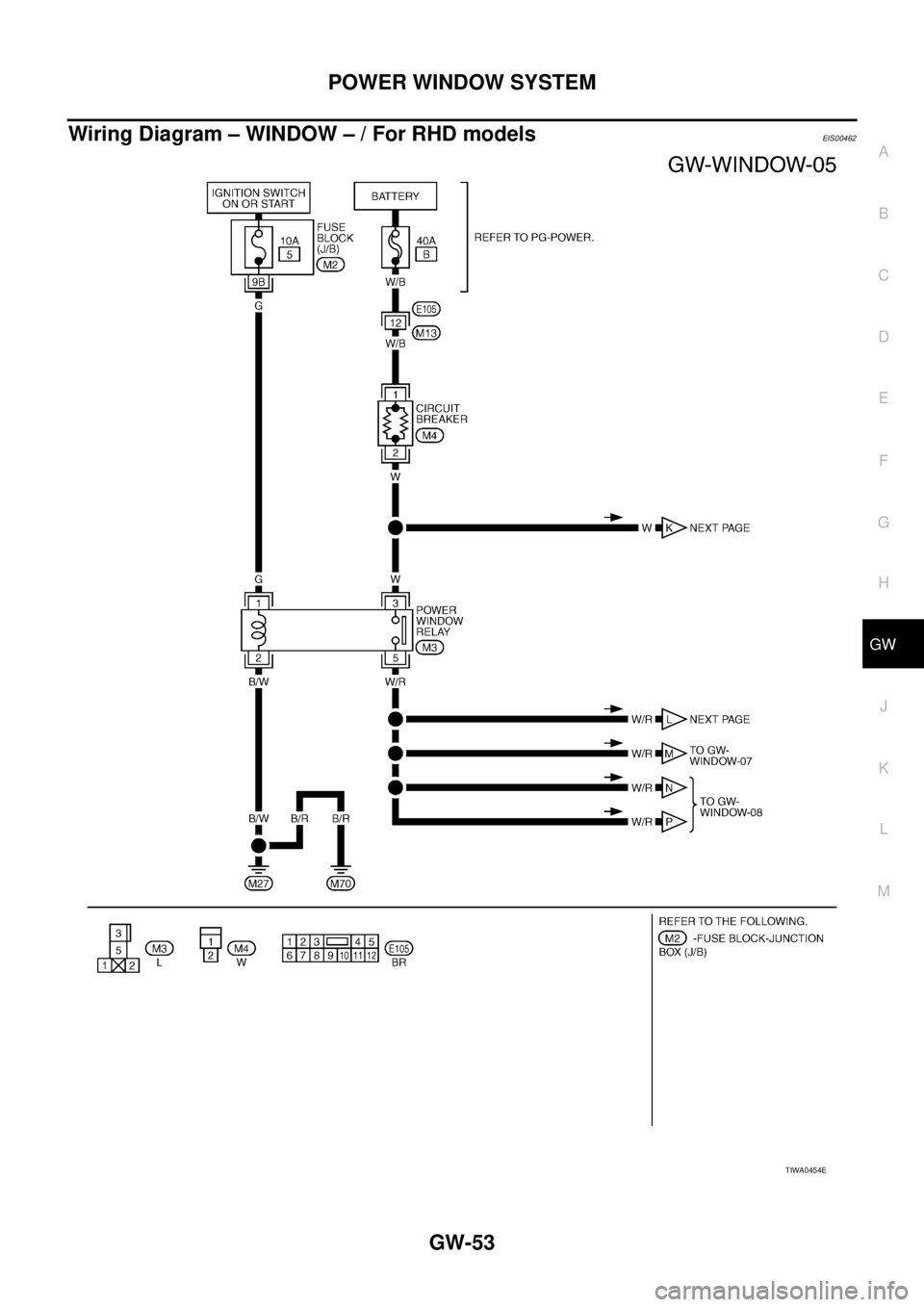

NISSAN X-TRAIL 2003 Service Repair Manual GW-48 POWER WINDOW SYSTEM TIWA0451E

Page 3235 of 4179

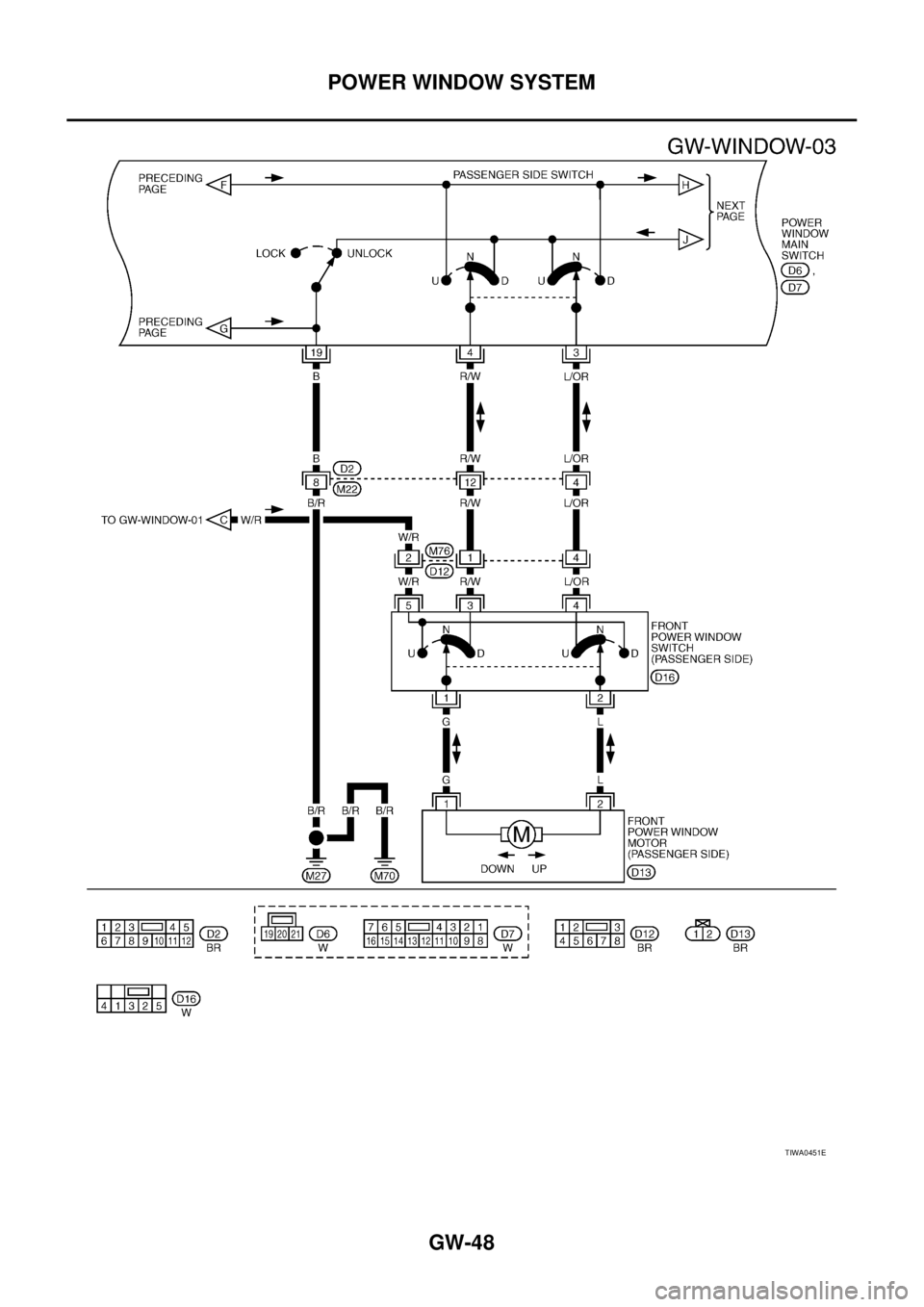

NISSAN X-TRAIL 2003 Service Repair Manual POWER WINDOW SYSTEM GW-49 C D E F G H J K L MA B GW TIWA0452E

Page 3236 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual GW-50 POWER WINDOW SYSTEM Terminal and Reference Value for Power Window Main Switch / For LHD modelsEIS0045Z TERMINALWIRE COLORITEM CONDITIONVOLTAGE (V) (Approx.) 1LDriver side power window motor

Page 3237 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual POWER WINDOW SYSTEM GW-51 C D E F G H J K L MA B GW 16 G/Y Encoder pulse signalWhen power window motor operates. 19 B Ground — 0 TERMINALWIRE COLORITEM CONDITIONVOLTAGE (V) (Approx.) OCC3383D

Page 3238 of 4179

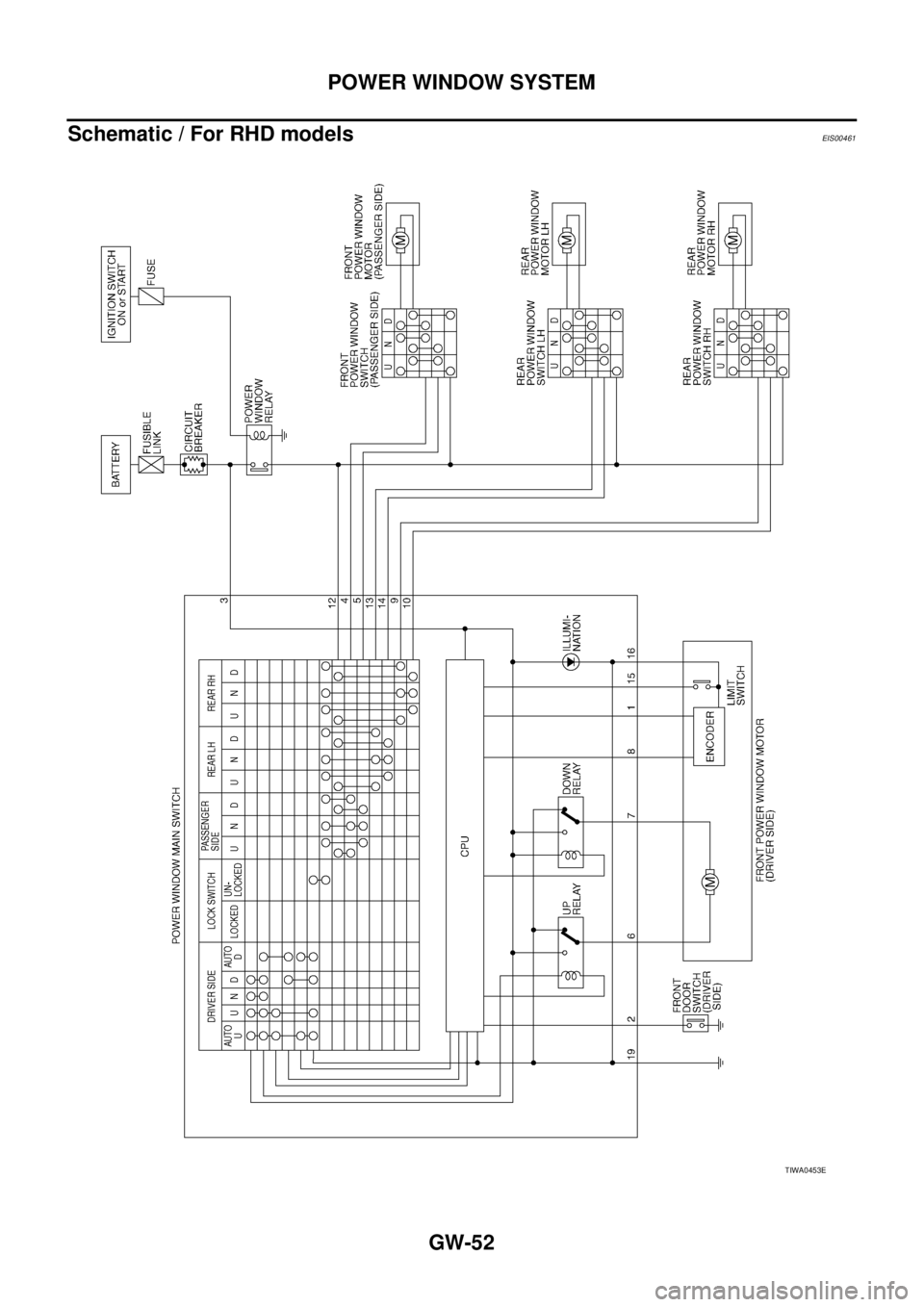

NISSAN X-TRAIL 2003 Service Repair Manual GW-52 POWER WINDOW SYSTEM Schematic / For RHD modelsEIS00461 TIWA0453E

Page 3239 of 4179

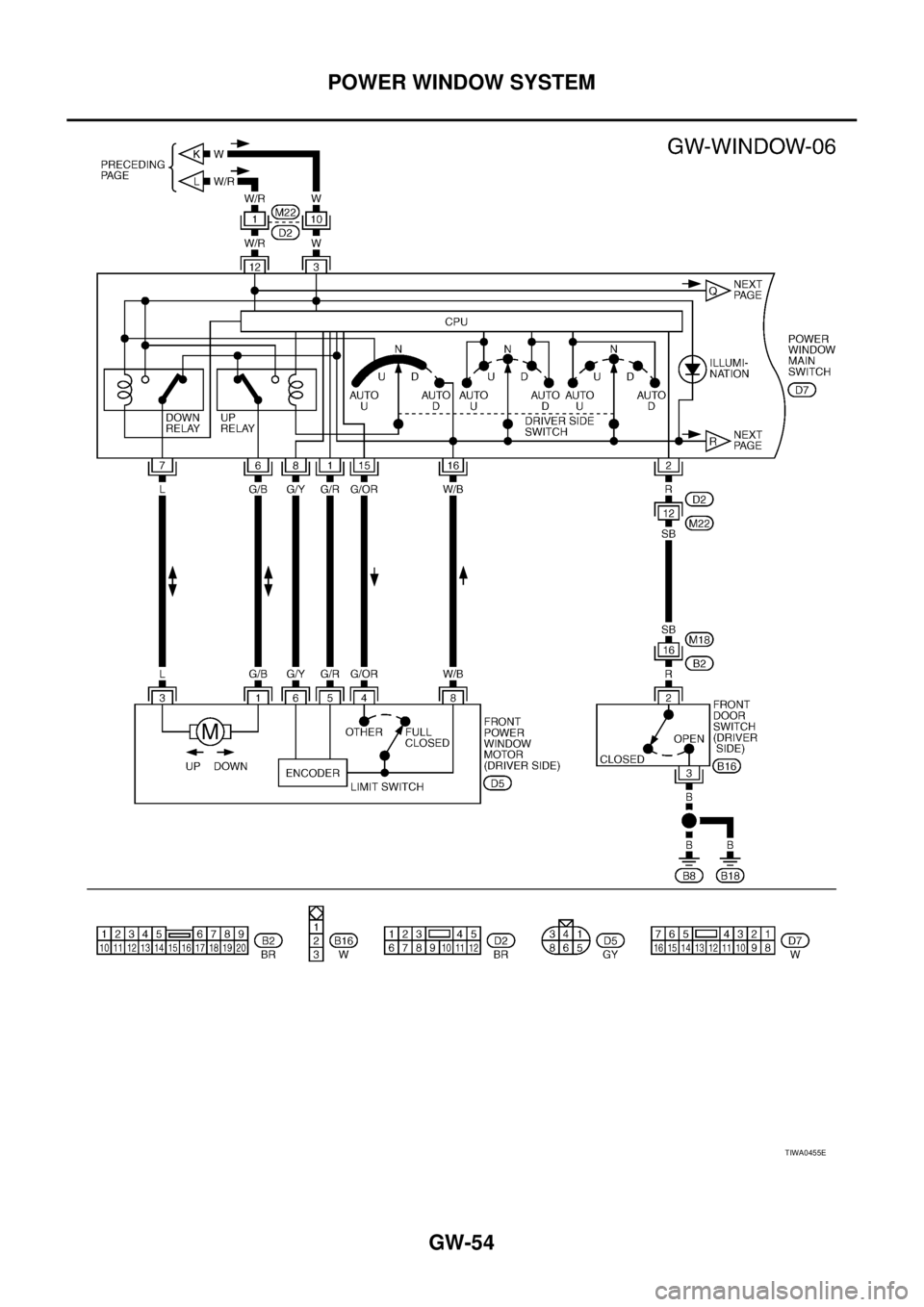

NISSAN X-TRAIL 2003 Service Repair Manual POWER WINDOW SYSTEM GW-53 C D E F G H J K L MA B GW Wiring Diagram – WINDOW – / For RHD modelsEIS00462 TIWA0454E

Page 3240 of 4179

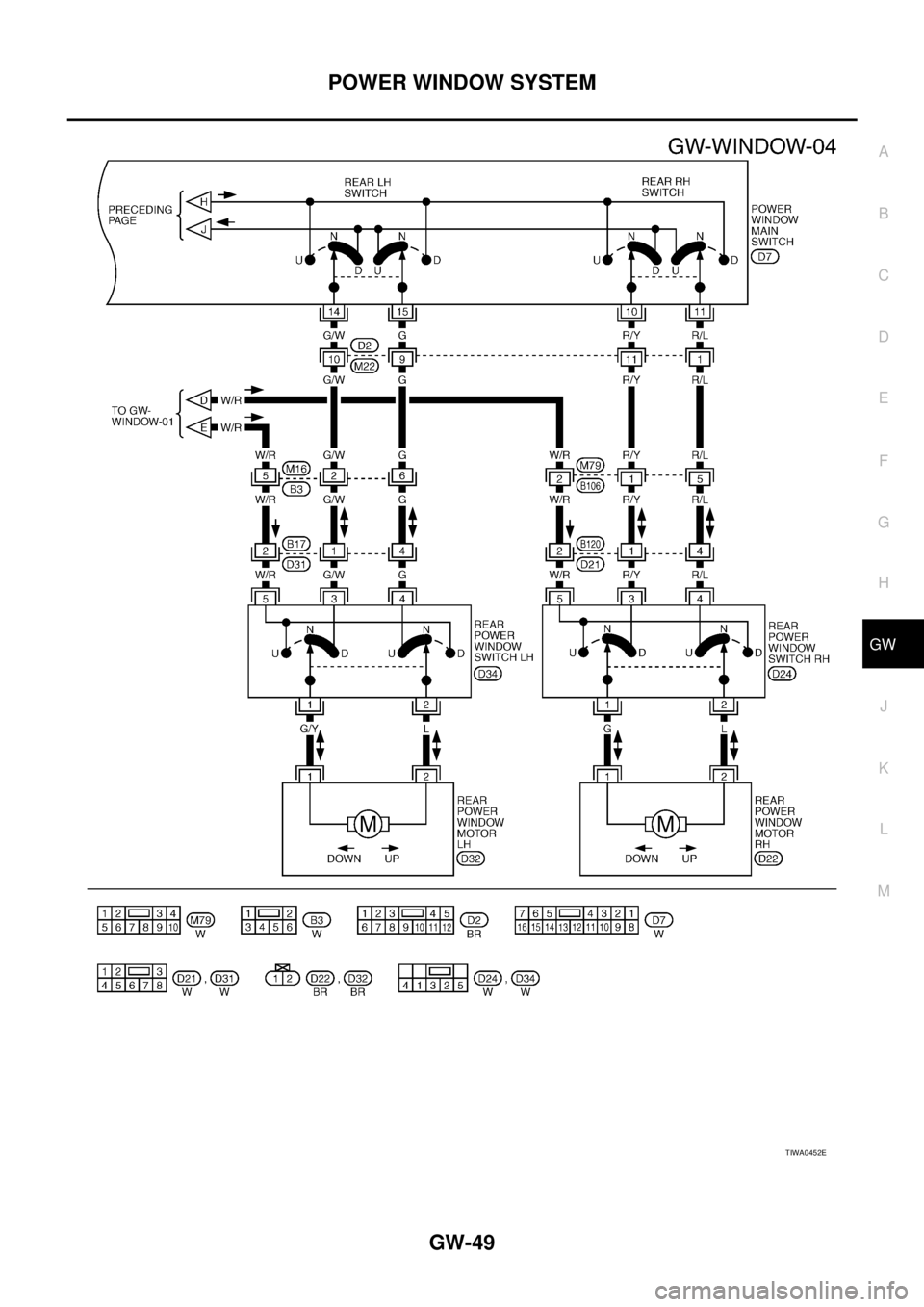

NISSAN X-TRAIL 2003 Service Repair Manual GW-54 POWER WINDOW SYSTEM TIWA0455E
