2003 NISSAN X-TRAIL Service Repair Manual

mirror controls wheel alignment refrigerant type buttons ground clearance rear view mirror

Page 401 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual INDEX FOR DTC
EC-23
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by ISO 15031-5.
*3: In Diagnostic Test Mode II (Self-diag

Page 402 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-24
[QR (WITH EURO-OBD)]
PRECAUTIONS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EBS010L0
The Supplemental Restraint S

EC-24
[QR (WITH EURO-OBD)]
PRECAUTIONS

PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
EBS010L0
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SRS and SB section of
this Service Manual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
On Board Diagnostic (OBD) System of Engine and A/TEBS010L1
The ECM has an on board diagnostic system. It will light up the malfunction indicator (MI) to warn the driver of
a malfunction causing emission deterioration.
CAUTION:
Be sure to turn the ignition switch OFF and disconnect the battery ground cable before any repair
or inspection work. The open/short circuit of related switches, sensors, solenoid valves, etc. will
cause the MI to light up.
Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MI to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
Certain systems and components, especially those related to OBD, may use a new style slide-
locking type harness connector. For description and how to disconnect, refer to PG-70, "
HAR-
NESS CONNECTOR" .
Be sure to route and secure the harnesses properly after work. The interference of the harness
with a bracket, etc. may cause the MI to light up due to the short circuit.
Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MI to light up due to the malfunction of the fuel injection system, etc.
Be sure to erase the unnecessary malfunction information (repairs completed) from the ECM and
TCM (Transmission control module) before returning the vehicle to the customer.
PrecautionEBS010L2
Always use a 12 volt battery as power source.
Do not attempt to disconnect battery cables while engine is
running.
Before connecting or disconnecting the ECM harness con-
nector, turn ignition switch OFF and disconnect battery
ground cable. Failure to do so may damage the ECM
because battery voltage is applied to ECM even if ignition
switch is turned OFF.
Before removing parts, turn ignition switch OFF and then
disconnect battery ground cable.
SEF289H

Page 403 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PRECAUTIONS
EC-25
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

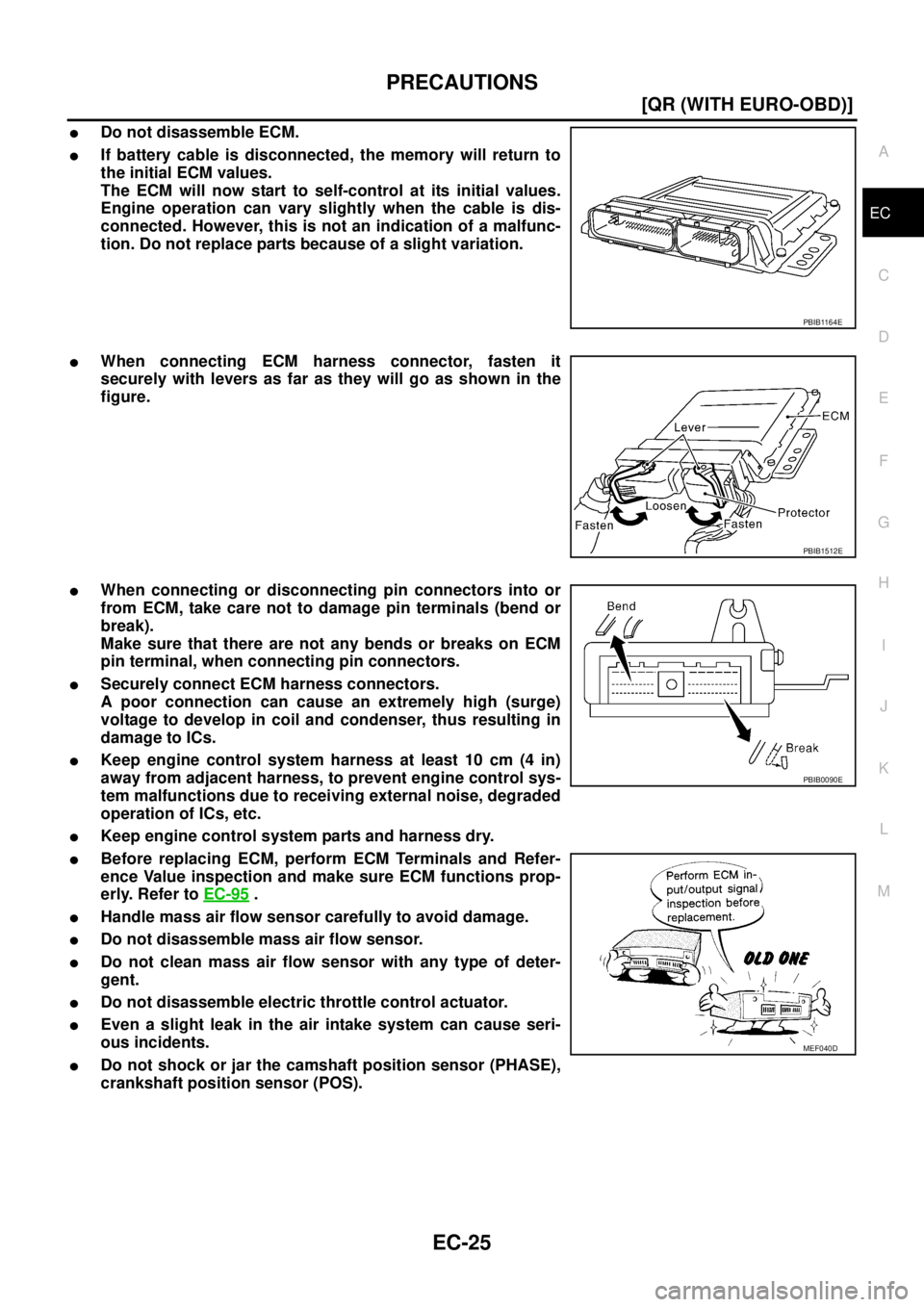

Do not disassemble ECM.
If battery cable is disconnected, the memory will return to
the initial ECM values.
The ECM will now start

Page 404 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-26
[QR (WITH EURO-OBD)]
PRECAUTIONS

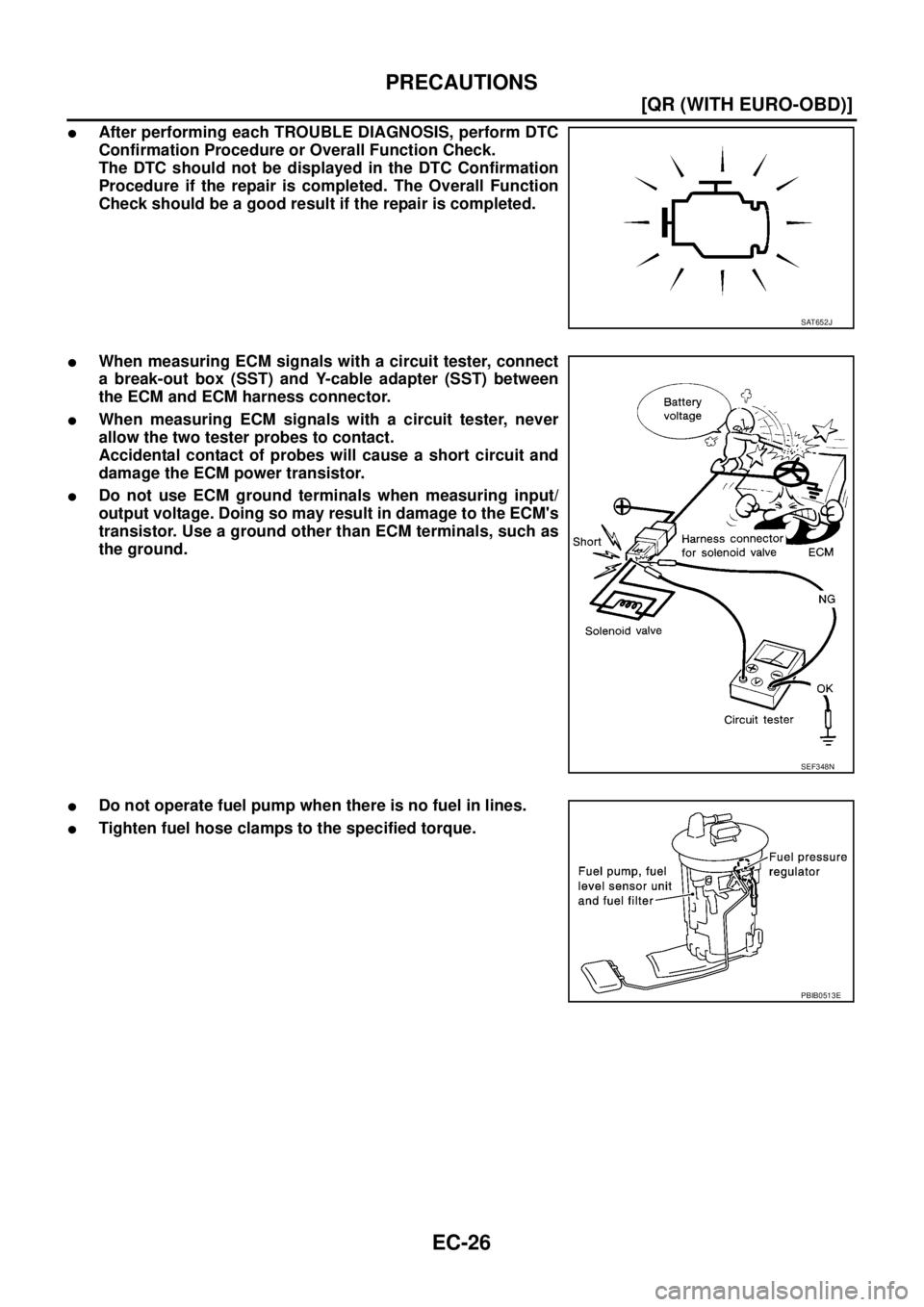

After performing each TROUBLE DIAGNOSIS, perform DTC
Confirmation Procedure or Overall Function Check.
The DTC should not be displayed in the DTC Confirmation

Page 405 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PRECAUTIONS
EC-27
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

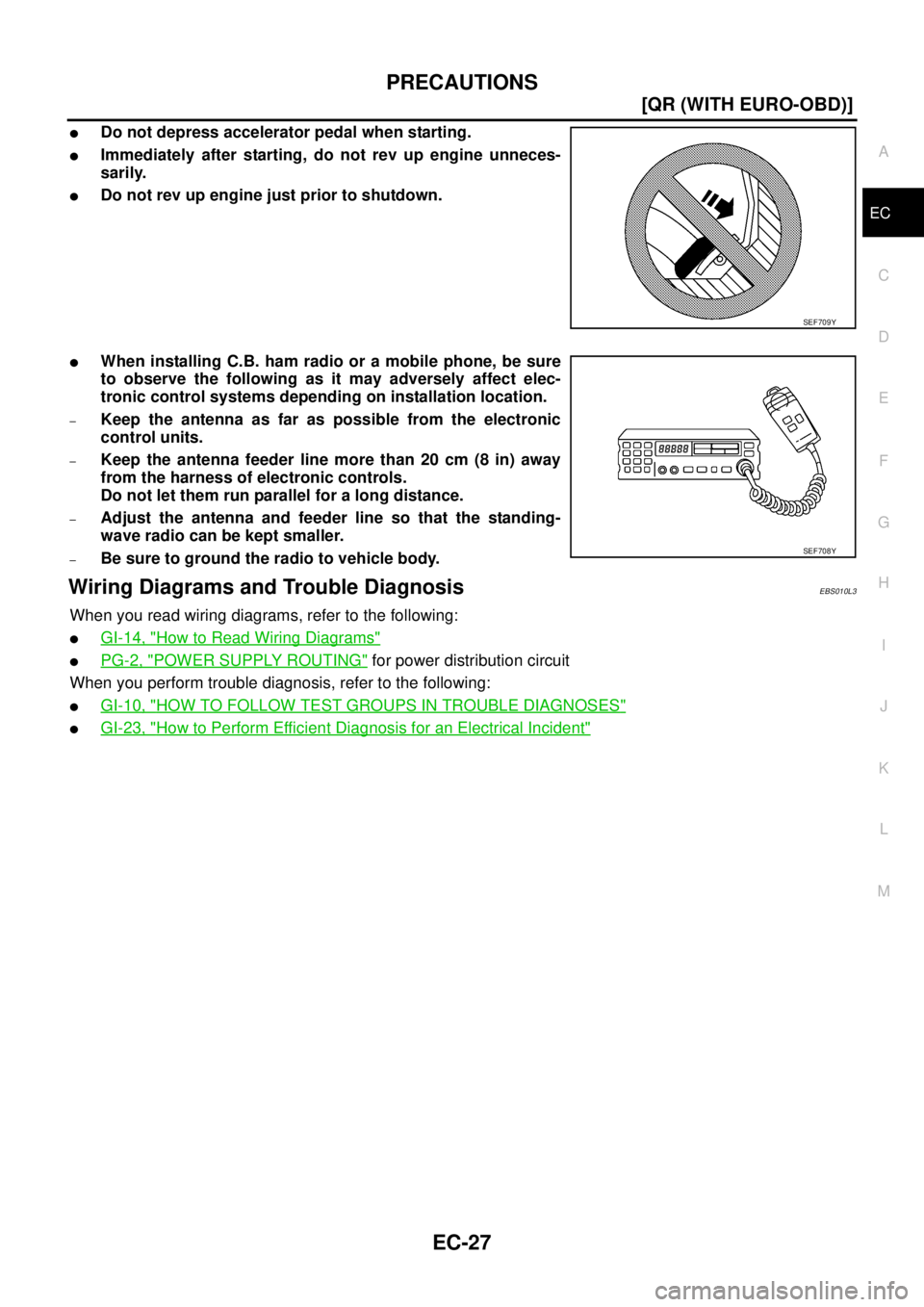

Do not depress accelerator pedal when starting.
Immediately after starting, do not rev up engine unneces-
sarily.
Do not rev up en

Page 406 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-28
[QR (WITH EURO-OBD)]
PREPARATION

PREPARATIONPFP:00002
Special Service ToolsEBS010L4
Tool number
Tool nameDescription
KV10117100
Heated oxygen
sensor wrenchLoosening or tightening heated oxyge

Page 407 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual PREPARATION
EC-29
[QR (WITH EURO-OBD)]
C
D
E
F
G
H
I
J
K
L
MA
EC

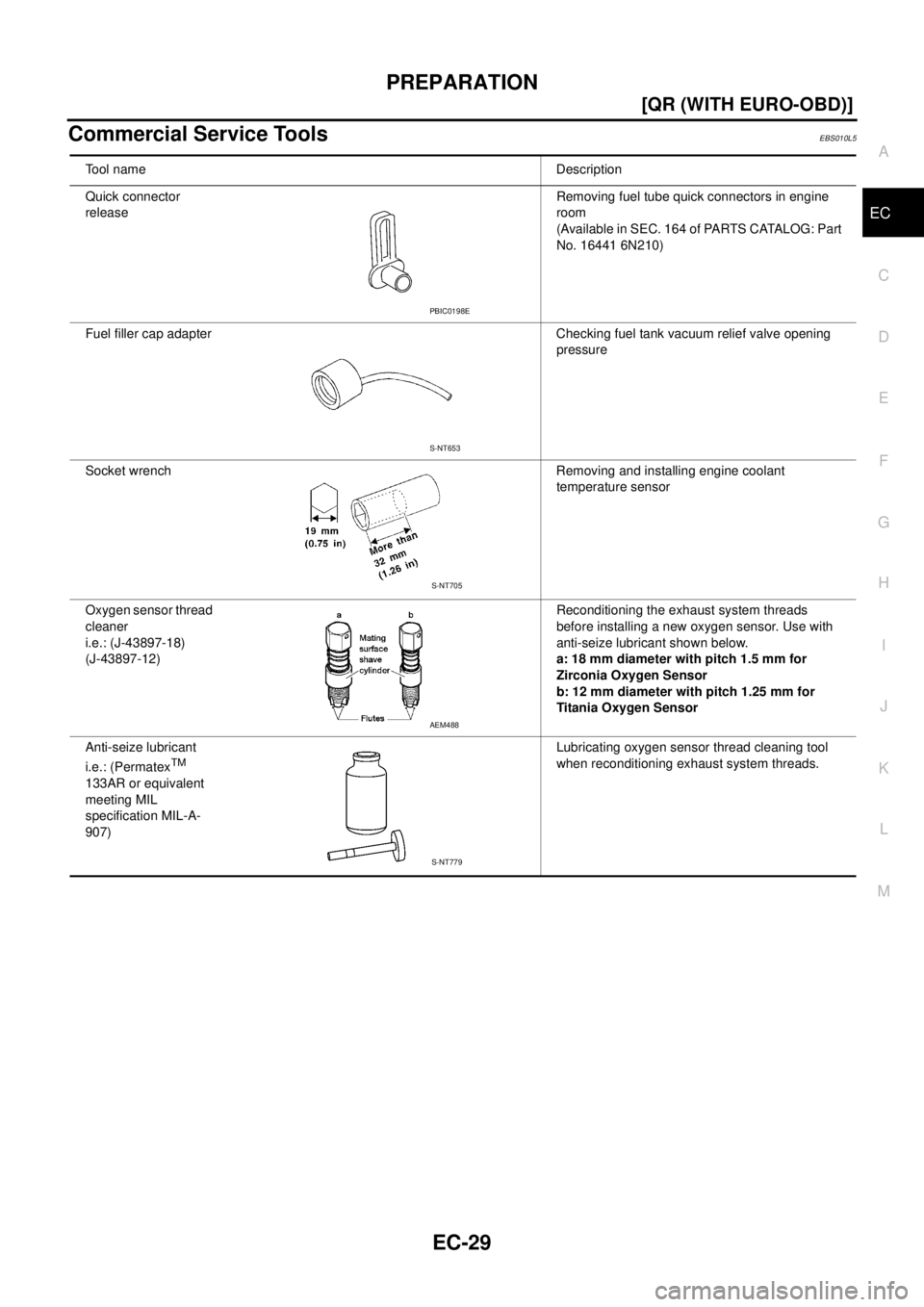

Commercial Service ToolsEBS010L5
Tool name Description
Quick connector
releaseRemoving fuel tube quick connectors in engine
room
(A

Page 408 of 4179

NISSAN X-TRAIL 2003 Service Repair Manual EC-30
[QR (WITH EURO-OBD)]
ENGINE CONTROL SYSTEM

ENGINE CONTROL SYSTEMPFP:23710

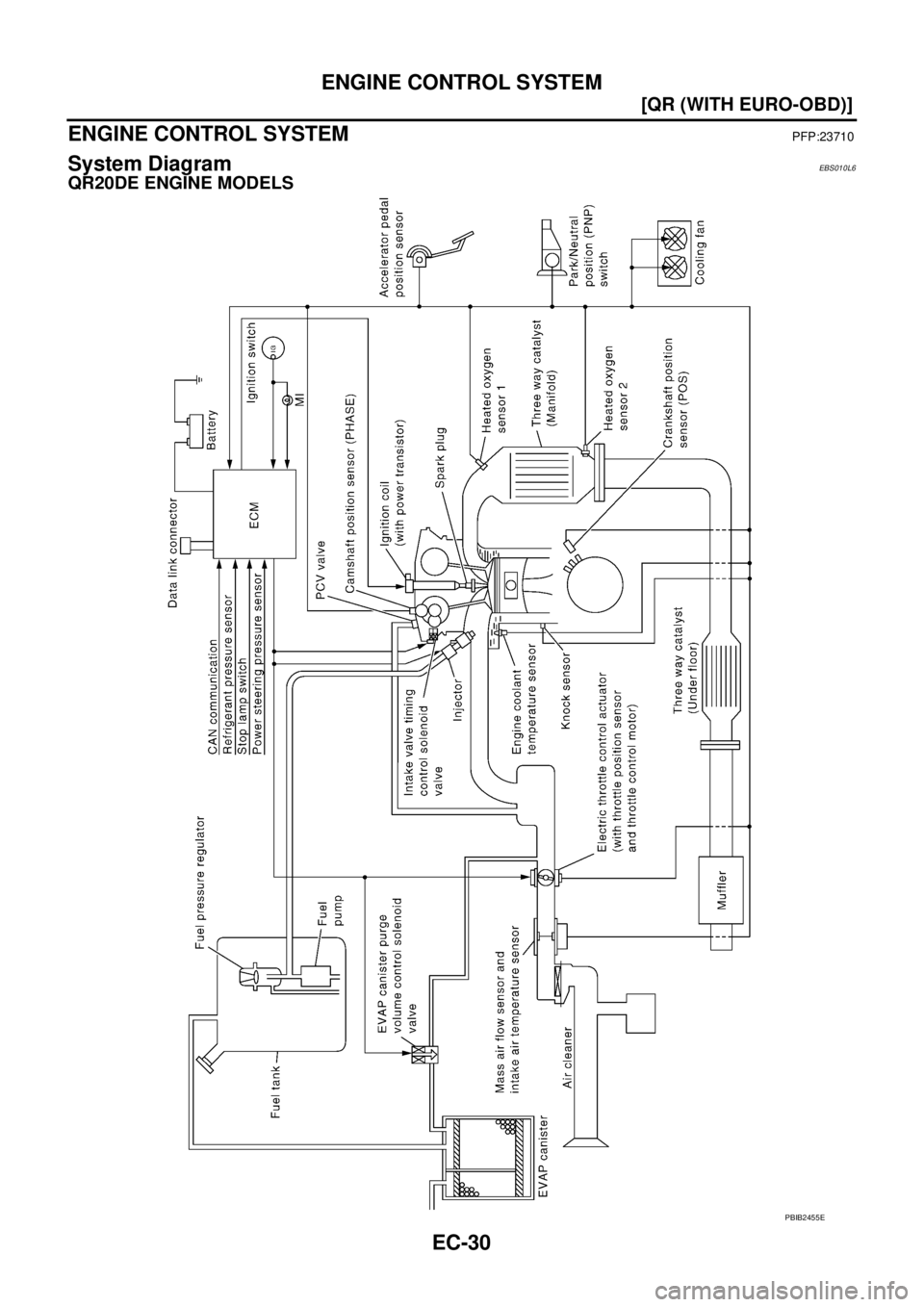

System DiagramEBS010L6
QR20DE ENGINE MODELS
PBIB2455E
